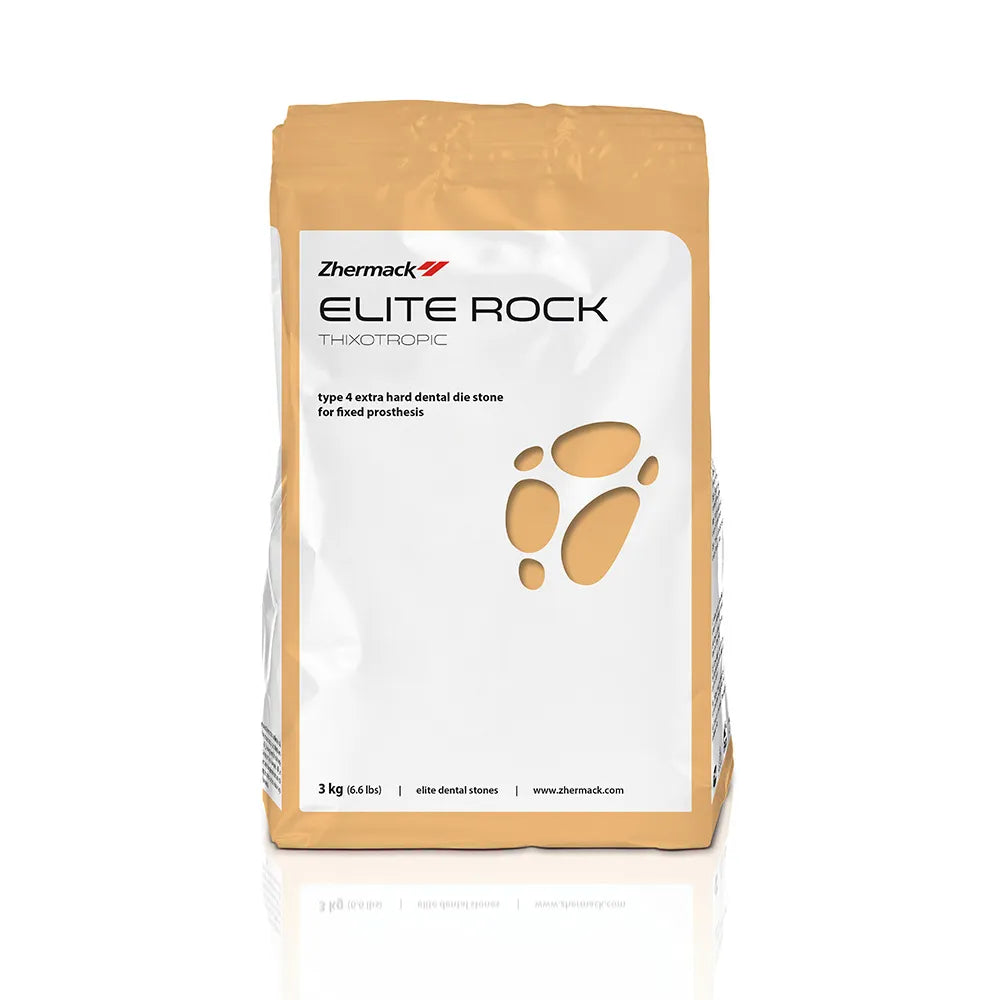

Zhermack Elite Rock (C410010)

Water/Powder Ratio: 20ml/100g

• MixingTime (manual): 0:30 sec
• Mixing Time (vacuum): 0:30 sec
• Working Time: 12:00 min
• Setting Time (VICAT): 14:00 min
• Removal Time: 45:00 min
• Setting Expansion 2 Hours: 0.08%
• Setting Expansion 48 Hours: 0.19%
• Compressive Strenght 1 Hour: 52 MPa (530 kg/cm²)
• Compressive Strenght 48 Hours: 81 MPa (826 kg/cm²)

• Preparation: Ensure all equipment and materials are clean and dry. Use deionized or distilled water at room temperature (23°C or 73°F) to achieve optimal results.

• Mixing Ratio: Measure 20 ml of water for every 100 g of Elite Rock powder. Maintaining this precise water-to-powder ratio is crucial for achieving the desired material properties.

• Manual Mixing: Combine the measured water and powder, then mix vigorously for 1 minute to obtain a homogeneous, creamy consistency. Alternatively, for vacuum mixing, mix for 30 seconds to reduce air entrapment and enhance the stone's strength.

• Working Time: After mixing, you have approximately 12 minutes to pour the mixture into the impression. During this period, carefully fill the impression to avoid air bubbles, ensuring accurate reproduction of details.

• Setting Time: Elite Rock begins to set around 14 minutes after mixing. It's advisable to avoid moving or disturbing the filled impression during this initial setting phase to prevent distortions.

• Model Removal: Allow the stone to set undisturbed for at least 45 minutes before separating the model from the impression. Premature removal can compromise the model's integrity and accuracy.

• Final Properties: Elite Rock achieves optimal compressive strength of 81 MPa (826 kg/cm²) after 48 hours, with minimal setting expansion of 0.08% after 2 hours, ensuring precise and durable models.

• Biocompatible
• Simplified mixing & balanced thixotropy for easier model production
• High compressive strength
• Reduced abrasion & higher precision of the model
• The silver-grey color is optimized for detection by modern laser & optical scanners
• Low expansion, even after 48 hrs
