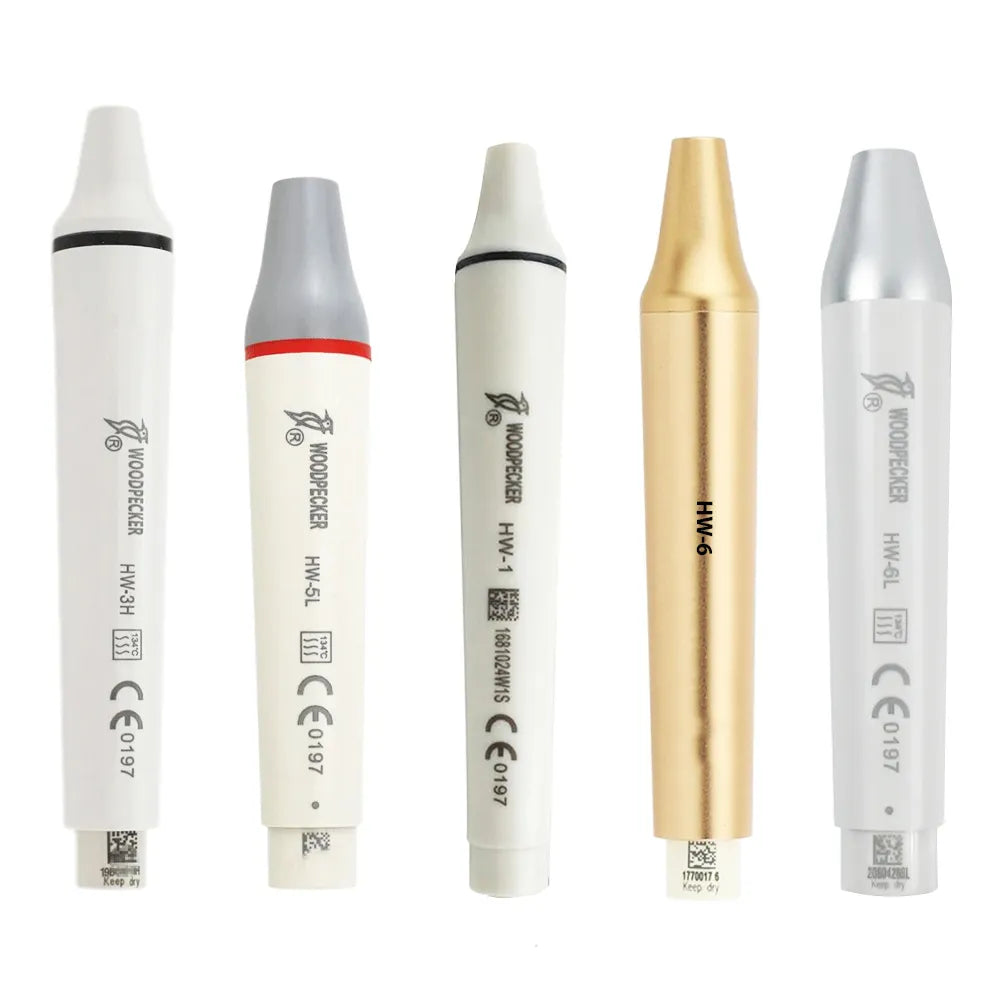

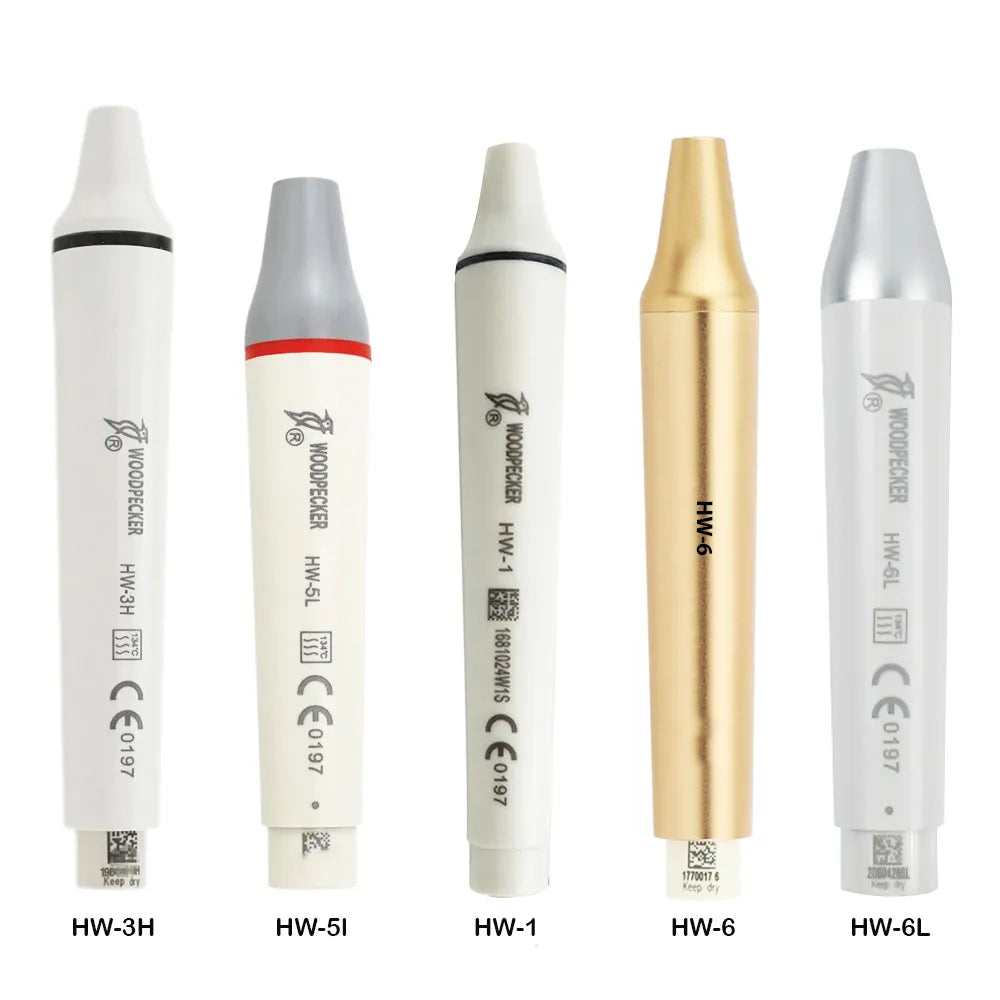

Woodpecker Ultrasonic Scaler Handpiece - HW

• Power Source Input: ~190V-230V
• Output Primary Tip Vibration Excursion: 1μm~100μm
• Output Tip Vibration Frequency: 28kHz±3kHz
• Output Half-Excursion Force: 0.1N~2N
• Tip's Output Power: 3W~20W
• Water Pressure: 0.01MPa~0.5MPa
• Environmental Temperature: +5°C~+40°C
• Relative Humidity: 30%~75%
• Atmospheric Pressure: 70kPa~106kPa
• Autoclavable: Yes, suitable for sterilization

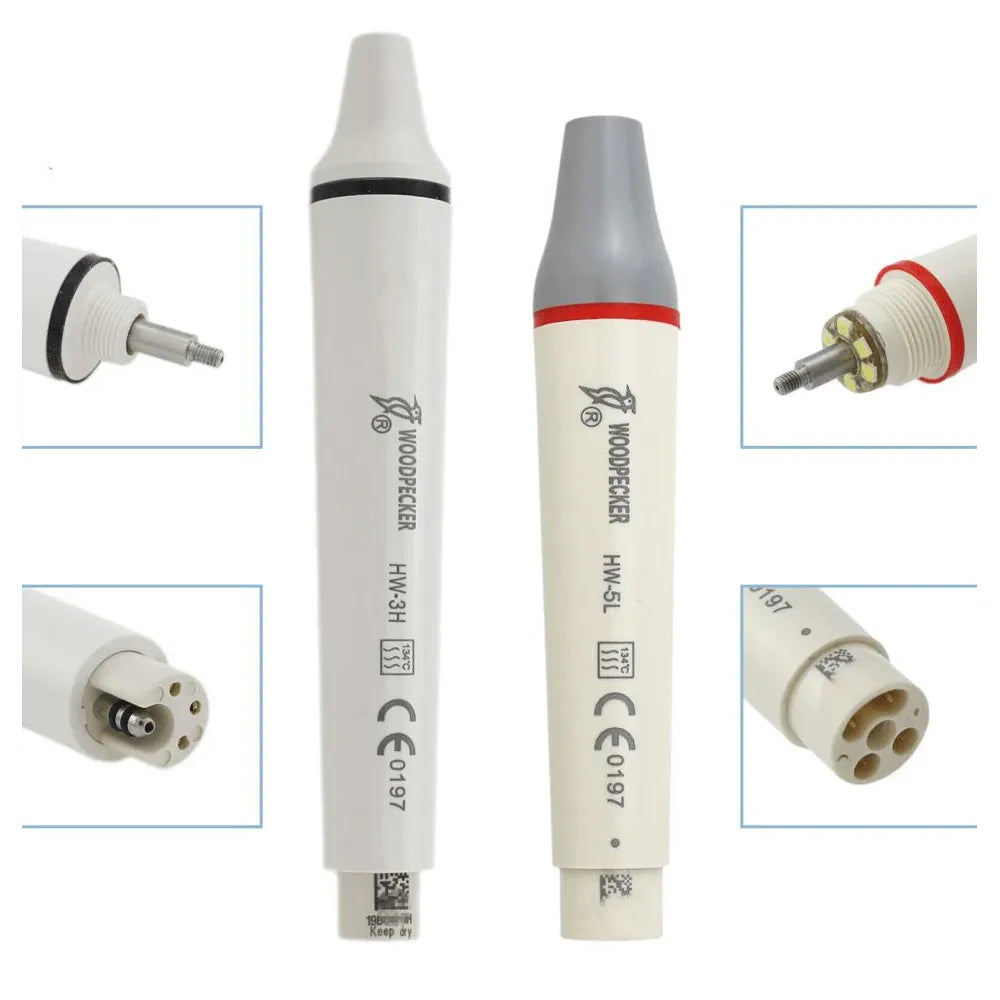

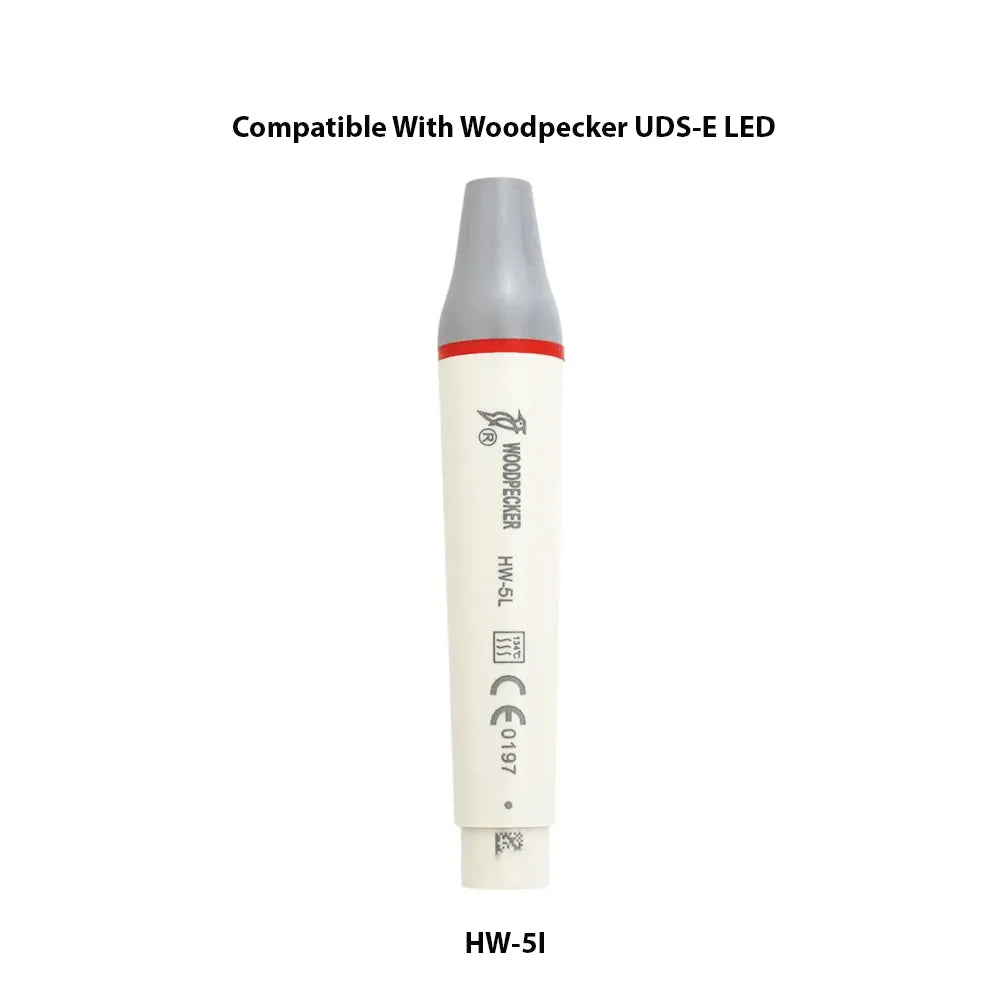

Hw-5l Optic Scaler Handpiece:

• Type: Detachable handpiece with LED light for improved visibility
• Compatibility: Woodpecker UDS-E LED
• Length: 105 mm
• Diameter: 18.9 mm
• Weight: Approximately 45g

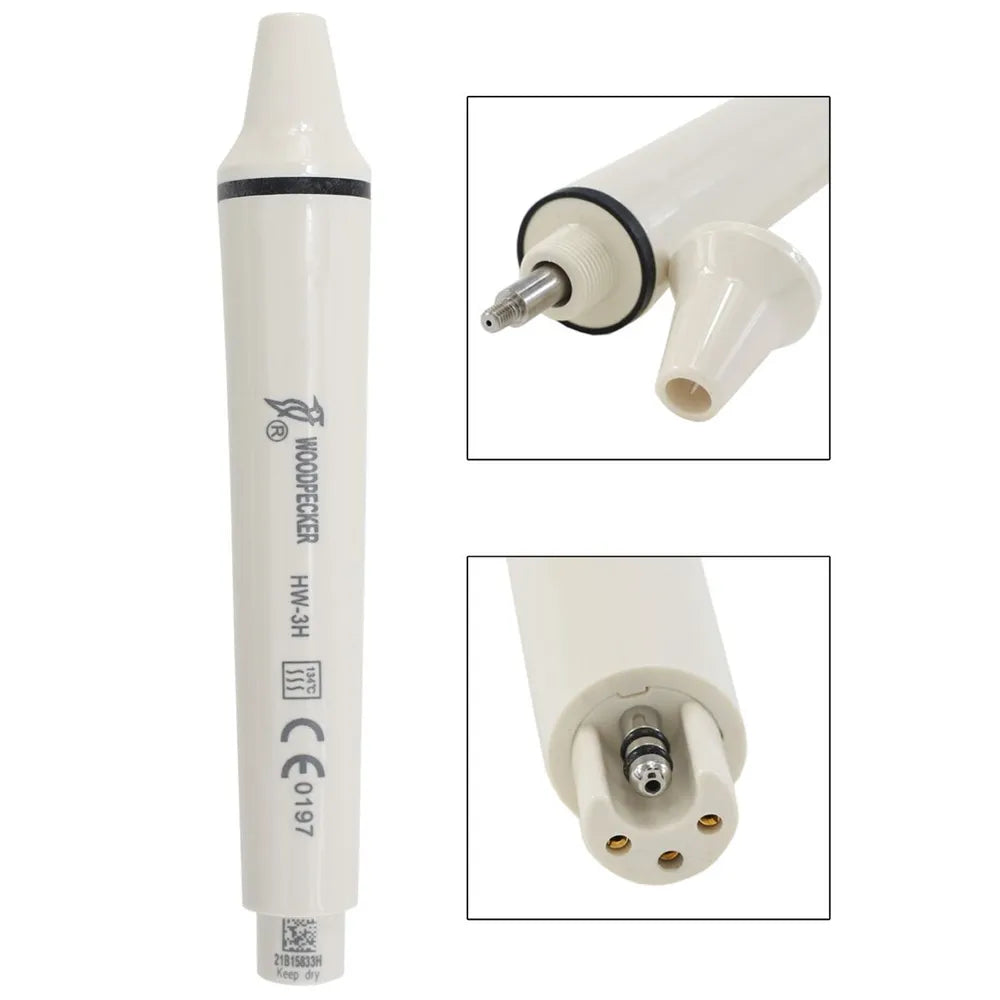

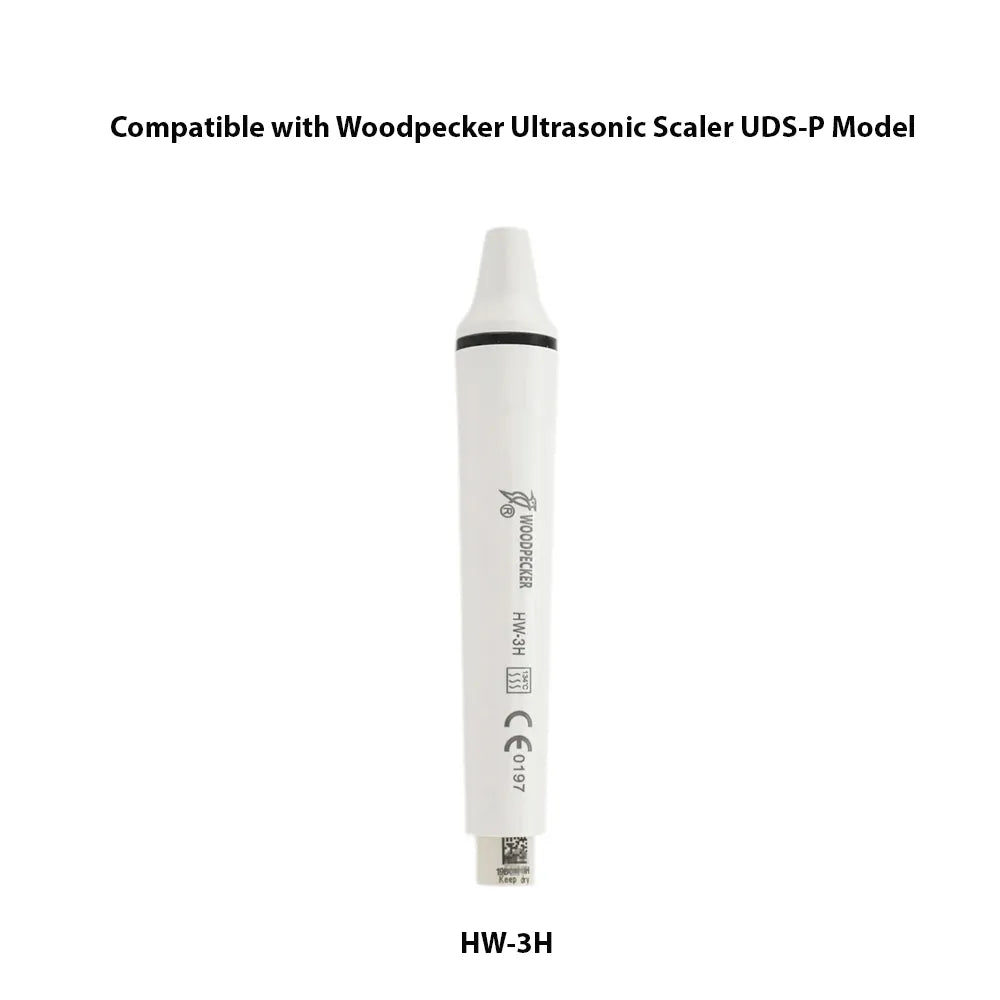

HW-3H Scaler Handpiece

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Compatible with Woodpecker Ultrasonic scaler UDS-P Model
• Length: 117 mm
• Diameter: 18 mm
• Weight: 47 g

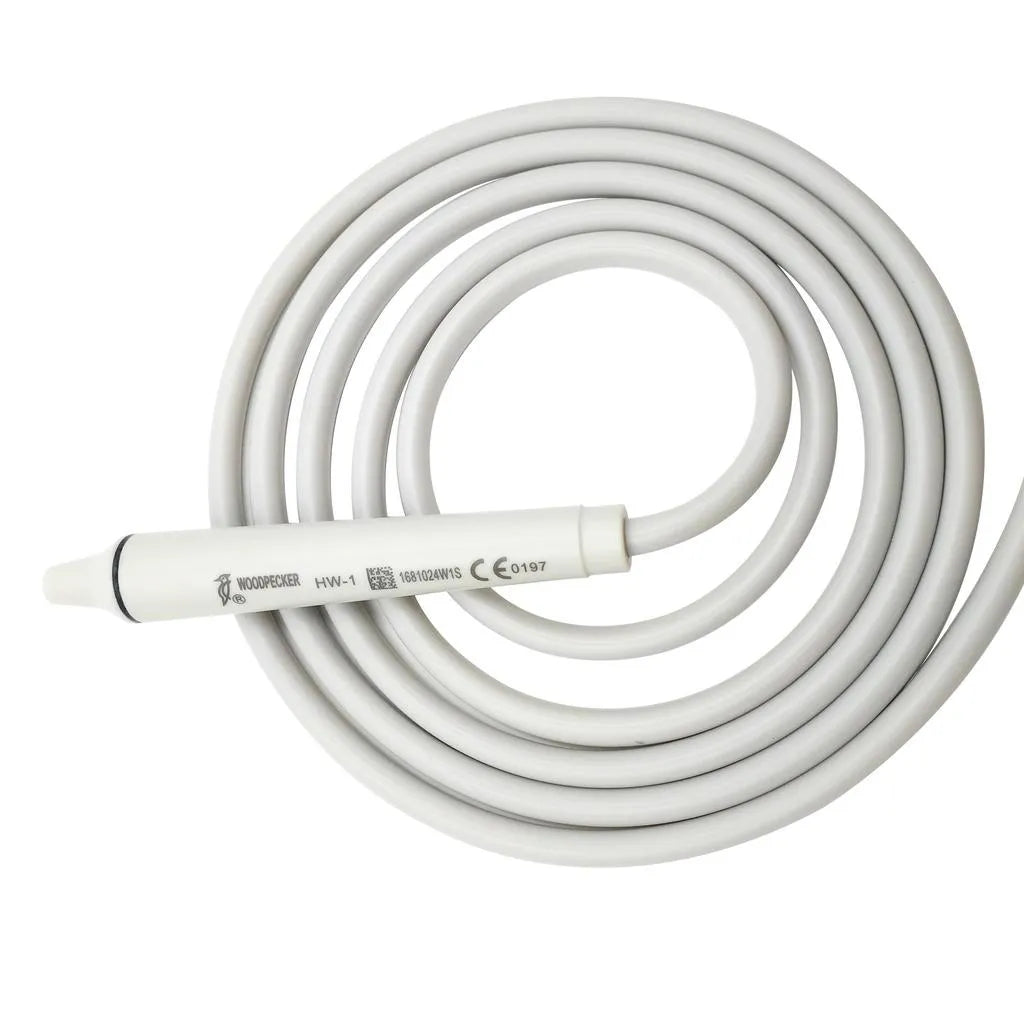

HW-1 Scaler Handpiece

• Type: Non-detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker UDS-J ultrasonic scaler
• Length: 113 mm
• Diameter: 18 mm
• Weight: 116 g

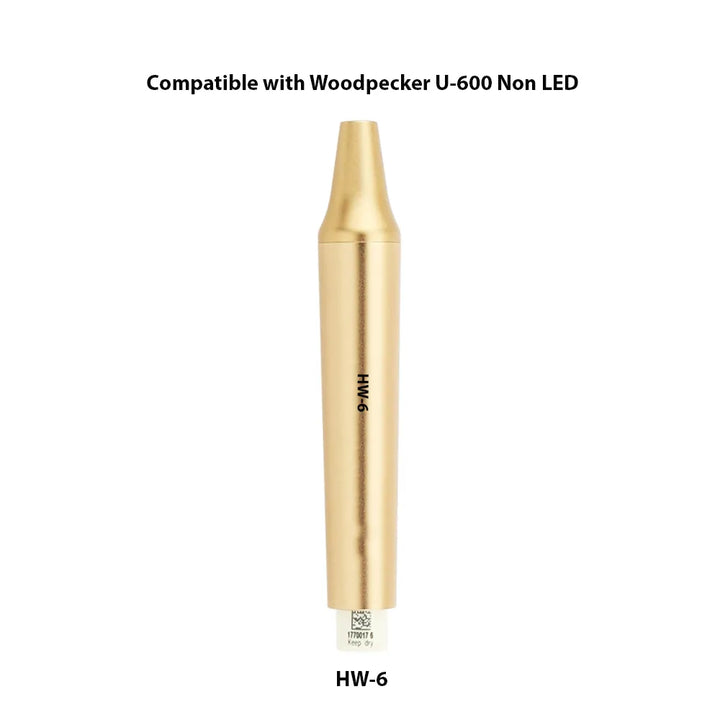

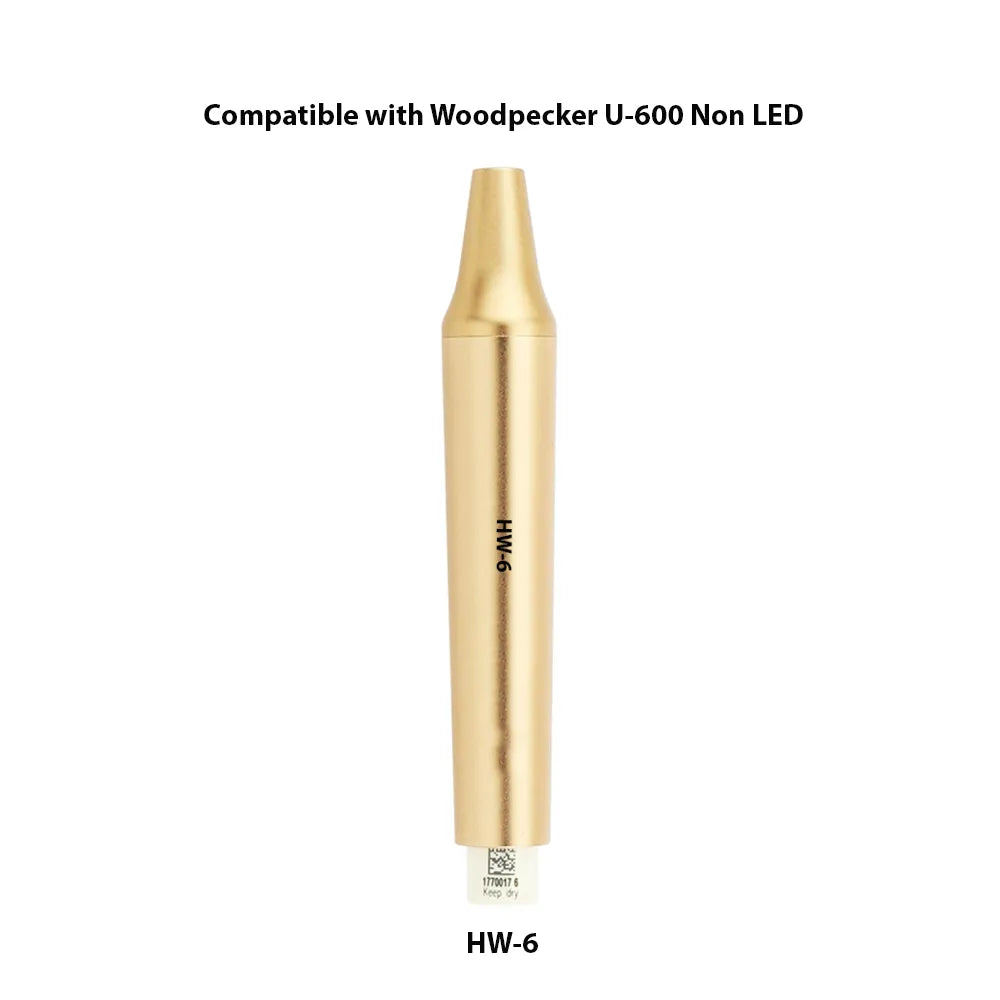

HW-6 Scaler Handpiece

• Type: Detachable ultrasonic scaler handpiece
• Material: Made of durable titanium for enhanced longevity
• Design: Features a 3-point crescent base for stability
• Compatibility: Compatible with Woodpecker U-600 Non LED
• Length: 112 mm
• Diameter: 17.5 mm
• Weight: 52g

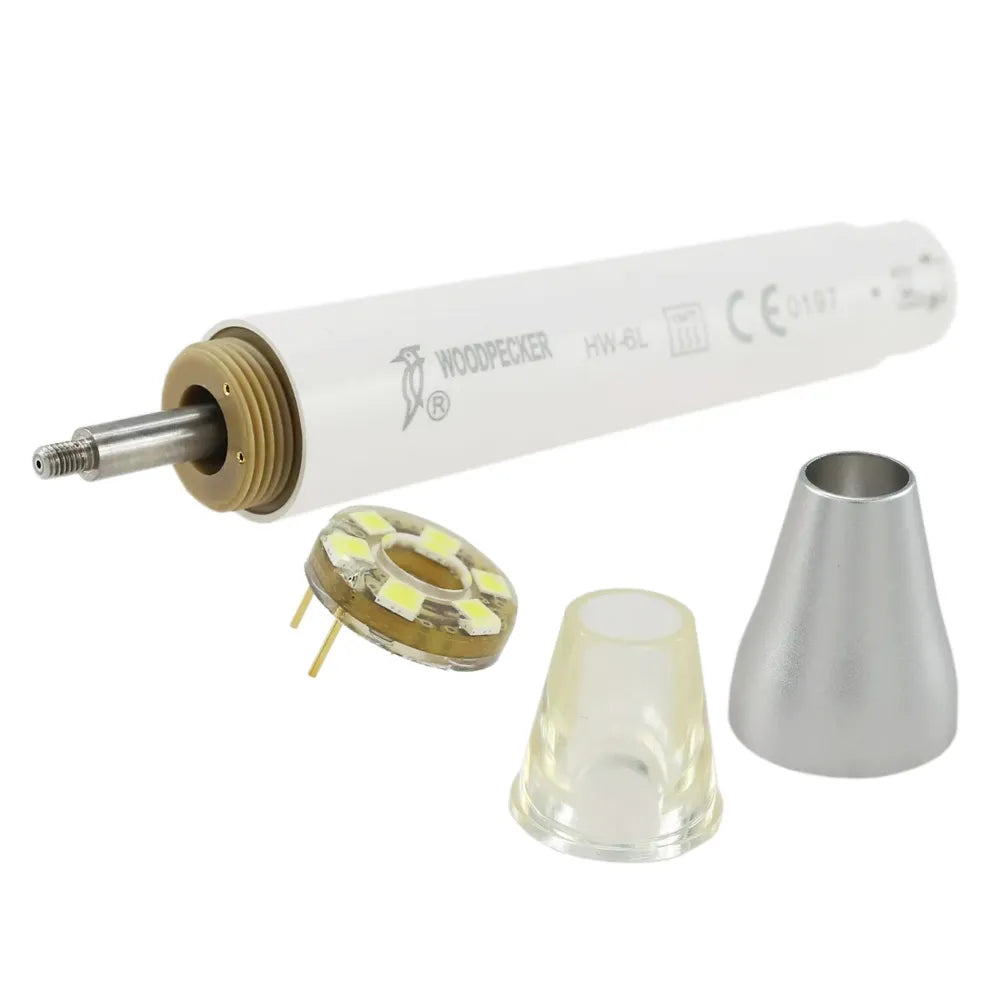

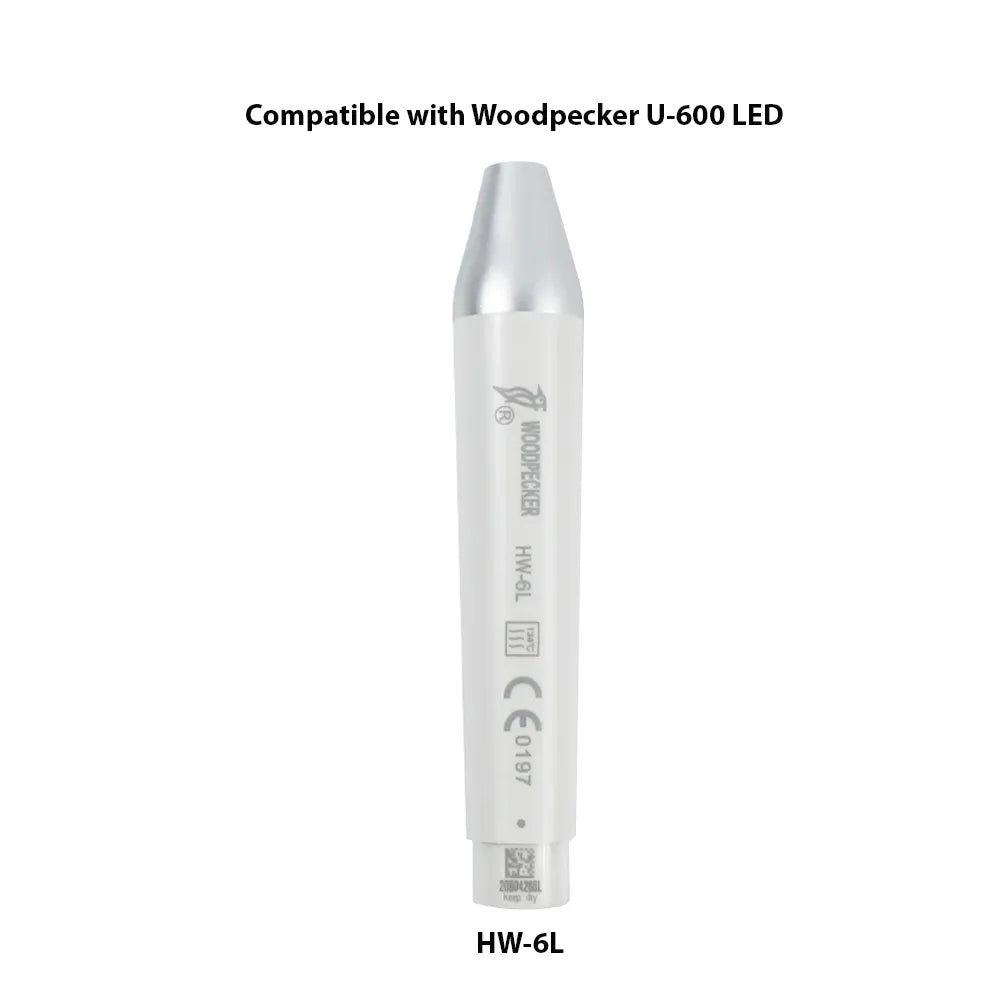

HW-6L Scaler Handpiece

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Compatible with Woodpecker U-600 LED
• Weight: 44g
• Length: 101mm
• Diameter: 18mm

• Prepare the Handpiece: Ensure that the handpiece is clean and in good working condition before starting.
• Attach the Scaling Tip: Select the appropriate scaling tip for the procedure. Align the tip with the handpiece’s threaded connection. Gently screw the tip clockwise until it is securely attached. Avoid overtightening to prevent damage.
• Connect to the Power Source: Plug the handpiece into the compatible Woodpecker scaler unit, ensuring a secure connection.
• Adjust Settings: Set the power and water flow levels according to the patient’s needs and the procedure type. For the HW-5L Optic model, ensure the LED light is functioning properly.
• Activate the Handpiece: Press the foot pedal to activate the handpiece. Begin scaling by using smooth, gentle motions to remove plaque, tartar, or calculus from the teeth.

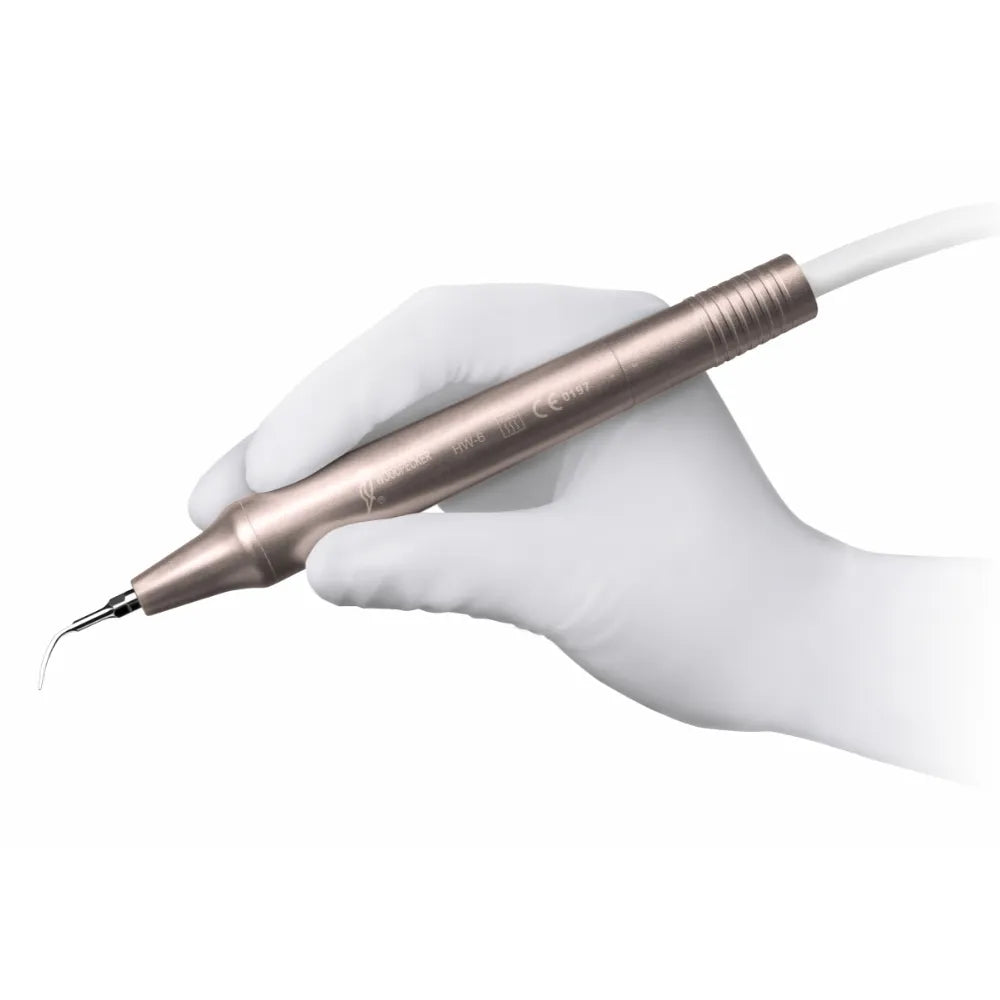

• Maintain Proper Technique: Hold the handpiece with a firm, yet relaxed grip. Keep the scaling tip angled correctly against the tooth surface to avoid damaging the enamel or surrounding tissues.
• Rinse and Suction: Continuously use water spray to cool the tip and rinse debris. Utilize suction to keep the working area clear.
• Detach and Clean: After the procedure, carefully unscrew and remove the scaling tip.Clean the handpiece and tip thoroughly to remove any debris or residue.
• Sterilize: Sterilize the handpiece and tips according to the g

• Autoclavable: The handpieces are autoclavable, making them suitable for sterilization in autoclaves, which is crucial for infection control
• Lightweight and Ergonomic: The lightweight design of the handpieces promotes comfort and ease of handling during extended procedures
• Piezoelectric Technology: All models utilize advanced piezoelectric technology to convert electrical energy into mechanical vibrations, effectively removing calculus and plaque from teeth
• Low Noise Operation: The handpieces are designed to operate quietly, minimizing discomfort for patients and creating a more pleasant working environment for dental professionals
• Vibration Control: Advanced vibration control technology allows for smooth operation, reducing hand fatigue and improving precision during scaling procedures
• Versatile Application: Suitable for various dental procedures, including scaling, root planing, and periodontal treatments, making them versatile tools in any dental practice
