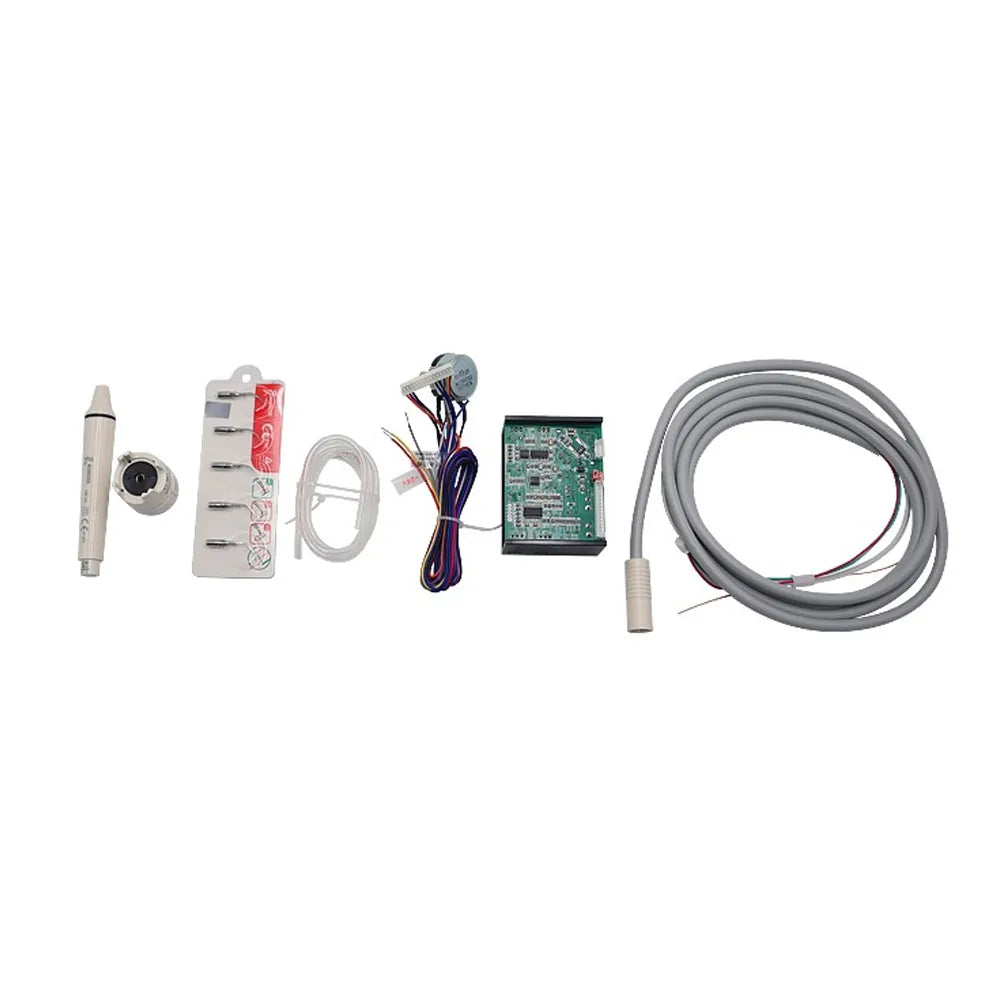

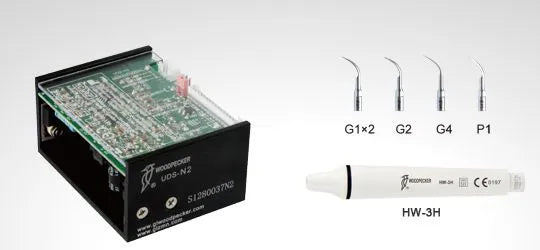

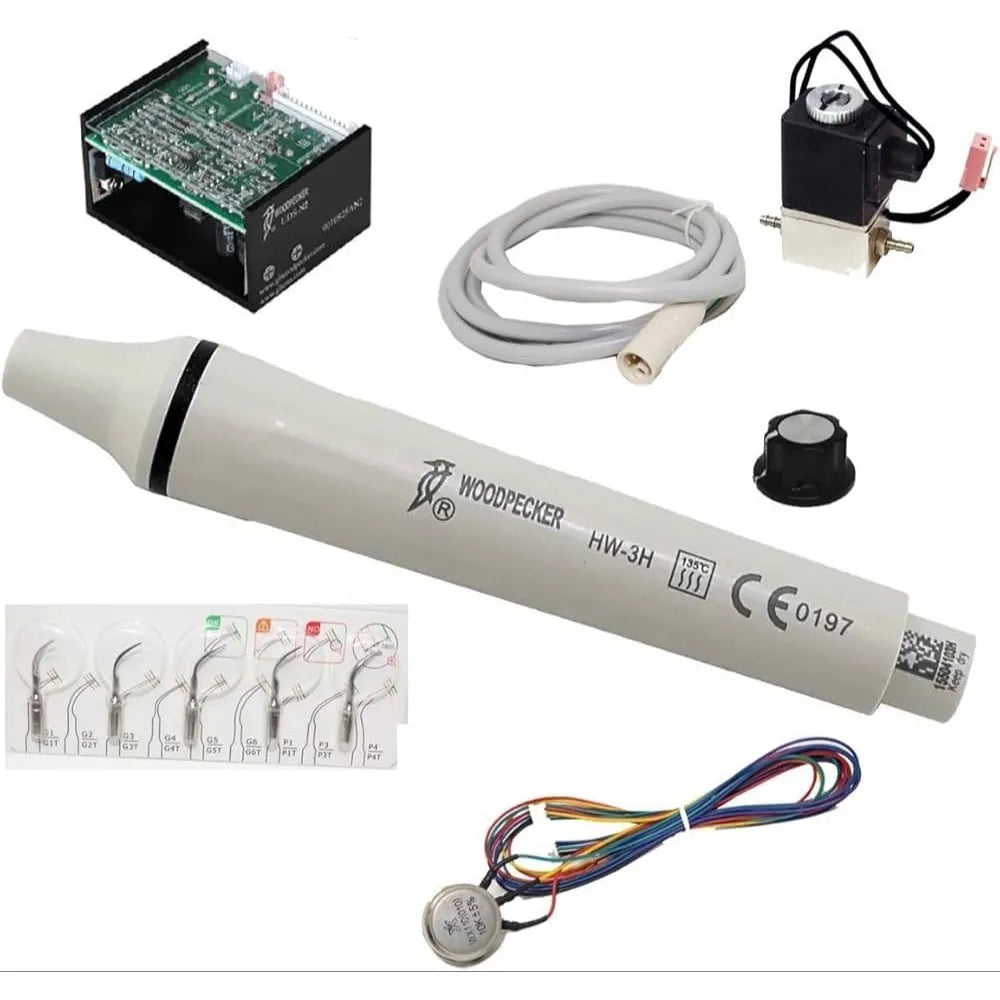

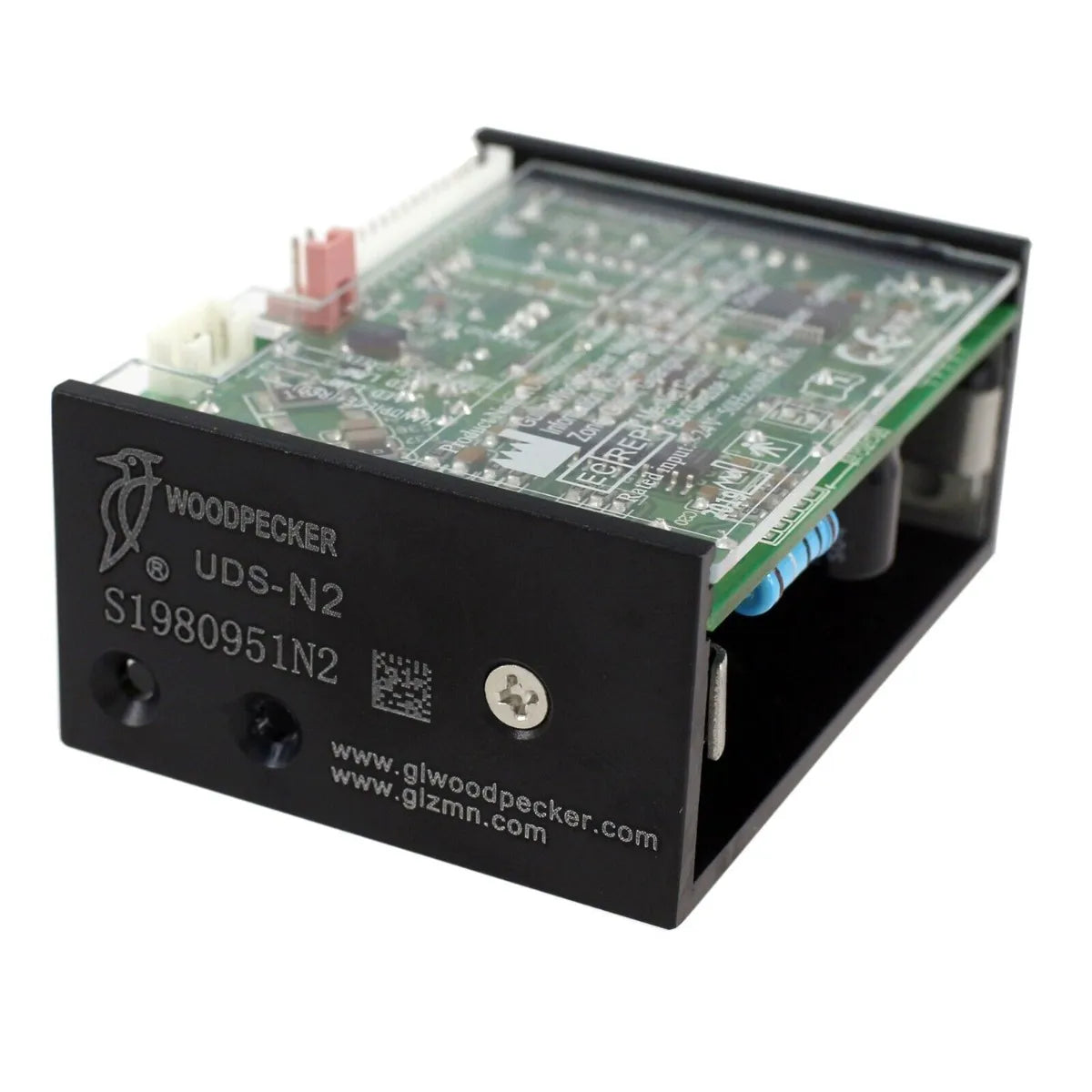

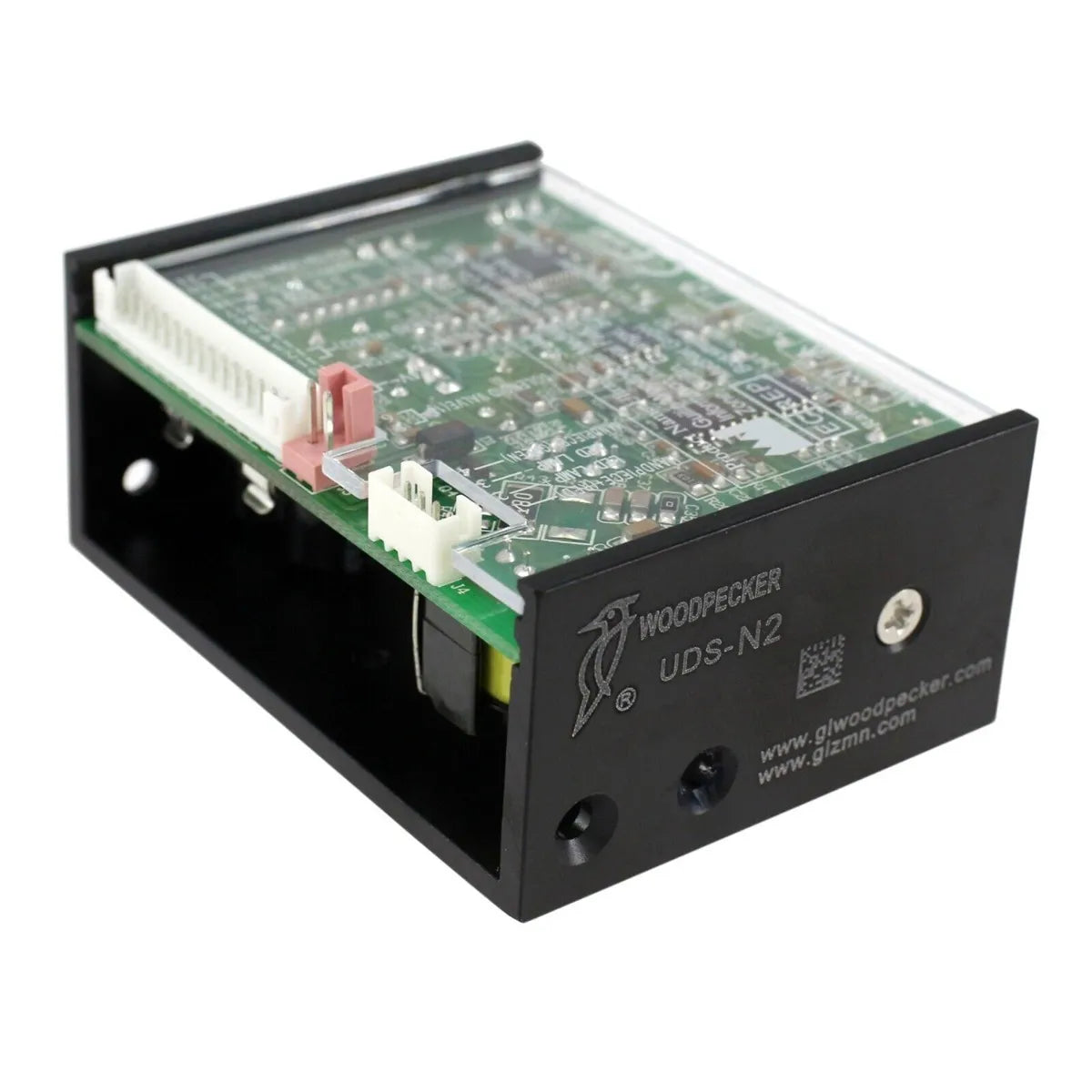

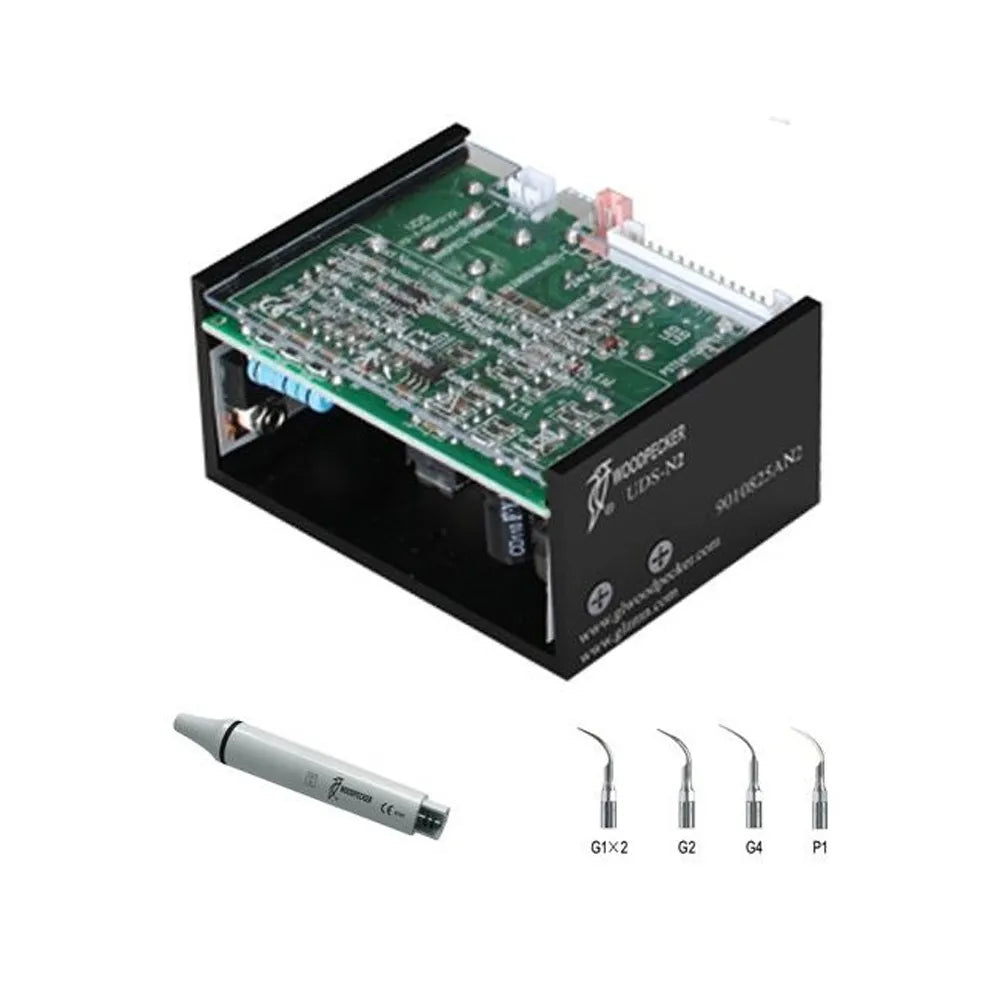

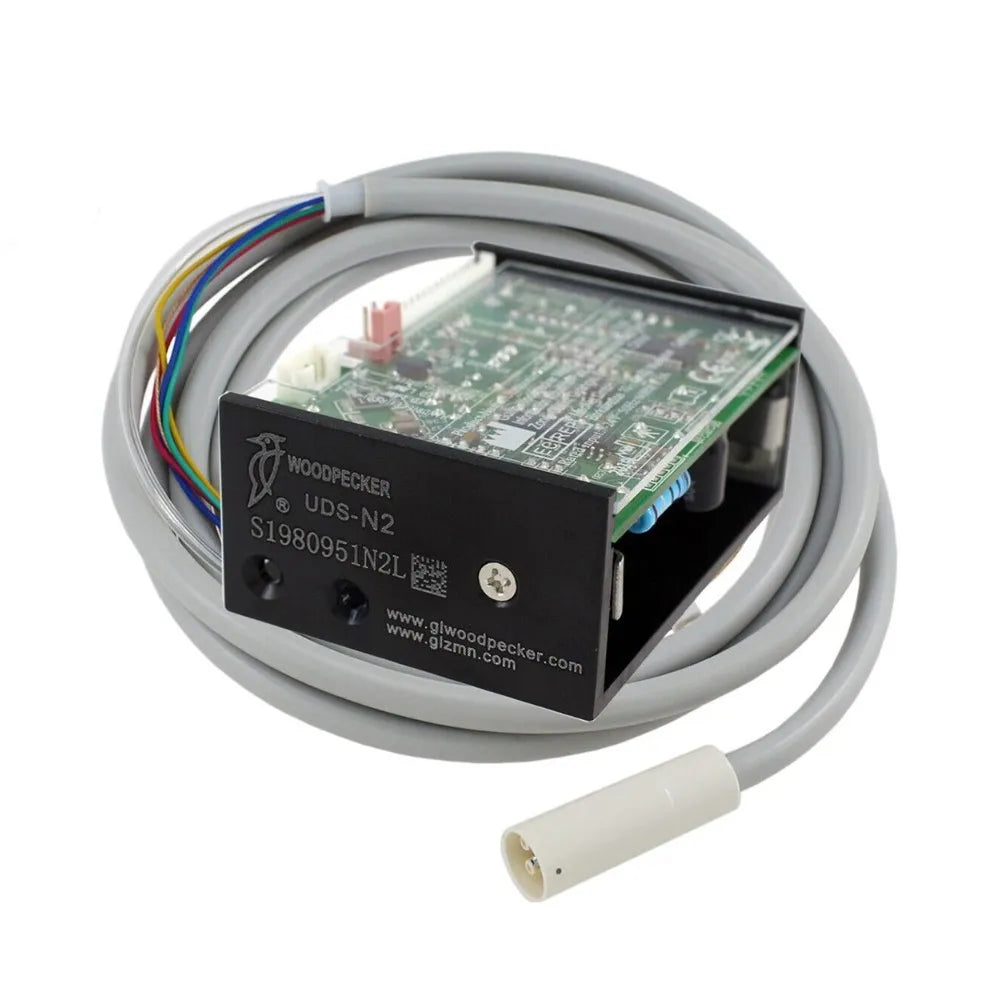

Woodpecker Uds-N2 Piezo Ultrasonic Scaler With Tips

• Power input: With transformer - 220-240V~ 50Hz/60Hz 150mA, Without transformer - 24V~ 50Hz/60Hz 1.3A
• Output primary tip Vibration excursion: <100pm
• Output half-excursion force: <2N
• Output tip Vibration frequency: 28kHz+3kHz
• Output power: 3W to 20W
• Water pressure: 0.01MPa to 0.5MPa
• Weight of the main unit: 0.2kg
• Operating mode: Continuous operation
• Type of protection against electric shock: Class II

The working conditions for the equipment are as follows:

• Environment temperature: +5°C to +40°C
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa to 106kPa
• Water inlet temperature: not higher than +25°C

Preparation:

• Ensure the device is connected to the appropriate power supply: 220-240V~ 50Hz/60Hz with 150mA using a transformer, or 24V~ 50Hz/60Hz drawing 1.3A without a transformer.
• Attach the desired non-led tip securely to the handpiece.
• Connect the water supply to the device, ensuring the water inlet temperature is not higher than +25°C.

Environmental Conditions:

• Before use, check the operating environment temperature, which should be within the range of +5°C to +40°C.
• Ensure the relative humidity falls between 30% to 75%.
• Confirm the atmospheric pressure is between 70kPa to 106kPa.

Safety Precautions:

• As this device is classified as Class II protection against electric shock, ensure that all safety guidelines are followed to prevent any electrical hazards.
• Only qualified dental professionals should operate the device.
• Prior to use, inspect the handpiece and cables for any damage or wear. Do not use if any issues are found.

Treatment Procedure:

• Gently place the non-led tip on the tooth surface to be treated. Avoid exerting excessive pressure to prevent patient discomfort.
• Power on the device and set the desired power output level, typically ranging from 3W to 20W, according to the specific treatment requirements.
• The device will produce ultrasonic vibrations at a frequency of 28kHz+3kHz to effectively remove dental plaque, calculus, and stains.
• Utilize the water spray function to cool the treatment area, reduce discomfort, and flush away debris and bacteria for a hygienic cleaning process.
• Operate the UDS-N2 in continuous mode during the treatment for seamless and uninterrupted scaling.

Post-Treatment Care:

• After the procedure, power off the device and disconnect it from the power supply.
• Thoroughly clean and sterilize the handpiece and non-led tips according to the manufacturer's instructions to maintain optimal hygiene standards.
• Store the device and accessories in a clean and dry environment, ensuring they are protected from physical damage.

Maintenance and Cleaning:

• Regularly inspect the device for any signs of wear or malfunction. If any issues are found, seek professional maintenance or repair services.
• Clean the external surfaces of the device with a soft, damp cloth to remove any dirt or residue.
• Avoid using harsh chemicals or abrasive materials during cleaning, as they may damage the device.

• Water spray function for cooling and debris removal
• Lightweight (0.2kg) and ergonomic design
• Continuous operation mode
• Class II protection against electric shock
