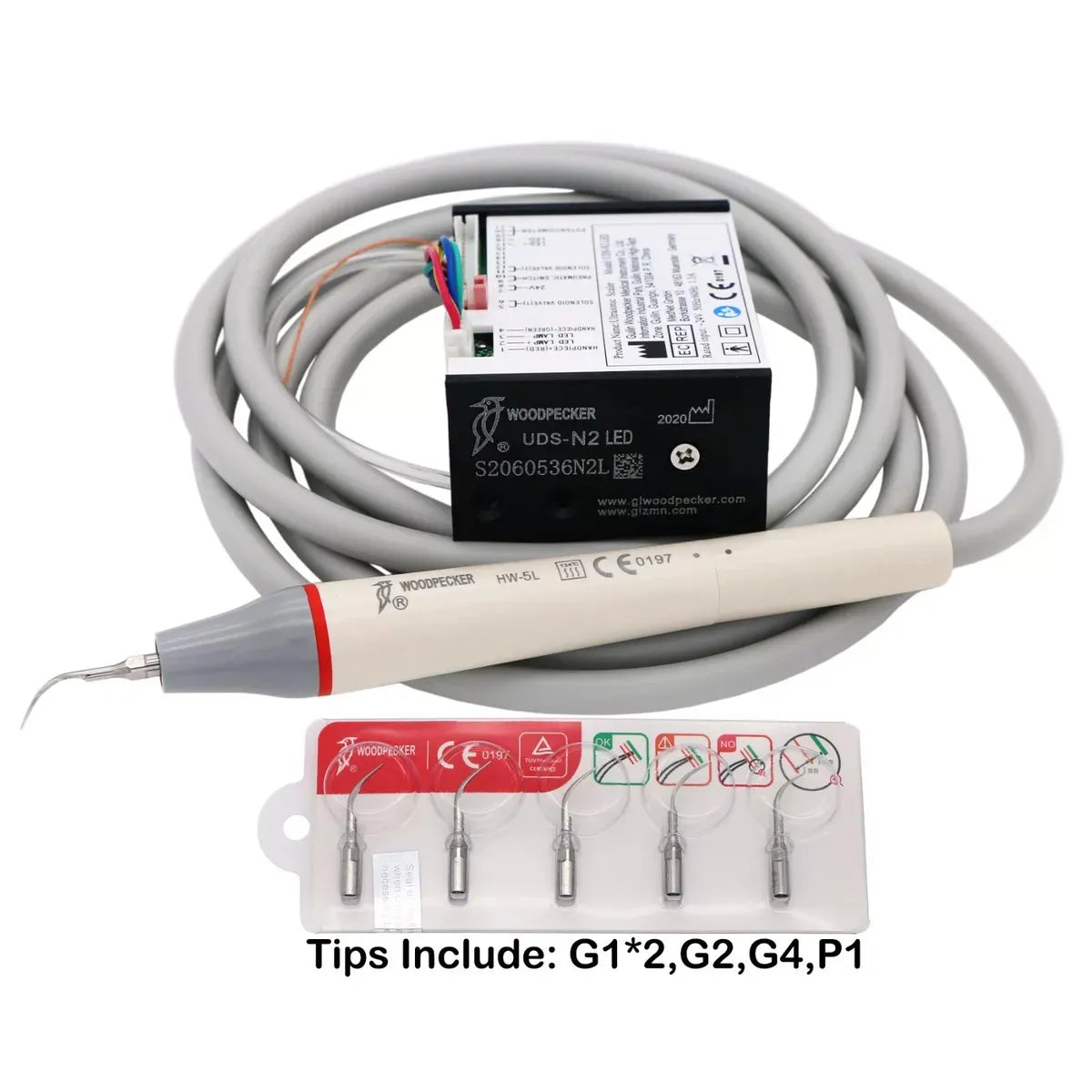

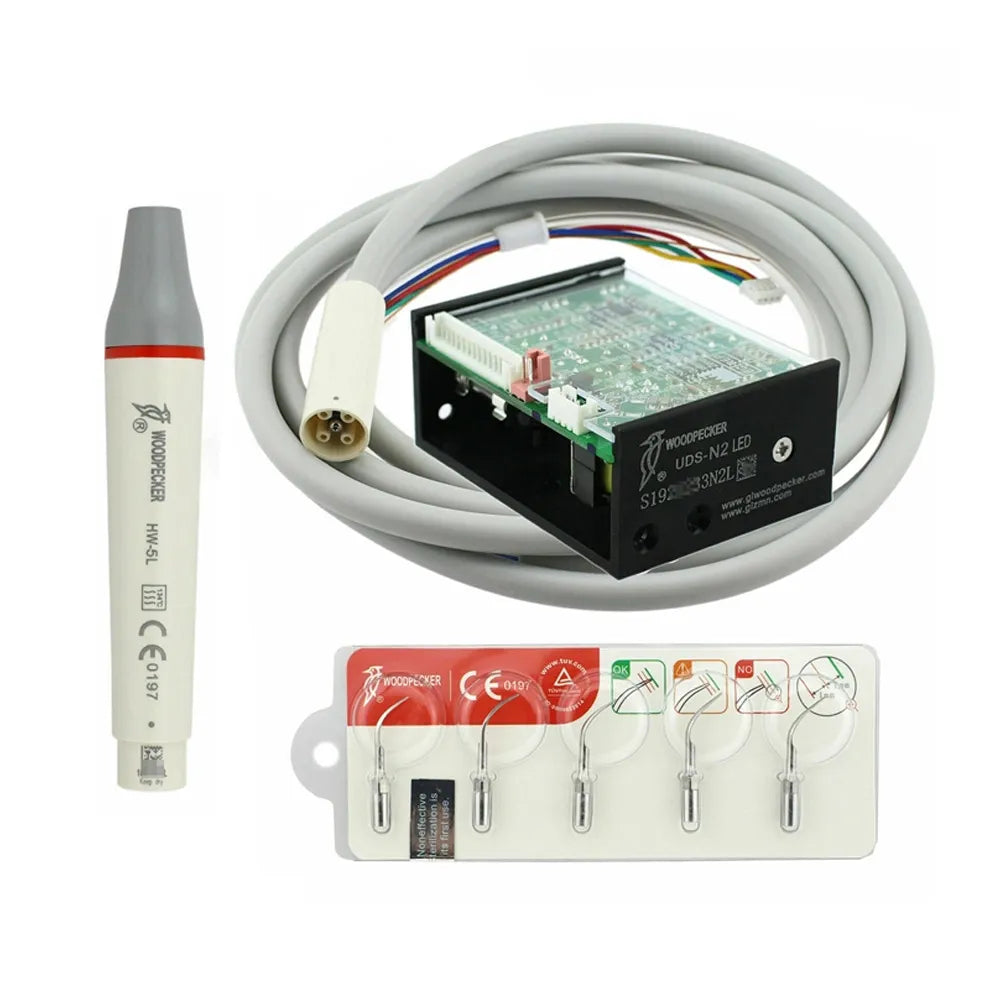

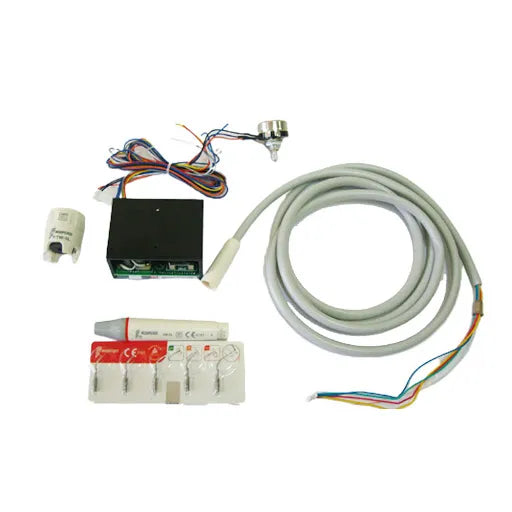

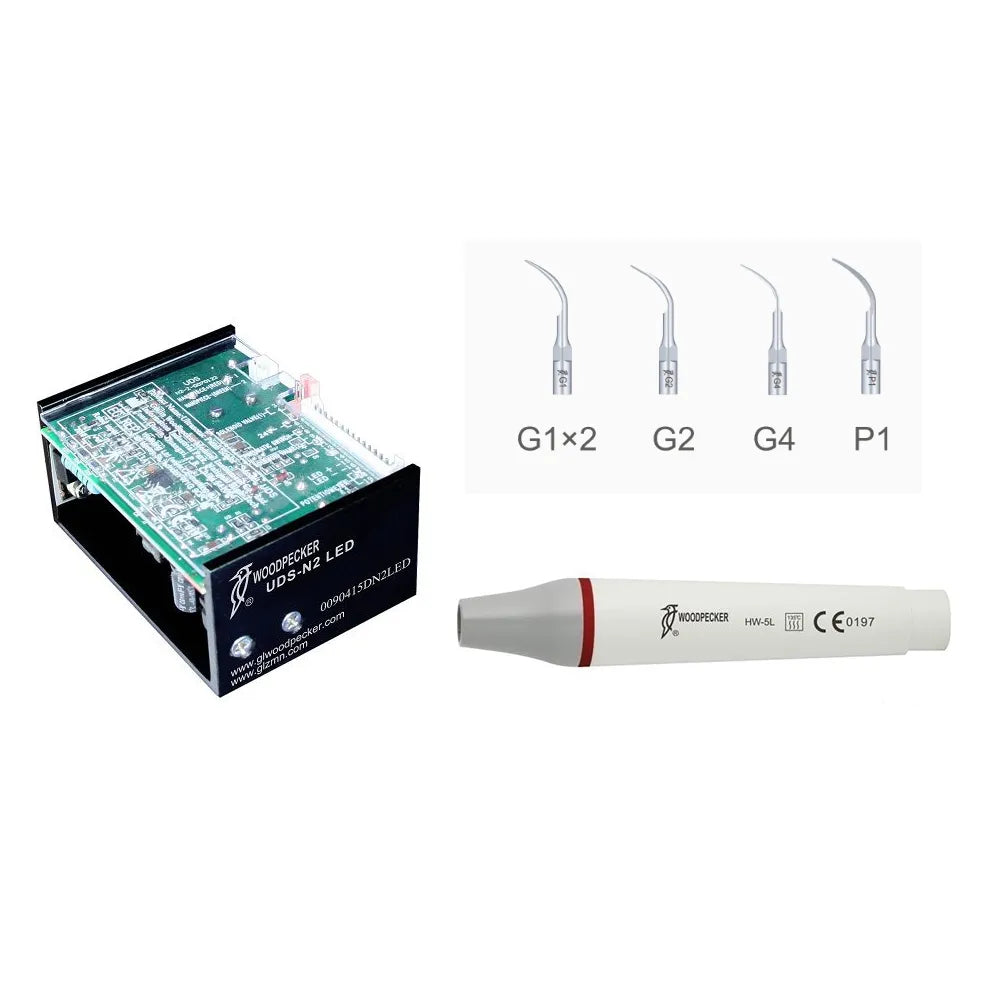

Woodpecker UDS -N2 LED Piezo-Ultrasonic Scaler With Tips

• Power input: It can operate with a transformer at 220-240V~ 50Hz/60Hz 150mA or without a transformer at 24V~ 50Hz/60Hz 1.3A.
• Vibration excursion of the primary tip: Less than 100pm.
• Half-excursion force: Less than 2N.
• The vibration frequency of the tip: 28kHz+3kHz.
• Output power: Ranging from 3W to 20W.
• Water pressure: 0.01MPa to 0.5MPa.

Preparation:

• Ensure that the Guilin Woodpecker ultrasonic scaler, UDS-N2 LED model, is properly assembled and sterilized before use.
• Connect the scaler to a suitable power source and ensure that it is securely plugged in.

Patient Preparation:

• Ensure that the patient is comfortably positioned in the dental chair.
• Place a protective bib or towel around the patient's neck to prevent water splatter.

Handpiece Setup:

• Attach the appropriate scaling tip to the handpiece. Choose a tip based on the treatment requirements and the condition of the patient's teeth.
• Tighten the tip securely using the provided torque wrench.
• Connect the handpiece to the scaler's main unit.

Water Irrigation:

• Fill the water bottle attached to the scaler with clean, distilled water.
• Adjust the water flow control knob on the scaler to ensure a steady stream of water during the procedure.
• Position the water nozzle close to the treatment area to facilitate efficient cooling and debris removal.

Power On and Settings:

• Switch on the scaler's main unit using the designated power button.
• Set the desired power level according to the treatment requirements. Start with a lower power setting and gradually increase if necessary.
• Adjust the scaling mode (continuous or intermittent) based on the procedure being performed.

Procedure:

• Hold the scaler's handpiece with a comfortable grip, ensuring a firm but relaxed grasp.
• Position the scaling tip at a 0-45 degree angle to the tooth surface.
• Gently and gradually guide the tip along the tooth surface, moving in small, overlapping strokes.
• Pay attention to areas with heavy calculus or plaque buildup, giving them extra attention.
• Maintain a constant flow of water to rinse away debris and keep the tip and treatment area clean.
• Take breaks as needed to allow the patient to rinse and rest their mouth.

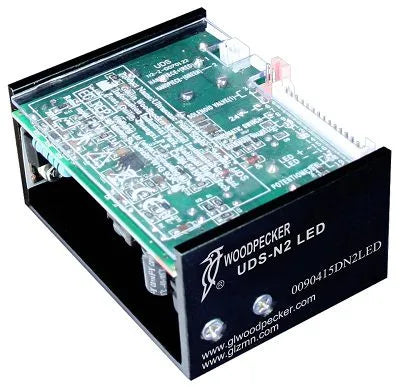

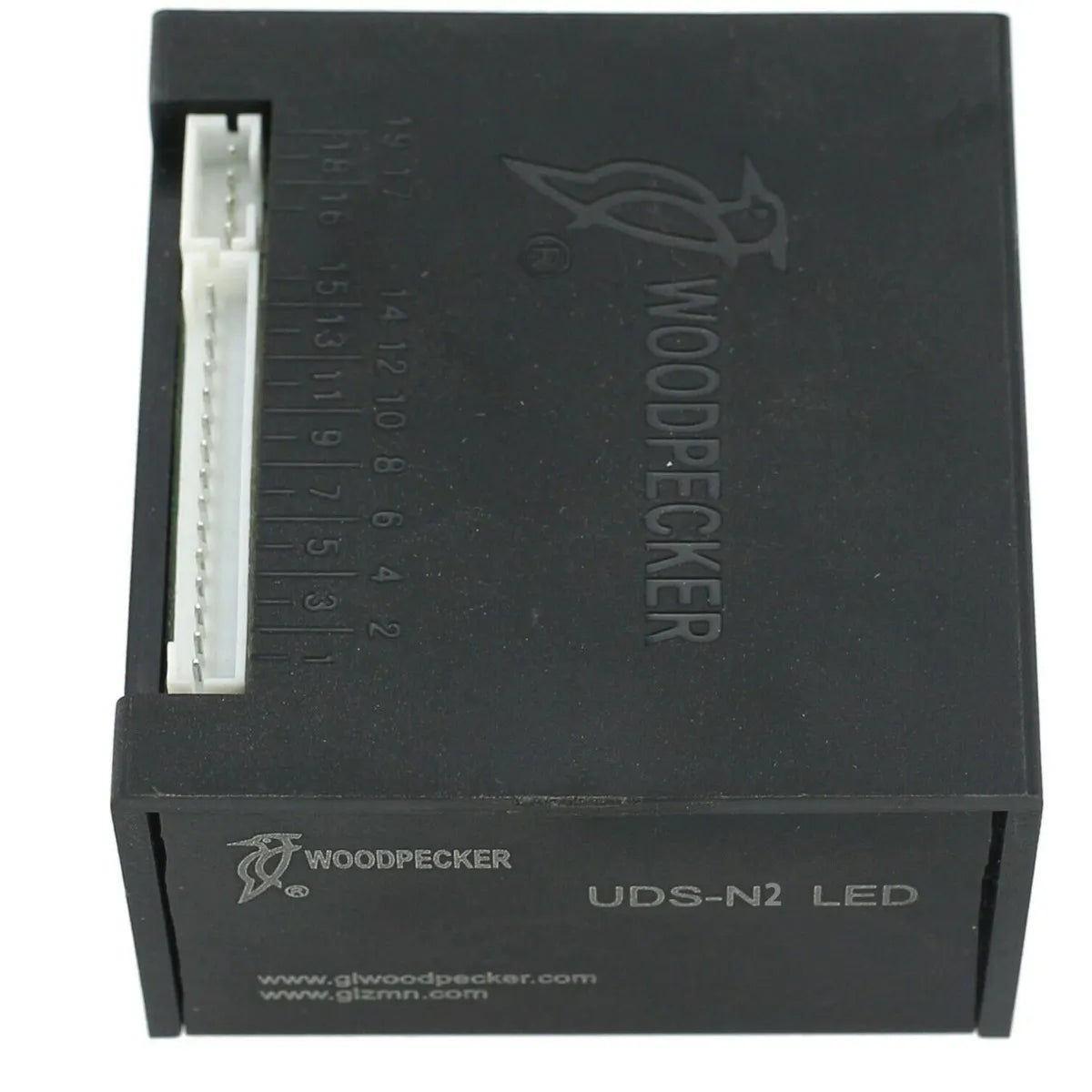

• This built-in ultrasonic piezo scaler UDS-N2 LED is used along with a dental unit for teeth cleaning(scaling).

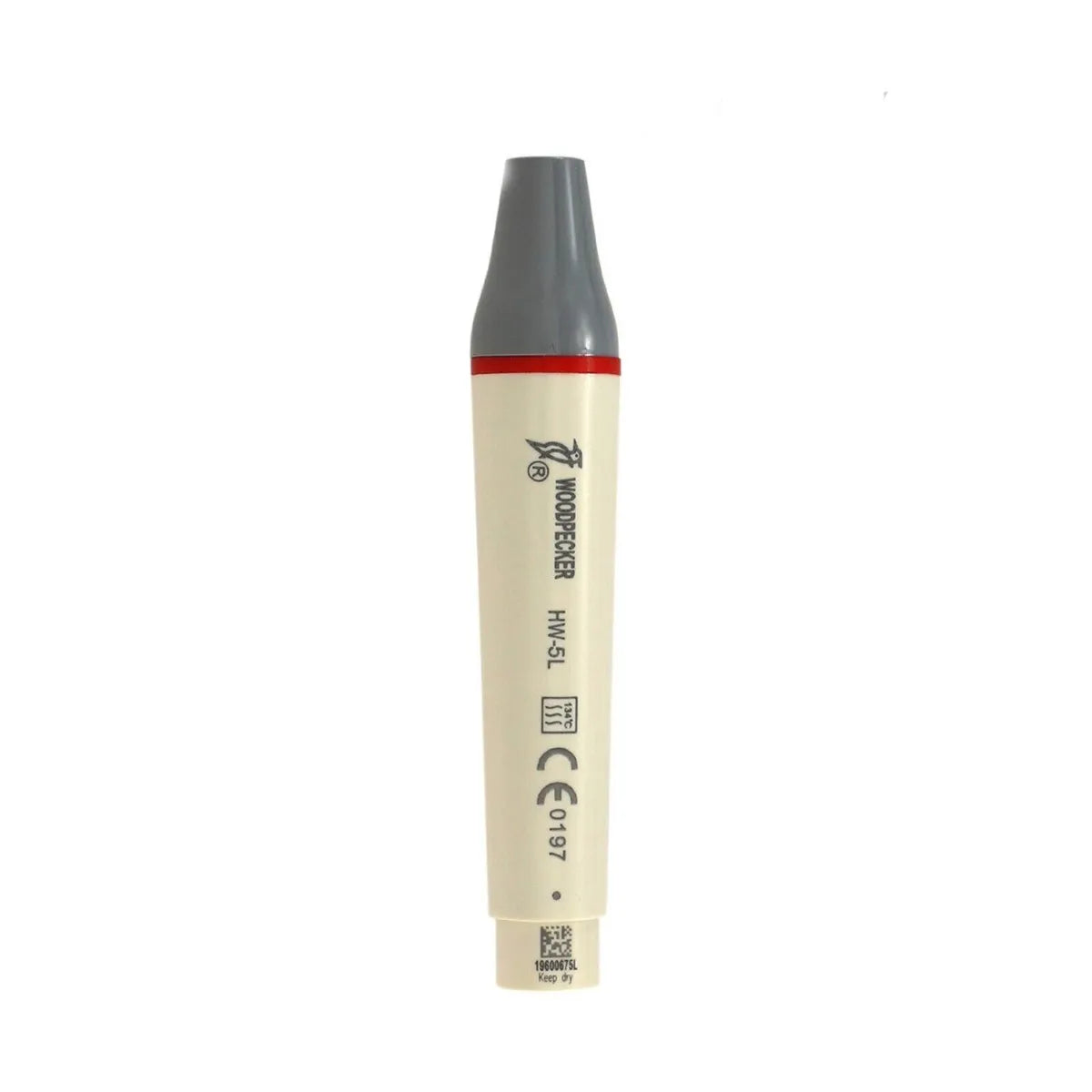

• Optical handpiece, more convenient for clinical operation.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat making it comfortable for the dentist and the patient.
• The cavitation produced from the end of the scaling tip makes the cleaning of teeth easy by eliminating calculus easily.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
• The adjustment range of the amplitude is much wider than before.
• Its small and light design makes it easy to operate.
• CE and FDA certificated.
