Woodpecker Scaler Tips for DTE & Satelec Scalers

• Compatibility: Designed for DTE & Satelec Scalers
• Material: High-quality stainless steel

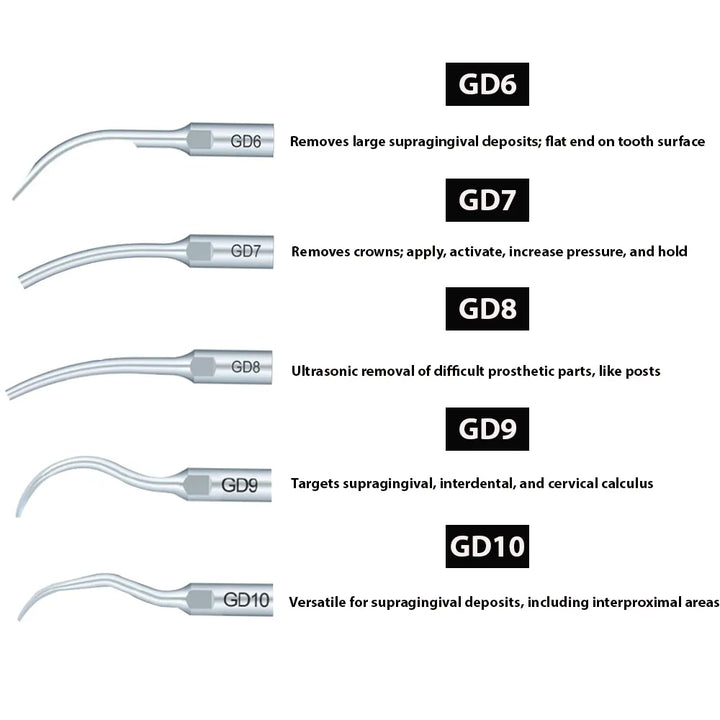

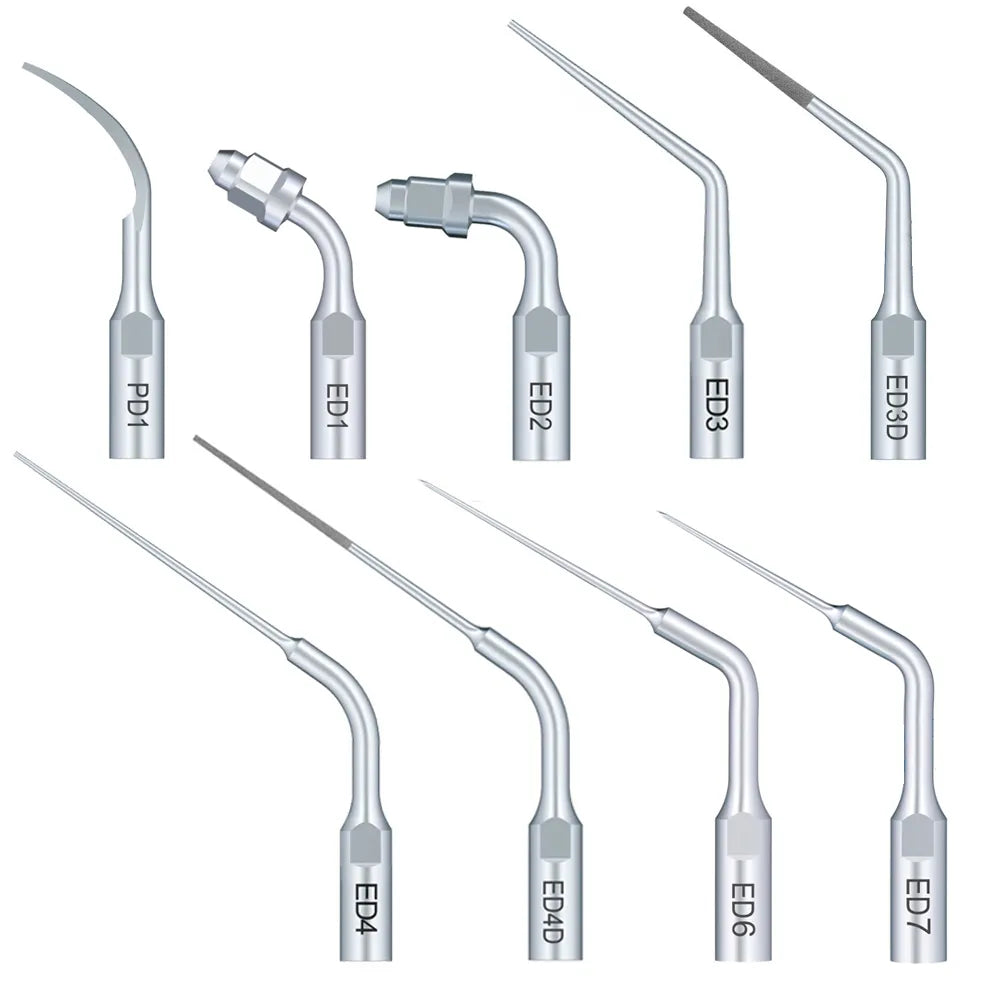

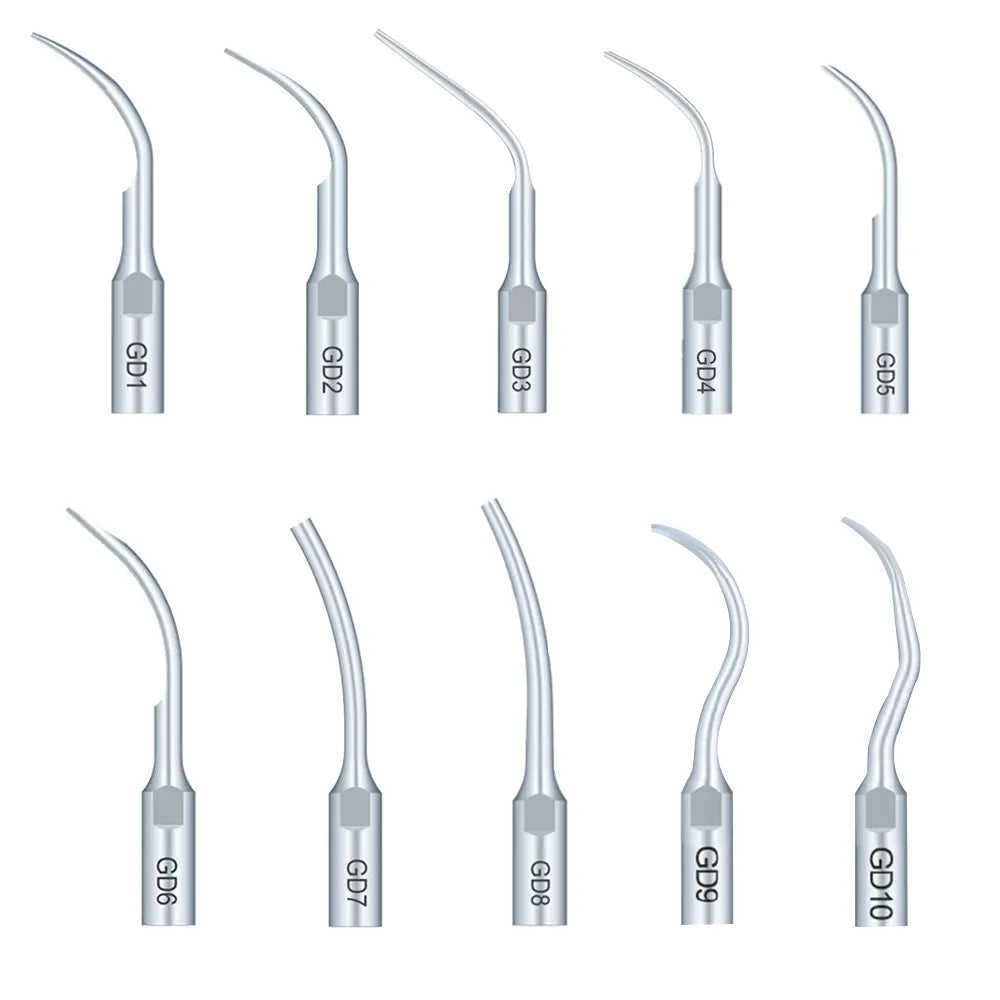

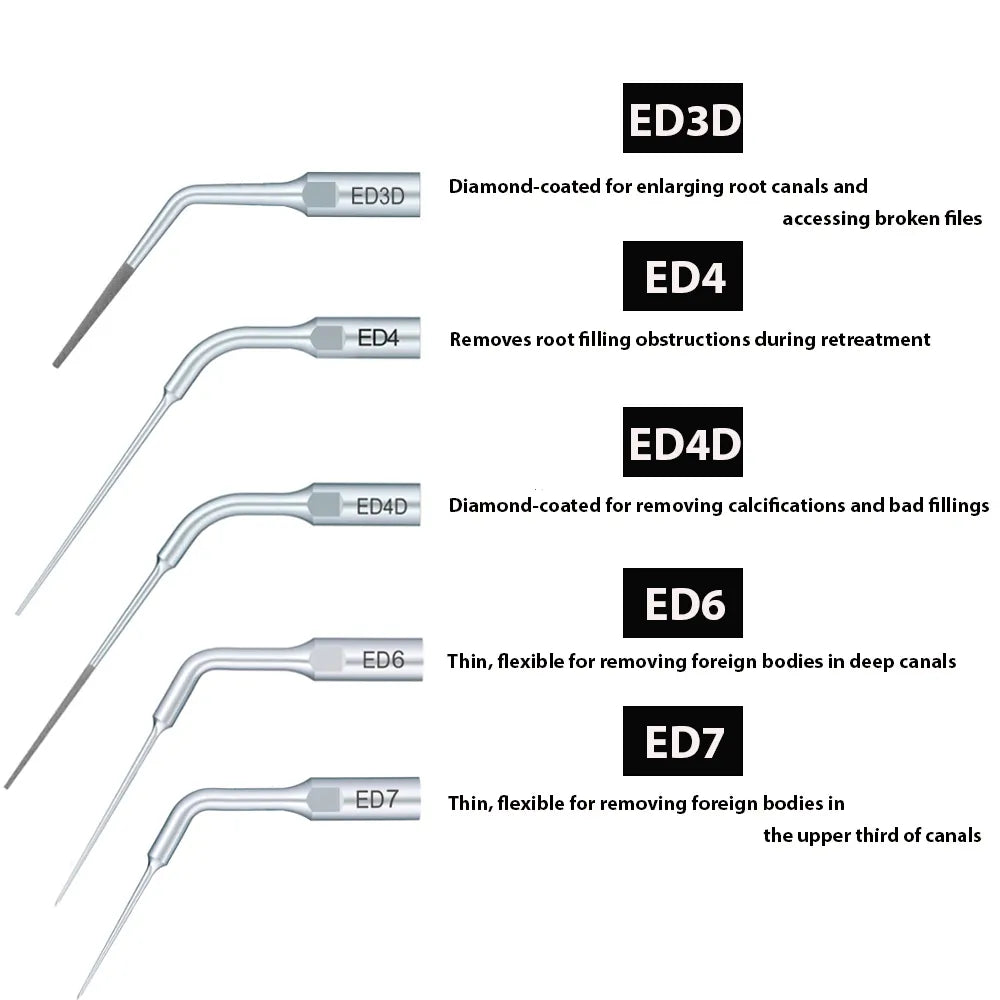

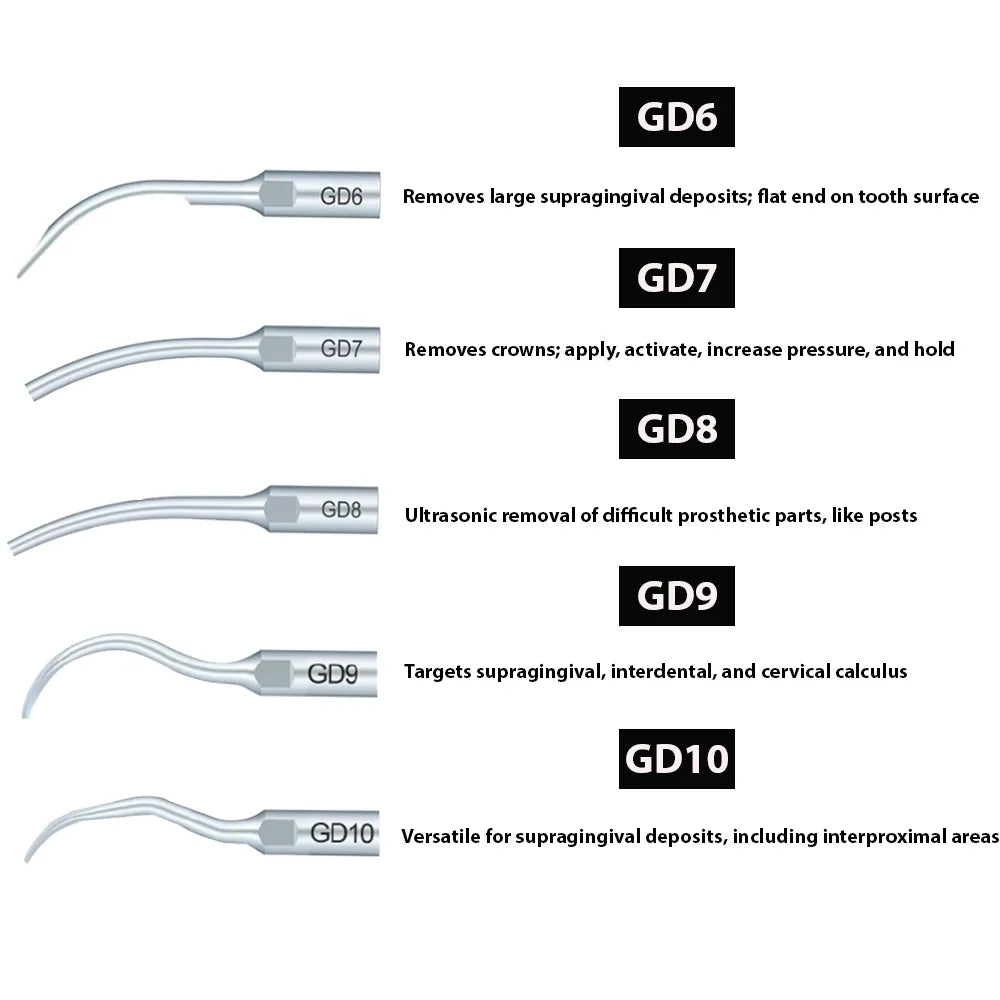

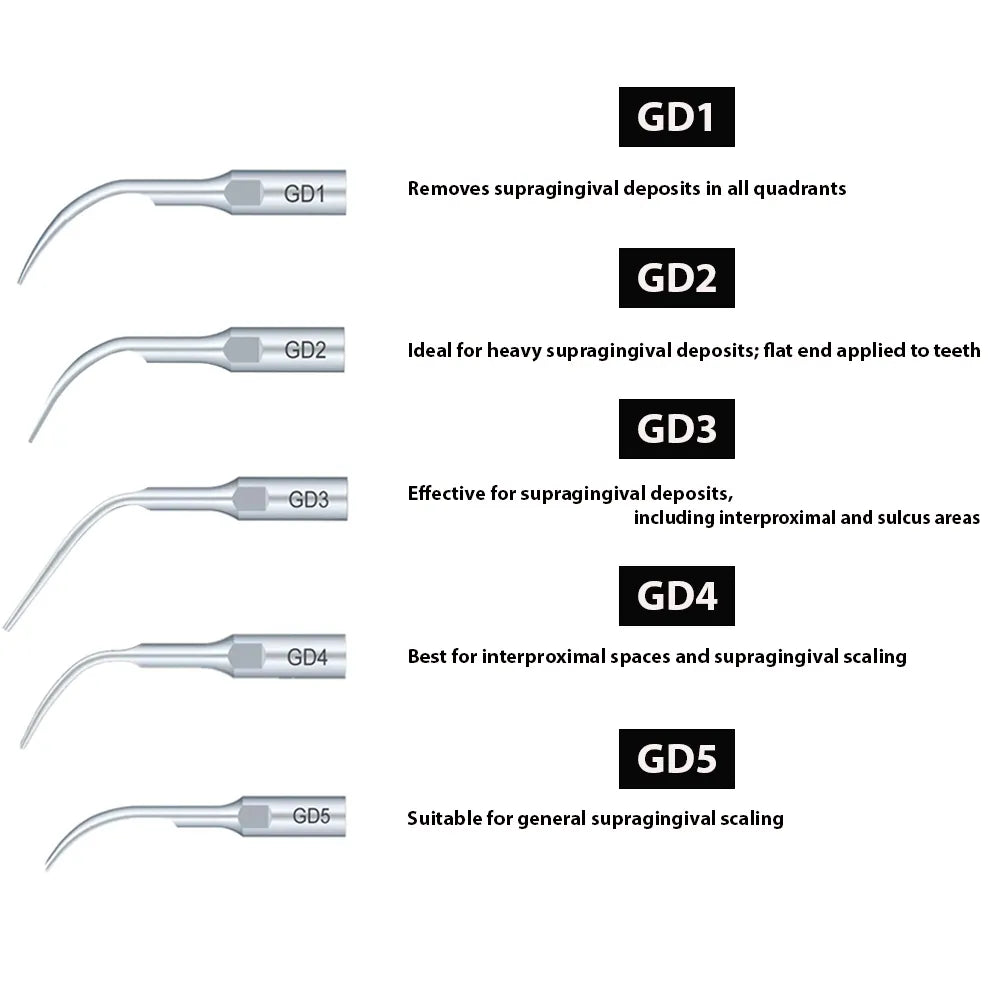

• Variety: Multiple shapes and sizes are available

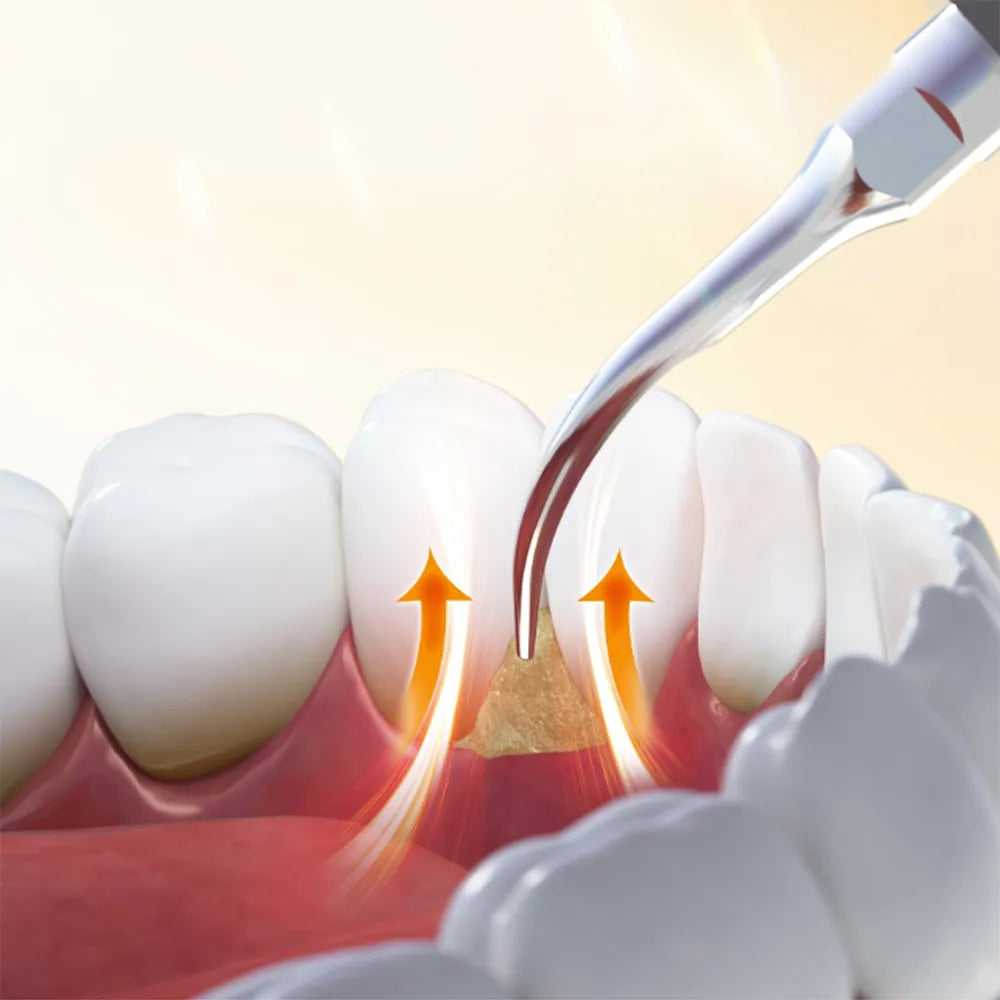

• Functionality: Effective for supragingival, interproximal, and subgingival cleaning
• Ultrasonic Oscillation: Provides efficient scaling with micro-oscillations
• Easy Attachment: Quick and secure installation mechanism
• Sterilization: Easy to maintain and sterilize
• Versatility: Suitable for various dental procedures
• Performance: Reliable and trusted by dental professionals

• Preparation: Before starting the procedure, ensure that the scaler tip is properly attached to the ultrasonic scaler handpiece according to the instructions. Check for any visible damage or wear on the tip
• Patient Comfort: Prioritize patient comfort by explaining the procedure, addressing any concerns, and providing appropriate anesthesia if necessary
• Technique: Hold the ultrasonic scaler handpiece in a comfortable and stable grip, maintaining good control throughout the procedure
• Approach: Approach the treatment area from an optimal angle, considering the specific tip being used and the area being treated (e.g., supragingival, interproximal, subgingival)
• Activation: Activate the ultrasonic scaler, and ensure that the scaler tip is oscillating properly. Start with a lower power setting and gradually increase as needed, while monitoring patient comfort and avoiding excessive pressure
• Movement: Use controlled and gentle back-and-forth or sweeping motions along the treatment surface, following the contour of the teeth or specific area being treated. Avoid applying excessive force to prevent discomfort or potential tissue damage
• Adaptation: Properly adapt the working section of the scaler tip to the targeted deposits or treatment area. For supragingival scaling, place the tip at an appropriate angle to effectively remove calculus and plaque
• Irrigation: Utilize adequate water irrigation or a dental irrigant during the procedure to minimize heat buildup, flush away debris, and maintain a clear field of vision
• Monitoring: Continuously monitor the patient's comfort and any signs of tissue irritation or sensitivity during the procedure. Make necessary adjustments or pauses if discomfort occurs
• Post-Treatment Care: After the procedure, provide appropriate post-treatment instructions to the patient, including oral hygiene recommendations and any necessary follow-up appointments

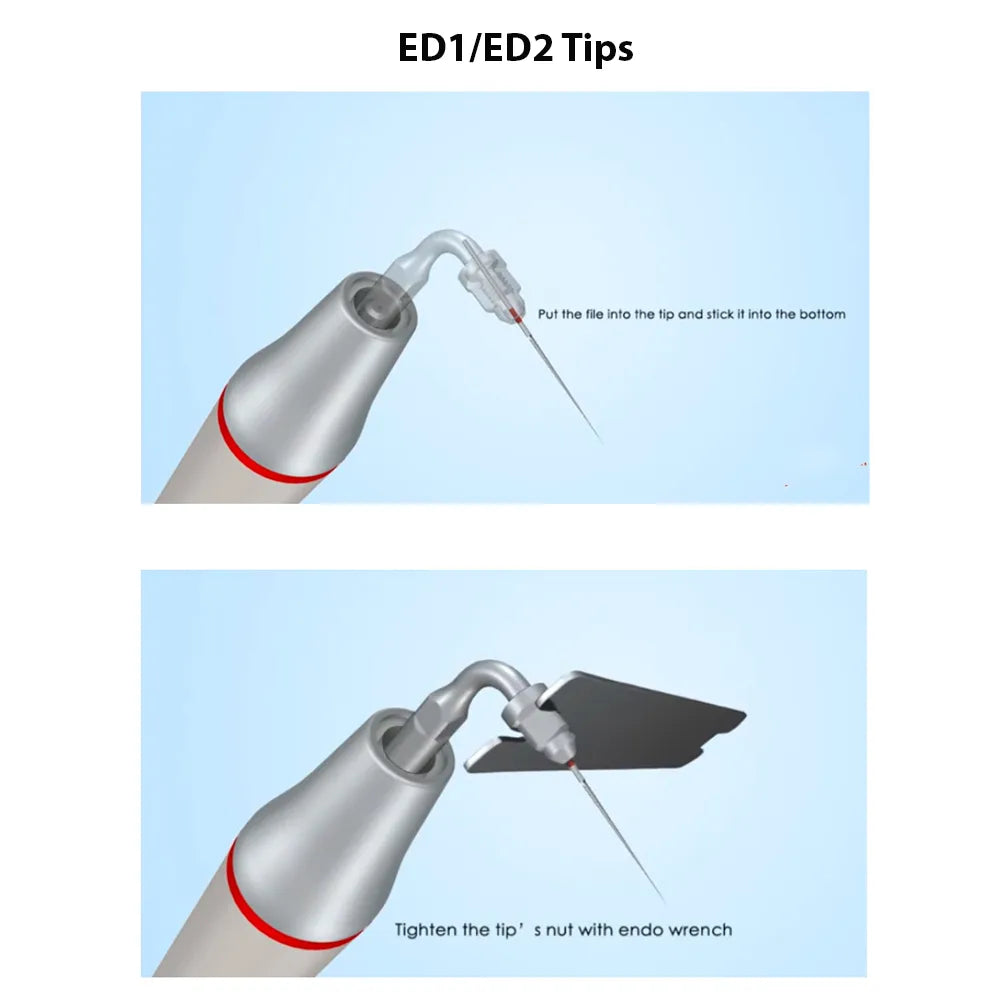

How to Connect Files to ED1 and ED2 Tips:

• Select the Appropriate File: Ensure you have U-type files with a diameter of 0.8 mm, which are compatible with the ED1 and ED2 tips
• Prepare the Ultrasonic Scaler: Turn off the ultrasonic scaler before making any attachments to avoid accidental activation
• Attach the File: Insert the U-type file into the designated holder or slot within the ED1 or ED2 tip. Ensure that it fits securely and is properly aligned. For the ED1 tip, ensure it is positioned at a 120° angle for optimal cleaning of anterior root canals. For the ED2 tip, position it at a 95° angle for effective cleaning and shaping of root canals
• Secure the Connection: Ensure that the file is firmly attached to the tip to prevent any movement during use. Check that there are no gaps between the file and the tip

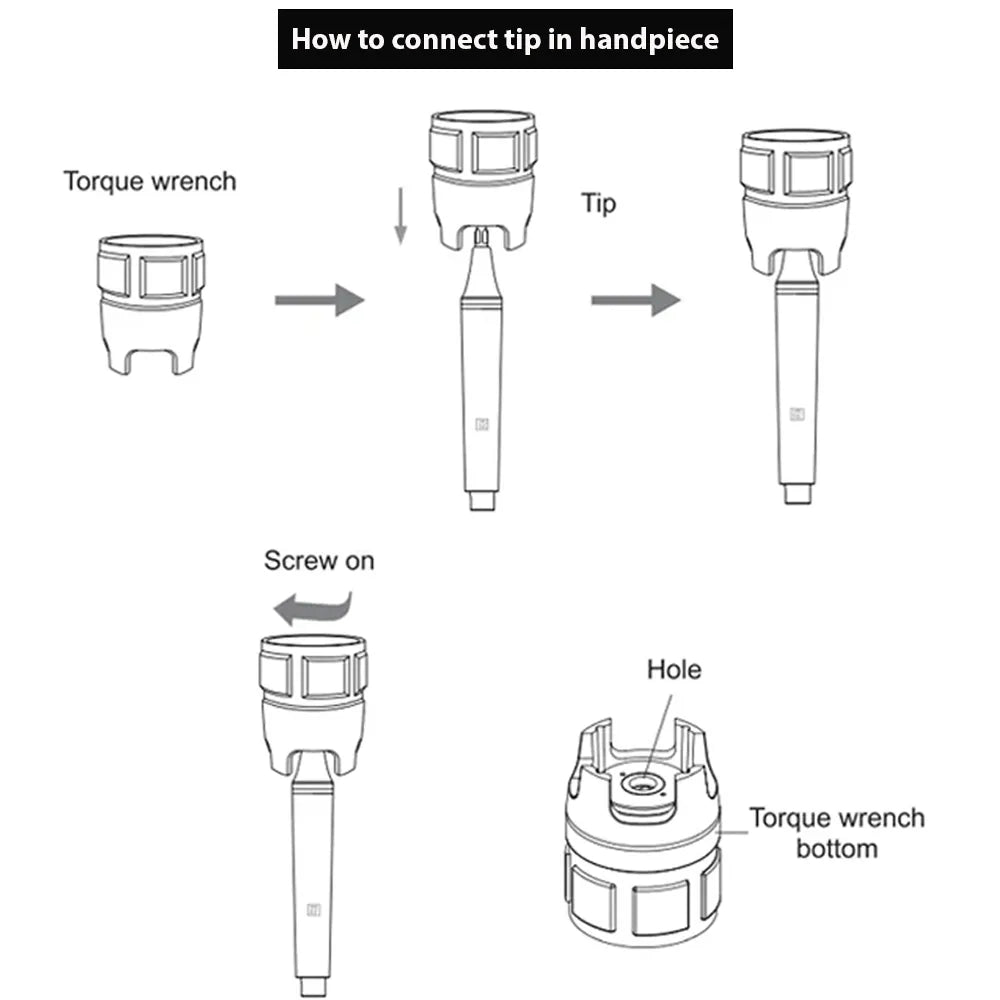

• Connect the Tip to the Ultrasonic Scaler: Attach the ED1 or ED2 tip to the ultrasonic scaler handpiece, ensuring it clicks into place securely
• Set Up the Ultrasonic Scaler: Adjust the power settings on the ultrasonic scaler according to the manufacturer's recommendations for the specific tip being used
• Activate the Scaler: Once everything is securely connected, turn on the ultrasonic scaler and begin the procedure
• Post-Use Care: Clean and sterilize the scaler tip according to standard protocols, ensuring it is ready for the next use. Store it in a dry environment with low humidity
• Tip Replacement: Monitor the tip for wear; replace it if it has worn down by 2mm or shows visible signs of damage

• Ultrasonic micro-oscillations
• Compatible with DTE & Satelec scalers
• Thorough plaque and tartar removal
• High-quality and durable materials
• Easy attachment and detachment
• Versatile working section shapes
• Ultrasonic micro-oscillations
• Compatible with DTE & Satelec scalers
• Thorough plaque and tartar removal
• High-quality and durable materials
• Easy attachment and detachment
• Versatile working section shape
