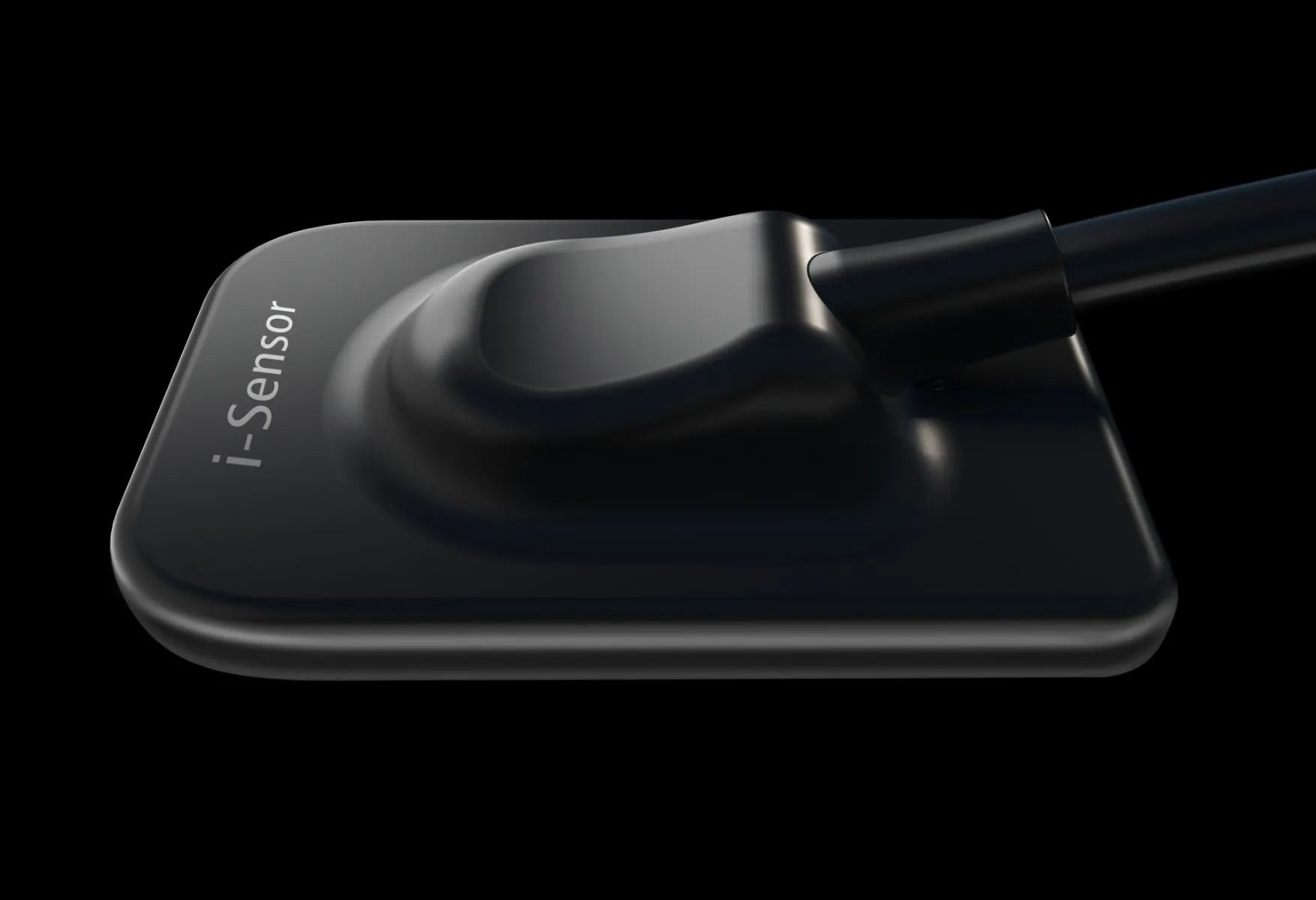

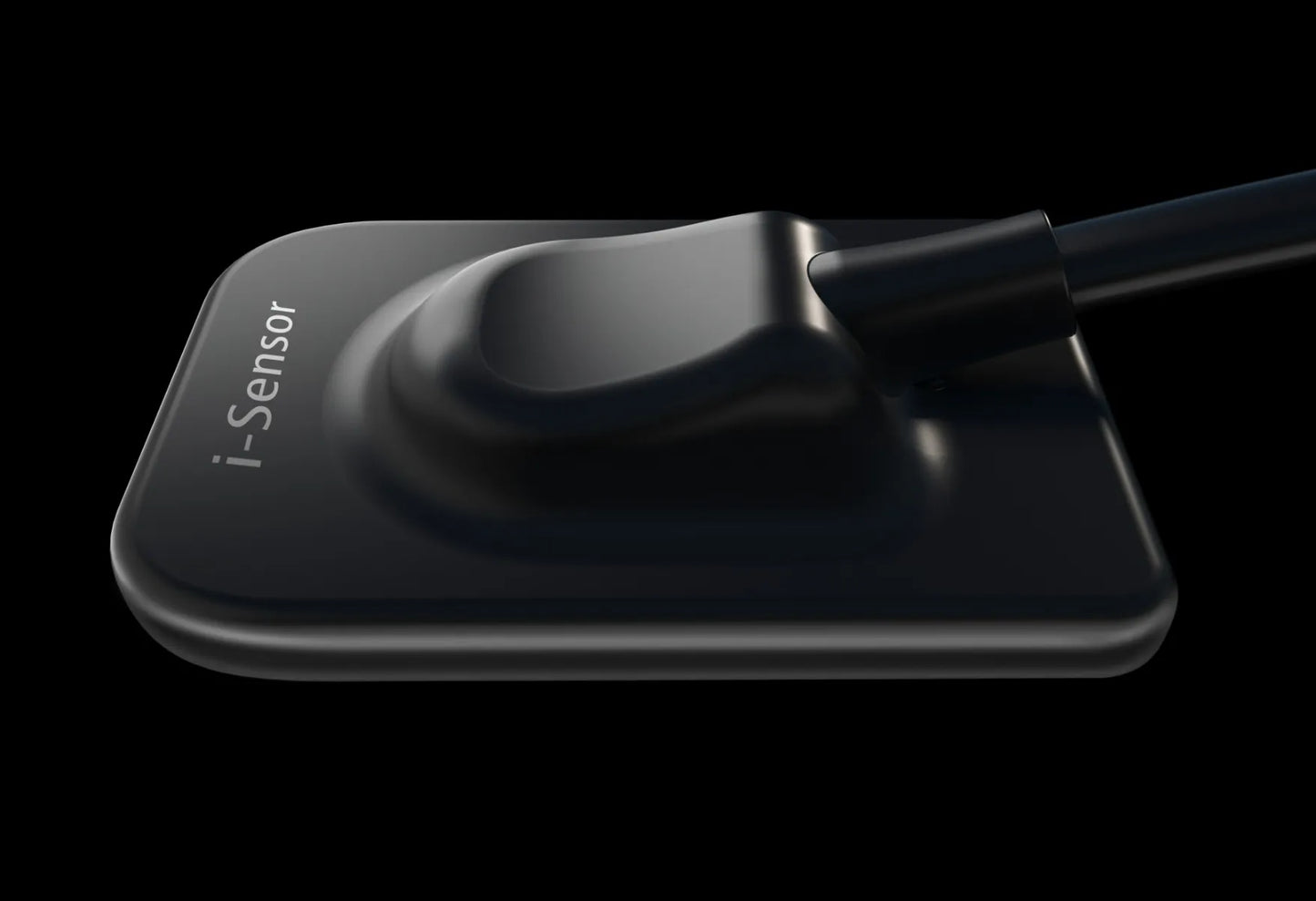

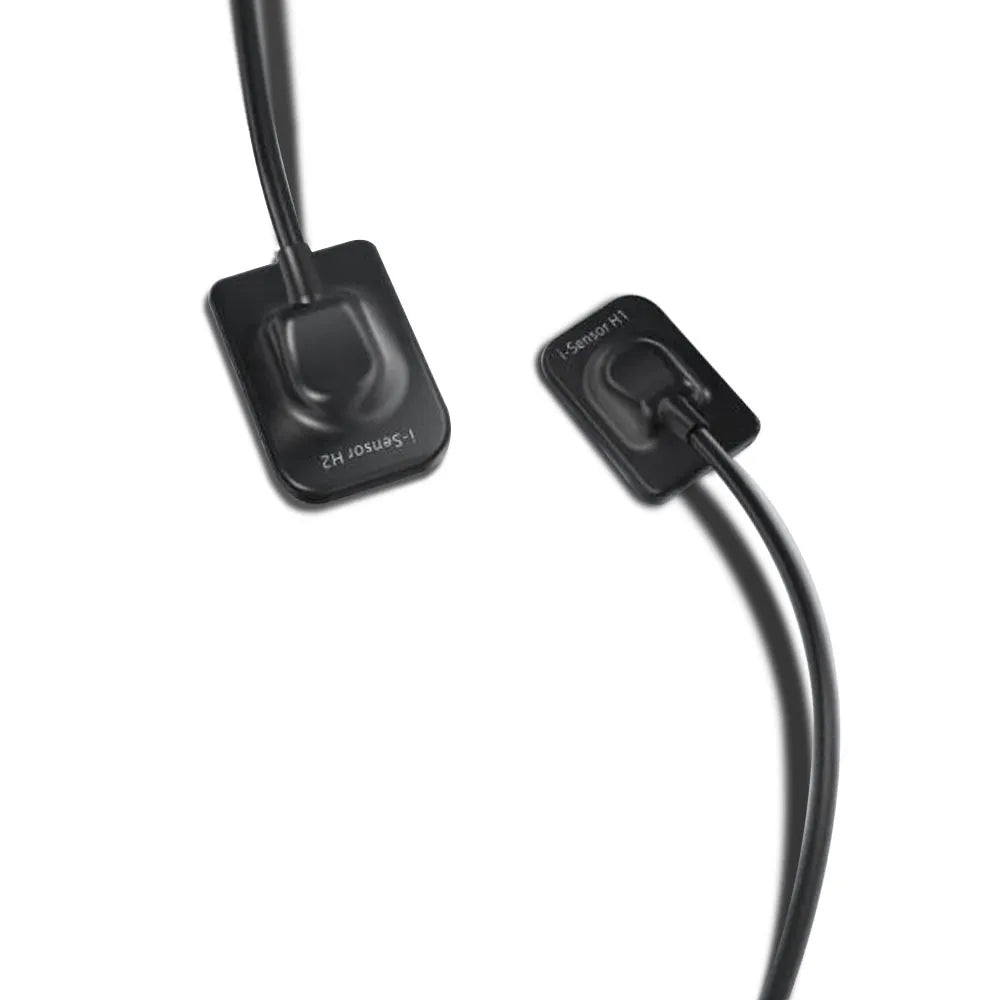

Woodpecker RVG i Sensor Size - 2 (Compatible With Windows Only)

• Power adapter input: 5V/USB interface
• Effective area: 26*36mm(H2)
• Pixel matrix size: 1300*1800mm(H2)
• Pixel size: 20μm
• Effective resolution ＞ 8lp/mm
• Specifications: 40.0*31.0*4.4mm(H2)
• Weight: 158g(H2)
• Detector Technology: APS CMOS
• Environment temperature: 5℃～ 40℃
• Relative humidity: 30% ～ 75% 1.9.3
• Atmospheric pressure：70kPa ～ 106kPa

How to Installation:

Connect the Sensor:

• Plug the USB cable of the Woodpecker RVG i Sensor into an available USB port on your Windows computer.

Power On the Sensor:

• Ensure the power adapter is connected if required.
• Power on the sensor according to the manufacturer's instructions.

Driver Installation:

• Windows should automatically detect the new hardware and attempt to install the necessary drivers.
• Follow any on-screen prompts to complete the driver installation.
• Alternatively, use the drivers provided by Woodpecker, if any, for a manual installation.

Download Software:

• Visit the official Woodpecker website to download the latest version of the RVG I Sensor software compatible with Windows.
• To Download The Software Please Follow The Link: https://dentalkart-media.s3.ap-south-1.amazonaws.com/Ai-Dental-woodpecker-V1.0.6-setup.exe

Install Software:

• Run the software installer.
• Follow the on-screen instructions to complete the installation process.
• Ensure that the software is compatible with your Windows version.

Configure Software:

• Launch the software after installation.
• Configure any necessary settings, such as image storage locations, patient information, and imaging preferences.

How to Use:

Calibrate the Sensor:

• Before first use, follow the calibration procedure provided by Woodpecker to ensure accurate imaging.

Position the Sensor:

• Position the sensor in the patient's mouth as required for the specific dental imaging procedure.

Capture Images:

• Use the Woodpecker software to capture intraoral digital radiographs.
• Follow on-screen instructions for capturing images, adjusting settings, and ensuring proper exposure.

Save and Manage Images:

• Save the captured images to the designated storage location.
• Utilize the software's management features to organize patient files and images.

Specialized Applications:

• Depending on your dental specialty, use the sensor for endodontics, prosthodontics, orthodontics, oral surgery, implantology, or periodontics as needed.

• High-resolution imaging - 25lp/mm theoretical resolution
• C Mos Technology
• Thinnest sensor 4.4mm

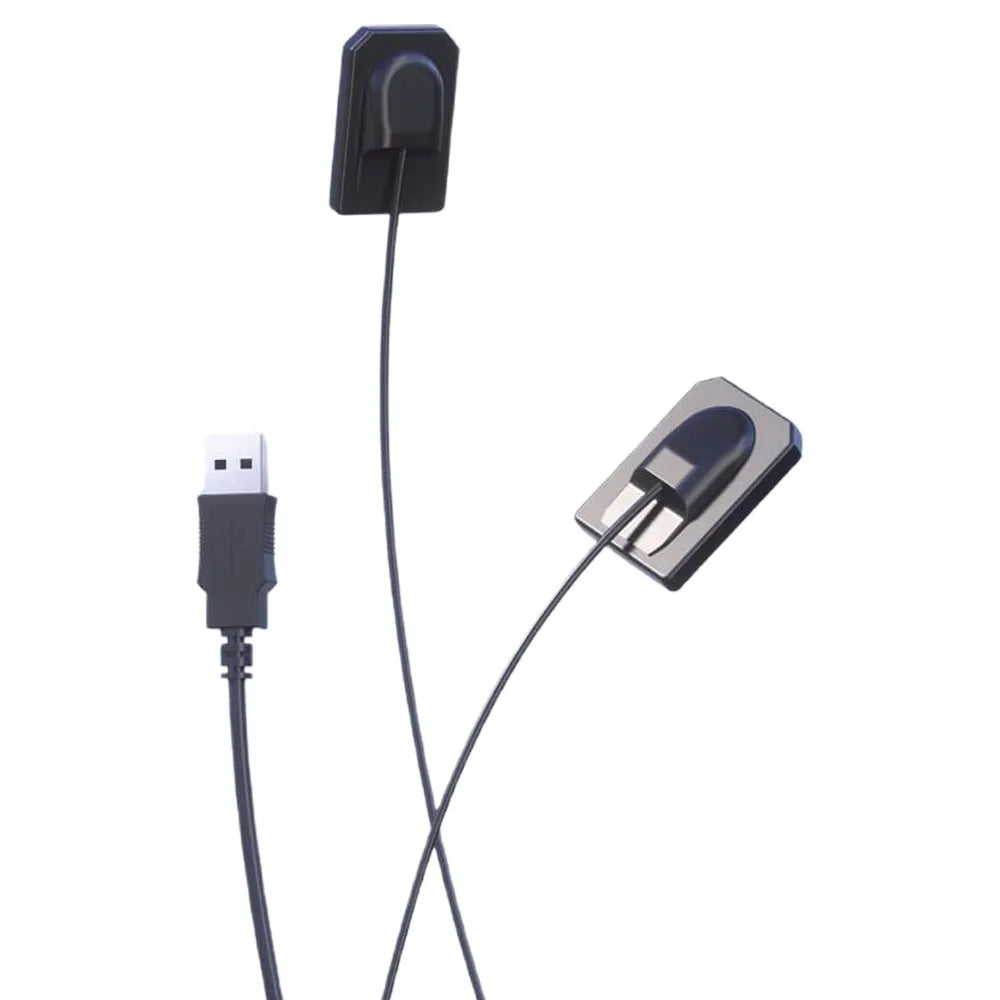

• USB Cable - 2.7m long
• Durable and reliable: 80000+ bending test & IP68 protection rating

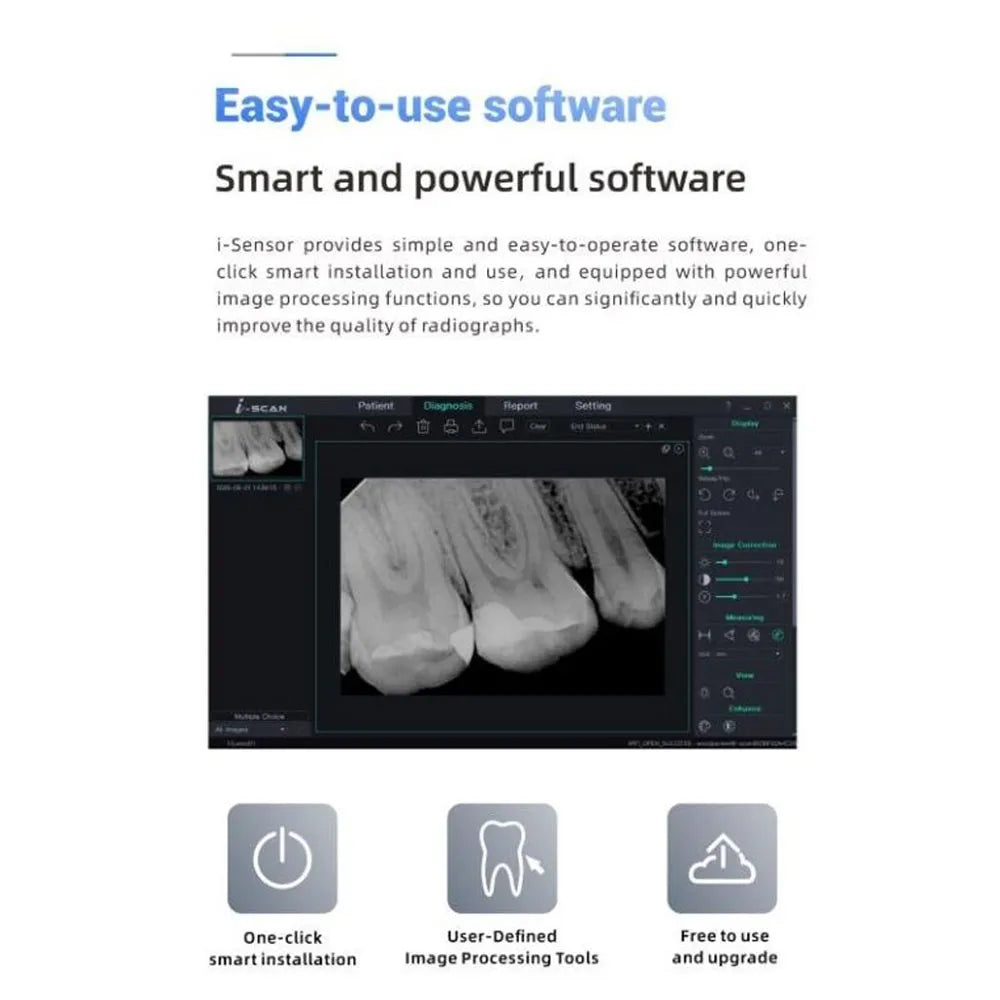

• Smart and powerful software
• Curved Edges to Avoid Patient Injury
• Highly Flexible Cable
• It has a Twain option. and the server function.
• Now there is no limit for computers connected to the software license.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
• High-resolution imaging - 25lp/mm theoretical resolution
• C Mos Technology
• Thinnest sensor 4.4mm
• USB Cable - 2.7m long
• Durable and reliable: 80000+ bending test & IP68 protection rating
• Smart and powerful software
• Curved Edges to Avoid Patient Injury
• Highly Flexible Cable
• It has a Twain option. and the server function.
• Now there is no limit for computers connected to the software license.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
