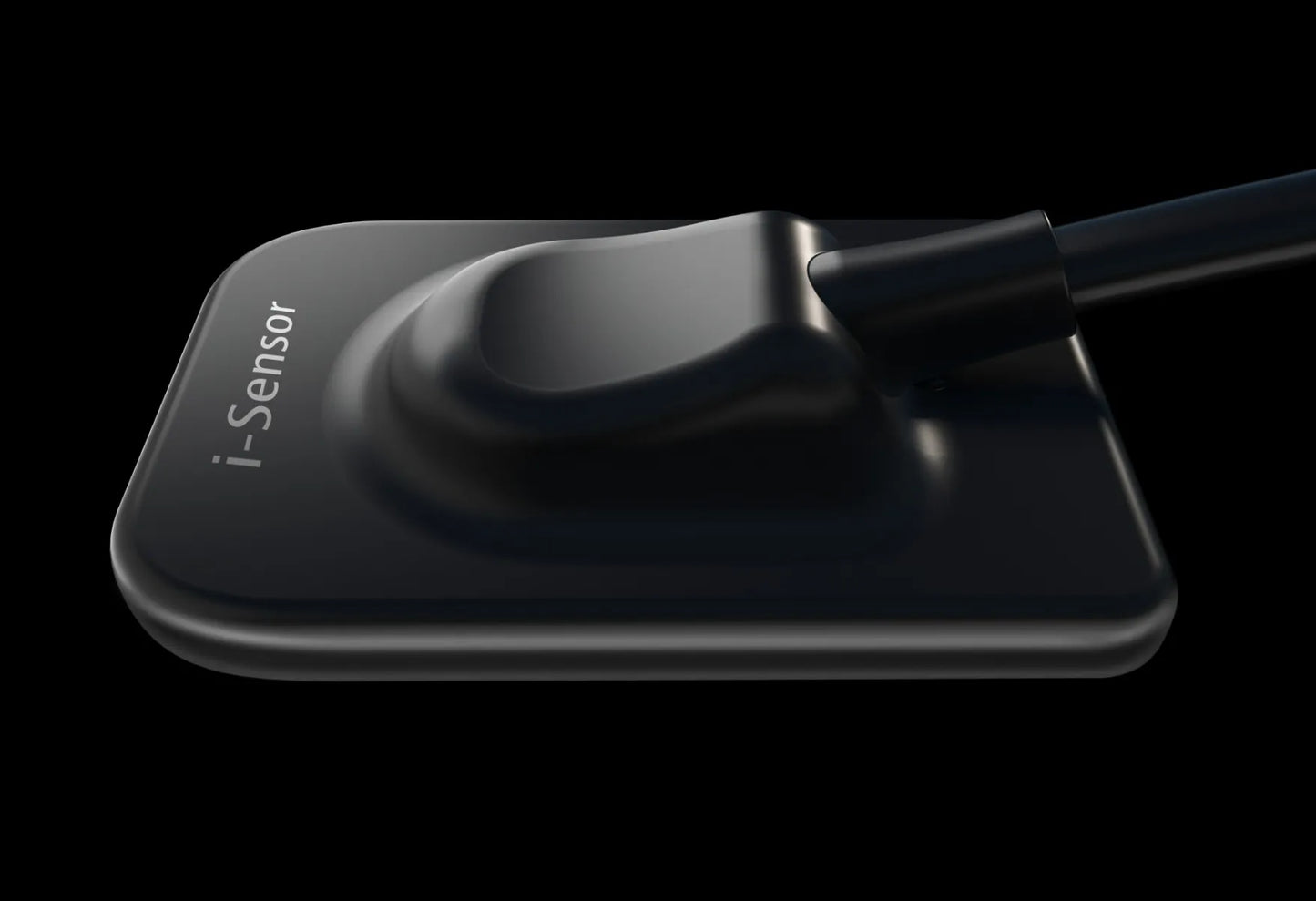

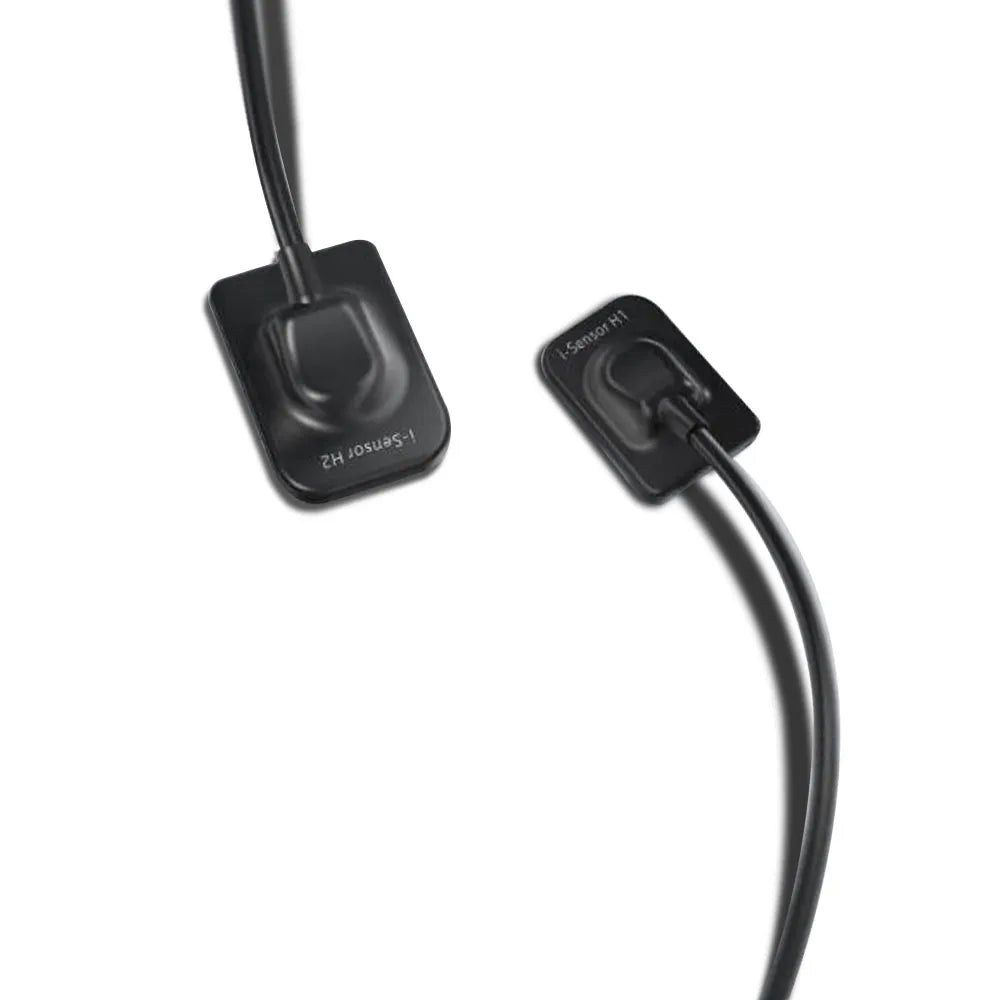

Woodpecker RVG i Sensor Size - 1 (Compatible With Windows only)

Sold Out

SKU:
BARCODE:

Woodpecker RVG i Sensor Size - 1 (Compatible With Windows only)

Rs. 59,000.00

Shipping calculated at checkout.

People are currently viewing this

Selling quickly! people have this item in their carts

Description

Woodpecker RVG i Sensor Size - 1 (Compatible With Windows only)

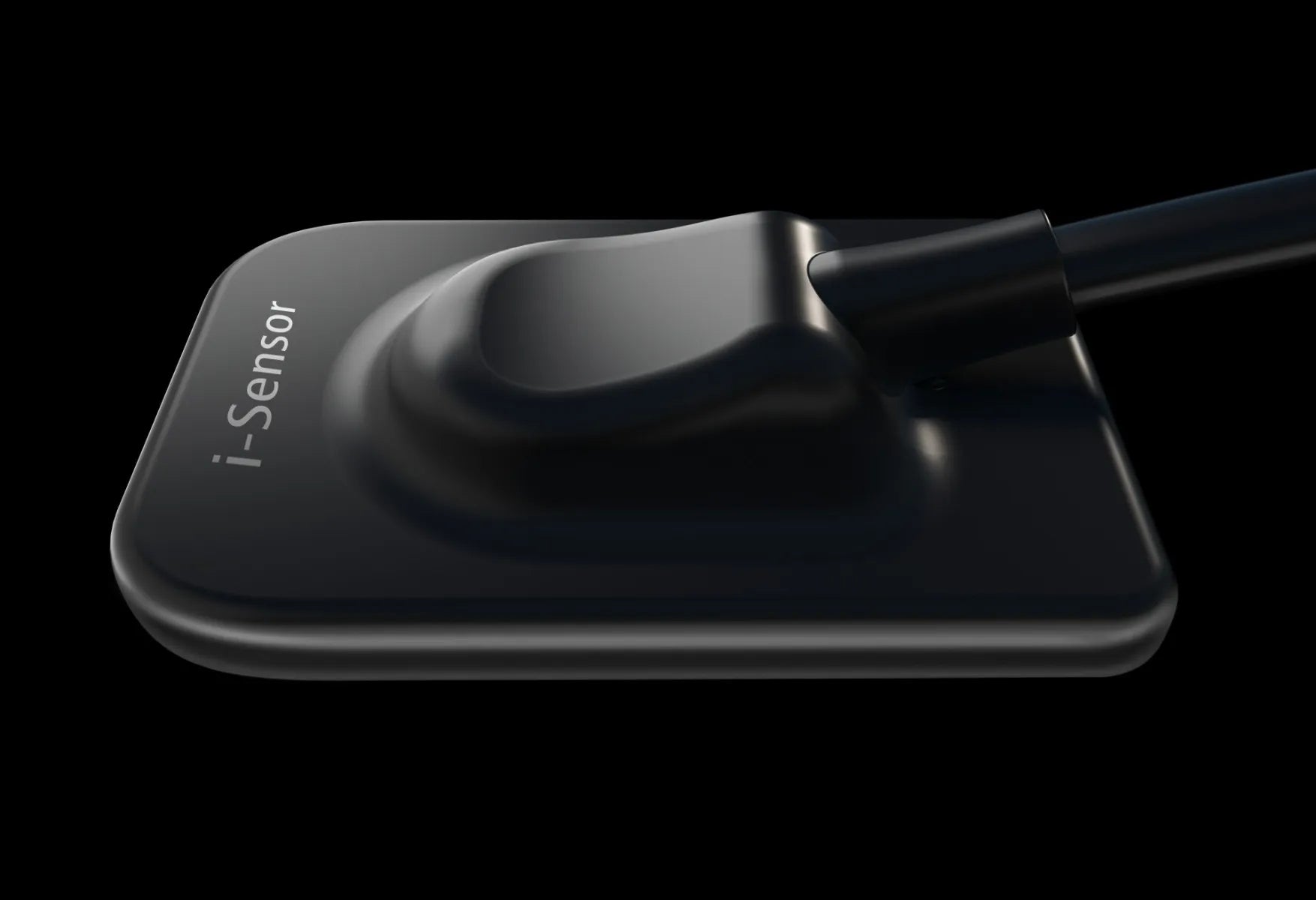

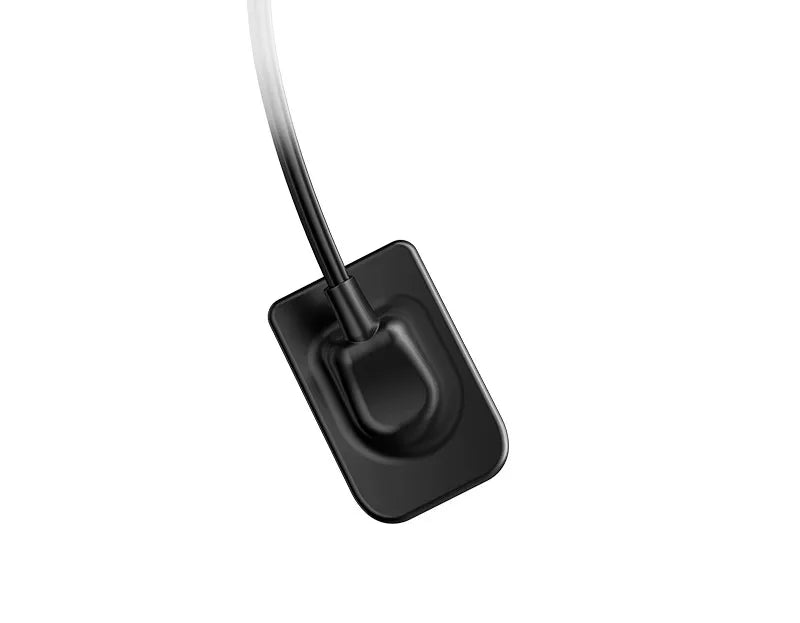

Woodpecker RVG i Sensor, a revolutionary intraoral imaging solution that combines efficiency and affordability. With its user-friendly software and improved workflow efficiency, it enhances diagnosis, treatment, and treatment planning processes. This centralized imaging hub manages all patient images, including intra- and extra-oral radiographs and photographs. The sensor captures X-ray radiation and instantly converts it into high-quality digital data for immediate viewing. Trust in Woodpecker's legacy of imaging excellence and enjoy exceptional image capture with this easy-to-use solution for all your intraoral imaging needs.

Indications:

Dental Diagnostics: The Woodpecker RVG i Sensor Size - 1 is used for capturing high-quality intraoral digital radiographs to aid in the diagnosis of dental conditions and treatment planning.
Endodontics: The RVG i Sensor Size - 1 is valuable for capturing images during root canal treatments to visualize the root canal anatomy and monitor treatment progress.
Prosthodontics: It assists in the evaluation of tooth morphology, occlusion, and fit of dental prostheses such as crowns, bridges, and implants.
Orthodontics: The sensor is used to capture images for orthodontic treatment planning, assessing tooth alignment, and monitoring progress during treatment.
Oral Surgery: It aids in the visualization of impacted teeth, pre-surgical planning, and post-surgical evaluations.
Implantology: The RVG i Sensor Size - 1 is used to assess bone density and evaluate implant placement, ensuring precise positioning for successful implant procedures.
Periodontics: It assists in the evaluation of periodontal health, detecting bone loss, and assessing the effectiveness of periodontal treatments.

Specifications

Care Instruction

Features

Power adapter unit: 5V/USB interface
Effective area: 20*30mm(H1)
Pixel matrix size: 1000*1500(H1)
Pixel size: 20μm
Effective resolution: >8lp/mm
Specifications: 38.5*25*4.4mm(H1)
Weight: 118g(H1)
Detector Technology: APS CMOS
True Resolution: 20lp/mm
Environment temperature: 5℃～ 40℃
Relative humidity: 30% ～ 75% 1.9.3
Atmospheric pressure：70kPa ～ 106kPa

Installation:

Check System Requirements:

Ensure that your computer meets the system requirements specified by the manufacturer. Typically, these include the Windows operating system and specific hardware specifications.

Software Installation:

Insert the installation USB or download the latest software from the official Woodpecker website.
Download The Software Please Follow The Link: https://dentalkart-media.s3.ap-south-1.amazonaws.com/PDF/Ai-Dental-woodpecker-V1.0.26.5-setup+(1).exe
Follow the on-screen instructions to install the imaging software on your Windows computer.

Connect the Sensor:

Connect the Woodpecker RVG I Sensor Size - 1 to your computer using the provided USB cable.

Power On the Sensor:

Connect the power adapter unit to the sensor and ensure it's powered on.

Driver Installation:

The Windows operating system should automatically detect the sensor. If not, you may need to install drivers provided by Woodpecker.

Calibration (if required):

Follow any calibration procedures specified in the user manual or software instructions.

How to Use:

Open Imaging Software:

Launch the imaging software on your computer.

Patient Information:

Enter or select patient information within the software.

Position the Sensor:

Place the Woodpecker RVG i Sensor Size - 1 intraorally in the desired position.

Capture Images:

Follow the on-screen instructions to capture intraoral digital radiographs. This typically involves triggering the X-ray exposure while the sensor is in the patient's mouth.

Image Review:

Review the captured images immediately within the software. You can zoom in, adjust contrast, and perform other image enhancements.

Save and Store Images:

Save the images to the patient's file or the central image repository. The software may provide options for organizing and managing patient data.

Export or Print (if necessary):

Export images for referral or consultation purposes. Some systems also allow you to print hard copies if needed.
Maintenance:
Follow any recommended maintenance procedures for the sensor to ensure its longevity and optimal performance.

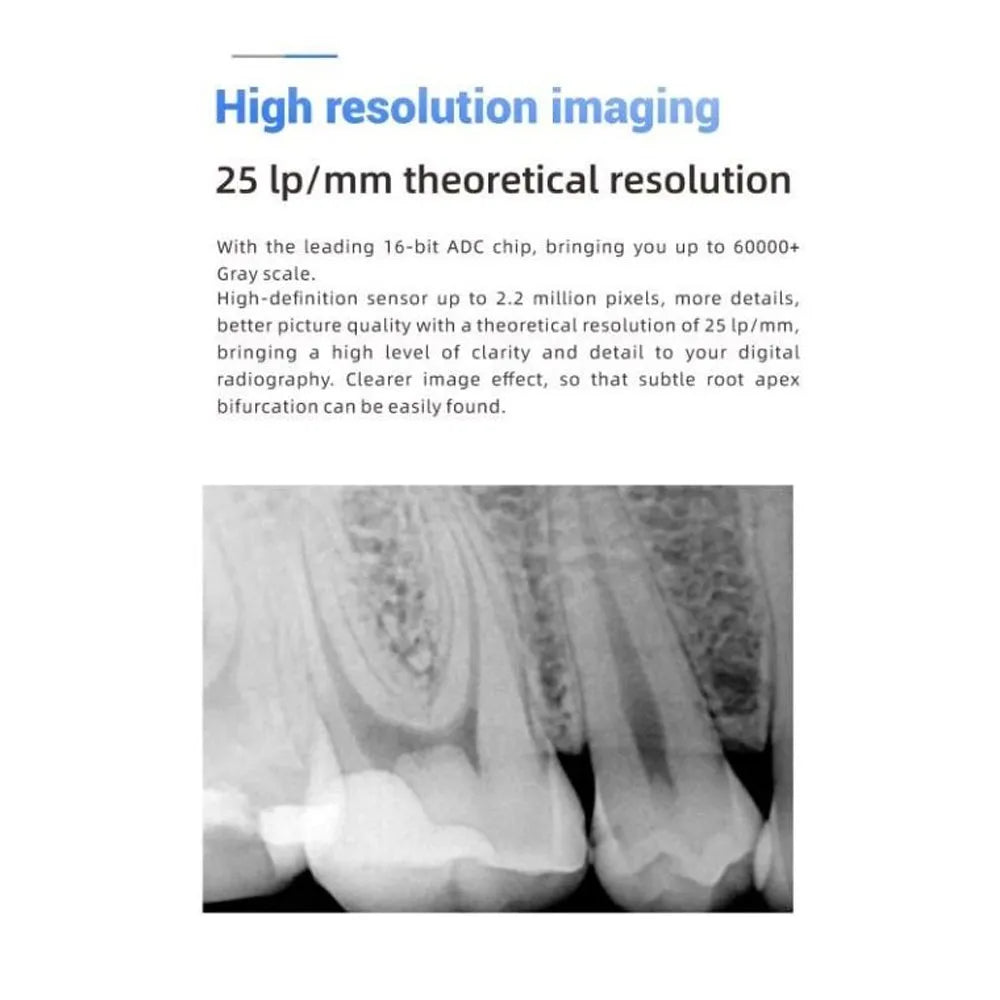

High-resolution imaging - 25lp/mm theoretical resolution
C Mos Technology

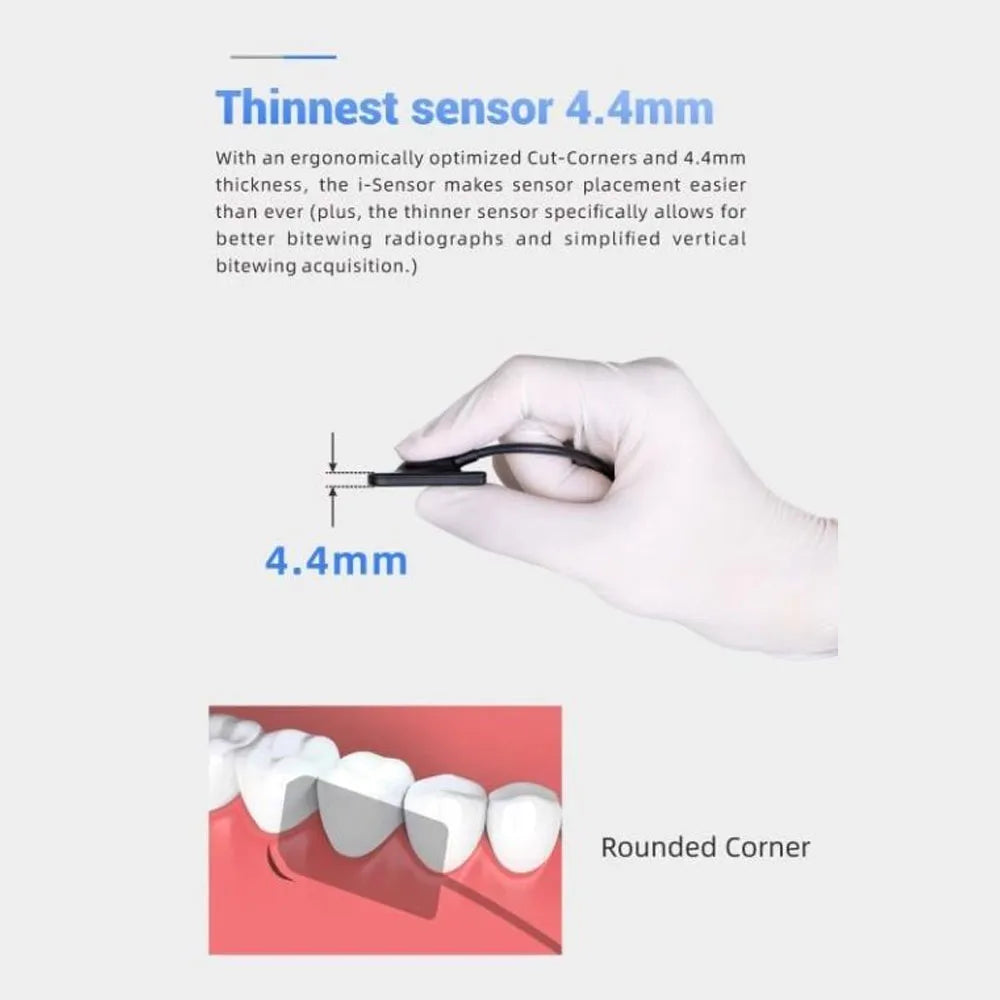

Thinnest sensor 4.4mm

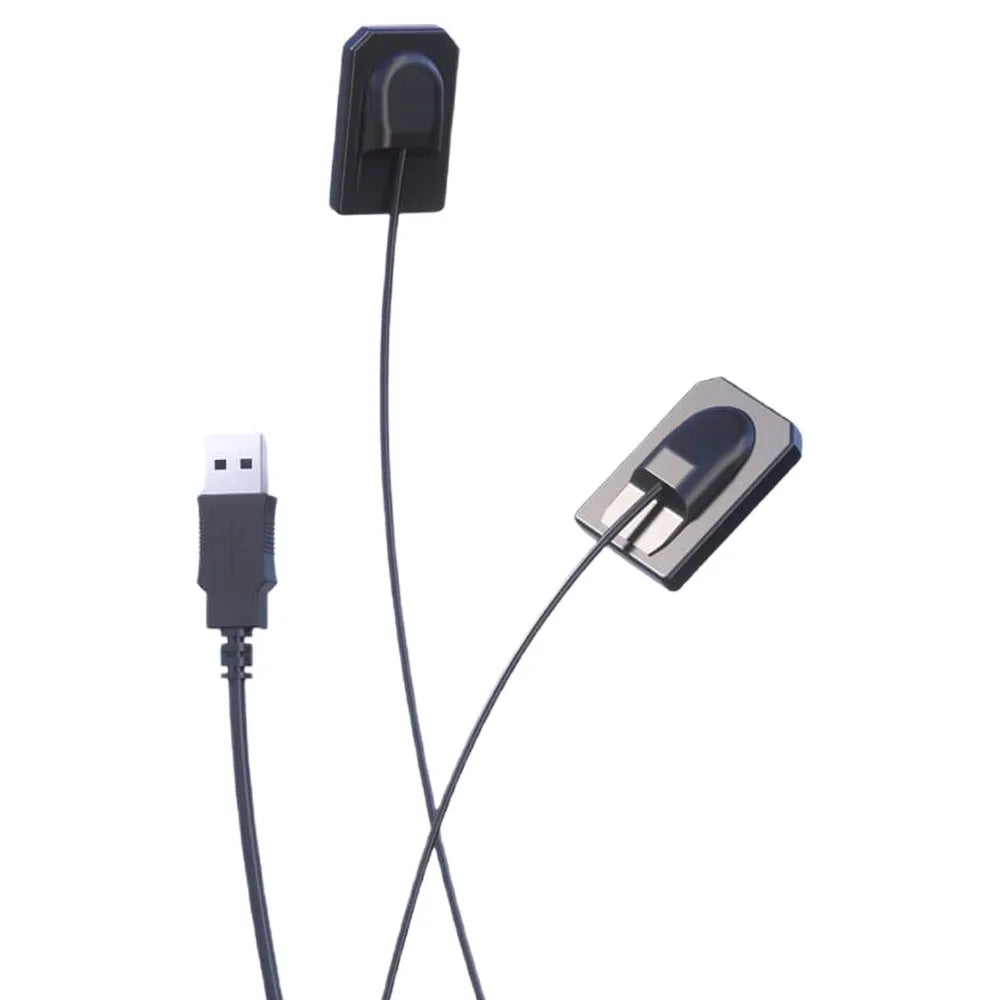

USB cable - 2.7m

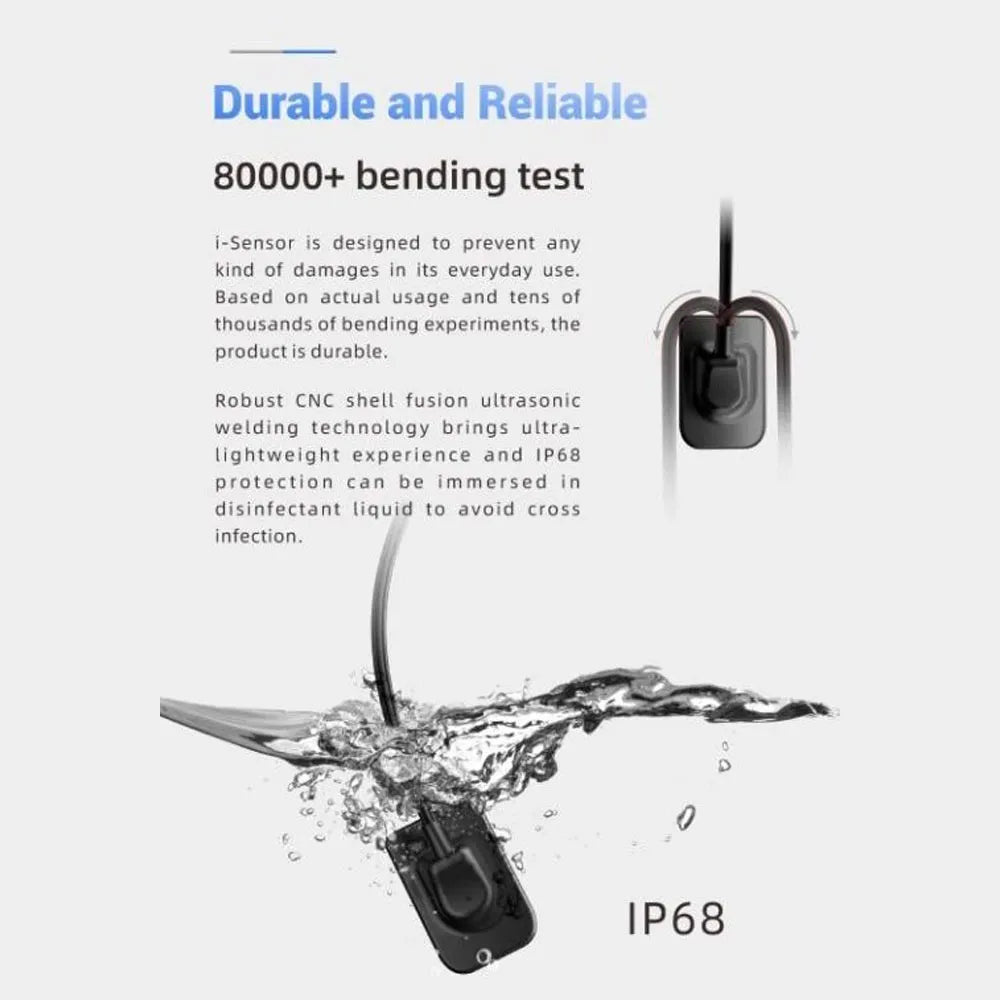

Durable and reliable: 80000+ bending test & IP68 protection rating

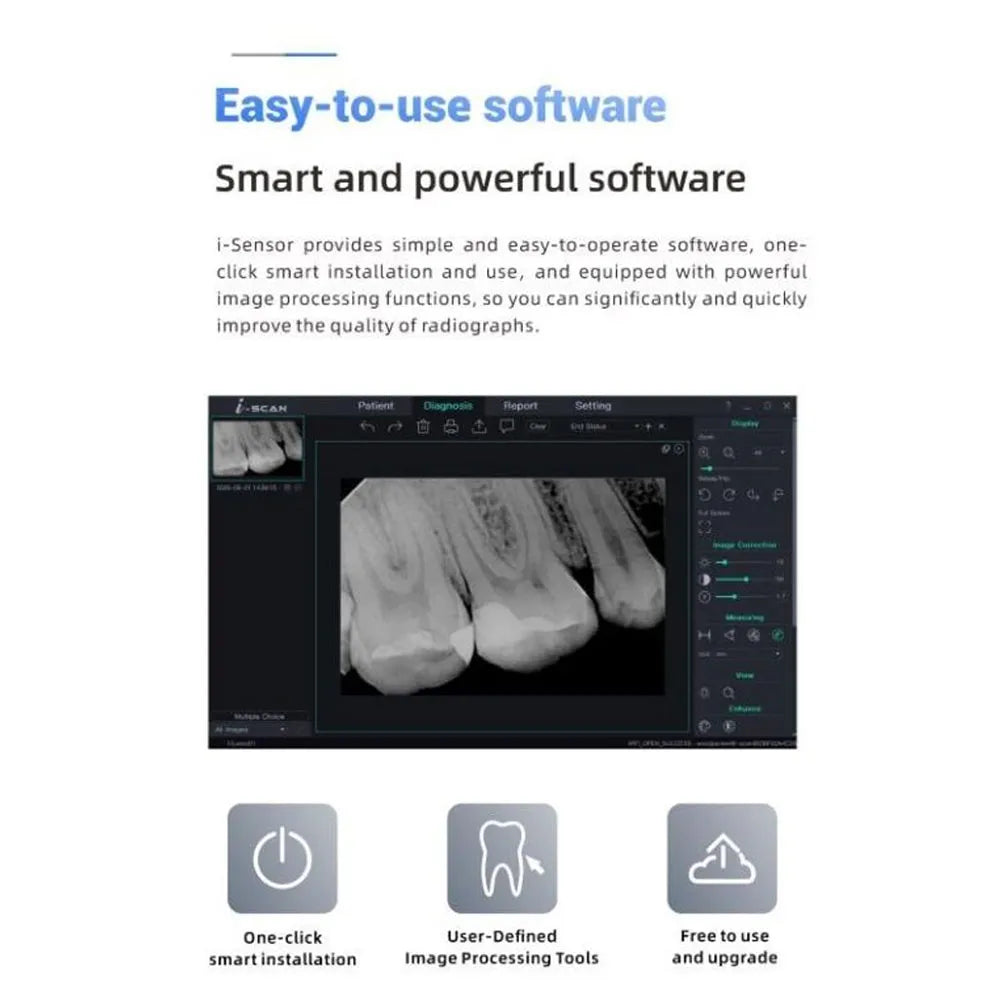

Smart and powerful software
Curved Edges to Avoid Patient Injury
Highly Flexible Cable
It has a Twain option. and the server function.
Now there is no limit for computers connected to the software license.
I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
High-resolution imaging - 25lp/mm theoretical resolution
C Mos Technology
Thinnest sensor 4.4mm
USB cable - 2.7m
Durable and reliable: 80000+ bending test & IP68 protection rating
Smart and powerful software
Curved Edges to Avoid Patient Injury
Highly Flexible Cable
It has a Twain option. and the server function.
Now there is no limit for computers connected to the software license.
I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
