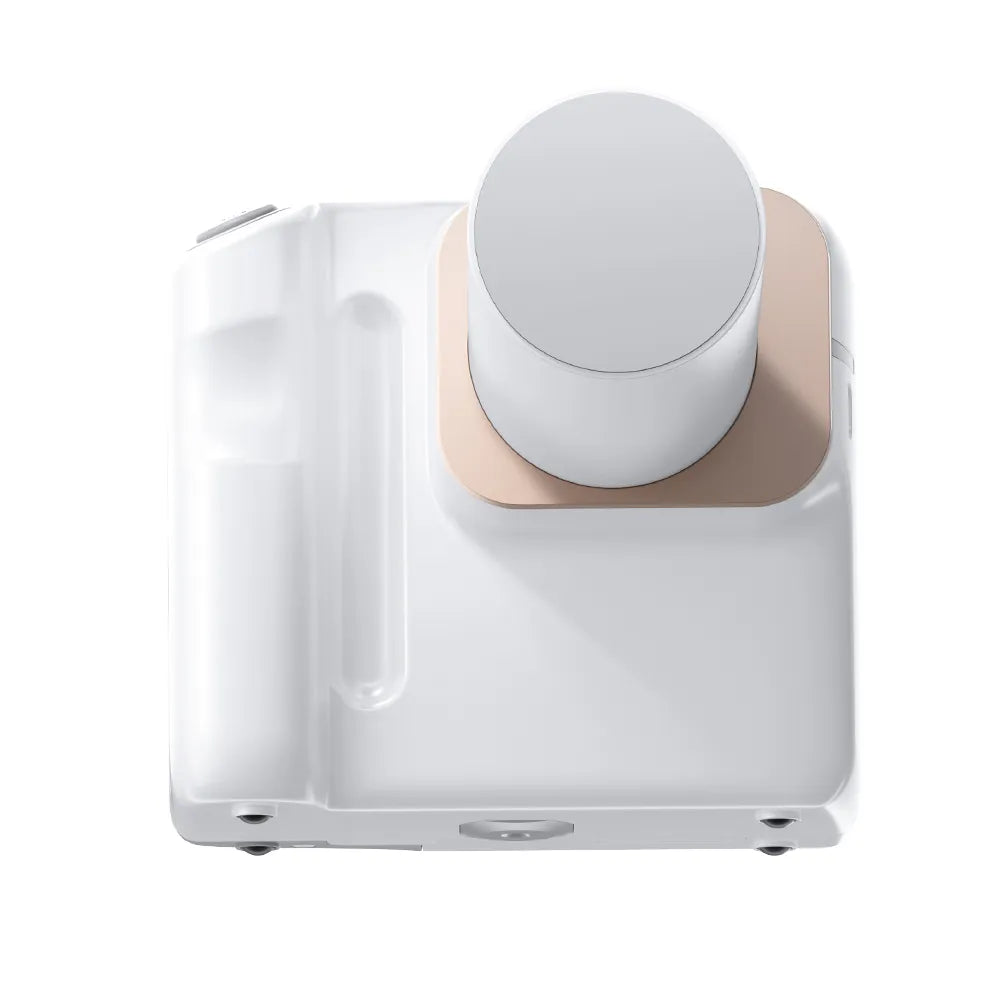

Woodpecker RTA Smart Ray Portable DC X Ray Machine

Rs. 65,000.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Power adapter model: UES48-150320SPA1
  • Power input: 100-240V~ 50/60Hz 1.1A
  • Internal power supply: DC 10.8V
  • Power adapter output: DC 15.0V 3.2A
  • Type of radiation: X-Ray
  • Maximum output electric power: 0.14kw (70kV, 2mA)
  • Nominal electric power: 0.14kw (70kV, 2mA, 0.1s)
  • Tube voltage: Tube voltage output is fixed at 70kV, error ±10%
  • Tube current: Tube current output is fixed at 2mA, error ±20%
  • Focal spot: 0.4 mm
  • Target angle: 12.5°
  • Dimension: 240mm×161mm×143mm
  • Weight: 2.2KG
  • Battery specification: 18650×3 10.8V 2500mAh 27Wh R.
  • Charger: 48W, Full charge in 1hour
  • Exit field size: Φ5.9cm±0.1cm.
  • Reference LOADING conditions: 70kV, 2mA, 1s, loading interval 1s/60s, 59 exposures per hour.
  • Radiation output stated: The variation coefficient under the function less than 5%.
  • Check Battery Capacity: Ensure that the battery is adequately charged for normal operation
  • Power On the Device: Press the power-on button to turn on the Dental X-Ray Generator. Listen for a prompt beep sound.Press the designated area briefly for 1 second; wait for the “Master Ray” indicator to change from white to green, and the lock icon to unlock. Release your hand to enter the main interface
  • Select Imaging Parameters: Choose the appropriate group, tooth type, and equipment mode for the imaging procedure
  • Adjust Exposure Time: Review the default exposure time displayed and adjust as necessary based on clinical indications and patient specifics
  • Prepare Imaging Receiver: Place a high-quality image receiver (IP imaging plate, sensor, or film) in a protective bag and position it in the patient’s mouth, ensuring it is parallel to the longitudinal axis of the teeth with the effective surface facing towards them
  • Pre-Exposure Setup: Short press or long press the exposure button to enter pre-exposure mode.Position the Dental X-Ray Generator at the patient's teeth, adjusting according to the angle displayed on the screen
  • Ensure Proper Alignment: Confirm that the light beam from the Dental X-Ray Generator is perpendicular to the image receiver's position
  • Capture the Image: Press and hold the exposure button until you hear a beep sound indicating that exposure is complete. Release the button when the beep stops
  • Post-Exposure Procedure: After exposure, carefully remove the image receiver from the patient's mouth.Allow a cooling period for the device after completing exposure
  • Maintain Correct Patient Positioning: Ensure that the patient maintains a correct sitting position throughout the procedure and adjust angles as necessary for optimal imaging
  • Configure Settings Based on Patient Needs: Be mindful of patient age, size, and clinical indications when configuring exposure settings, adjusting time settings as needed
  • Access Settings Interface: Click on equipment selection icons to choose required imaging receivers (sensor, scanner, or film) and adjust group modes between adult and child settings based on patient age
  • Finalize Exposure Settings: After confirming all selected parameters (group mode, tooth type, device, exposure time), press and hold the exposure button to initiate imaging when ready
  • Monitor Pre-Exposure Countdown: In pre-exposure mode, observe countdown and real-time angle displays on-screen; you can return to main interface if needed
  • Completion Notification: Once exposure is complete, a completion interface will appear on-screen, indicating successful image acquisition

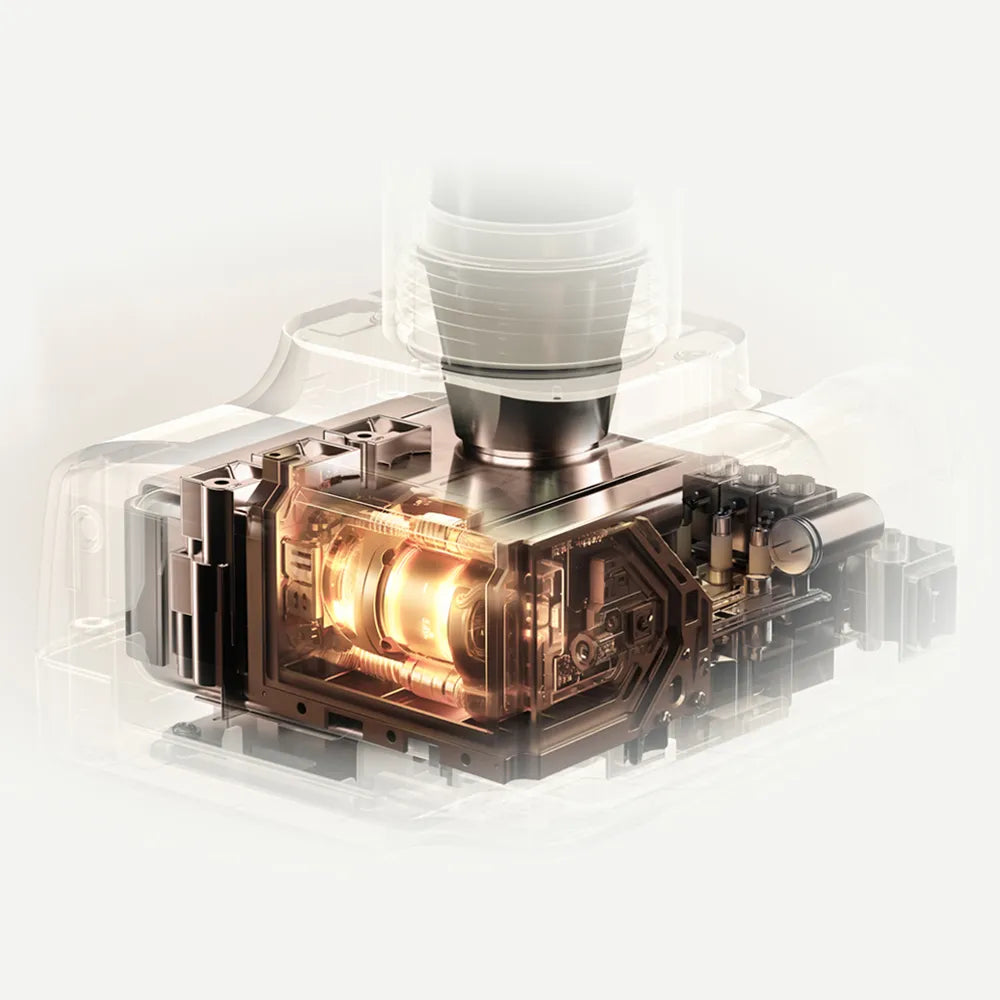

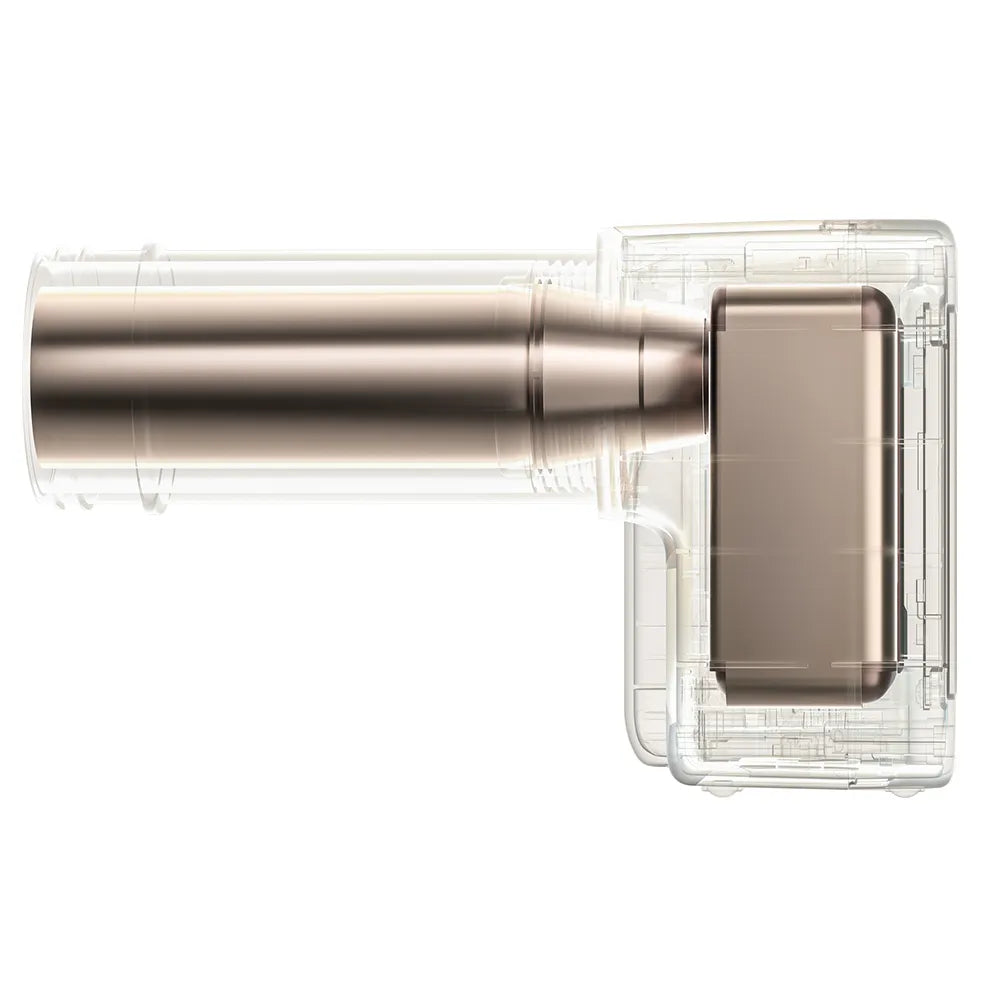

  • Japan Canon High-Frequency X-Ray Tube: Utilizes innovative technology to ensure consistent x-ray output and outstanding imaging quality
  • Maximum Performance Effortless Shooting: Delivers 140W (70kV, 2mA) ultra-high emission power for efficient shooting with reduced exposure time, minimizing the risk of multi-images and providing high-definition images
  • Small Focus: Features a 12º anode angle and a nominal focus of 0.4mm, allowing for more focused x-ray release and reducing the occurrence of multi-images

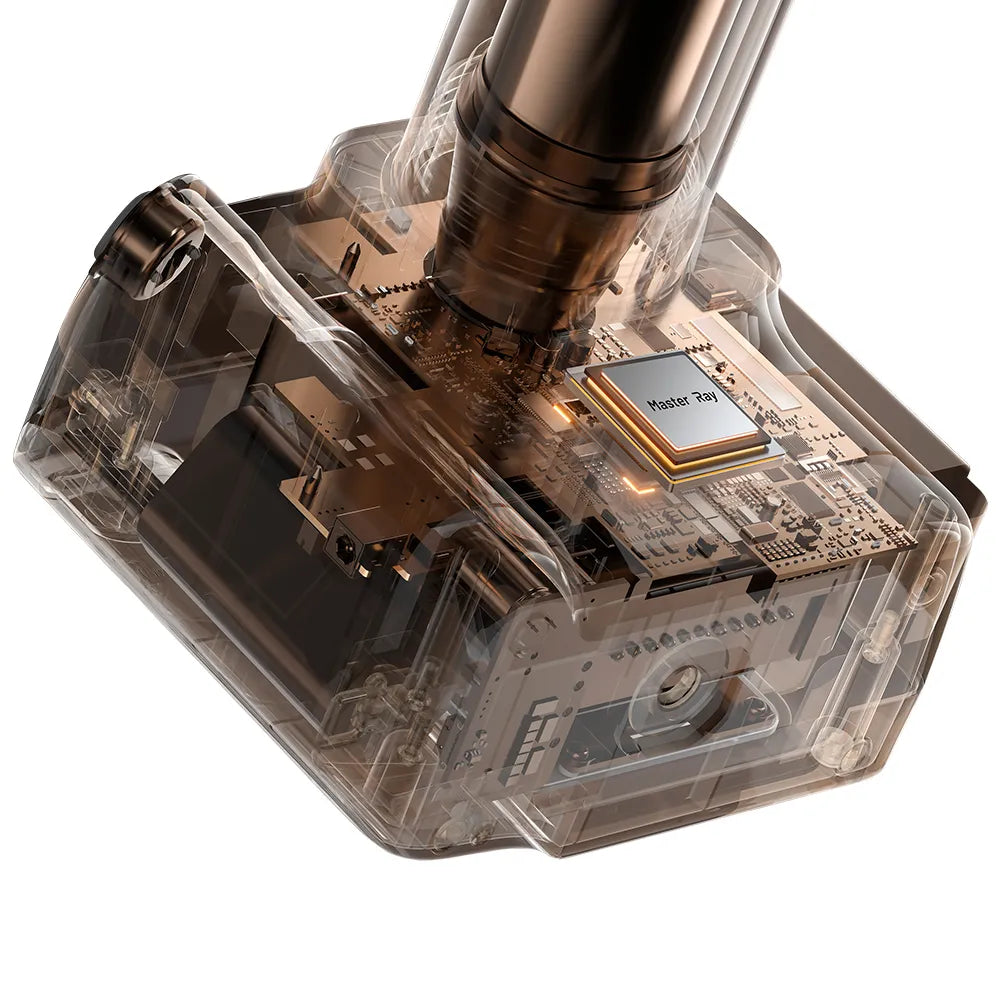

  • Advanced USA Chips: Incorporates advanced chip technology for high-frequency closed-loop control, ensuring stable output and reducing the impact of low battery power on image quality
  • Real-Time Display of Grip Angle: Equipped with a USA angle sensor that displays the grip angle in real-time, allowing for calibration based on patient posture to achieve optimal shooting angles
  • Long-Lasting Battery for Uninterrupted Performance: Features a high-capacity 2500mAh lithium battery, providing over 500 shots on a full charge with fast charging capabilities (1-hour full charge)
  • Comprehensive Protection, Maximum Safety: Designed with 99.9% pure lead shielding in the oil tank and beam limiter to maximize protection against radiation leakage, ensuring operator safety
  • Wireless RF Connection Technology: Utilizes wireless RF connection for quick response and convenient operation, enhancing accessibility during shooting

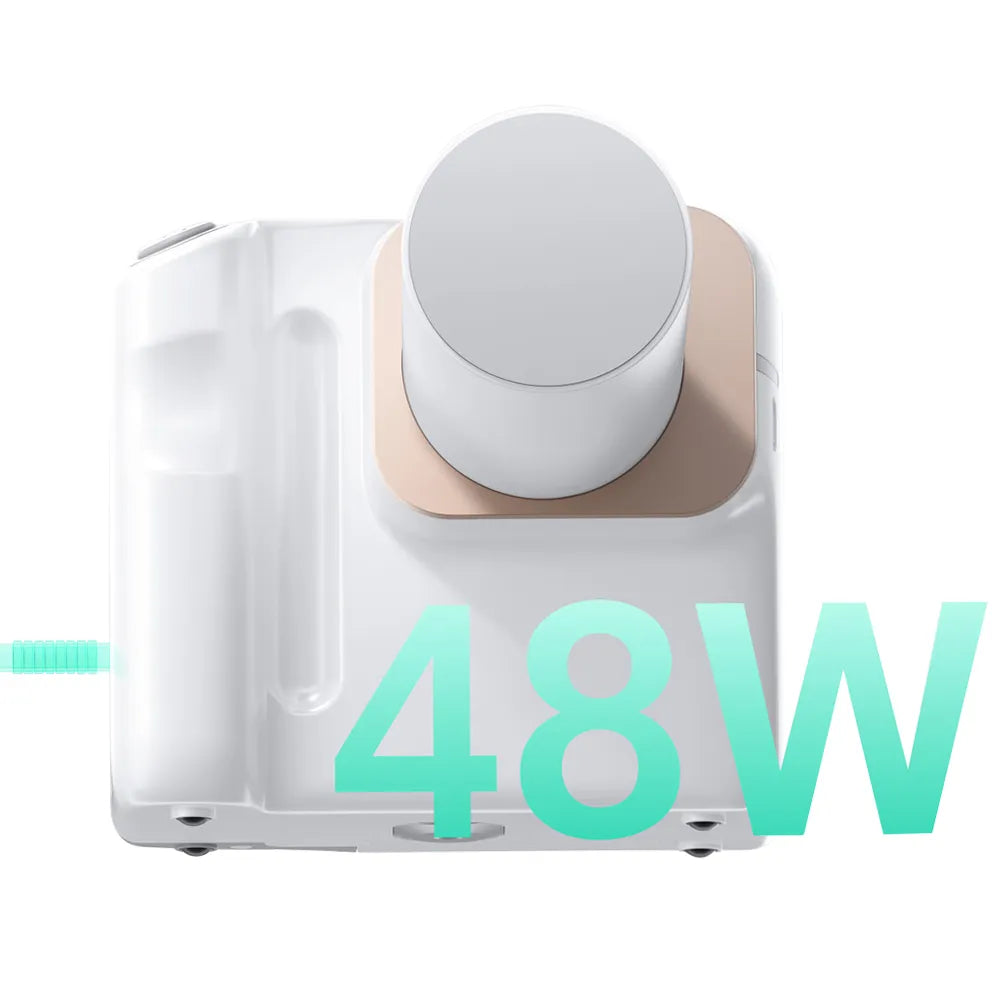

  • Super Fast Charging: Offers 48W charging power for a quick 1-hour full charge, improving work efficiency
  • Perfect Match of Technology and Artistry: Inspired by classic SLR cameras, the lightweight design features an anti-slip texture and a camera-style shutter exposure button for comfortable handling

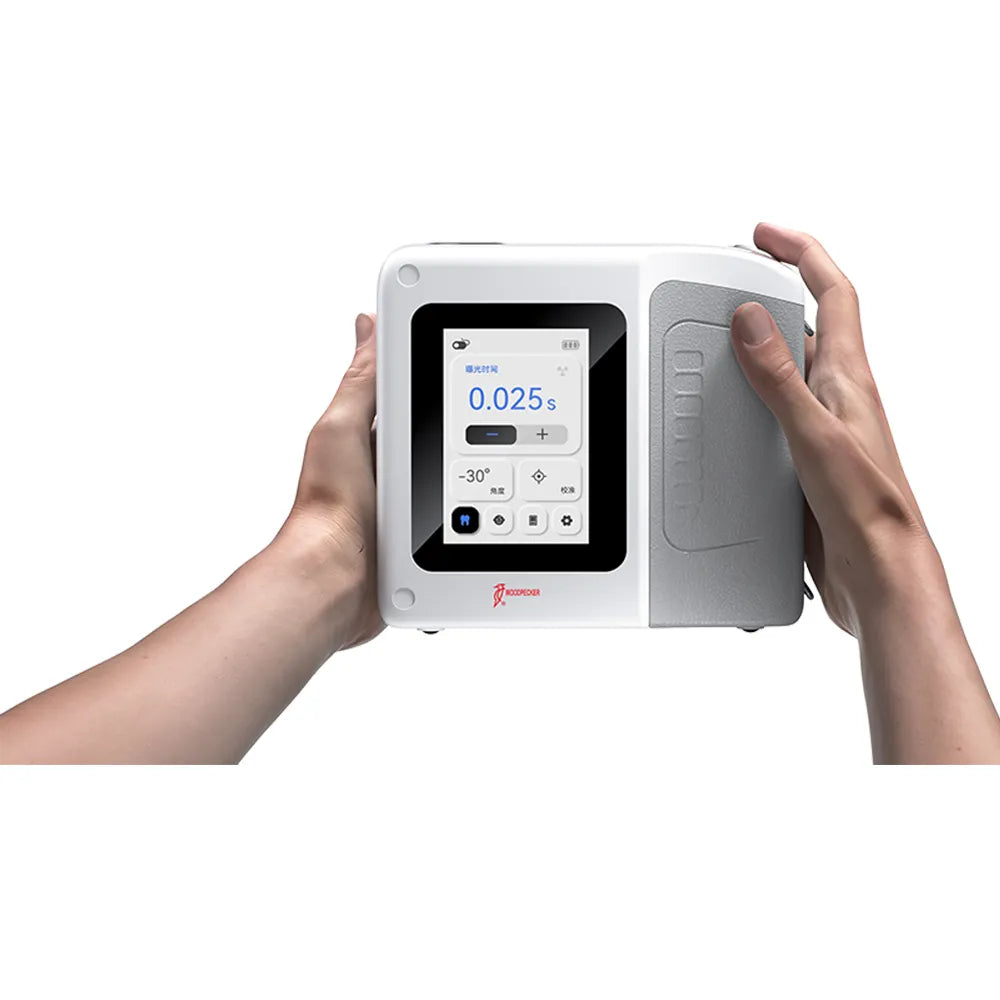

  • Concise UI Easy to Use: Equipped with a 3.5-inch IPS capacitive touch screen for sensitive touch operation, providing an intuitive user interface with diverse options
  • 360° Panoramic Shooting: Capable of achieving 360-degree rotation for both vertical and horizontal directions, meeting the imaging needs of various tooth positions
  • Japan Canon High-Frequency X-Ray Tube: Utilizes innovative technology to ensure consistent x-ray output and outstanding imaging quality
  • Maximum Performance Effortless Shooting: Delivers 140W (70kV, 2mA) ultra-high emission power for efficient shooting with reduced exposure time, minimizing the risk of multi-images and providing high-definition images
  • Small Focus: Features a 12º anode angle and a nominal focus of 0.4mm, allowing for more focused x-ray release and reducing the occurrence of multi-images
  • Advanced USA Chips: Incorporates advanced chip technology for high-frequency closed-loop control, ensuring stable output and reducing the impact of low battery power on image quality
  • Real-Time Display of Grip Angle: Equipped with a USA angle sensor that displays the grip angle in real-time, allowing for calibration based on patient posture to achieve optimal shooting angles
  • Long-Lasting Battery for Uninterrupted Performance: Features a high-capacity 2500mAh lithium battery, providing over 500 shots on a full charge with fast charging capabilities (1-hour full charge)
  • Comprehensive Protection, Maximum Safety: Designed with 99.9% pure lead shielding in the oil tank and beam limiter to maximize protection against radiation leakage, ensuring operator safety
  • Wireless RF Connection Technology: Utilizes wireless RF connection for quick response and convenient operation, enhancing accessibility during shooting
  • Super Fast Charging: Offers 48W charging power for a quick 1-hour full charge, improving work efficiency
  • Perfect Match of Technology and Artistry: Inspired by classic SLR cameras, the lightweight design features an anti-slip texture and a camera-style shutter exposure button for comfortable handling
  • Concise UI Easy to Use: Equipped with a 3.5-inch IPS capacitive touch screen for sensitive touch operation, providing an intuitive user interface with diverse options
  • 360° Panoramic Shooting: Capable of achieving 360-degree rotation for both vertical and horizontal directions, meeting the imaging needs of various tooth positions
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables Woodpecker
Tags: Product

Share On

Description

The Woodpecker RTA Smart Ray Portable DC X-Ray Machine is a cutting-edge dental imaging device designed for professional use by dentists in clinical settings. This portable X-ray generator allows for efficient photography of teeth, providing high-quality dental images essential for accurate diagnosis and treatment planning. Its lightweight and compact design makes it easy for practitioners to carry and operate, enhancing mobility during procedures. The user-friendly interface simplifies exposure settings, ensuring ease of use. With low radiation output and high efficiency, it prioritizes patient safety while delivering excellent imaging results, making it an invaluable tool for modern dental practices.
