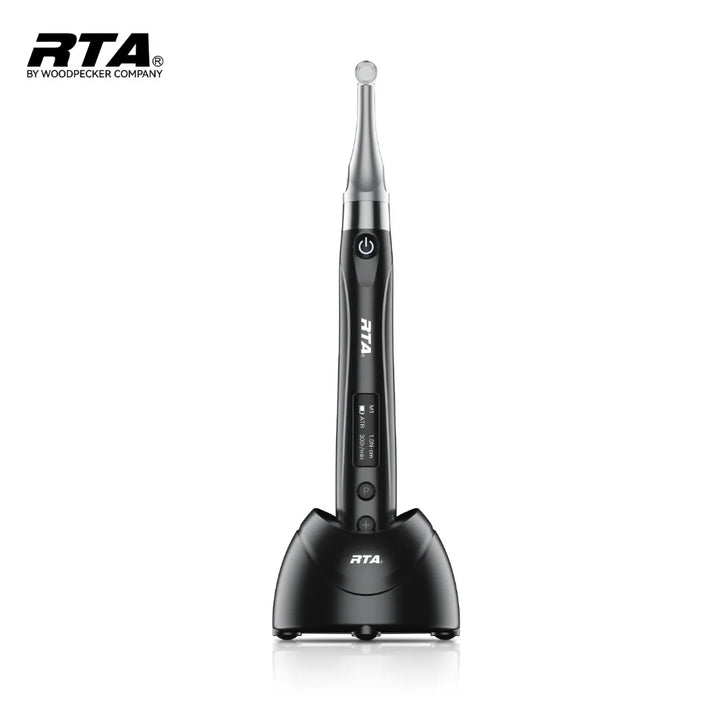

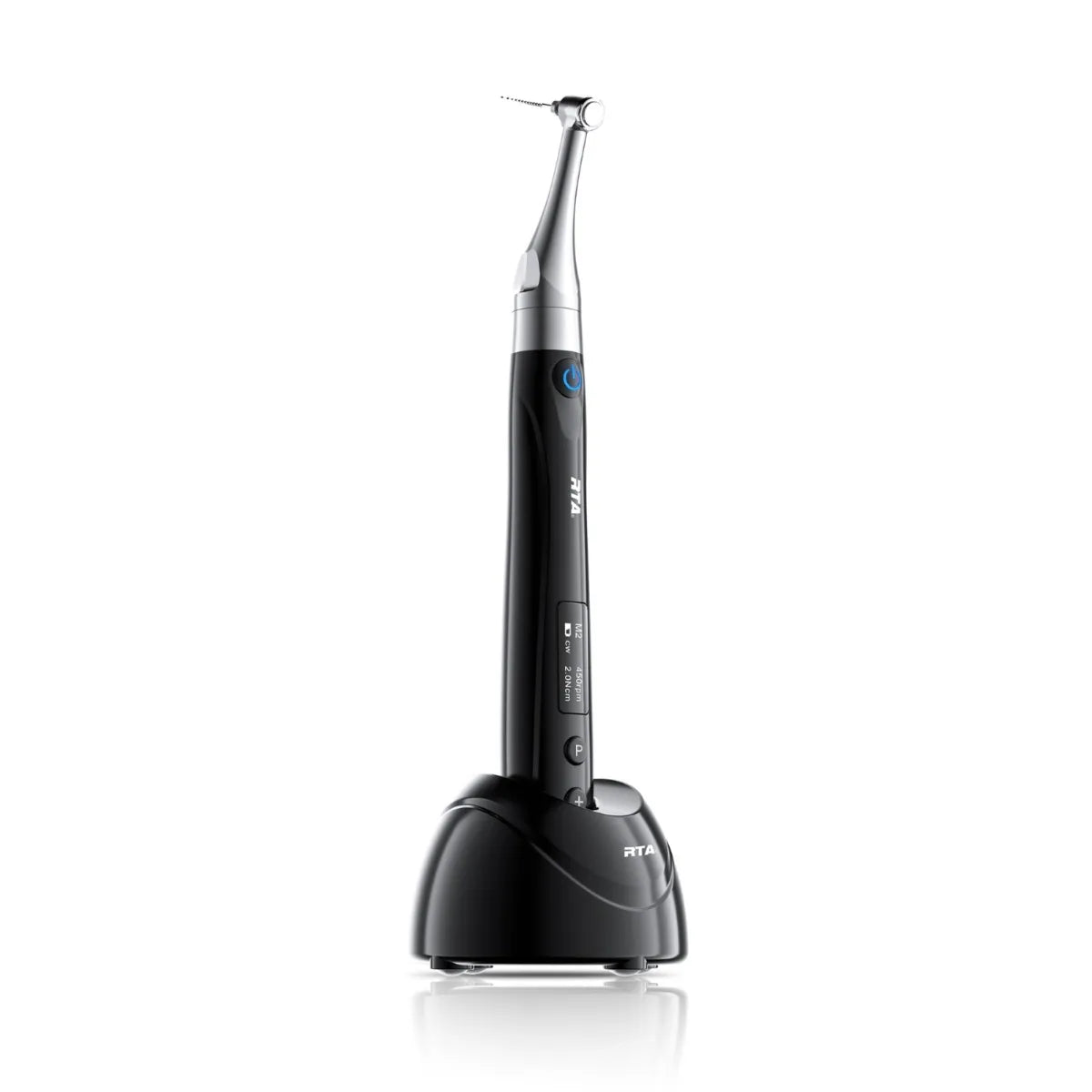

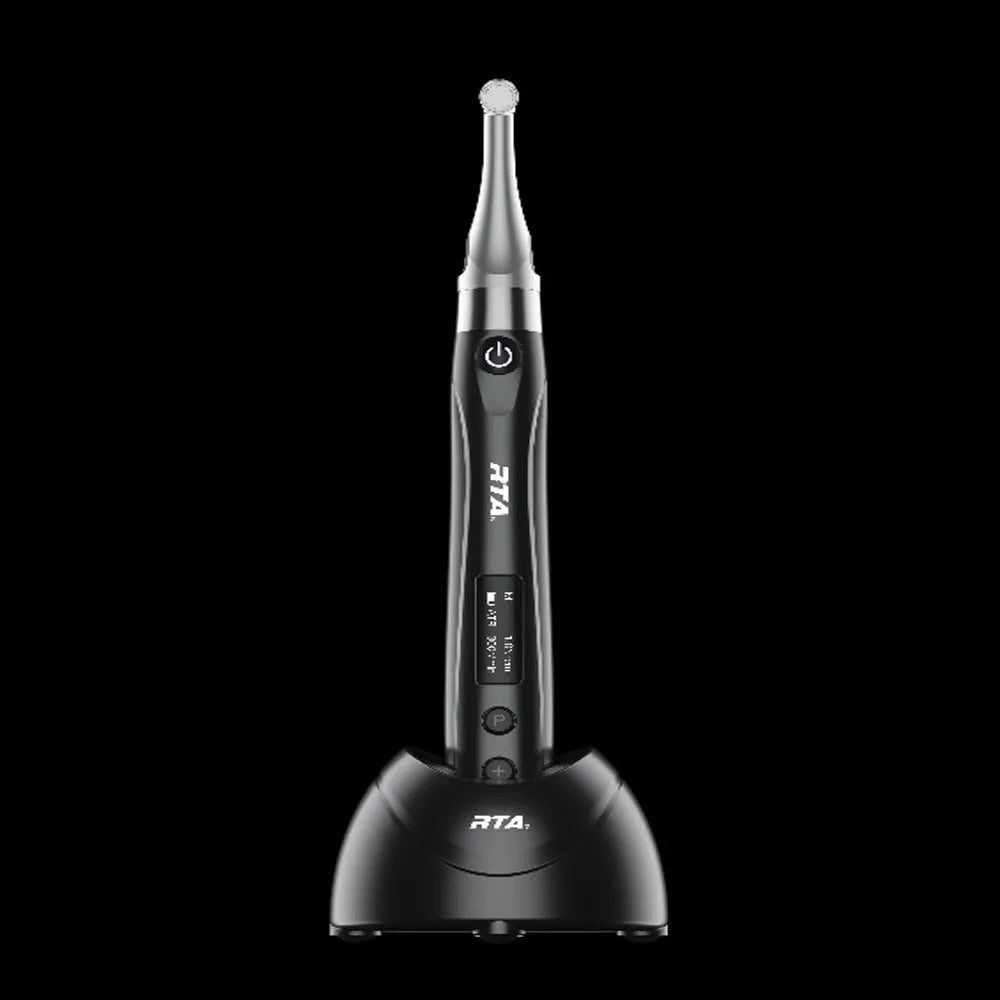

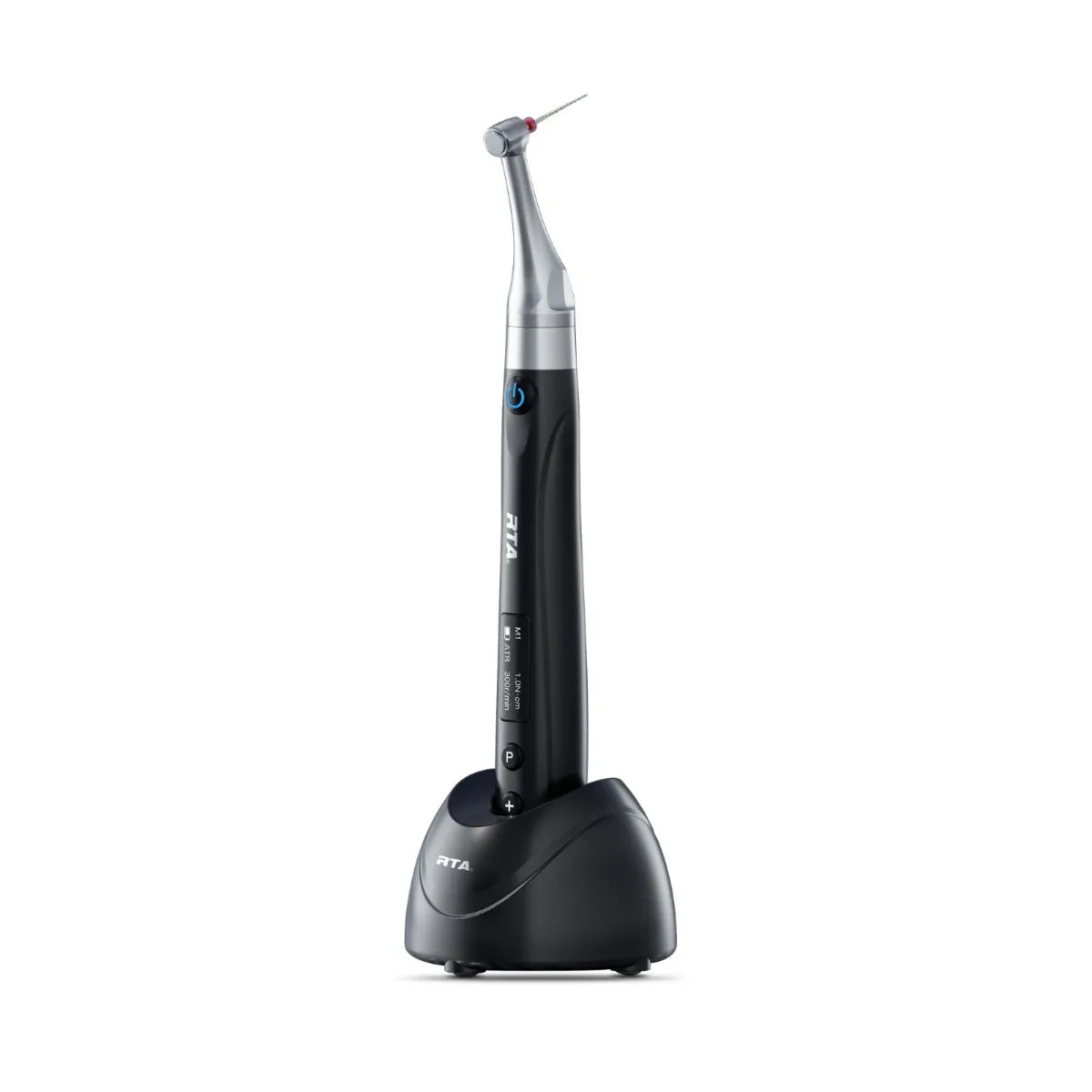

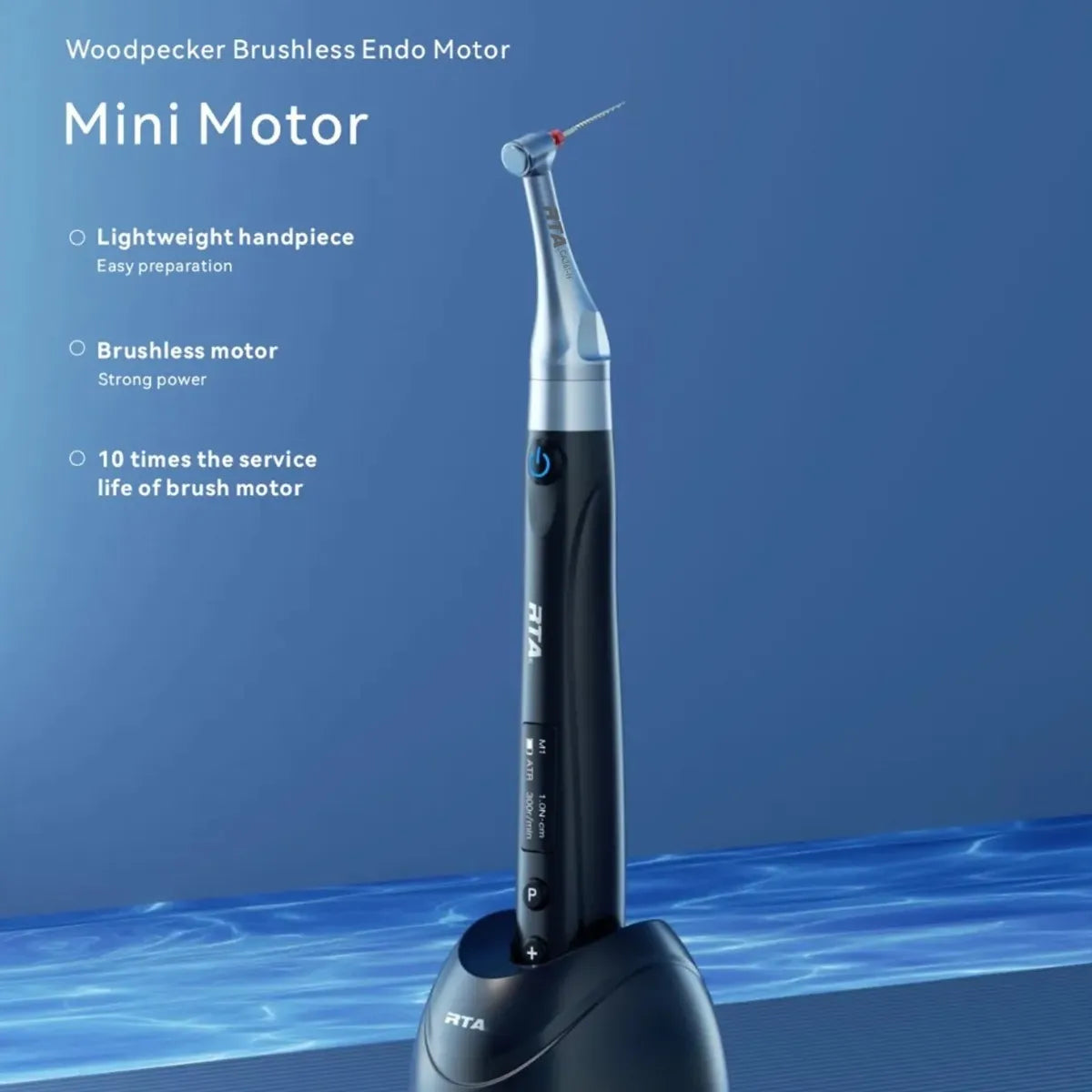

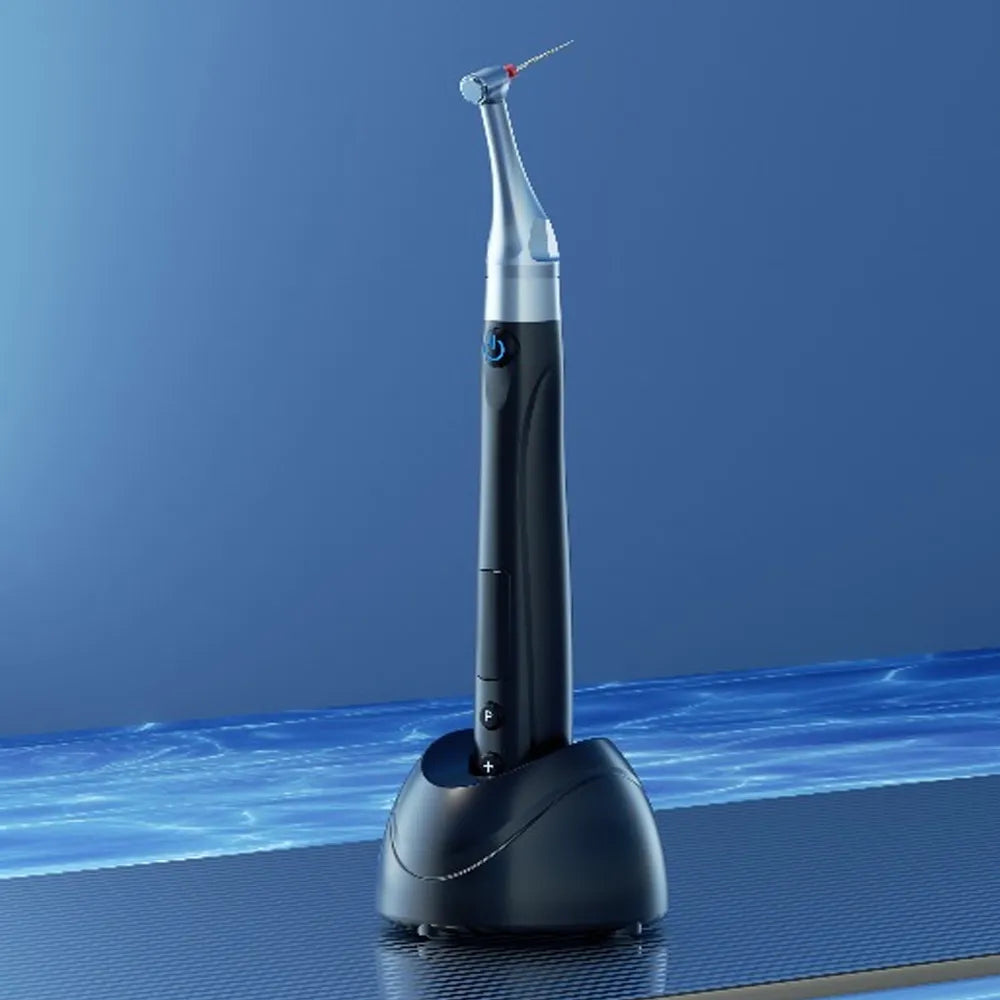

Woodpecker RTA MiniMotor Brushless Endomotor

Motor Type: Brushless motor

Speed Range: 100r/min - 1500r/min

Torque Range: 0.4N·cm - 4.2N·cm

Service Life: 10 times longer than brush motors

Rotation: Smoother, lower noise

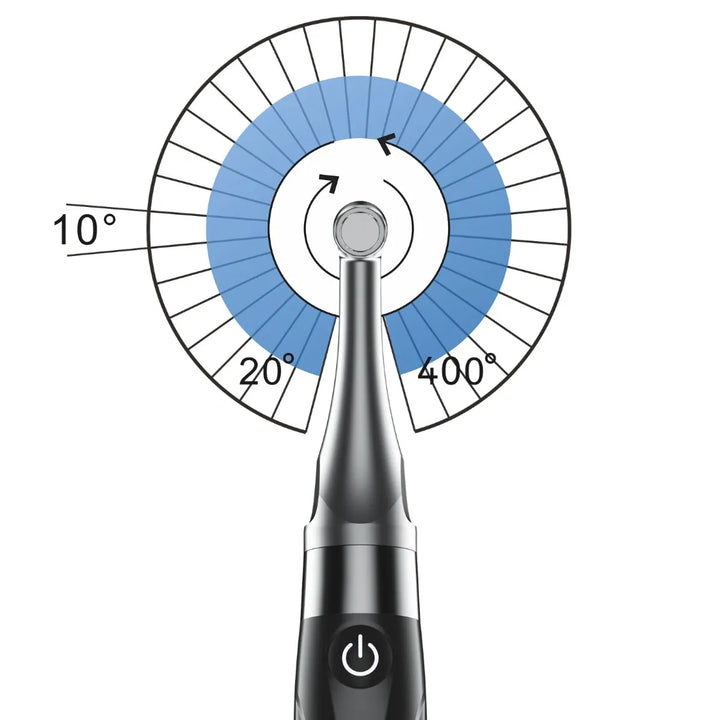

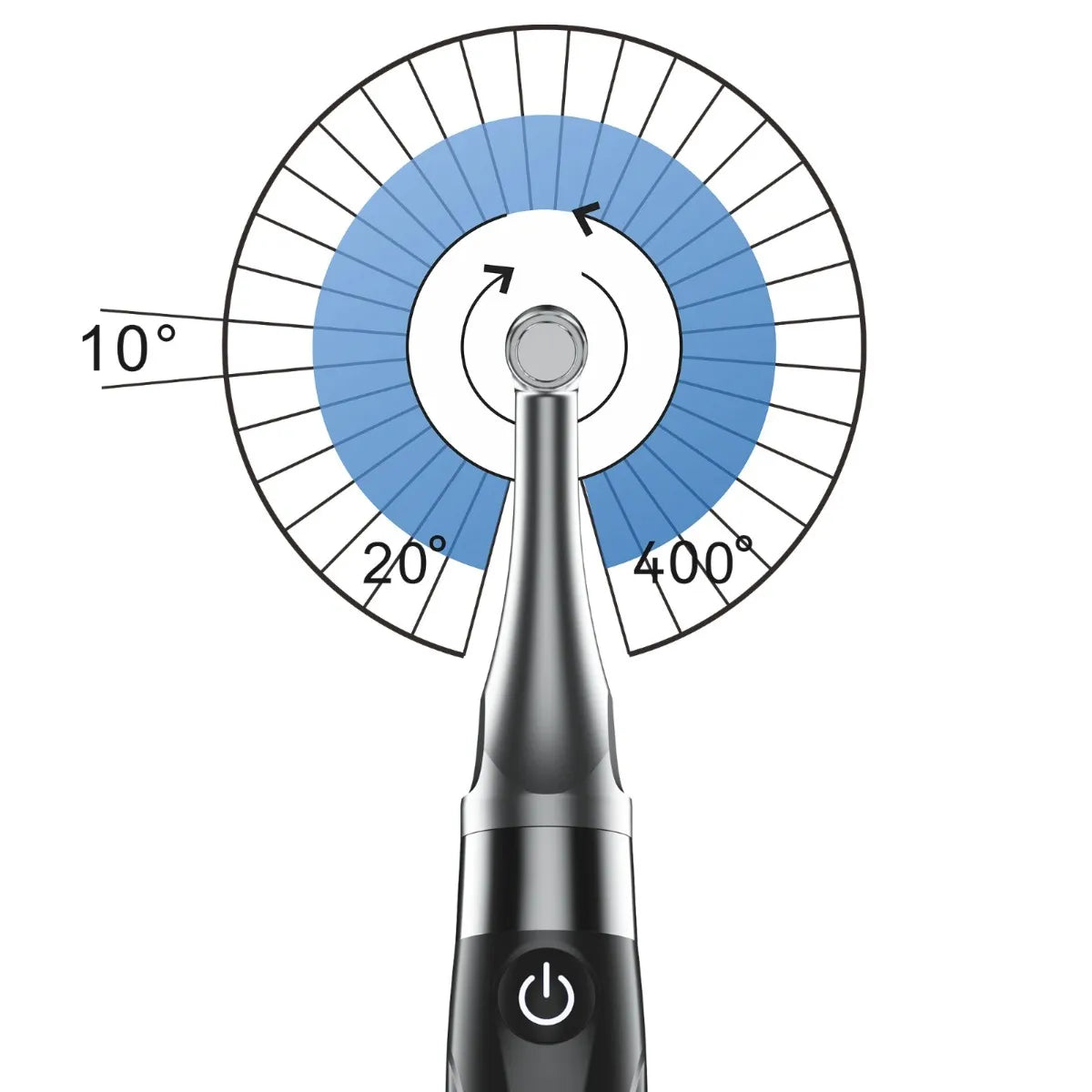

Adjustable Reciprocating Angle: 10° intervals

Forward & Reverse Reciprocating Angle: 20° - 400°

Speed Ratio: 6:1

Head Height: 9.7mm

Head Diameter: 8mm

Neck Diameter: 6mm

Contra-angle Rotation: 360° rotatable

Working Modes: Forward, Reverse, Reciprocating, ATR

Control: Wireless

Operation Field: Broader with 6:1 speed ratio

Apex Locator Compatibility: Yes

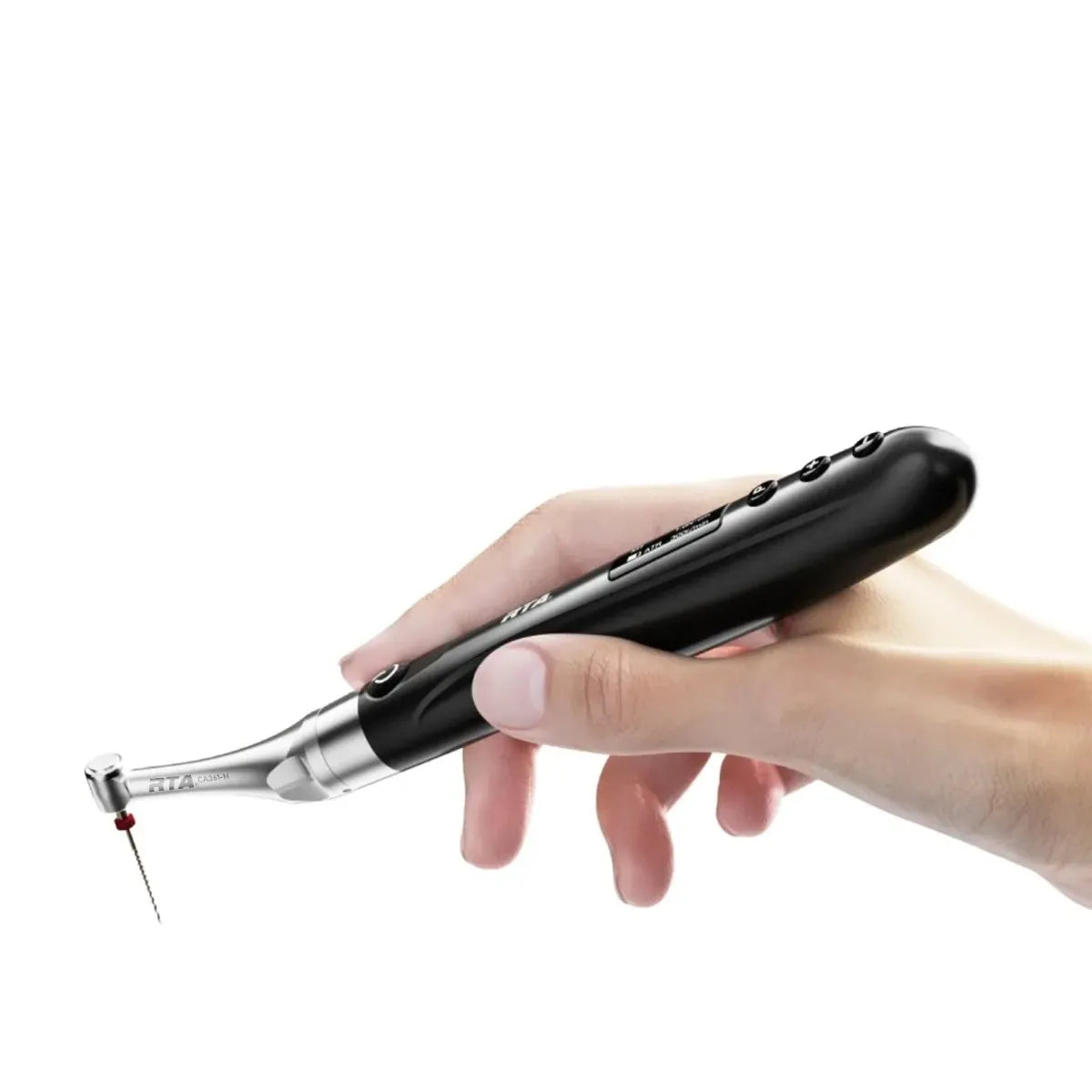

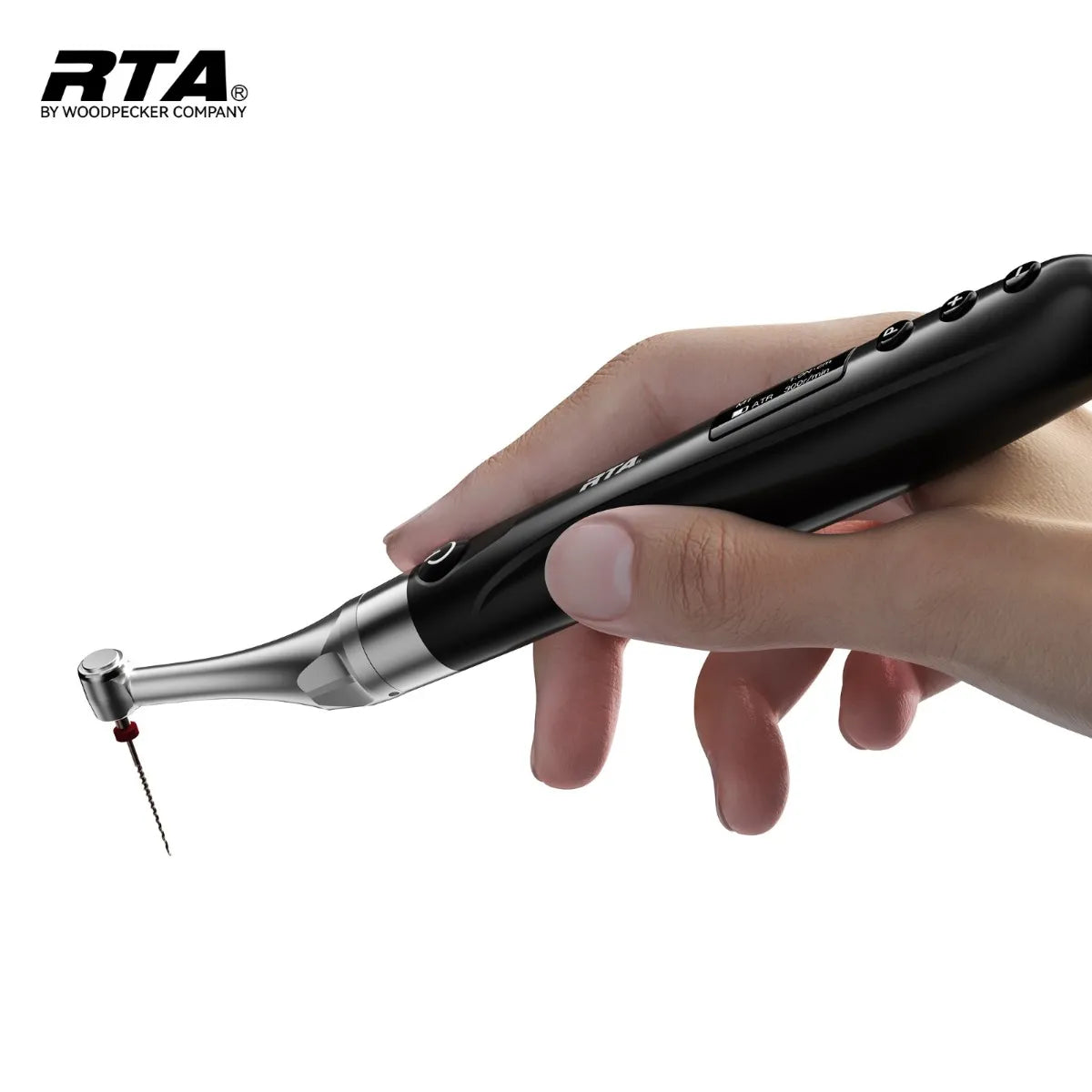

Design: Lightweight, cordless, well-balanced

Preparation Efficiency: High torque and fast response

Safety Features: Accurate angle control, reduced instrument separation risk.

Battery: Lithium battery in motor handpiece: 3.6V / 850mAh

Power adapter
Input: ~100V-240V 50Hz/60Hz 0.4A Max
Output: DC5V/1A

Atmospheric pressure: 70kPa ~ 106kPa

Preparation:

• Ensure the handpiece is fully charged before use.
• Connect the handpiece to the Apex Locator if needed.

Assembly:

• Attach the 6:1 mini contra-angle to the handpiece securely.
• Insert the desired file into the contra-angle head.

Power On:

• Press the power button to turn on the handpiece.
• Select the desired working mode (Forward, Reverse, Reciprocating, ATR) using the mode selector.

Speed and Torque Settings:

• Adjust the speed between 100r/min to 1500r/min as required for the procedure.
• Set the torque between 0.4N·cm to 4.2N·cm according to the specific needs of the preparation.

Reciprocating Angle Adjustment:

• Use the adjustment control to set the reciprocating angle within the range of 20° to 400°.
• Adjust in 10° intervals for precise control.
• Operation:
• Position the handpiece at the desired tooth location.
• Use the well-balanced design and 360° rotatable contra-angle for better maneuverability and accessibility.
• Apply gentle pressure and allow the high torque motor to perform the cutting.

Safety:

• Monitor the torque and speed settings to ensure they remain within safe limits.
• In ATR mode, the file will reciprocate at the set angle after reaching the preset torque, reducing the risk of instrument separation.

Post-Procedure:

• Turn off the handpiece and detach the contra-angle.
• Clean and sterilize the handpiece and contra-angle according to the manufacturer's guidelines.

Storage:

• Store the handpiece in a clean, dry place.
• Ensure the handpiece is fully charged before storing to maintain battery health.

• High-performance brushless motor for strong power.
• Extended service life, 10 times longer.
• Low wear and heat for durability.
• Adjustable reciprocating angle for precision.
• Compact 6:1 contra-angle for flexibility.
• Wireless, cordless operation for convenience.
• Four working modes for versatile use.
• Apex Locator compatible for enhanced accuracy.
