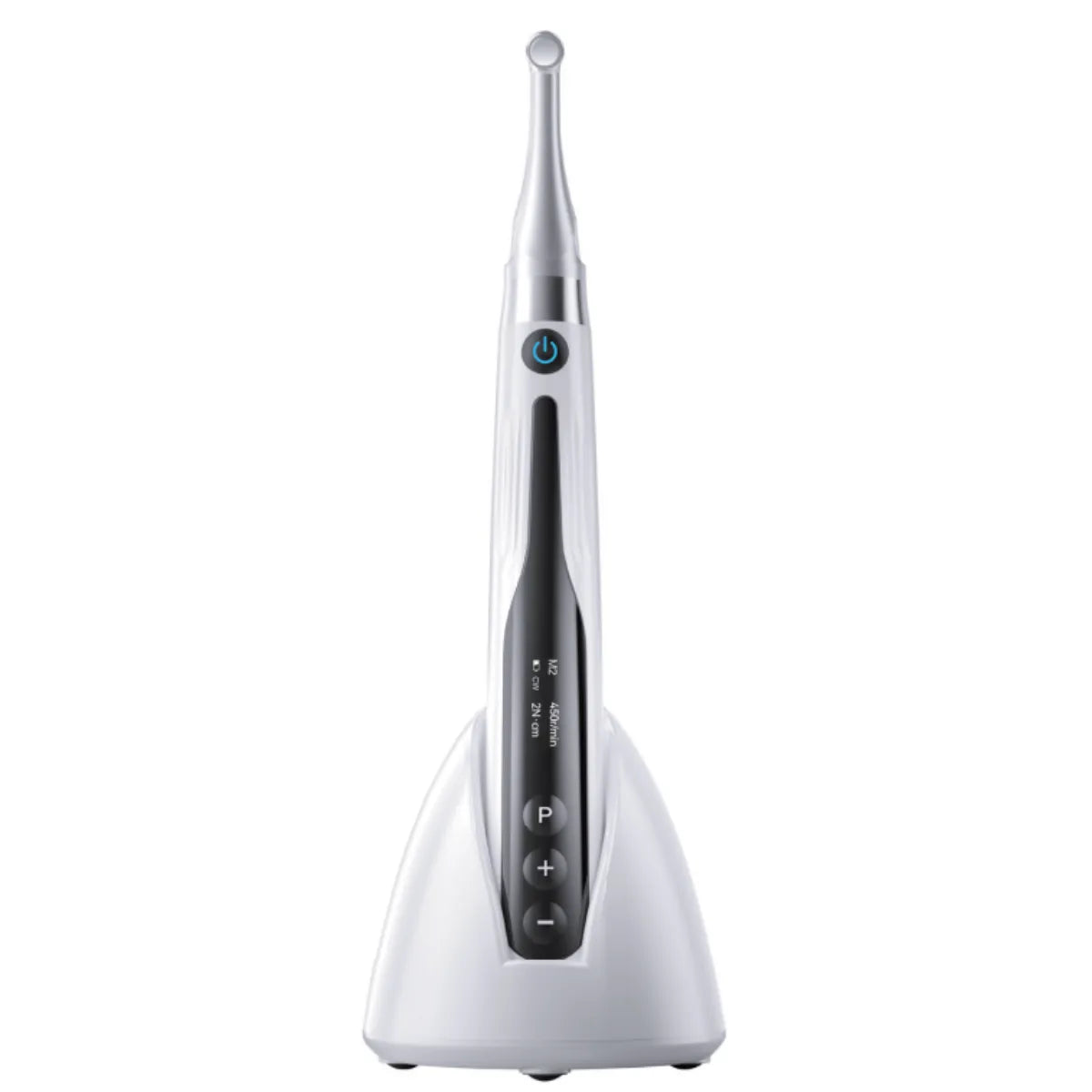

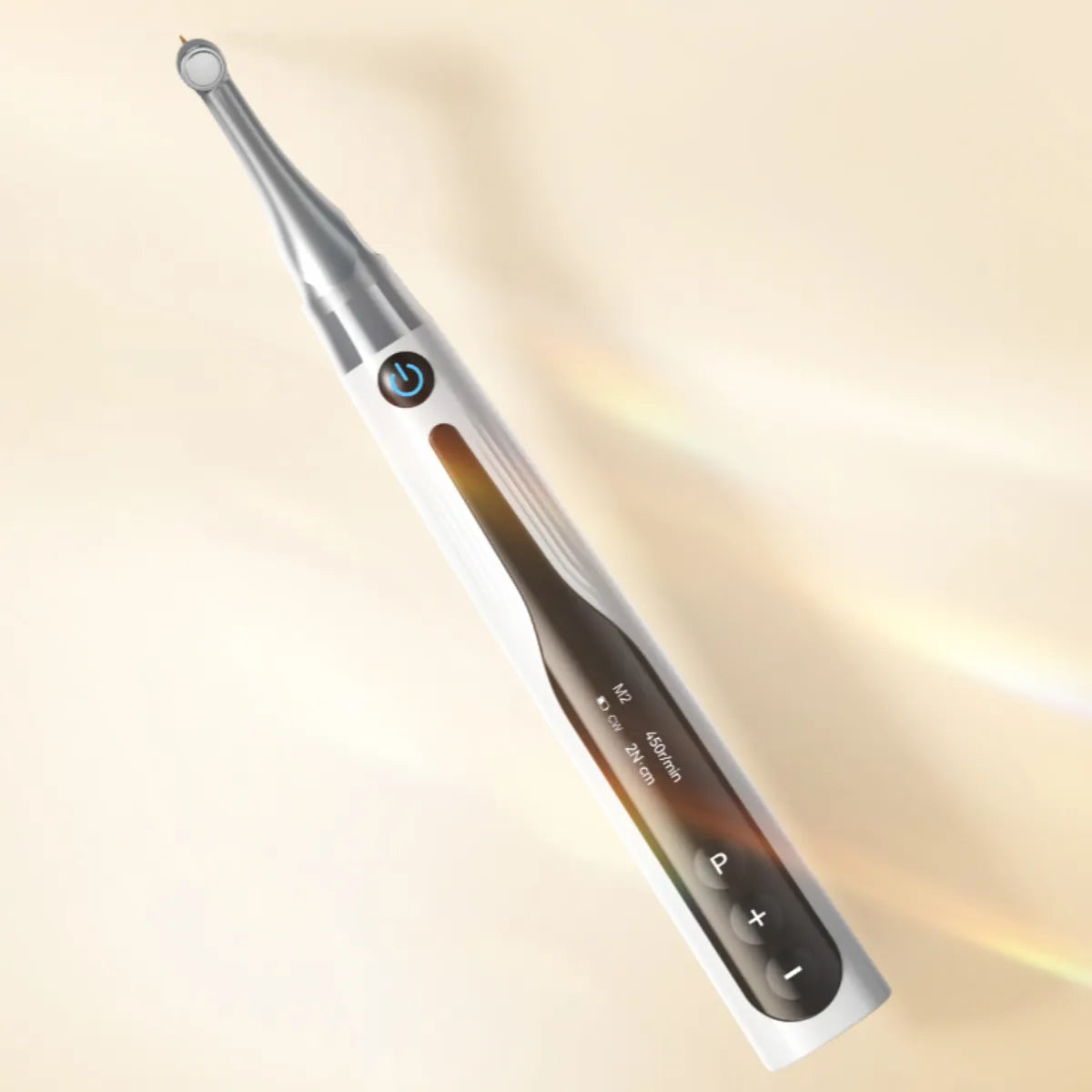

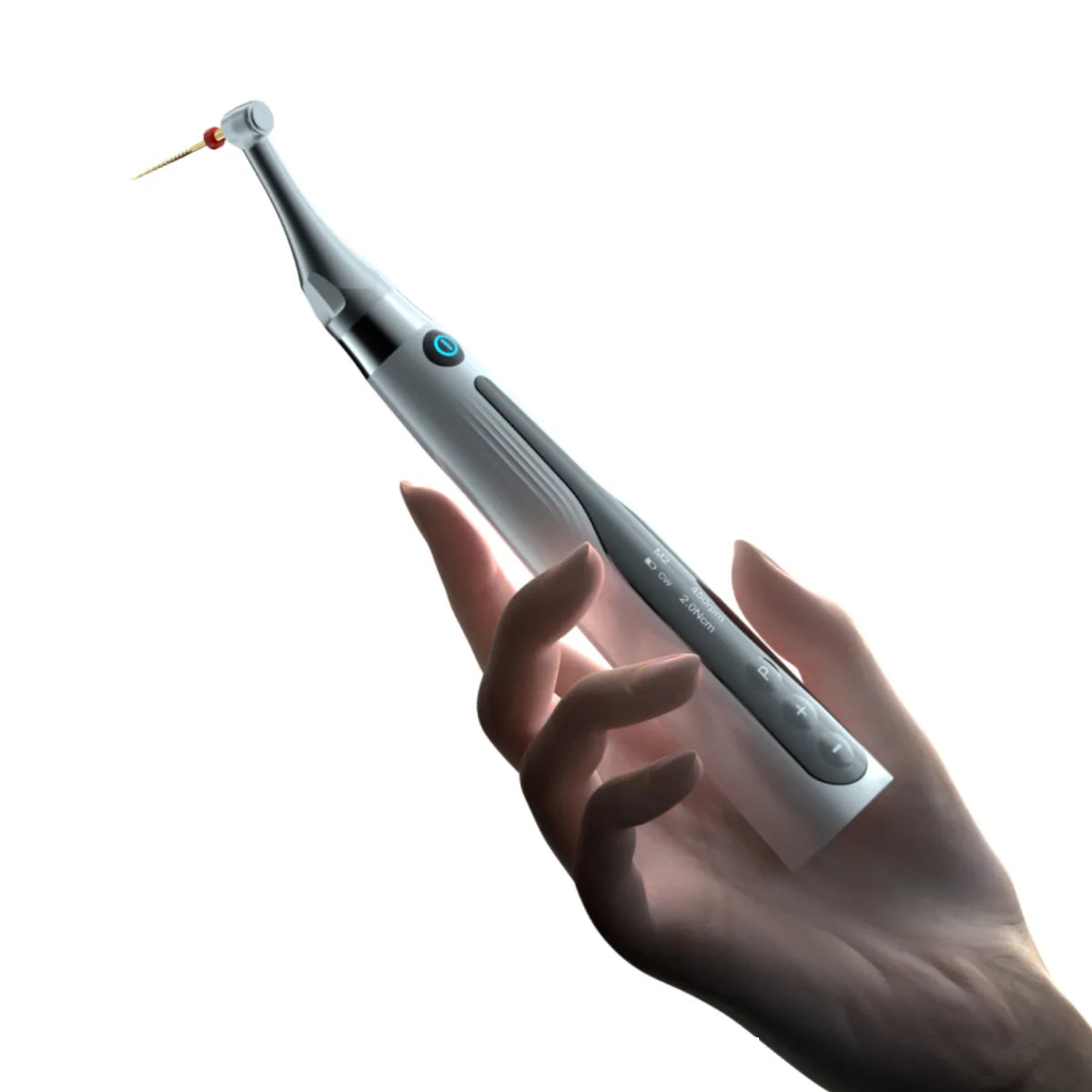

Woodpecker RTA Endo Space Brushless Endomotor With In-Built Apex Locator

Rs. 29,990.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Battery: 3.6V / 2000mAh lithium
  • Adapter Input: 100V-240V, 50Hz/60Hz, 0.4A-0.2A
  • Adapter Output: DC 5V / 1A
  • Torque Range: 0.4N·cm - 5.0N·cm (4mNm-50mNm)
  • Speed Range: 100 rpm - 1800 rpm
  • Operating Temperature: +5°C to +40°C
  • Relative Humidity: 30% - 75%
  • Atmospheric Pressure: 70kPa - 106kPa
  • Motor Rotation: 360° forward, clockwise
  • Counterclockwise Mode: For calcium hydroxide injection
  • Effective Cutting Angle: Forward/reverse angle configurations
  • ATR Mode: Adaptive Torque Reverse
  • Apical Reference: Flash bar indicator
  • Sterilize: 134°C (2.0bar∼2.3bar)
  • ISO Standard: Ø 2.334 - 2.350mm

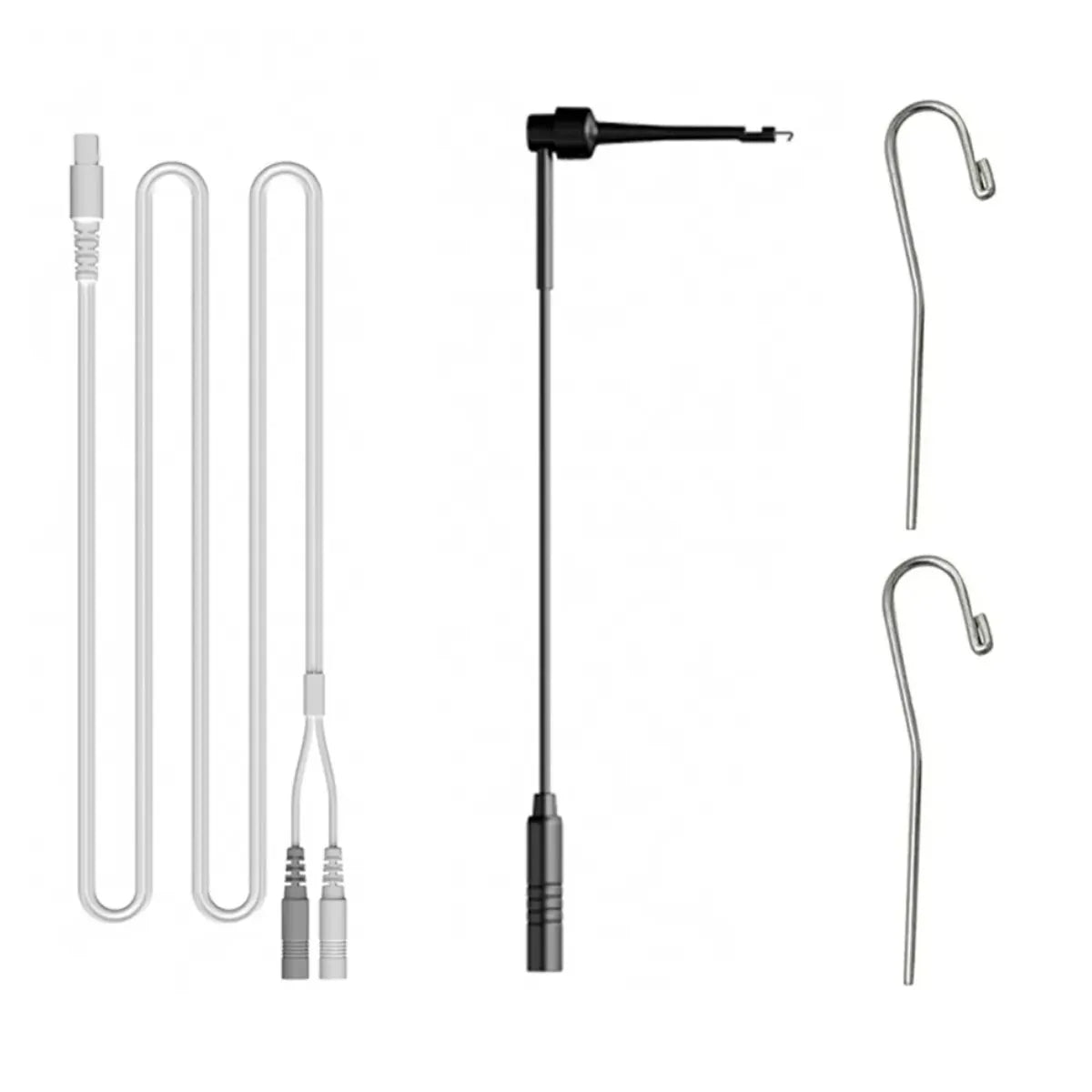

  • Cable Type: Unshielded parallel line
  • Adapter cable length: 1.8mm

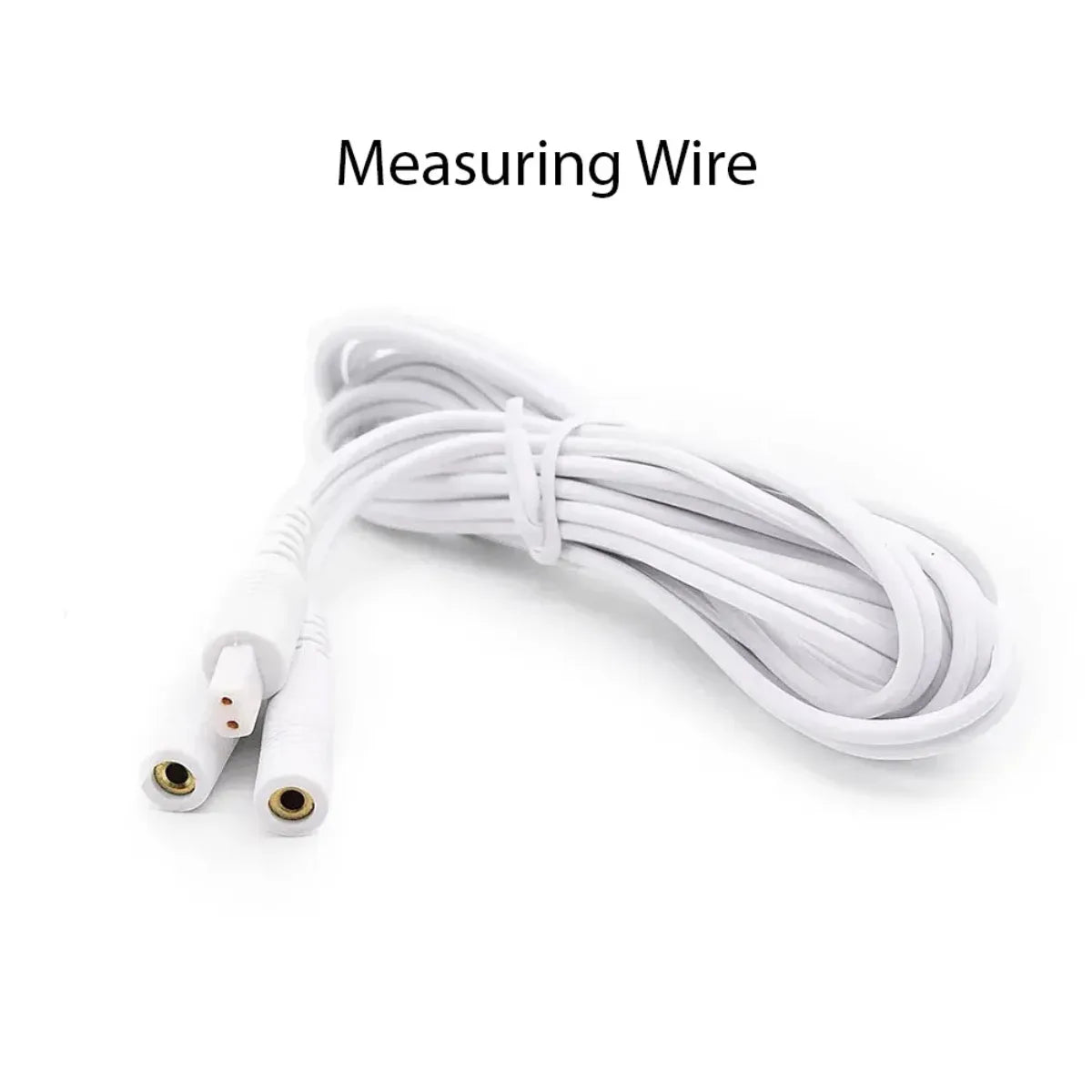

  • Measuring wire length: 1.6mm

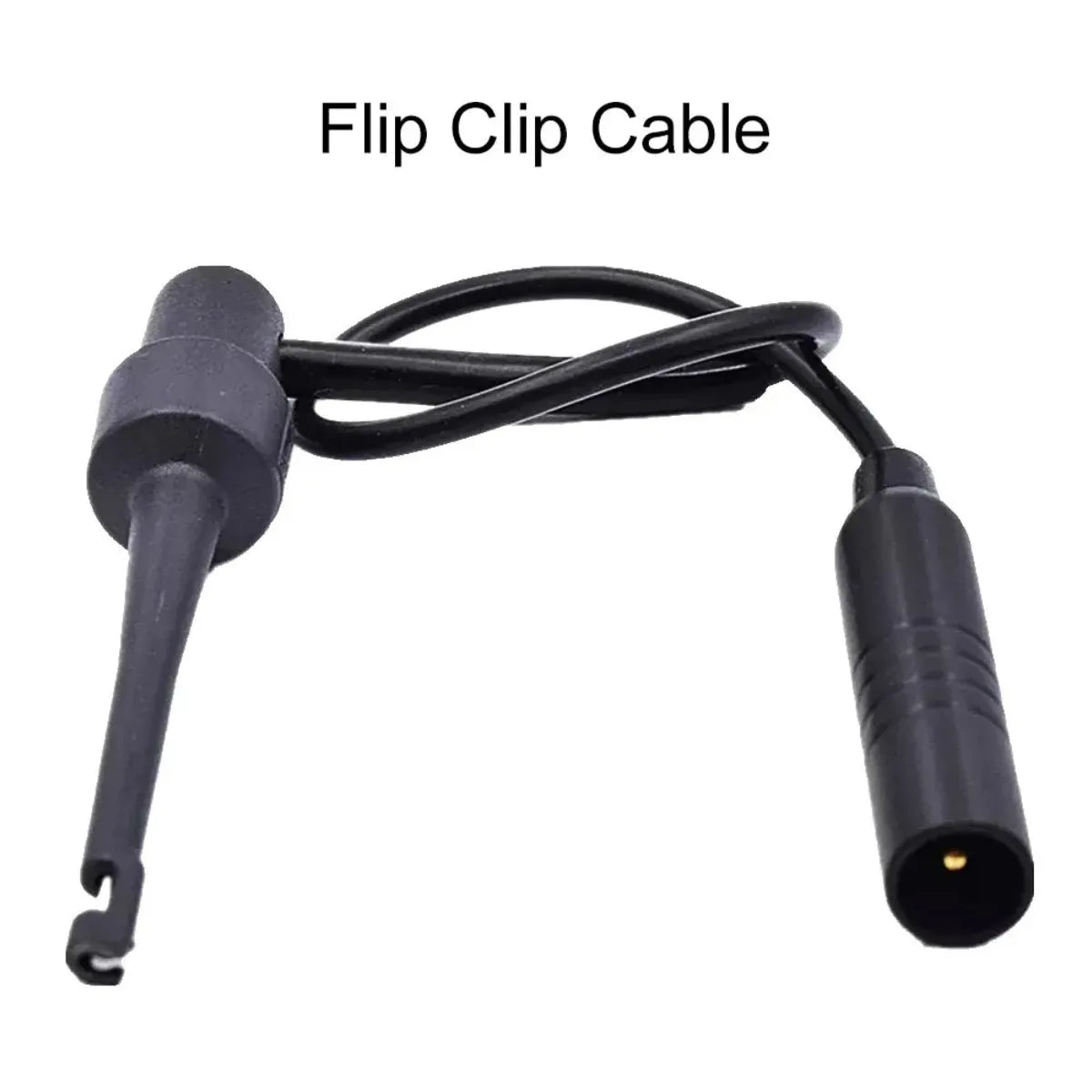

  • File clip line: 0.2mm
  • Modes:CW Mode, CCW Mode, REC Mode, ATR Mode & EAL Mode
  • Gear Ratio: 6:1

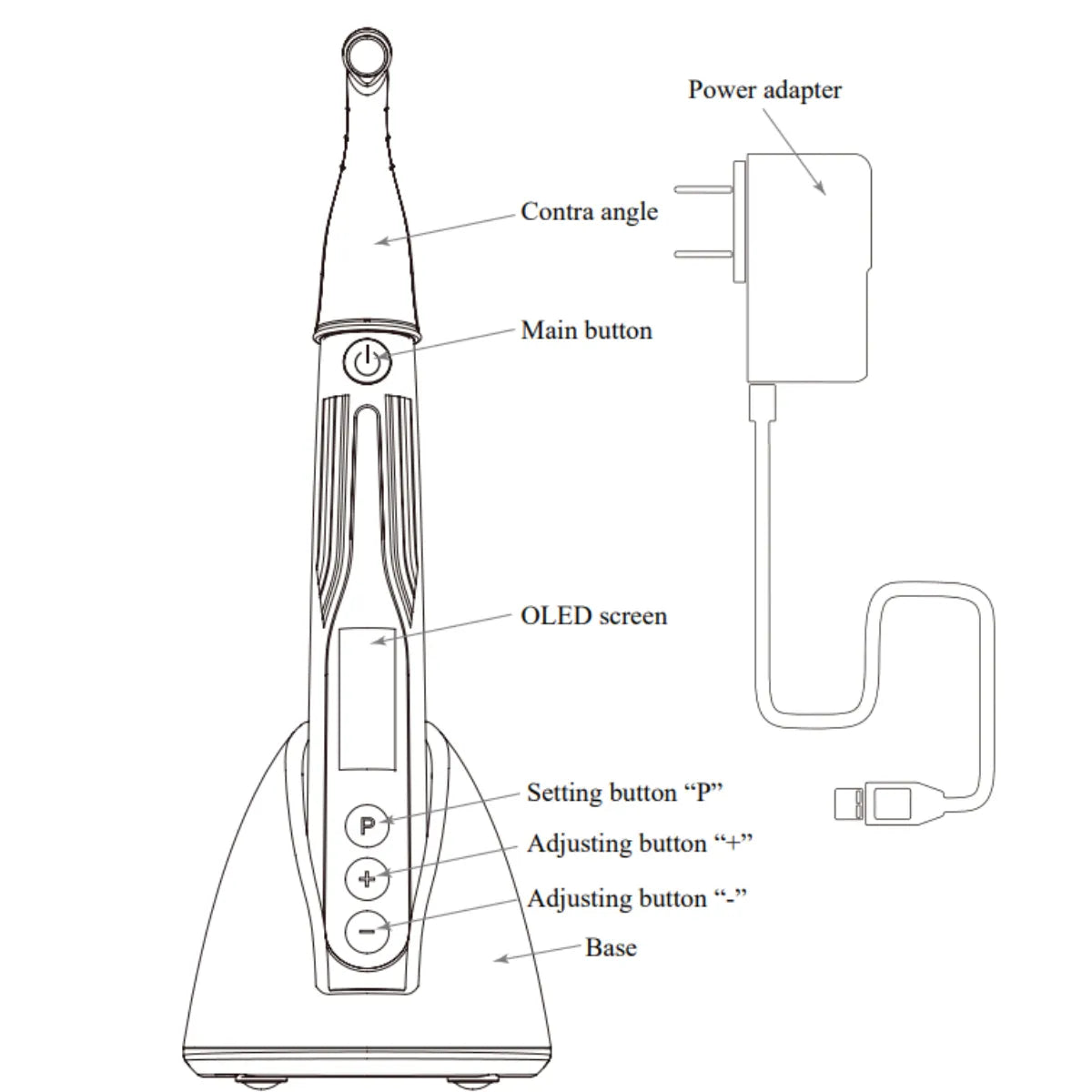

  • Power On and Off (Starting and Stopping the Motor Handpiece)

Power On:

  • With the motor handpiece powered off, press the Main button. The screen will display "Endo Space," and the motor handpiece will enter the Standby interface. This is the mode it last exited
  • Press the Main button again to enter the Working interface
  • Press the Main button again to return to Standby

Power Off:

  • Hold down the Setting button "P" and then press the Main button to turn off the motor handpiece.
  • In the Standby interface, the motor will automatically shut down after 3 minutes if no button is pressed.



  • Selecting Customized Program Sequence Number

In Advanced Mode:

  • The motor has 10 memor

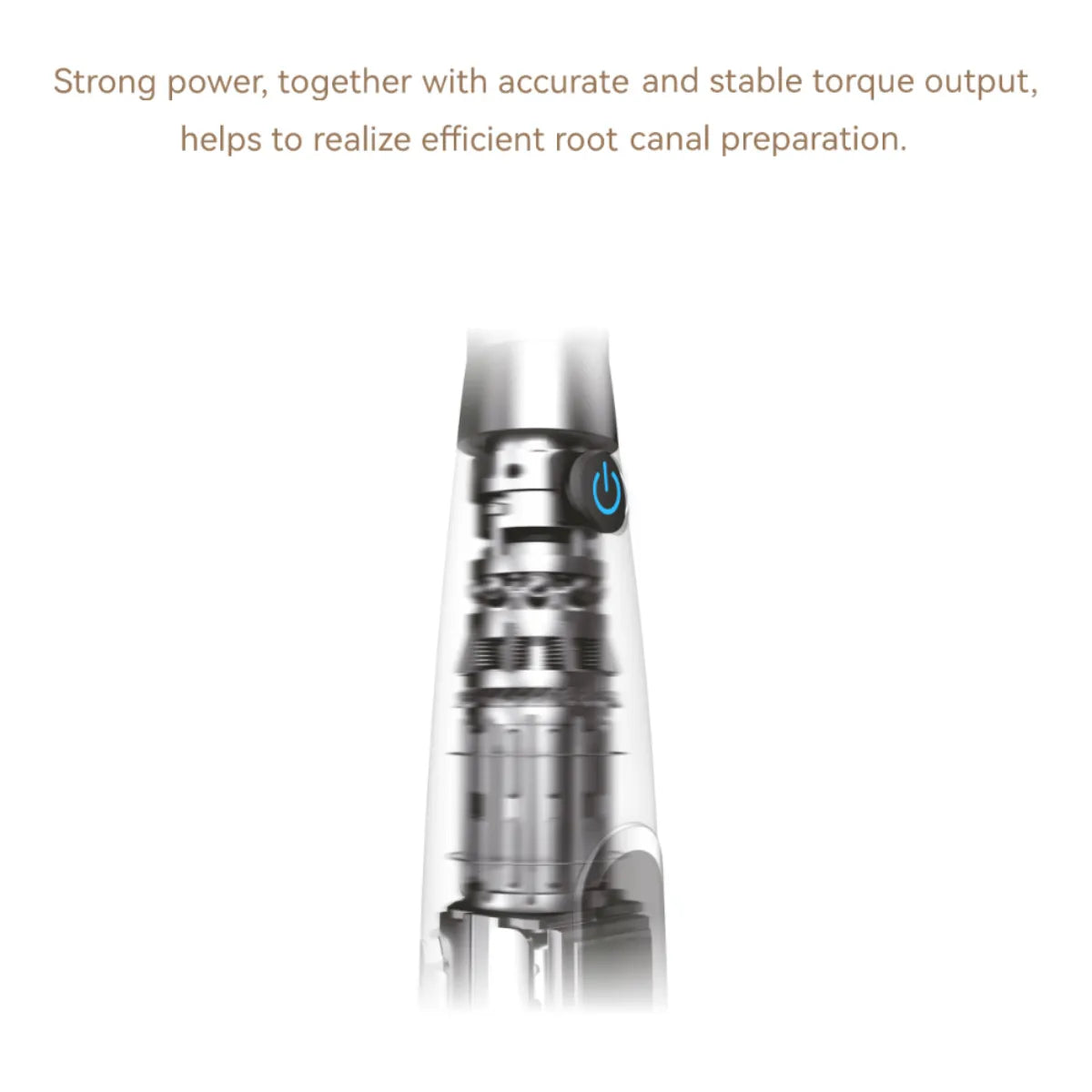

  • Brushless Motor Technology: High precision and low noise operation & extended lifespan and stable torque output
  • Integrated Apex Locator: Real-time monitoring of canal length during the procedure & ensures safe and precise root canal preparation
  • Adjustable Speed and Torque Settings: Speed range: 100 to 1800 rpm & Torque range: 0.4 to 5.0 Ncm for varied clinical needs
  • Auto-Stop and Auto-Reverse Functions: Prevents file breakage by reversing or stopping when resistance exceeds the set limit
  • Ergonomic and Lightweight Handpiece: Comfortable for extended use & Detachable for sterilization and maintenance
  • Preloaded Memory Programs: Multiple customizable modes for different endodontic procedures
  • LED Display: Easy-to-read interface with clear visualization of operational parameters
  • Efficient Battery Life: Long-lasting lithium-ion battery ensures uninterrupted operation
  • Compatibility: Works with a wide range of rotary and reciprocating files
  • Safety Features: Overload protection and auto-calibration for consistent performance
  • Brushless Motor Technology: High precision and low noise operation & extended lifespan and stable torque output
  • Integrated Apex Locator: Real-time monitoring of canal length during the procedure & ensures safe and precise root canal preparation
  • Adjustable Speed and Torque Settings: Speed range: 100 to 1800 rpm & Torque range: 0.4 to 5.0 Ncm for varied clinical needs
  • Auto-Stop and Auto-Reverse Functions: Prevents file breakage by reversing or stopping when resistance exceeds the set limit
  • Ergonomic and Lightweight Handpiece: Comfortable for extended use & Detachable for sterilization and maintenance
  • Preloaded Memory Programs: Multiple customizable modes for different endodontic procedures
  • LED Display: Easy-to-read interface with clear visualization of operational parameters
  • Efficient Battery Life: Long-lasting lithium-ion battery ensures uninterrupted operation
  • Compatibility: Works with a wide range of rotary and reciprocating files
  • Safety Features: Overload protection and auto-calibration for consistent performance
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables Woodpecker
Tags: Product

Share On

Description

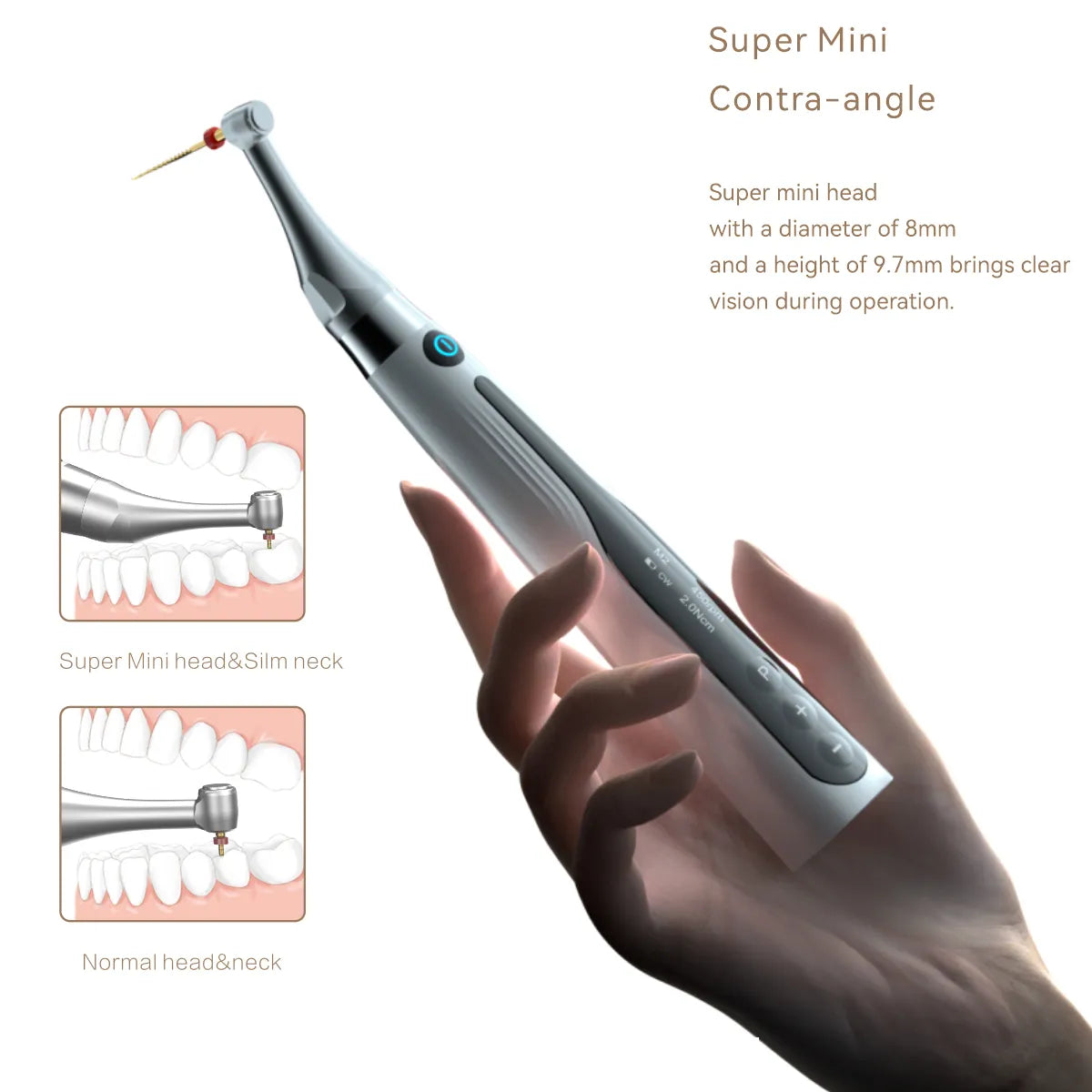

Woodpecker RTA Endo Space Brushless Endomotor With In-Built Apex Locator combines efficient root canal preparation with precise canal length measurement. Featuring a brushless motor, it ensures low noise, reliable performance, and an extended service life. The device includes an adjustable reciprocating angle (30°-360°) for enhanced preparation efficiency and reduced risk of file separation. A super mini contra-angle head provides clear vision during procedures, while the built-in apex locator enables real-time display of file position within the canal. Auto-start and auto-stop functions ensure seamless operation and dynamic torque control with real-time feedback technology prevents file breakage. Cordless and portable, it integrates convenience with high functionality, making it an essential tool for endodontic treatments, suitable only for qualified professionals in clinical settings.

CW Mode: The motor handpiece rotates forward 360°, clockwise direction. Used for rotary files.

CCW Mode: The motor handpiece rotates counterclockwise direction only. This mode is used to inject calcium hydroxide and other medications. When this mode is being used, a double-beep sounds
continuously.

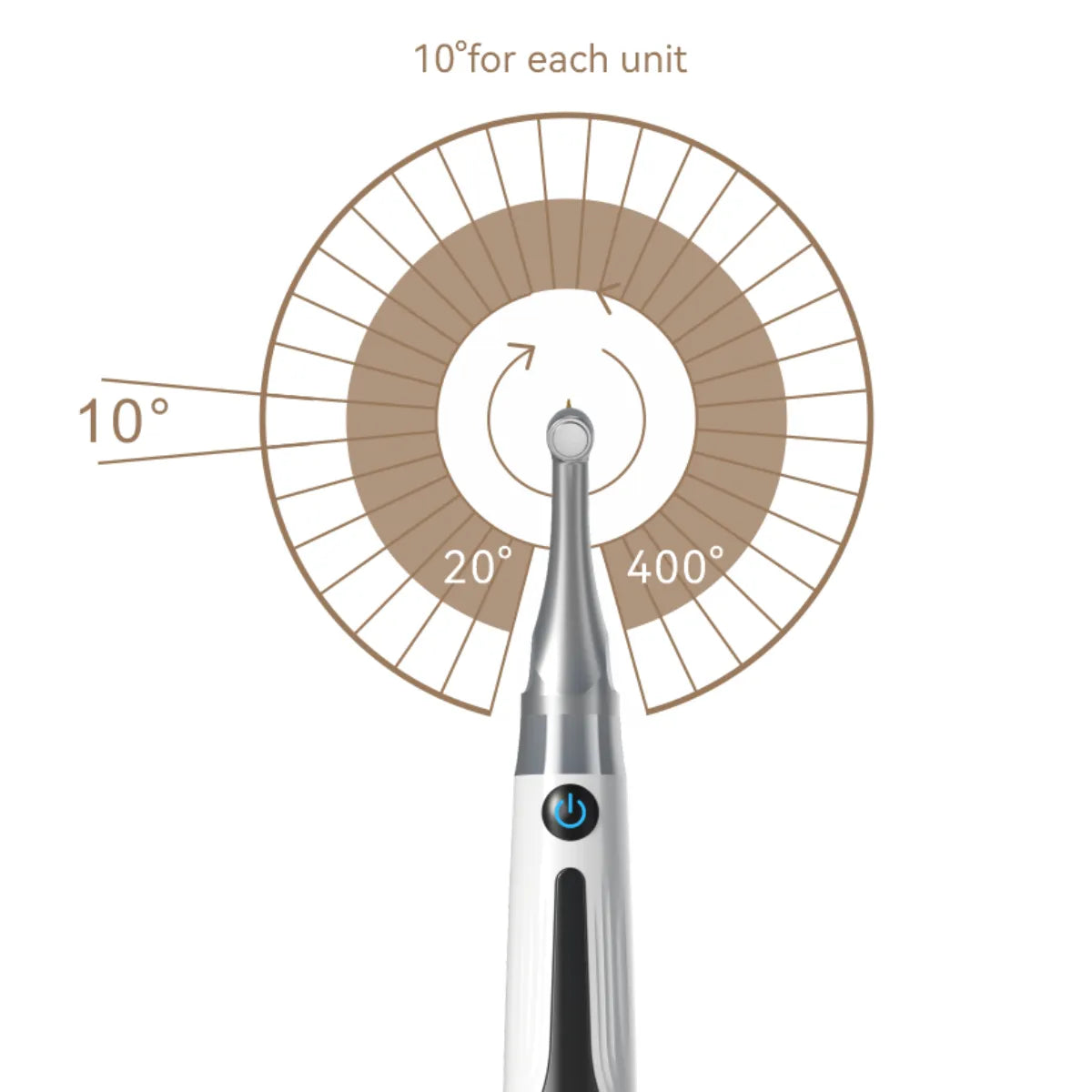

REC Mode: Reciprocating mode. It is suggested that the difference between the forward and reverse angles should be greater than or equal to 120 degrees, otherwise, root canals cannot be prepared effectively. Forward AngleReverse Angle, such as F:180/R:30, the effective angle is Forward Angle, it is suitable for using reciprocating files like.
Note: In Simple Mode, the default torque for REC mode is 4.0 and the torque is not adjustable.

ATR Mode: Adaptive Torque Reverse function.
When the file's load is greater than the set torque limit, it will start rotating alternately at the set angle.
Note: In Simple Mode, the default reversal angle of ATR mode is 180°, the default forward angle is 90°, and the angle is not adjustable.

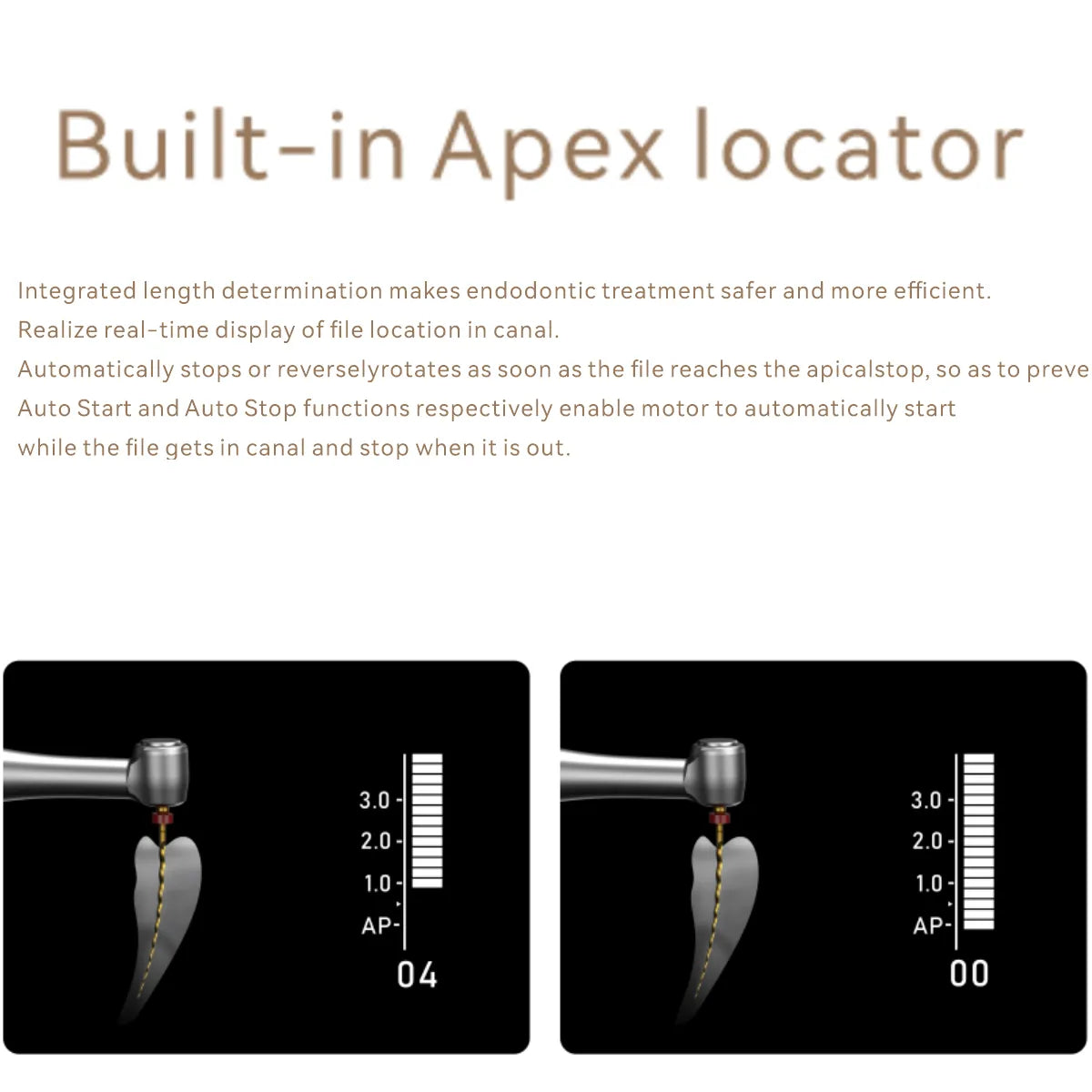

EAL Mode: Canal measurement mode interface This mode is for canal measurement. The motor handpiece does not run in this mode.
a: Apical reference point flash bar
b: EAL: Electronic apex locator
