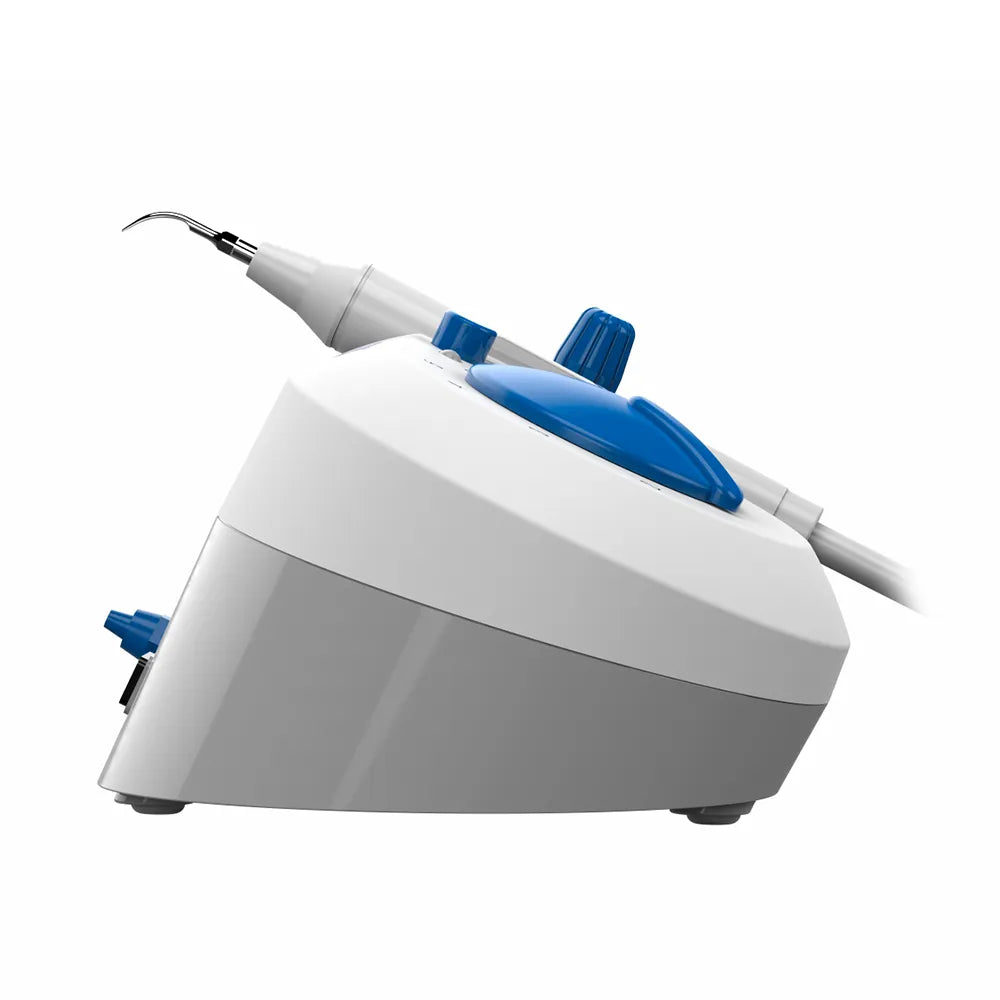

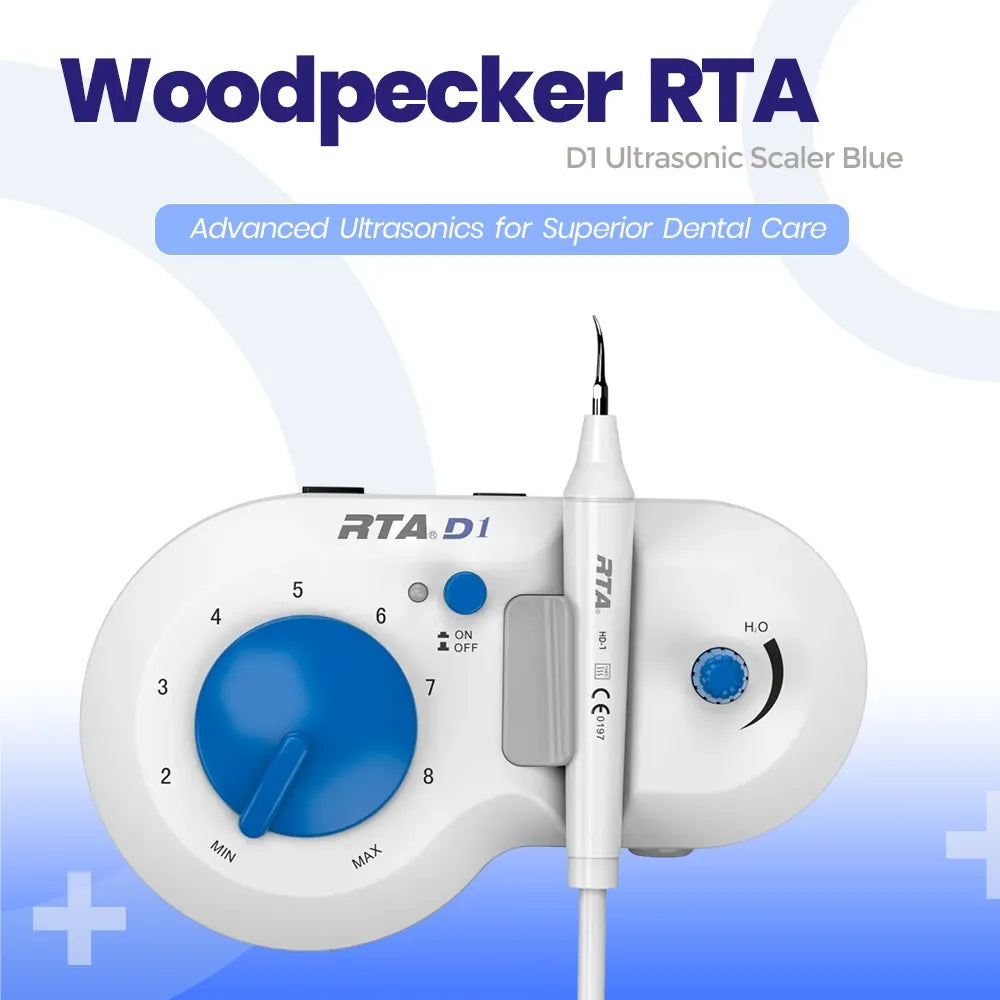

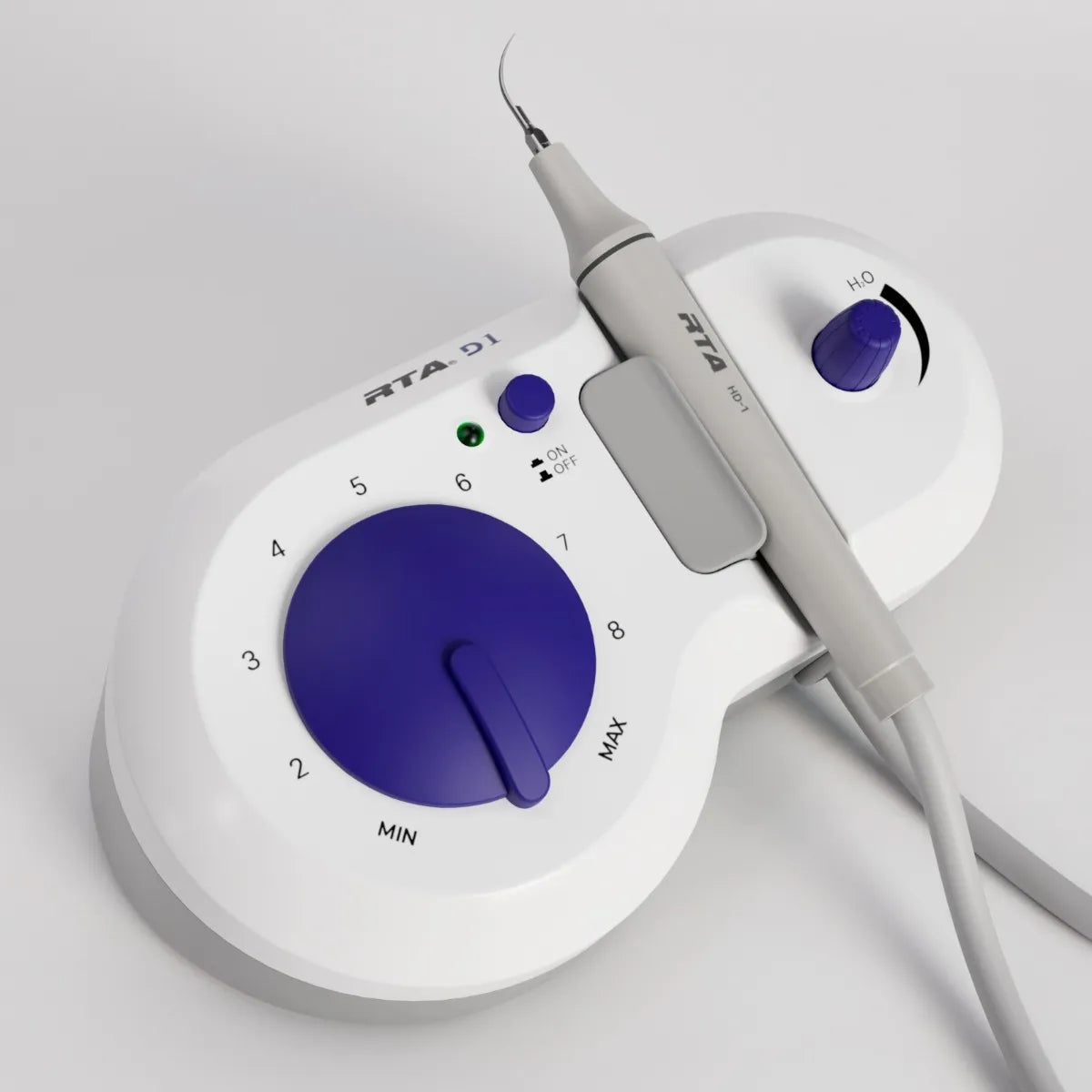

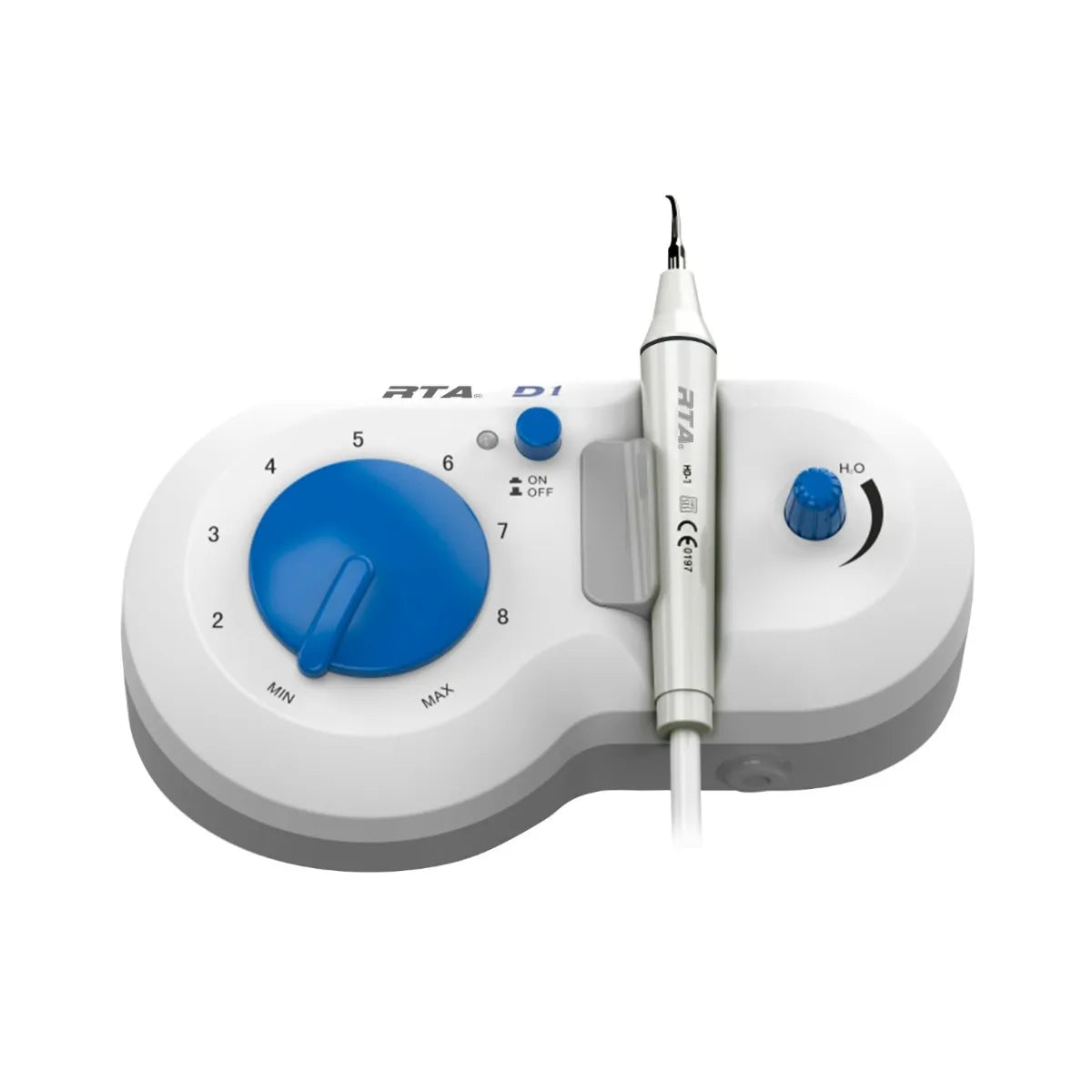

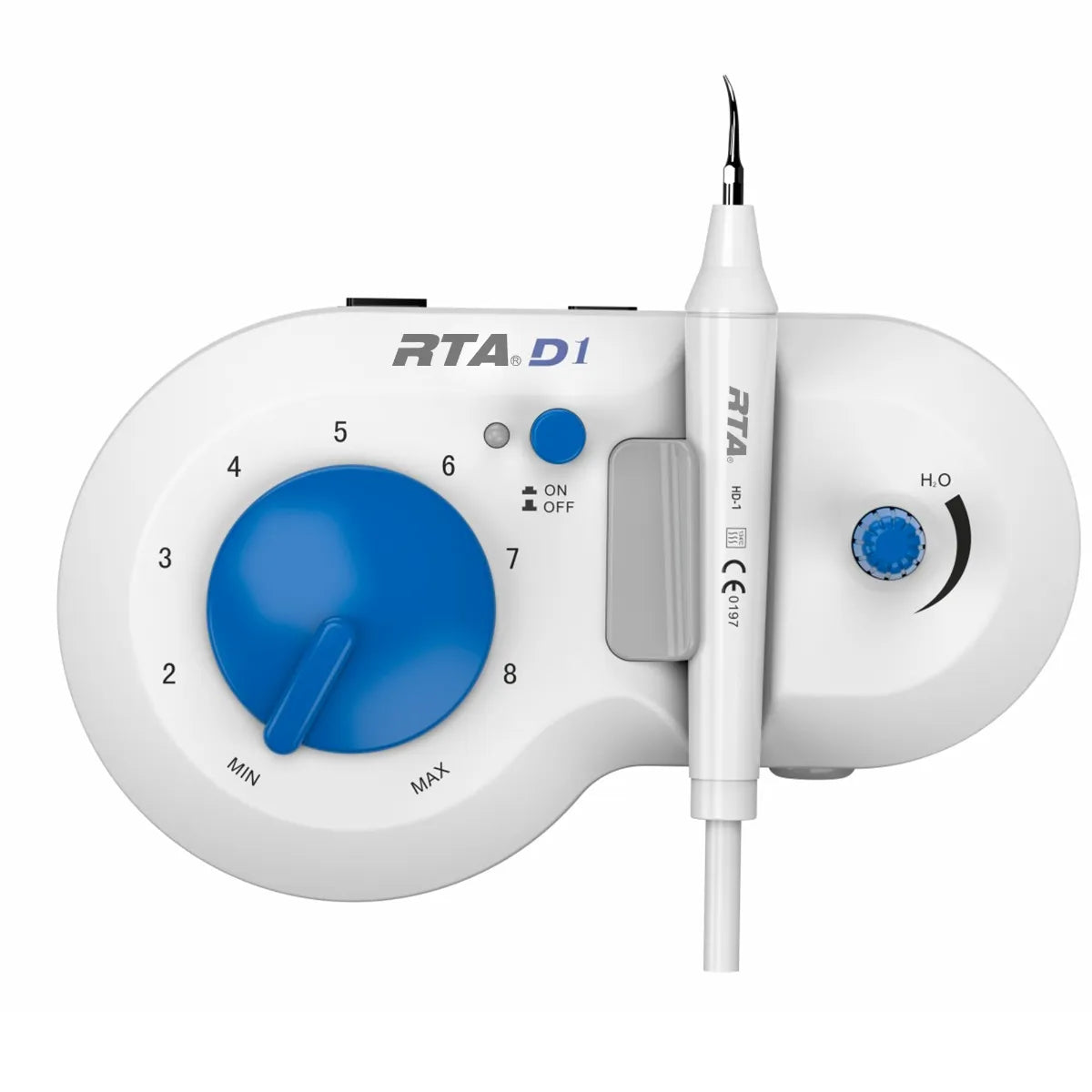

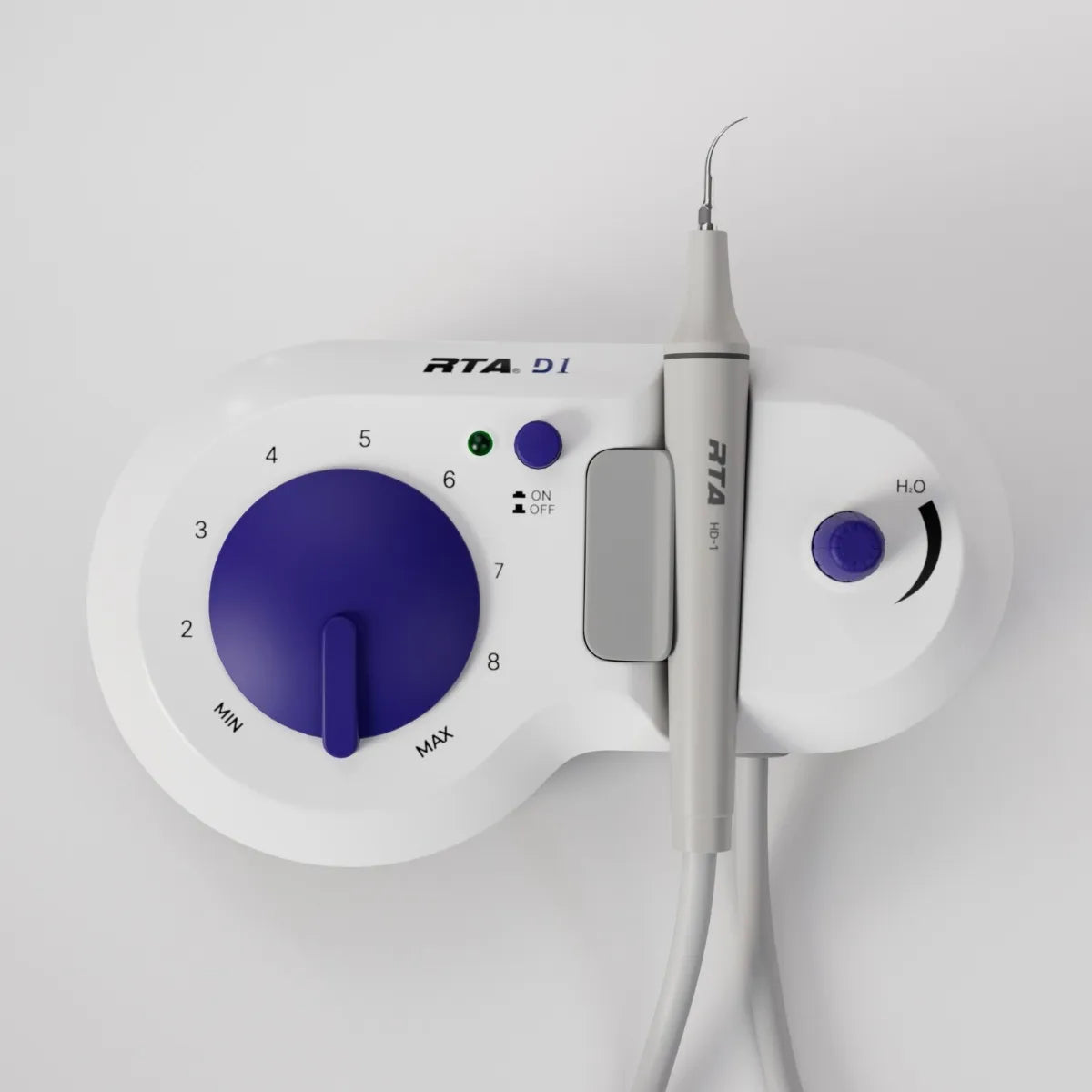

Woodpecker RTA D1 Ultrasonic Scaler Blue

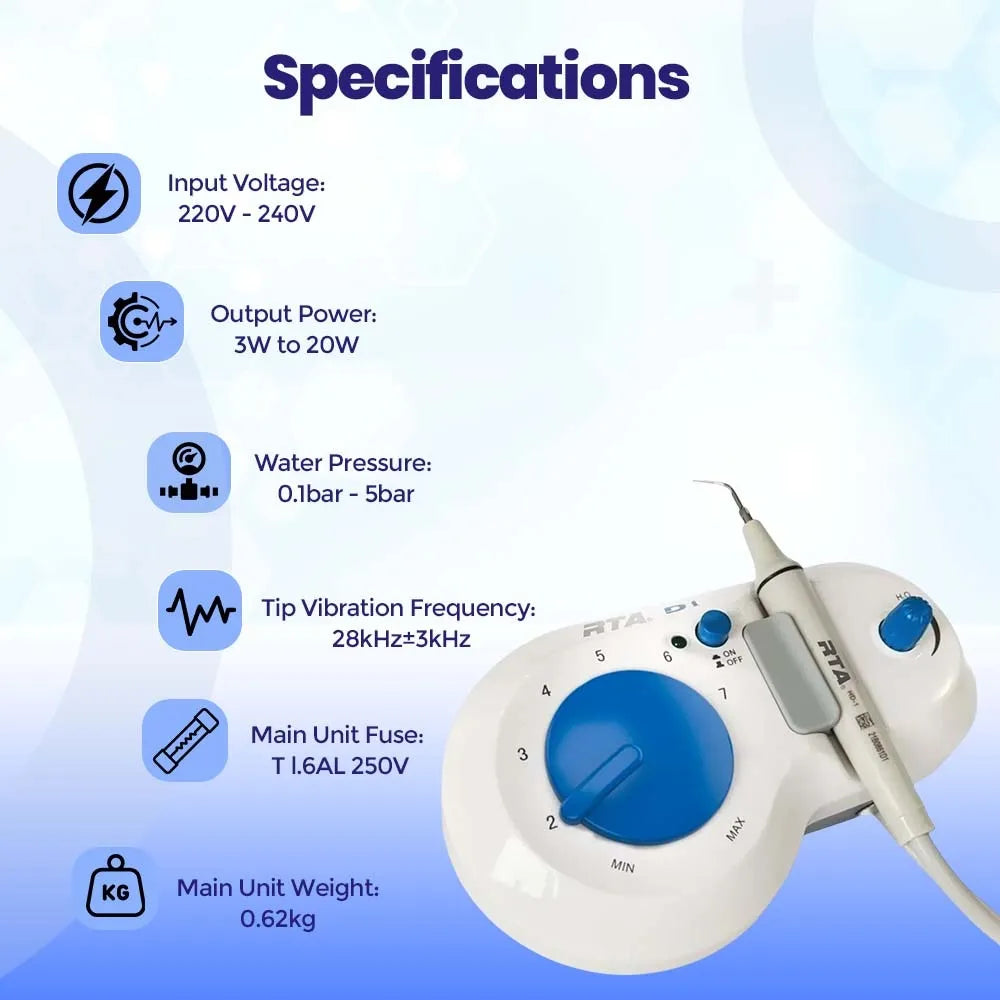

• Power supply Input: 220-240V~ 50Hz/60Hz l50mA
• Main unit input: 24V~ l.3A
• Output primary tip Vibration excursion: ≤100μm
• Output half-excursion force:<2N
• Output tip Vibration frequency: 28kHz±3kHz
• Output power: 3W to 20W
• Main unit fuse: T l.6AL 250V
• Power supply fuse: T0.5AL 250V
• Water pressure: 0.lbar to 5bar (0.01MPa to 0.5MPa)
• Weight of main unit: 0.62kg

Setup

• Unpack the Device: Open the packing box and verify that all parts and accessories are complete according to the packing list
• Position the Unit: Remove the main unit from the box and place it on a stable surface
• Water Control: Turn the water control knob to the maximum setting as indicated in the manual
• Foot Switch Connection: Insert the plug of the foot switch into its designated socket
• Water Supply Connection: Connect one end of the water pipe to the water entrance on the unit and the other end to a pure water source
• Power Connection: Insert the plug of the power supply into its socket and connect it to a power source
• Power On: Switch on the main unit; the power indicator light should illuminate

Operation

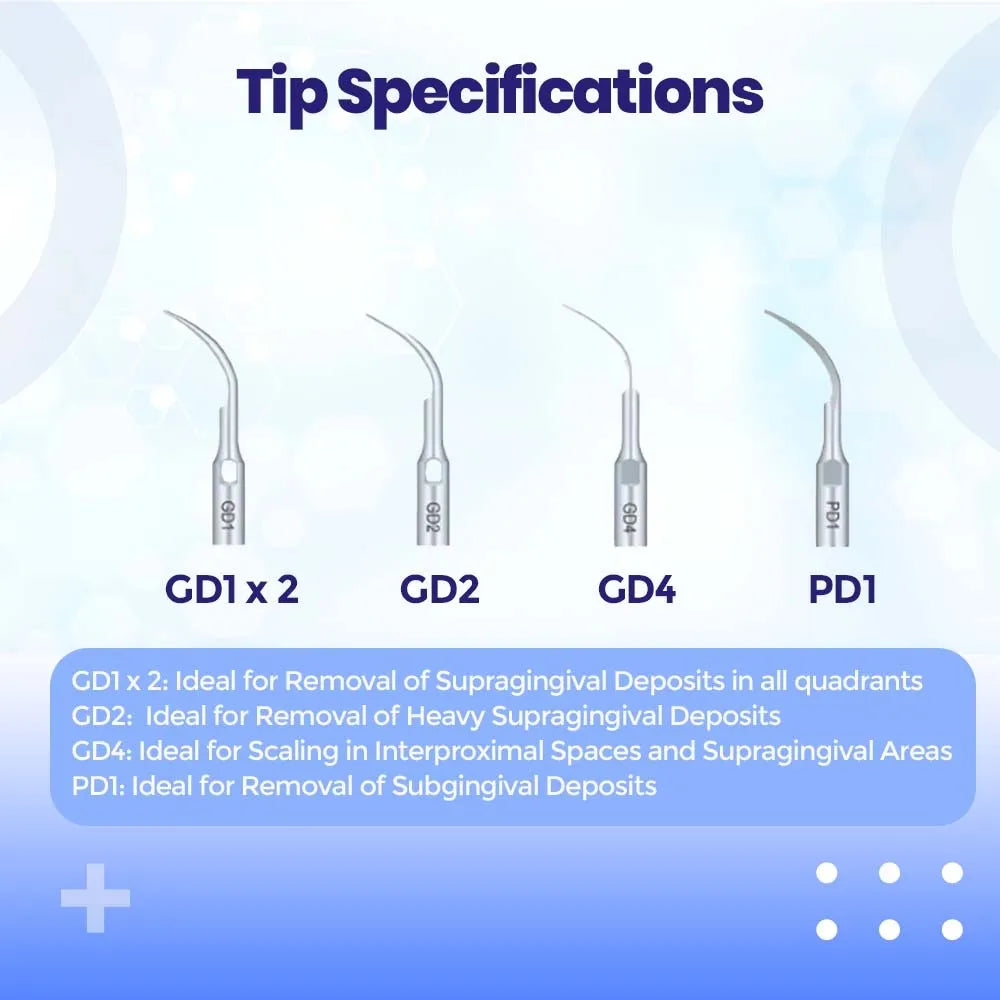

• Select Scaling Tip: Choose an appropriate scaling tip for your procedure and securely attach it to the handpiece using a torque wrench
• Normal Frequency Use: Under normal working conditions with 45 scaling tips, apply light pressure and a gentle to-and-fro motion to effectively remove tartar without generating excessive heat. Avoid overexertion or prolonged contact
• Adjust Vibration Intensity: Set the vibration intensity by turning the knob; a middle setting is generally recommended. Adjust according to patient sensitivity and tartar rigidity during treatment
• Water Volume Adjustment: Activate the foot switch to begin tip vibration, then adjust the water control switch to achieve a fine spray for cooling the handpiece and cleaning teeth
• Handpiece Handling: Hold the handpiece as you would a pen, ensuring comfortable maneuverability

Safety Precautions

• Avoid Vertical Contact: Do not allow the tip's end to touch teeth vertically, and avoid excessive pressure on tooth surfaces to prevent damage to both teeth and tips

• Sealed Handpiece: The handpiece is cast from Titanium alloy to ensure sound mechanical function and durability

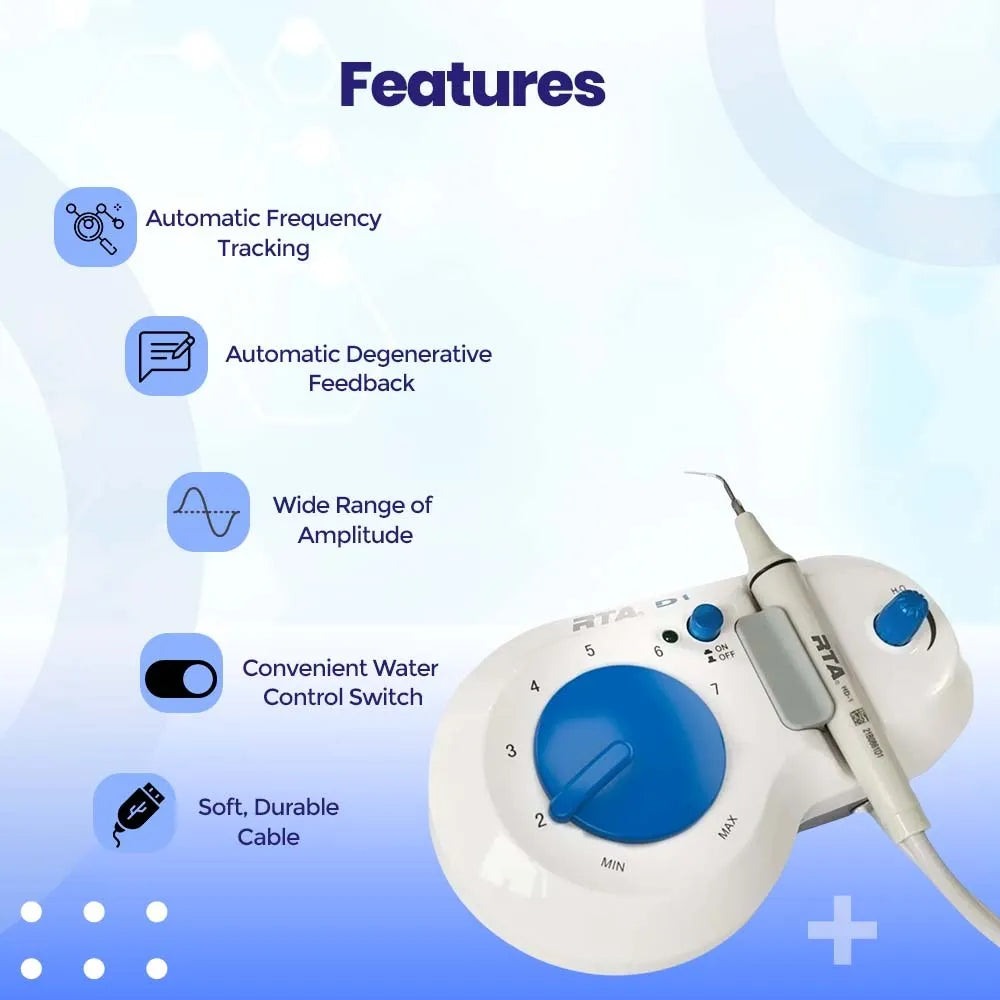

• Automatic Frequency Tracking System: Automatically searches for the best working frequency, ensuring the machine always operates at the optimal frequency for steady performance
• Automatic Degenerative Feedback: Provides a constant power output for more comfortable scaling
• Soft and Durable Cable: The cable is made from silica gel tube, which is soft and durable
• Special Tip Material: The scaling tip is made of a special material. The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth as well as killing germs
• Eliminates Dental Calculus, Bacterial Plaque and Stains: Quickly removes dental calculus, bacterial plaque and tea stains on the teeth without hurting the gum or the enamel
• Wide Adjustment Range of Amplitude: The adjustment range of the amplitude is much wider than before
• Convenient Water Control Switch: The new water control switch makes the adjustment of the water more convenient
• Sealed Handpiece: The handpiece is cast from Titanium alloy to ensure sound mechanical function and durability
• Automatic Frequency Tracking System: Automatically searches for the best working frequency, ensuring the machine always operates at the optimal frequency for steady performance
• Automatic Degenerative Feedback: Provides a constant power output for more comfortable scaling
• Soft and Durable Cable: The cable is made from silica gel tube, which is soft and durable
• Special Tip Material: The scaling tip is made of a special material. The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth as well as killing germs
• Eliminates Dental Calculus, Bacterial Plaque and Stains: Quickly removes dental calculus, bacterial plaque and tea stains on the teeth without hurting the gum or the enamel
• Wide Adjustment Range of Amplitude: The adjustment range of the amplitude is much wider than before
• Convenient Water Control Switch: The new water control switch makes the adjustment of the water more convenient
