Woodpecker Piezo Bone Surgery Tips

• Ultrasonic Technology: Utilizes ultrasonic vibrations for precise bone cutting and minimal soft tissue damage.
• Micrometric Precision:Provides high precision with micrometric cutting capabilities for accurate bone modification.
• Cooling System:Integrated water cooling to maintain a low temperature at the cutting point, preventing thermal damage.
• Clear Visibility:Cooling water spray ensures a blood-free and clear view of the surgical area.
• Versatility:Available in various shapes and sizes to accommodate different surgical procedures and bone types.

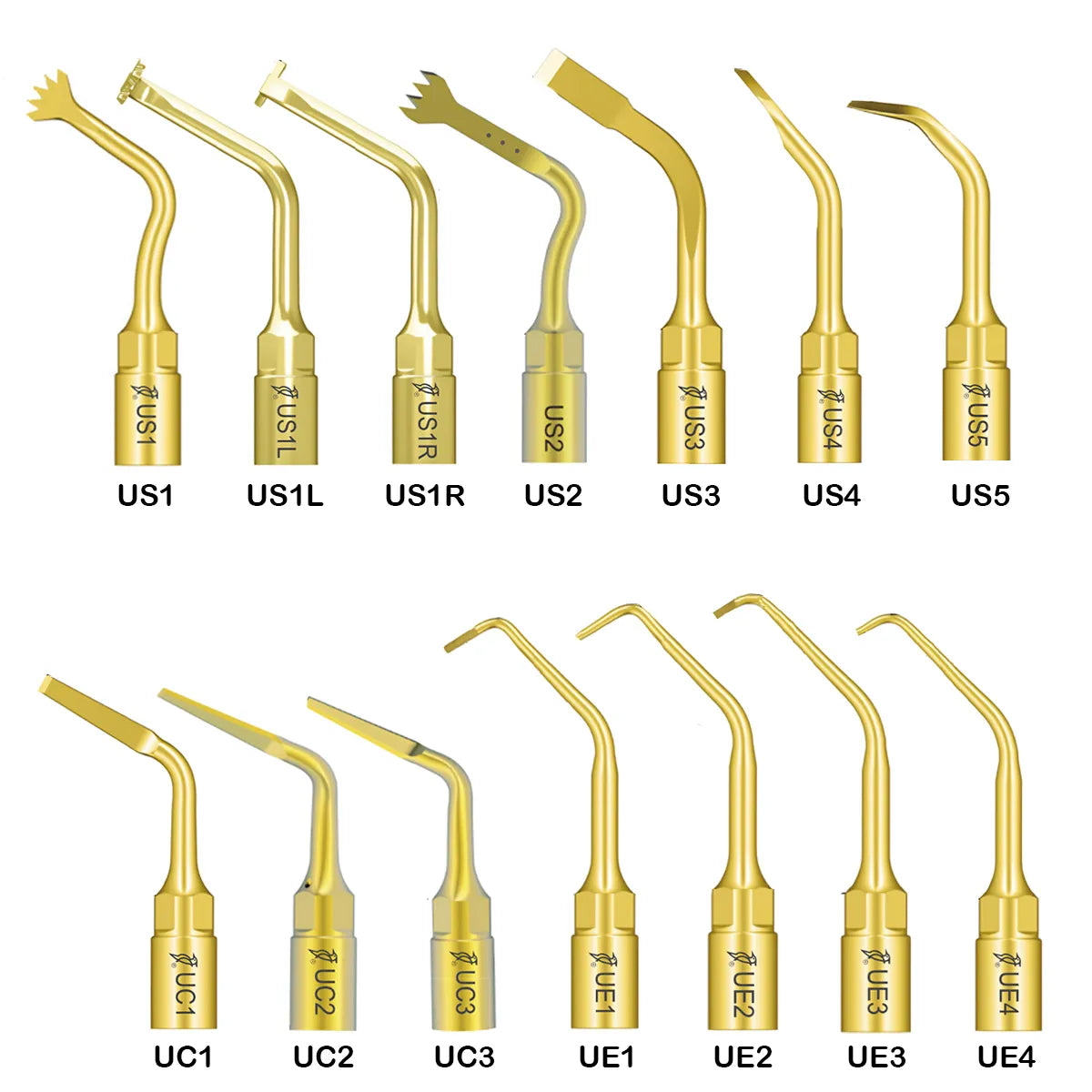

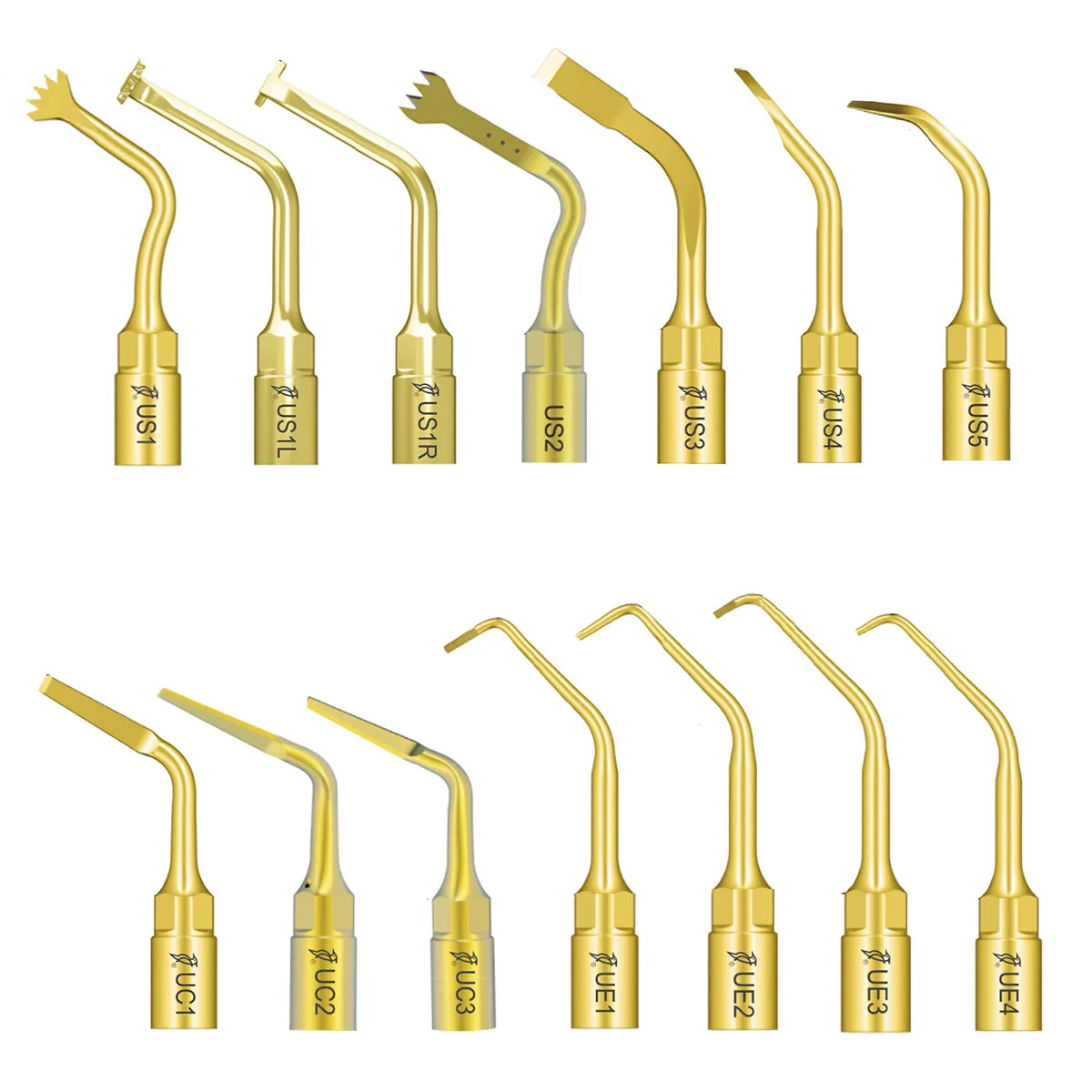

Tip Models

US2/US3/US4/US5/UC1/US1/US1L/US1R/UC2

• Modes: Bone
• Power: Quality 1, Quality 2, Quality 3 (Cortical/Spongious)

UE1/UE2/UE3/UE4:

• Modes: Root
• Power: Endo

Preparation:

• Securely attach the tip to a compatible ultrasonic scaler designed for endodontic procedures

Initial Settings:

• Set the ultrasonic scaler to the Endo mode and adjust to the maximum power permitted for optimal performance

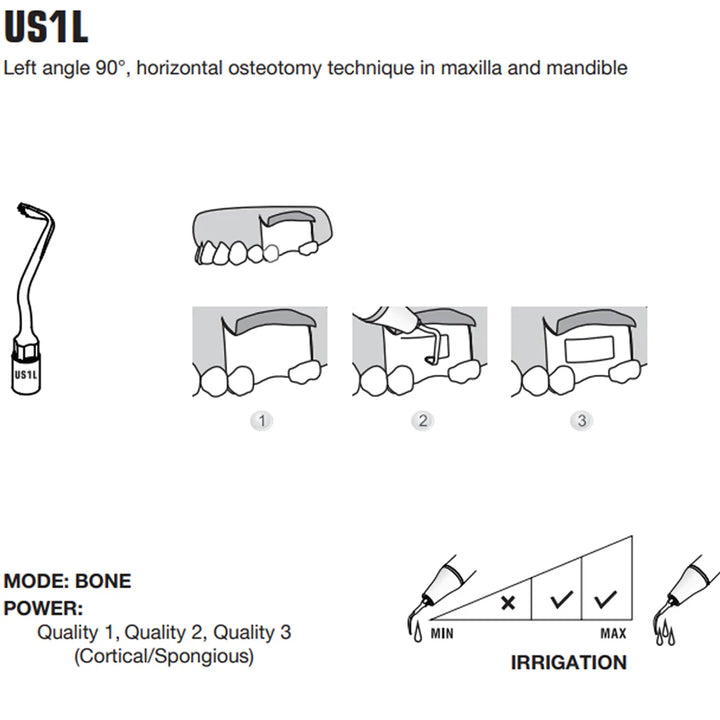

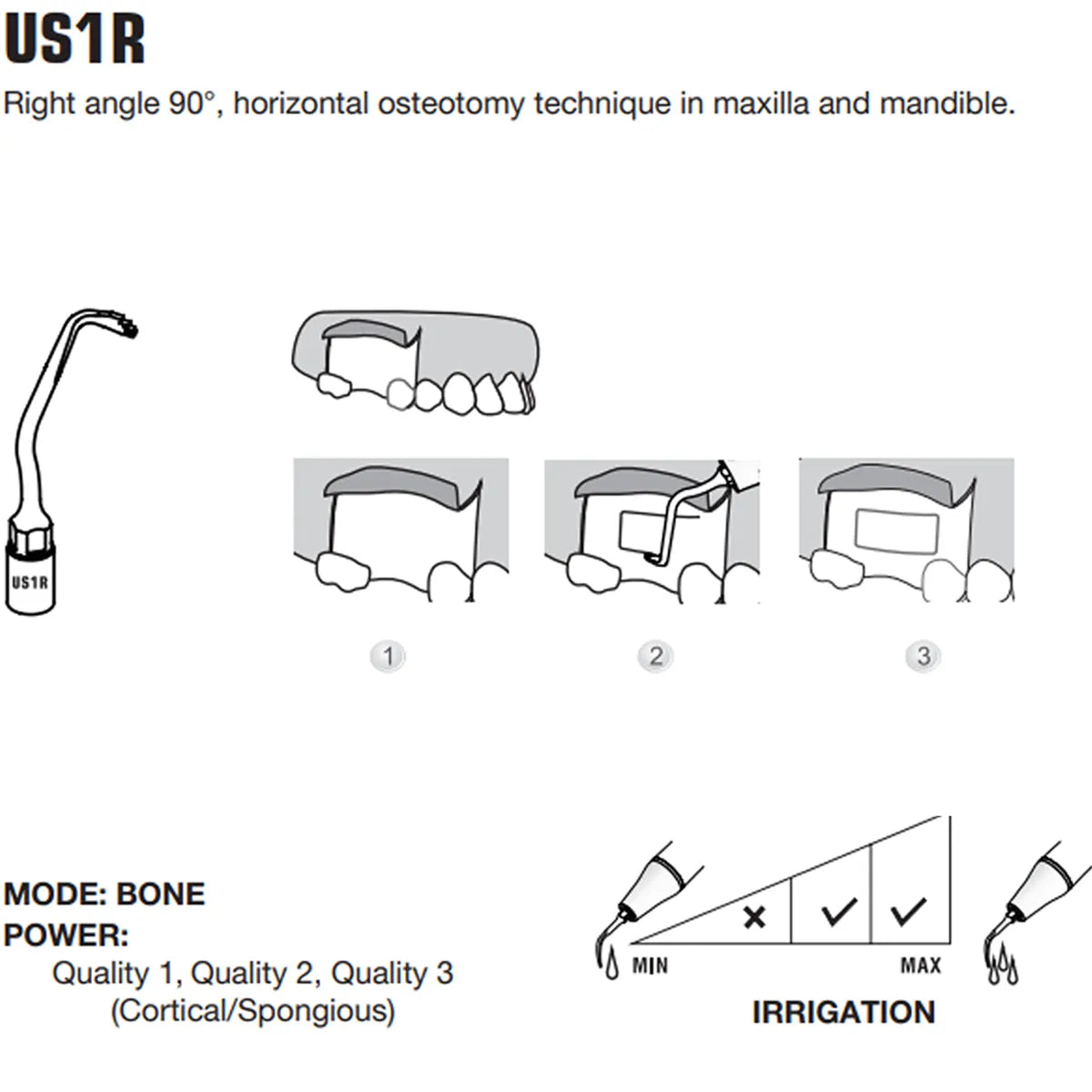

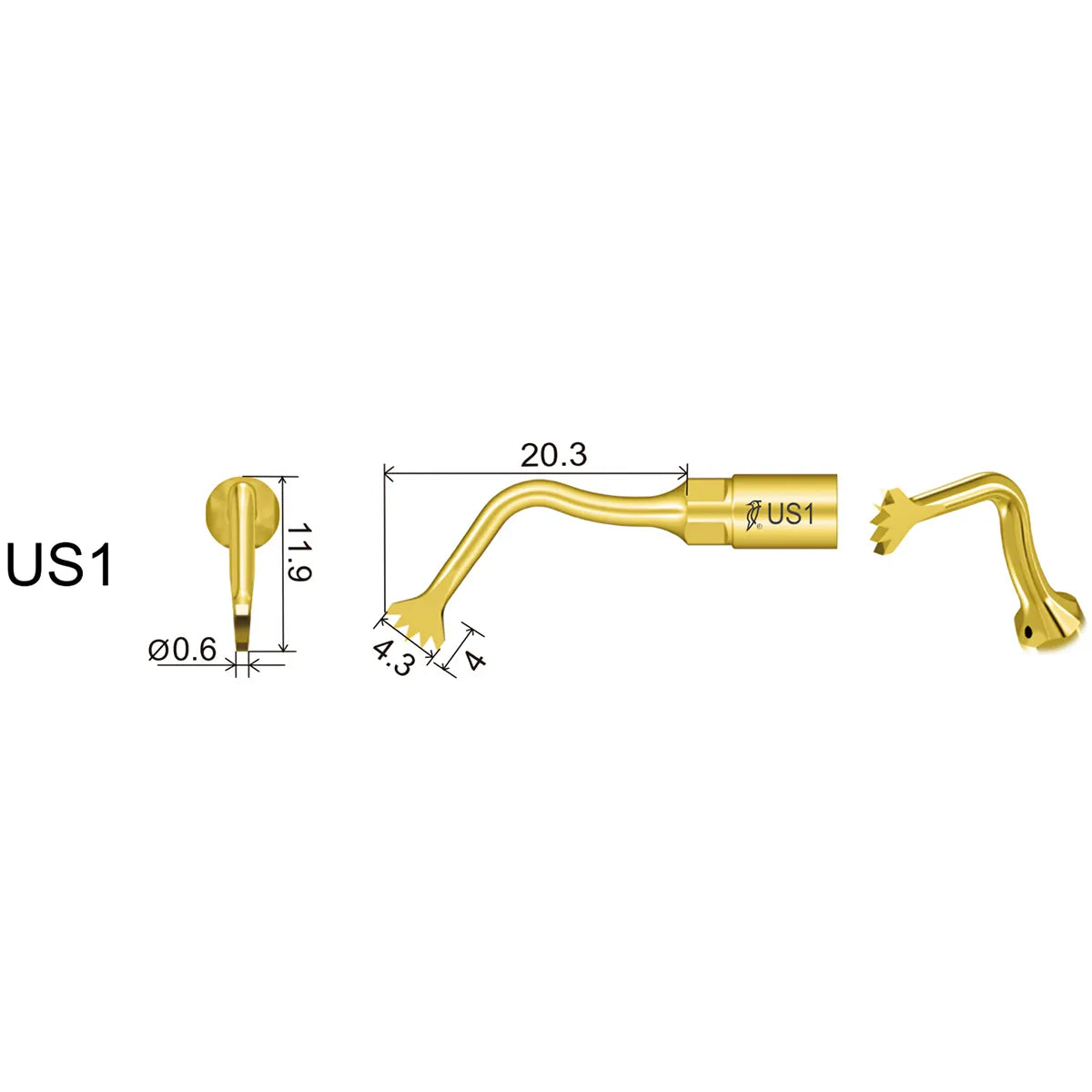

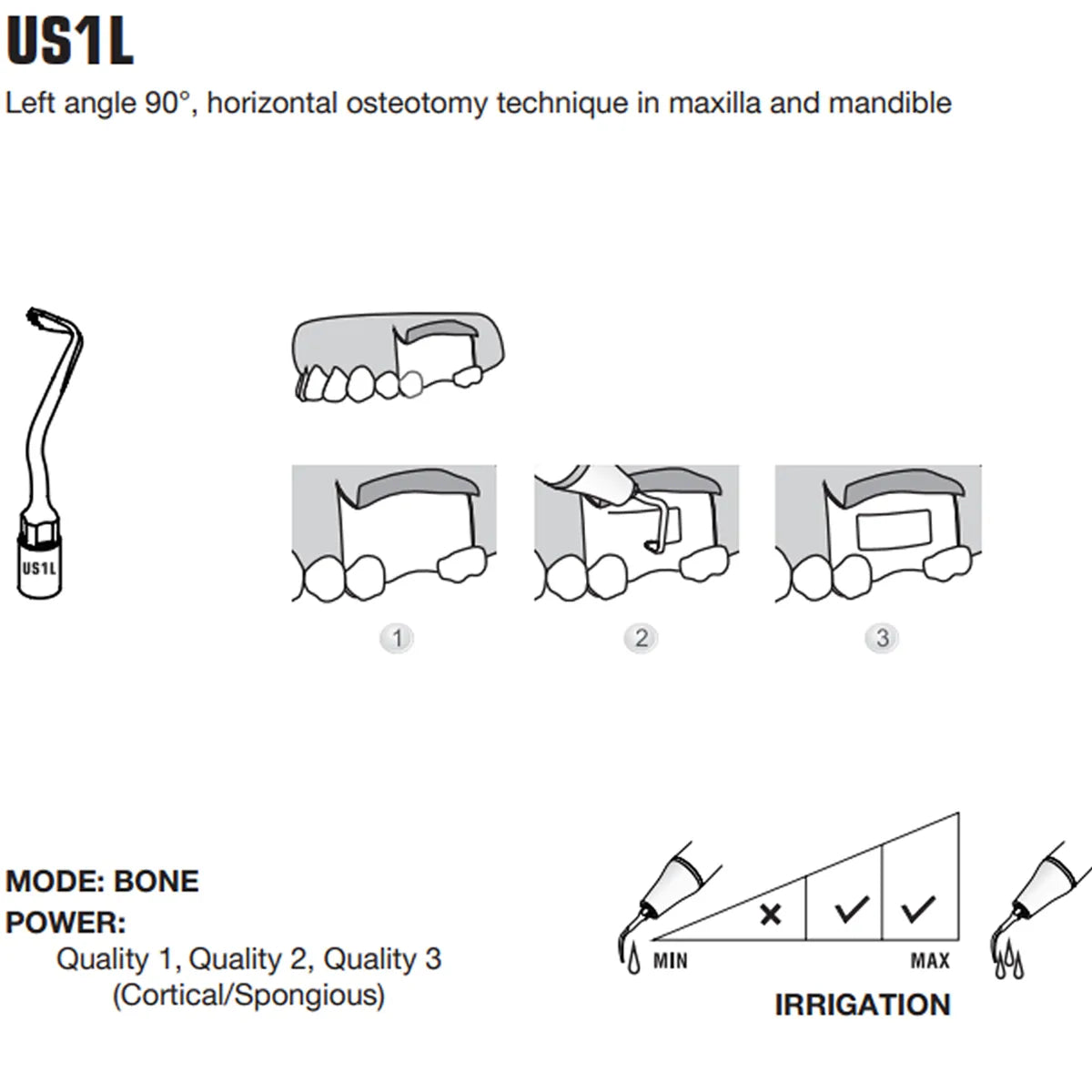

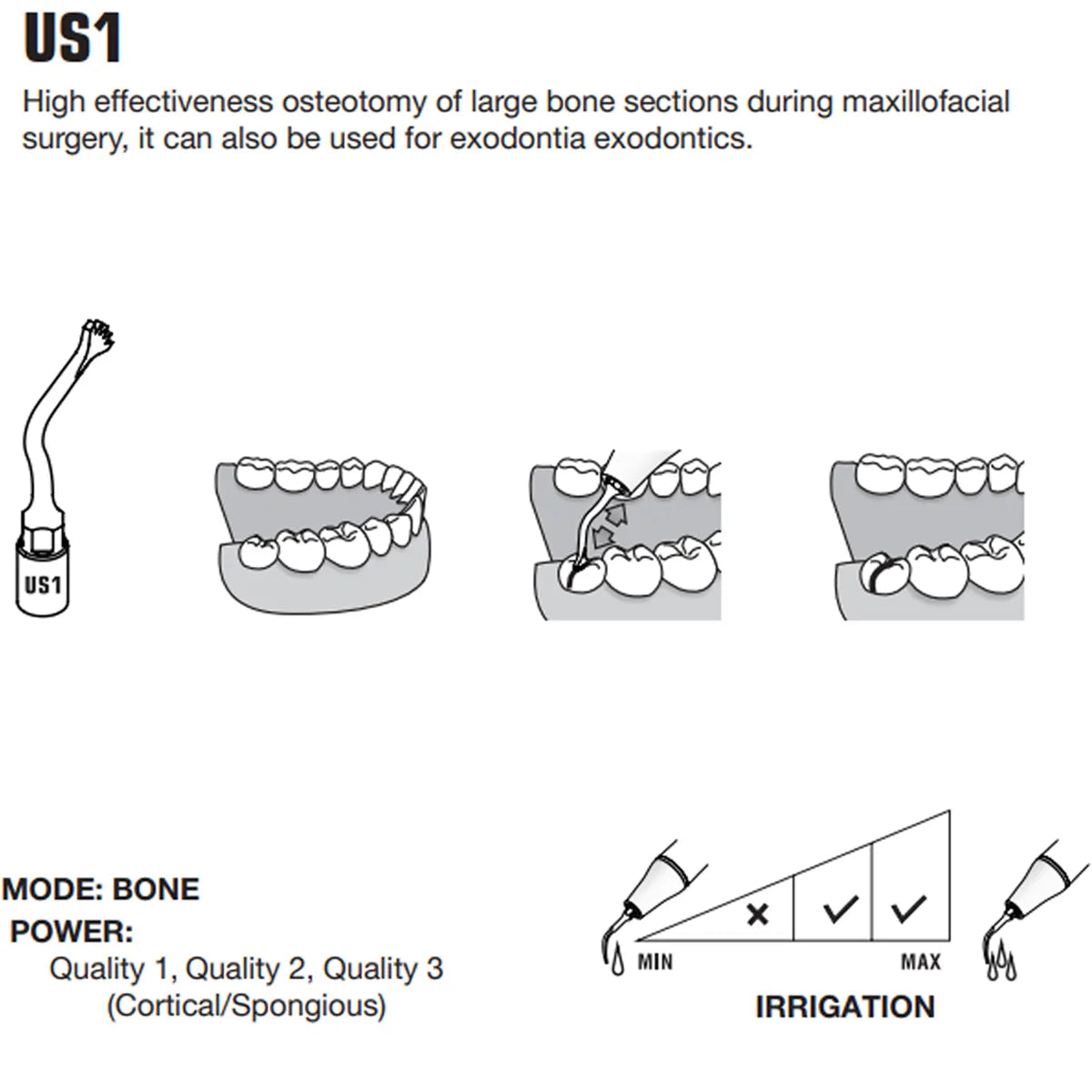

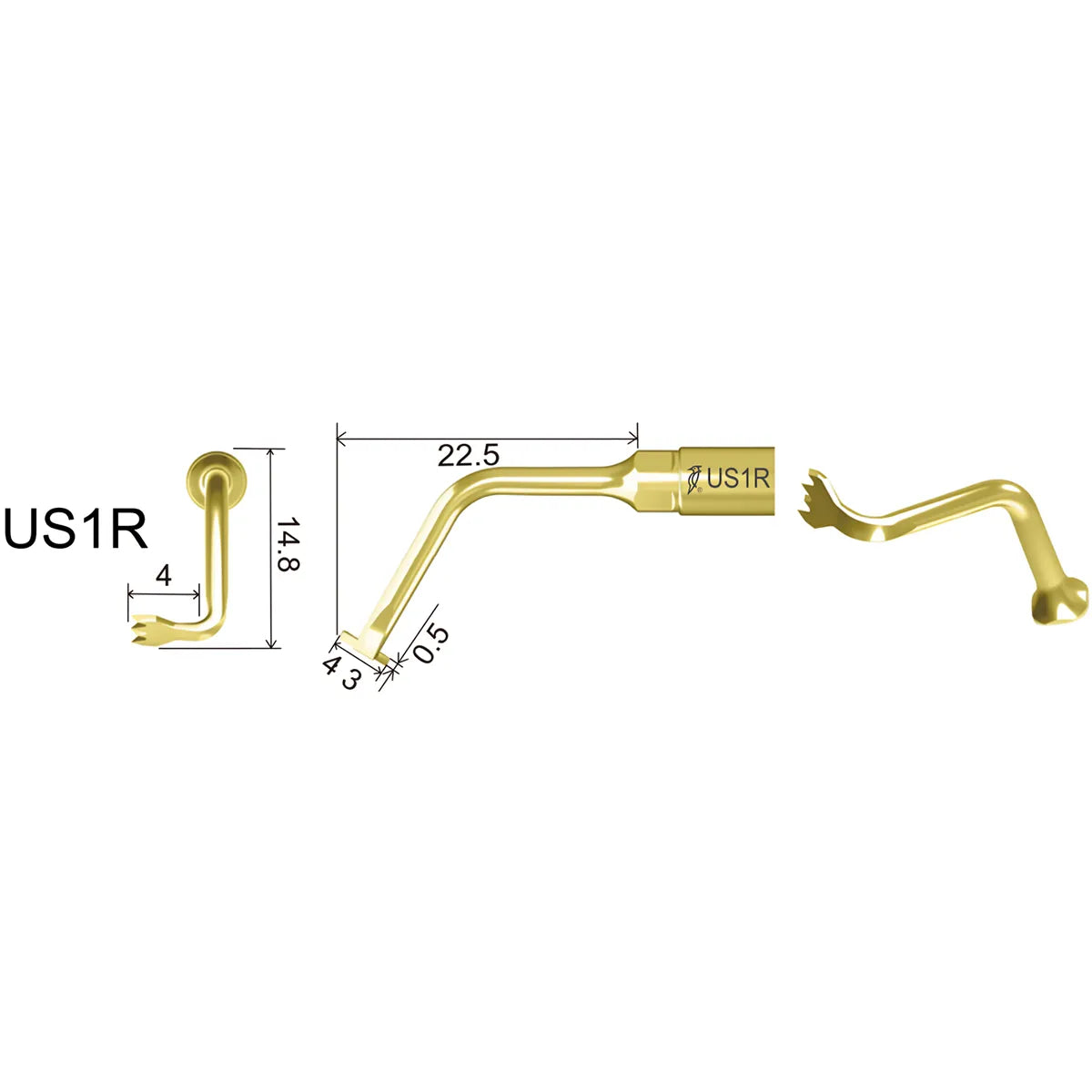

Application Technique(US1,US1L & US1R):

• Insertion: Carefully position the US1 tip at the targeted bone site for osteotomy or exodontia
• Cutting Process: Use smooth, controlled movements to cut through the bone. The design of the tip allows for effective cutting of large bone sections
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, enhancing visibility

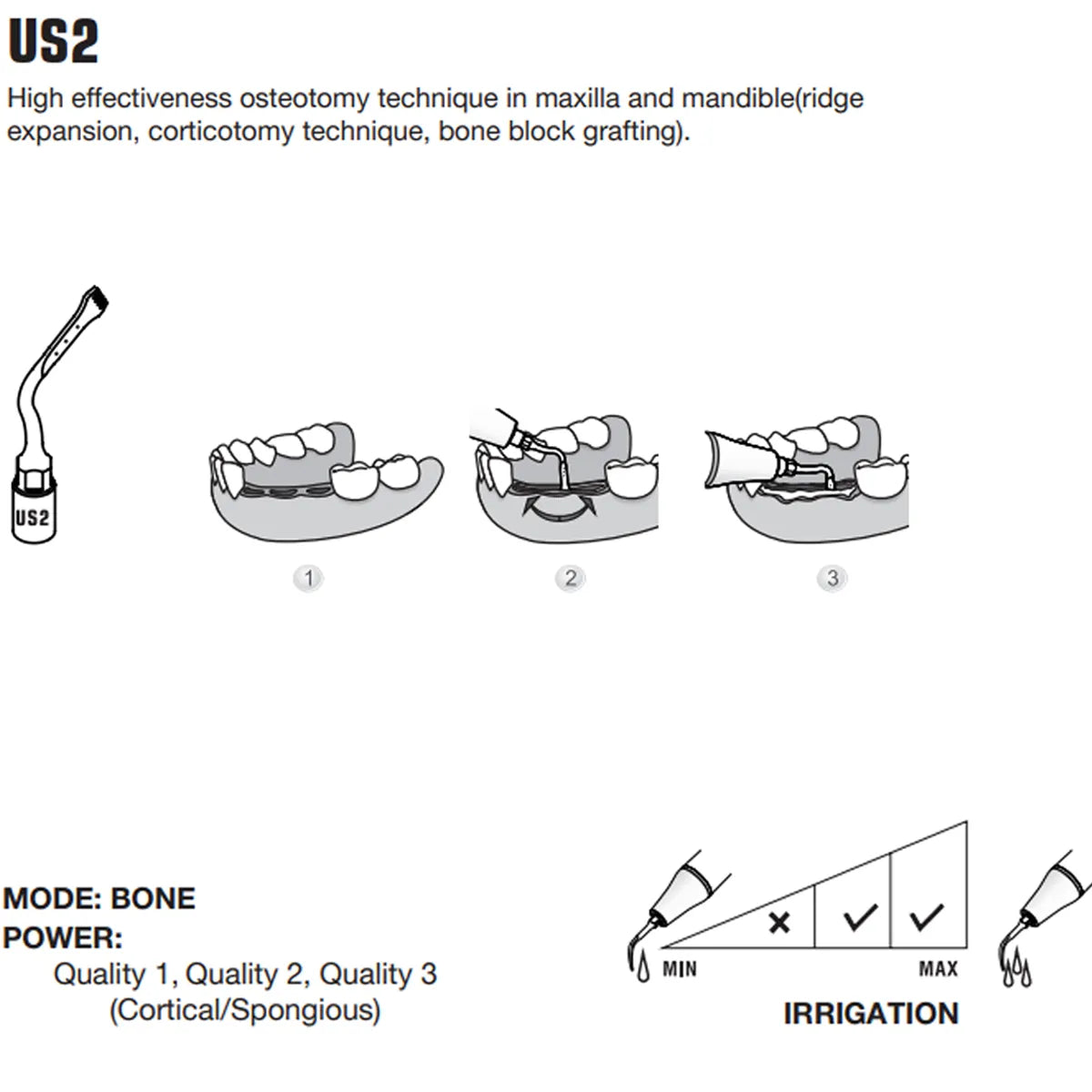

Application Technique(US2):

• Insertion: Carefully position the US2 tip at the targeted site in the maxilla or mandible for the osteotomy procedure
• Cutting Process: Use smooth, controlled movements to perform the osteotomy. The design of the tip allows for effective cutting and manipulation of bone during ridge expansion, corticotomy, and bone block grafting
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

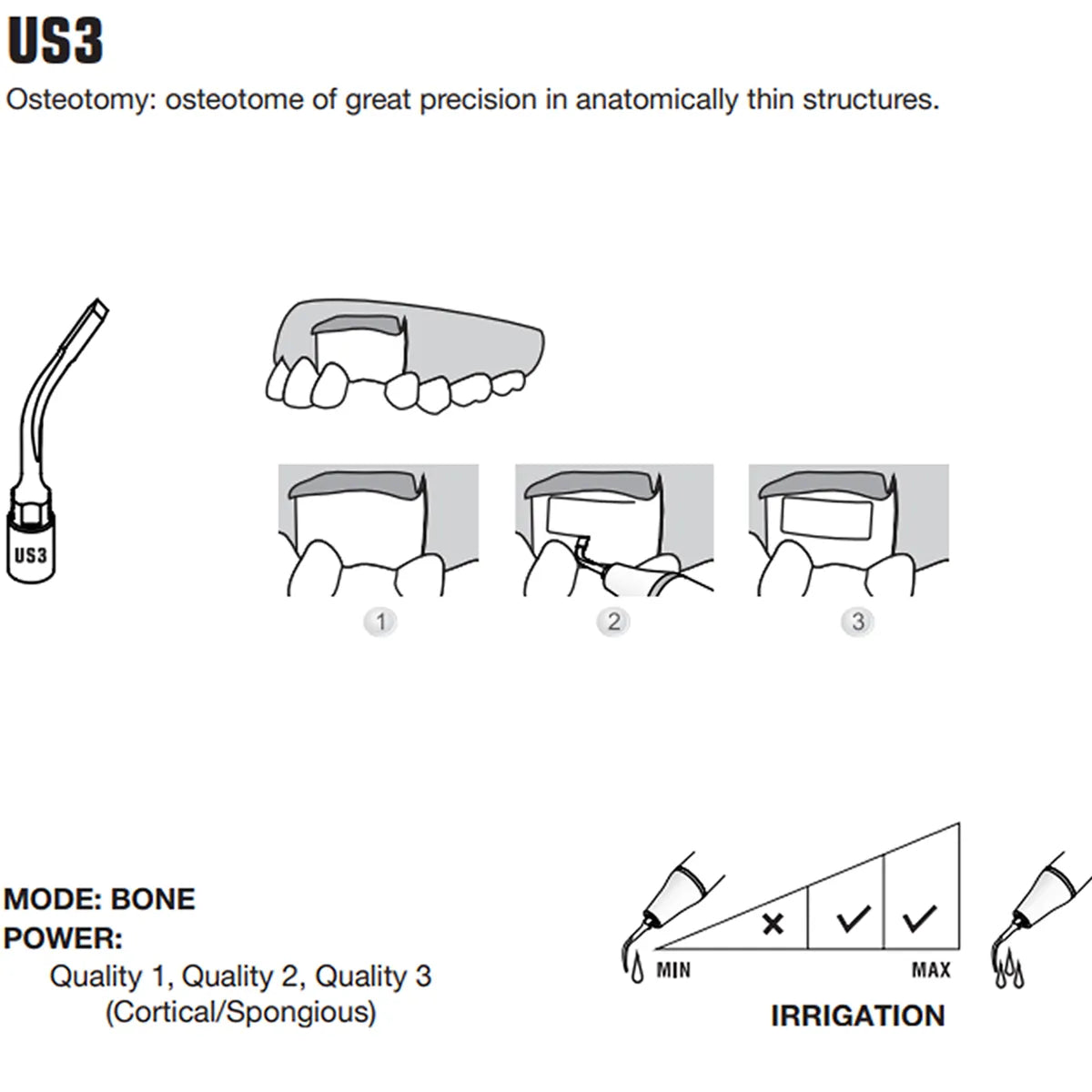

Application Technique(US3):

• Insertion: Carefully position the US3 tip at the targeted site requiring osteotomy, ensuring precise placement in the anatomically thin structure
• Cutting Process: Use gentle, controlled movements to perform the osteotomy. The design of the US3 tip allows for precise cutting in confined spaces and thin bone areas
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

Application Technique(US4):

• Insertion: Carefully position the US4 tip at the targeted site for osteoplasty, ensuring precise placement for effective treatment
• Osteoplasty Process: Use smooth, controlled movements to perform the osteoplasty procedures, including ostectomy and tissue removal. The design of the tip allows for efficient cutting and manipulation of bone and soft tissue
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

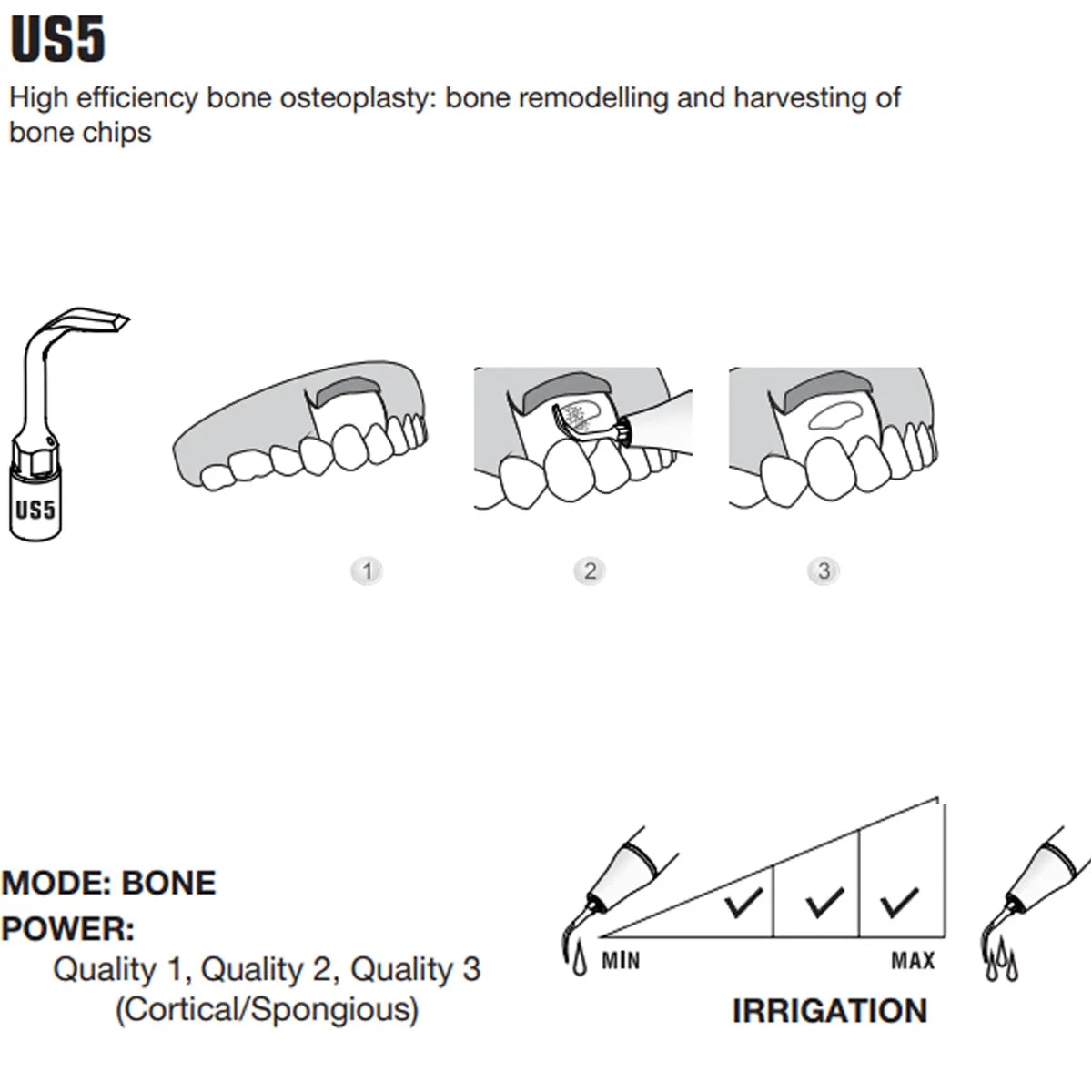

Application Technique(US5):

• Insertion: Carefully position the US5 tip at the targeted site for osteoplasty, ensuring precise placement for effective bone remodeling or harvesting
• Osteoplasty Process: Use smooth, controlled movements to perform the osteoplasty. The design of the tip allows for efficient cutting and harvesting of bone chips while minimizing trauma to surrounding tissues
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

Application Technique(UC1):

• Insertion: Carefully position the UC1 tip at the targeted site where ankylosis or root fraction needs to be addressed
• Cutting Process: Use smooth, controlled movements to cut through the bone or root structure. The design of the UC1 tip allows for precise cutting, which is essential for effective treatment of ankylosis and root fractures
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

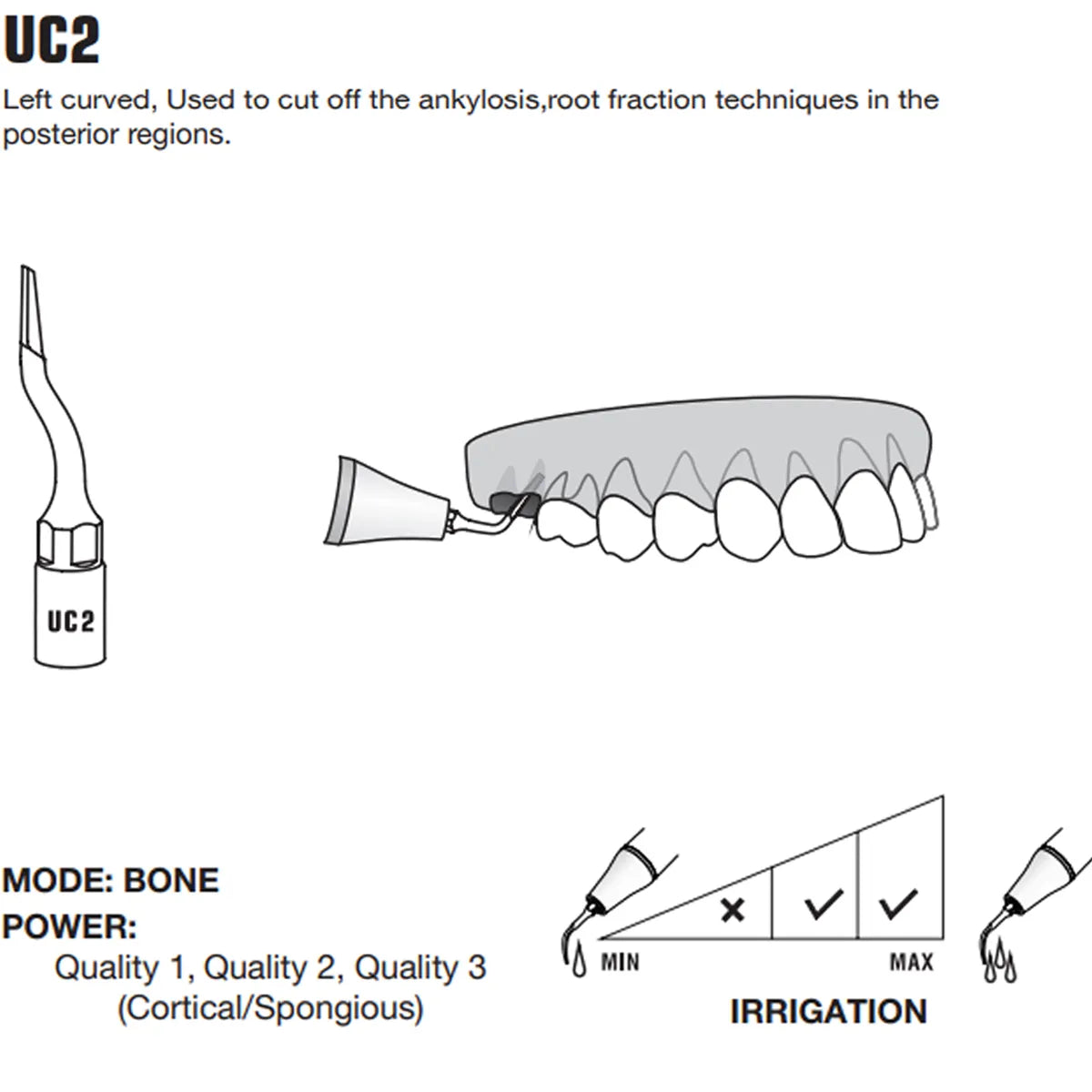

Application Technique(UC2 & UC3):

• Insertion: Carefully position the UC2 & UC3 tip at the targeted site in the posterior region where ankylosis or root fraction needs to be addressed
• Cutting Process: Use smooth, controlled movements to cut through the bone or root structure. The left-curved design of the UC2 & right-curved design of the UC3 tip allows for effective access and precise cutting in the posterior areas
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

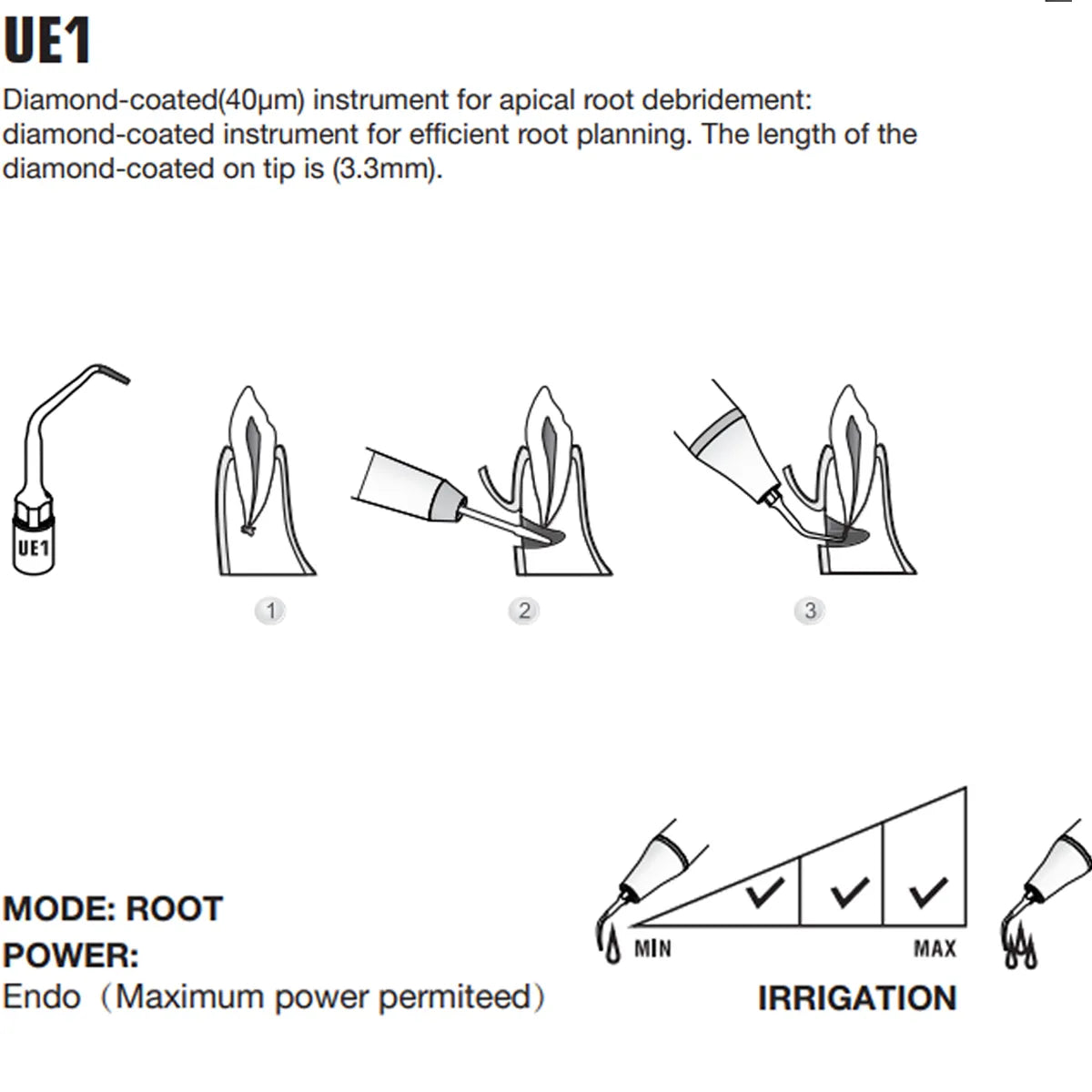

Application Technique(UE1):

• Insertion: Carefully insert the UE1 tip into the root canal, ensuring it reaches the apical area where debridement is needed
• Debridement Process: Use gentle, controlled movements to perform root planning and debridement. The diamond coating enhances efficiency in removing debris and smoothing the canal walls
• Water Flow: Ensure adequate irrigation to cool the tip and flush out debris during the procedure

Application Technique(UE2):

• Insertion: Carefully insert the UE2 tip into the root canal, ensuring it reaches the desired area for cleaning
• Cleaning Process: Use gentle, controlled movements to clean the canal walls. The slender smooth part of the tip (4.5 mm) allows for effective cleaning without damaging the canal structure
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris

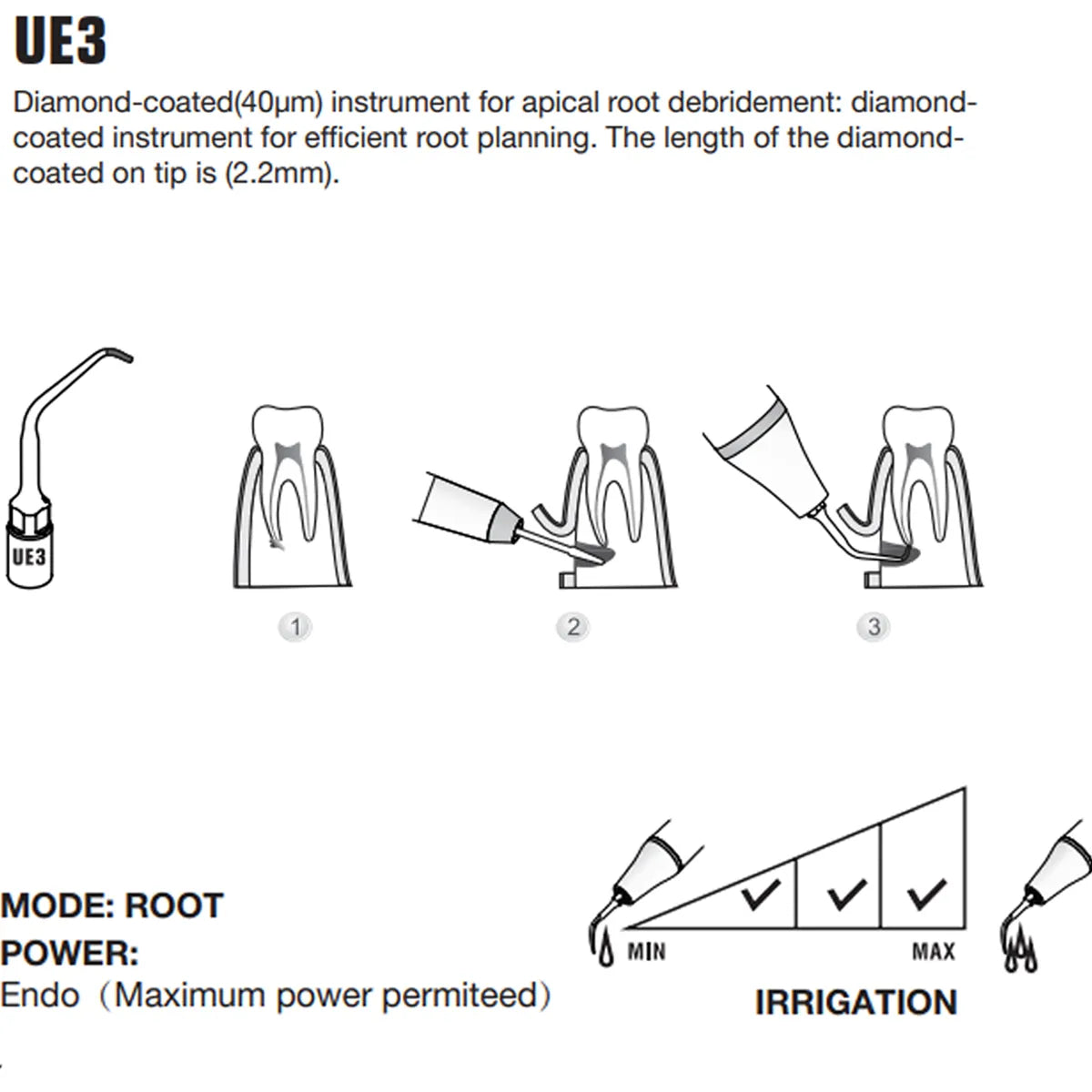

Application Technique(UE3):

• Insertion: Carefully insert the UE3 tip into the root canal, ensuring it reaches the apical area where debridement is needed
• Debridement Process: Use gentle, controlled movements to perform root planning and debridement. The diamond coating enhances efficiency in removing debris and smoothing the canal walls
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

Application Technique(UE4):

• nsertion: Carefully insert the UE4 tip into the root canal, ensuring it reaches the area requiring cleaning
• Cleaning Process: Use gentle, controlled movements to clean the canal walls. The slender design of the tip allows for effective cleaning without damaging the canal structure
• Water Flow: Ensure adequate irrigation during the procedure to cool the tip and flush out debris, maintaining visibility and safety

Safety:

• Maintain a steady hand and avoid excessive pressure to prevent damage to the tooth structure or surrounding tissues

Cleaning:

• After each use, rinse the tip to remove any debris and follow standard sterilization protocols

Post-Use Care:

• Clean and sterilize the tip according to standard procedures to ensure it is ready for future use.

• Micrometric Cutting: Provides maximum surgical precision and intra-operative sensibility.
• Selective Cutting: Ensures safety for soft tissues by allowing for selective bone cutting.
• Water Cooling Cold Cutting: Maintains a low temperature at the cutting point to prevent thermal damage.
• Clear Vision for Surgery: The cooling water spray ensures a blood-free cutting area, enhancing visibility during procedures.
