Woodpecker O Light 1 second Curing Light

Rs. 3,995.00
Add to Wishlist
Specifications
Care Instruction
Features

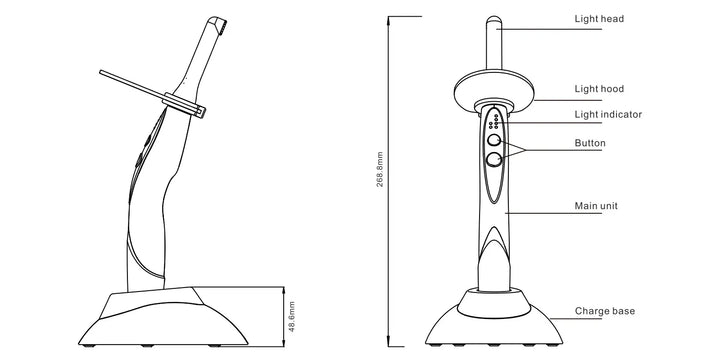

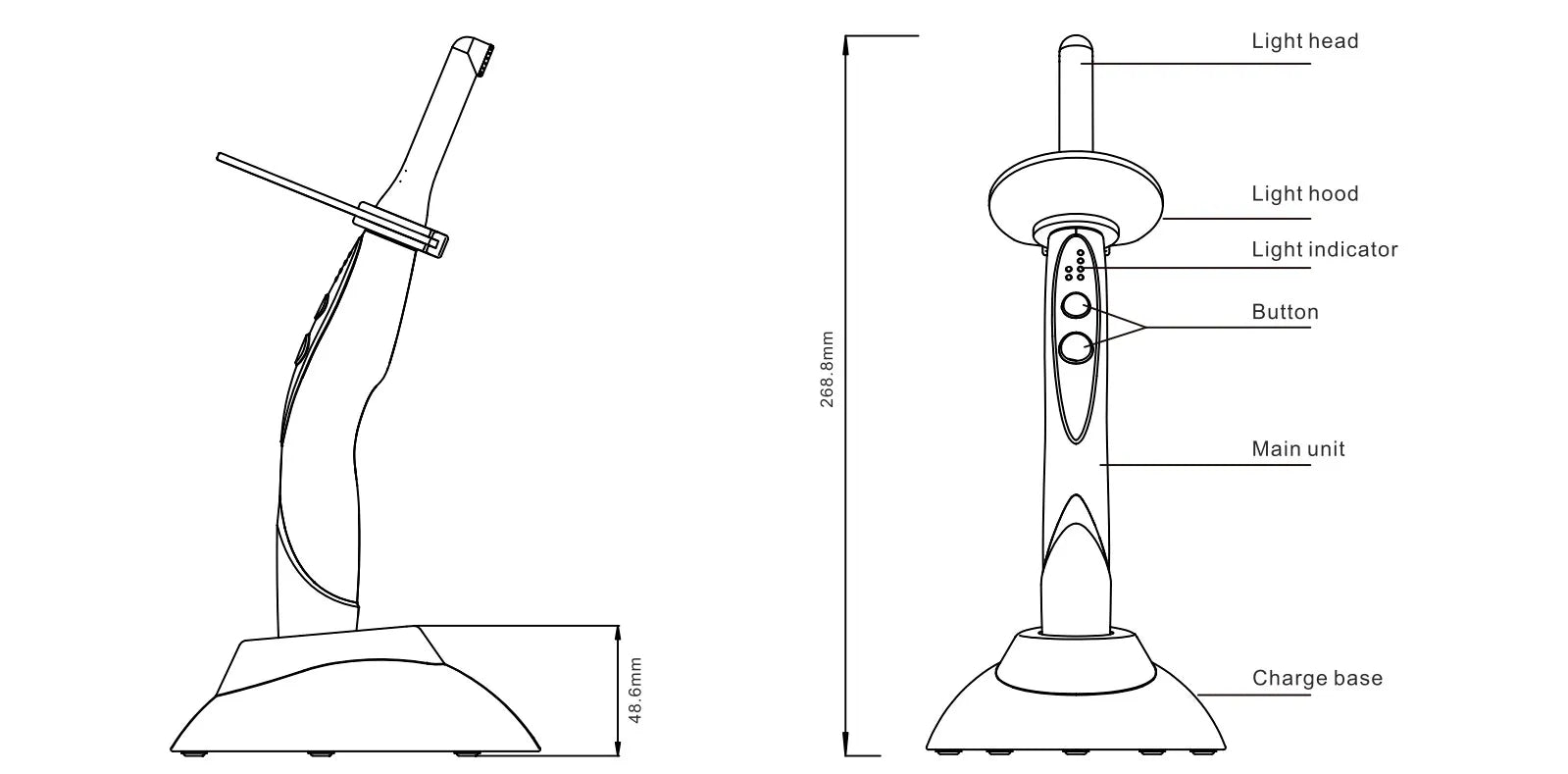

  • Size: 268.8mmx26.1mmx31.8mm
  • Net Weight: 259g
  • Class: Class I
  • Adapter Input: AC100-240V 50Hz/60Hz
  • Output: DC5V 1A
  • Built in fuse: T1a250V
  • Battery model: ICR18490
  • Battery capacity: 1400mAh
  • Light source Wavelength: 420nm-490nm
  • High power blue light LED:5W
  • Ensure the Woodpecker O-Light 1-Second Curing Light Unit is fully charged or has fresh batteries.
  • Attach the light hood securely to the front connector of the unit.
  • Select the desired mode (high or standard) based on the specific dental procedure.
  • Position the curing light at a suitable distance from the area requiring resin polymerization. Note that there is no distance limit due to the strong penetration capability of the light.
  • Press the power button to activate the curing light. The device will emit a high-intensity focused light.
  • Keep the light directed at the resin material and maintain the recommended curing time, which is typically 1 second for a 2mm thickness of resin.
  • Move the curing light evenly across the surface of the resin material, ensuring all areas receive adequate light exposure for effective polymerization.
  • After the recommended curing time, deactivate the curing light by pressing the power button again.
  • Clean the light hood and the device's surface using a soft, lint-free cloth or a disinfectant wipe to maintain hygiene standards.
  • Two working modes: HIGH & NORMAL
  • Time Setting:Constant light intensity. Solidification effect is not affected by the consumption of remaining power.
  • O-Light adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at in a short time
  • Two working modes: HIGH & NORMAL
  • Time Setting:Constant light intensity. Solidification effect is not affected by the consumption of remaining power.
  • O-Light adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at in a short time
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables Woodpecker
Tags: Product

Share On

Description

Woodpecker O-Light 1-Second Curing Light Unit by Woodpecker is a trusted and widely accepted tool used by dentists worldwide. It offers high precision and intensity focused light for the efficient polymerization of resin materials containing new style photo-initiators like TPO. With a maximum light intensity exceeding 2300mw/cm², it can cure 2mm of resin in just 1 second, ensuring quick and effective solidification. The device maintains a constant current output, preventing light intensity from weakening as the battery is consumed. Its light hood, made of carefully selected materials, protects against blue-ray injury, prioritizing safety. The 5W high-power blue light LED guarantees consistent light intensity output. The Woodpecker O-Light features two modes: high mode with a light intensity range of 2300-2500 mw/cm², suitable for orthodontics, porcelain veneer, and post-core restoration; and standard mode with a range of 1000-1200 mw/cm², ideal for general curing. The unit offers strong penetration of light, enabling curing without distance limitations. Its front connector can rotate 360°, facilitating access to previously hard-to-reach areas, including posterior teeth. In summary, the Woodpecker O-Light is a reliable, flexible, and efficient curing light unit highly regarded by dental professionals worldwide.
