Description

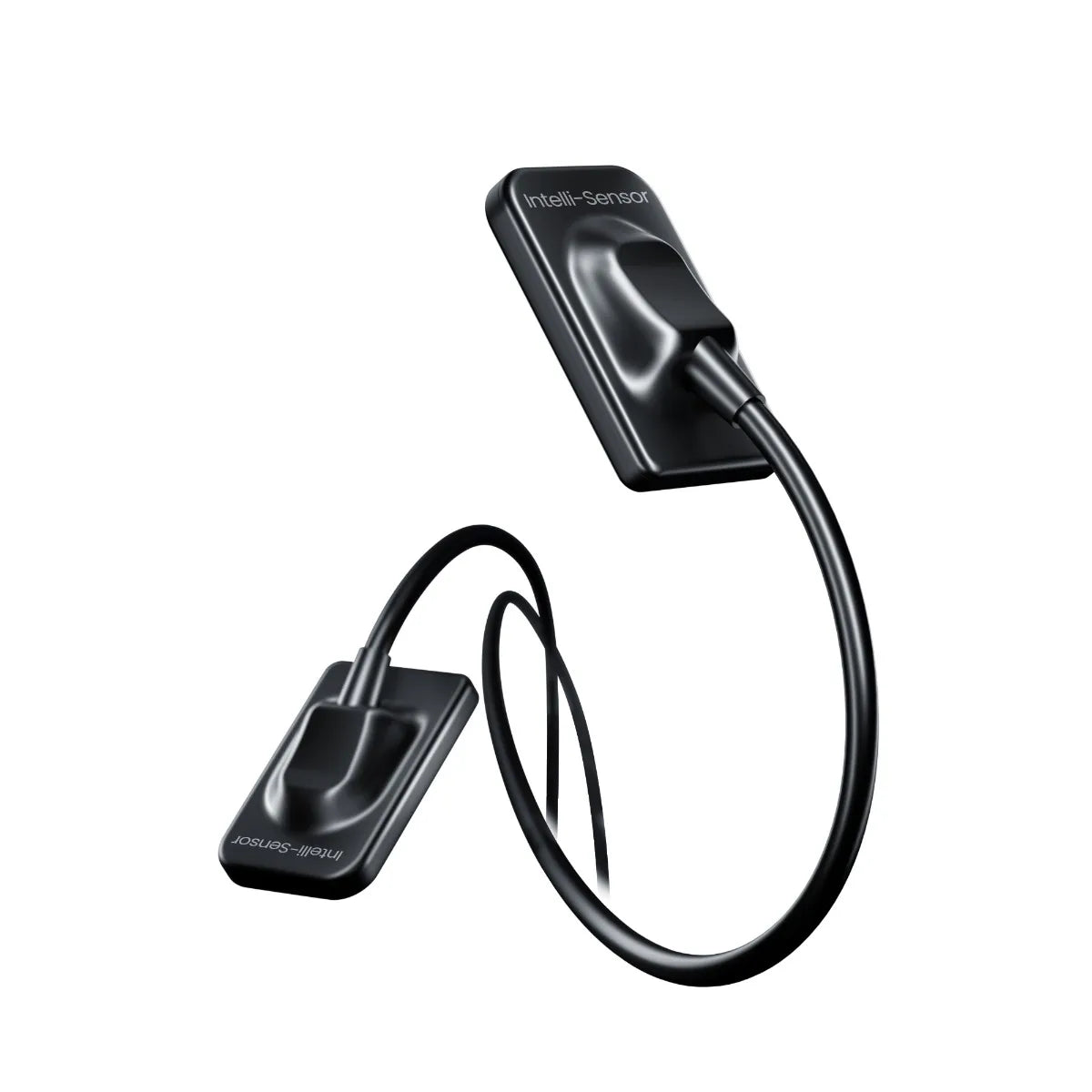

Woodpecker Intelli-Sensor RVG Size - 1.5 is a state-of-the-art dental imaging solution designed to streamline radiographic procedures and enhance diagnostic precision. This Radiovisiography (RVG) system integrates seamlessly into dental practices, offering exceptional image quality and ease of use. The sensor boasts an ultra-thin profile and ergonomic design for patient comfort and precise placement. With advanced sensor technology, it captures X-ray radiation and converts it into high-resolution digital images for detailed analysis. The accompanying monitor provides real-time visualization of images, empowering dentists to make informed treatment decisions efficiently. Built with durability and reliability in mind, this RVG system ensures consistent performance, while its IP68 rating protects against dust and liquid ingress for long-lasting use.
Specifications
Care Instruction
Features
Image Resolution: Ultra-high resolution for clear diagnostics
User Interface: High-quality, user-friendly interface
Design: Comfortable and ergonomic design
Scope of Application: Oral two-dimensional image capturing, case diagnosis, information management
Operation Mode: Intermittent operation mode
Electric Shock Protection: BF type applied part
Water Ingress Protection: IP68
X-ray Generator Compatibility: Compliant with dental X-ray machine standards
Power Adapter Input: 5V/USB interface
Mechanical Size - 1.5 : 43.5*29.2*4.5mm
Effective Area Size - 1.5 : 24*33mm( Size - 1.5)
Pixel Size: 20μm
Effective Resolution: > 12Ip/mm
Temperature: 10℃ to 35℃
Humidity: 20% to 90%
Atmospheric Pressure: 70kPa to 106kPa
Installation Application Specification:
Operating System: Windows® 7 or above
Processor: Intel® Core 4
Memory: 8 GB or above
Hard Disk: 500 GB or above
USB Port: 4 high-speed USB 2.0 ports
USB Chip: Intel or NEC / RENESAS
Display Resolution: 1920 x 1080
Software Installation: Run the "Ai-Dental setup.exe" installation program
Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use
Here are the directions for using the Woodpecker Intelli-Sensor RVG:
System Setup:
Ensure that the computer meets the specified configuration requirements, including the operating system, processor, memory, USB ports, display board, USB chip, and display resolution. Software Link: Click Here To Download Woodpecker Intelli-Sensor RVG Software
Run the "Ai-Dental setup.exe" installation program and follow the on-screen instructions to install the image management software system.
Sensor Installation:
Fix the sensor support frame on a flat wall using two screws.
When the sensor is not in use, secure it on the support frame.
Imaging Process:
Turn on the PC with the installed image processing software.
Start the matching X-ray generator and set the desired photographing parameters.
Put on a disposable protective sheath on the sensor.
Place the sensor in the patient's mouth parallel to the long axis of the teeth, ensuring the effective surface of the sensor is close to the teeth.
X-ray Capture:
Move the X-ray generator to the patient's head, ensuring the generator cone is perpendicular to the sensor's position.
Press the generator switch to capture the X-ray image.
After exposure, the imaging software downloads the X-ray image for display on the screen.
Sensor Protective Sheath Usage:
Wear gloves when placing the disposable sensor protective sheath.
Replace the protective sheath after each use and dispose of it with other potentially infectious waste.
