Woodpecker Implanter Fiber Optic Physiodispenser

Woodpecker Implanter Fiber Optic Physiodispenser

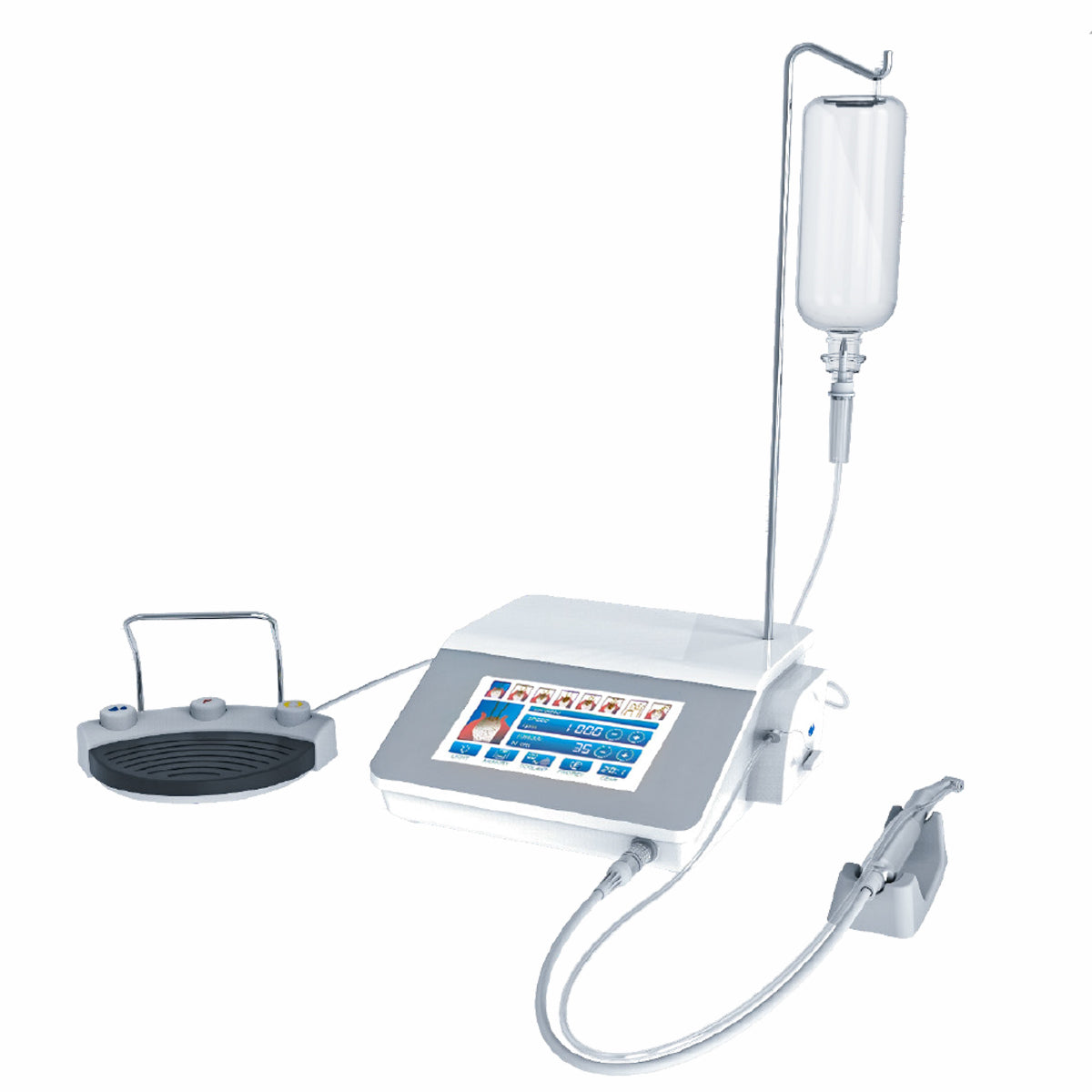

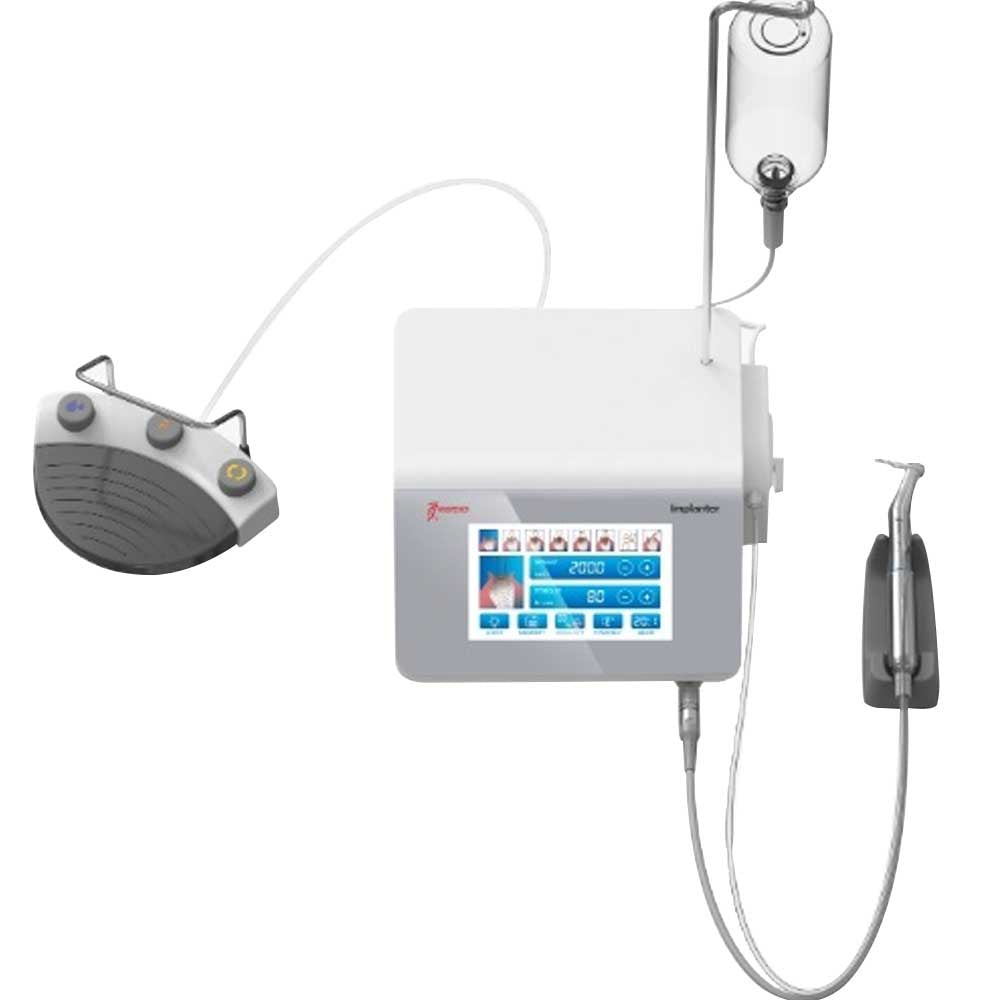

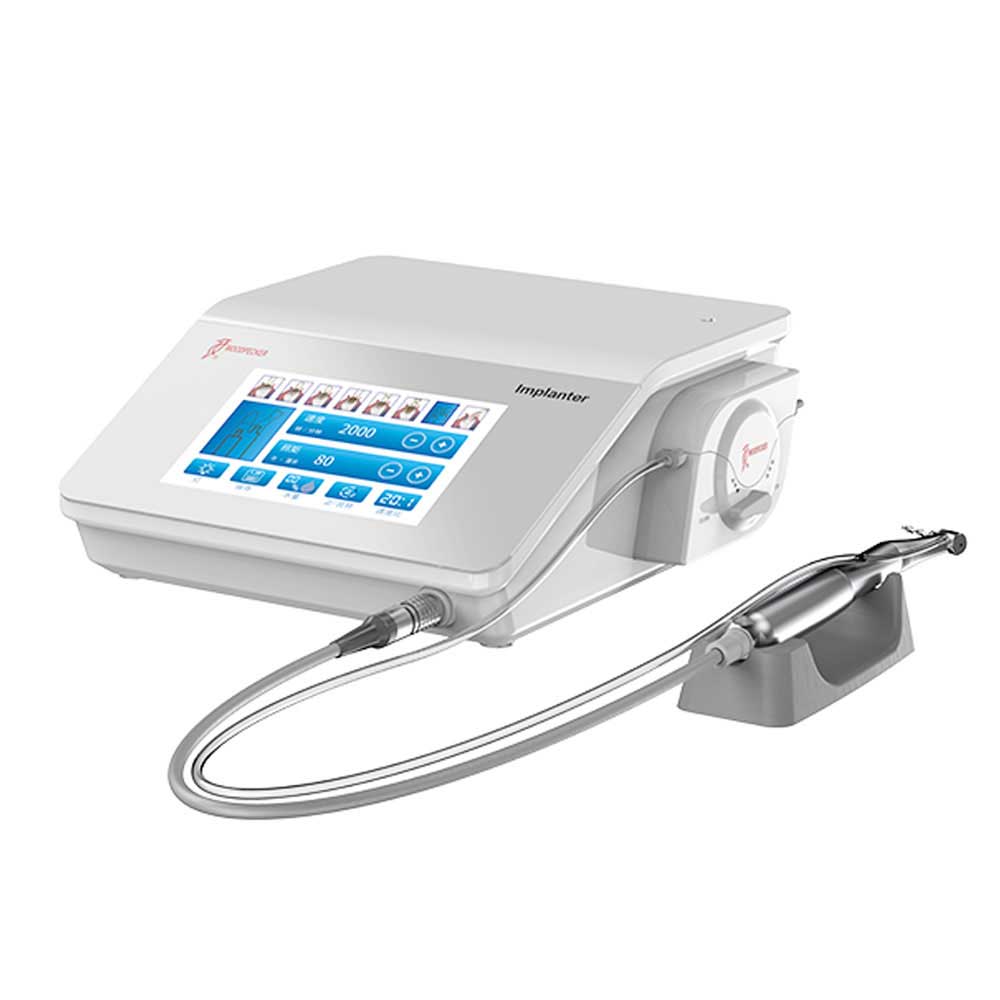

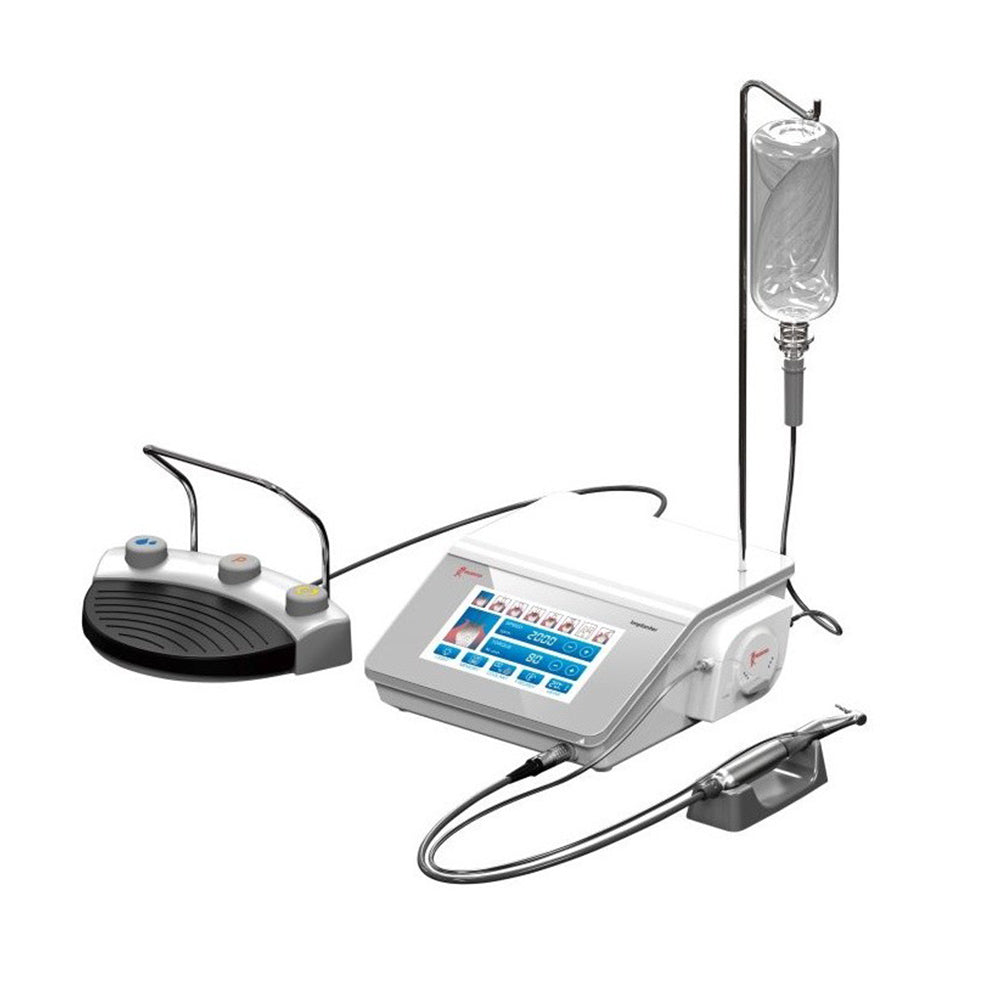

The Woodpecker Implanter Fiber Optic Physiodispenser is a premium implant motor system engineered to deliver exceptional precision, stability, and efficiency during dental implant procedures. Designed for implantologists, oral surgeons, and periodontists, this advanced physiodispenser combines a powerful brushless motor, intelligent torque control, and a fiber optic LED handpiece to provide outstanding visibility and precise implant placement.

Equipped with a high-definition color touchscreen, the system allows clinicians to easily adjust speed, torque, irrigation flow, and surgical parameters. Multiple programmable implant modes streamline clinical workflows, while real-time torque monitoring ensures safe and accurate implant insertion.

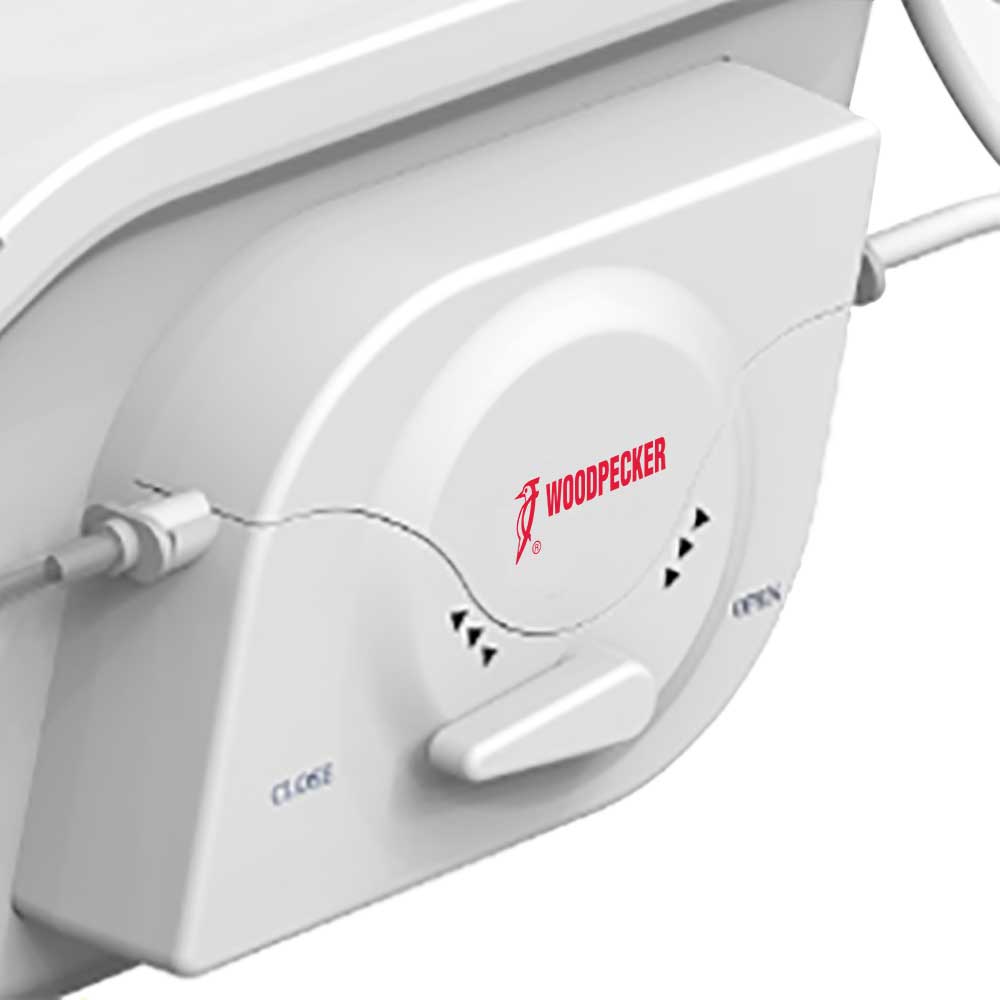

With a rotation speed range of 300 to 40,000 rpm and an adjustable torque range of 5 N·cm to 80 N·cm (20:1 gear ratio), the Woodpecker Implanter is suitable for every stage of implant surgery, including osteotomy preparation, implant placement, bone grafting, sinus lift procedures, and oral surgery. The powerful irrigation system delivers up to 135 ml/min of cooling water to reduce heat generation and protect surrounding bone tissue during drilling.

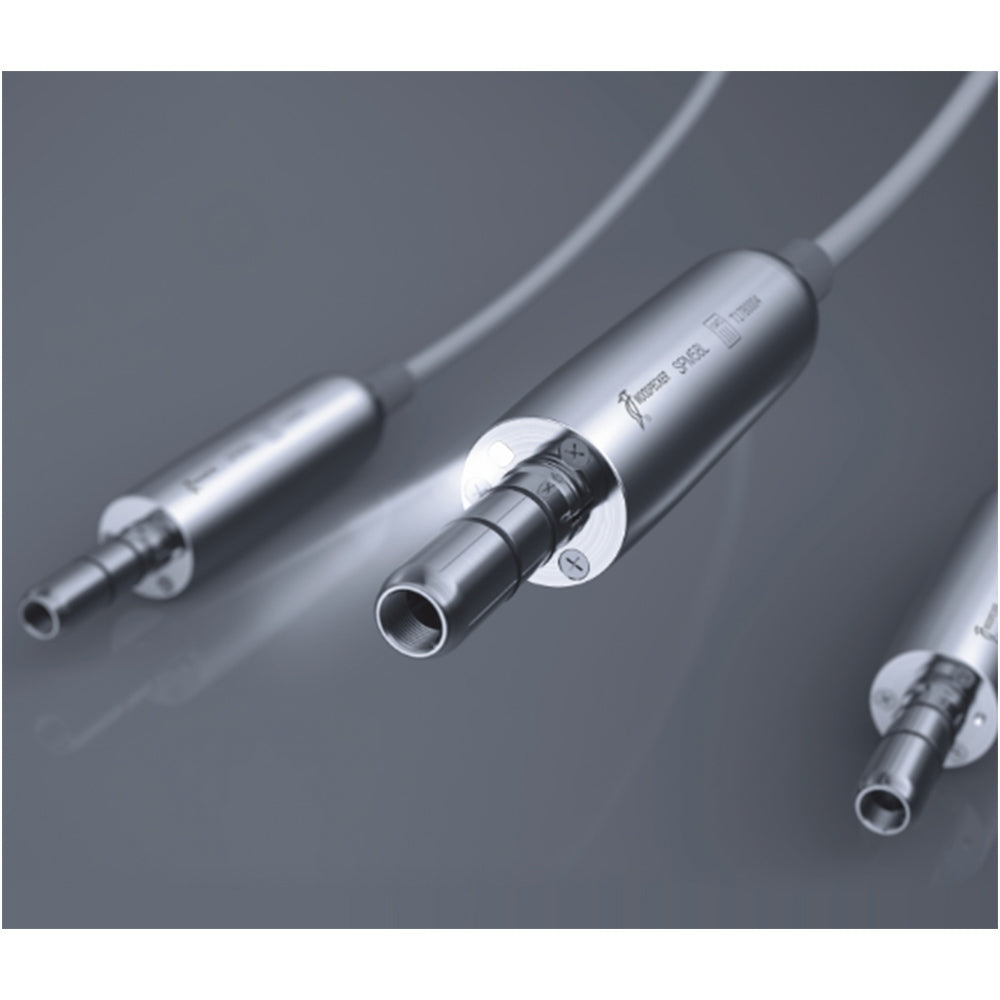

The lightweight 140 g brushless motor features an ergonomic design that minimizes hand fatigue during long procedures. The integrated fiber optic LED illumination provides bright, shadow-free visibility directly at the surgical site, improving precision and clinician confidence.

Built with a durable PC + ABS housing and a premium brass handpiece, the Woodpecker Implanter is designed for long-term clinical reliability. Powered by a 200-240V AC power supply (50/60 Hz) with 150 VA input power, the system delivers stable performance while operating safely under intermittent duty cycles. It also incorporates advanced safety features, including temperature protection, fuse protection, and controlled irrigation output.

Whether you're performing single-tooth implant placement, full-arch rehabilitation, guided implant surgery, or complex oral surgical procedures, the Woodpecker Implanter Fiber Optic Physiodispenser provides the precision, reliability, and control required for predictable clinical outcomes.

Key Features

• High-performance brushless implant motor

• Fiber optic LED handpiece for bright, shadow-free illumination

• Rotation speed from 300 to 40,000 rpm

• Adjustable torque range of 5 N·cm to 80 N·cm

• High-definition color touchscreen interface

• Real-time torque and speed monitoring

• Multiple customizable implant surgery programs

• Powerful irrigation pump with adjustable flow

• Maximum irrigation output up to 135 ml/min

• Smooth, vibration-free operation

• Lightweight 140 g motor for improved comfort

• Forward and reverse rotation modes

• Compatible with standard contra-angle implant handpieces

• Durable PC + ABS control unit

• Premium brass motor housing

• Stable performance for long surgical procedures

• Easy cleaning and maintenance

Technical Specifications

Clinical Applications

• Dental Implant Placement

• Guided Implant Surgery

• Implant Osteotomy

• Bone Drilling

• Implant Insertion

• Sinus Lift Procedures

• Bone Grafting

• Oral & Maxillofacial Surgery

• Periodontal Surgery

• Full-Arch Implant Rehabilitation

Benefits

• Precise torque control for predictable implant placement

• Bright fiber optic illumination improves surgical visibility

• Wide speed range supports every stage of implant surgery

• Powerful irrigation minimizes heat generation

• Lightweight motor reduces operator fatigue

• Intuitive touchscreen for quick adjustments

• Stable and reliable brushless motor performance

• Compatible with a wide range of implant systems

• Durable construction for everyday clinical use

• Designed for efficient, safe, and accurate implant procedures

Why Choose the Woodpecker Implanter Fiber Optic Physiodispenser?

The Woodpecker Implanter Fiber Optic Physiodispenser combines advanced engineering, intelligent torque management, and superior surgical illumination to help clinicians perform implant procedures with confidence. Its broad speed range, high torque output, efficient irrigation system, ergonomic motor, and customizable surgical programs make it an excellent choice for modern implant practices. Built for reliability and precision, it delivers the performance needed to achieve consistent, predictable implant outcomes while improving workflow efficiency and patient safety.
