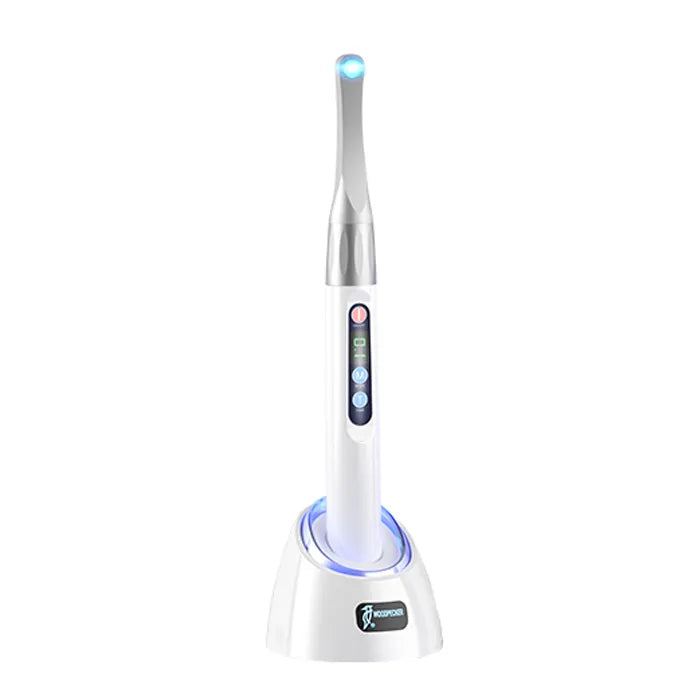

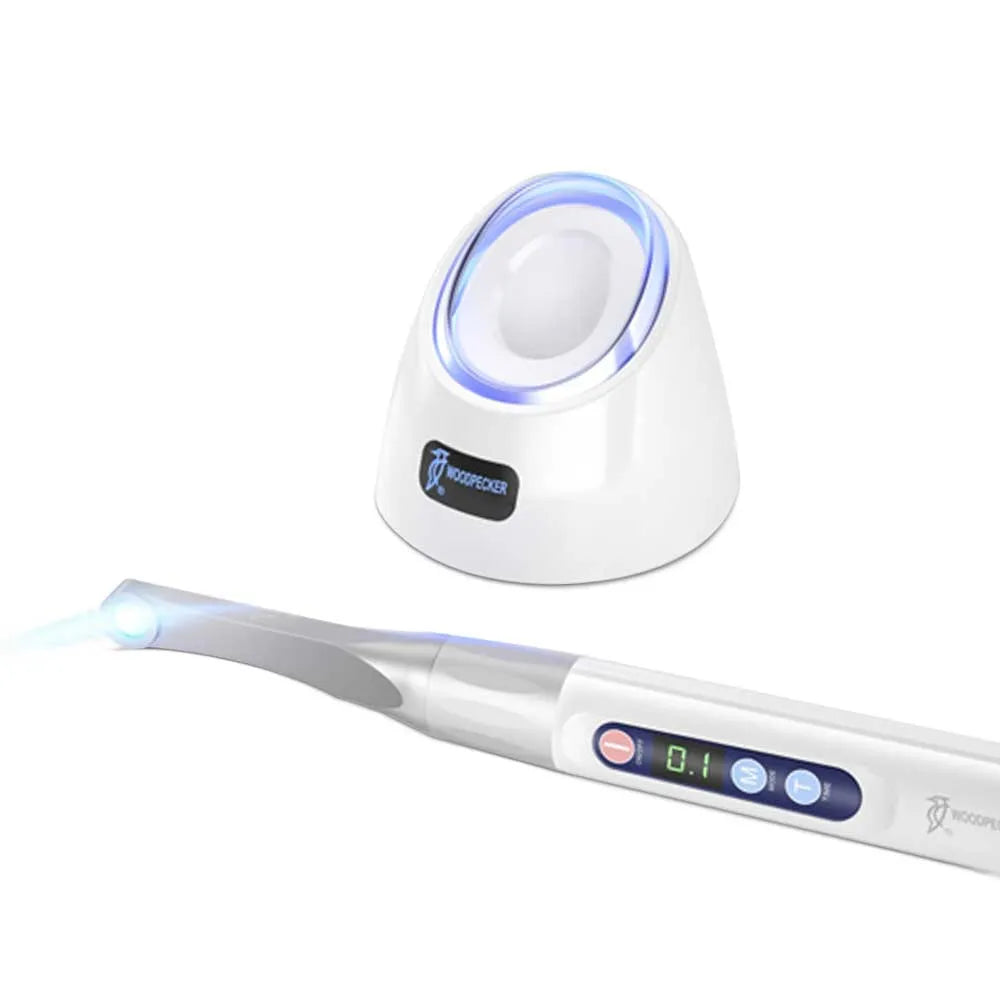

Woodpecker ILED Plus Curing Light (1 Sec Curing Time)

TECHNICAL SPECIFICATIONS:

• Dimensions: 25mm×25mm×240mm
• Net weight: 278g
• Power Input: 100V to 240V, 50Hz/60 Hz
• Wave length: 385nm-515nm
• Light intensity: 1000 mW/cm2~2500mW/cm2

• Press the mode button. The following two modes are available.

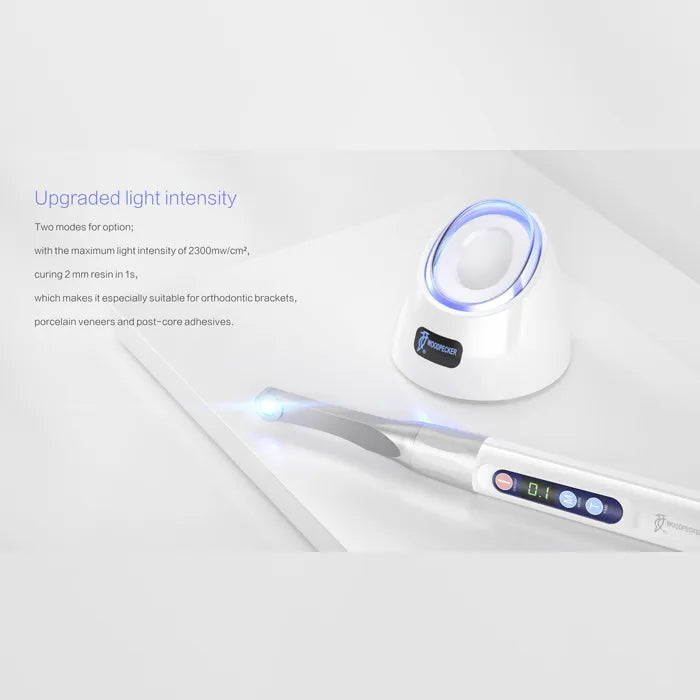

• TURBO Mode: screen shows P1, Press the time button to select the time which could be 1 or 3 seconds. Its output light intensity is about 2300 mW/cm2-2500 mW/cm2.
• NORMAL Mode: screen shows P2, Press the time button to select the time which could be 5,10,15and 20 seconds. Its output light intensity is about 1000 mW/cm2-1200 mW/cm2.
• During the operation, put the disposable sleeve on the top of the main unit, aim the top at the correct position, and press the ON/OFF button the main unit will produce a "Bi" sound, and the curing light radiates blue light and starts working according to the set modes. Meanwhile, it starts counting down and will produce a tone every 5 seconds, it stops working when counting down to "0".
• During operation, the blue light can be stopped by pressing the power button at any time.
• After a working cycle, the operator can press the ON/OFF switch to start another working cycle. Stop operating if the equipment began to heat obviously, and do not restart until the equipment cools down. Suggest continuing the working cycle less than 10 times.
• The low power detective circuit is fixed inside of the main unit, when low power is detected, the display screen of the main unit will wink, please charge in time.
• When the battery needs to be charged, connect the plug of the adapter to the AC100V~240V power supply. Then connect the output plug of the adapter to the DC 5.0V input plug of the pedestal, and then the logo turns blue. Put the main unit to the charging point of the pedestal, the display screen turns to a scrolling display, and the curing lights start charging. When charging is finished, the display screen display "1111".
• After operating, take off the disposable sleeve and throw it away, forbidden to reuse.
• This equipment will turn off automatically if don't have any action within 2 minutes, turn it on by pressing any button.
• The depth of solidification of the composite is no less than 2mm per 1 second.

• Constant power output- born for teeth restoration

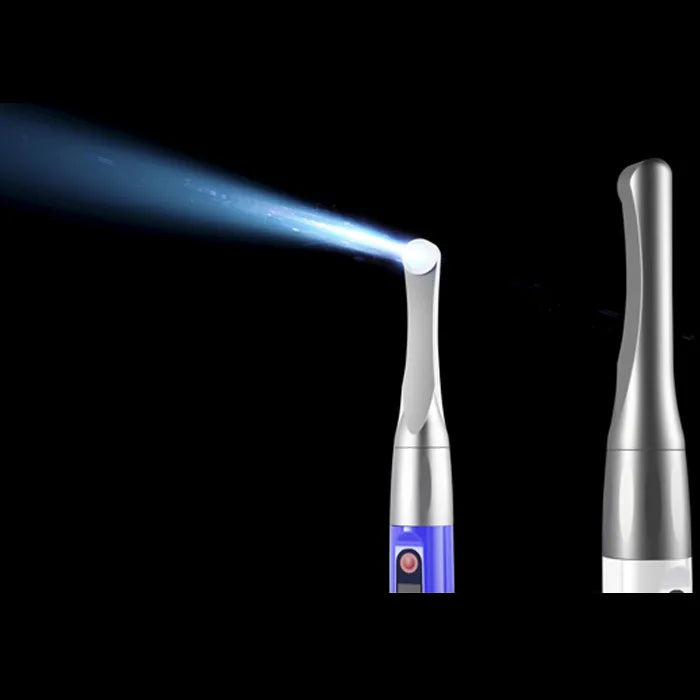

• 360° curing- reach every angle

• Fluid design- better hand feeling

• 1 sec for curing- 2mm resin

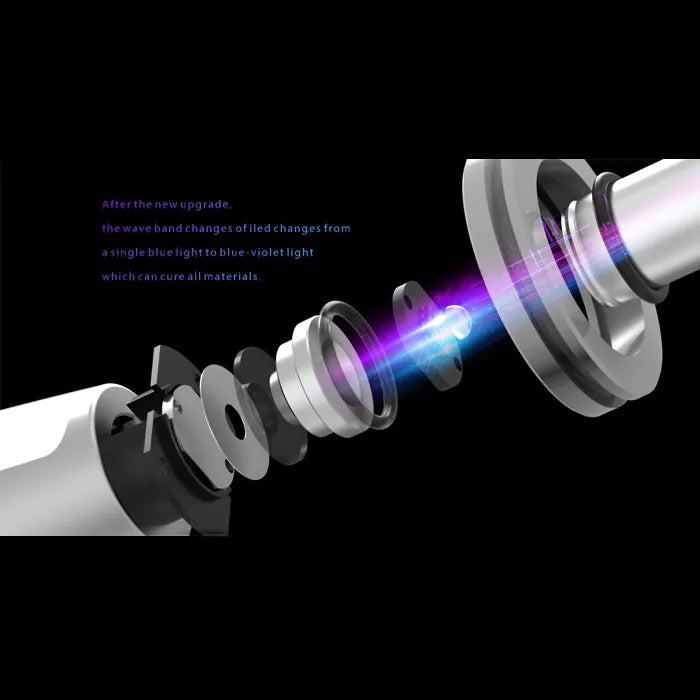

• Wide spectrum emission wavelength range of 385nm to 515nm
• Additional wave band of 385nm to 420nm for better curing of resin materials containing new-style photoinitiators like TPO
• Reduces the risk of resin shedding and incomplete curing
• Suitable for bleached resins and light-colored resin due to the white nature of TPO
• Can effectively cure traditional materials containing camphor
