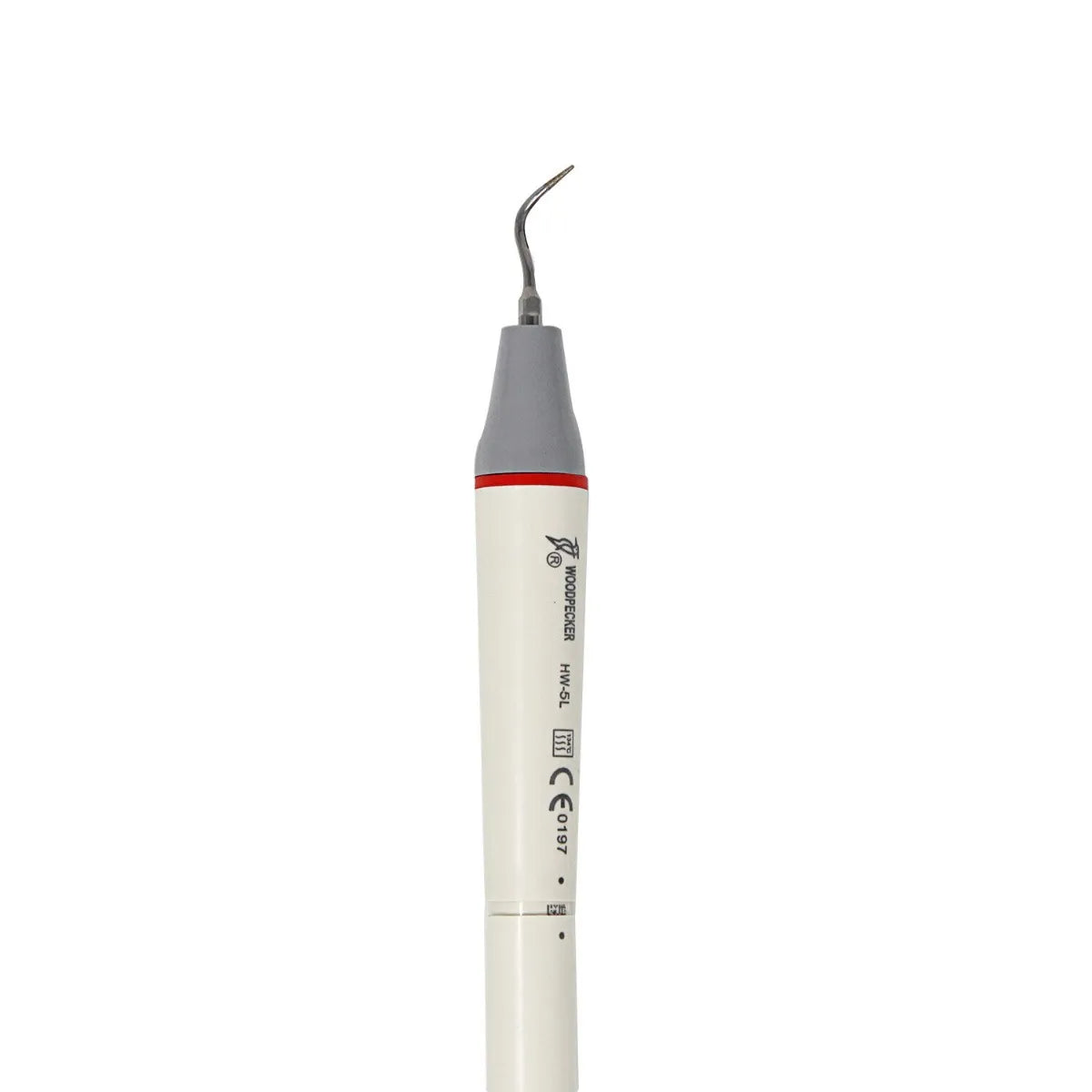

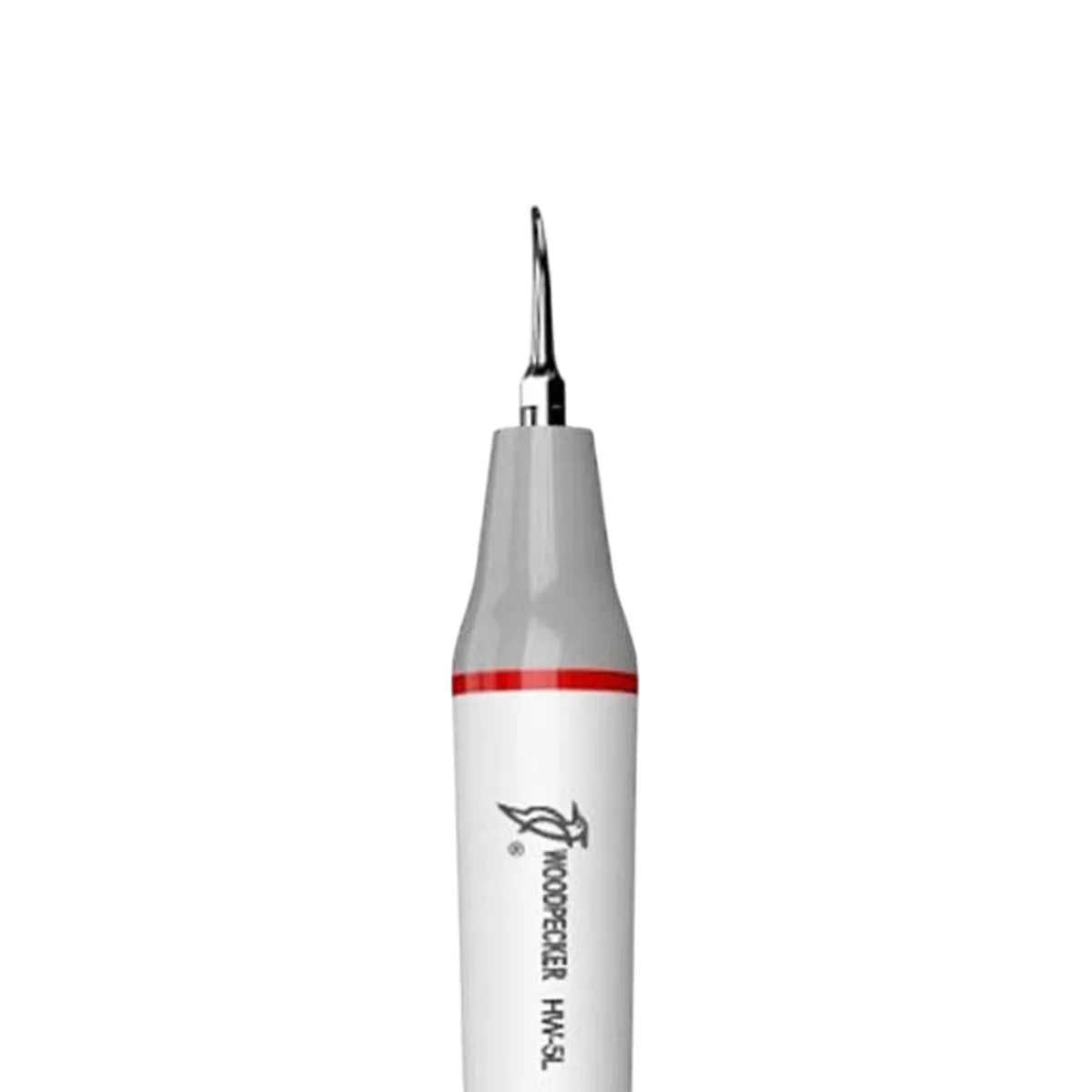

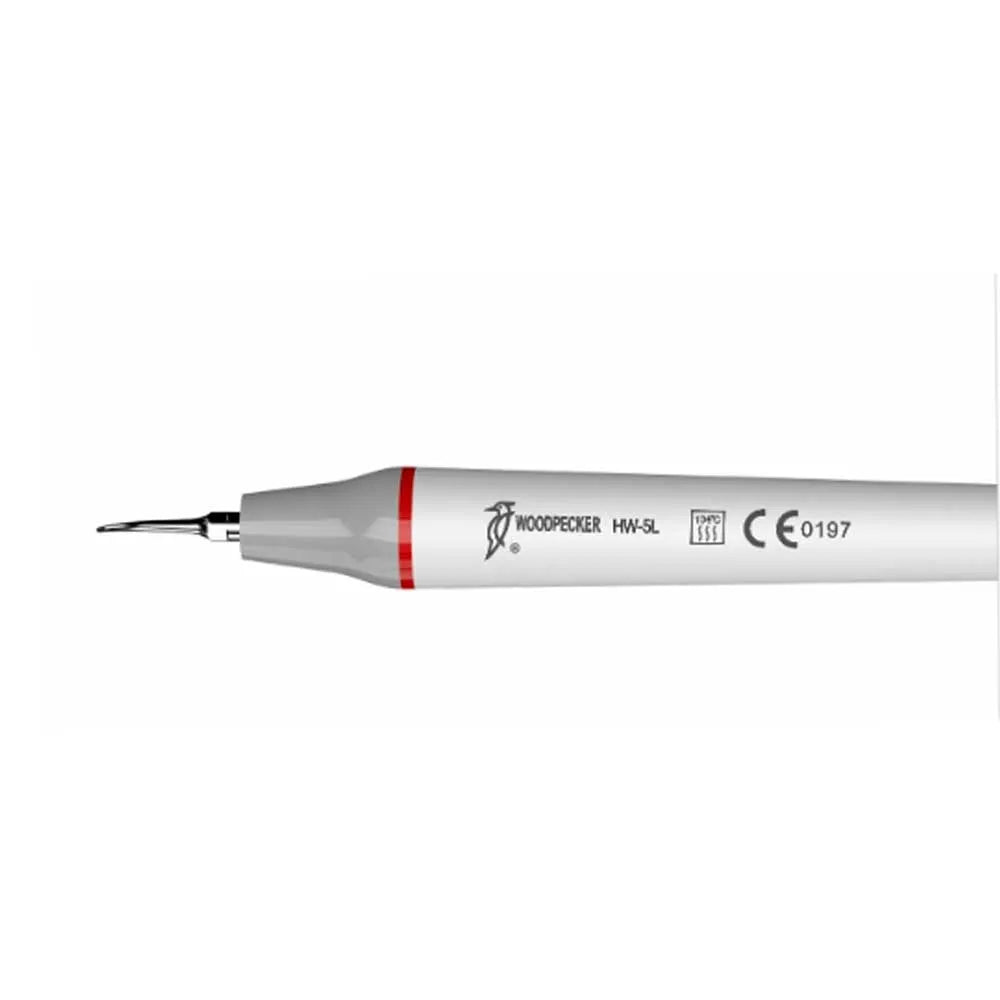

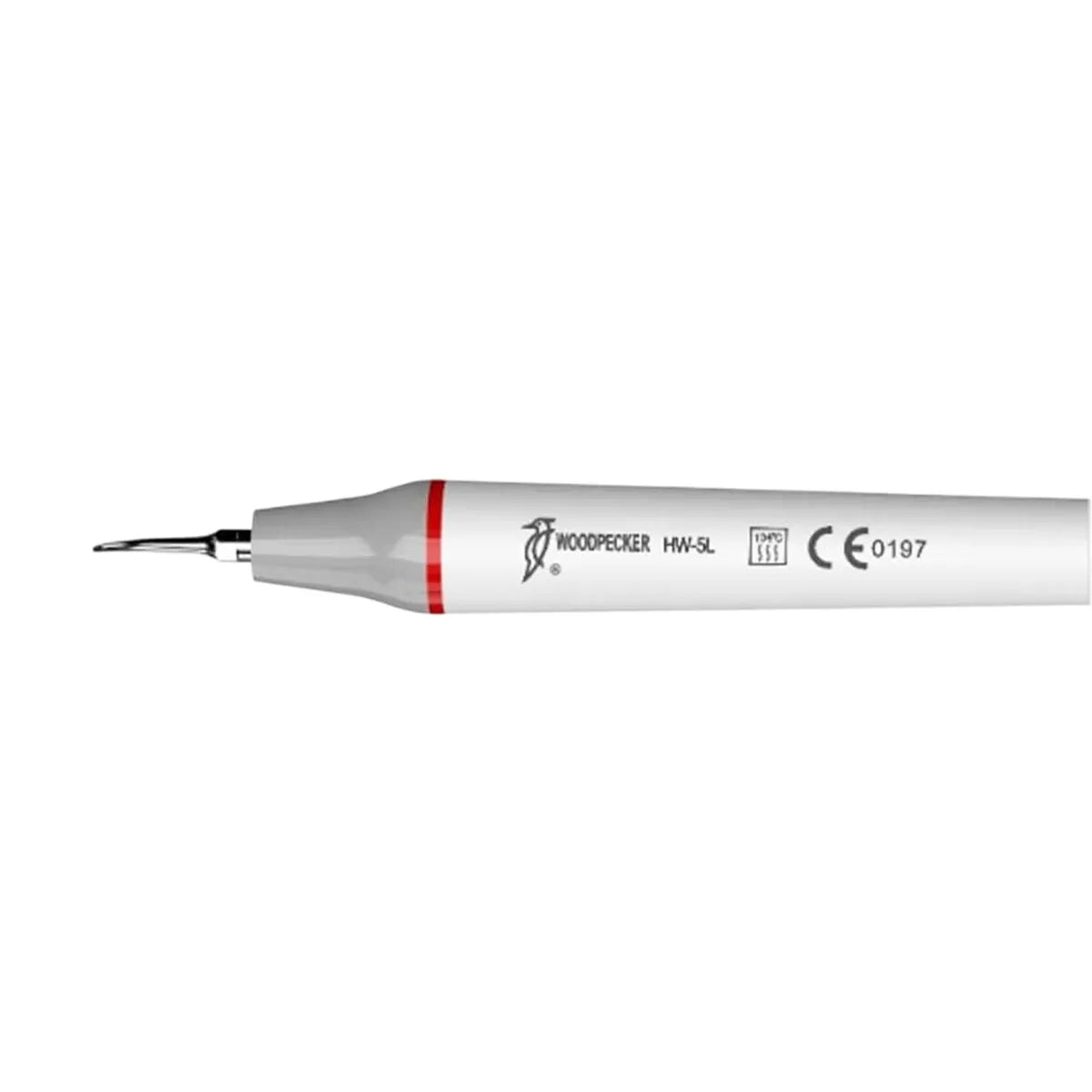

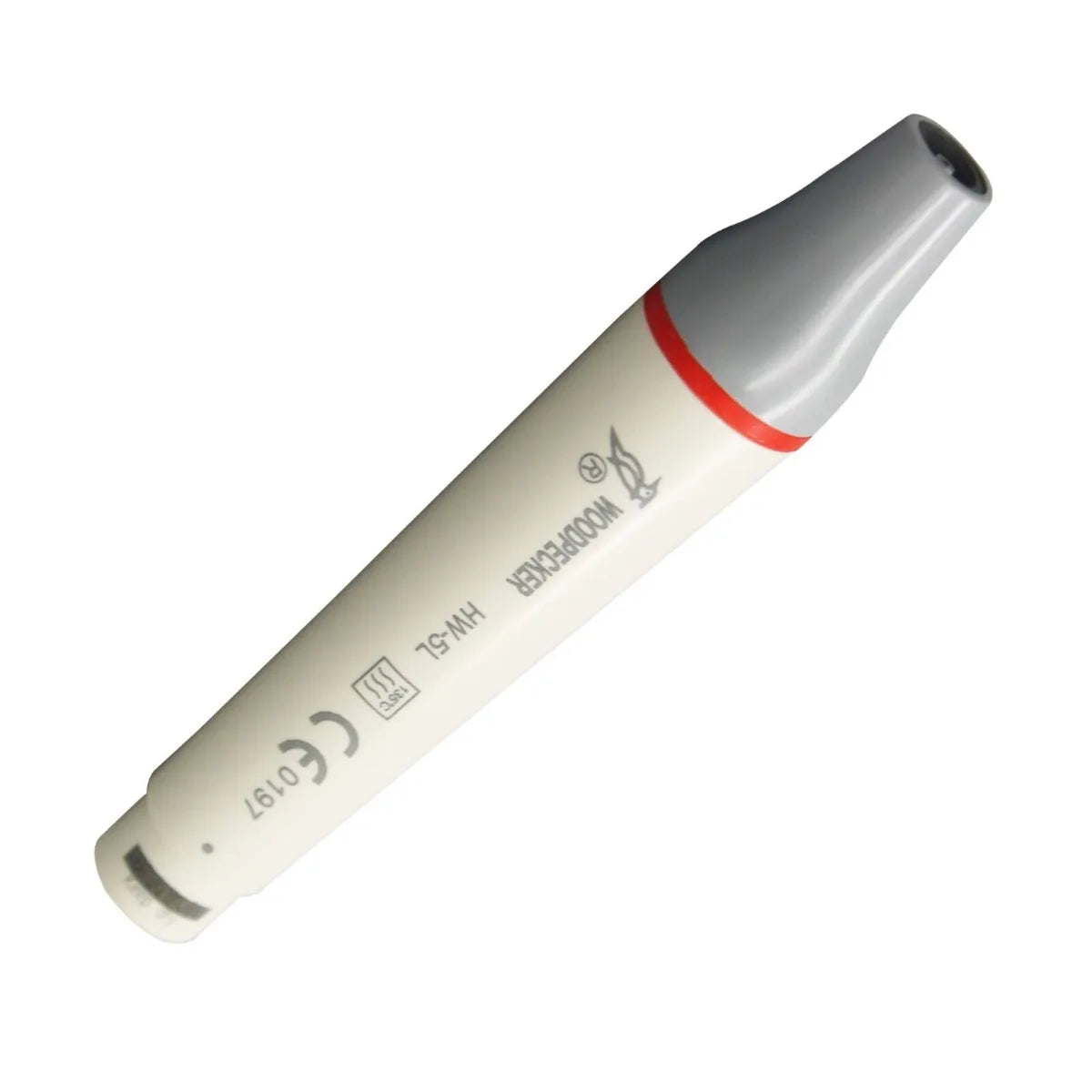

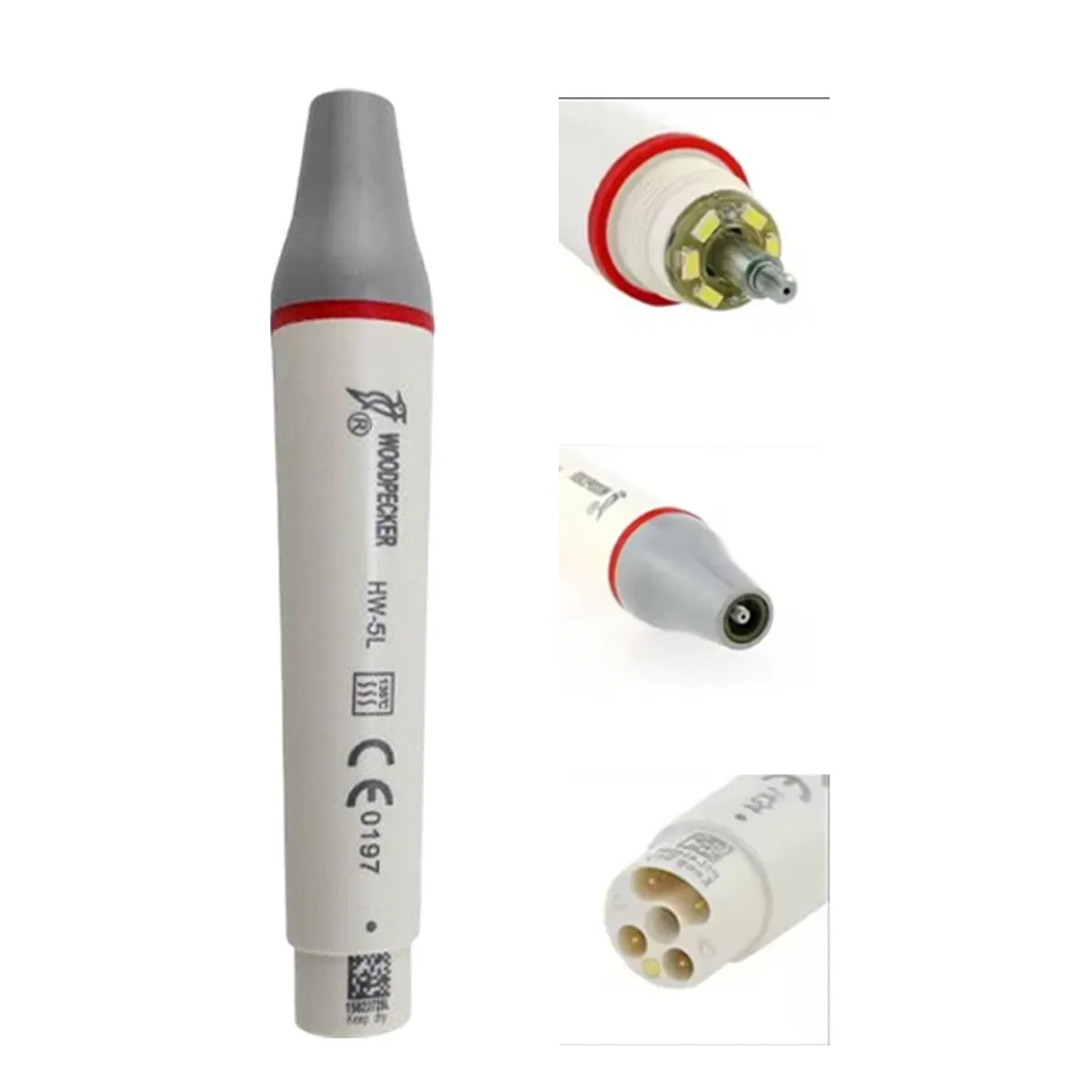

Woodpecker Hw-5l Optic Scaler Handpiece

Rs. 4,795.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Power Source Input: ~190V-230V
  • Length: 105mm
  • Diameter: 18.9mm
  • Weight: 45gm
  • Output Primary Tip Vibration Excursion: 1μm~100μm
  • Output Tip Vibration Frequency: 28kHz±3kHz
  • Output Half-Excursion Force: 0.1N~2N
  • Tip's Output Power: 3W~20W
  • Water Pressure: 0.01MPa~0.5MPa
  • Environmental Temperature: +5°C~+40°C
  • Relative Humidity: 30%~75%
  • Atmospheric Pressure: 70kPa~106kPa

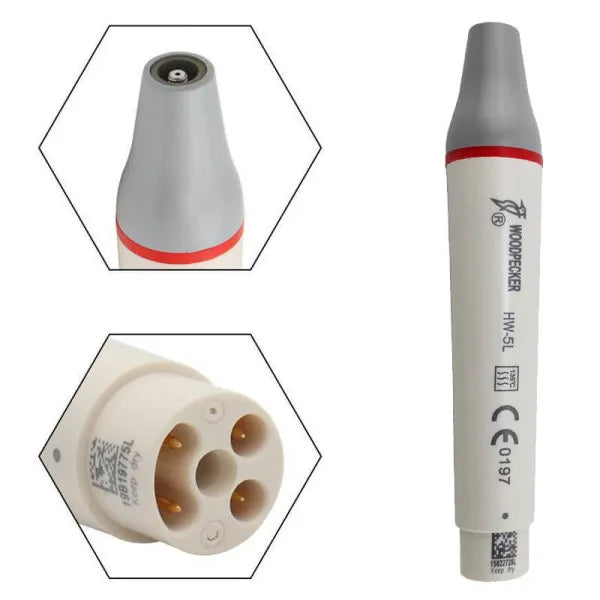

  • Install the handpiece by correctly connecting it to the cable connector of the main unit of the scaler. Ensure a secure connection.
  • Adjust the water and vibration intensity to a suitable level before starting the procedure. This can be done using the controls on the scaler unit.
  • Hold the handpiece like a pen in your hand, adopting a comfortable grip.
  • Choose an appropriate scaling tip for the desired treatment and securely screw it onto the handpiece using the provided torque wrench.
  • During the clinical treatment, make sure that the tip of the handpiece does not touch the teeth vertically to avoid any potential damage.
  • Use gentle and controlled movements while performing the dental calculus elimination. Avoid applying excessive force that may harm the teeth or damage the tip.
  • After completing the operation, keep the machine working for 30 seconds with a water supply to effectively clean the handpiece and scaling tip.

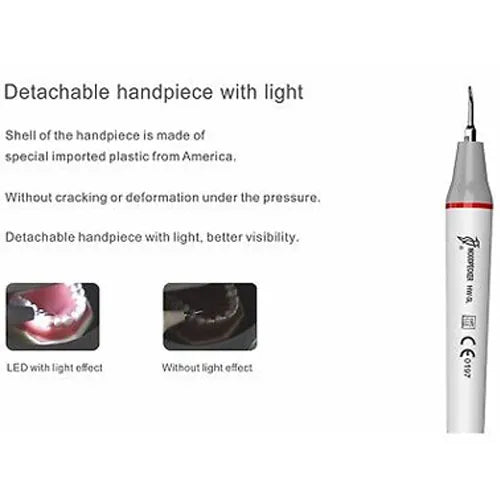

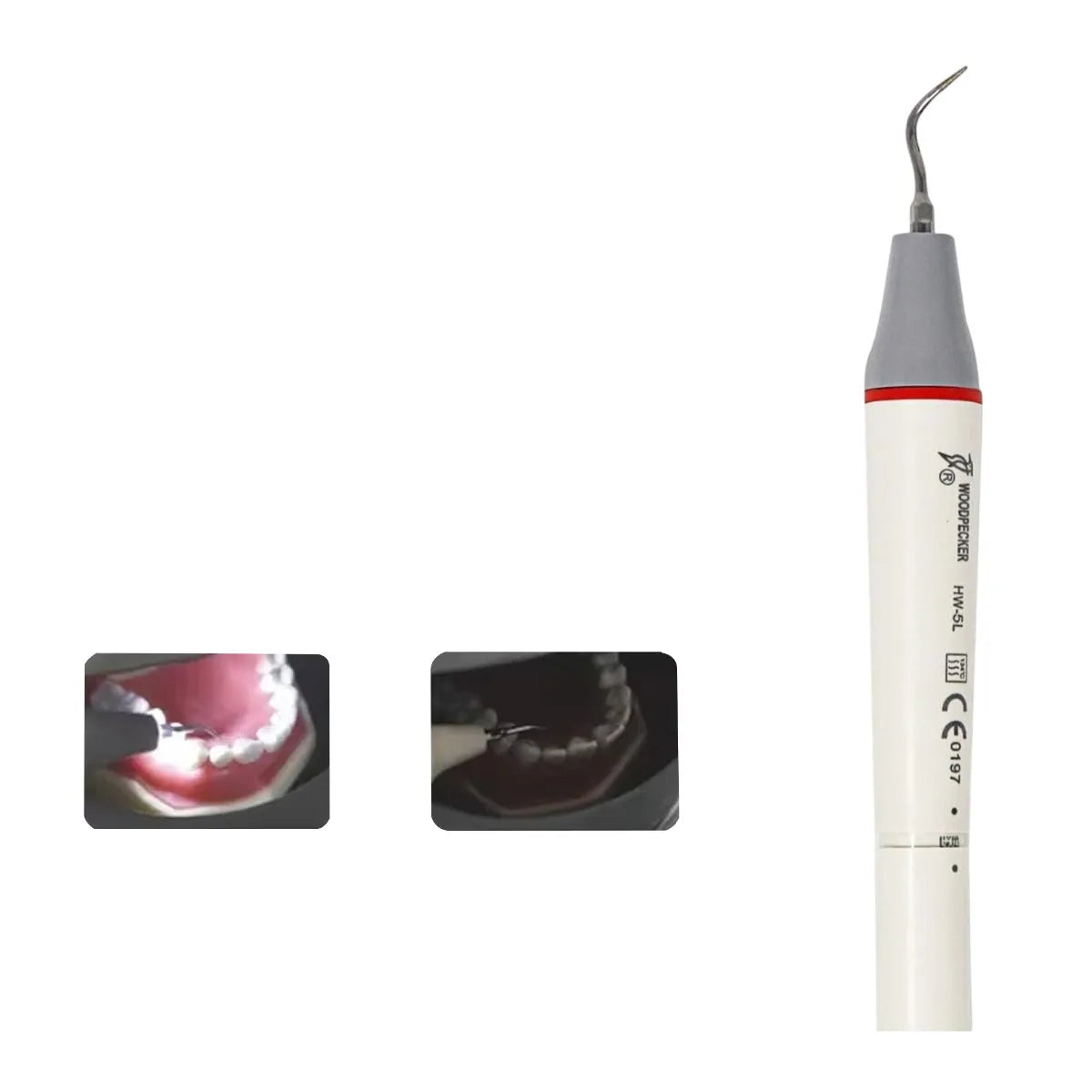

  • LED Function: The HW-5L handpiece is equipped with an LED function that illuminates the oral cavity, providing enhanced visibility during dental procedures and facilitating precise removal of dental calculus.
  • Compatibility: This handpiece is specifically designed to be compatible with the WOODPECKER brand Ultrasonic scalers, ensuring seamless integration and optimal performance.
  • Piezoceramic Technology: The HW-5L handpiece utilizes advanced piezoceramic technology to convert electrical energy into mechanical energy, resulting in efficient and effective dental calculus elimination.
  • Compact and Lightweight Design: With dimensions of 105mm (length) and 18.9mm (diameter), and weighing approximately 45g, the HW-5L handpiece offers a comfortable and ergonomic grip, reducing hand fatigue during extended treatment sessions.
  • Durable and Reliable: The handpiece operates in continuous mode, has a water protection degree of IPX1, and is designed to withstand the demands of dental procedures, ensuring durability and reliability.
  • Easy Maintenance: Proper cleaning, disinfection, and sterilization procedures are recommended to maintain the performance and hygiene of the HW-5L handpiece, ensuring its longevity and optimal functionality.
  • LED Function: The HW-5L handpiece is equipped with an LED function that illuminates the oral cavity, providing enhanced visibility during dental procedures and facilitating precise removal of dental calculus.
  • Compatibility: This handpiece is specifically designed to be compatible with the WOODPECKER brand Ultrasonic scalers, ensuring seamless integration and optimal performance.
  • Piezoceramic Technology: The HW-5L handpiece utilizes advanced piezoceramic technology to convert electrical energy into mechanical energy, resulting in efficient and effective dental calculus elimination.
  • Compact and Lightweight Design: With dimensions of 105mm (length) and 18.9mm (diameter), and weighing approximately 45g, the HW-5L handpiece offers a comfortable and ergonomic grip, reducing hand fatigue during extended treatment sessions.
  • Durable and Reliable: The handpiece operates in continuous mode, has a water protection degree of IPX1, and is designed to withstand the demands of dental procedures, ensuring durability and reliability.
  • Easy Maintenance: Proper cleaning, disinfection, and sterilization procedures are recommended to maintain the performance and hygiene of the HW-5L handpiece, ensuring its longevity and optimal functionality.
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables Woodpecker
Tags: Product

Share On

Description

Woodpecker Hw-5l Optic Scaler Handpiece handpiece is a cutting-edge accessory of the WOODPECKER series ultrasonic scalers, featuring an integrated LED function for enhanced visibility and precise dental calculus elimination, while being compatible with WOODPECKER brand Ultrasonic scalers and utilizing piezoceramic technology for efficient energy transformation. This lightweight and compact handpiece (Model HW-5L) offers a comfortable grip and is suitable for a wide range of dental applications, delivering optimal performance when used with compatible scaler models UDS-K LED, UDS-N2 LED, UDS-L LED, UDS-N3 LED, UDS-A LED, UDS-P LED, UDS-E LED, and UDS-L LED for root canal cleaning while considering contraindications such as hemophilia, heart pacemakers, heart diseases, pregnancy, and children, with proper cleaning and maintenance procedures to ensure longevity and hygiene.
