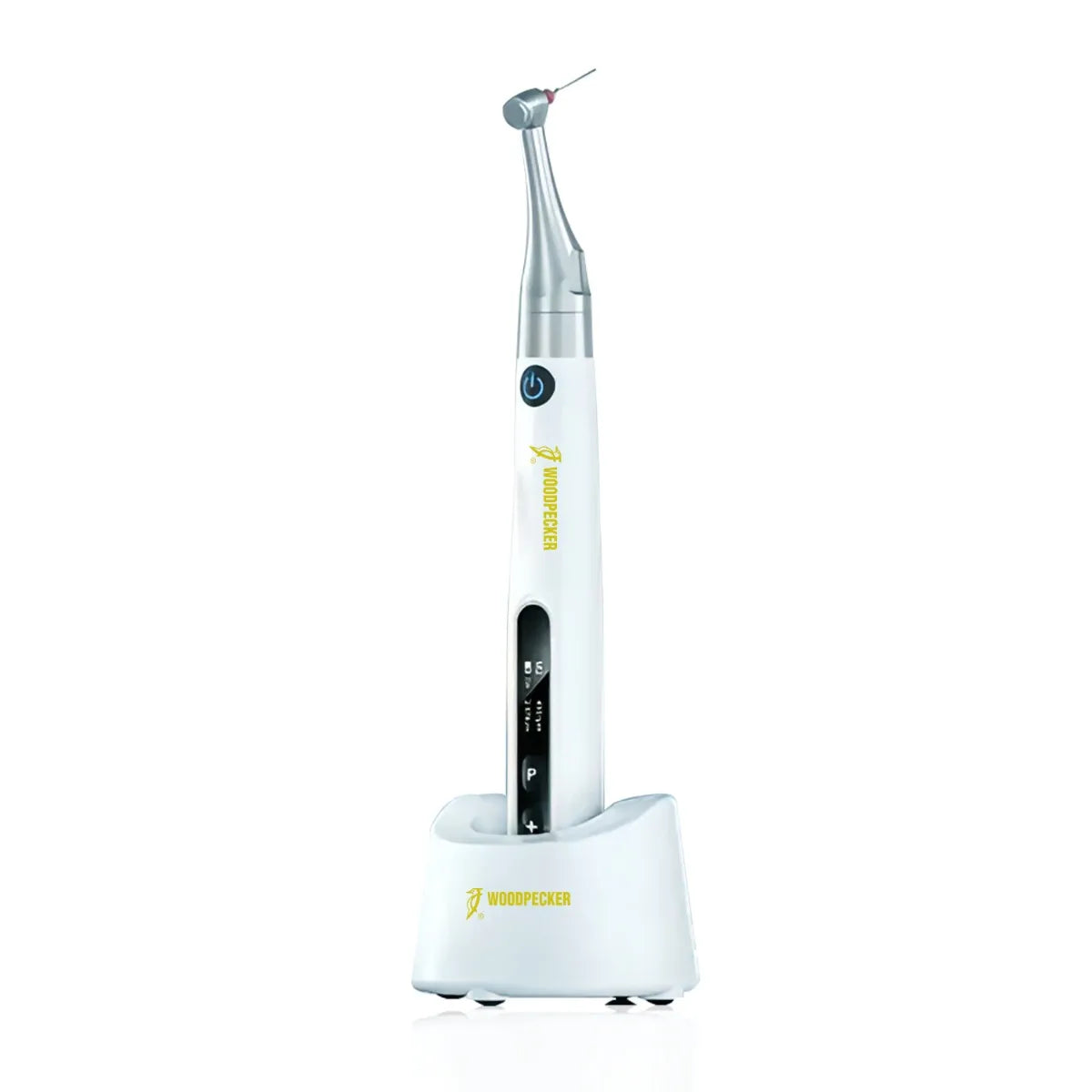

Woodpecker Endopace Brushless Endomotor

• Lithium battery in motor handpiece: 3.6V /850mAh
• Power Adapter Input: 100V-240V 50Hz/60Hz 0.4A Max
• Power Adapter Output: DC5V/1A
• Rotate speed: 100-1500 rpm
• Torque : 0.4-4.2ncm, 4 Ncm
• Weight: 106g
• Handpiece dimensions: 9.7mm*8mm*6mm

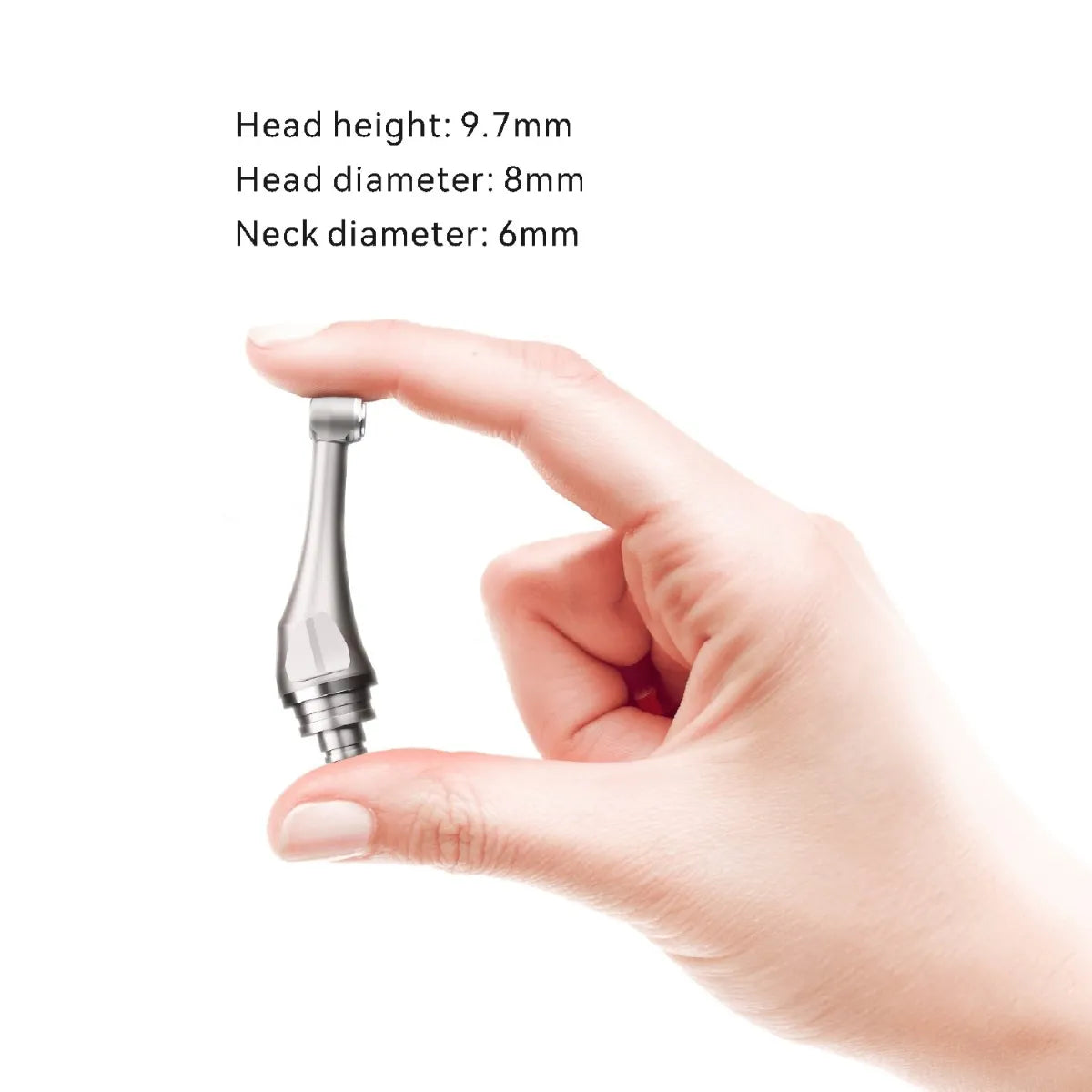

• Head height: 9.7mm
• Head diameter: 8mm
• Neck diameter: 6mm

Preparation:

• Ensure that the device is fully charged or connected to a power source, depending on whether it is a wireless or wired model.
• Check that the contra-angle handpiece is securely attached to the motor unit.
• Make sure you have the necessary endodontic files and accessories ready for use.

Power On:

• Turn on the Woodpecker Endomotor Endopace by pressing the power button located on the motor unit. If it is a wireless model, ensure the battery is charged and turned on.

Adjusting Settings:

• Use the control panel or buttons on the motor unit to adjust the desired torque and speed settings. The torque can typically be adjusted within a range of 0.4 to 4.2 Ncm, and the speed can be set between 100 and 1500 rpm.
• Set the reciprocating angle according to your preference or the specific requirements of the procedure. The Woodpecker Endomotor Endopace allows adjustable reciprocating angles in 10-degree intervals, ranging from 20 to 340 degrees for forward and reverse reciprocating.

Instrument Insertion:

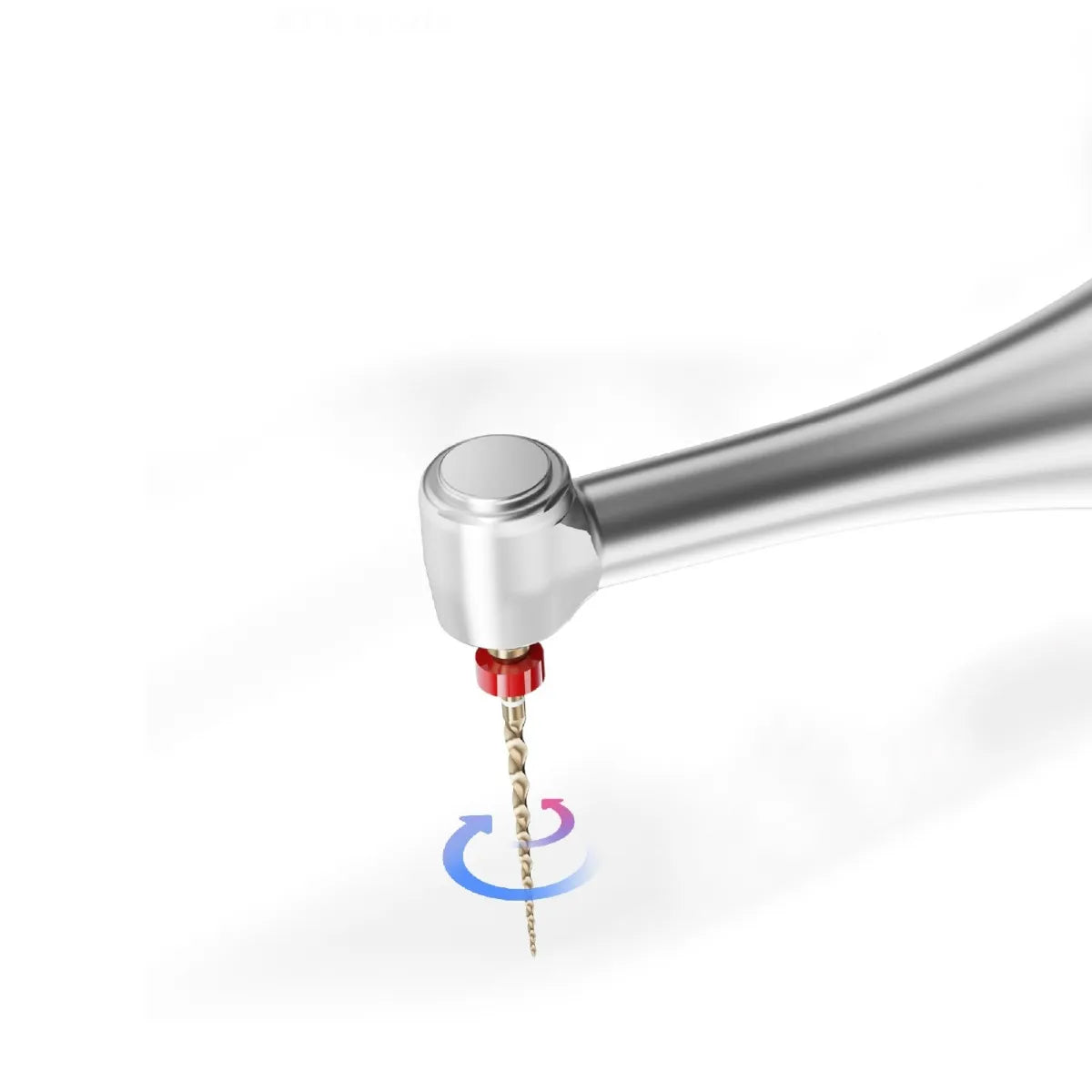

• Attach the appropriate endodontic file to the contra-angle handpiece. Ensure it is securely fastened to prevent any slippage during the procedure.
• Adjust the contra-angle handpiece as needed for comfortable access and proper visibility. The 360-degree rotatable feature allows for flexible operation and facilitates access to teeth from different angles.

Root Canal Preparation:

• Gently insert the endodontic file into the root canal, applying light pressure. Allow the Woodpecker Endomotor Endopace to rotate the file in a smooth and controlled manner.
• Maintain a steady and controlled motion while navigating the root canal. The high-performance brushless motor provides stable cutting even in narrow and curved apices.
• Take advantage of the fast response and accurate control of rotation angles to minimize the risk of instrument breakage and ensure safety and efficiency during the root canal preparation process.

Monitoring and Adjustments:

• Continuously monitor the progress of the procedure and make any necessary adjustments to the speed, torque, or reciprocating angle as required.
• Pay attention to the feedback provided by the patient and any changes in the sound or sensation during the operation.

Power Off:

• Once the root canal procedure is complete, power off the Woodpecker Endomotor Endopace by pressing the power button or disconnecting it from the power source.
• Clean and disinfect the contra-angle handpiece and motor unit according to the manufacturer's instructions and recommended guidelines.

• The device operates wirelessly, providing freedom of movement during procedures.

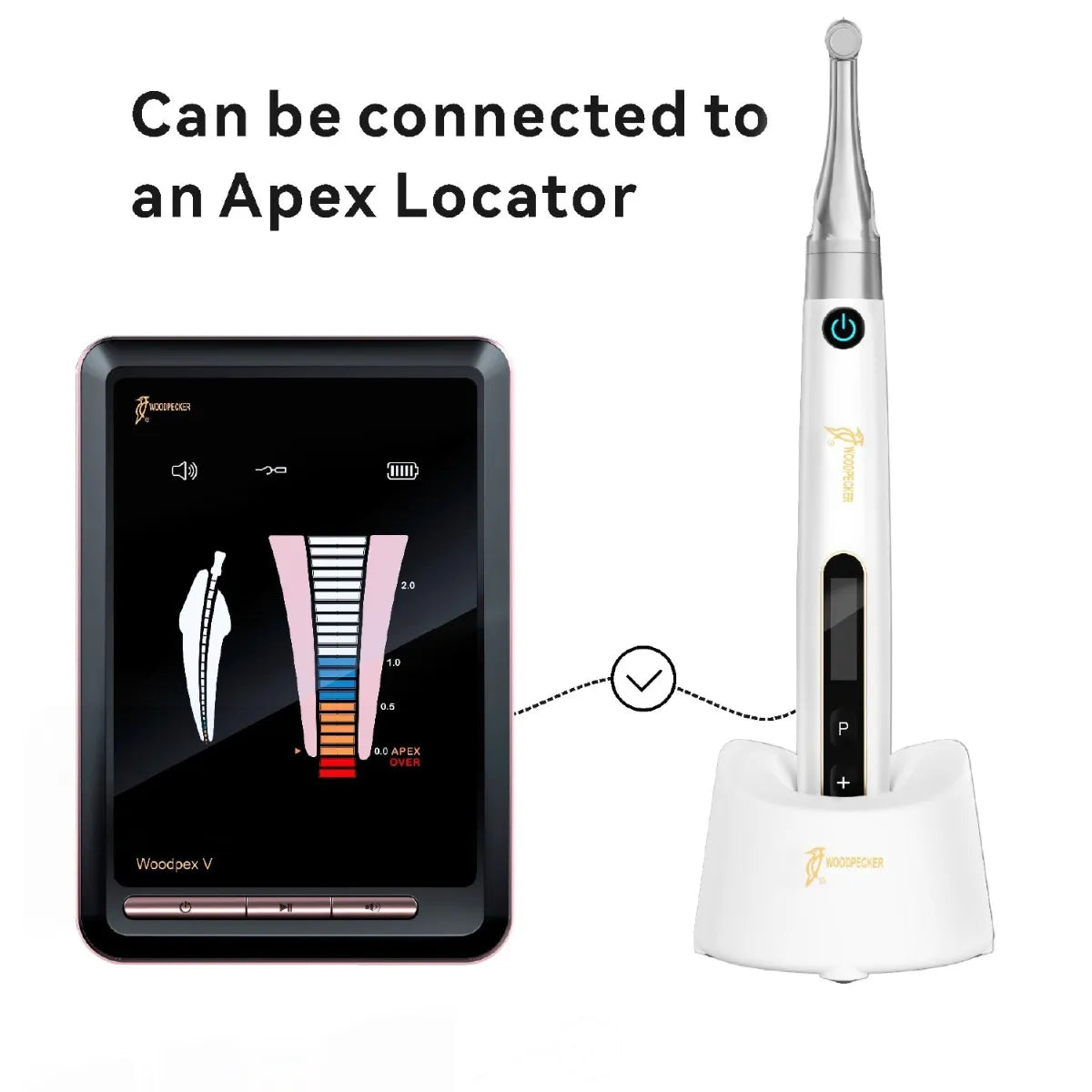

• It can be connected to a matched Apex locator, allowing for real-time monitoring of file position.
• Features like Apical Slow Down adjust motor speed for enhanced safety and precision.
• Provides low noise levels and extended service life for reliable performance.

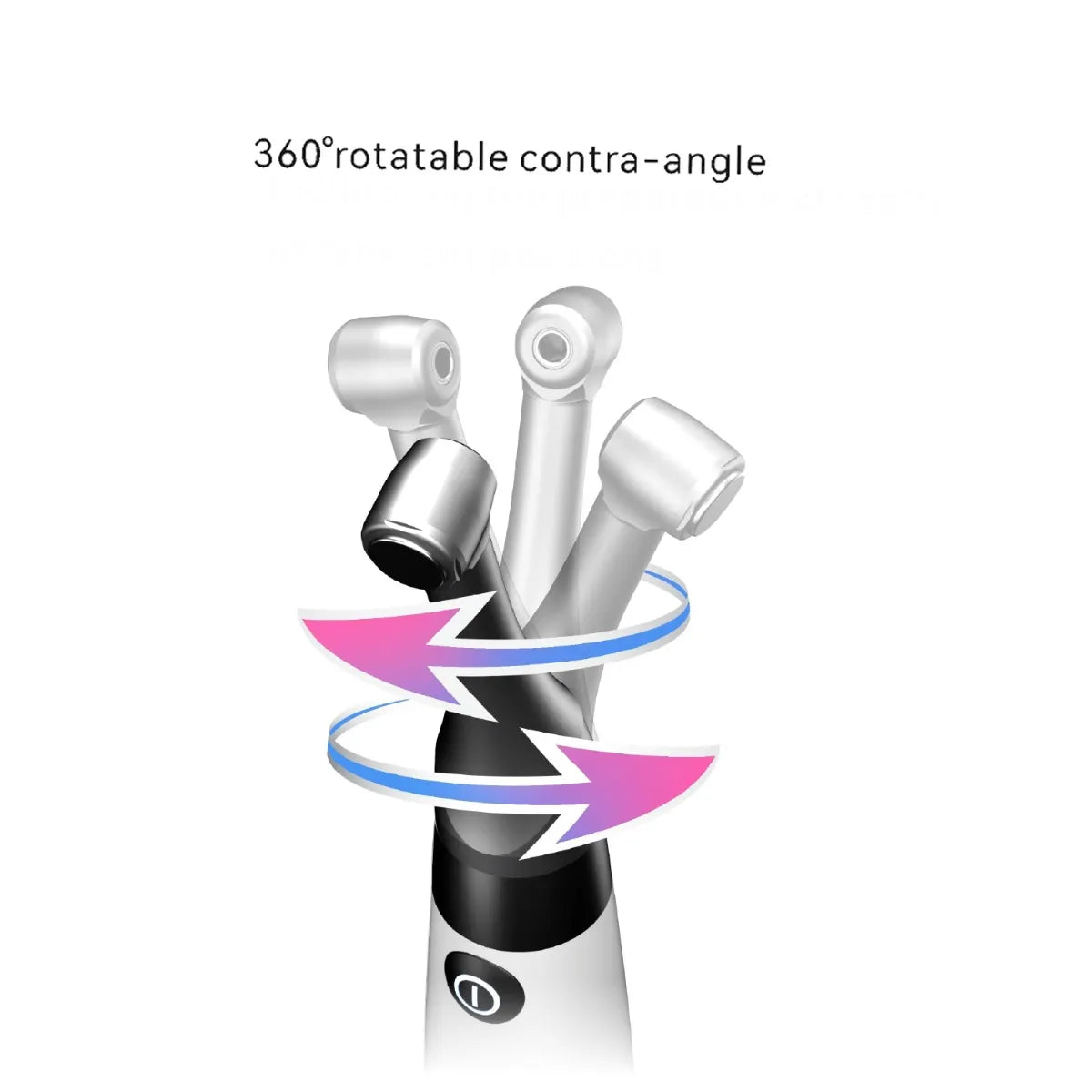

• 360-degree rotatable contra handpiece offers exceptional maneuverability and access to root canals.

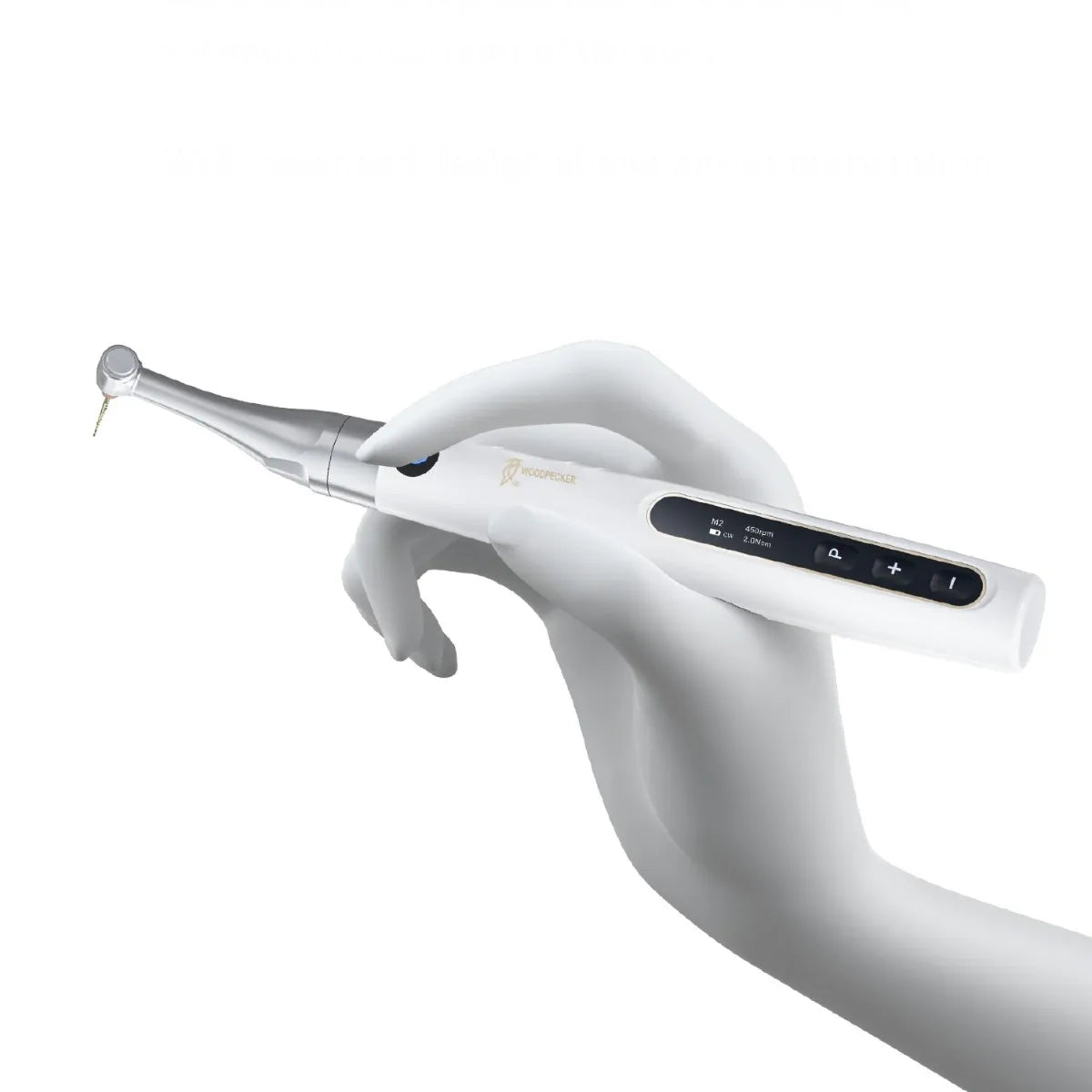

• Easy to carry and handle, improving overall convenience for dental professionals.
• A compact and powerful 6:1 contra-angle handpiece ensures low speed and stable rotation.
• 4 Working modes - Forward rotation mode/ reverse rotation mode/ reciprocating mode/ ATR mode.
• Adjustable reciprocating angle.
