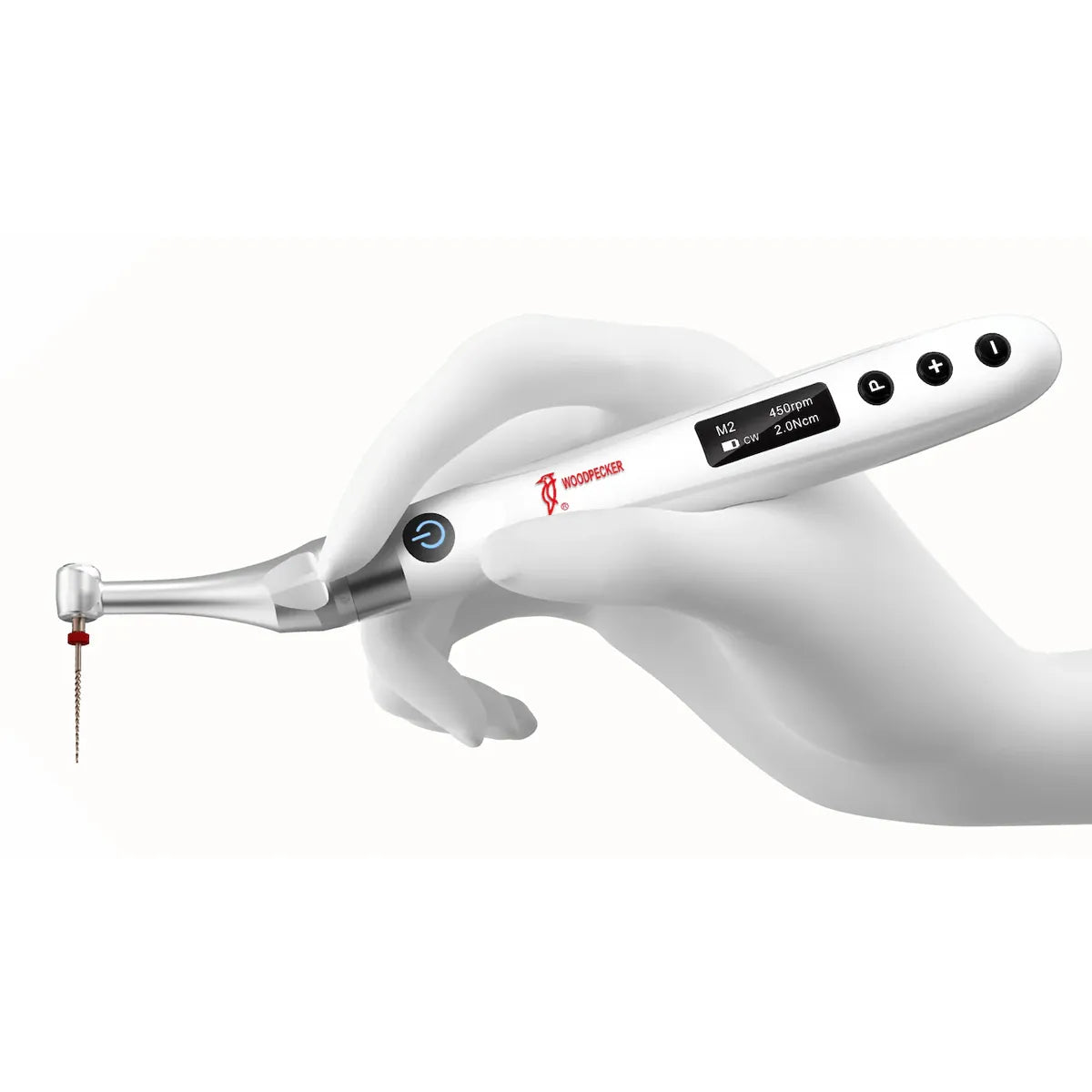

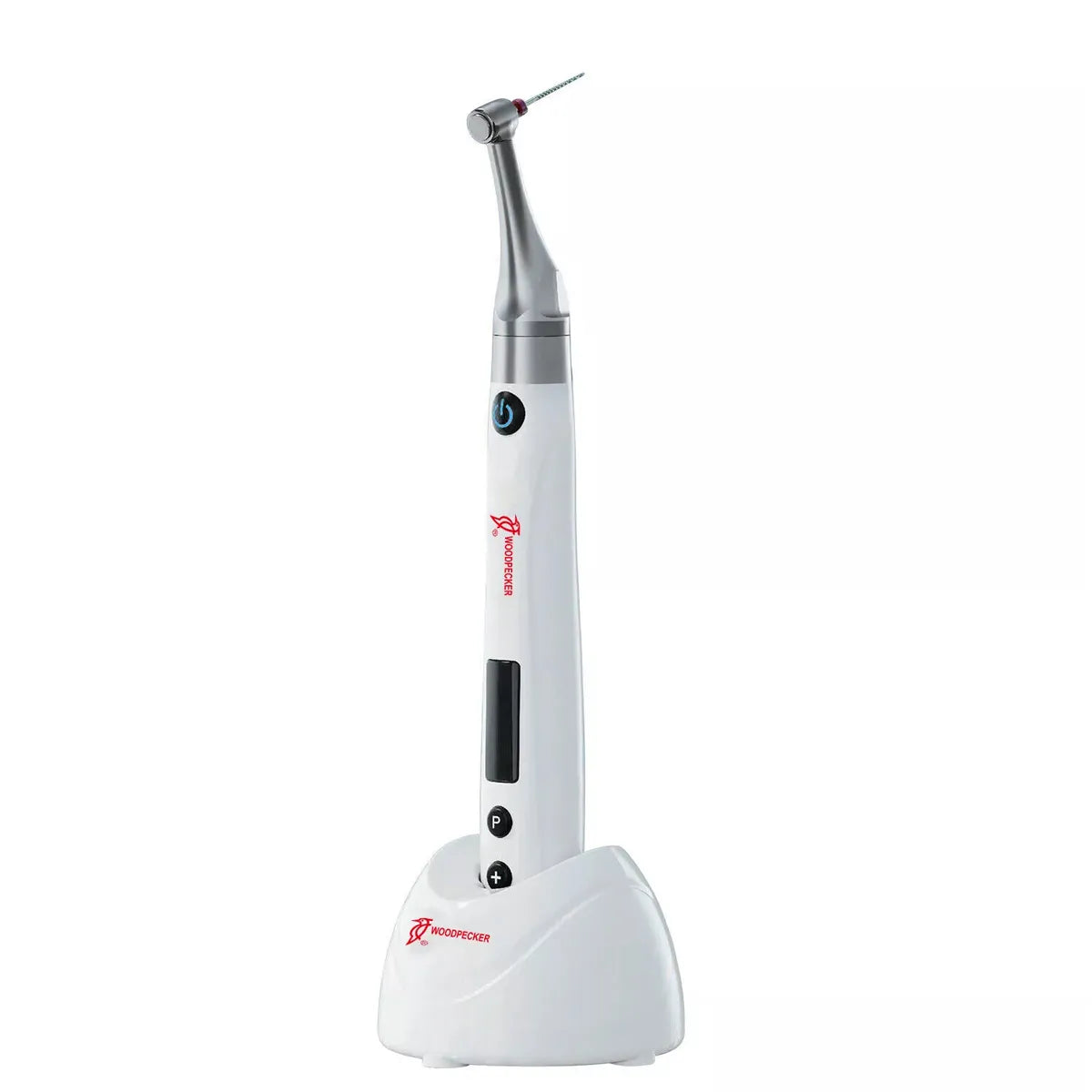

Woodpecker Endo Free Endomotor

Rs. 15,995.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Battery: Lithium battery in motor handpiece: 3.6V / 850mAh
  • Power Adapter Input: ~100V-240V 50Hz/60Hz 0.4A Max
  • Power Adapter Output: DC5V/1A
  • Torque Range: 0.4N·cm to 4.2N·cm
  • Speed Range: 100 r/min to 1500 r/min
  • Contra Angle Rotation: 360°
  • Contra Angle Transmission Ratio: 6:1
  • Contra Angle Head Height: 9.7mm
  • Contra Angle Head Diameter: 8mm
  • Contra Angle Neck Diameter: +5°C to +40°C
  • Atmospheric Pressure: 70kPa to 106kPa
  • Operation Mode Type: Continuous operating device
  • Ingress Protection: Ordinary equipment (IPX0)

Setup and Preparation

Charging the Device:

  • Ensure the motor handpiece is fully charged using the provided power adapter. Connect the adapter to a suitable power source (100V-240V 50Hz/60Hz 0.4A Max) and plug the USB wire into the handpiece.

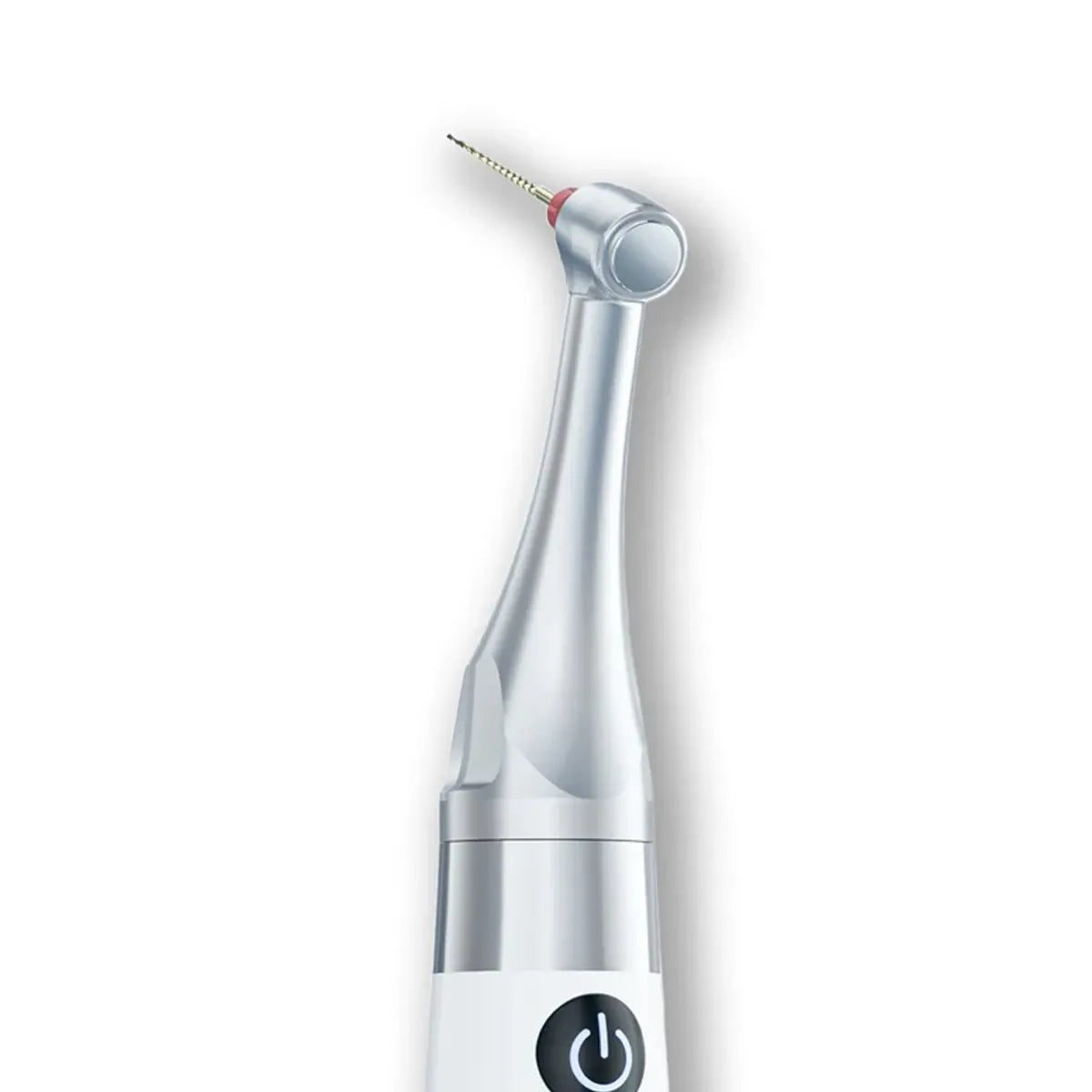

Assembling the Contra Angle:

  • Align any locating pin of the contra angle with the positioning slot on the motor handpiece.
  • Push the contra angle horizontally until the four locating pins are securely in place. A "click" sound indicates proper installation.
  • The contra angle can be rotated 360° to ensure the OLED display is always visible.

Installing the File:

  • Before starting the device, plug the file into the hole of the contra angle head.
  • Hold down the push button on the contra angle and insert the file. Rotate the file back and forth until it aligns with the interior latch groove and slips into place.
  • Release the button to lock the file into the contra angle.

Operation

Turning On the Device:

  • Press the Main button to turn on the motor handpiece. The device will enter Standby mode.
  • Press the Main button again to switch to Working mode.

Selecting the Operation Mode:

  • Ensure the correct operation mode is selected (CW, CCW, REC, or ATR) by pressing the Setting button “P” during Standby mode.
  • Use the Adjusting buttons “+”/“-” to navigate through and select the desired mode.

Adjusting Parameters:

  • Speed: Adjust the speed from 100 r/min to 1500 r/min using the Adjusting buttons. In ATR and REC modes, the speed range is 100 r/min to 500 r/min.
  • Torque: Set the torque between 0.4N·cm to 4.2N·cm using the Adjusting buttons. In ATR mode, the trigger torque ranges from 0.4N·cm to 4.0N·cm. In REC mode, it ranges from 2.0N·cm to 4.2N·cm.
  • Forward and Reverse Angles: Adjust the forward and reverse angles every 10 degrees as needed, ensuring effective cutting angles for the chosen files.

Using the Automatic Functions:

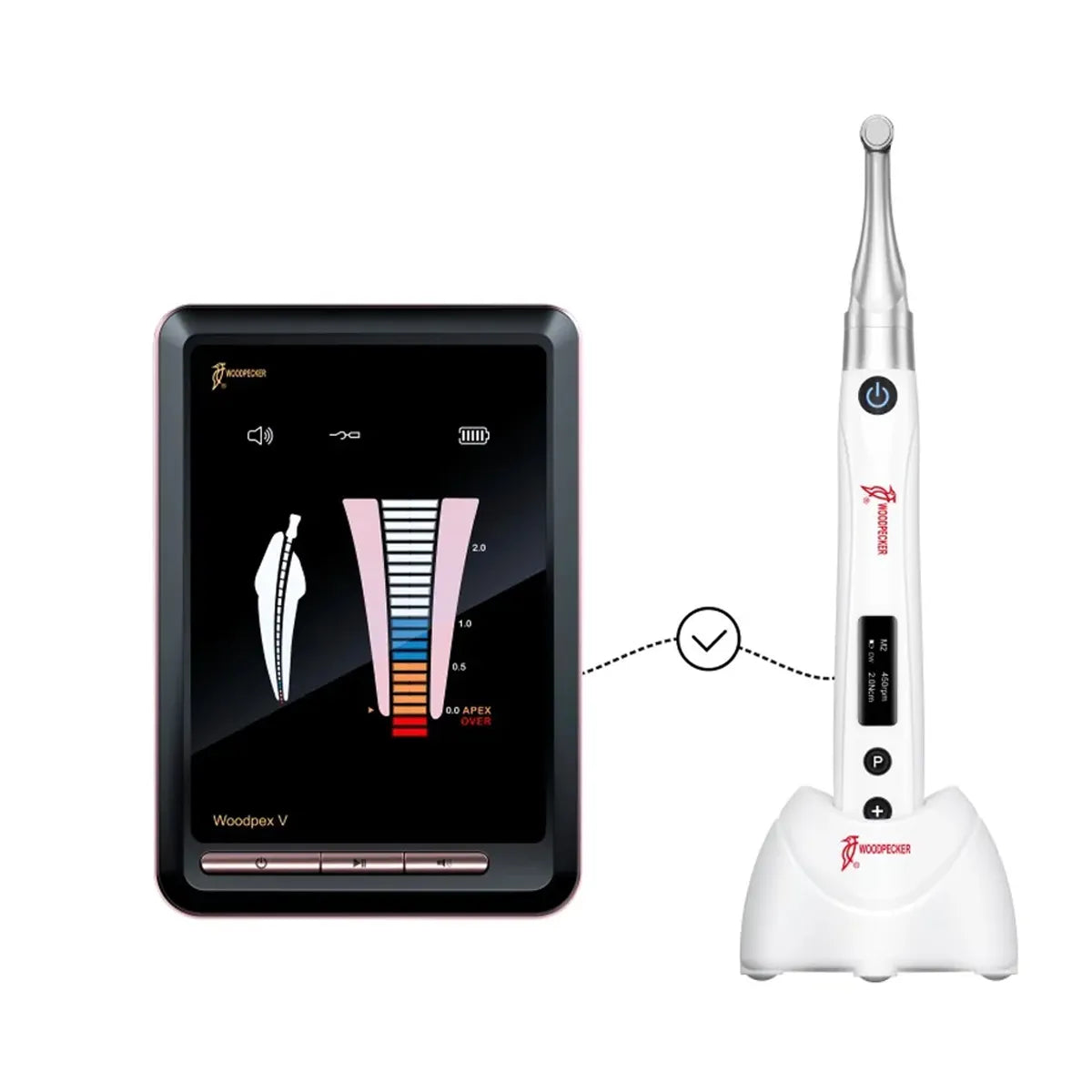

  • If connected to a matched Apex locator, configure the automatic functions such as Apical Action, Auto Start, Auto Stop, and Apical Slow Down as required.

Starting and Stopping the Motor:

  • To start the motor, press the Main button. The file will begin to rotate according to the set parameters.
  • To stop the motor, press the Main button again. The device will revert to Standby mode.

Post-Use Procedures

Turning Off the Device:

  • Hold down the Setting button “P” and then press the Main button to turn off the motor handpiece.

Removing the File and Contra Angle:

  • To remove the file, hold down the push button on the contra angle and gently pull out the file.
  • To remove the contra angle, pull it out horizontally when the motor handpiece is not running.

Cleaning and Sterilizing:

  • Clean and disinfect the contra angle with a neutral pH disinfectant after each use.
  • Lubricate the contra angle with specific cleaning oil.
  • Sterilize the contra angle under high temperature and pressure (134°C, 2.0-2.3 bar).

Maintenance

  • Regularly check the device for any signs of wear or damage.
  • Perform a connection test before each use by touching the lip hook with the file in the contra angle. Ensure all bars on the meter light up and the motor reverses continuously.

Additional Info

  • Cordless and portable design for ease of use.
  • High-efficiency brushless motor ensures longer service life.
  • 360° rotatable contra angle for optimal visibility.
  • Compatible with Apex locator for precise measurements.
  • Adjustable speed and torque for customized operation.
  • Automatic functions like Apical Slow Down for enhanced safety.
  • Ergonomic and compact for comfortable handling.



  • Cordless and portable design for ease of use.
  • High-efficiency brushless motor ensures longer service life.
  • 360° rotatable contra angle for optimal visibility.
  • Compatible with Apex locator for precise measurements.
  • Adjustable speed and torque for customized operation.
  • Automatic functions like Apical Slow Down for enhanced safety.
  • Ergonomic and compact for comfortable handling.



Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables Woodpecker
Tags: Product

Share On

Description

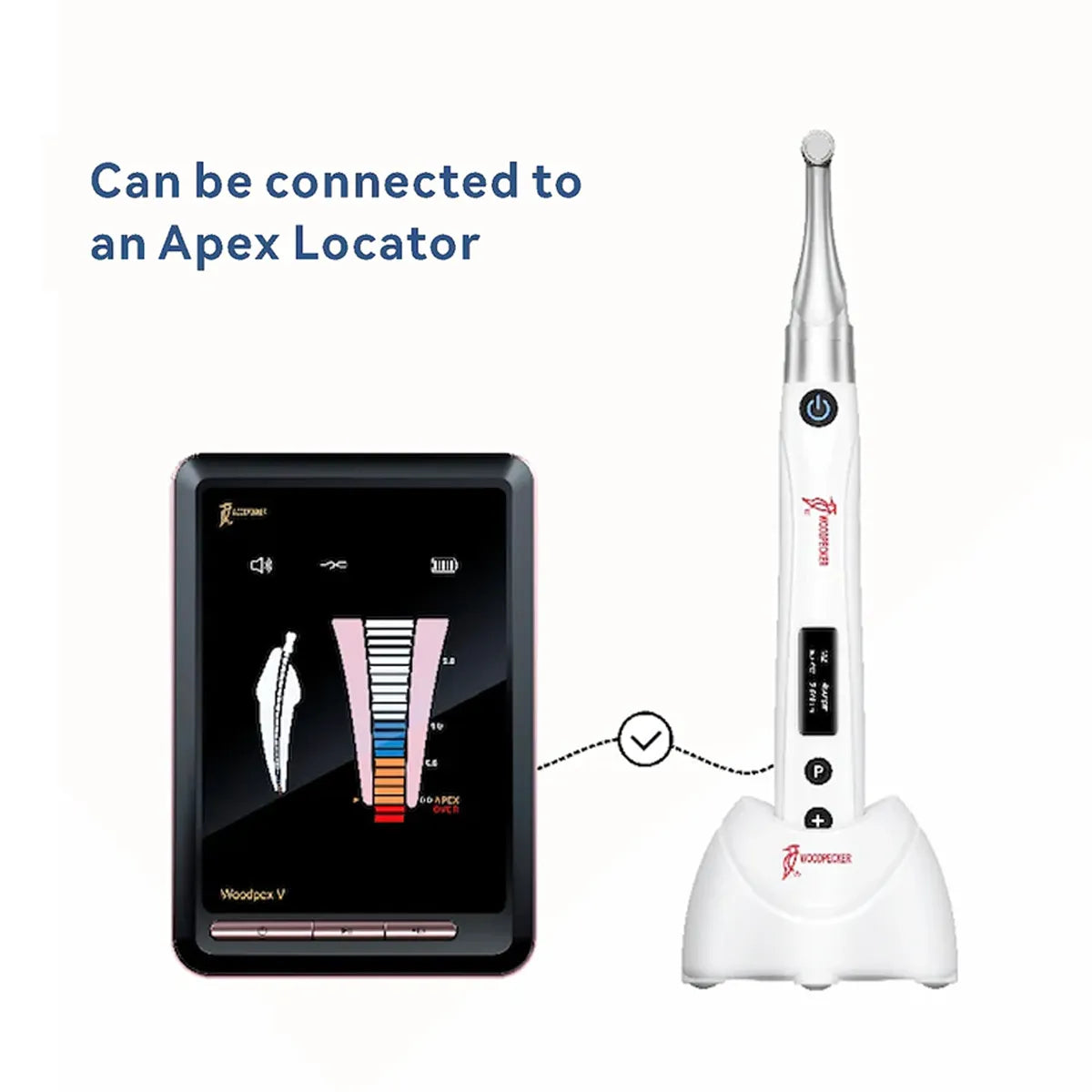

Woodpecker Endo Free Endomotor is a state-of-the-art, cordless device designed to revolutionize endodontic treatments. This compact endomotor is engineered to provide superior performance in the preparation and enlargement of root canals. Equipped with a high-efficiency brushless motor, it ensures lower noise levels and a longer service life, enhancing the overall treatment experience for both clinicians and patients. The Endo Free can be seamlessly connected to a matched Apex locator, adding a critical functionality for precise root canal measurement. This connection allows clinicians to monitor the position of the file tip inside the canal during procedures, activating advanced features such as Apical Slow Down, which automatically reduces the file speed as it approaches the apex, thereby enhancing precision and safety.

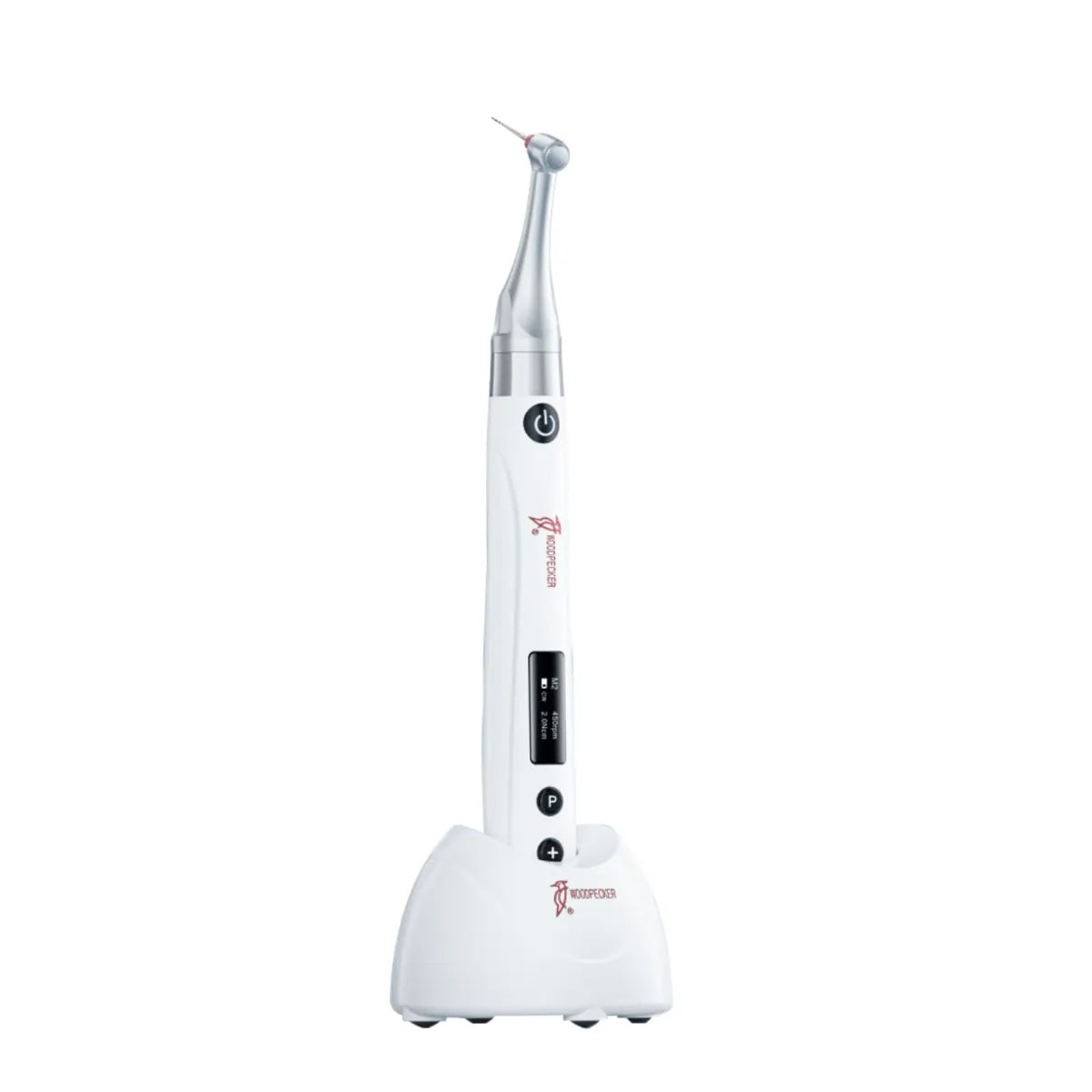

This device comprises a motor handpiece, a 360° rotatable contra angle, a base, a USB wire, a power adapter, and a protective silicon cover. Its ergonomic design includes a head height of 9.7mm, a head diameter of 8mm, and a neck diameter of 6mm, ensuring a broader operation field and comfortable handling. The Endo Free is powered by a lithium battery in the motor handpiece (3.6V / 850mAh) and comes with a power adapter with input specifications of ~100V-240V 50Hz/60Hz 0.4A Max and output of DC5V/1A. It operates efficiently within an environmental temperature range of +5°C to +40°C, relative humidity of 30% to 75%, and atmospheric pressure of 70kPa to 106kPa.

Modes of the Woodpecker Endo Free Endomotor:

CW Mode (Clockwise Rotation):

  • The motor handpiece rotates forward 360° in a clockwise direction.
  • Used primarily for canal shaping with rotary files such as the WOODPECKER W3-Pro.

CCW Mode (Counterclockwise Rotation):

  • The motor handpiece rotates in a counterclockwise direction.
  • Suitable for injecting calcium hydroxide and other medicants.
  • Continuous double-beep sound indicates the mode is active.

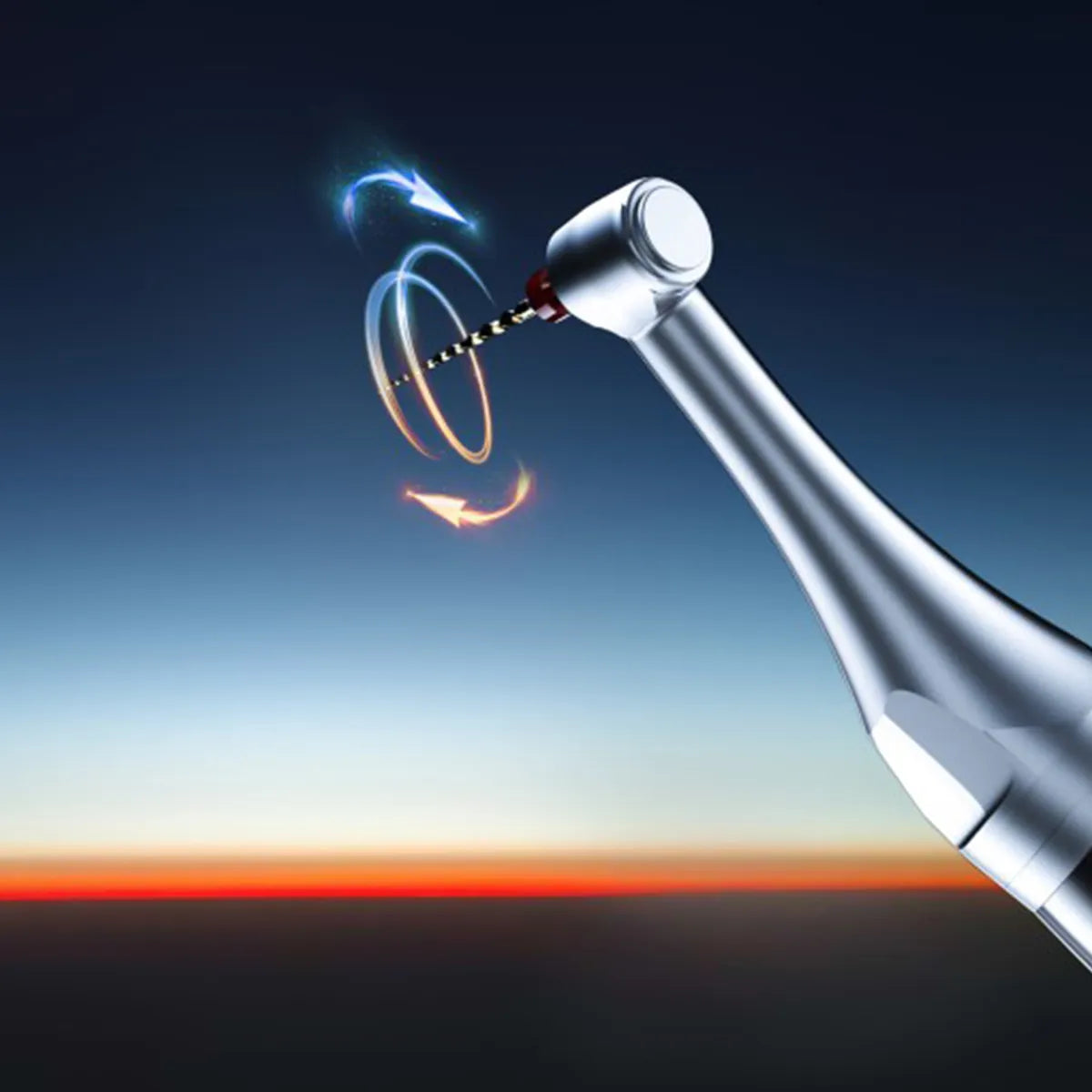

REC Mode (Reciprocating Motion):

  • Provides a combination of forward and reverse angles.
  • Forward Angle < Reverse Angle: Effective for reciprocating files like WOODPECKER W3-ONE and WOODPECKER W2-ONE.
  • Forward Angle > Reverse Angle: Effective for reciprocating files like SENDONELINE S1.

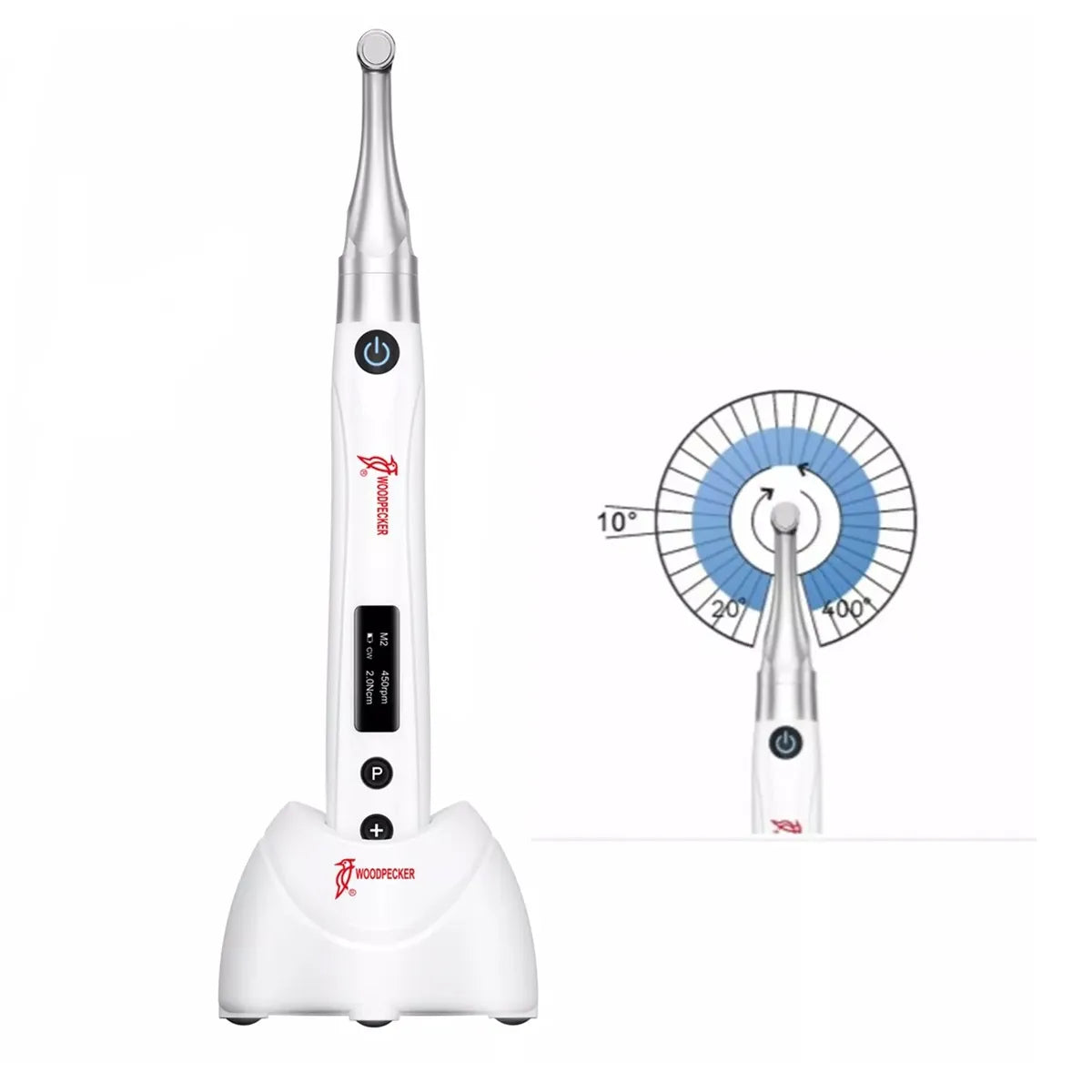

  • Allows for adjustable angles every 10 degrees, within the range of 20°-400°.

ATR Mode (Adaptive Torque Reverse):

  • Automatically switches to a reciprocating motion when the set torque limit is reached.
  • Adjusts back to a clockwise rotation once the torque reduces to normal values.
  • Forward Angle can be adjusted every 10 degrees within 60°-400°.
