Woodpecker Ai-Pex Apex Locator with Pulp Tester

• Working time: 5hr 20min
• Charging time: 3 hours
• Battery: 3.7v/2000mAh
• Input: ∼100v-240v 50Hz/60Hz 0.4A
• Consumption power: 0.5W
• Screen: 3.8-InchLCD Screen

Operation Condition:-

• Environment temperature: -5°C-+40°C
• Relative humidity: 30%∼75%
• Atmosphere Pressure: 70kP∂-106k∂

• Prepare the device by inserting the plug of the measuring wire into the right-side socket of the main unit.
• Ensure that the device is stable and avoid any impact or damage during use.
• Connect the appropriate accessories to the measuring wire. For Apex Locator mode, connect the white end of the wire to the lip hook and the gray end should be suspended
• Test the wire connection before each use. Press the power switch to turn on the device and make sure the scene of measuring the length of the root canal is displayed on the LCD screen. Ensure that the plug of the measuring wire is inserted correctly and that the file clip and lip hook are connected well to the measuring wire. Verify that the connection icon on the LCD screen shows steadily.
• Once the device is properly connected and the measurements are displayed, proceed to determine the working length of the root canal.

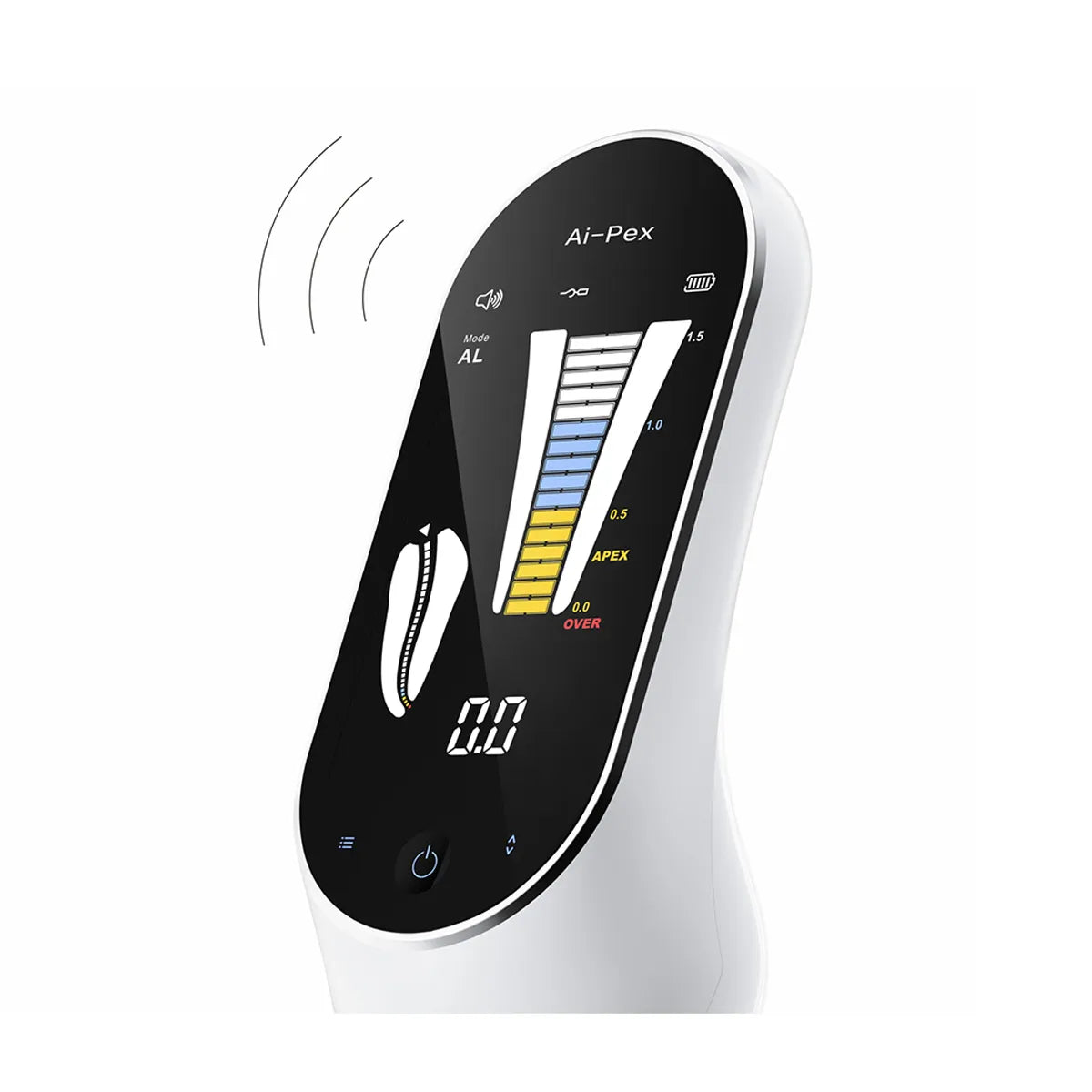

1. Observe the indicating bar on the screen. When it reaches the position of the dial 0.0 and the word "APEX" is displayed, it indicates that the endo file has reached the anatomical apical foramen. Subtract 0.5-1.0 mm from the measured length to obtain the working length.
2. If the indicating bar reaches the red area labeled "OVER," it means that the file has extended beyond the apex. In this case, carefully move the file slightly towards the apex until the signal returns to normal.

• Before each use, ensure that the access cavity is dry to prevent leakage or interference between the root canal and inaccurate measurements. Use a cotton pellet or air-blower to dry the cavity.
• Follow all sterilization procedures for the accessories, such as autoclaving the File clip, Lip hook, Touch probe, and Pulp tester probe before each use.

• 7 Generation Apex Locator With high Accuracy.
• 3.8" LCD Touch Screen.
• Adjustable sound recognition.
• Over 5h wireless working time on full charge.

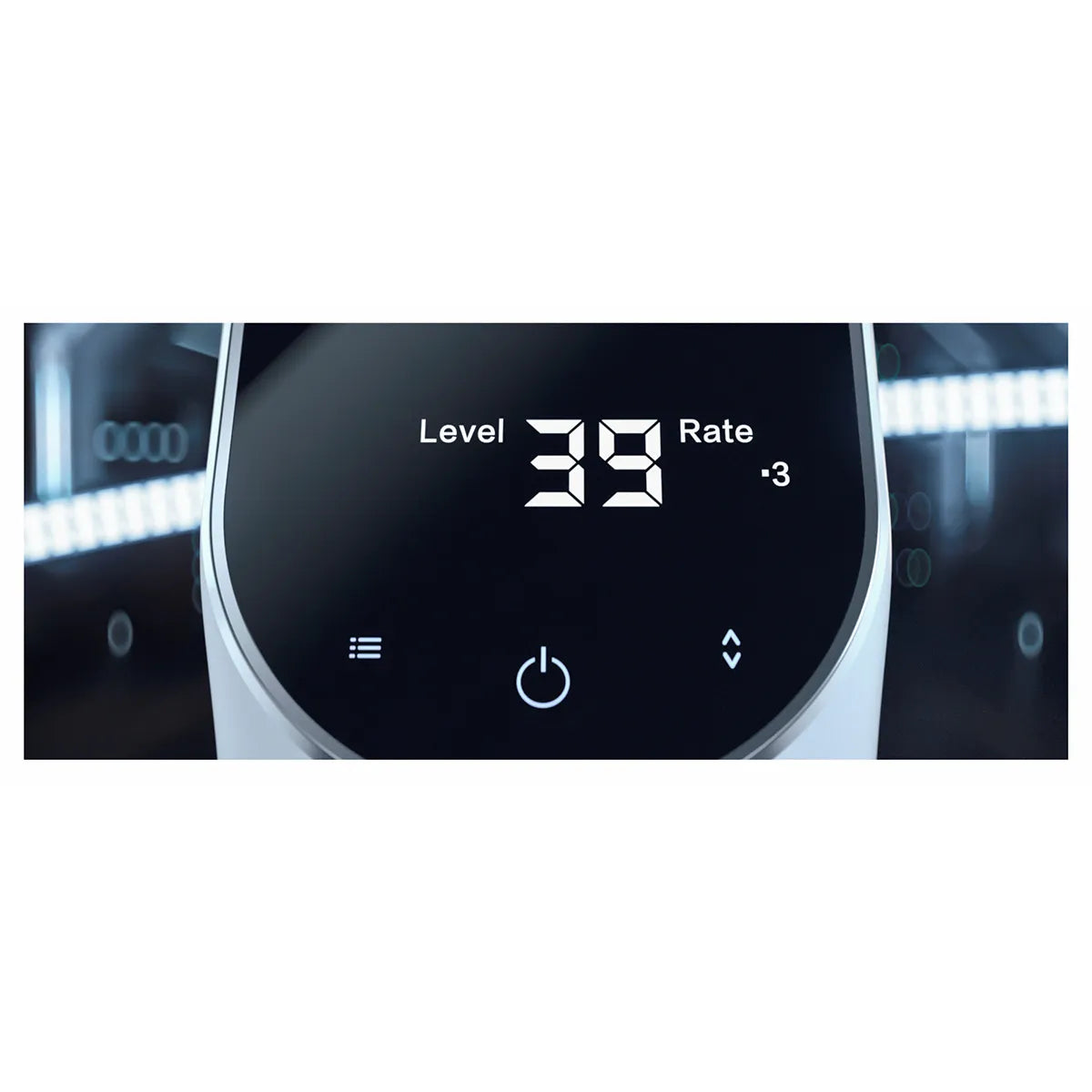

• Constant current source-Electric pulp testing.
• Anti-inteference software for increased acuracy.

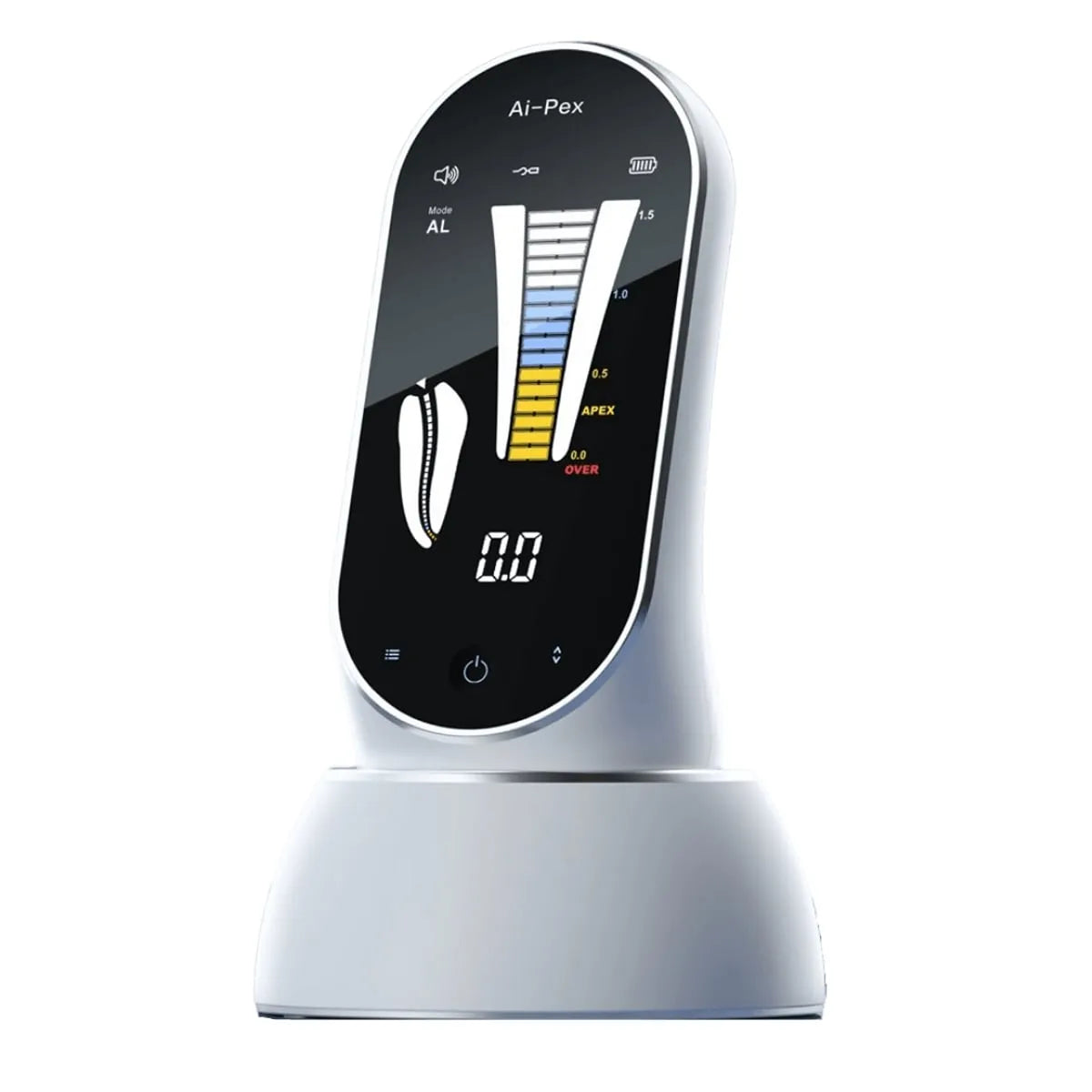

• Unique magnetic swivel stand for 360 rotation and viewing.
• Automatic calibration on startup.

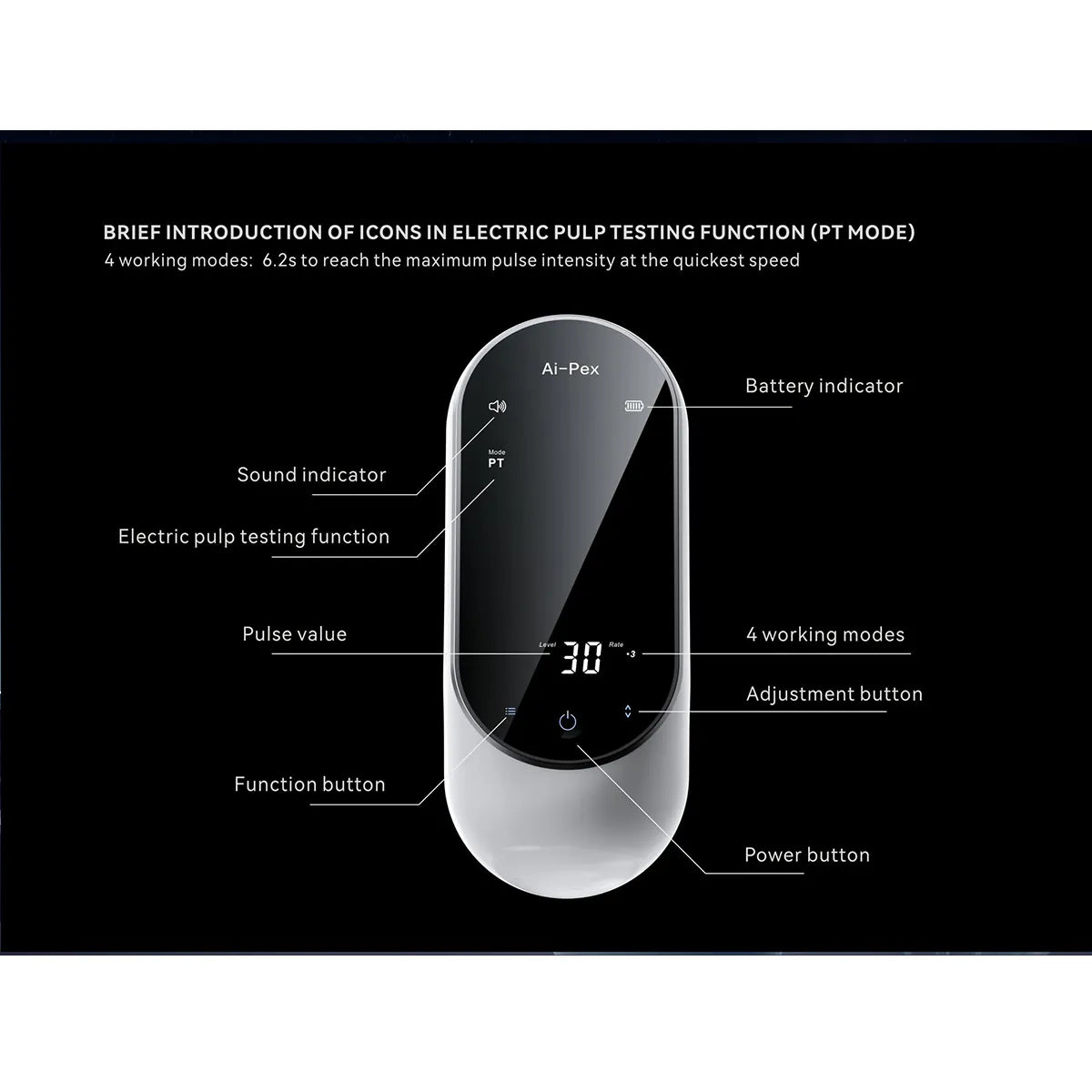

• 4 working modes.
• 6.2s to reach maximum pulse intensity.

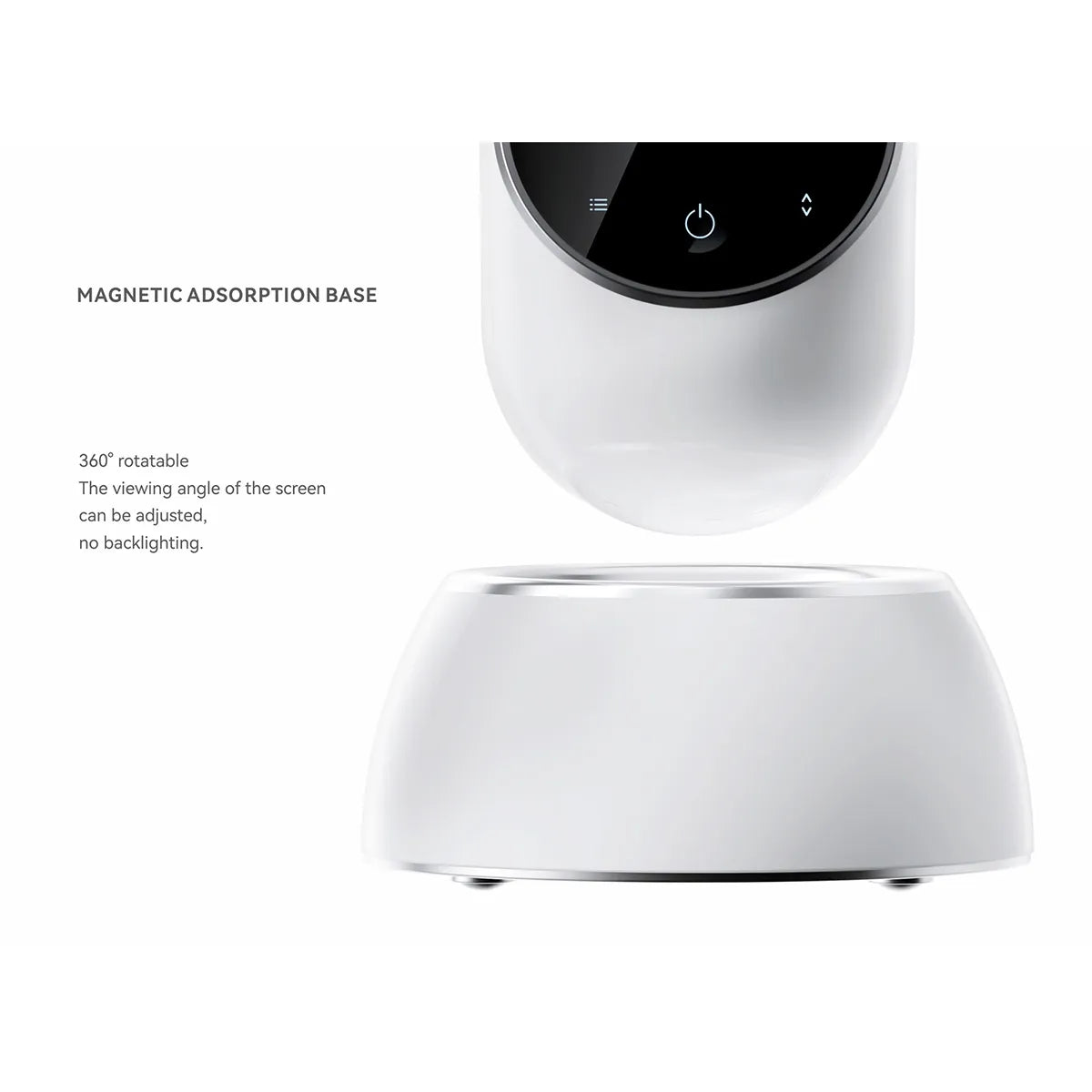

• Magnetic absorption-Unique base design.
• Root canal apex finder and pulp vital measurment.
• Multi frequency design, exact accurate.
