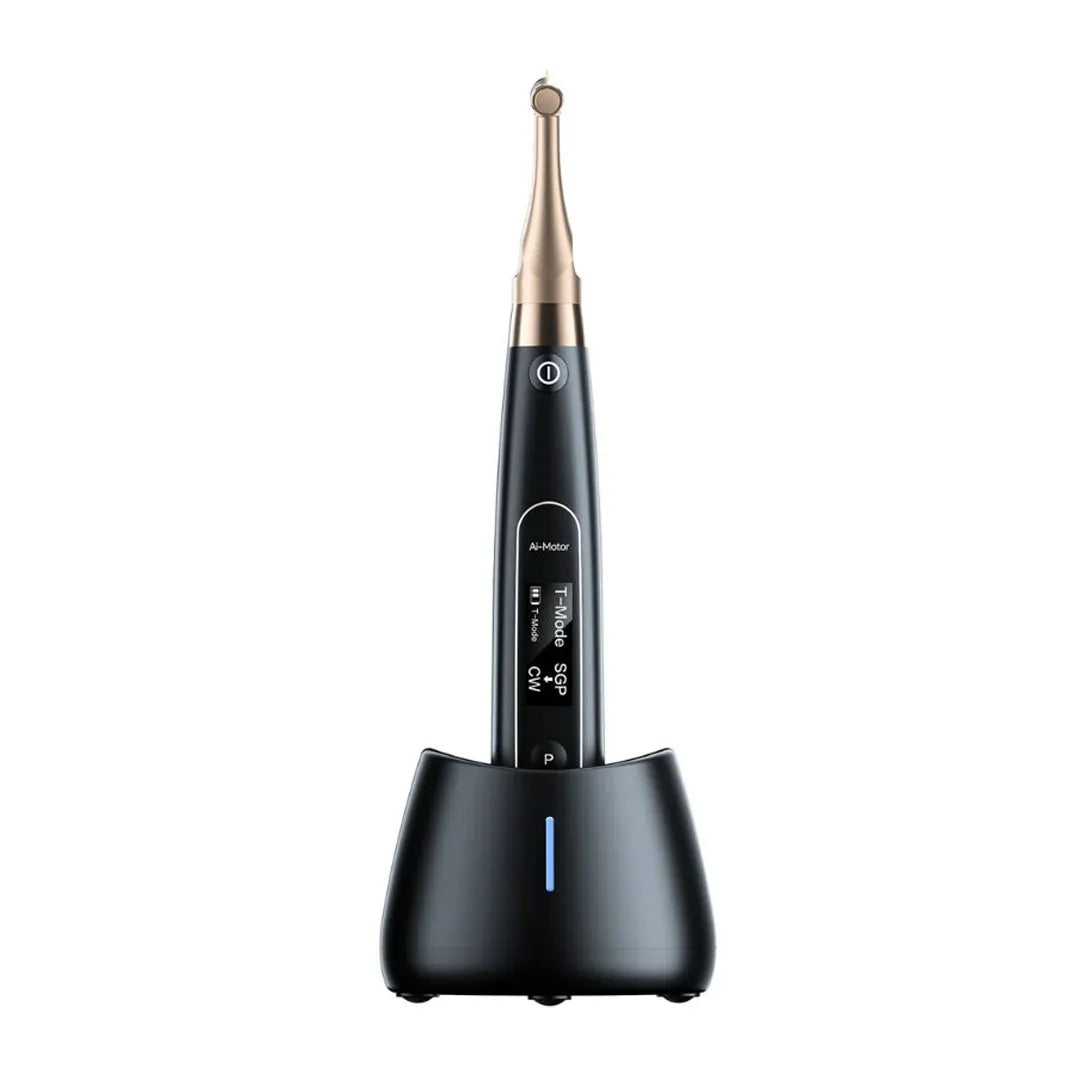

Woodpecker Ai - Motor Endomotor With Apex Locator

• Lithium battery in motor handpiece: 3.7V /2000mAh
• Power adapter Model: (ADS-6AM-06N 05050/UE08WCP- 050100SPA)
• Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Output: 5.0V 1A
• Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）
• Speed rang: 100rpm~2500rpm
• Charging mode: wireless charging
• Frequency range: 112-205KHz
• Environment temperature: +5℃ ~ +40℃ 1.10.2
• Relative humidity: 30% ~ 75% 1.10.3
• Atmospheric pressure: 70kPa ~ 106kPa
• Contra angle: D-8.0mm, H-9.7mm
• Contra angle ratio: 6:1

Preparation and Setup

• Ensure all components (handpiece, contra-angle, measuring wire, file clip, lip hook) are clean and sterilized before use
• Assemble the device according to the instructions, attaching the contra-angle and connecting measurement accessories if using apex locator mode

Power On and Program Selection

• Press the Main button to power on the motor handpiece; it enters Standby mode

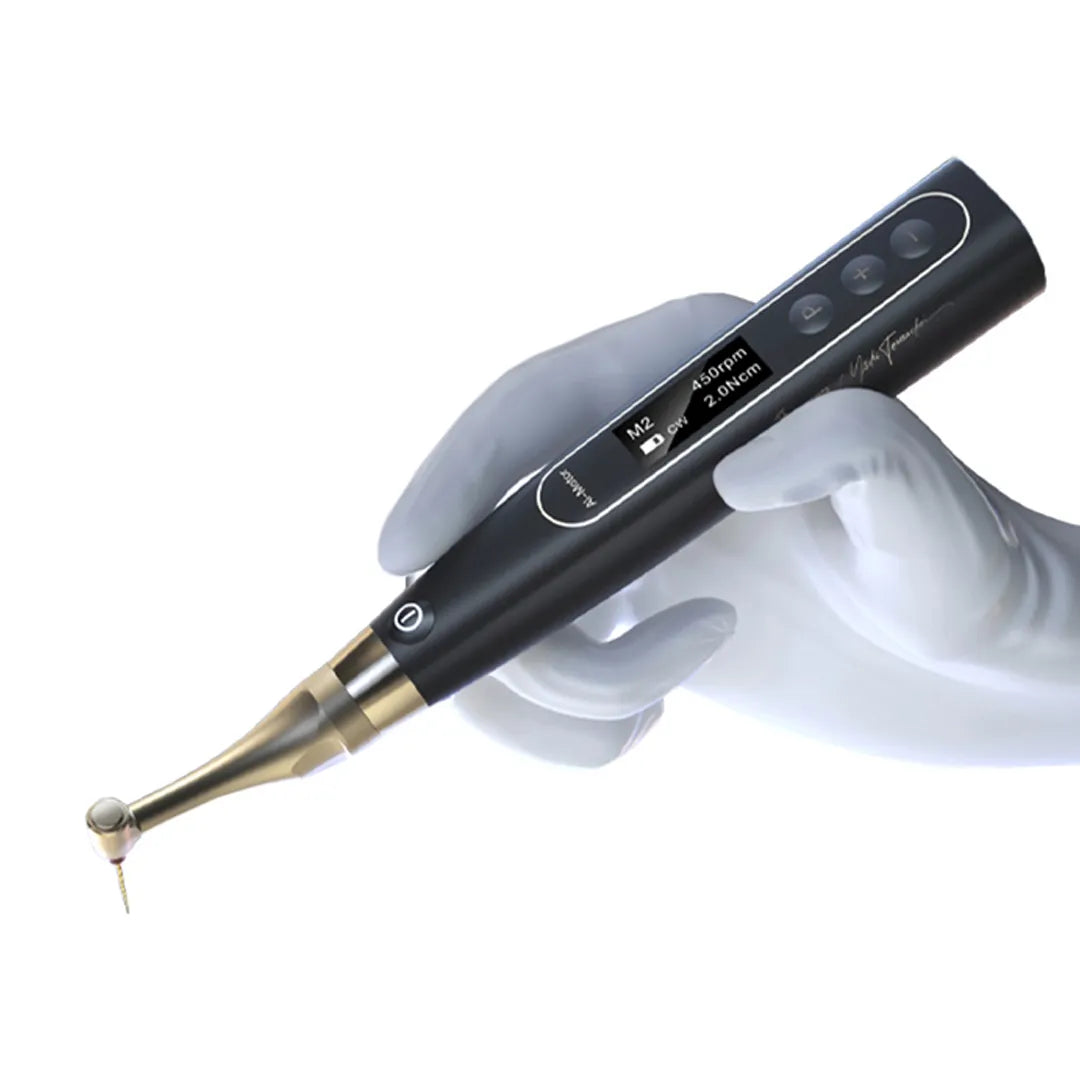

• Press the Main button again to enter Working mode. Use the Setting button (“P”) and Adjusting buttons (“+”/“-”) to select or customize the desired program for your file system and clinical needs
• Adjust operation mode (CW, CCW, REC, ATR, EAL), speed (100–1200 rpm; 100–500 rpm for reciprocation), and torque (0.4–5.0 Ncm) as required for the selected file and procedure

File Insertion and Canal Preparation

• Attach the endodontic file to the contra-angle
• Insert the file into the canal. The motor can be set to start automatically when the file enters the canal, or you can start it manually with the Main button
• Monitor the real-time file position on the display. The integrated apex locator provides visual feedback as the file advances in the canal

Safety and Apical Actions

• As the file approaches the apex, the device automatically slows down (Apical Slow Down)
• When the file reaches the preset reference point (apical stop), the motor will either stop or reverse automatically, depending on your settings, to prevent over-instrumentation or perforation
• You can set these apical actions (OFF, Stop, Reverse) in the menu before starting

Auto Start/Stop and Reciprocation

• Enable Auto Start/Stop if desired: the motor will start when the file is inserted into the canal and stop when removed
• For ledge bypass or reciprocating techniques, set the reciprocation angles and speed as needed

Completion and Maintenance

• After use, remove the file and disassemble the handpiece.
• Clean and sterilize all components according to guidelines for future use

Tips:

• Always confirm speed and torque settings match the file manufacturer's recommendations to avoid file separation
• Use the 360° rotatable contra-angle for better access, especially in posterior teeth
• Refer to the on-screen prompts and visual indicators for real-time guidance during the procedure

• Integrated Apex Locator: Real-time file tracking with auto-stop/reverse at apical stop to prevent perforation

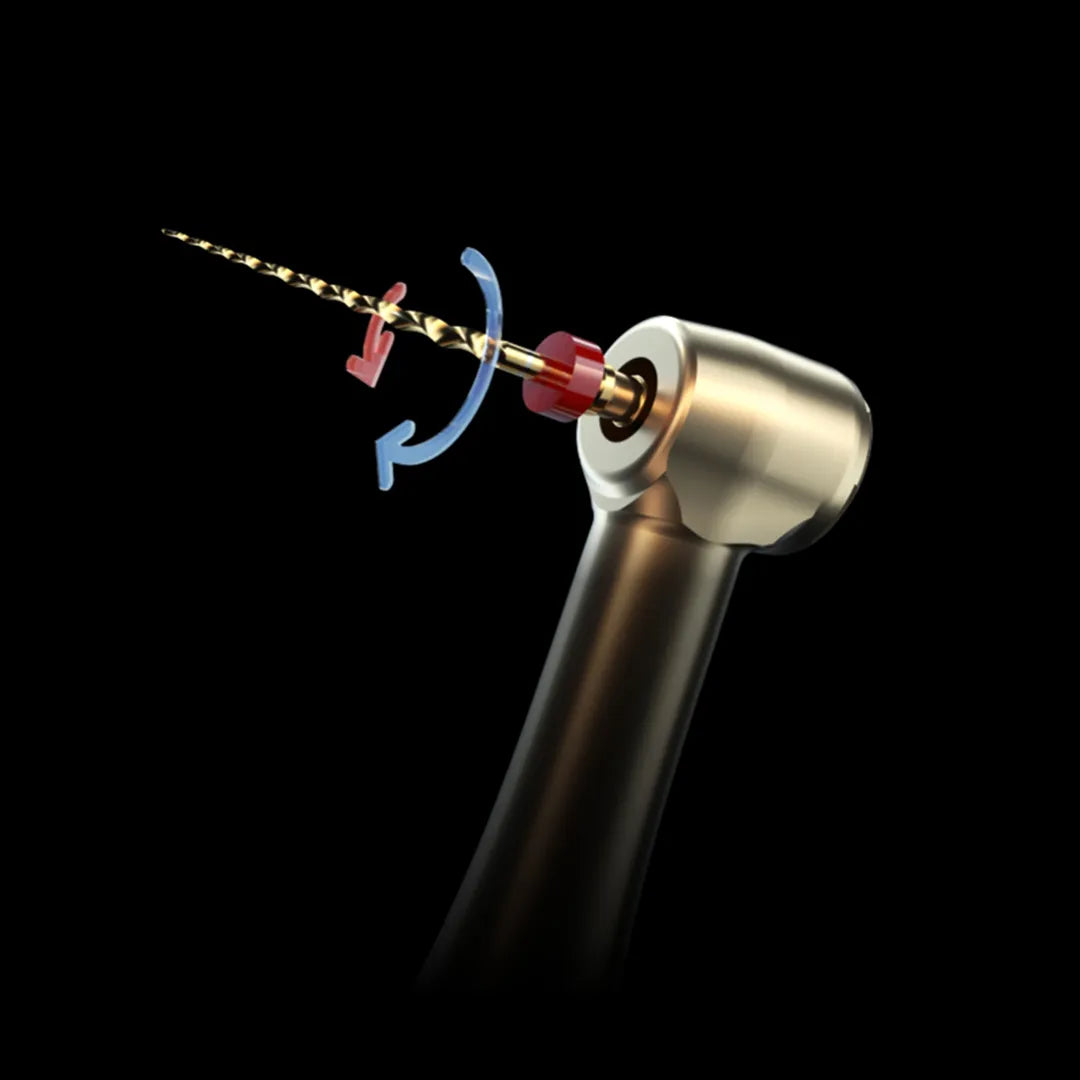

• T-Mode (Ledge Bypass): Combines reciprocation and rotation (e.g., 90° clockwise/counterclockwise "watch-winding") to navigate obstructions
• Customizable Reciprocation: Adjustable angles (20°–340° in 10° intervals) for complex anatomy or separated instruments

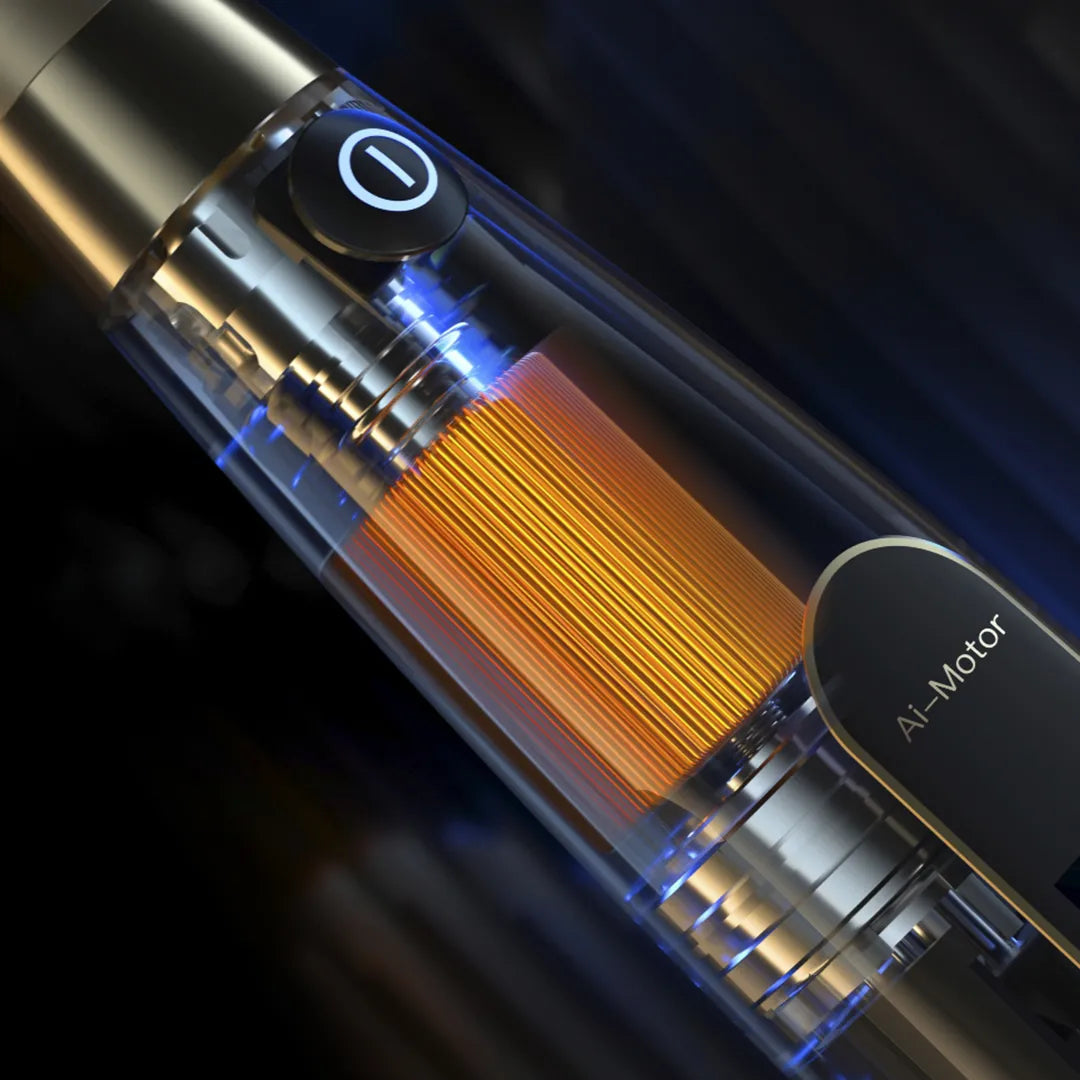

• Brushless Motor: High torque (0.4–5.0 Ncm) and speed (100–2500 RPM) with 10x longer lifespan than brushed motors
• 360° Rotatable Contra-Angle: Mini head (8mm diameter) enhances access, especially in posterior teeth
• Auto Start/Stop: Activates when the file enters/exits the canal, improving workflow efficiency

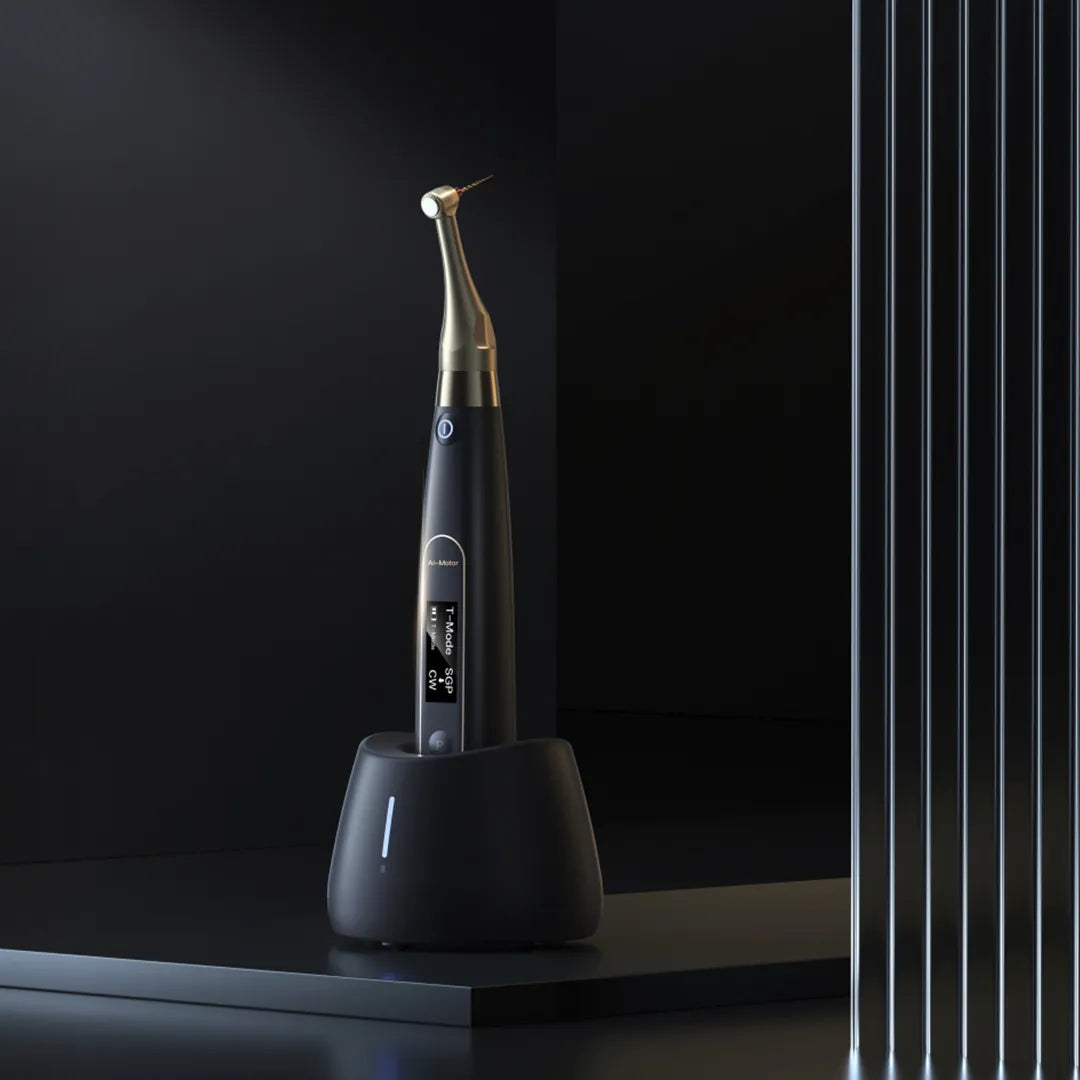

• Wireless Charging: 2000mAh battery with wireless charging for uninterrupted use
• Preprogrammed Profiles: 30 built-in file systems + 10 customizable programs
• Dynamic Torque Control: Reduces file separation risk during curved/narrow canal preparation
• Low Noise Operation: Smooth rotation for patient comfort
