Waldent RTA Intelli-Sensor RVG By Woodpecker Size - 1.5

Waldent RTA Intelli-Sensor RVG By Woodpecker Size - 1.5

• Image Resolution: Ultra-high resolution for clear diagnostics
• User Interface: High-quality, user-friendly interface
• Design: Comfortable and ergonomic design
• Scope of Application: Oral two-dimensional image capturing, case diagnosis, information management
• Operation Mode: Intermittent operation mode
• Electric Shock Protection: BF type applied part
• Water Ingress Protection: IP68
• X-ray Generator Compatibility: Compliant with dental X-ray machine standards
• Power Adapter Input: 5V/USB interface
• Mechanical Size - 1.5 : 43.5*29.2*4.5mm
• Effective Area Size - 1.5 : 24*33mm( Size - 1.5)
• Pixel Size: 20μm
• Effective Resolution: > 12Ip/mm
• Temperature: 10℃ to 35℃
• Humidity: 20% to 90%
• Atmospheric Pressure: 70kPa to 106kPa

Installation Application Specification:

• Operating System: Windows® 7 or above
• Processor: Intel® Core 4
• Memory: 8 GB or above
• Hard Disk: 500 GB or above
• USB Port: 4 high-speed USB 2.0 ports
• USB Chip: Intel or NEC / RENESAS
• Display Resolution: 1920 x 1080
• Software Installation: Run the "Ai-Dental setup.exe" installation program
• Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use

Here are the directions for using the Waldent RTA Intelli - Sensor RVG:

System Setup:

• Ensure that the computer meets the specified configuration requirements, including the operating system, processor, memory, USB ports, display board, USB chip, and display resolution.
  Software Link: Click Here To Download Waldent RTA Intelli - Sensor RVG Software
• Run the "Ai-Dental setup.exe" installation program and follow the on-screen instructions to install the image management software system.

Sensor Installation:

• Fix the sensor support frame on a flat wall using two screws.
• When the sensor is not in use, secure it on the support frame.

Imaging Process:

• Turn on the PC with the installed image processing software.
• Start the matching X-ray generator and set the desired photographing parameters.
• Put on a disposable protective sheath on the sensor.
• Place the sensor in the patient's mouth parallel to the long axis of the teeth, ensuring the effective surface of the sensor is close to the teeth.

X-ray Capture:

• Move the X-ray generator to the patient's head, ensuring the generator cone is perpendicular to the sensor's position.
• Press the generator switch to capture the X-ray image.
• After exposure, the imaging software downloads the X-ray image for display on the screen.

Sensor Protective Sheath Usage:

• Wear gloves when placing the disposable sensor protective sheath.
• Replace the protective sheath after each use and dispose of it with other potentially infectious waste.
• Store the used sheaths in a dry and clean place.

• High-resolution imaging - 25lp/mm theoretical resolution
• C Mos Technology
• Thinnest sensor 4.5mm
• USB cable - 2.7m

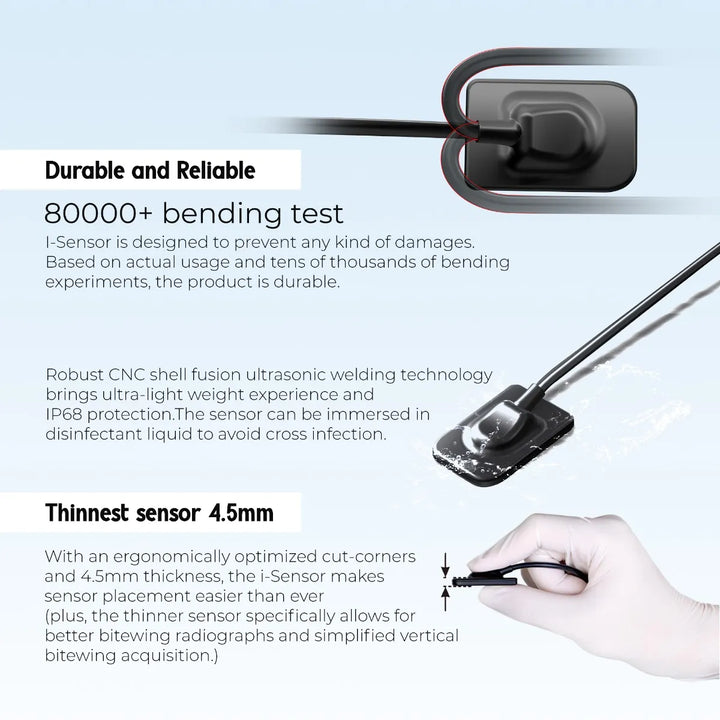

• Durable and reliable: 80000+ bending test & IP68 protection rating
• Smart and powerful software
• Curved Edges to Avoid Patient Injury
• Highly Flexible Cable
