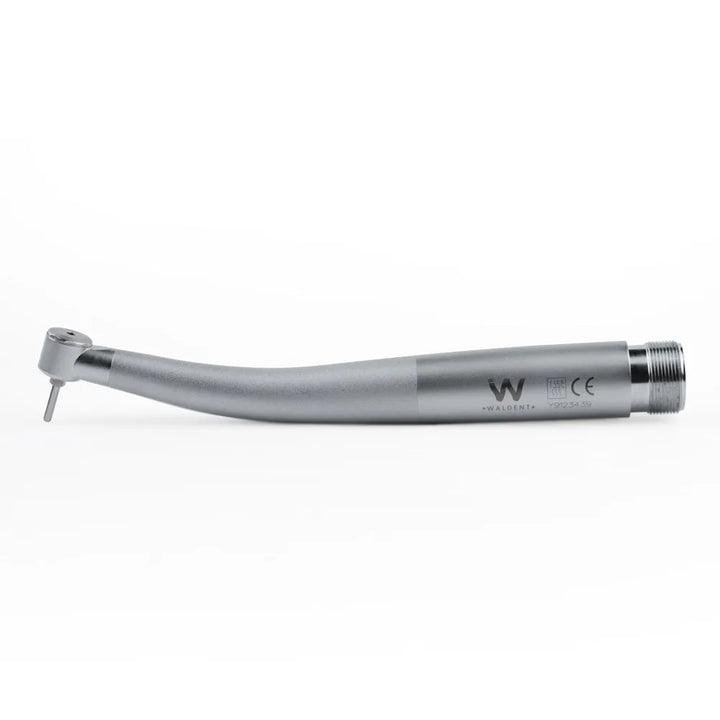

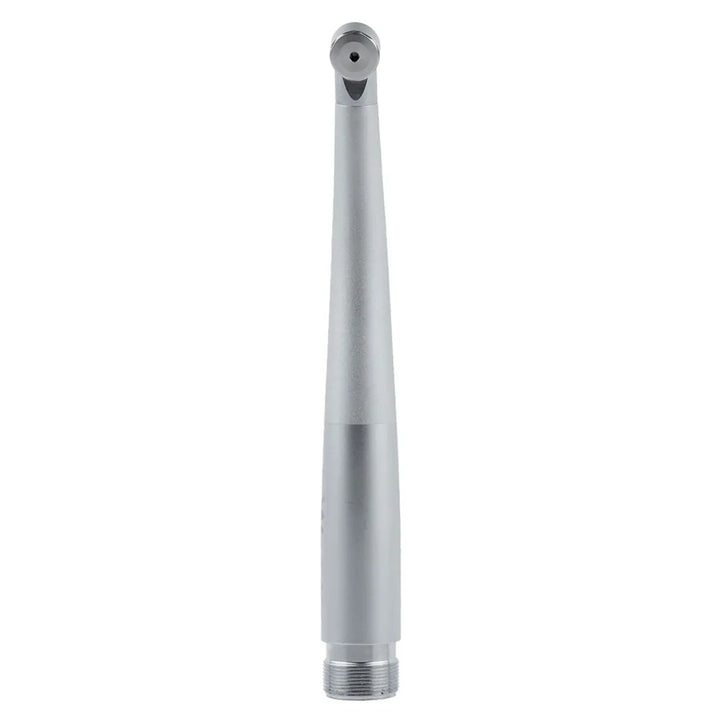

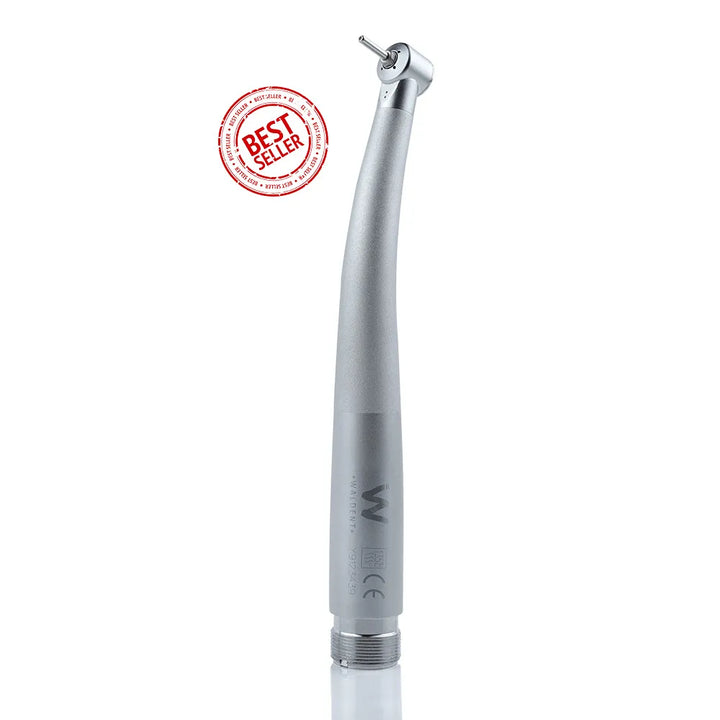

Waldent Nano Airotor And Cartridge

• Material: Stainless Steel
• Speed: More than 250,000rpm
• Head Size: MicroMini
• Working Air Pressure: 0.28Mpa-0.30Mpa
• Atomized Water Pressure: 0.3-0.35Mpa
• Working Water Pressure: 0.2-0.23Mpa
• Bur Size: Short Shank Burs
• Autoclavable at 135℃
• Head Size: Ø8.5mm x H 8mm
• Total Length - 12cm

Preparation:

• Ensure the handpiece is properly sterilized before use, following the manufacturer's instructions for autoclaving.
• Check that the handpiece and bur are in good condition with no visible damage.

Installation:

• Insert the desired bur into the chuck-type cartridge securely.
• Connect the handpiece to the dental unit using the Bordon 2-Hole connection.

Water Supply:

• Connect the water supply to the handpiece, ensuring proper flow for effective cooling during procedures.

Positioning:

• Adjust the handpiece for optimal ergonomic positioning.
• Activate the water spray to ensure effective cooling of the bur during operation.

Operation:

• Press the operating button to activate the handpiece.
• Use the handpiece to access and treat the targeted areas, taking advantage of the mini head design for precision.

Post-Procedure:

• After completing the procedure, deactivate the handpiece.
• Disconnect the handpiece from the dental unit.
• Clean the handpiece according to the manufacturer's guidelines, taking care to remove any debris.

Sterilization:

• Autoclave the handpiece at the recommended temperature (e.g., 135℃) for the specified duration to ensure proper sterilization.

Ergonomic Design

• Mini Head provides easy access to hard to reach areas
• Light Weighted

Water Spray

• 2 jets water spray for effective cooling of bur and treating contact surface

Bearing

• Ceramic ball bearing in the handpiece with light ensues vibration- free and quiet operation and also provide long service life

Operating Button & connection

• High-grade material with a stylish design
• chuck-type cartridge to change bur, easy and convenient
