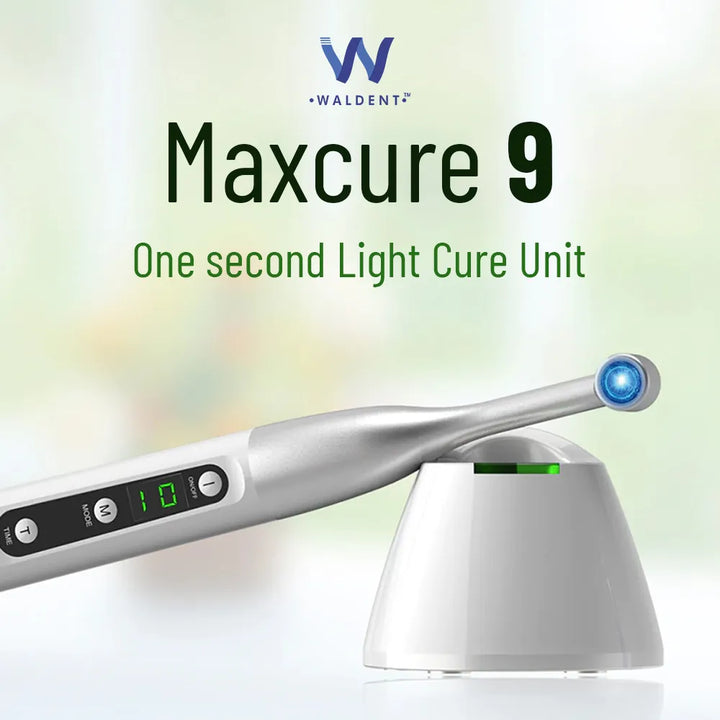

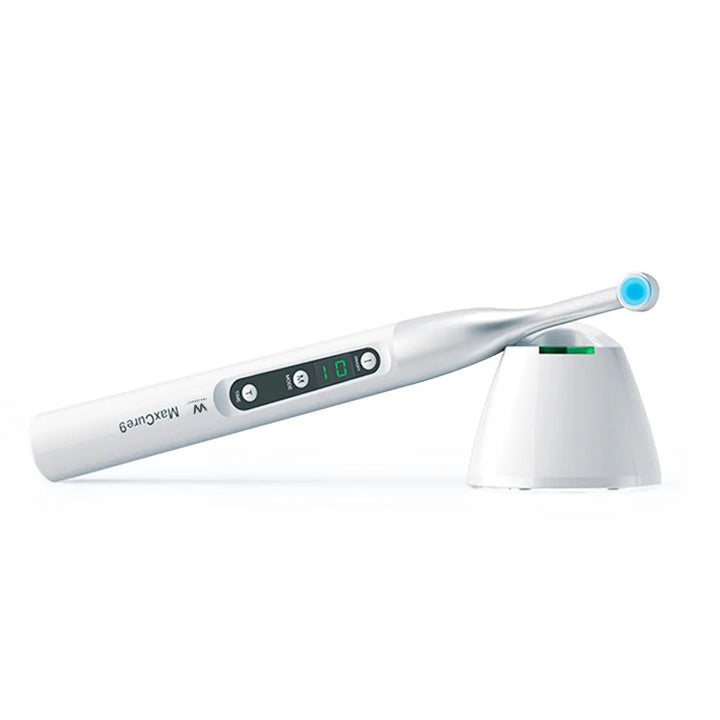

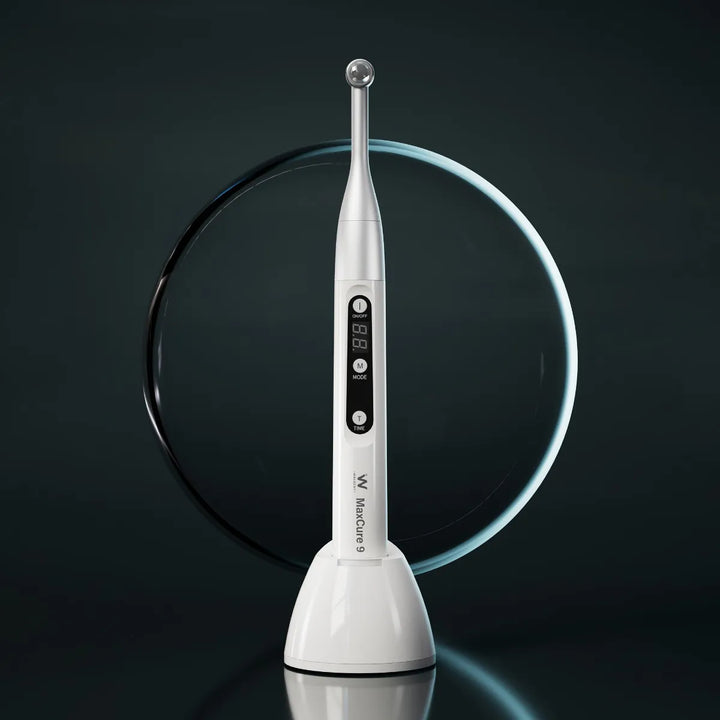

Waldent Maxcure 9 one second Light Cure Unit

• Power Supply - Rechargeable Lithium Battery
• Battery voltage & capacity - 3.6V/2600mAh
• Battery Model - ICR18650
• Power Input - 100-240VAC, 50Hz/60Hz
• Power Output - DC 5V/1A
• Dimensions - ⌀72mm x 275mm
• Light Intensity - 1000mW/cm2 - 2500mW/cm2
• Light Source:5W high power blue LED
• Wavelength - 385nm - 515nm
• Net Weight - 255grams
• Power Consumption - ≤ 5W
• Software version - 1.0.0
• probe dia - 9mm
• probe length - 7.3cms
• Total unit length - 25.5cms

Mode Setting:

• TURBO mode - Display P1, Light Intensity 2300mW/cm2 - 2500mW/cm2
• NORMAL mode - Display P2, Illumination 1000mW/cm2 - 1200mW/cm2

Time Setting:

• TURBO mode : 1s, 3s
• NORMAL mode : 5s, 10s, 15s, 20s
• Lightly press the time button to choose the solidification time.

POWER ON/OFF MODE:

• Press the Power Button for starting/shutting down the machine.

PROGRAM SWITCH MODE:

 STEP 1:

• Long press Power Button, when the sound is heard release hand.

STEP 2:

• At the same time, the indicator light will start flashing, then repress key to select the working mode

STEP 3:

• After choosing the appropriate working mode, it will be set automatically without any operation in 3 seconds

STEP 4:

• Then press the button again to start curing the restorative material

• 1 Second curing light
• Large-capacity lithium battery
• Shutdown automatically without any operation in 40 sec
• Low battery warning
• Covered by ABS painting
• 5W powered LED
• High articulation optical fiber
• Automatic Standby/Automatic shutdown
• 5W strong power LED lamp
• Light power more than 2000mw/cm²
• When Full charged can be used over 200 times
• 1 Second curing light
• Large-capacity lithium battery
• Shutdown automatically without any operation in 40 sec
• Low battery warning
• Covered by ABS painting
• 5W powered LED
• High articulation optical fiber
• Automatic Standby/Automatic shutdown
• 5W strong power LED lamp
• Light power more than 2000mw/cm²
• When Full charged can be used over 200 tim
