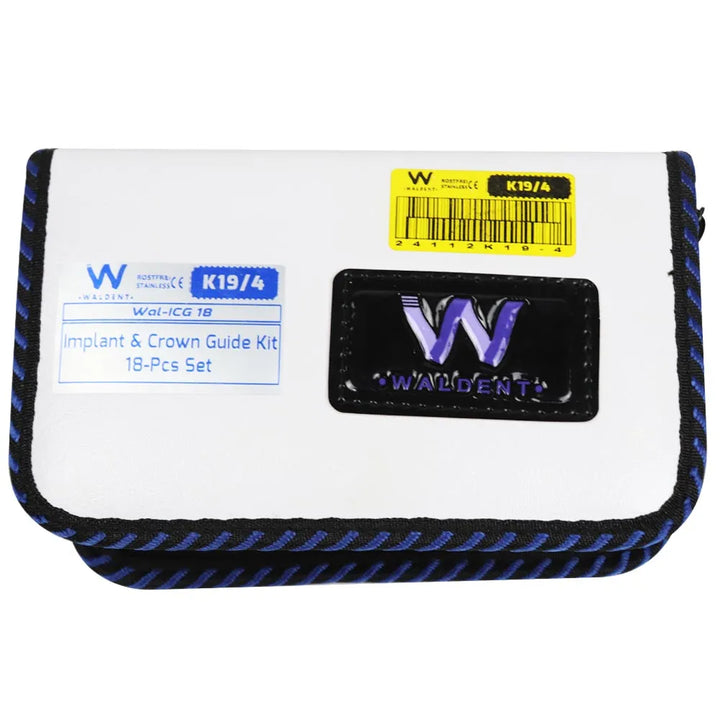

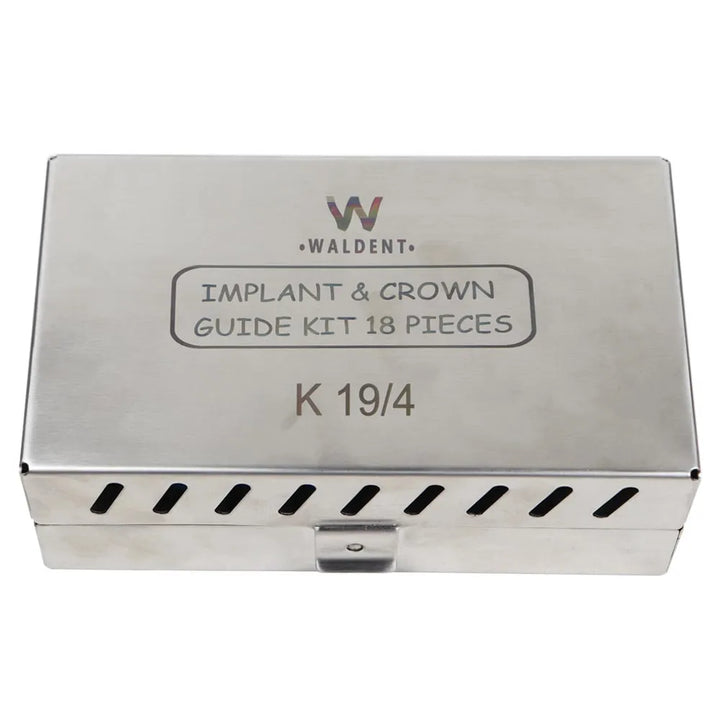

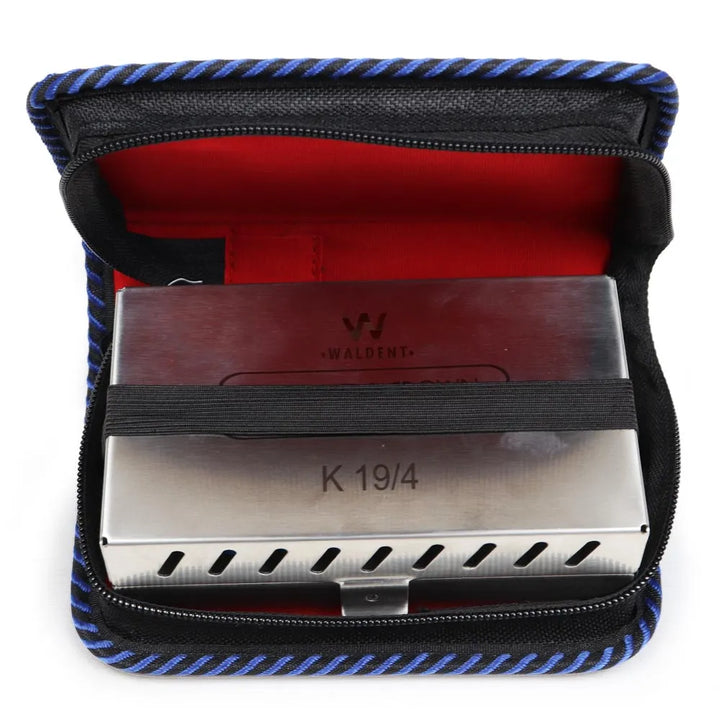

Waldent Implant & Crown Guide Kit Set of 18 (K19/4)

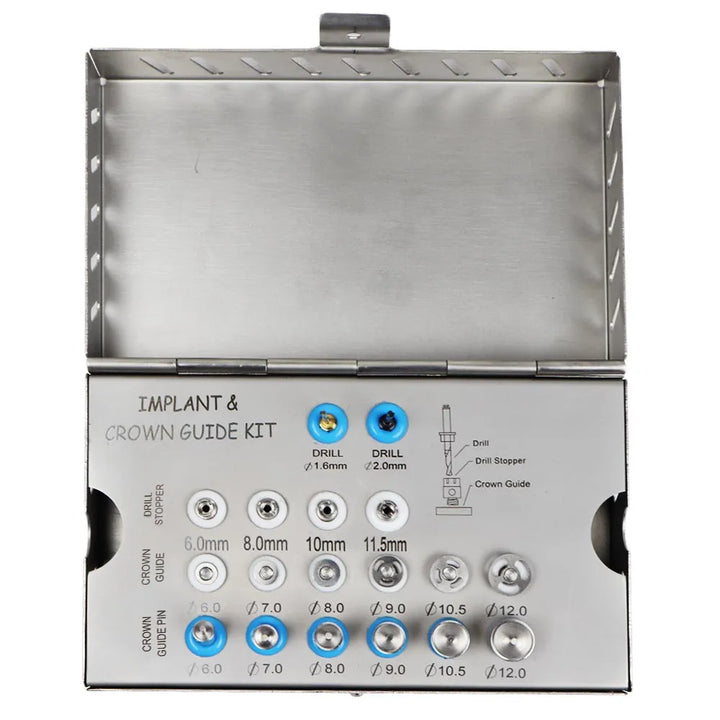

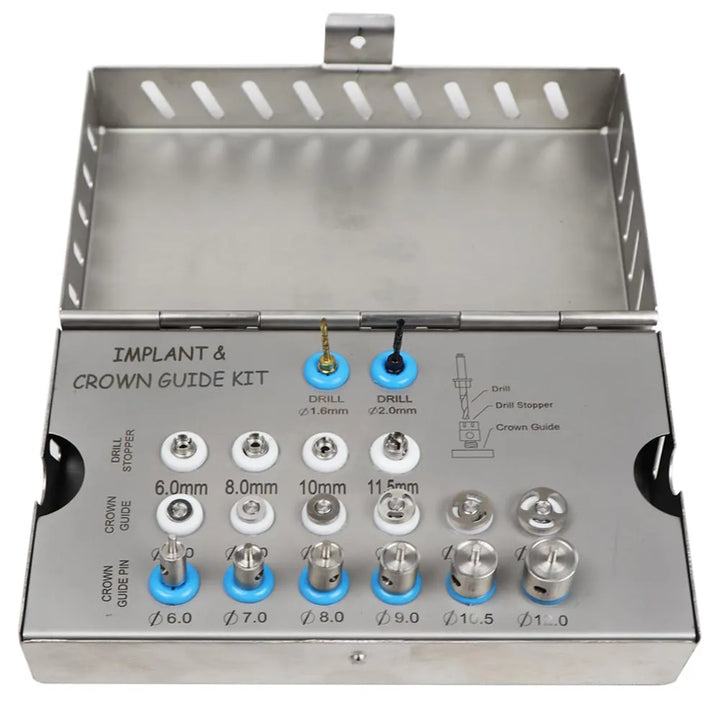

INITIAL DRILL

Ø1.6 , Ø2.0 (total 2 EA), Stopper can be installed. Used for the Initial drilling.

STOPPER

6mm, 8mm, 10mm, 11.5mm (total 4 EA) It plays a role of an Initial Drill Stopper where the Crown Guide is connected.

CROWN GUIDE

Ø6, Ø7, Ø8, Ø9, Ø10.5, Ø12 (total 6 EA) It provides guide to the centering and directing with intervals at the same time appropriately for the crown size (implanted prosthesis) during the drilling.

CROWN GUIDE PIN

It is used for deciding the crown size at the implant placing position before the initial drilling. It guides the implant interval while playing a role of implant drill guide when drilling is carried out after the first drilling is placed during the implant placing.

• Put the crown Guide Pin onto the implant placing position using tweezers.
• Combine an appropriate stopper for the implant depth with the Initial Drill Ø1.6 or  Ø2.0.
• Turn and lock the crown guide appropriate for the size of the determined crown guide pin to the stopper.
• Carry out the initial drilling after connecting the drill, stopper and guide to the implanting position.[1000~1200RPM]
• Carry out the sequence in 1~4 for the continuous implant, put the crown guide pin in line with the crown size onto the gum, and carry out the drilling as the way in the beginning

Waldent Implant & Crown Guide Kit Set of 18 (K19/4)

• Depth and distance interval can be solved with only one drilling
• Simple and easy drilling
• Shortened surgery time with reduced possibility of mistakes
• Both crown size and implant depth are simultaneously guided during initial drilling
• Ideal stopper and crown guide design
