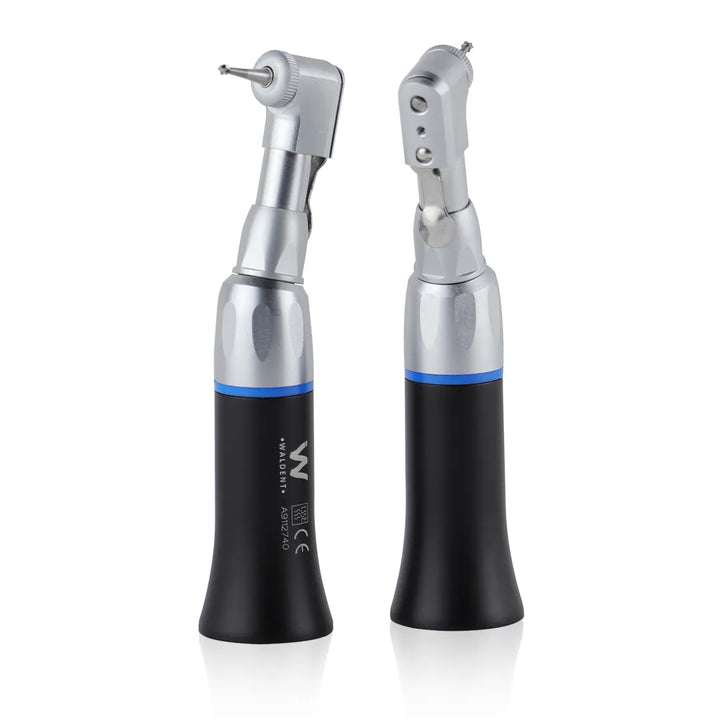

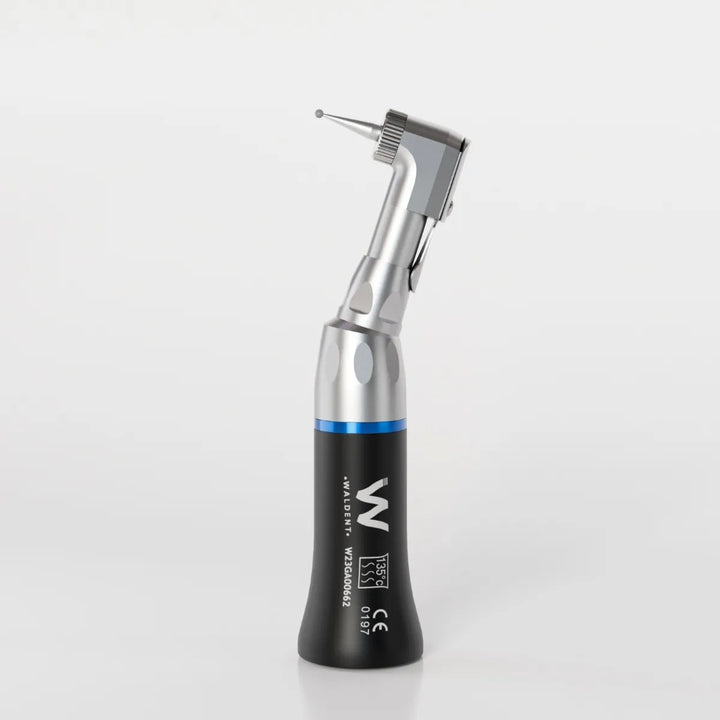

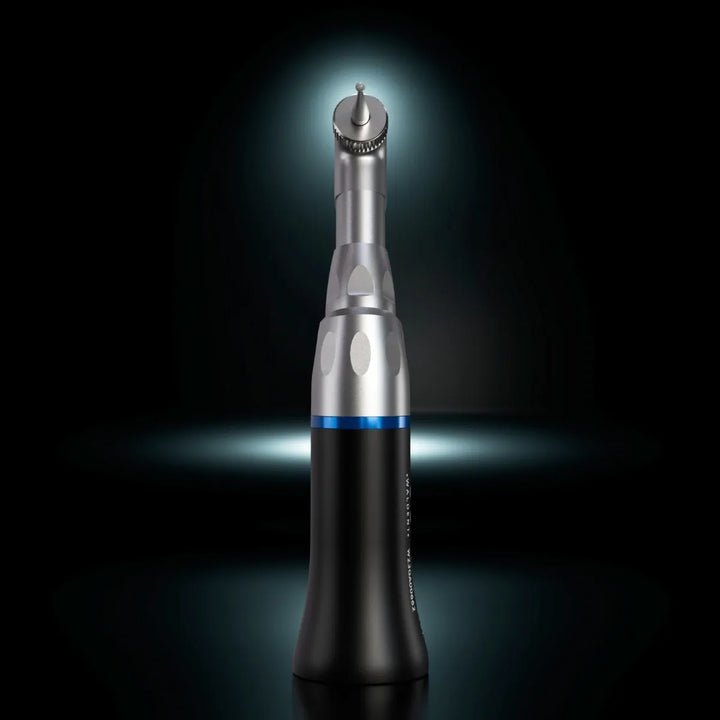

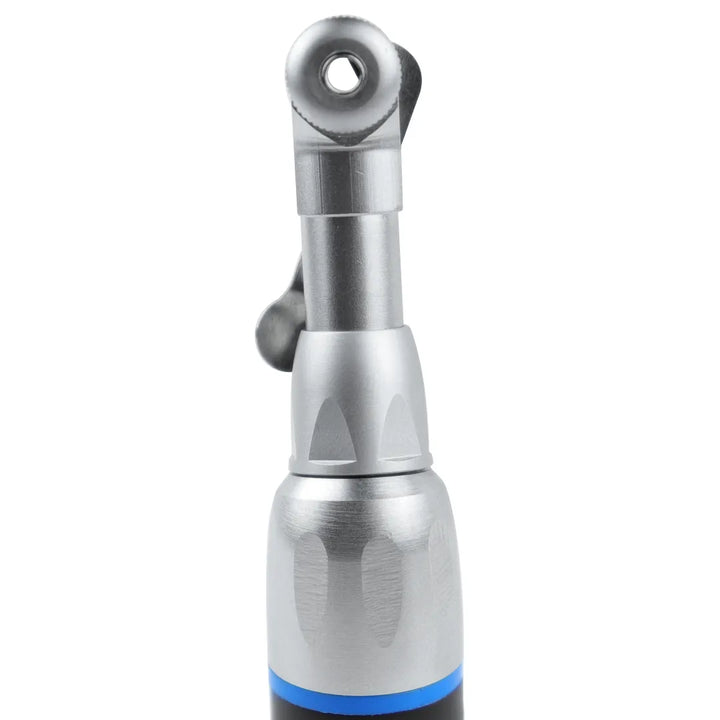

Waldent Contra-angle Handpiece Special Edition - Black (W-142)

Technical Specifications

• Rotating Speed: 600RPM-40,000RPM
• Noise: ≤ 60dB
• ChuckType: Swing latch type
• Bur Applicable: Ø2.35mm CA Burs
• Connections: E - type coupler
•  Material: Stainless Steel
• Autoclavable: Sterilized at max. 135°C
• Total Length: 8.5cm

PRECAUTIONS:

• Avoid contamination of the handpiece with Blood or other fluids
• Periodic oiling of the handpiece with good-quality Oils will yield better results.
• Kindly follow the manual for speed control & usage

Preparing the Handpiece:

Ensure the handpiece is clean and sterilized before each use.

Mounting the Bur:

Insert a compatible bur (Φ2.35mm) into the contra-angle handpiece.

Ensure secure insertion to prevent any wobbling during use

.Connecting to the Low-Speed Handpiece System:

Connect the contra-angle handpiece to the low-speed handpiece system securely.

Adjusting Speed and Direction:

Set the desired speed on the low-speed handpiece system.

Confirm the correct direction (clockwise or counterclockwise) for the specific procedure.

Patient and Operator Safety:

Ensure the patient is comfortable and properly positioned.

Use appropriate personal protective equipment (PPE) such as gloves and masks.

Communicate clearly with the patient during the procedure.

Performing the Procedure:

Follow standard dental procedures based on the specific indication (cavity preparation, post, and core, polishing, etc.).

Utilize the contra-angle handpiece to access hard-to-reach areas with precision.

Maintain proper handpiece angulation and pressure during the procedure.

Post-Procedure:

After the procedure, detach the contra-angle handpiece from the low-speed system.

Thoroughly clean and sterilize the handpiece following guidelines.

Store the handpiece in a designated, clean area.

Maintenance:

Regularly inspect the handpiece for any signs of wear or damage.

Lubricate and maintain the handpiece following the provided recommendations.

• Premium Quality Handpiece.
• Smaller head and enhanced technology.
• Ergonomic design for a comfortable grip.
• Autoclavable at 135degree Celsius.
• Long life span.
• Smooth operation.
• Light Weighted.
• Cost-Effective.
• Guarantees prompt service.
• Constructed with high-quality raw materials.
