SuperEndo SafeRoot Endo File Retrieval System

Rs. 7,500.00
Add to Wishlist
Specifications
Care Instruction
Features

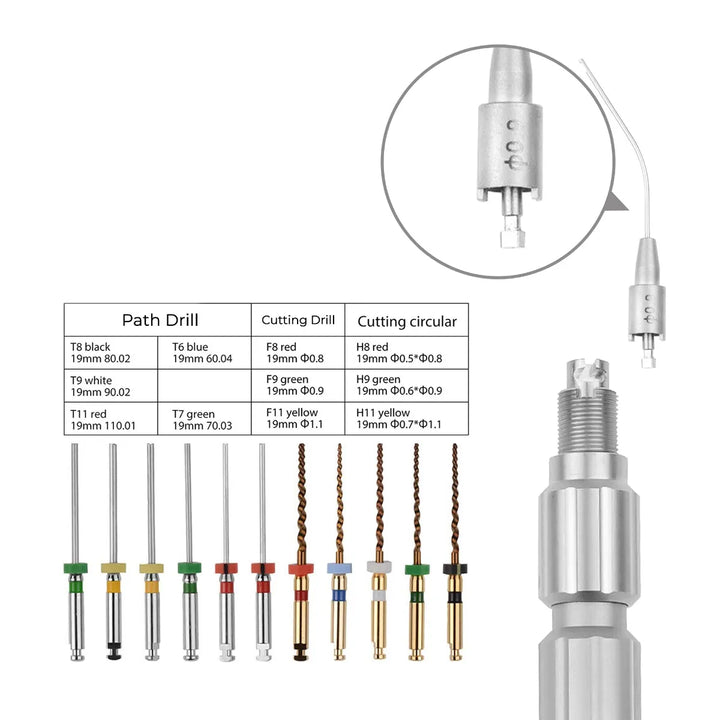

  • GUIDE DRILL:
  • NumberTaper#604%#703%#802%#902%#1101%
  • FLAT DRILL: Diameter: ⌀1.1, ⌀0.9, ⌀0.8
  • Circular Cutting Drill: Diameter: ⌀1.1, ⌀0.9, ⌀0.8
  • Total Length of Handle : 12cm
  • Use the G-drill to remove the dentin until the tip of the G-drill is close to or touches the section of the broken file.
  • Continue to remove the dentin channel using a path drill of the appropriate size(80, 90, 110 sizes)
  • After incising the dentin, depending on the size of the section of the broken file, select a cutting drill of the appropriate size and grind the filing channel at low reverse speed (recommended speed 150 rpm)
  • Remove the dentin around the broken file by reversing the cutting cannula at low speed until the file is exposed by 2-3 mm. In the case of curved root canals where the cutting cannula cannot penetrate deeply, the dentin around the broken filing can be removed by using a path drill (size 60-70) at low speed and positive rotation until the file is exposed by 2-3 mm.
  • Fitting a suitable size of the needle cannula.
  • Clamp the broken file with a cannula window .

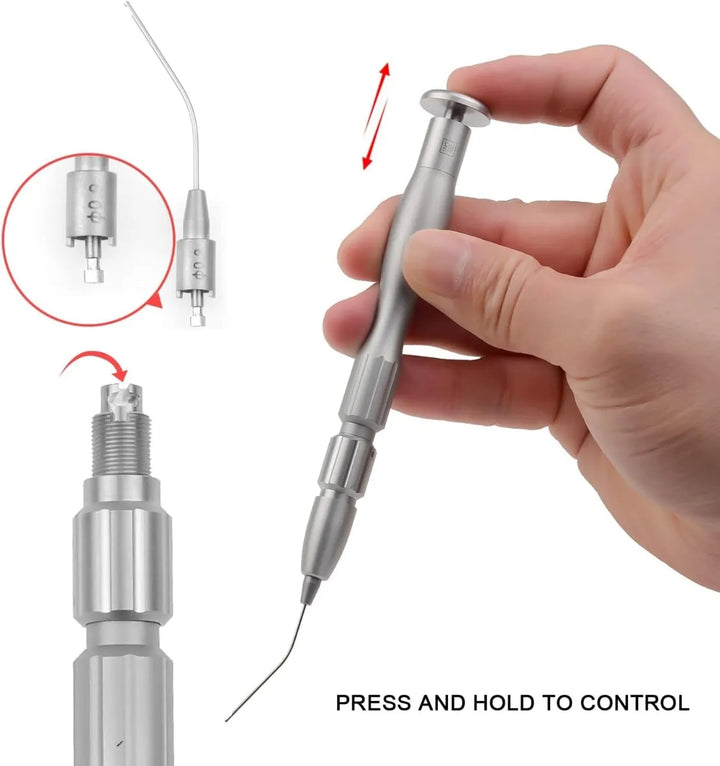

  • Pushing the push cap forward so that the needle cannula clamps the broken file (as in step 2 of the diagram, taking care to press it into place)

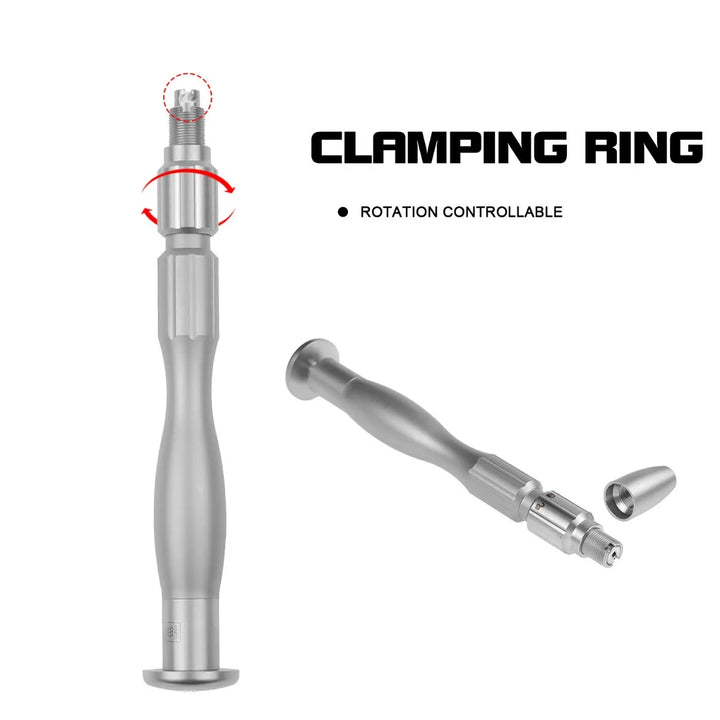

  • The clamping ring can be turned in the direction shown by the arrow to tighten the needle cannula and then (taking care to tighten it) press the pushing cap firmly to pull out the broken file (as shown in step 3).
  • Sterilise after use.
  • Clip-On File Attachment: This system utilizes a clip-on file mechanism, minimizing the potential for damage to teeth and providing a secure grip on broken files for safe removal.
  • Pre-Bent Work Tip: The pre-bent design of the working tip simplifies the operation process, making it more accessible and efficient.
  • Effective Clamping and Locking: The clamping and locking mechanism is designed to ensure a secure grip on the broken file, enhancing precision during removal.
  • Corrosion-Resistant Stainless Steel: The device is constructed with stainless steel, providing excellent corrosion resistance and ensuring durability over time.

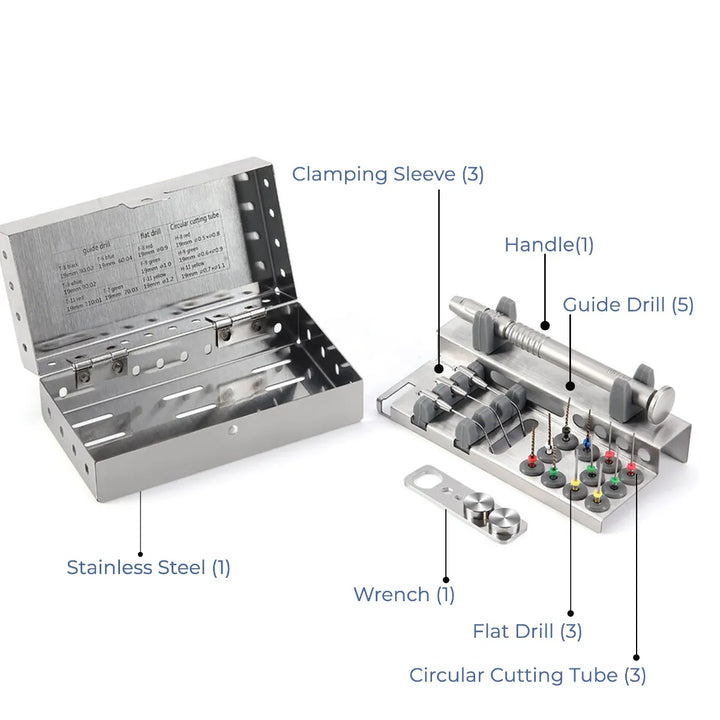

  • Versatile with Multiple Tips: Equipped with three different sizes of working tips, this system can meet various clinical needs, allowing for flexibility and adaptability in different cases.
  • Clip-On File Attachment: This system utilizes a clip-on file mechanism, minimizing the potential for damage to teeth and providing a secure grip on broken files for safe removal.
  • Pre-Bent Work Tip: The pre-bent design of the working tip simplifies the operation process, making it more accessible and efficient.
  • Effective Clamping and Locking: The clamping and locking mechanism is designed to ensure a secure grip on the broken file, enhancing precision during removal.
  • Corrosion-Resistant Stainless Steel: The device is constructed with stainless steel, providing excellent corrosion resistance and ensuring durability over time.
  • Versatile with Multiple Tips: Equipped with three different sizes of working tips, this system can meet various clinical needs, allowing for flexibility and adaptability in different cases.
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables SuperEndo
Tags: Product

Share On

Description

Superendo SafeRoot Endo File Retrieval System

The Endo File Removal System is a precise and efficient tool designed for endodontic procedures. It employs a clip-on file attachment to minimize any potential damage to the patient's teeth, ensuring a safe and precise operation. The pre-bent work tip facilitates ease of use during clinical procedures, making it a valuable addition to any dental toolkit. Its clamping and locking design ensures the secure capture of broken files, enhancing the reliability of the system. Crafted from corrosion-resistant stainless steel, it guarantees durability and longevity. The system includes three different-sized work tips, catering to various clinical needs and providing a comprehensive solution for endodontic file removal.
