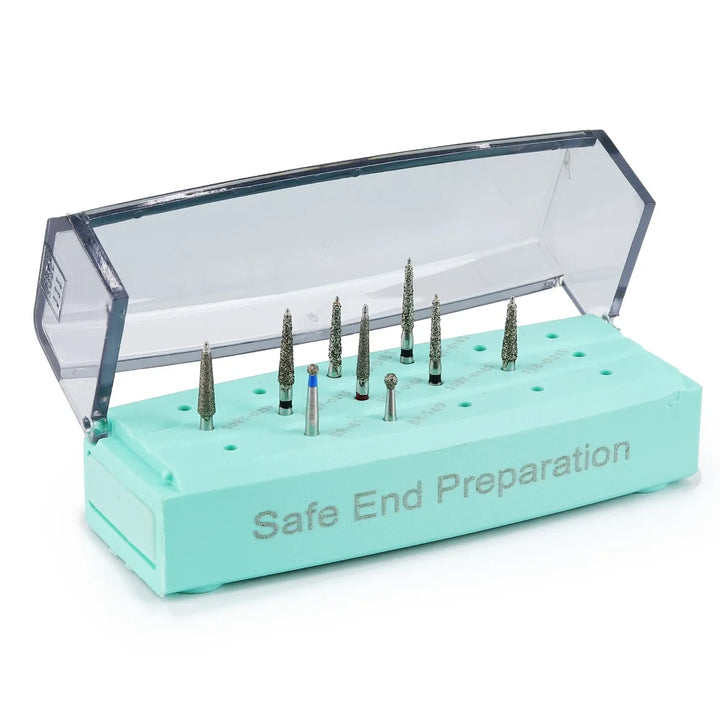

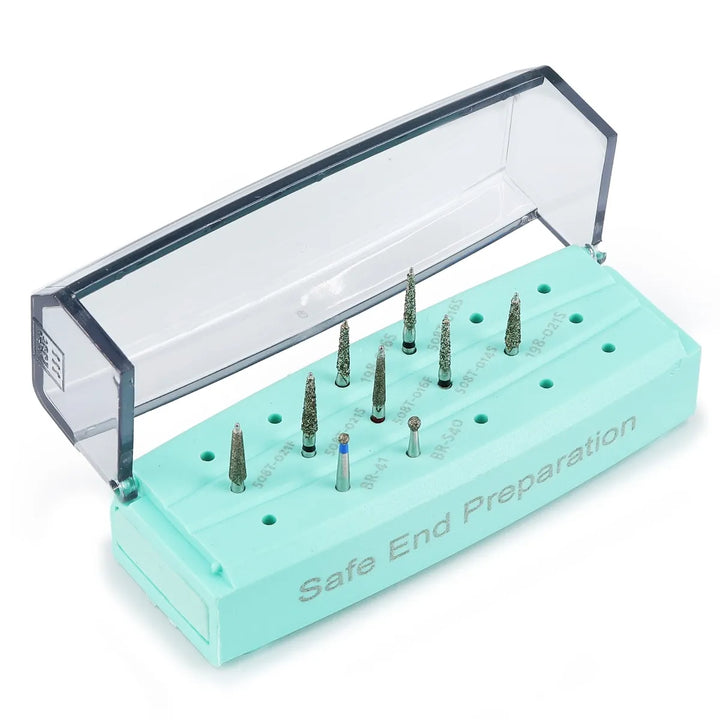

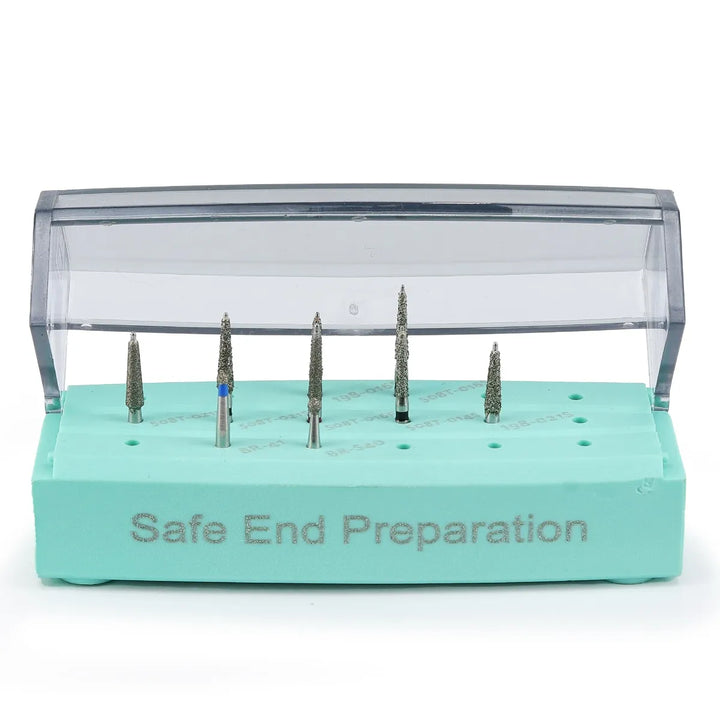

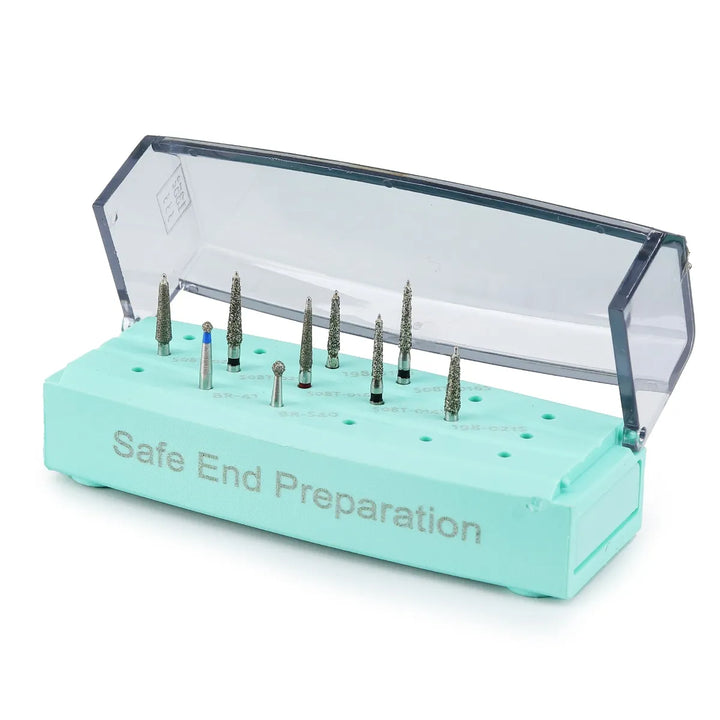

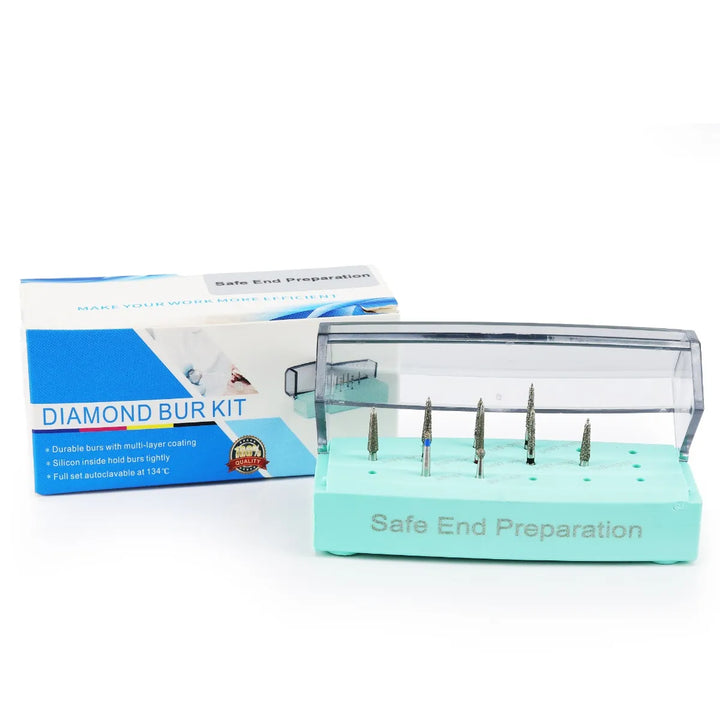

SuperEndo Safe End Preparation Burs Kit

Shank type : Friction grip

Construction : Stainless steel shank evenly coated with diamond particles

Autoclavable : Autoclavable upto 134°C

Set Of 9 Burs :

• 198-016S
• 508T-016S
• 508T-021F
• 508T-0215
• 508T-016F
• 508T-014S
• 198-021S
• BR-41
• BR-S40

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece at the required working speed before applying the instrument to the treated area.
• Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
• Activate water spray during the entire treatment (minimum 50 mL/min).
• Regulate water flow in case of water excess or shortage.
• It is recommended to use a dental dam.
• Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
• Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
• It is recommended to wear gloves and safety glasses.

• Extreme breaking strength due to high-quality material and especially developed technologies.
• Precise made working parts (depending on different grain size) for exact preparation.
• High purity of the diamond for defined roughness and extreme strength.
• Constant quality controls during entire production.
• Minimum run-out deviation for working on a very low vibration level.
• Extreme breaking strength due to high-quality material and especially developed technologies.
• Precise made working parts (depending on different grain size) for exact preparation.
