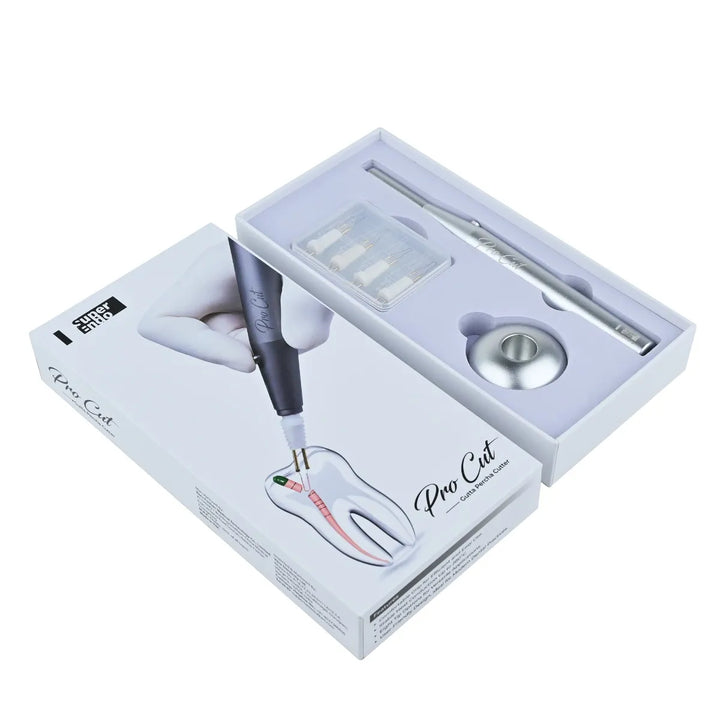

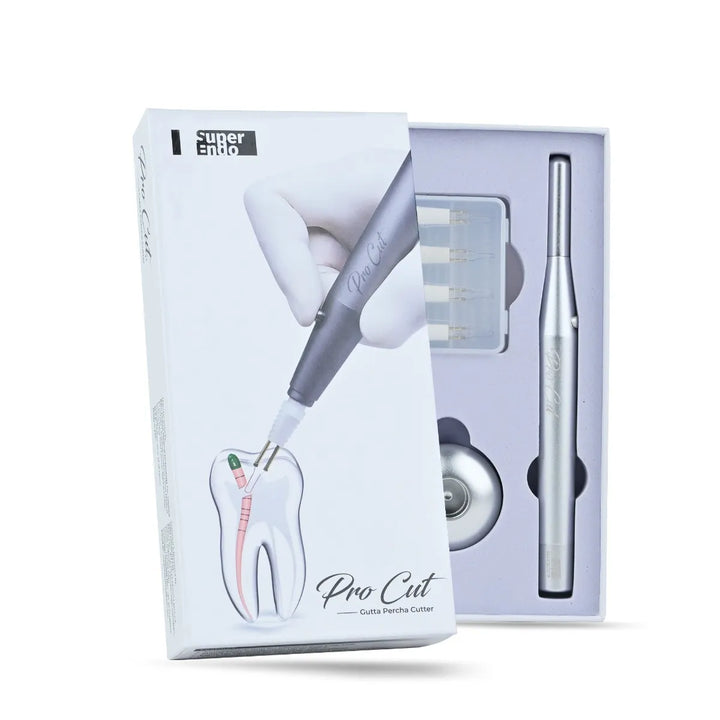

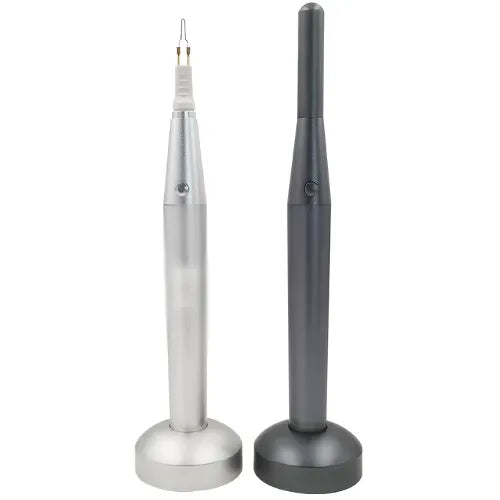

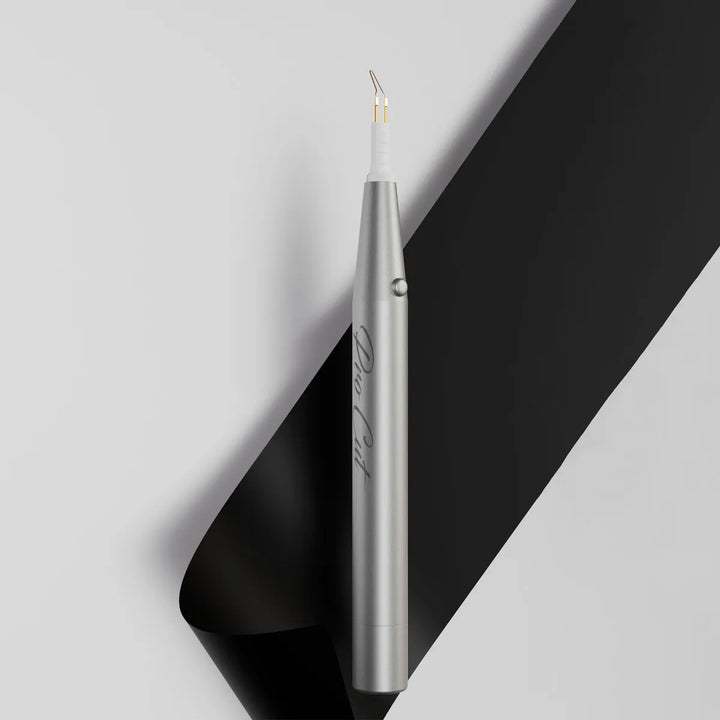

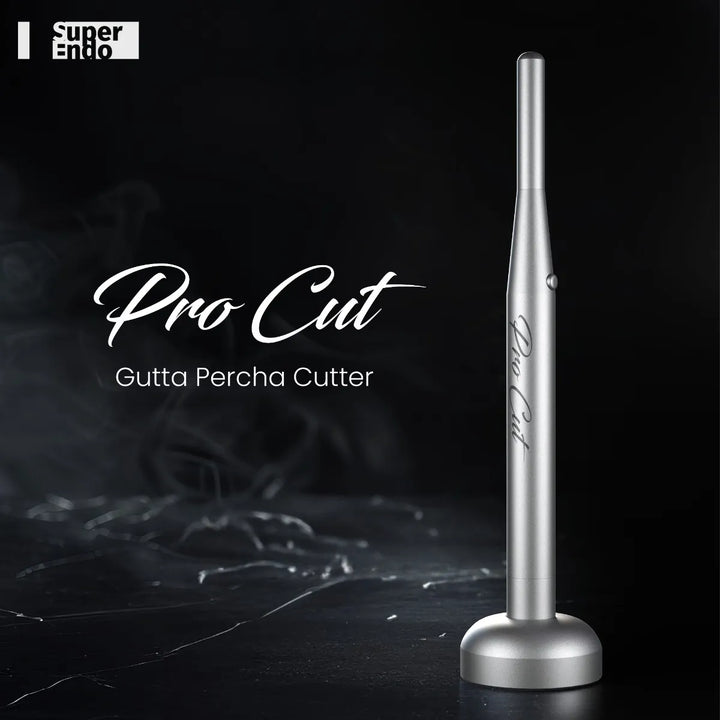

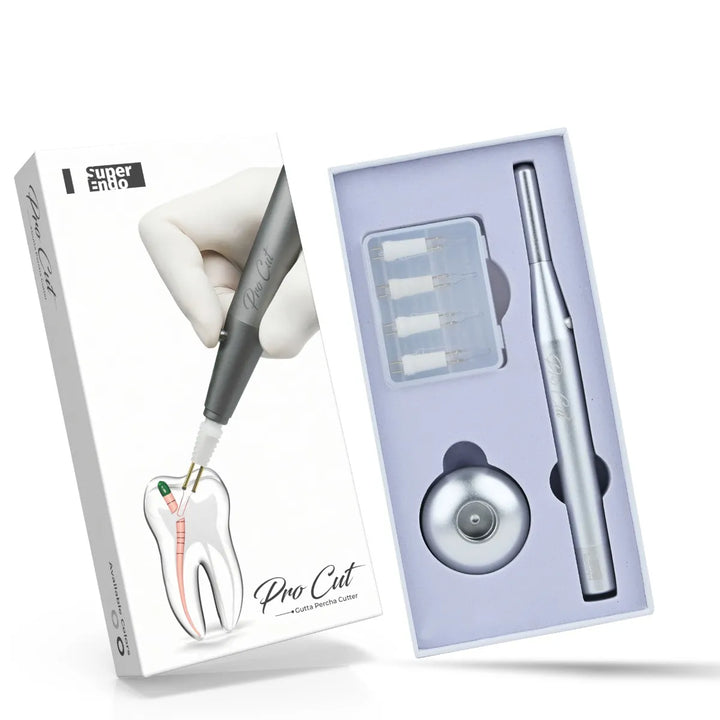

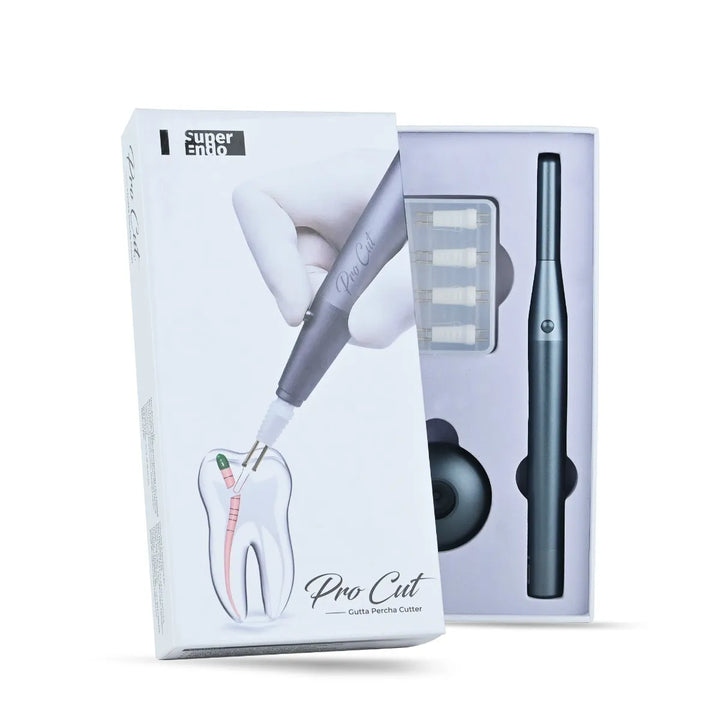

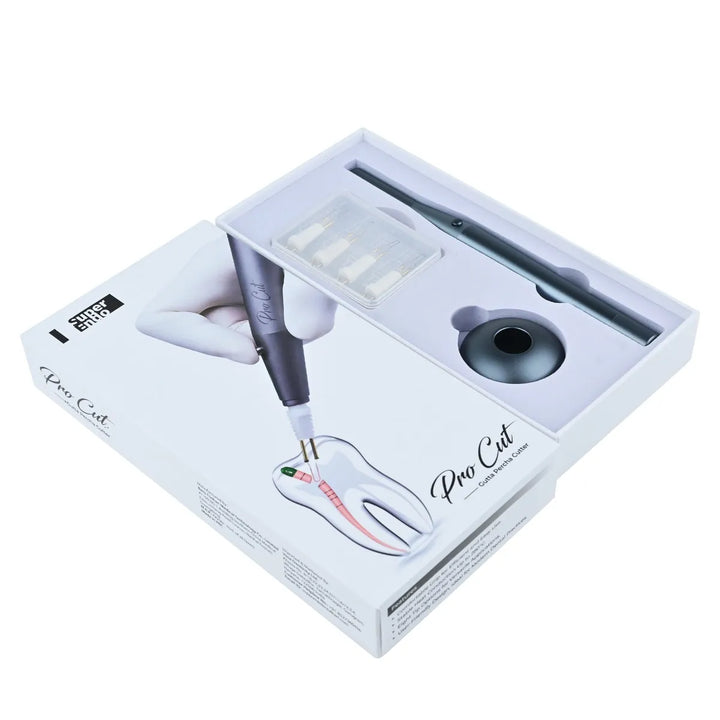

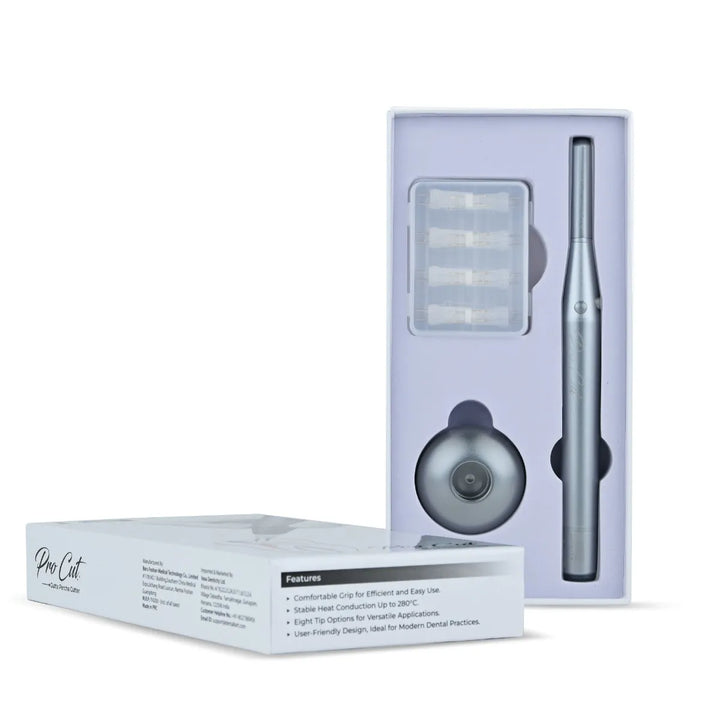

SuperEndo ProCut Gutta Percha Cutter

Heat Conduction:

• Stable at 280°C.

Power Consumption:

• Operates on 2 x 1.5V AA batteries.
• 200+ cuts with fresh cells.

Technical Specifications:

• Class II and Class B equipment.
• Input Power Supply: 2 x 1.5V AA batteries.
• < 3W power, Ф 19mmx200mm dimensions.

Storage & Transportation:

• Temperature: -10°C to 70°C.
• Humidity: 10% to 90%RH.
• Pressure: 86kPa to 106kPa.

Precautions:

• The main unit is not rechargeable; use only non-rechargeable batteries.
• Before usage, ensure that the tips are securely in place and firmly connected to the main unit.
• Refrain from bending the tips when attached to the main unit to prevent damage.
• Exercise caution not to exert excessive force during use, as it may damage the cutter or impact its service life.
• Do not touch the tips with your hands or other objects during operation to prevent potential hazards.
• Clean the tips only when they have cooled down to ensure safe handling.
• If damage to the tips is observed, discontinue use immediately and replace them with new ones.
• Do not modify the equipment in any way to prevent potential harm.
• Operate the equipment strictly within the specified instructions.
• Individuals with heart conditions, pregnant women, and children should use the equipment with caution.
• It is recommended to use the original battery; replace it with an alkaline 1.5V AA battery when necessary.

Storage & Transportation:

• Maintain an ambient temperature within the range of -10°C to 70°C.
• Keep relative humidity levels between 10% and 90%RH.
• Ensure atmospheric pressure remains within the range of 86kPa to 106kPa.

Cleaning and Maintenance:

• Clean and disinfect the tips thoroughly before each use.
• Use a clean cloth or a cloth dipped in medical alcohol to clean the main unit, a protective cover, and base support.
• When cleaning the tips, use a cotton swab or dip them in isopropyl alcohol for effective disinfection.
• The tips can be sterilized under high temperature and pressure conditions (135°C and 0.22MPa) for a minimum duration of 3 minutes.
• The tips can undergo high-temperature and pressure disinfection up to 50 times before replacement is recommended.

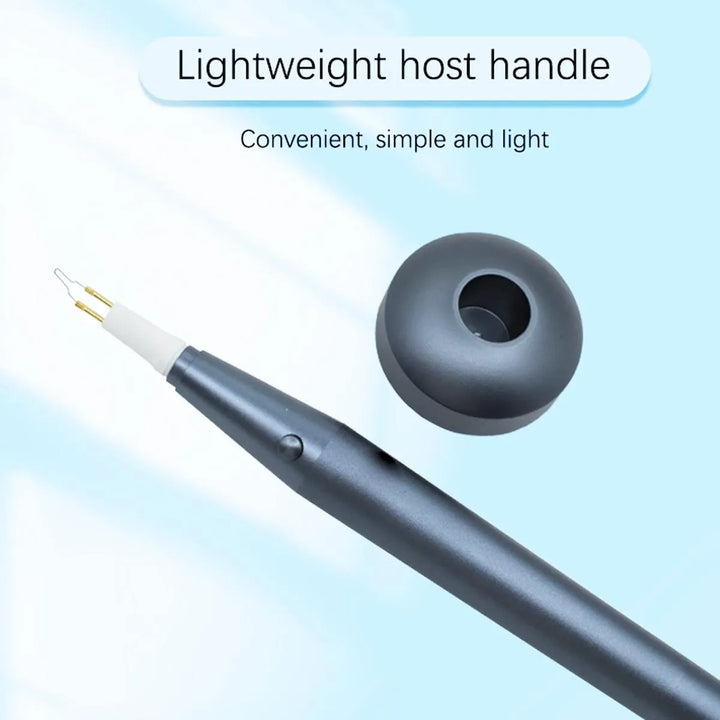

• Ergonomic Design:  Comfortable grip for efficient use.
• Stable Heat Conduction: Maintains stability up to 280°C.
• Efficient Power Consumption:  Operates on 2 x 1.5V AA batteries, enabling 200+ cuts.

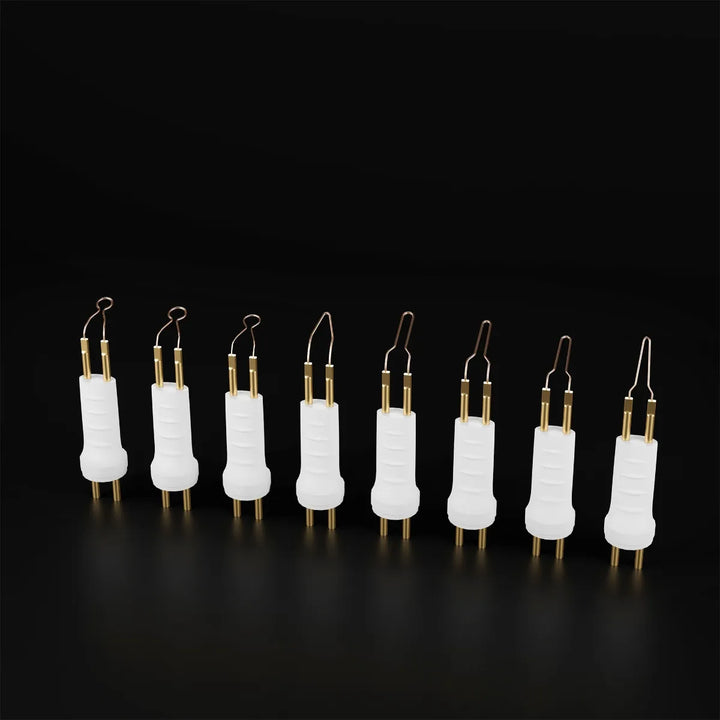

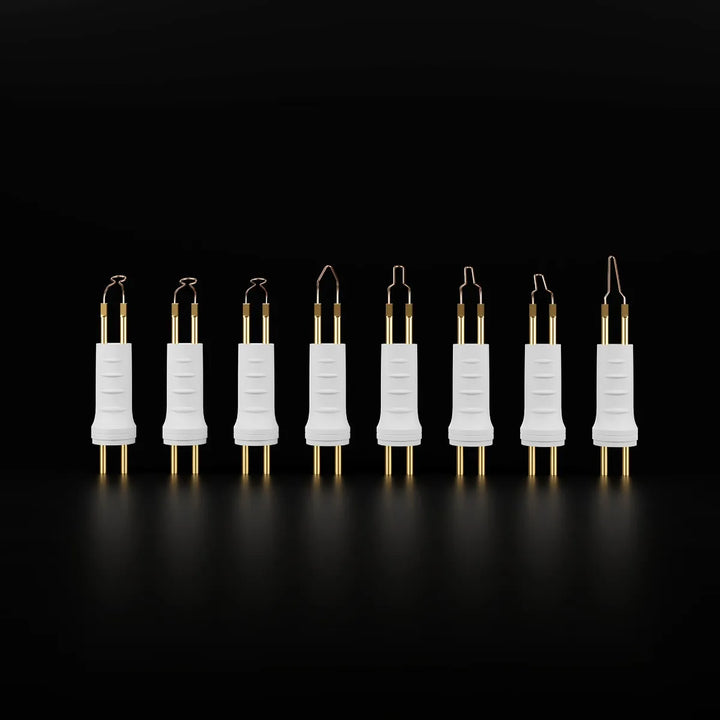

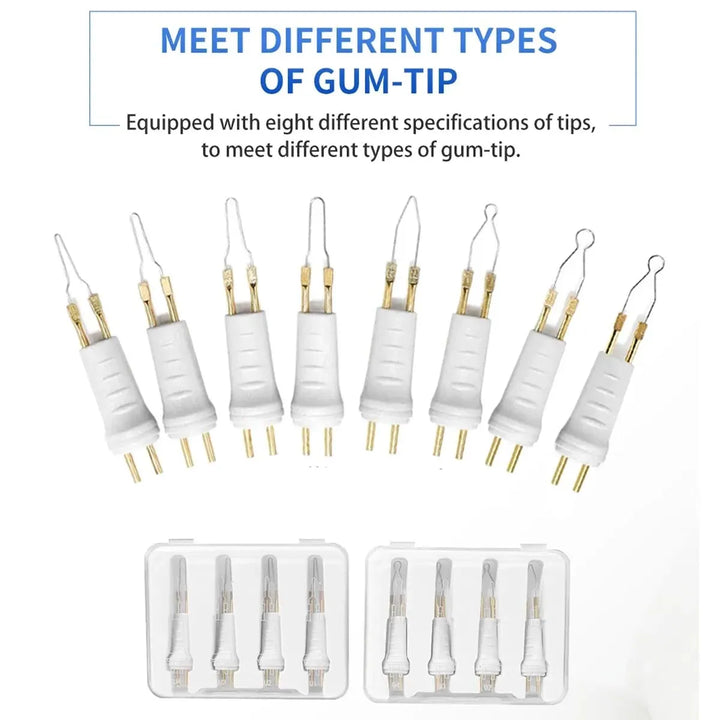

• Versatile Tip Options:  Eight specifications catering to gutta-percha variations
• Technical Specifications: Classified as Class II, Class B equipment with < 3W power and compact dimensions.
• Storage & Transport Environment: Operates within -10°C to 70°C, 10% to 90%RH humidity.
• Cleaning and Maintenance:  Requires thorough disinfection, and alcohol cleaning, and offers sterilizable tips.
• Ergonomic Design:  Comfortable grip for efficient use.
