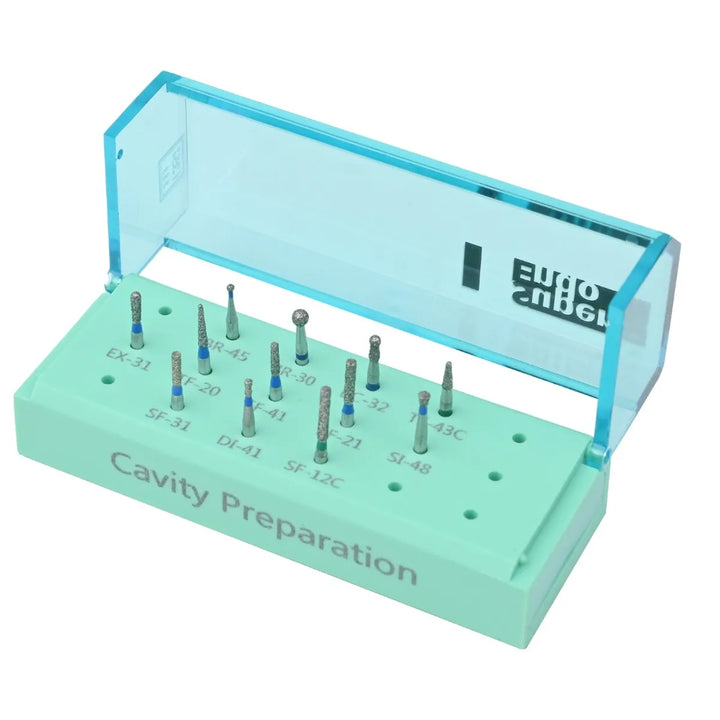

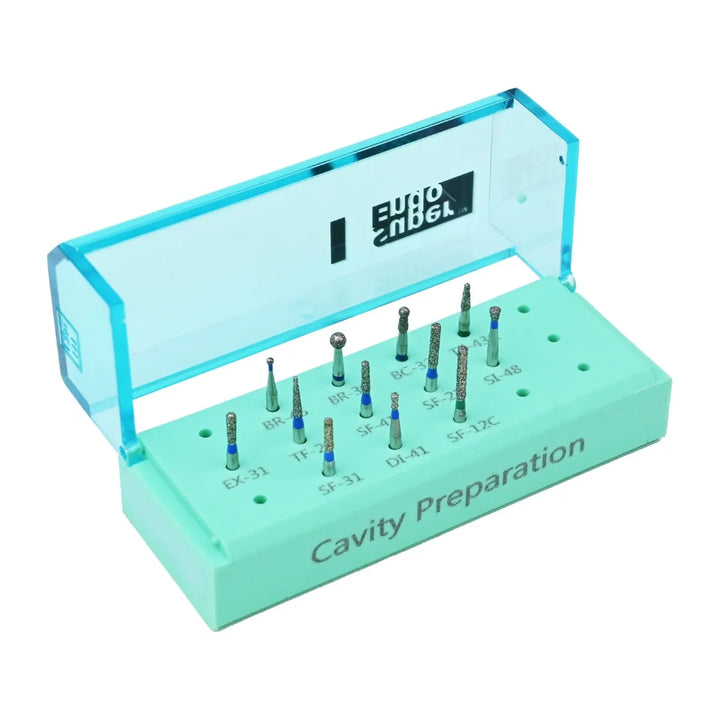

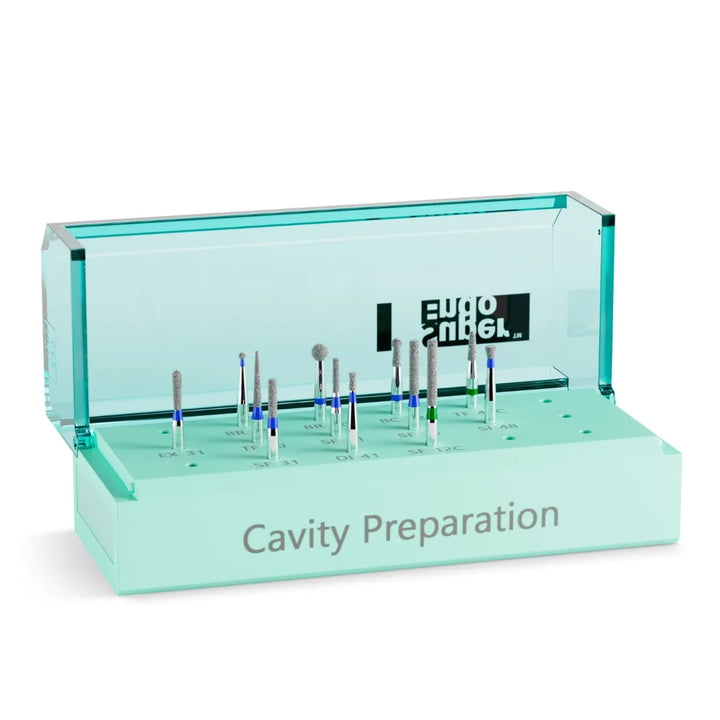

SuperEndo Cavity Preparation Burs Kit

Shank type - Friction grip

Construction - Stainless steel shank coated with evenly coated diamond particles

Autoclavable upto 134°C

Color Band On Shank:

• Regular - Blue
• Coarse - Green

Set Of 12 Burs:

• BR-45 (1mm diameter)
• BR-30 (2mm diameter)
• BC-32 (1.6mm diameter)
• TF43C (1.4mm diameter)
• EX-31 (1.4mm diameter)
• TF-20 (1.4mm diameter)
• SF-41 (1mm diameter)
• SF-21 (1.4mm diameter)
• SI-48 (1.6mm diameter)
• SF-31 (1.3mm diameter)
• DI-41 (1mm diameter)
• SF-12C (1.2mm diameter)

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece at the required working speed before applying the instrument to the treated area.
• Apply a maximum operating force of 0.4 [N] and do not exceed a speed of 230'000 [rpm].
• Activate water spray during the entire treatment (minimum 50 mL/min).
• Regulate water flow in case of water excess or shortage.
• It is recommended to use a dental dam.
• Use the instruments over the entire length of their working part and not just at the tip, so as to avoid an unconscious increase of the contact pressure causing local overheating.
• Once the preparation has been completed, remove the instrument from the site and allow it to come to a standstill.
• It is recommended to wear gloves and safety glasses.

• Superior design of the cutting edges for highly efficient tooth structure removal
• High neck strength prevents breakage
• Multilayered diamond particles for superior strength
• Ideal for cavity preparation, crown preparation and gaining endodontic access
• Evenly distributed diamond particles for even tooth structure reduction
• Sturdy built
• Superior design of the cutting edges for highly efficient tooth structure removal
• High neck strength prevents breakage
• Multilayered diamond particles for superior strength
• Ideal for cavity preparation, crown preparation and gaining endodontic access
• Evenly distributed diamond particles for even tooth structure reduction
• Sturdy built
