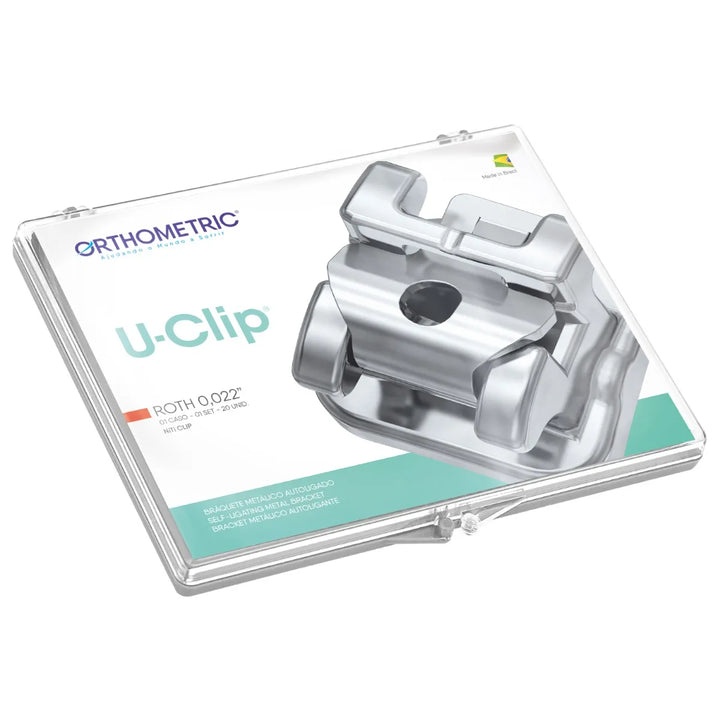

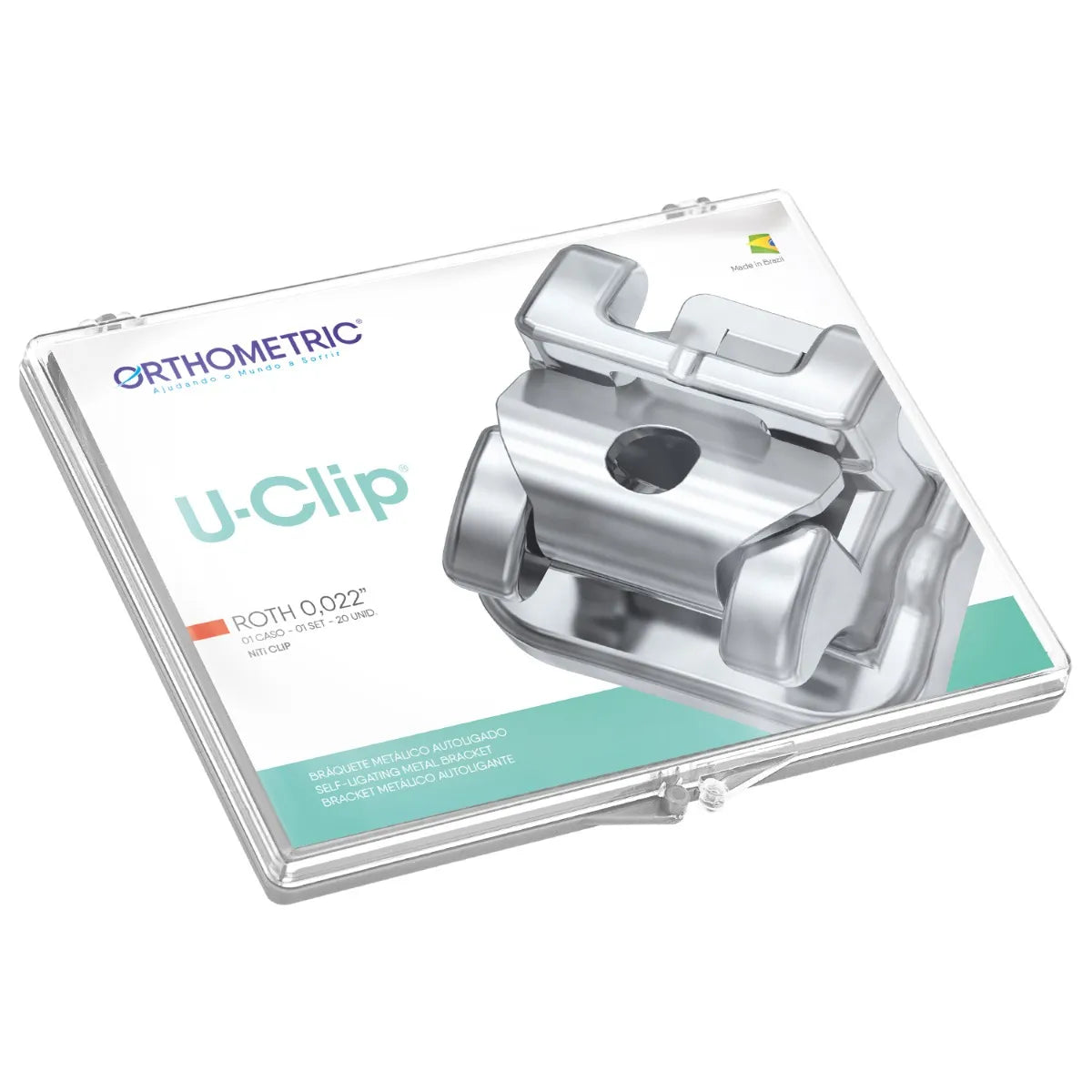

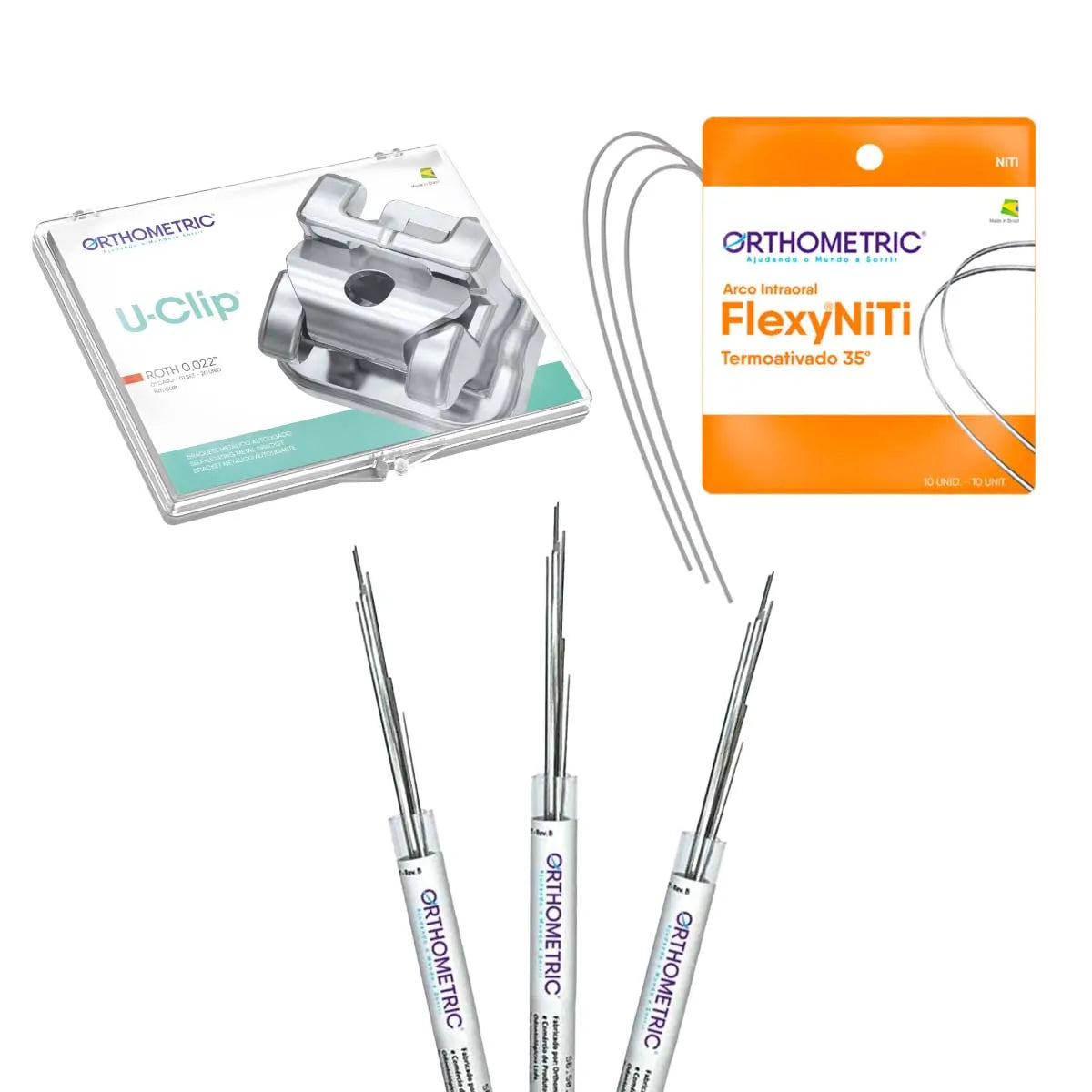

OrthoMetric U Clip Self Ligating Bracket Kit Roth 022 - (10.45.2304)

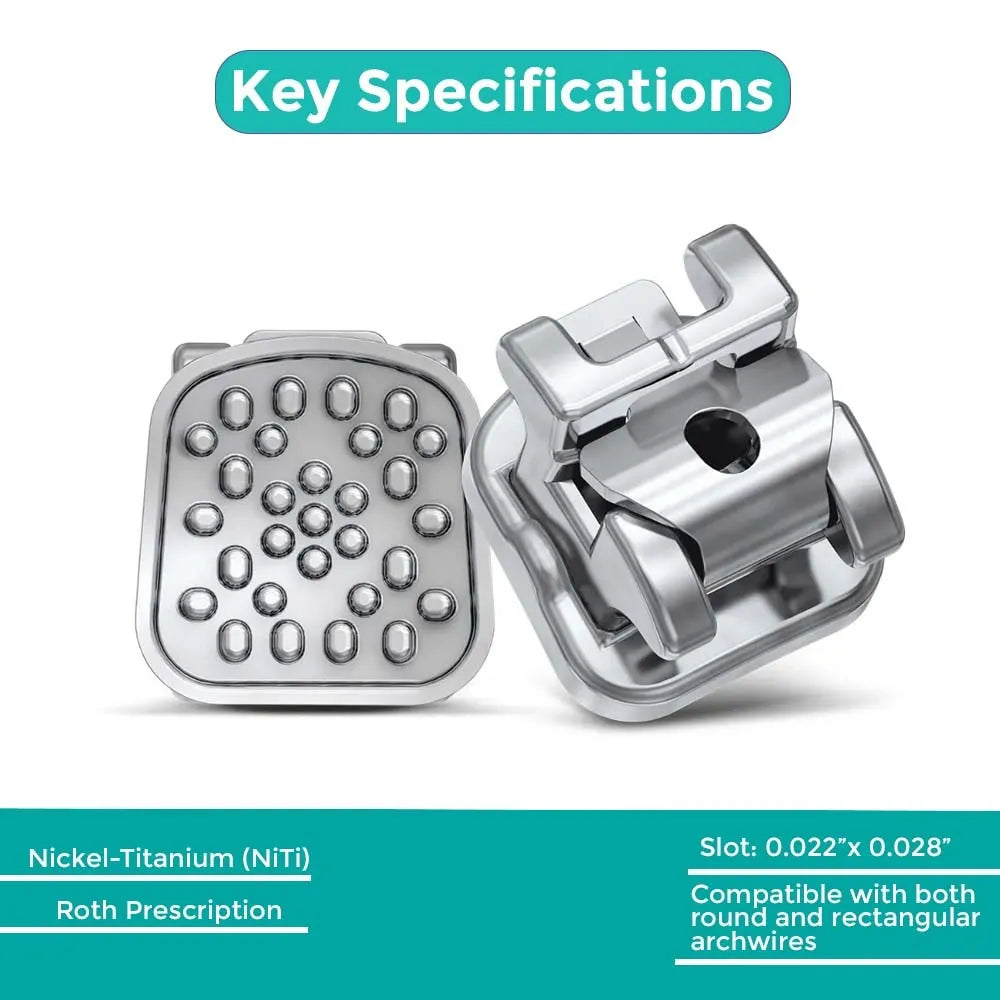

• Slot Size: Roth 0.022
• Design: Self-ligating
• Material: Nickel-Titanium clip, stainless steel body
• Clip Features: Elastic and memory properties prevent deformation
• Bonding Base: Laser Bonded Booster (LB2)

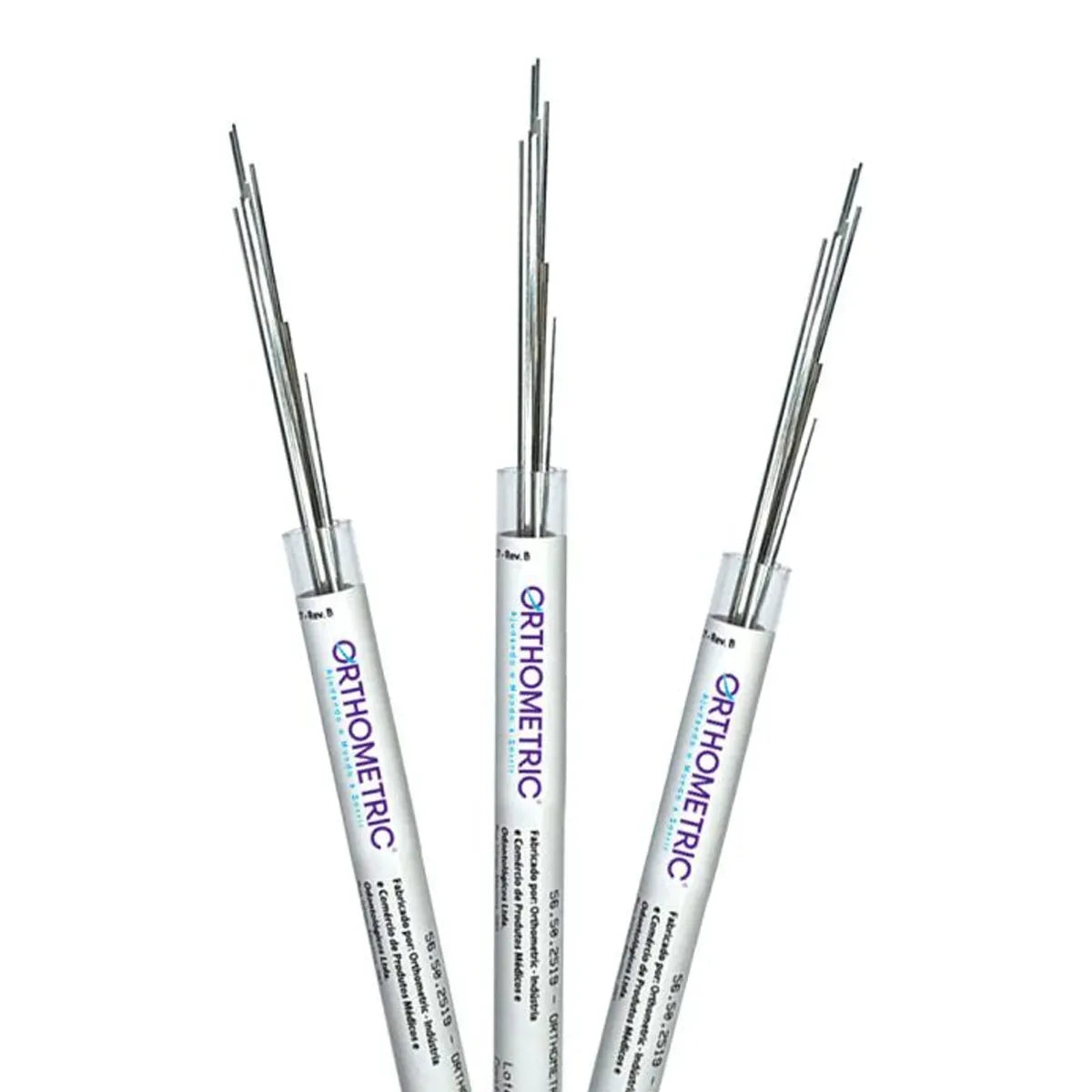

• Archwire Compatibility: Fits various round and rectangular archwires

Mechanism:

• Passive: Reduces friction
• Active: Applies pressure for torque control

Preparation:

• Ensure the patient's teeth are clean and dry
• Select the appropriate U-Clip brackets and archwires based on the treatment plan

Bracket Placement:

• Etching: Apply a phosphoric acid etchant to the enamel for 15-30 seconds, then rinse and dry
• Primer Application: Apply a bonding agent to enhance adhesion
• Positioning: Position the U-Clip bracket on the tooth, ensuring it fits snugly

Bonding:

• Apply orthodontic adhesive to the bracket base
• Press the bracket onto the tooth firmly, ensuring proper alignment

Archwire Insertion:

• Insert the archwire into the bracket slot. In passive mode, there is no pressure on the clip, allowing for comfortable tooth movement with round archwires

Active Phase Adjustment:

• As treatment progresses and higher gauge rectangular wires are used, the clip will exert pressure on the archwire, enhancing torque and rotation control

Monitoring and Adjustments:

• Regularly check brackets and wires during follow-up appointments to ensure effective treatment progression
• Adjust or replace archwires as necessary based on the patient's progress

• High precision and resistance: Manufactured using the modern MIM (Metal Injection Molding) metallurgy process, which guarantees the required robustness and rigidity of the product, using 17/4 PH steel, ensuring an excellent finish and dimensional accuracy

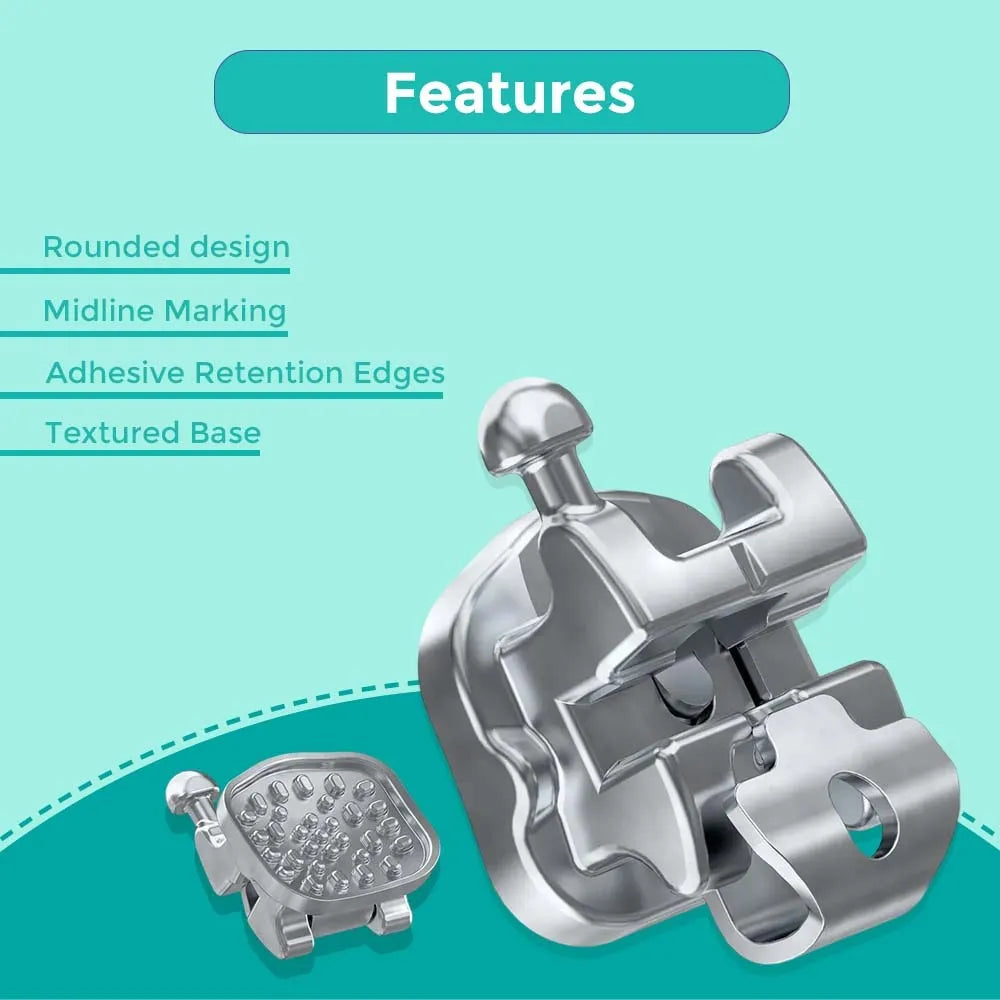

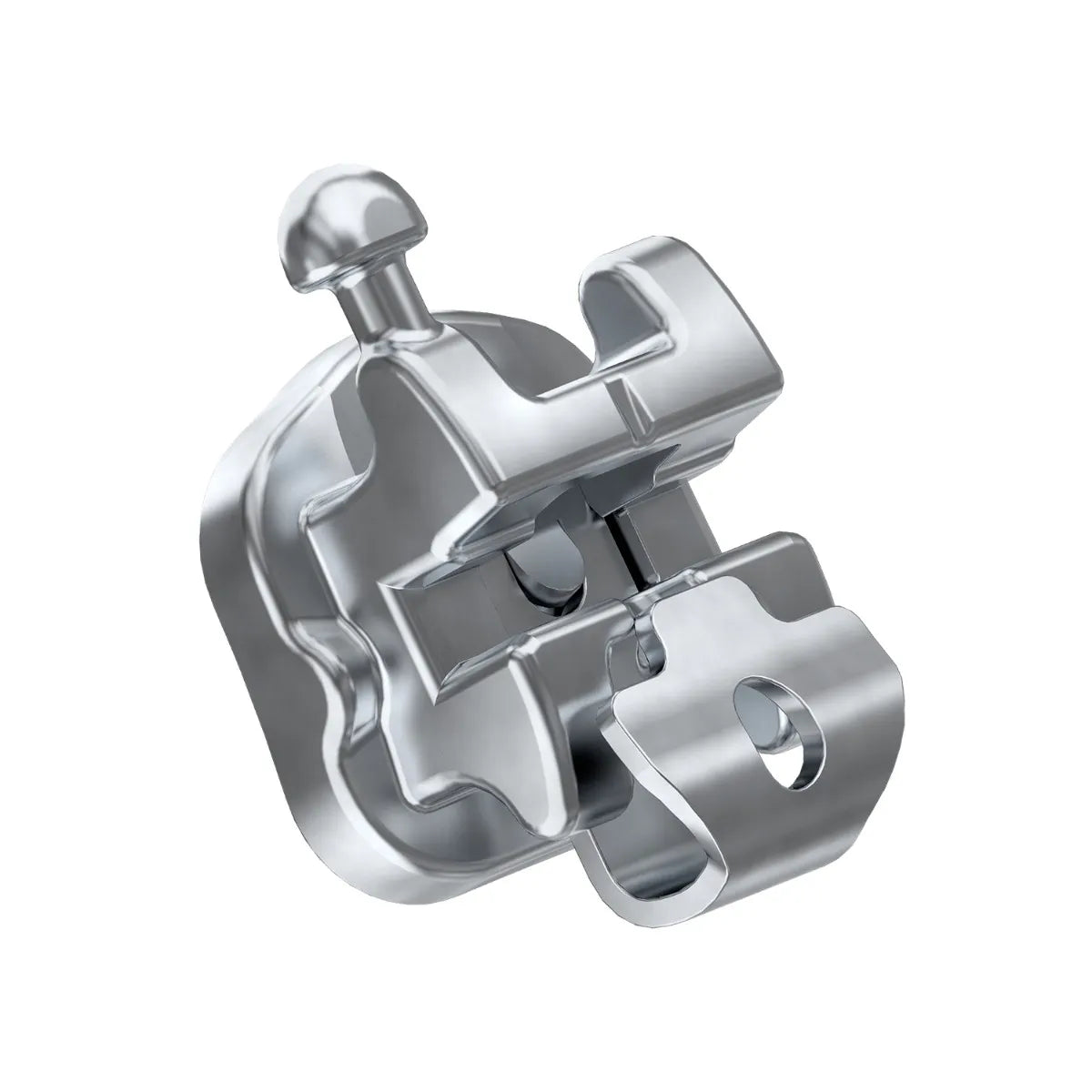

• Rounded design: Its rounded, polished, and edge-free design provides greater comfort to the patient
• Nickel-titanium (NiTi) clip: Clip manufactured in Nickel-Titanium alloy, which prevents permanent deformations under normal conditions of use due to the excellent elastic memory, ensuring greater durability and resistance
• Easy opening and closing of the clip: The clip is designed for simple opening and closing without the need for special instruments, using only an explorer or ligature applicator
• Excellent sliding mechanics: Chamfers at the slot exits help to reduce friction and minimize the effects of binding and notching, which are harmful during the orthodontic treatment
• Midline marking: Permanent marking on the midline, facilitates bracket positioning during the bonding process
• Better fitting: An anatomical base with mesiodistal and occlusal gingival curvatures, facilitating fitting to the tooth surface

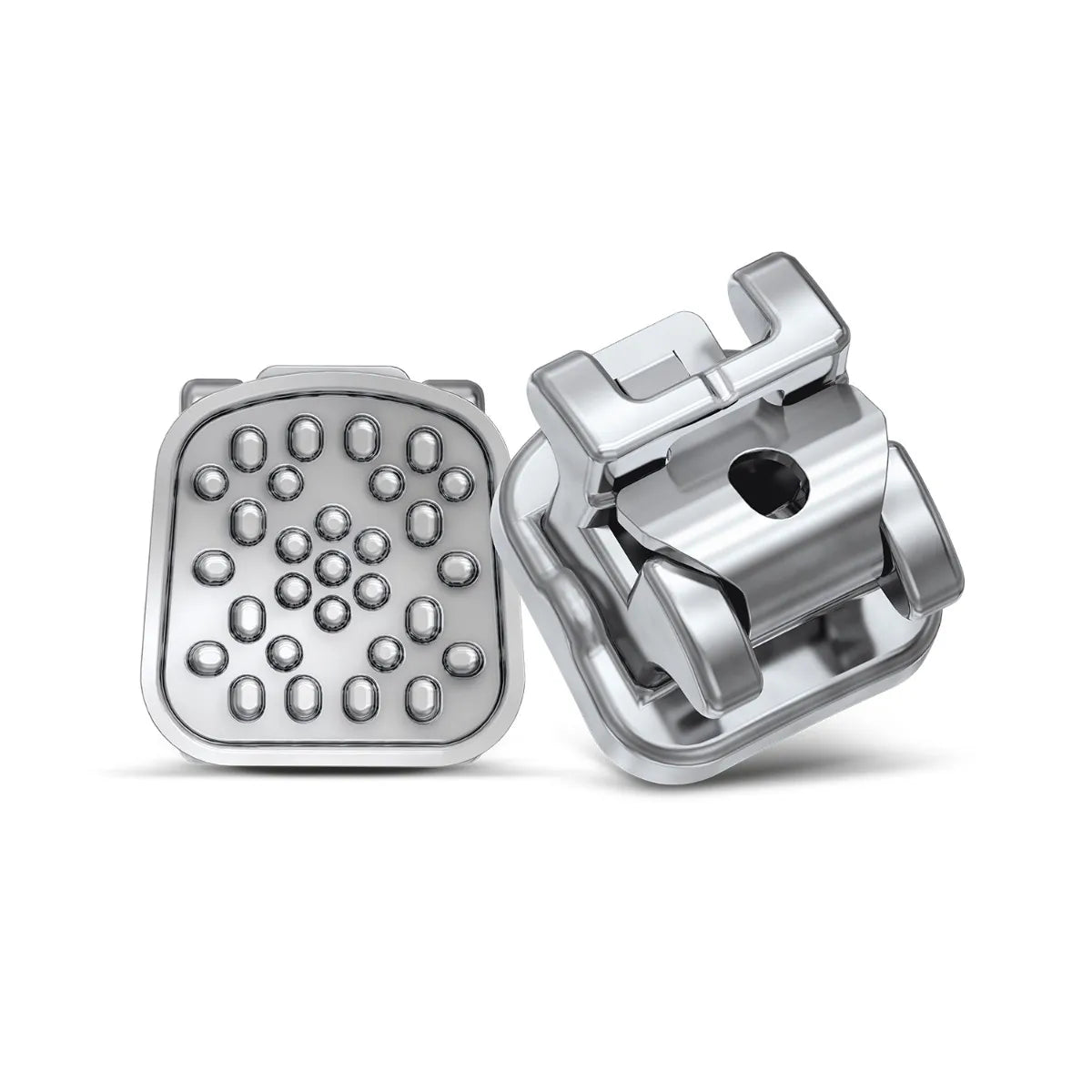

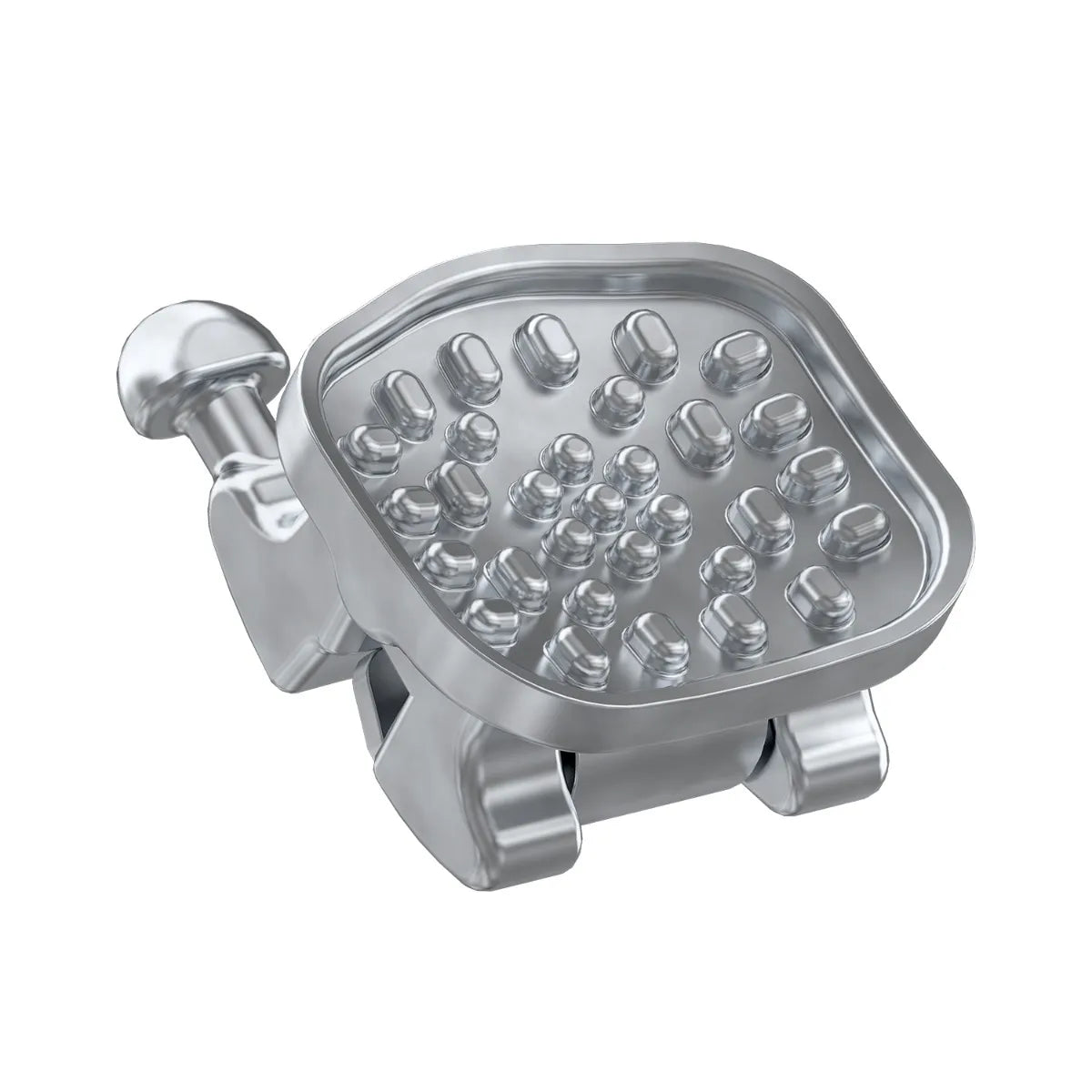

• Better retention: The base is designed with pins, and undergoes the LB2 (Laser Bond Booster) laser texturing process, which gives the brackets up to 30% greater retention, ensuring more efficient adhesion and safety to the orthodontist
• Adhesive retention edges: The retention edges prevent the resin from leaking and facilitate the removal of excess adhesive, keeping it from obstructing the bracket clip
