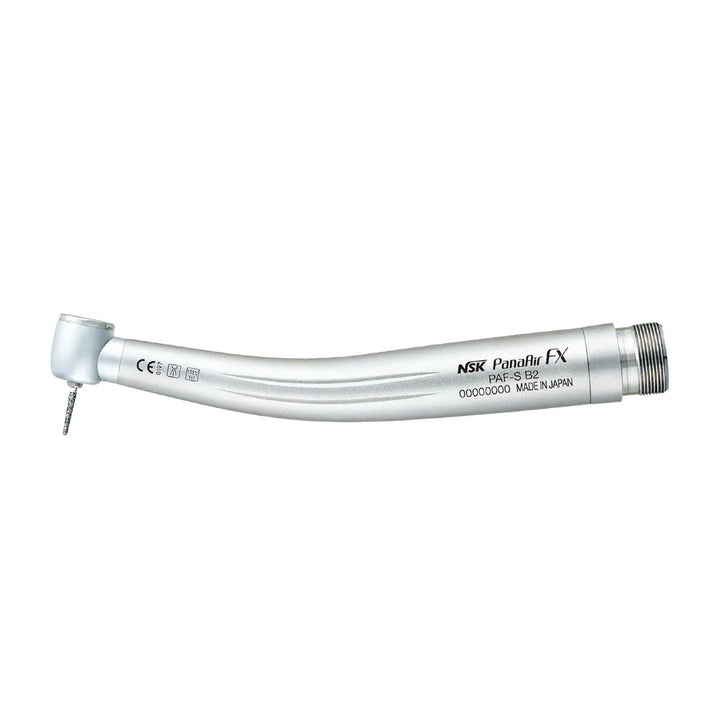

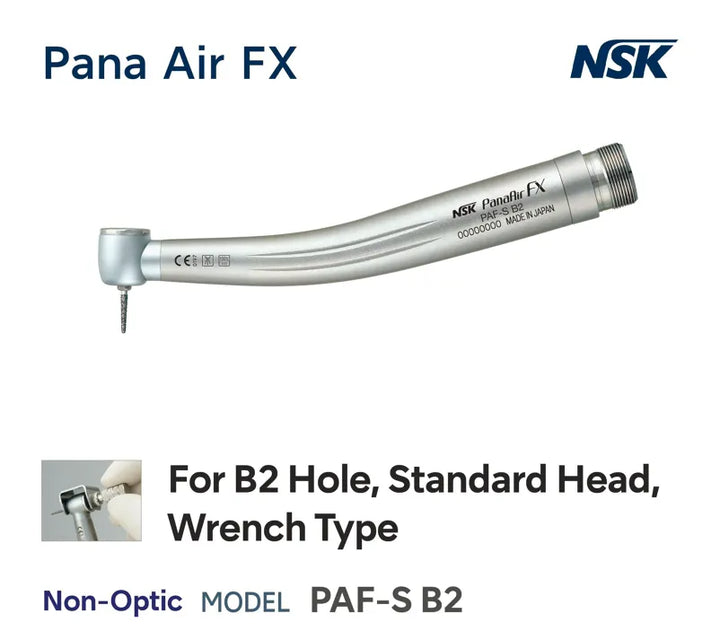

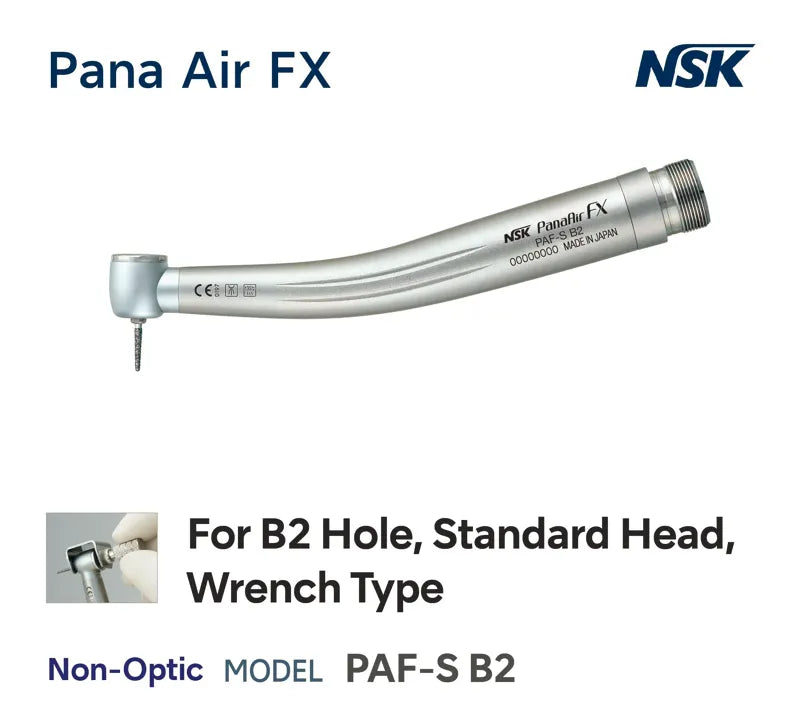

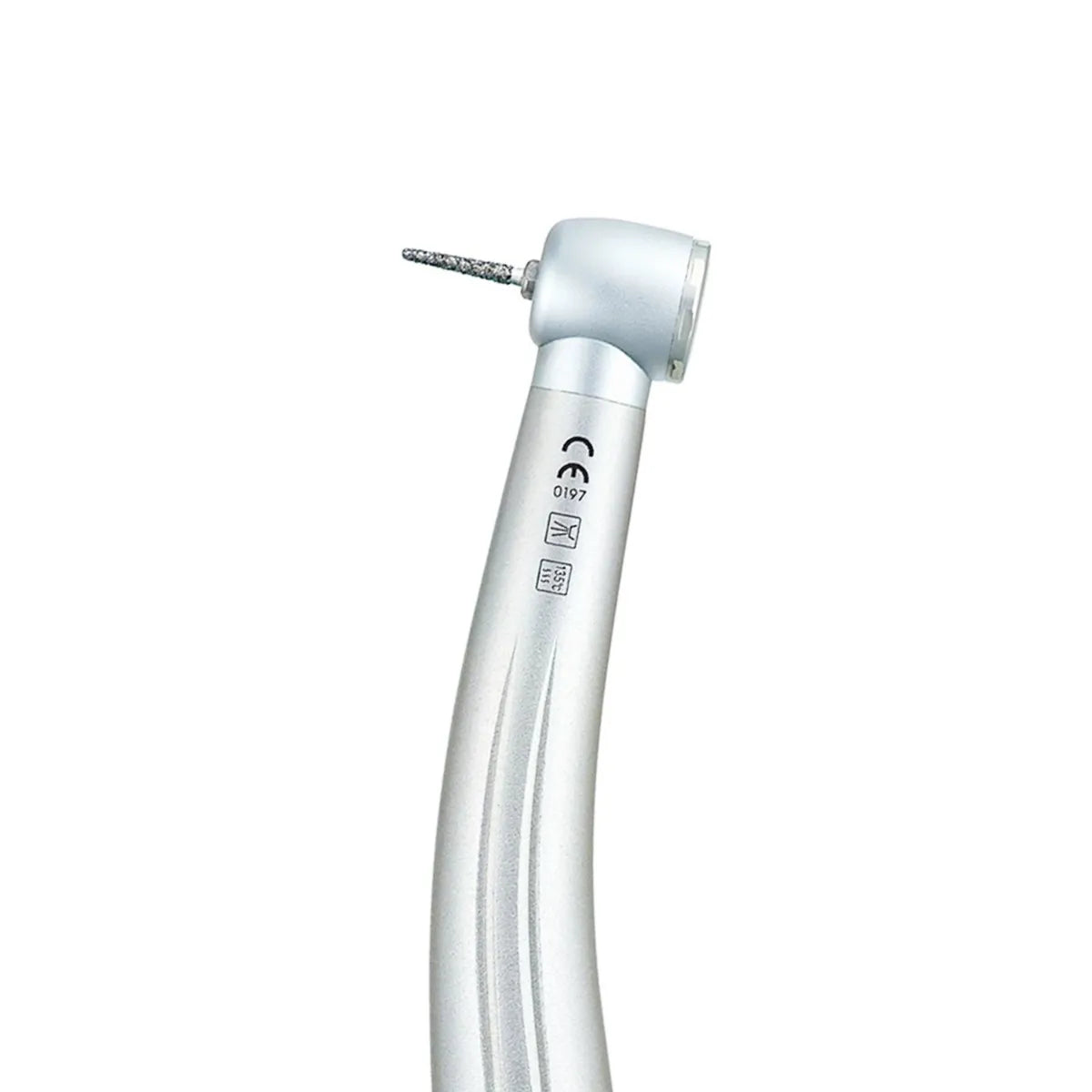

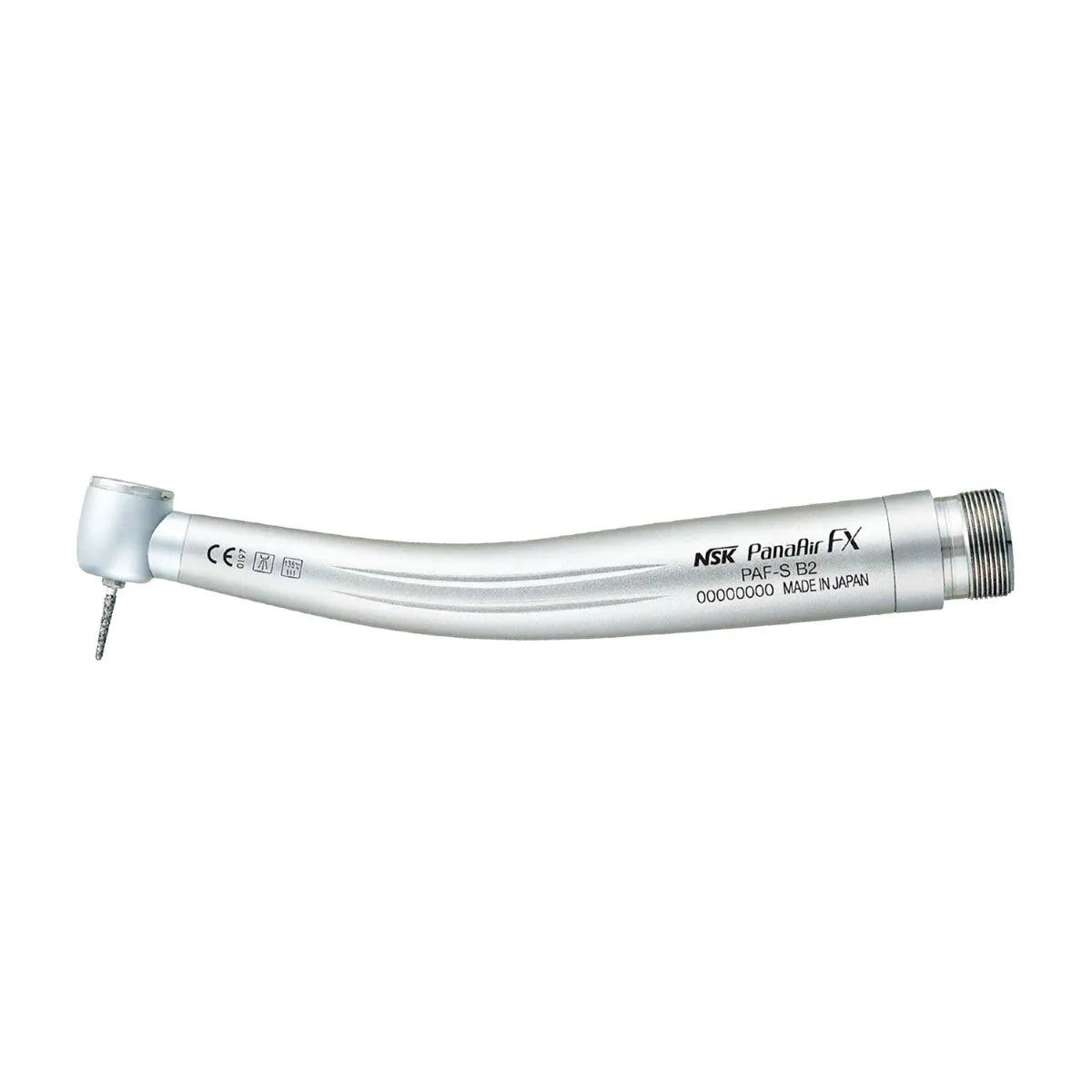

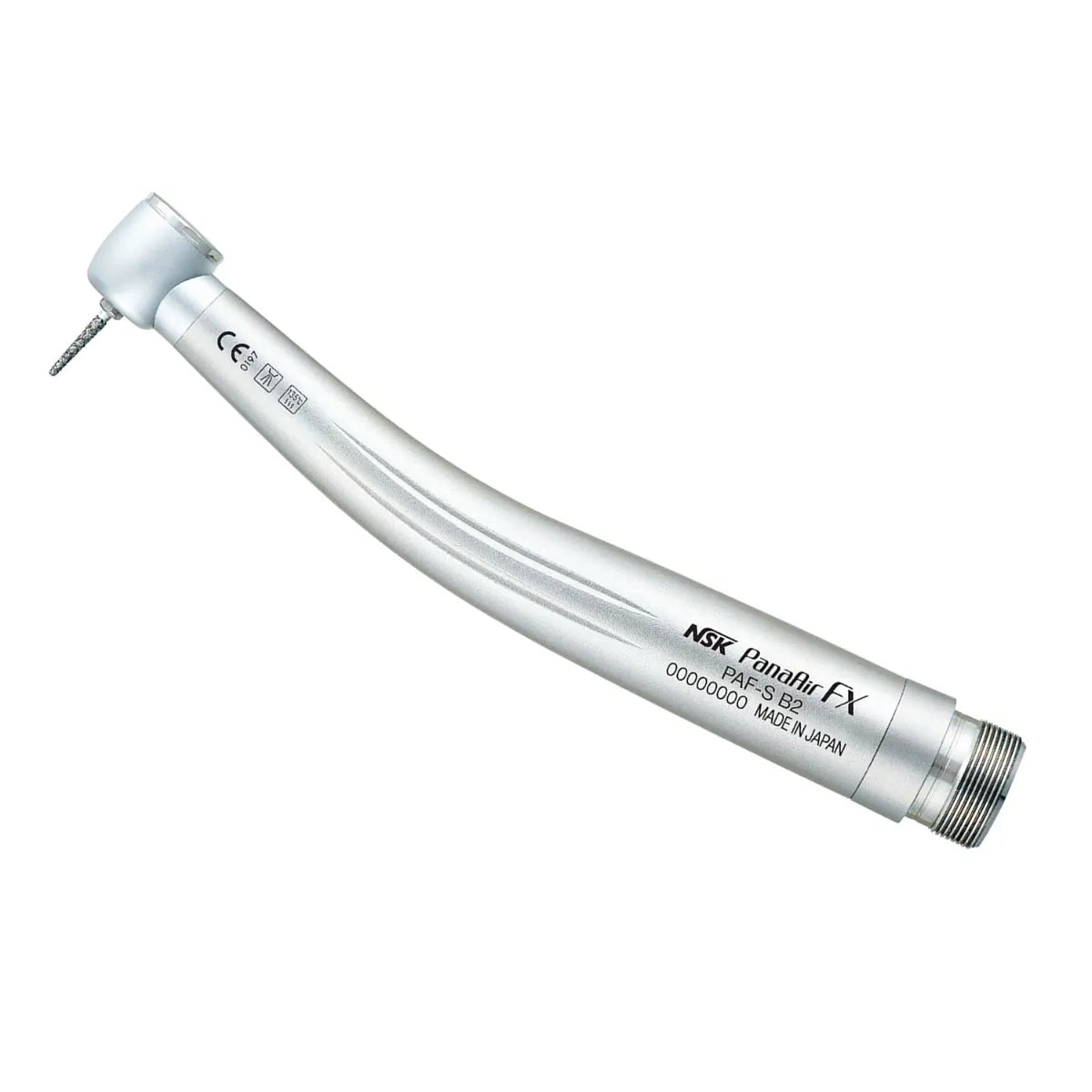

NSK Pana Air FX Standard Head Chuck Type Airotor Handpiece PAF - SB2

Rs. 10,390.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Rotation Speed: 350,000 - 450,000 min-1
  • Bur Type: ISO 1797-1 Ø1.59 - 1.60mm Standard Bur
  • Chuck Type: Screw Type/Wrench
  • Chucking Length: 10.2mm
  • Max. Bur Length: 21mm
  • Max. Working Part Diameter: Ø2mm
  • Drive Air Pressure: 0.20 - 0.25MPa (2.0 - 2.5kgf/cm2
  • Air Consumption: ≤55 NL/min (0.25MPa)
  • Water Pressure: 0.05 - 0.20MPa (0.5 - 2.0kgf/cm2

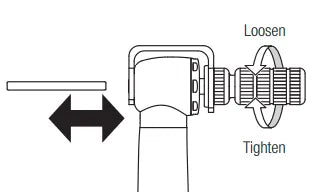

To Insert the Bur

  • Pull back the knurled knob then mount the Chuck Wrench onto the handpiece head.
  • Push the knob into the head then turn the knob about 1/4 turn counter clockwise.
  • Insert the bur into the chuck and turn the knob about 1/4 turn clockwise until it stops.
  • Remove the Chuck Wrench from the head by pulling back the knurled knob and releasing the wrench.
  • Ensure that the bur is secure by gently pulling and pushing the bur.

To Remove the Bur

  • To remove the bur, push the knob into the head then turn the knob about 1/4 turn counter anti-clockwise.

Sterilization: Sterilize the product by autoclave sterilization.

  • Remove the bur after each patient and sterilize as noted below.
  • Insert into an autoclave pouch. Seal the pouch.
  • Autoclavable under the conditions : Autoclave for more than 20 min. at 121°C, or 15 min. at 132°C, or 3 min. at 134°C.
  • The handpiece should remain in the autoclave pouch until required for use.
  • Stainless steel body for durability and corrosion resistance.
  • Ceramic bearings for smooth operation and extended lifespan.
  • Single spray system for effective cooling and irrigation.
  • Wrench type chuck for easy bur changes.
  • Non-LED design for cost-effectiveness.
  • Inbuilt anti-retraction valve for infection control.
  • Autoclavable up to 134°C for proper sterilization.
  • Stainless steel body for durability and corrosion resistance.
  • Ceramic bearings for smooth operation and extended lifespan.
  • Single spray system for effective cooling and irrigation.
  • Wrench type chuck for easy bur changes.
  • Non-LED design for cost-effectiveness.
  • Inbuilt anti-retraction valve for infection control.
  • Autoclavable up to 134°C for proper sterilization.
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables NSK
Tags: Product

Share On

Description

NSK Pana Air Handpiece FX SB2 is an exceptional dental handpiece that combines high performance, durability, and user-friendly features to meet the demands of dental professionals.  This handpiece stands out due to its remarkable rotation speed range of 350,000 to 450,000 min-1, ensuring efficient cutting and drilling for various dental procedures. The high-speed rotation enables precise and accurate work, contributing to excellent treatment outcomes. Equipped with a screw type or wrench chuck, the handpiece securely holds ISO 1797-1 Ø1.59 - 1.60mm standard burs, ensuring reliable bur retention during procedures. The chuck's 10.2mm chucking length accommodates different bur sizes, while the maximum bur length of 21mm allows for versatility in dental applications.

The handpiece features a stainless steel body, guaranteeing durability and resistance to corrosion. Its ergonomic design ensures optimal comfort and control for dental professionals, even during extended use. The comfortable grip minimizes hand and wrist fatigue, facilitating precise and efficient procedures. The handpiece incorporates a single spray system that effectively cools and irrigates the treatment area, preventing overheating and enhancing patient comfort. The inbuilt anti-retraction valve ensures a sterile working environment by preventing backflow and contamination.
