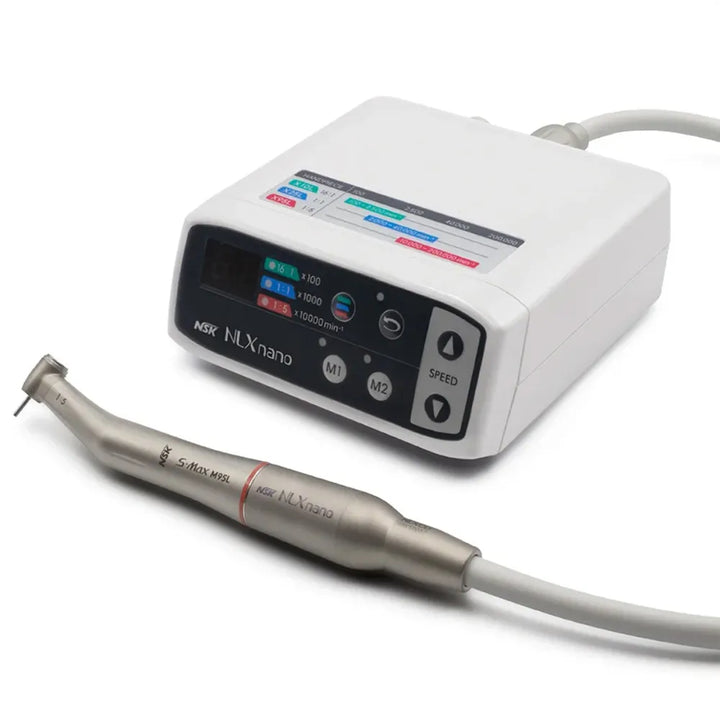

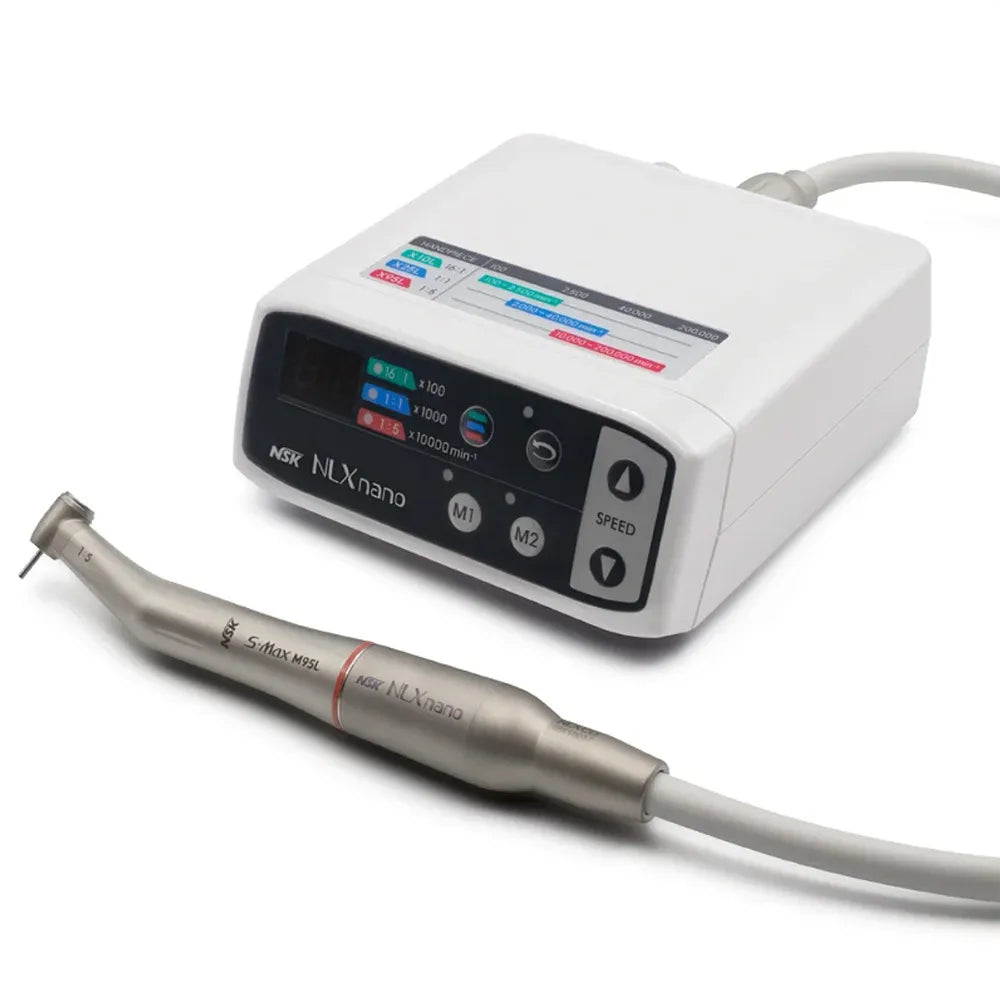

NSK NLX Nano Brushless Fiber Optic Table Top Micromotor Without M95 H/P

• Speed: 1,000 ~ 40,000 min⁻¹
• Torque: 3.4 Ncm
• Rated Input: AC 28V 50/60 Hz
• Motor Type: Brushless Micromotor
• Dimensions: W127 x D149 x H54 (mm)
• Weight: 517g
• Compatible: Compatible Contra-Angle 1:5 Increasing Gear Handpiece (Red Ring)

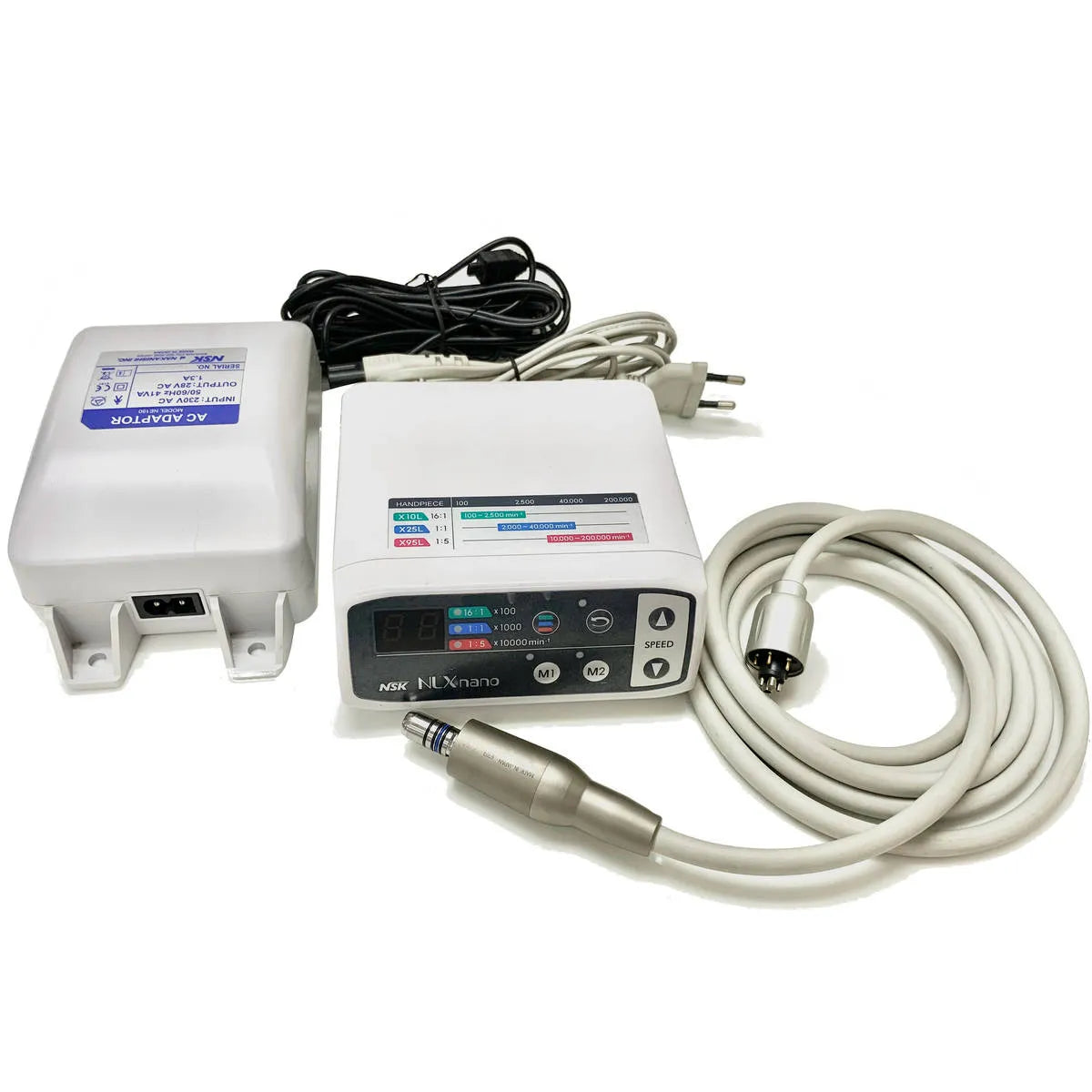

Set up the micromotor:

• Connect the motor cord to the control unit.
• Plug the AC adapter into the control unit and a power outlet.
• Attach the desired contra-angle handpiece to the motor.

Adjust the settings:

• Turn on the control unit.
• Select the desired program (surgical or general application) using the program button.
• Adjust the speed using the speed control buttons, within the range of 2,000 to 40,000 rpm.
• If needed, adjust the torque setting.

Prepare the patient and work area:

• Position the patient comfortably and provide eye protection if necessary.
• Ensure the work area is well-lit and accessible.

Use the micromotor for the dental procedure:

• Activate the micromotor using the foot control or control unit buttons.
• Apply gentle pressure and allow the micromotor to do the work.
• Use the fiber optic illumination for enhanced visibility during the procedure.

Maintain the micromotor:

• After each use, wipe down the motor and handpiece with a disinfectant.
• Autoclave the motor and handpiece according to the manufacturer's instructions.
• Store the micromotor in a clean, dry place when not in use.

• Reduced Weight and Size: The NLX Nano is designed to be 20% lighter and over 25% smaller than the current NSK micromotors. This reduction in weight and size enhances handling and maneuverability, making it easier for dentists to perform precise procedures without fatigue.
• Powerful Performance with Wide Speed Range: Despite its compact size, the NLX Nano delivers power equivalent to NSK’s current brushless clinical micromotors. It offers the same speed range, ensuring that dentists do not have to compromise on performance for portability.

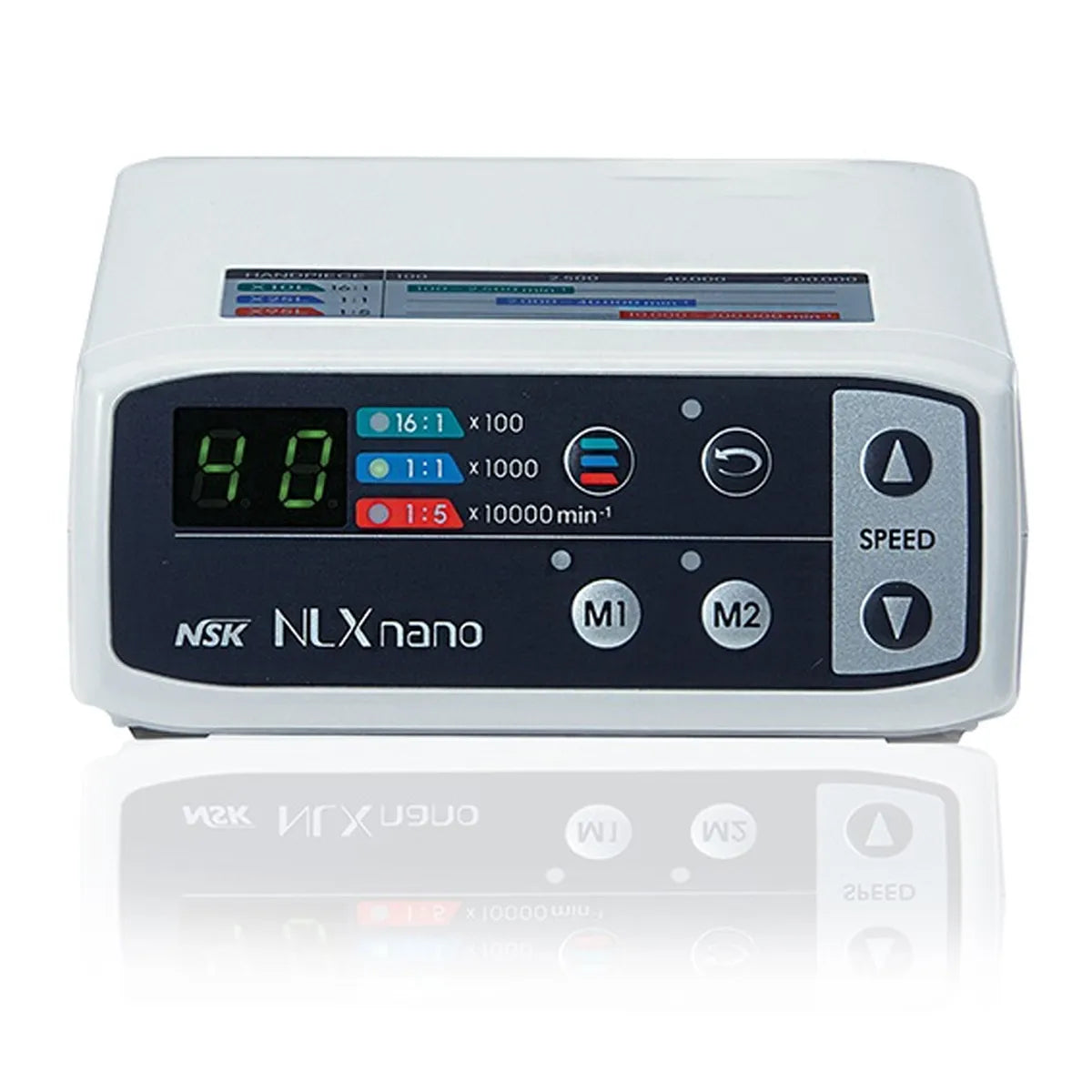

• Digital Speed Display: The system includes a digital speed display, providing precise control and visibility of the operating speed. This feature is crucial for procedures requiring specific speed settings, ensuring accuracy and consistency.
• Forward/Reverse Functionality: The NLX Nano is equipped with a forward/reverse switch, allowing dentists to change the rotation direction easily. This feature enhances the versatility of the micromotor, making it suitable for a variety of dental procedures.
• Memory Function: The inclusion of a memory function in the NLX Nano allows dentists to save their preferred settings. This feature streamlines the workflow, enabling quick and easy setup for recurrent procedures.

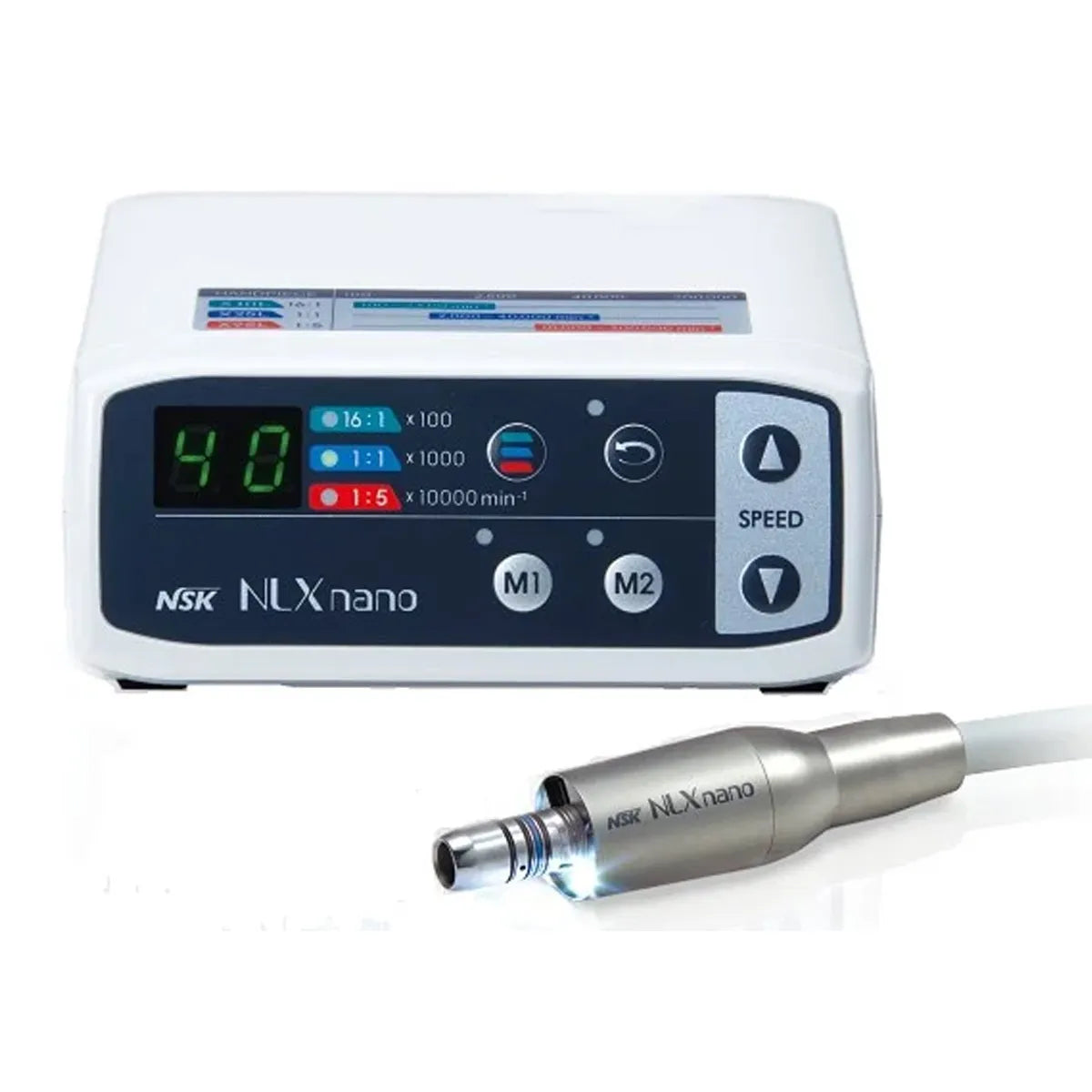

• Light Brightness Adjustment: The system offers a light brightness adjustment function, providing optimal illumination for different procedures and preferences. Proper lighting is essential for precision in dental work, and this feature ensures ideal visibility.
• Foot Air Calibration: The NLX Nano includes a foot air calibration function, adding an extra layer of control for the dentist. This calibration ensures accurate foot control during operations, contributing to the overall precision and ease of use.
• Reduced Weight and Size: The NLX Nano is designed to be 20% lighter and over 25% smaller than the current NSK micromotors. This reduction in weight and size enhances handling and maneuverability, making it easier for dentists to perform precise procedures without fatigue.
• Powerful Performance with Wide Speed Range: Despite its compact size, the NLX Nano delivers power equivalent to NSK’s current brushless clinical micromotors. It offers the same speed range, ensuring that dentists do not have to compromise on performance for portability.
• Digital Speed Display: The system includes a digital speed display, providing precise control and visibility of the operating speed. This feature is crucial for procedures requiring specific speed settings, ensuring accuracy and consistency.
• Forward/Reverse Functionality: The NLX Nano is equipped with a forward/reverse switch, allowing dentists to change the rotation direction easily. This feature enhances the versatility of the micromotor, making it suitable for a variety of dental procedures.
• Memory Function: The inclusion of a memory function in the NLX Nano allows dentists to save their preferred settings. This feature streamlines the workflow, enabling quick and easy setup for recurrent procedures.
• Light Brightness Adjustment: The system offers a light brightness adjustment function, providing optimal illumination for different procedures and preferences. Proper lighting is essential for precision in dental work, and this feature ensures ideal visibility.
• Foot Air Calibration: The NLX Nano includes a foot air calibration function, adding an extra layer of control for the dentist. This calibration ensures accurate foot control during operations, contributing to the overall precision and ease of use.
