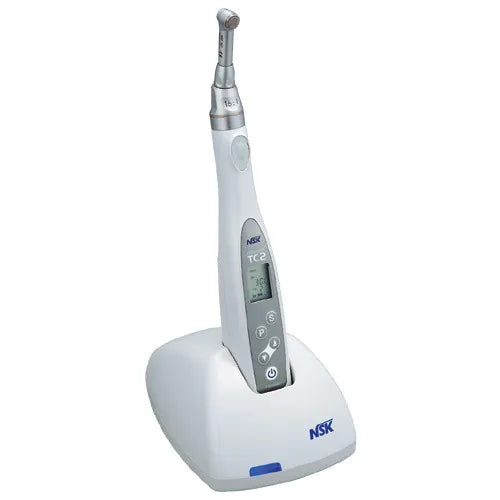

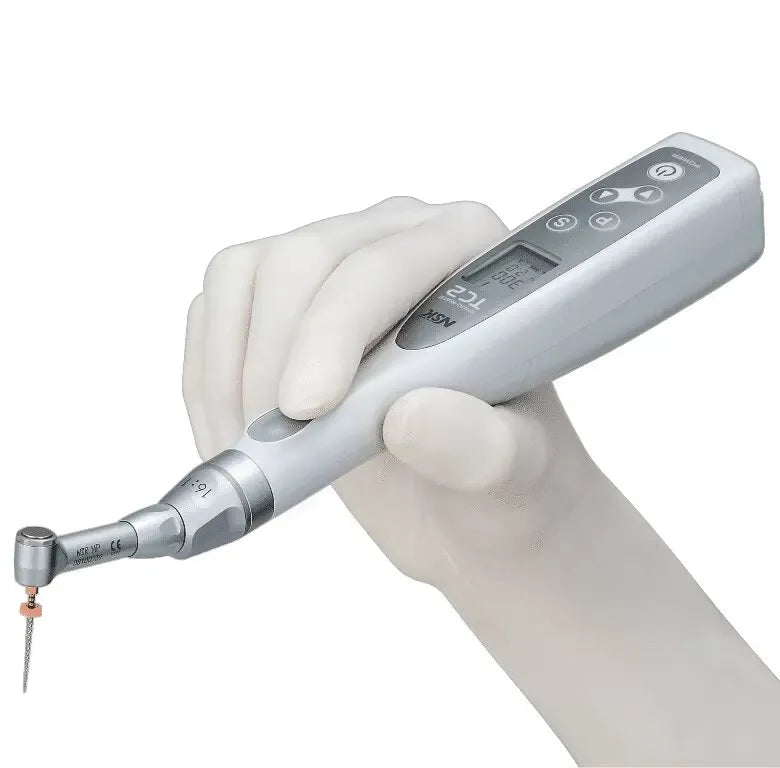

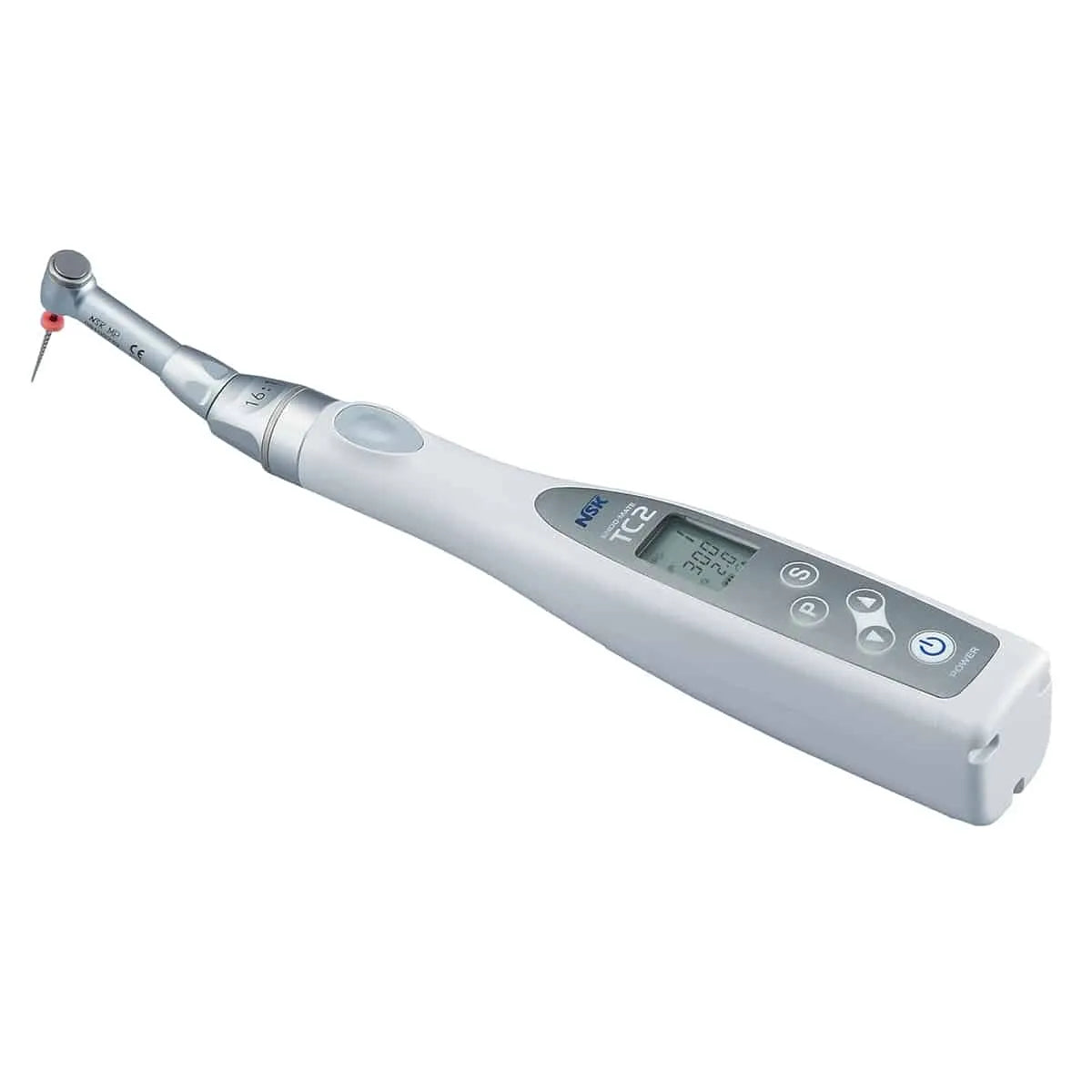

NSK Endomate TC2 Endo Motor

Rs. 50,300.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Power Supply : AC 230 V 50/60 Hz
  • Number of Programs : 5
  • Maximum Torque : 3 Ncm (when using 16:1 head)
  • Charge/Continuous use: 90 min / 1.2 h (depending on workload)
  • Speed range : 100-2,250 min-1 (With 20:1, 16:1, 10:1, 4:1 geared heads)
  • Power on the endomotor using the designated power button.
  • Select the appropriate program for your specific endodontic rotary file system. The device offers five pre-set programs to accommodate different file systems.
  • Attach the compatible rotary file to the handpiece securely. Ensure it is properly aligned and locked in place.

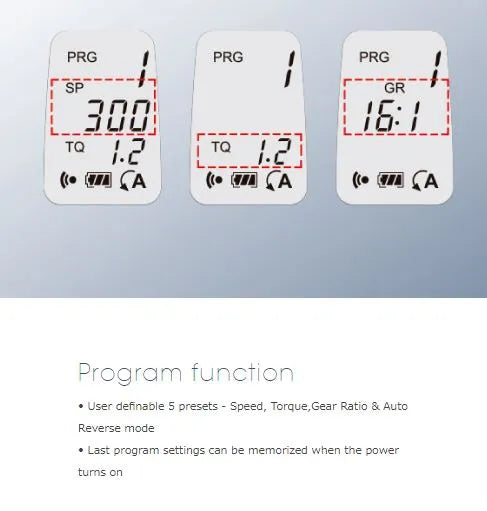

  • Adjust the desired settings using the 5-key operation system and the large LCD display. This may include adjusting the speed, torque, and other parameters based on the requirements of the procedure.
  • Before starting the root canal shaping, ensure that the file is properly positioned within the canal and that the handpiece is held in a comfortable grip.
  • Begin the procedure by gently activating the motor. Gradually increase the speed and torque as needed, while closely monitoring the progress on the LCD display.

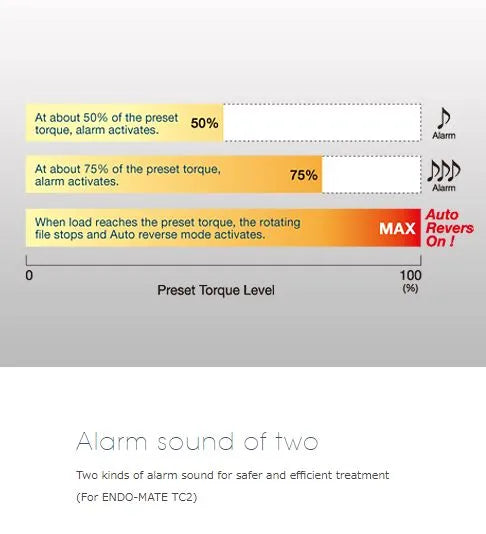

  • Pay attention to the Auto Reverse and Alarm Functions. If the audible alarm sounds, it indicates that the file is nearing the preset torque level. Promptly unload the file before the Auto Reverse function is activated to prevent any complications.
  • Throughout the procedure, maintain control over the handpiece and monitor the LCD display for any changes or notifications.
  • After completing the root canal shaping, power off the endomotor and carefully detach the rotary file from the handpiece.
  • Cordless & portable unit for easy operation.

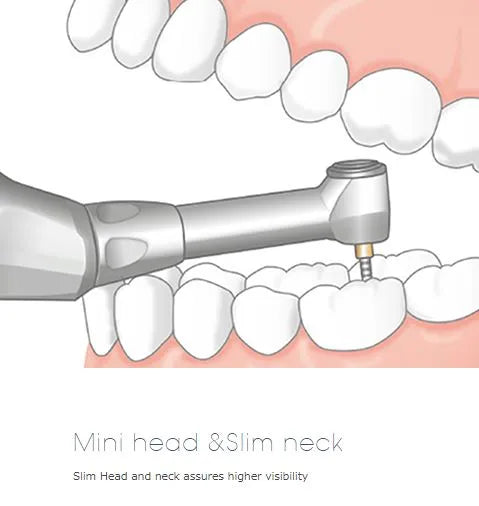

  • Slim Head and neck assure higher visibility.
  • Large LCD panel and access-friendly key.
  • Lightweight, ergonomic design.
  • Smart Auto Reverse & Alarm Function.
  • 5 programs for different file systems.
  • Last program settings can be memorized.
  • 90 min. quick charge with a non-contact type charger.
  • Light weight to prevent hand fatigue.
  • Auto-reverse function for preservation of canal & anatomy.
  • 5 programs for different file systems.
  • Cordless & portable unit for easy operation.
  • Slim Head and neck assure higher visibility.
  • Large LCD panel and access-friendly key.
  • Lightweight, ergonomic design.
  • Smart Auto Reverse & Alarm Function.
  • 5 programs for different file systems.
  • Last program settings can be memorized.
  • 90 min. quick charge with a non-contact type charger.
  • Light weight to prevent hand fatigue.
  • Auto-reverse function for preservation of canal & anatomy.
  • 5 programs for different file systems.
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables NSK
Tags: Product

Share On

Description

Endo-Mate TC2 is a state-of-the-art endo motor designed for precise and efficient root canal shaping in endodontic treatment. With its cordless handpiece, clinicians enjoy unmatched freedom of movement and ease of use, even in delicate procedures. The lightweight design ensures optimal comfort and control, reducing hand fatigue and enhancing maneuverability. The large LCD display and intuitive 5-key operation make programming and monitoring settings effortless, while its compatibility with major rotary systems provides flexibility and convenience for dental professionals. The endo motor offers five programs tailored to different endodontic rotary file systems, catering to diverse treatment requirements. A standout feature is the Auto Reverse and Alarm Function, which alerts the clinician with an audible sound before reaching the preset torque level, allowing for timely unloading of the file and preventing potential complications. The Endo-Mate TC2 combines precision, versatility, and user-friendly features, making it a preferred choice for dental professionals seeking superior performance in root canal procedures.
-
