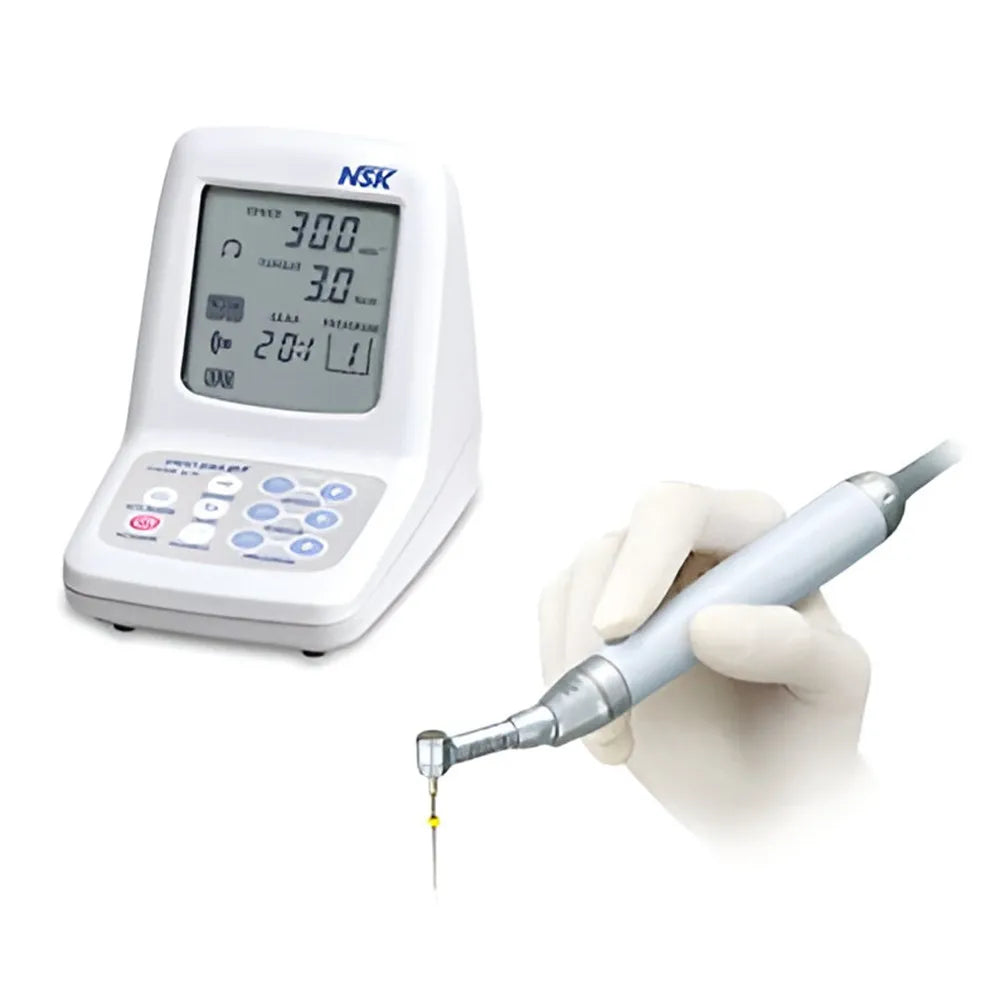

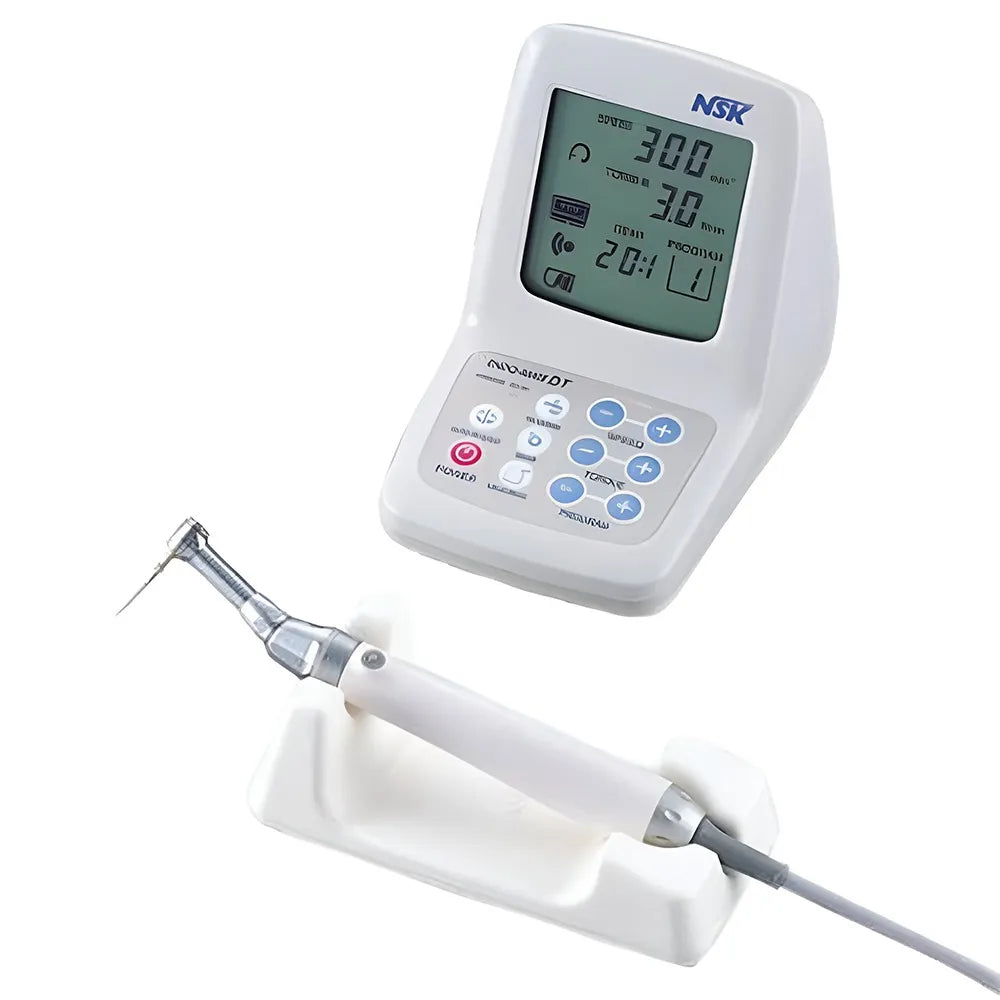

NSK Endo-Mate DT Endomotor

Rs. 45,000.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Torque control from 0.3 to 3 Ncm
  • Speed range: 140 - 550 min
  • Dimensions : W92 x D148 x H124 (mm)
  • Weight: Unit 456g/Motor handpiece & cord 92g
  • Power Supply :- AC120V 60 Hz or 230V 50/60 Hz and Battery PacK
  • Power Connection: Ensure the device is turned off. Connect the AC adaptor to the control unit and confirm that the AC IN lamp lights up, indicating the power supply.
  • Preset Memory: Program your desired speed and torque settings into the preset memory. This can be done by selecting the desired settings and pressing the MEMORIZE key. You can store up to 9 different settings.
  • Power On/Off: To turn on the device, press and hold the POWER key for more than one second. Briefly pressing the POWER key again will stop the motor handpiece. For intermittent operation, keep the POWER key pressed while the handpiece is running and release it to stop.
  • Speed and Torque Adjustment: Fine-tune the rotation speed using the SPEED key and adjust the torque limit value using the TORQUE key.
  • Rotational Direction: Select the desired rotational direction by pressing the REVERSE key. Each press of the key alternates between forward rotation and reverse rotation.
  • Auto Reverse Function: The AUTO REVERSE key allows you to activate the auto-reverse mode. Press the key to cycle between [AUTO REVERSE AUTO STOP] and [AUTO REVERSE OFF] modes.

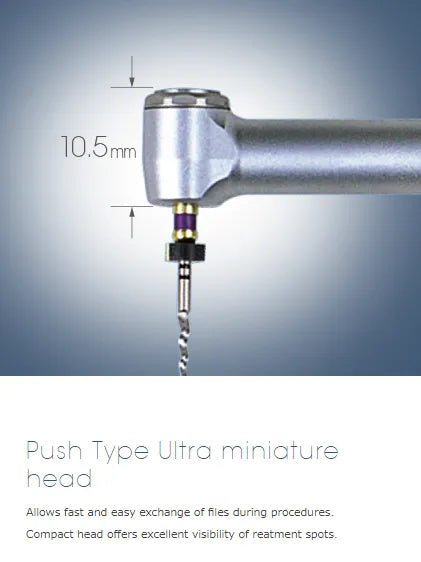

  • Connecting Contra Angle Head: Align the positioning pins of the contra-angle head with the positioning slots of the motor handpiece. Insert the head until it clicks into place. To remove the head, pull it out axially.
  • Mounting and Removing Files: Mounting the file involves inserting it into the chuck until it stops and lightly turning it until it engages with the latch mechanism. Push it inward to click. To remove the file, depress the push button and pull it out.
  • Calibration: Calibration helps reduce fluctuation in rotation speed and torque. Lubricate the contra-angle head, turn off the power, connect the AC adaptor, and turn on the power. Simultaneously hold down both SPEED buttons for more than one second.
  • Battery Refresh: Battery refresh helps resolve the "memory effect" in Ni-MH batteries. Turn off the power, connect the AC adaptor, and hold down the POWER key while pressing the REVERSE key.
  • Auto-reverse function
  • Compact desktop unit
  • Large LCD screen provides clear visibility

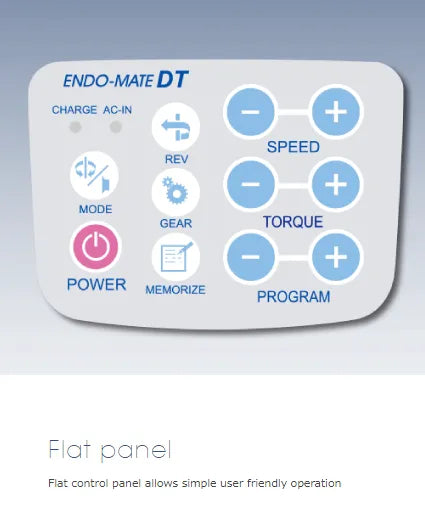

  • Simple-to-operate Flat Control Panel
  • Dual Power Source: AC or Battery Operation
  • Slim and light handpiece
  • 2-Way ON/OFF switch
  • Number of Programs: 9
  • Auto-reverse function
  • Compact desktop unit
  • Large LCD screen provides clear visibility
  • Simple-to-operate Flat Control Panel
  • Dual Power Source: AC or Battery Operation
  • Slim and light handpiece
  • 2-Way ON/OFF switch
  • Number of Programs: 9
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables NSK
Tags: Product

Share On

Description

NSK Endo-Mate DT Endomotor is a state-of-the-art Endo Micromotor that offers exceptional functionality and convenience. Specifically designed for use with Ni-Ti files from all major suppliers, it provides precise and reliable performance in endodontic procedures. One of its standout features is the user-programmable preset memory, which allows you to store up to 9 speed and torque settings. This ensures that you can easily select the optimal settings based on the specific requirements of each procedure, streamlining your workflow and enhancing efficiency. Portability is another key advantage of the ENDO-MATE DT. With its compact and lightweight control unit, you can conveniently transport it between dental offices, providing flexibility and versatility in different clinical settings. Whether you prefer to connect it directly to a wall outlet or utilize the rechargeable battery option, the ENDO-MATE DT offers the freedom to choose the power source that suits your needs. The device features a large LCD display, offering excellent
