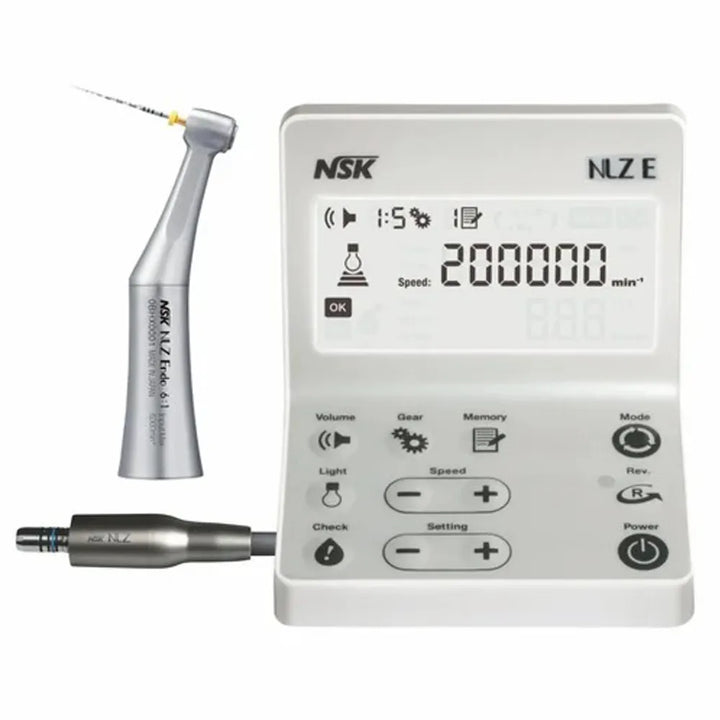

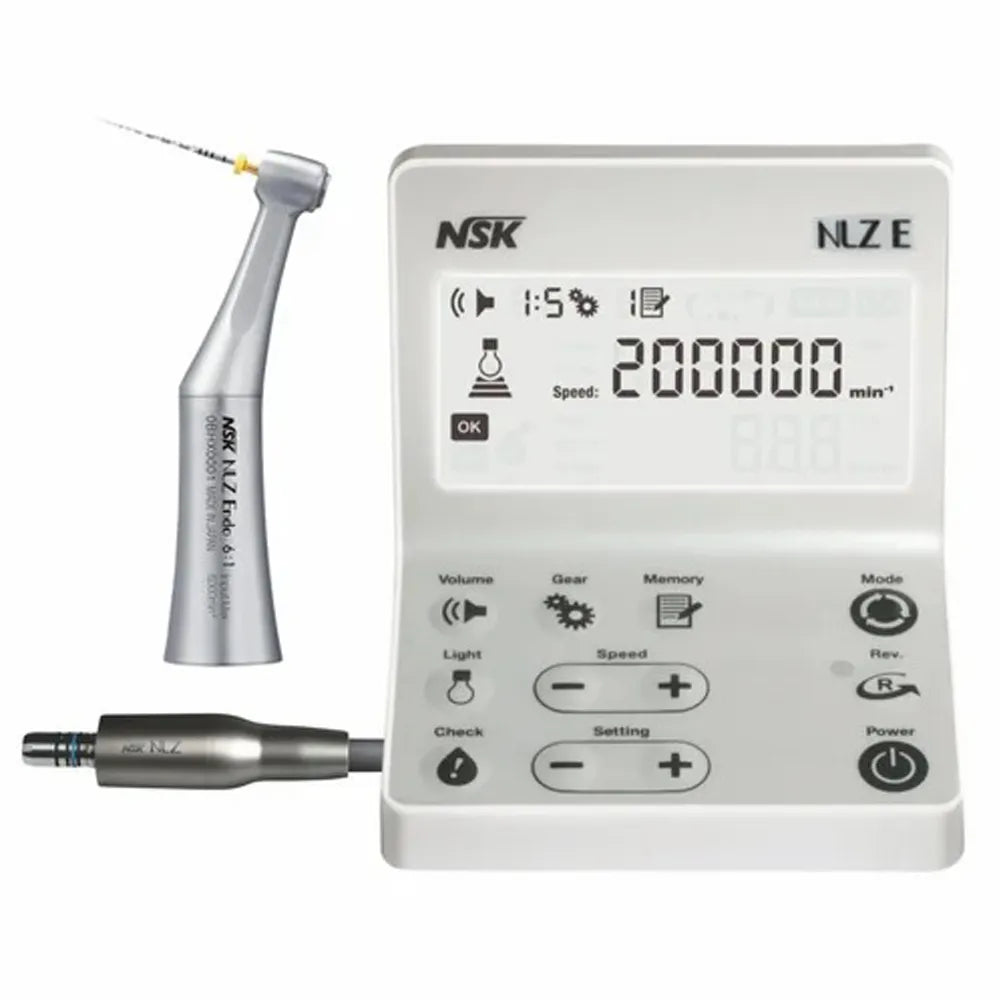

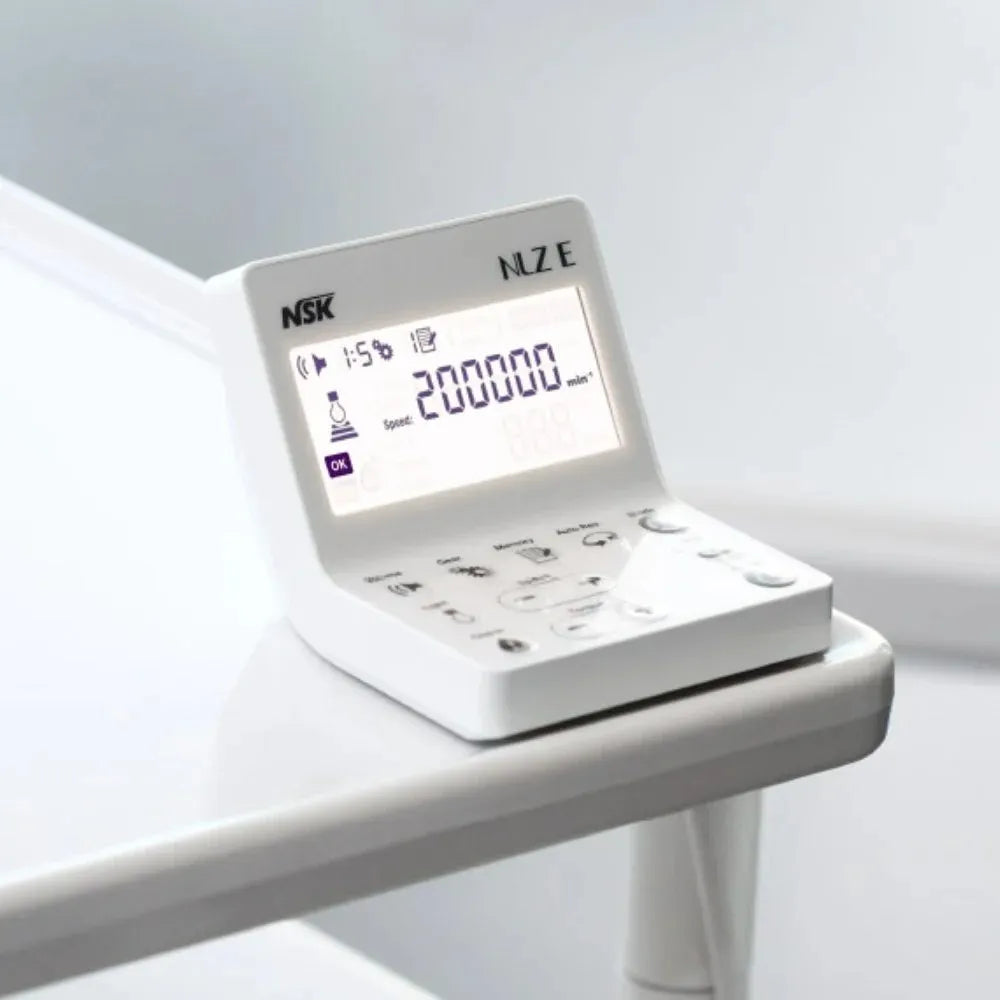

NSK Electric Micromotor Upgrading System – NLZ E

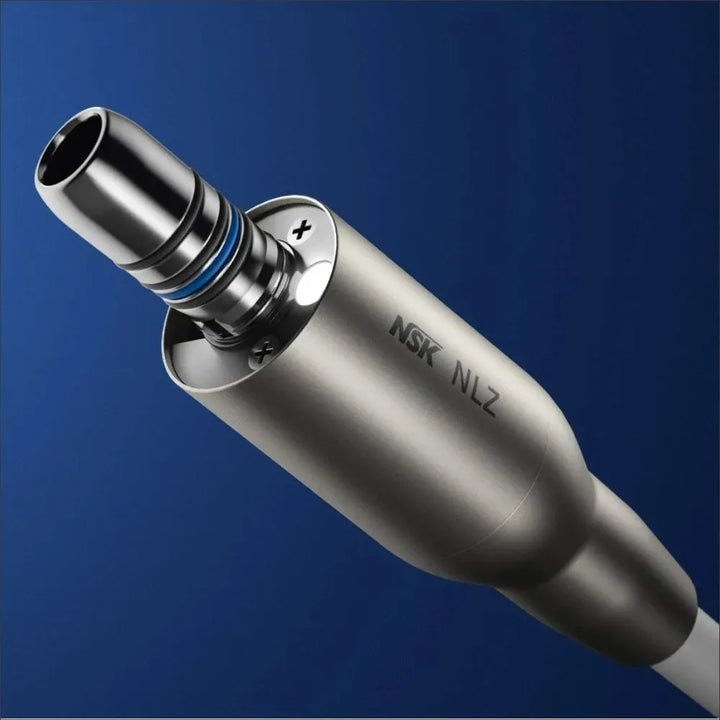

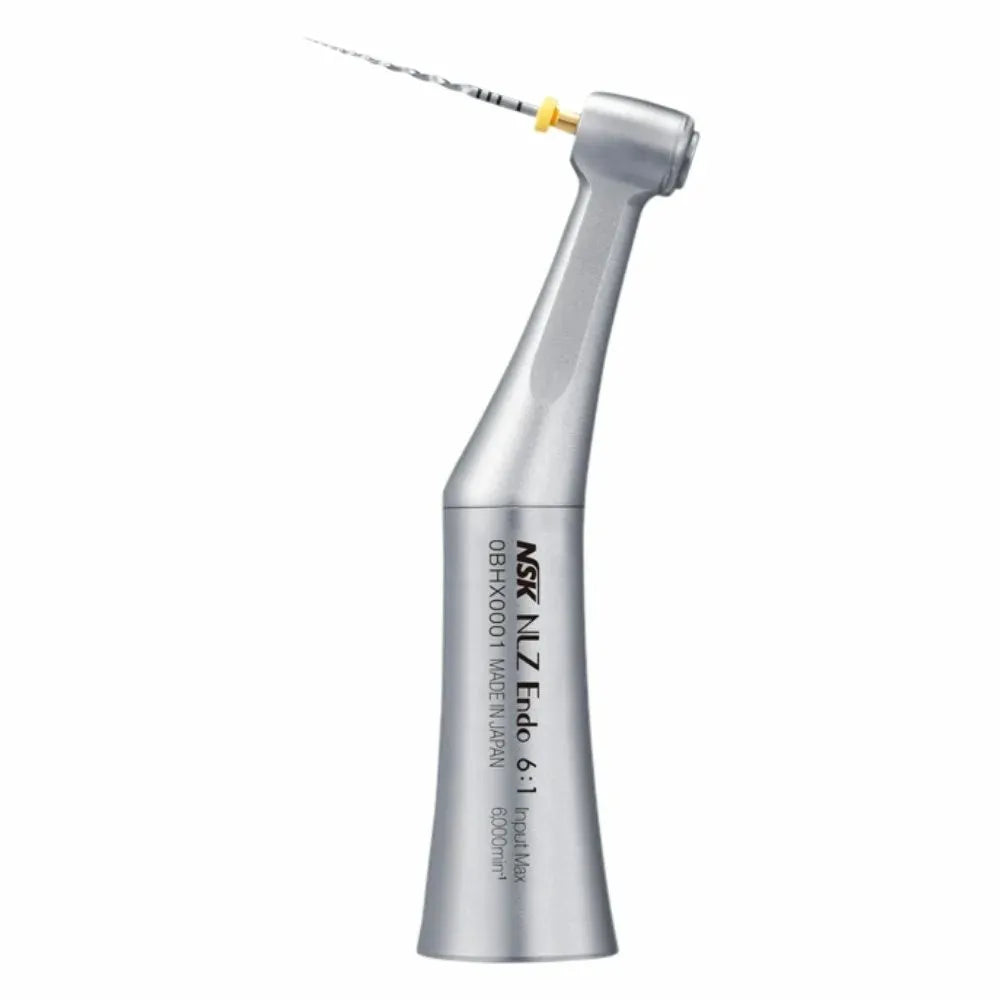

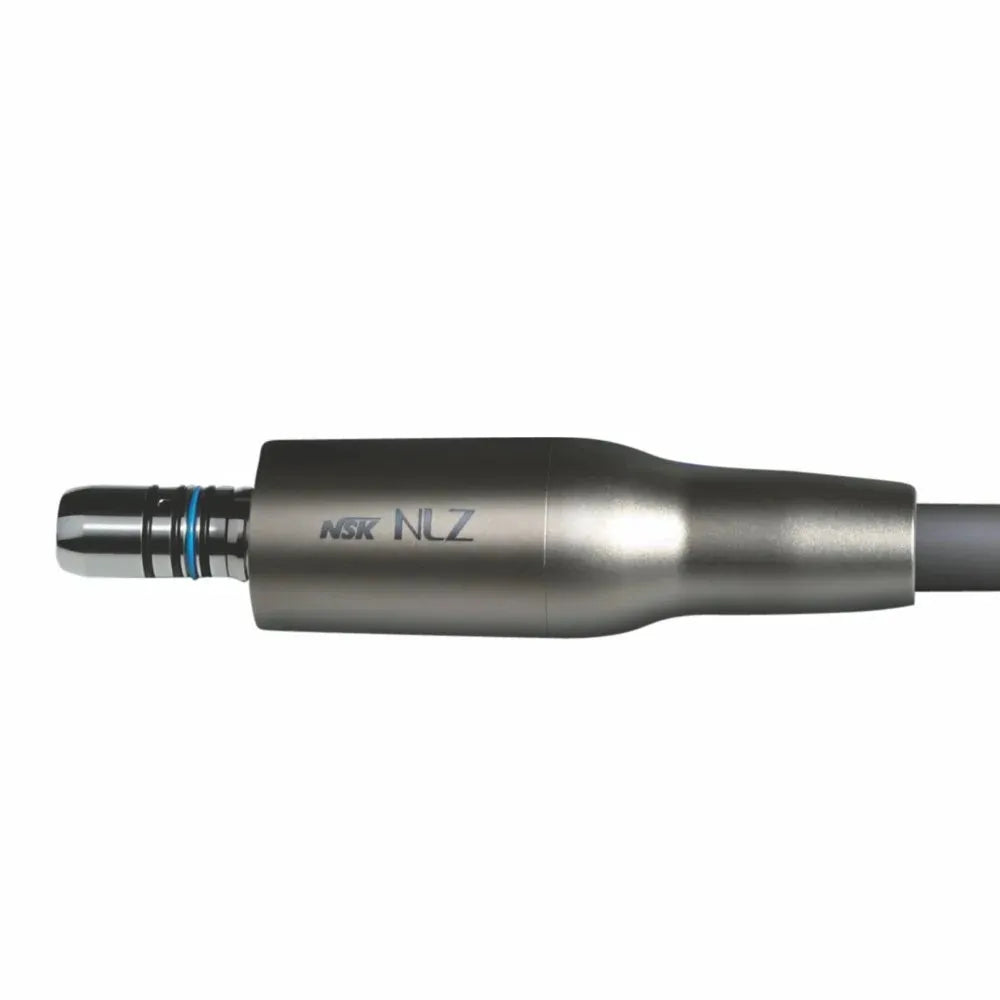

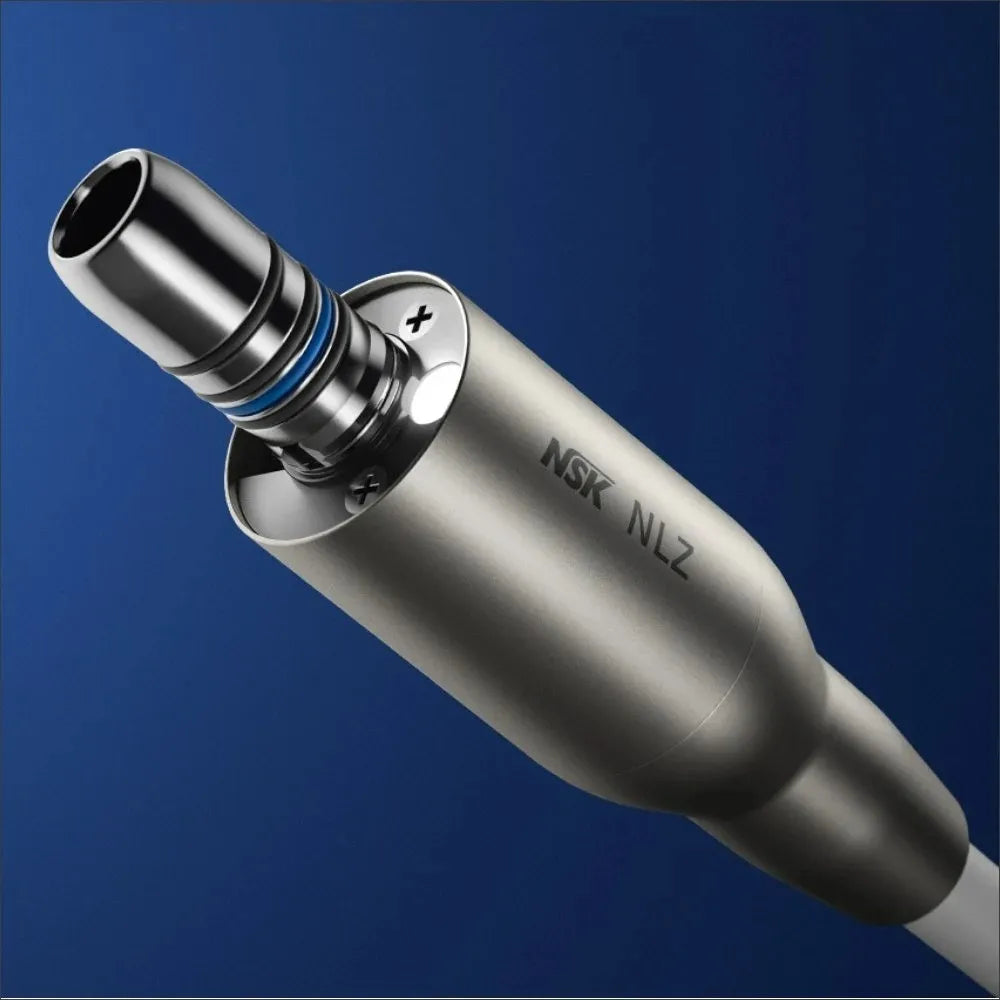

Heading Dimension Endomotors Brushless Endomotor with Superior performance.Speed Range100- 40,000 rpm (Upto 2,00,000 rpm while using 1:5 handpiece) Endodontic Torque range0.3 – 6.0 Ncm ( Max Torque 4.2 Ncm in general mode) 3 modes Regular , Endo & Reciprocating with 6 programs setting Regular modeIn this mode, handpieces with both 1:1 gear ratio & 1:5 gear ratio can be used.• When a 1:5 gear ratio handpiece is used, the speed can be increased up to 2,00,000 rpm.• When a 1:1 gear ratio handpiece is used, the speed range changes to 100 – 40,000 rpm.Endo modeIn this mode, a handpiece with a 1:1 gear ratio can be used and the speed range is 100- 6,000rpm. Reciprocating mode In endo mode, torque can be adjusted, also Auto-reverse mode gets activated. Reciprocating mode: For this operation, a separate handpiece NLZ E with gear ratio 6:1 has to be connected.• The new NLZ Endo motor has a reciprocating function which allows working in the reciprocating mode (150:30)

• Attach the appropriate dental handpiece to the motor.
• Connect the motor to the control unit using the provided cable.
• Plug the control unit into a power source and turn it on.
• Set the desired speed and torque settings using the control unit's interface. The LCD display will show the current settings.
• Place the foot pedal on the floor within easy reach of the dental practitioner.
• Step on the foot pedal to activate the motor and begin the dental procedure. Use the foot pedal to adjust the motor's speed and torque as needed.
• When the procedure is complete, turn off the motor and control unit, and disconnect the motor from the handpiece and control unit.
• Clean and sterilize the handpiece before the next use.

• High-speed operation: The motor operates at speeds of up to 200,000 rpm, providing the necessary power for a variety of dental procedures.
• Lightweight and compact design: The motor is easy to handle and maneuver in the oral cavity, making it ideal for use in delicate procedures.
• Precise speed and torque control: The control unit allows for smooth and precise control of the motor's speed and torque, with a large LCD display for easy monitoring.
• Hands-free operation: The foot pedal allows for hands-free control of the motor, enabling the dental practitioner to focus on the procedure at hand.
• Versatile compatibility: The system is compatible with a wide range of dental handpieces, making it a versatile and flexible solution for dental professionals.
• Durable and reliable construction: The system is designed for long-term performance, with a high-quality construction that ensures durability and reliability.
• User-friendly interface: The control unit features a user-friendly interface that makes it easy to operate and adjust settings.
• High-speed operation: The motor operates at speeds of up to 200,000 rpm, providing the necessary power for a variety of dental procedures.
• Lightweight and compact design: The motor is easy to handle and maneuver in the oral cavity, making it ideal for use in delicate procedures.
• Precise speed and torque control: The control unit allows for smooth and precise control of the motor's speed and torque, with a large LCD display for easy monitoring.
• Hands-free operation: The foot pedal allows for hands-free control of the motor, enabling the dental practitioner to focus on the procedure at hand.
• Versatile compatibility: The system is compatible with a wide range of dental handpieces, making it a versatile and flexible solution for dental professionals.
• Durable and reliable construction: The system is designed for long-term performance, with a high-quality construction that ensures durability and reliability.
• User-friendly interface: The control unit features a user-friendly interface that makes it easy to operate and adjust settings.
