Description
Description

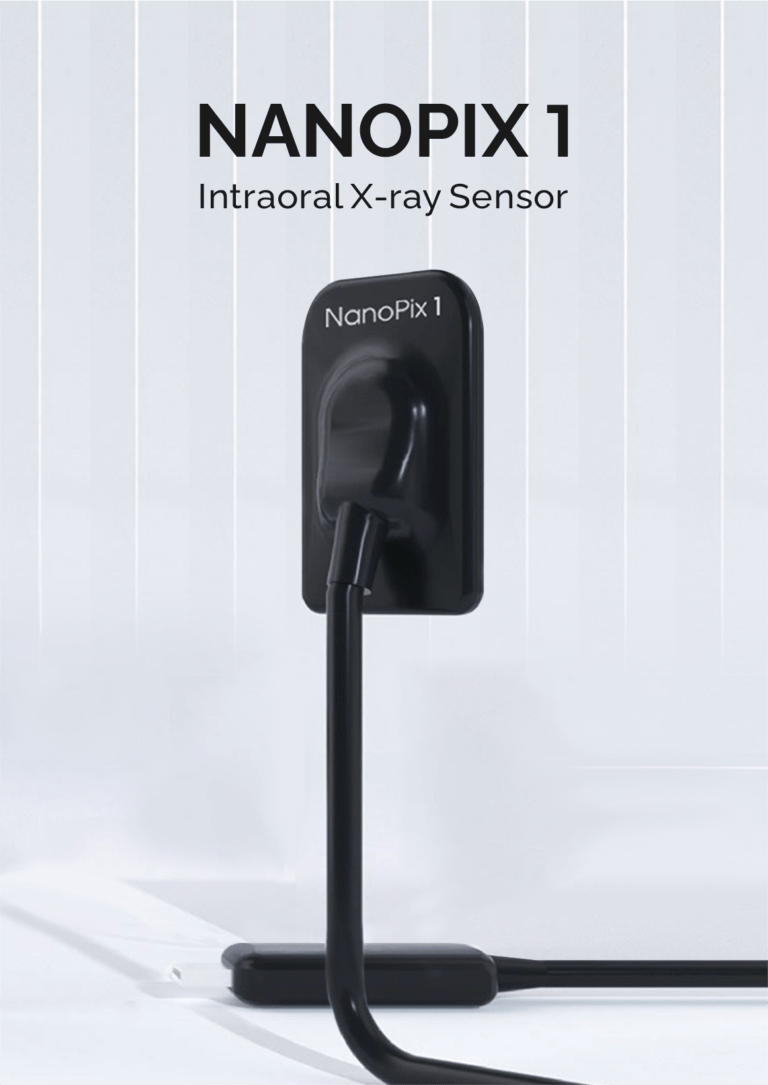

NanoPix- 1 Intraoral X-ray Sensor
Unique Design
- Ergonomic design: Cupped cable connection ensures comfortable finger positioning
- Robust cable connection
- Ultra-thin body design: 4.4mm – The thinnest X-Ray sensor
Intraoral X-ray Sensor- Leading Technologies for The 1st Time in Dentistry
AED Technology
- From chest radiography
- Compatible with almost all DC & AC X-Ray generators
- Digital images come automatically when your X-Ray is switched on
APS CMOS Technology
- From aerospace industry
- High signal-to-noise ratio with maximum details
- Long life and low power consumption
Direct Deposition CSI Technology
- From chest radiography
- Low dose radiation for safety
- Less exposure time but higher resolution
1/10 Cost per patient compared to film
3s To complete entire imaging process
Smart Software
- Easy to install
- User-friendly interface
- Faster image acquisition & better-quality images
- Optional image preference
- Compatible with Microsoft Windows
Specifications of NanoPix- Intraoral X-ray Sensor
| NanoPix1 | NanoPix2 | |
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | Csl | Csl |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Theoretical Resolution | 25Ip/mm | 25Ip/mm |
| True Resolution | 20Ip/mm | 20Ip/mm |
| Active Area (mm) | 20*30 | 26*36 |
| Mechanical Size (mm) | 25.4*36.8*4.4 | 30.4*41.9*4.4 |
| AD Conversion (bit) | 16 | 16 |
| Data Interface | USB 2.0 | USB 2.0 |
| Protection | Ip68 | IP68 |
NanoPix 1- Intraoral X-ray Sensor
Rs. 60,000.00
