Ivoclar Tetric N-Flow Bulk Fill Composite IVA

SKU:
BARCODE:

Ivoclar Tetric N-Flow Bulk Fill Composite IVA

Rs. 1,200.00

Shipping calculated at checkout.

People are currently viewing this

In stock!

Selling quickly! people have this item in their carts

Description

The new flowable composite complements the mouldable Tetric N-Ceram Bulk Fill composite. In essence, Tetric N-Flow Bulk Fill is based on the composition of Tetric N-Ceram Bulk Fill. The material is applied as a bulk-fill base in Class I and Class II restorations. Just like the existing version, it can be light-cured in large increments of up to four millimetres, requiring only short light exposure times. Excellent affinity to cavity walls and self-levelling consistency round off the benefits offered by this volume replacement material.

Aessencio technology

Another strength of the new composite lies in the Aessencio technology. This technology causes the translucency of the material to decrease from 28% to approx. 10% during polymerization.

Indications

As initial layer / first increment in Class I and II composite restorations in permanent teeth
Restorations in deciduous teeth (without capping layer)

Specifications

Care Instruction

Features

Composition

The monomer matrix is composed of monomethacrylates and dimethacrylates (28 wt%). The fillers include barium glass, ytterbium trifluoride and copolymers (71 wt%). Additives, initiators, stabilizers and pigments are additional ingredients (<1.0 wt%). The total content of inorganic fillers is 68.2 wt% / 46.4 vol%. The particle size of the inorganic fillers ranges between 0.1 μm and 30 μm with a mean particle size of 5 μm.

Storage temperature: 2–28 °C

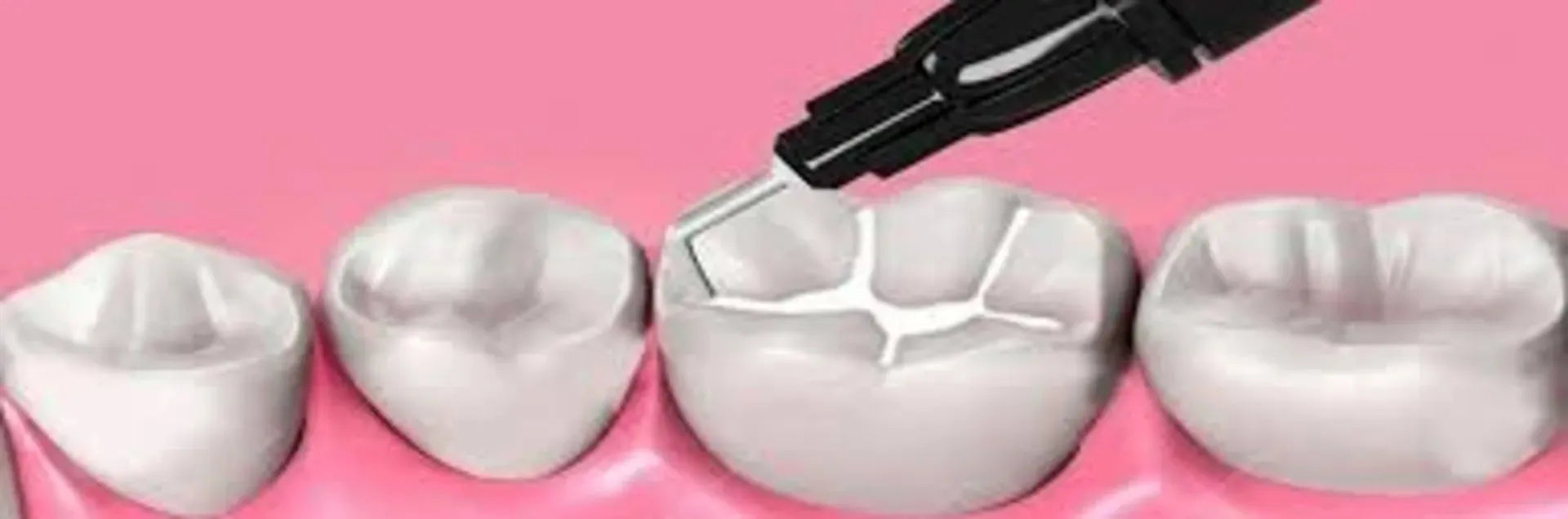

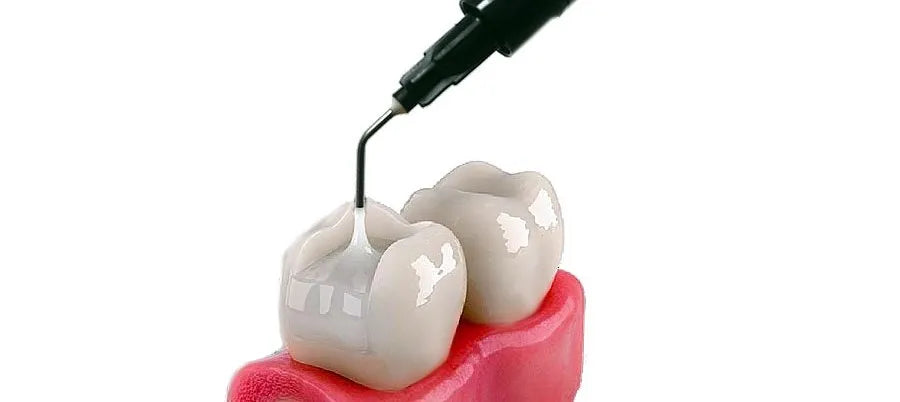

Application of Tetric N-Flow Bulk Fill

Tetric N-Flow Bulk Fill can be applied in increments of up to 4 mm thickness.
Tetric N-Flow Bulk Fill must be covered with a layer of methacrylate based universal or posterior composite (e.g. Tetric N-Ceram/Tetric N-Ceram Bulk Fill/IPS Empress Direct).
Proximal contacts must be established by means of a matrix system. The filling material does not exert any pressure on the matrix band. The matrix band can be shaped with a suitable hand instrument (e.g. a balltype condenser) before and/or during light-curing.
Complete polymerization requires a sufficiently long exposure time. For the recommendations regarding exposure time and light intensity see table.
When using a metal matrix, additionally polymerize the composite material from the buccal or lingual/palatal aspect after removing the matrix, if no Bluephase N polymerization light is used or the light probe cannot be ideally positioned, e.g. distant to composite or diverging scattering angle.

Light intensity Exposure time ≥ 500 mW/cm2 20 s ≥ 1‘000 mW/cm2 10 s
