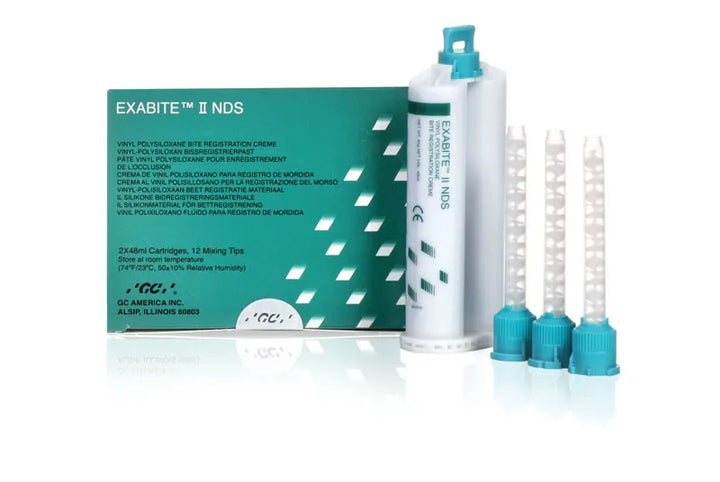

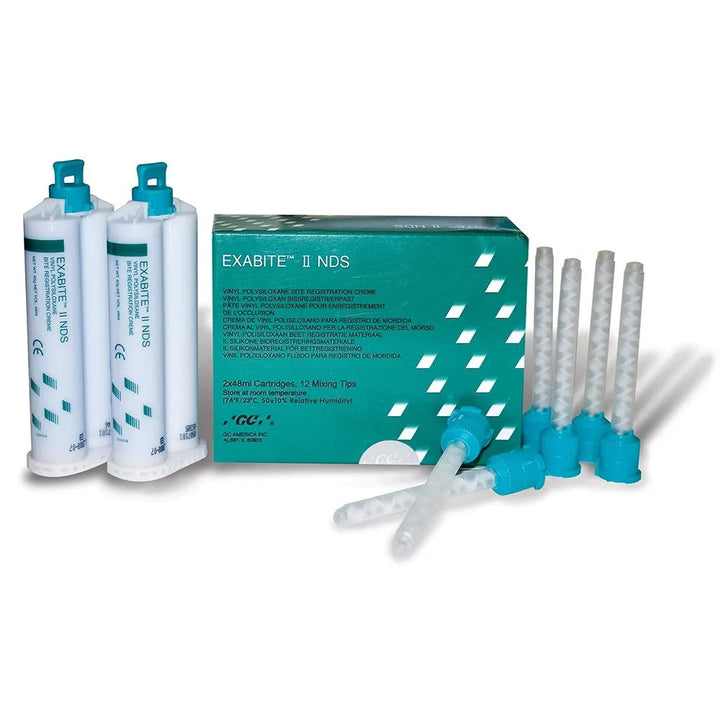

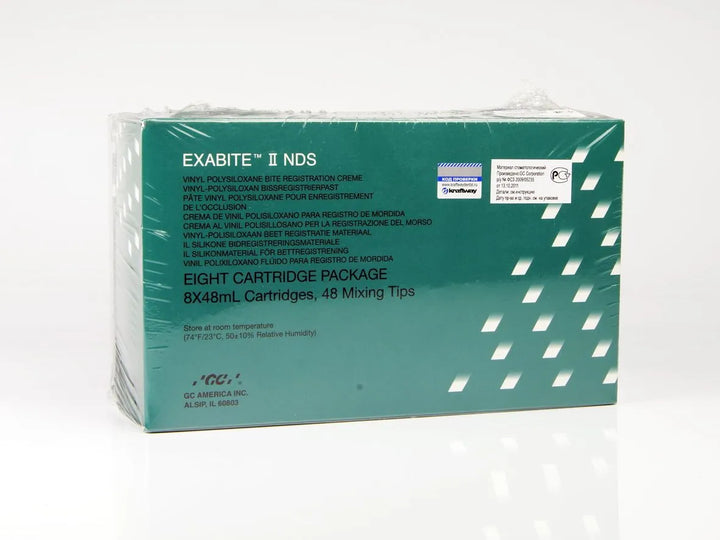

GC Exabite II Nds ( Set Of 2 )

Rs. 4,400.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Working time  - 45sec
  • Minimum time to remove from mouth - 45 sec
  • Maximum strain in compression (%)* - 0.9
  • Recovery from deformation* - 99.6
  • Linear dimensional change (%)* – 0.10
  • Hardness (Shore A) - 87
  • Lift the release lever of the CARTRIDGE DISPENSER 2 (referred to as the dispenser hereafter) and pull the piston plunger all the way back into the dispenser.  Lift the cartridge holder of the dispenser and load the cartridge, ensuring that the V-shaped notch on the flange of the cartridge is facing down. Push the cartridge holder down to hold the cartridge firmly in place.
  • Remove the cartridge cap by rotating 1/4 turn anticlockwise. Tilt the cap downward and peel it away from the cartridge. Gently squeeze the dispenser handle to extrude a small amount of material from the two openings at the end of the cartridge. Make sure that base and catalyst come out evenly.
  • Align the V-shaped notch on the rim of the MIXING TIP to the V-shaped notch between the cartridge barrels. Push firmly to attach the mixing tip. Then,  rotate the colored collar of the mixing tip 1/4 and turn clockwise to the end of the cartridge. The dispenser is now ready for use.
  • Squeeze the handle several times to extrude the material. After use, do not remove the MIXING TIP as this will become the storage cap until the next use.  When replacing the MIXING TIP, rotate the collar on the mixing tip 1/4 turn anti-clockwise to align the V-shaped notch on the cartridge. Tilt the mixing tip-downward and peel it away from the cartridge.
  • Remove and replace the old mixing tip,  immediately prior to the next use. Before attaching a new tip, gently extrude a small amount of material to ensure that the base and catalyst are flowing evenly from both openings. If the materials should fail to extrude, remove any hardened materials from the end of the cartridge.
  • To replace the cartridge, lift the release lever and retract the piston plunger fully.  Remove the empty cartridge by lifting the cartridge holder,  and load a new one into the dispenser.
  • High surface hardness
  • Mixing and application directly from the cartridge
  • Thixotropic properties with an ideal balance between stability and fluidity
  • Snap set: working time up to 45'', setting time only 45''
  • Stable and accurate
  • Easy trimming and carving
  • High surface hardness
  • Mixing and application directly from the cartridge
  • Thixotropic properties with an ideal balance between stability and fluidity
  • Snap set: working time up to 45'', setting time only 45''
  • Stable and accurate
  • Easy trimming and carving
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: consumables GC
Tags: Product

Share On

Description

EXABITE II NDS is an improved version of EXABITE, an additional reaction polysiloxane impression material, providing a sharper setting and higher strength. It is available in a new cartridge which must be used with the new GC CARTRIDGE DISPENSER 2. For use only by a dental professional in the recommended indications.

INDICATIONS

  • Checking occlusal registrations.

CONTRAINDICATIONS

  • Patients with known allergy to silicone materials: In case of allergy refer to a physician.
