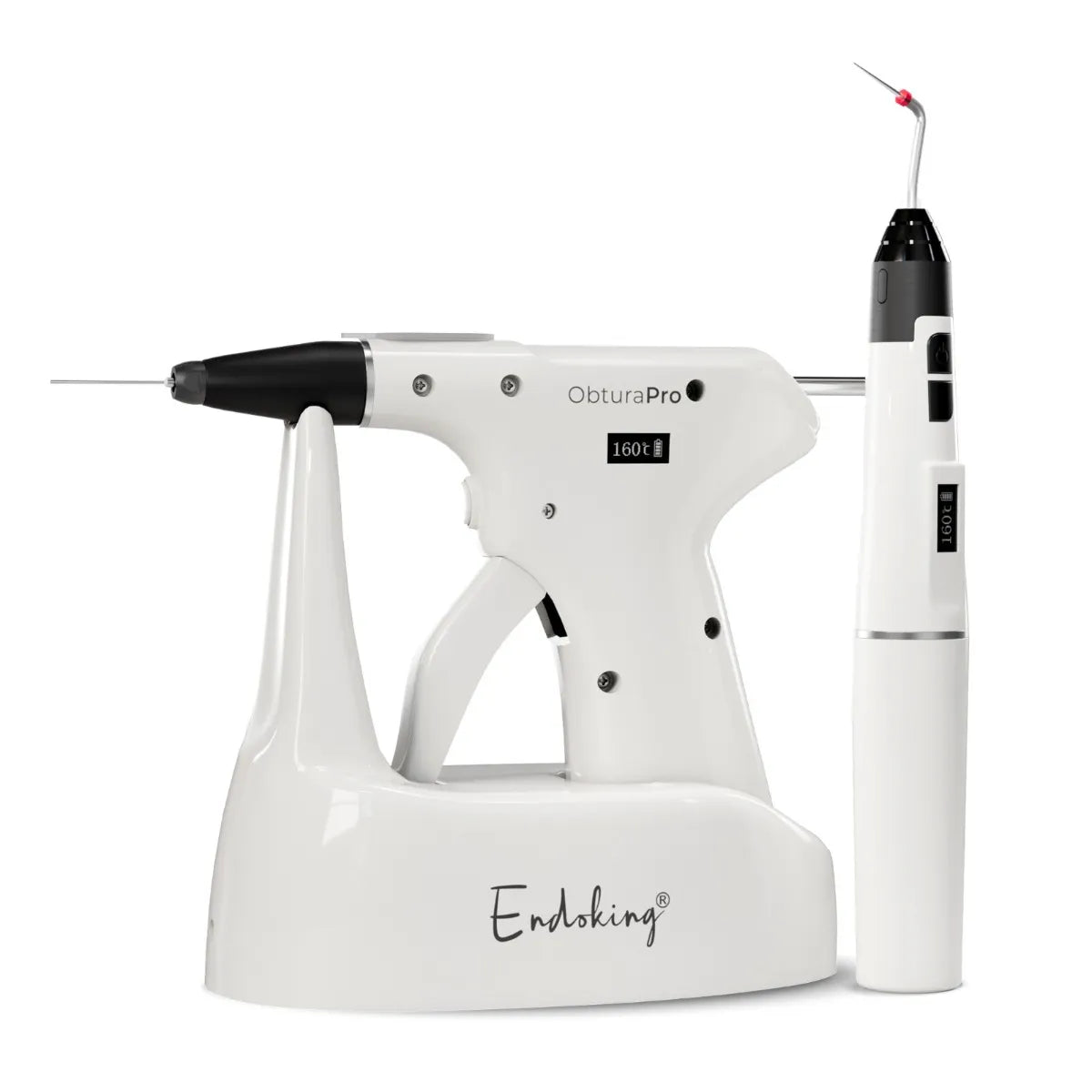

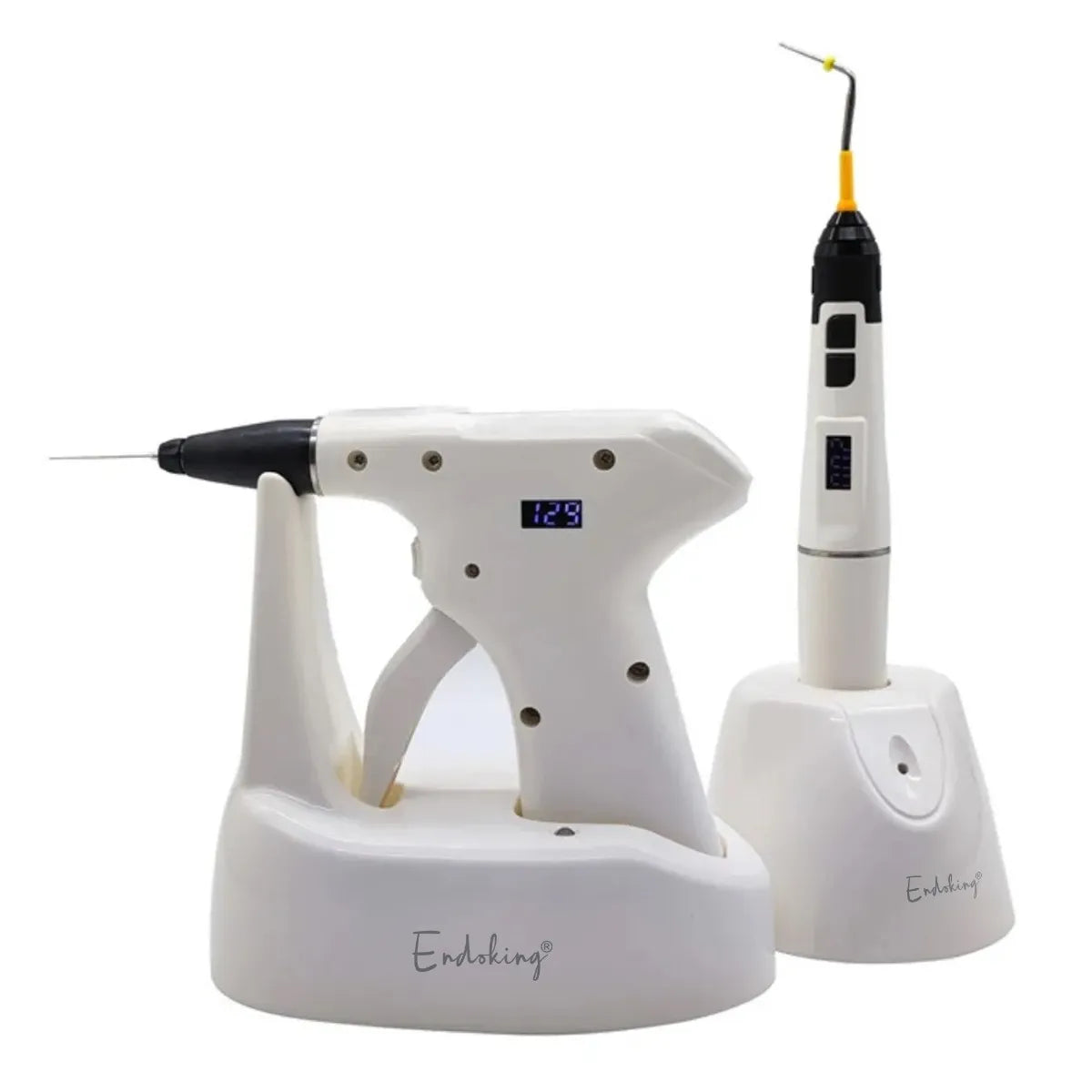

Endoking ObturaPro Obturation System

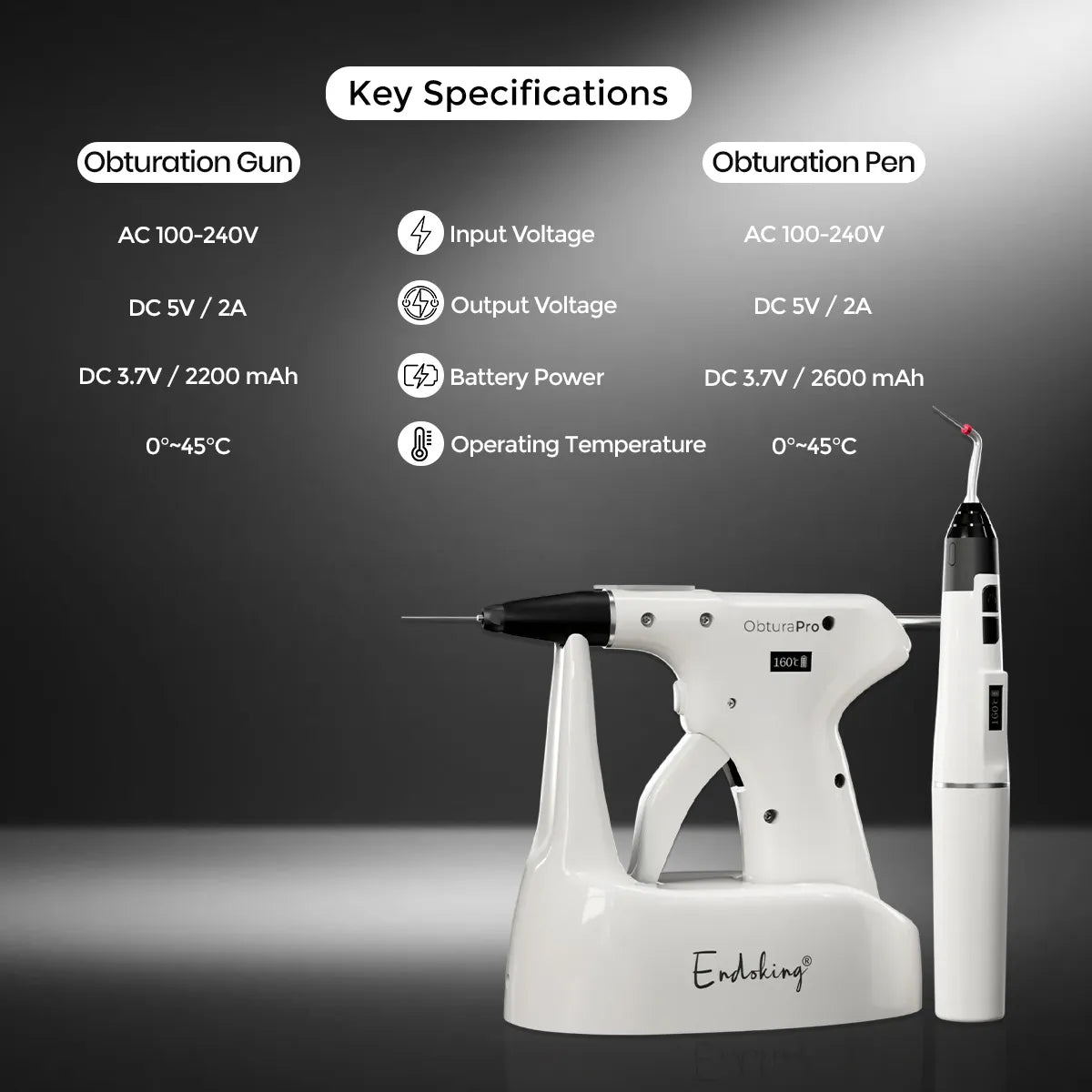

Obturation Pen:

• Adaptor: input: 100-240Vac50/60Hz
• Output: DC 5V/2A
• Battery: DC 3. 7V/2600mAh
• Operating Temperature: 0°~45°C
• Humidity: 10%RH~75%RH
• Atmospheric pressure: 50% RH~106%RH

Obturation Gun:

• Adaptor: input: 100-240Vac50/60Hz
• Output: DC 5V/2A
• Battery: DC 3. 7V/2200mAh
• Operating Temperature: 0°~45°C
• Humidity: 10%R~85%RH
• Atmospheric pressure: 50% RH~106%RH

Storage Temperature:

• Storage temperature: -10°C ~+55°C
• Humidity: 10%RH~85%RH
• Atmospheric pressure: 86kPa~ 106kPa

Prepare the Environment:

• Ensure the dental operatory is set up with all necessary equipment.
• Sterilize the Obtura Pro system components, including the obturation gun and tips, and prepare the Gutta-Percha material.

Patient Preparation:

• Ensure the patient is comfortably seated and ready for the procedure.
• Administer local anesthesia and isolate the tooth being treated with a rubber dam.

Select the Temperature:

• Set the Obtura Pro system to the appropriate temperature based on the Gutta-Percha material being used (usually between 160°C to 230°C).

Load the Obturation Gun:

• Insert a Gutta-Percha pellet into the heating chamber of the obturation gun.

Position the Needle:

• Rotate the needle to the desired angle to facilitate precise placement within the root canal.

Extrude Gutta-Percha:

• Gradually squeeze the trigger to extrude the heated Gutta-Percha into the root canal. Proceed in a controlled manner, filling the canal incrementally as you withdraw the needle.

Verify the Seal:

• Use radiographs (X-rays) to verify that the root canal has been effectively sealed. Make any necessary adjustments if there are gaps.

Complete the Procedure:

• Once the root canal is satisfactorily filled, complete the remaining steps of the root canal procedure, such as coronal seal placement and restoration.

Clean and Sterilize:

• Properly clean and sterilize all components of the Obtura Pro system after use to maintain hygiene.

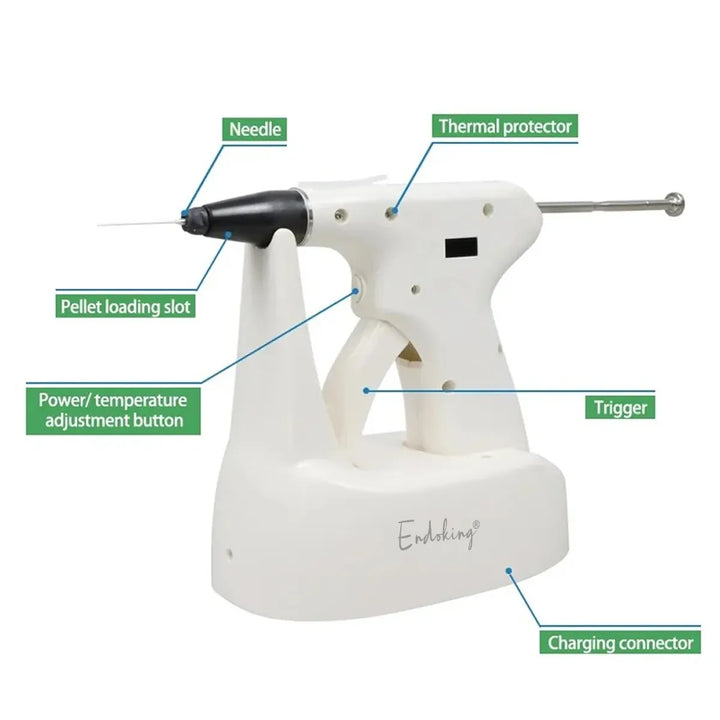

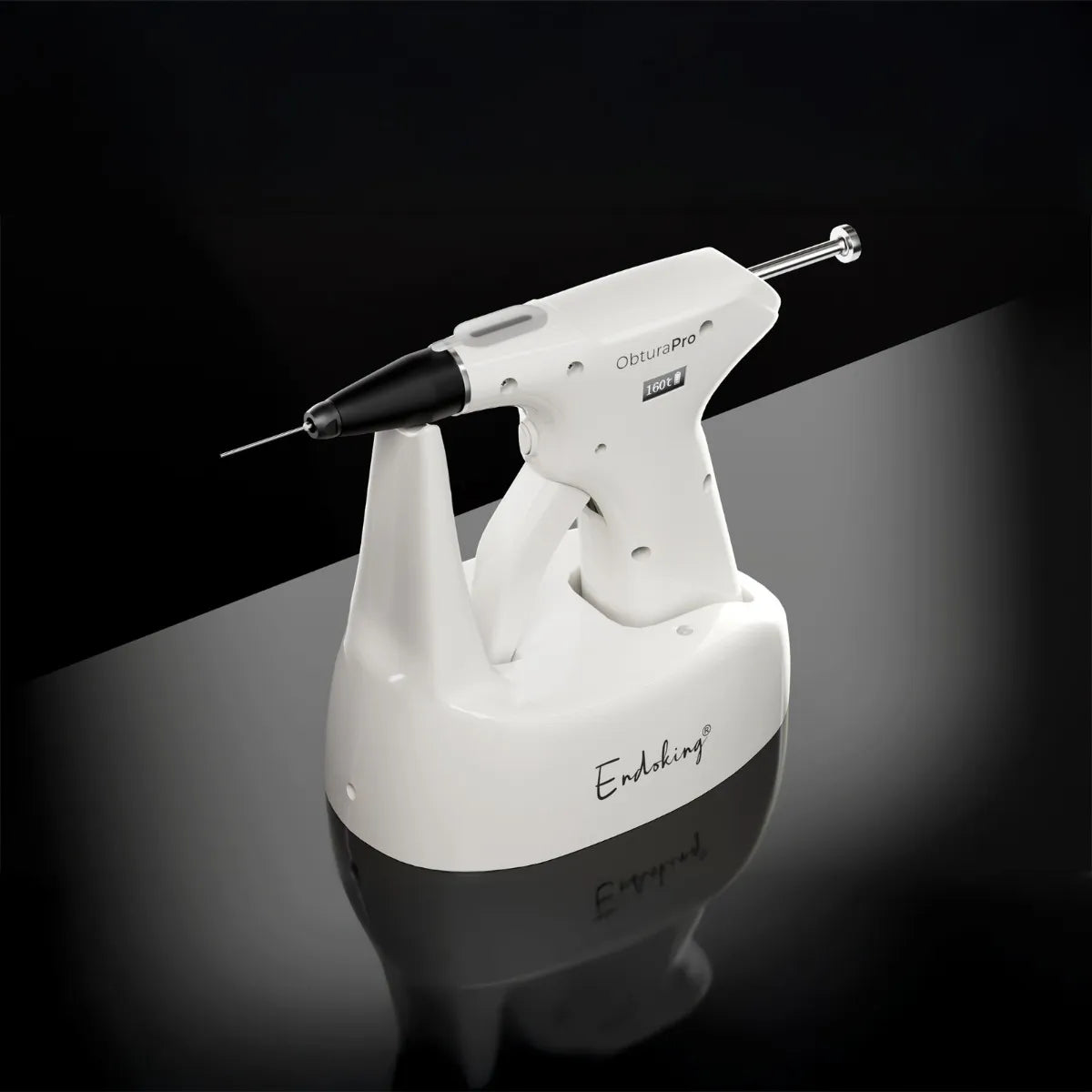

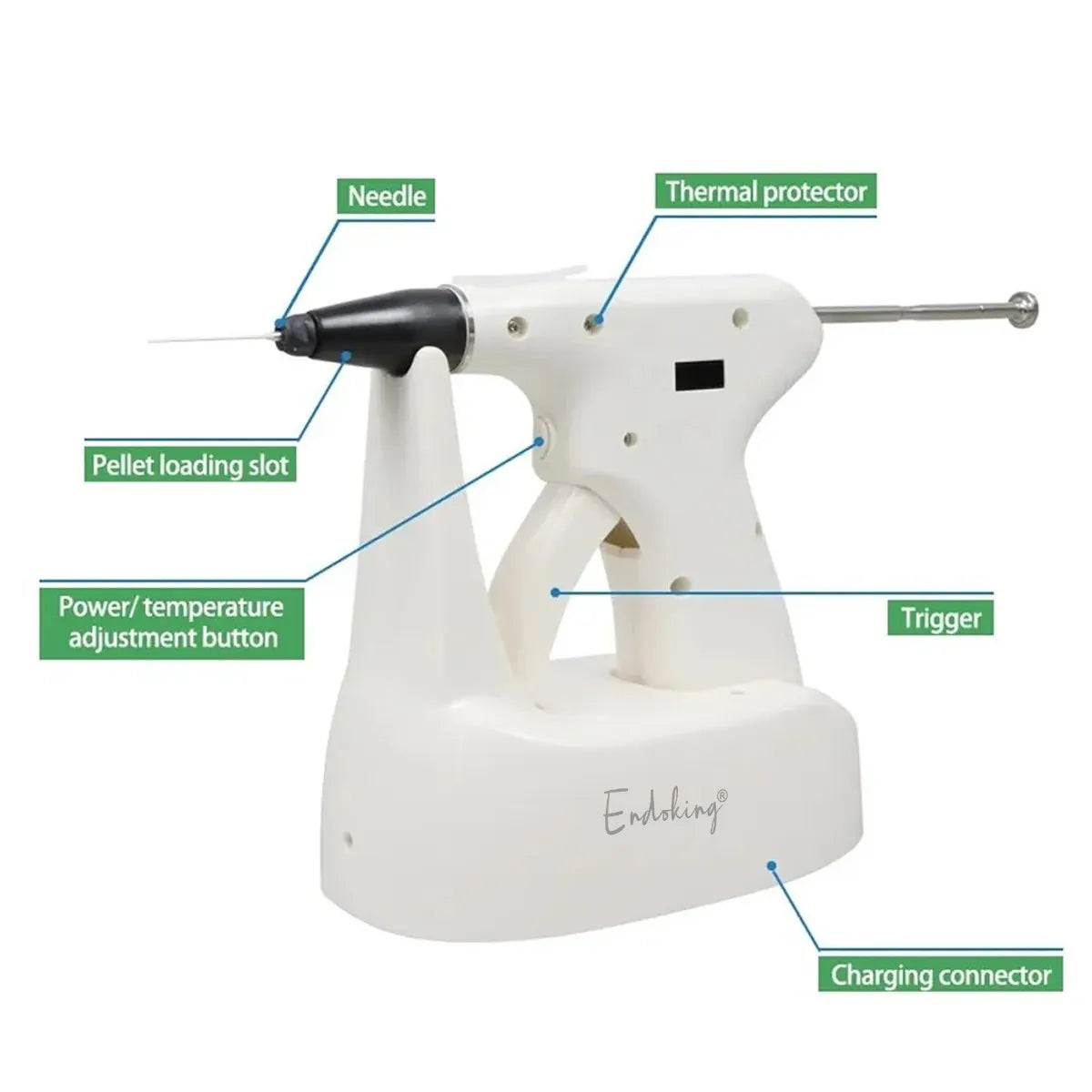

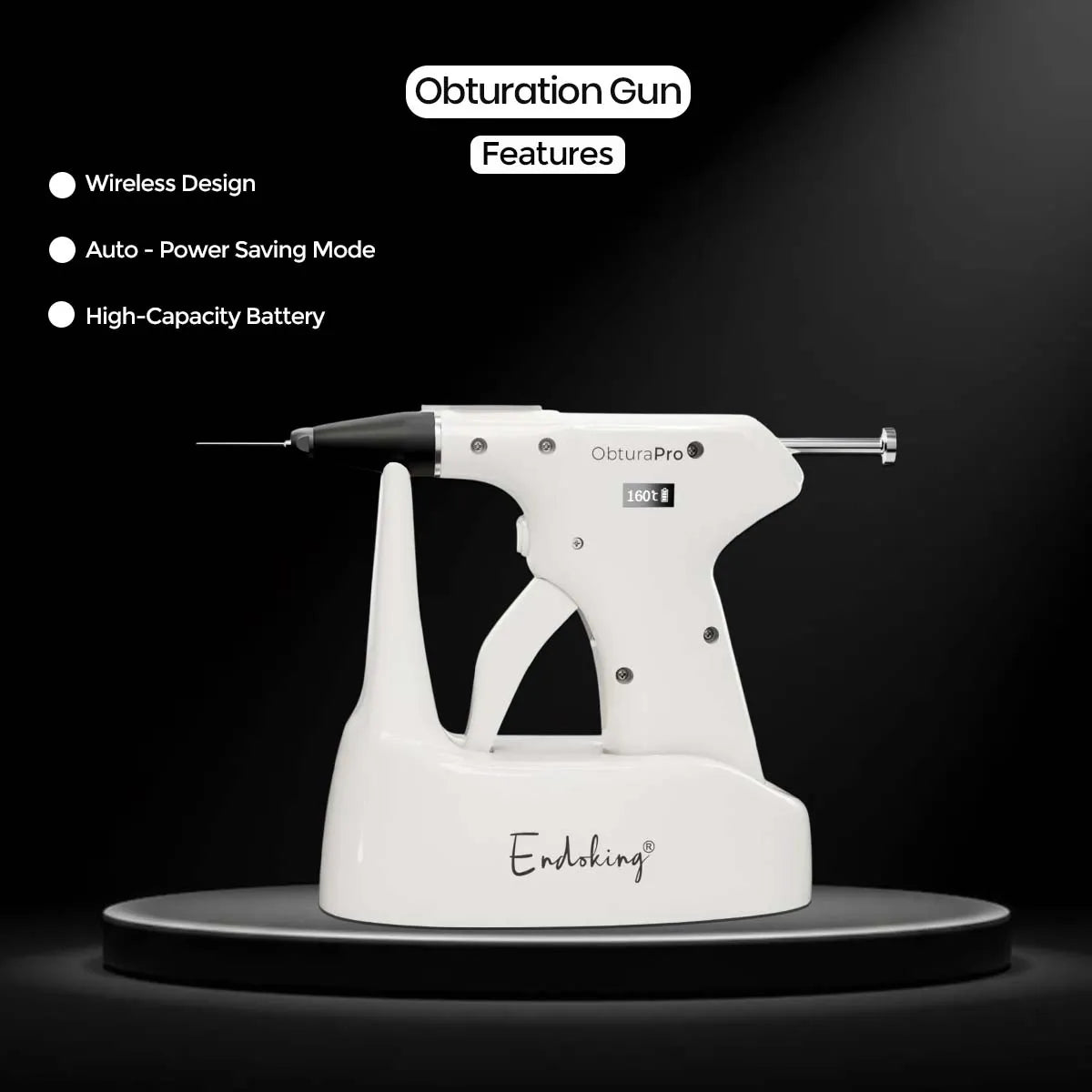

Obturation Gun

• It can be heated to 230℃ in 10S,which can melt GP bar.
• Large battery capacity,which can use long time.
• Wireless 3D filling design.
• Comfortable holding and easy to operate.
• Gun needle screw design can effectively prevent excessive glue.
• Auto idle Power Saving Mode,the device will turn off automatically after 15m of non-use.
• Accurate temperature-control and thermal protector cap can prevent accidental scald.

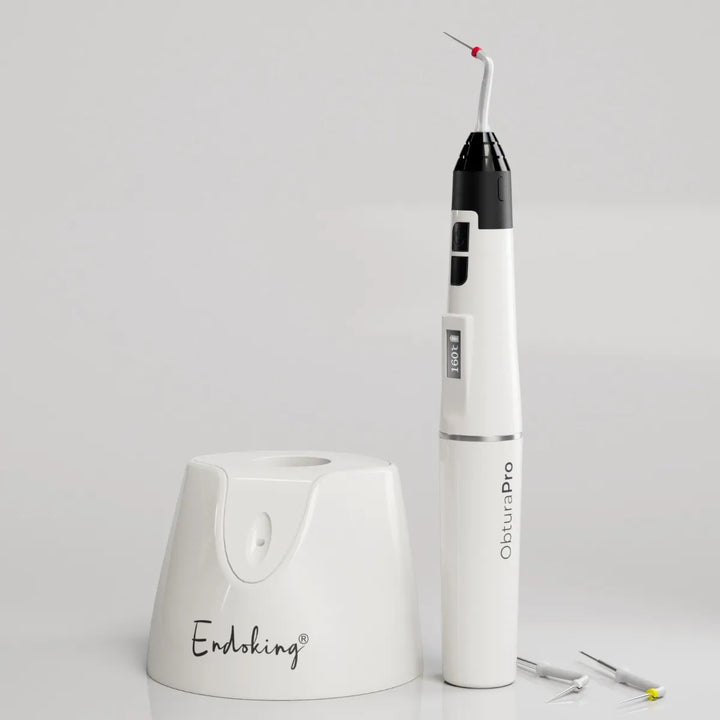

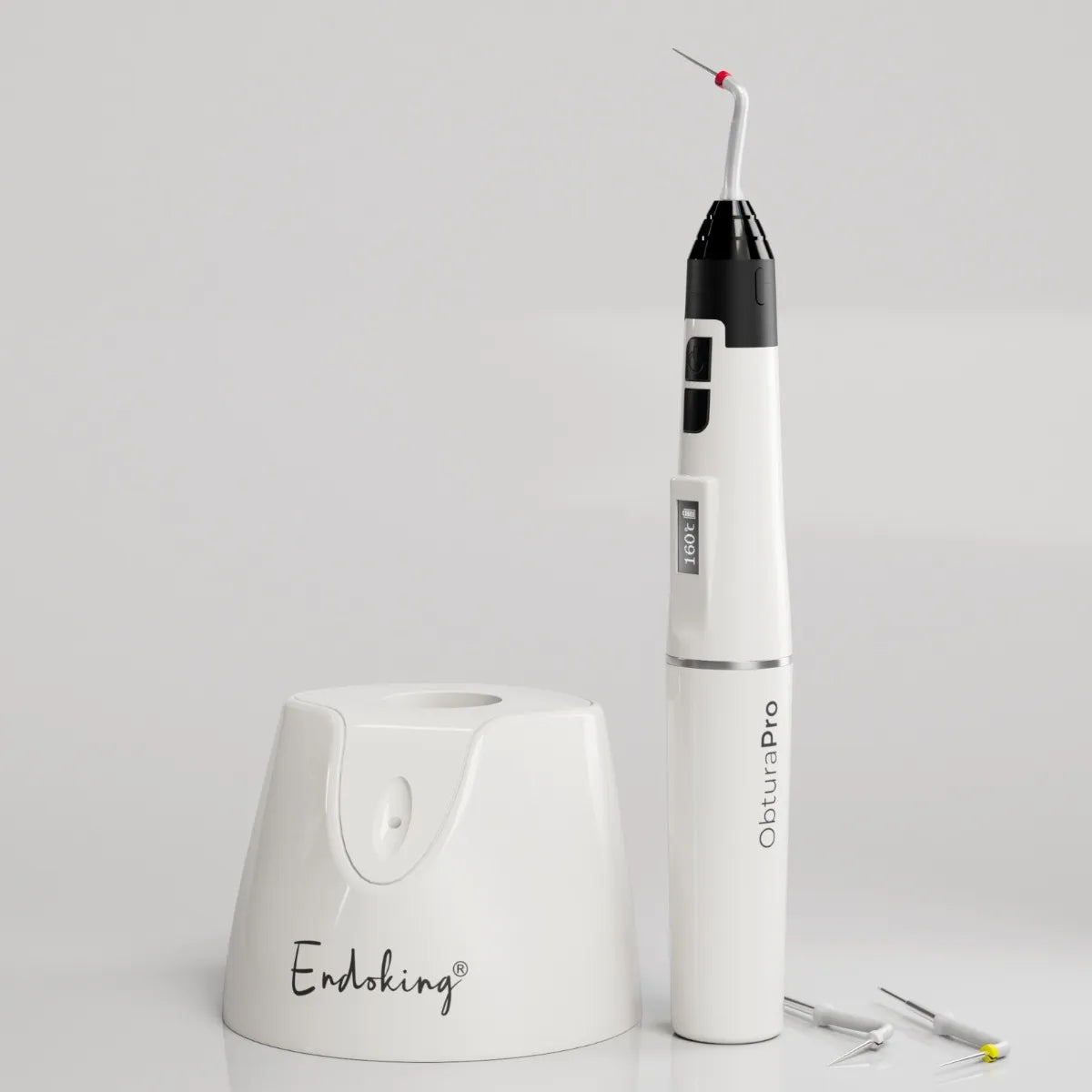

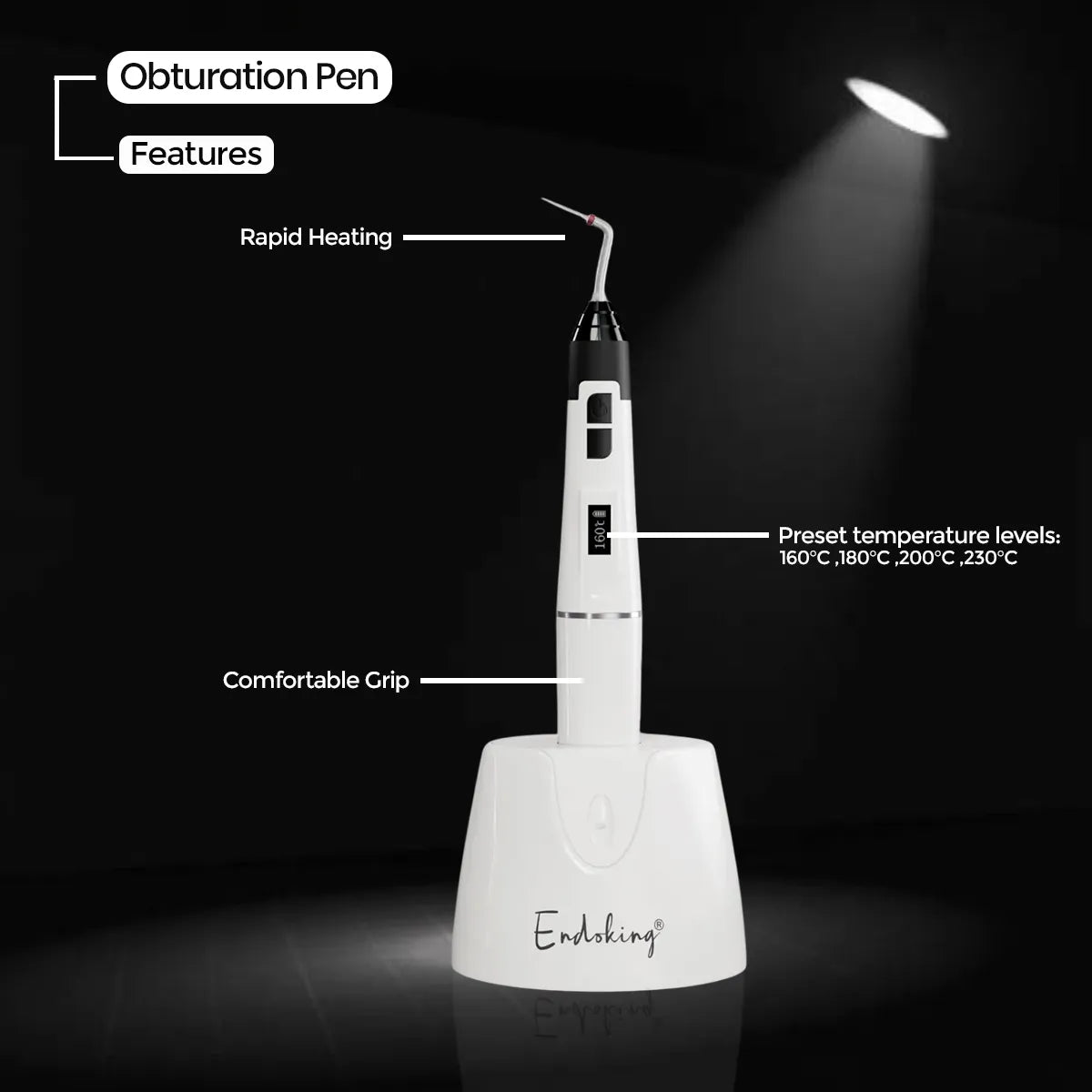

Obturation Pen

• The heater can be heated to 230℃ in 5S.
• Option temperature:160, 180 ,200 ,230℃.

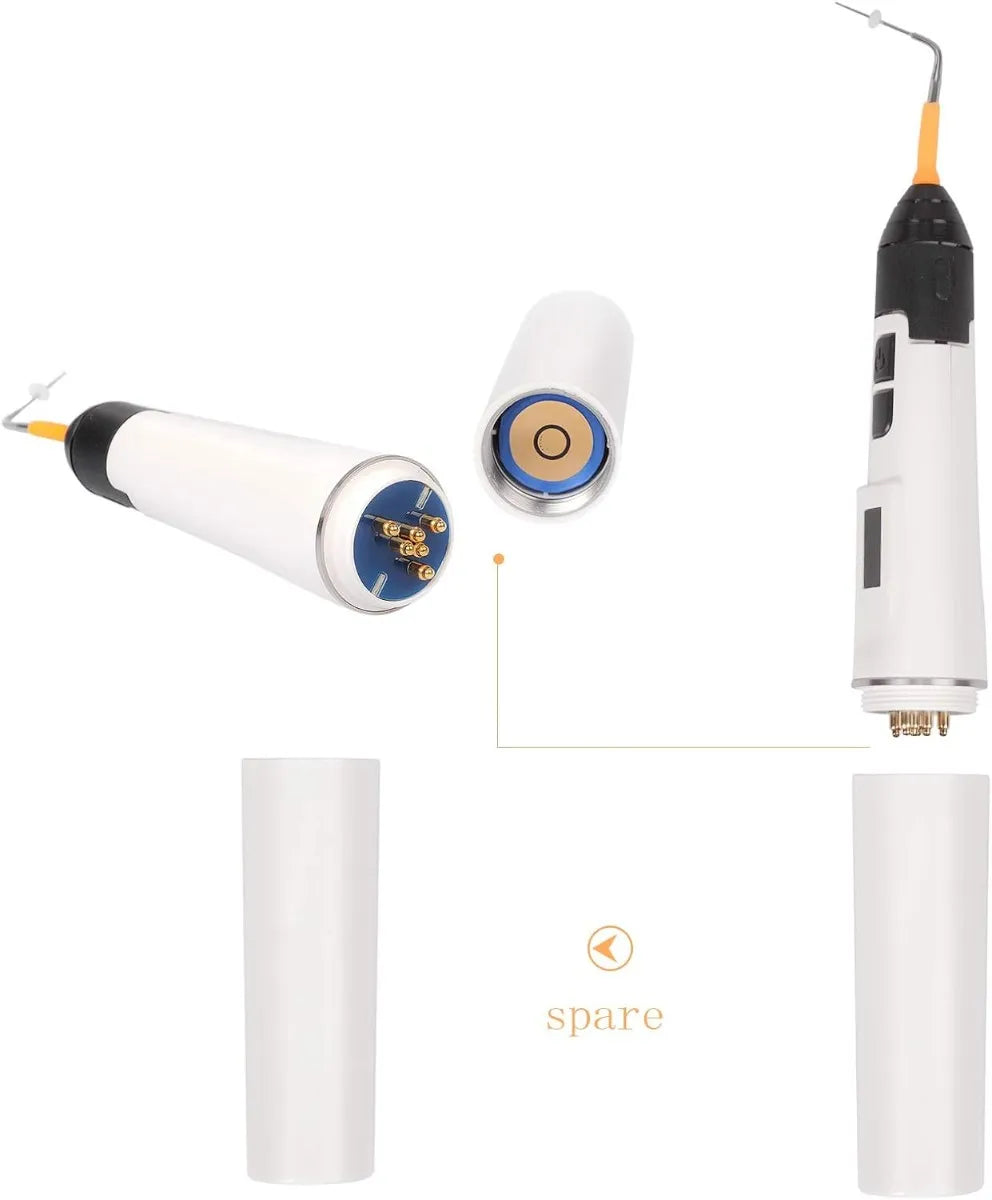

• Large capacity battery, double battery charging, and spare.
• Holding comfortable, easy to use.
• Wireless design reduces wrist fatigue.
• Own heating protection function, the heating maximum time of heater is 10S, more efficient and secure.
• Heating key 360°stereo operation, accurate top control,3D filling more thoroughly.

Obturation Gun

• It can be heated to 230℃ in 10S,which can melt GP bar.
• Large battery capacity,which can use long time.
• Wireless 3D filling design.
• Comfortable holding and easy to operate.
• Gun needle screw design can effectively prevent excessive glue.
• Auto idle Power Saving Mode,the device will turn off automatically after 15m of non-use.
• Accurate temperature-control and thermal protector cap can prevent accidental scald.

Obturation Pen

• The heater can be heated to 230℃ in 5S.
• Option temperature:160, 180 ,200 ,230℃.
• Large capacity battery, double battery charging, and spare.
• Holding comfortable, easy to use.
• Wireless design reduces wrist fatigue.
• Own heating protection function, the heating maximum time of heater is 10S, more efficient and secure.
• Heating key 360°stereo operation, accurate top control,3D filling more thoroughly.
