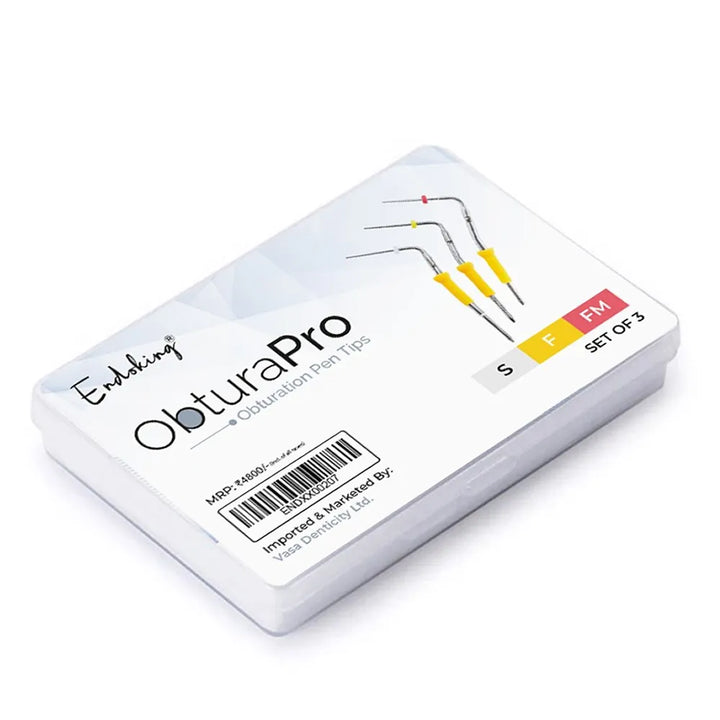

Endoking ObturaPro Obturation Pen Tips (Set of 3)

• Quantity in Set: 3 Tips

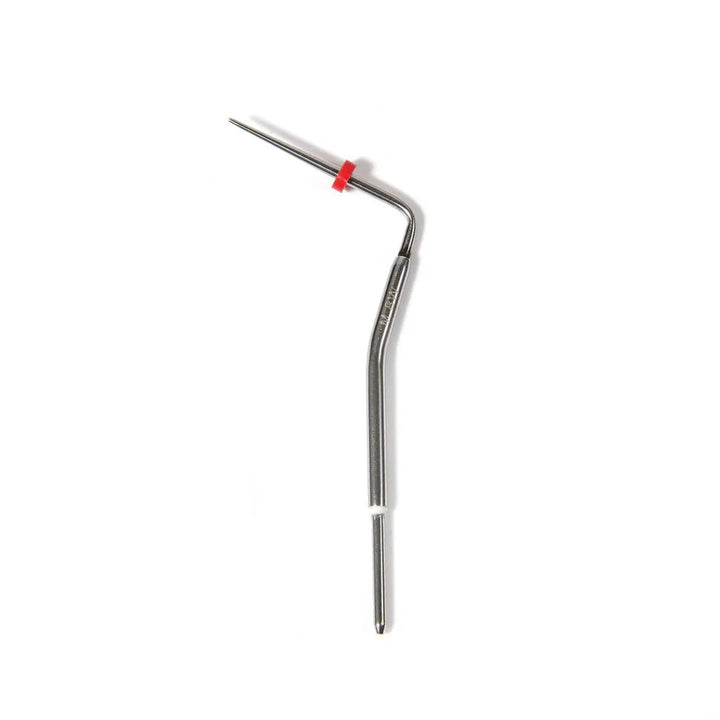

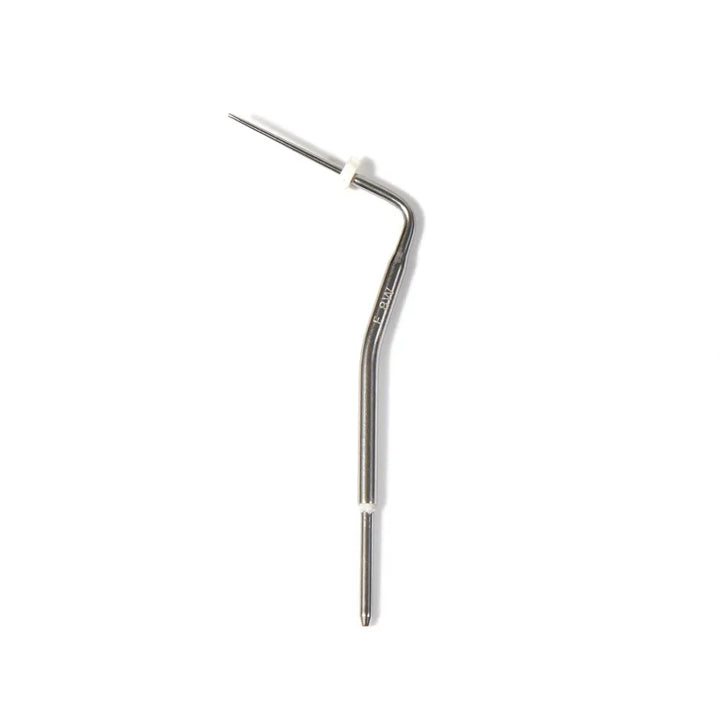

• Tip Sizes: S, F, FM
• Heating Capacity: Up to 230°C
• Heating Time: Within 1 Second
• Tip Heating Type: Internally Heated
• Compatibility: Pen Handpiece
• Safety Feature: Safety Cap for Tip Changes

Preparation:

• Gather necessary instruments: ObturaPro Pen, Pen Tips (S, F, FM), gutta percha points, hand plugger, and sealer.
• Dry the root canal using paper points.

Tip Selection:

• Choose the appropriate Pen Tip (S, F, FM) based on the procedure and root canal dimensions.

Gutta Percha Point Insertion:

• Mark the root canal length using rubber stoppers.
• Coat the selected gutta percha point with sealer.
• Insert the gutta percha point into the root canal using a pumping action.

Excess Gutta Percha Removal:

• Use the Pen Tip to cut excess gutta percha. Exercise caution and precision.

Heating & Insertion:

• Heat the Pen Tip and insert it with the gutta percha to 4-6mm short of the working length.
• Stop heating and maintain pressure for about 10 seconds for effective compaction.

Pen Tip Removal:

• Remove the Pen Tip after heating for 1-2 seconds to prevent gutta percha from coming out.

Compaction:

• Compact the warmed gutta percha using a hand plugger to achieve a hermetic seal in all canals.

Temperature Setting:

• Opt for the low-temperature mode when using less gutta percha for optimal results.

Safety Precautions:

• Always use the safety cap when changing tips to prevent accidental contact with the heated end.
• Follow recommended guidelines for patient and practitioner safety.

Completion:

• Ensure thorough root canal obturation using the ObturaPro Pen Tips.
• Dispose of used materials properly.

• Quick Heating: Reaches peak temperature within one second for efficient and time-saving treatments.
• Internally Heated Tip: Smart, safe, and sophisticated design, heating only the working end, eliminating the need for insulated sleeves.
• Temperature Range: Heating condensers can reach up to 230°C, facilitating versatile applications in endodontic procedures.
• Compatibility: Designed for use with the Pen Handpiece, ensuring seamless integration with existing equipment.
• Ergonomic Design: Comfortable holding feeling for practitioners, promoting ease of control during operation.
• Safety Features: Non-working end insulated internally for patient comfort, and a safety cap for secure tip changes, enhancing overall user safety.
• Versatility: Set includes four tips (S, F, FM) catering to various endodontic applications, from gutta percha removal to 3-D root filling.
