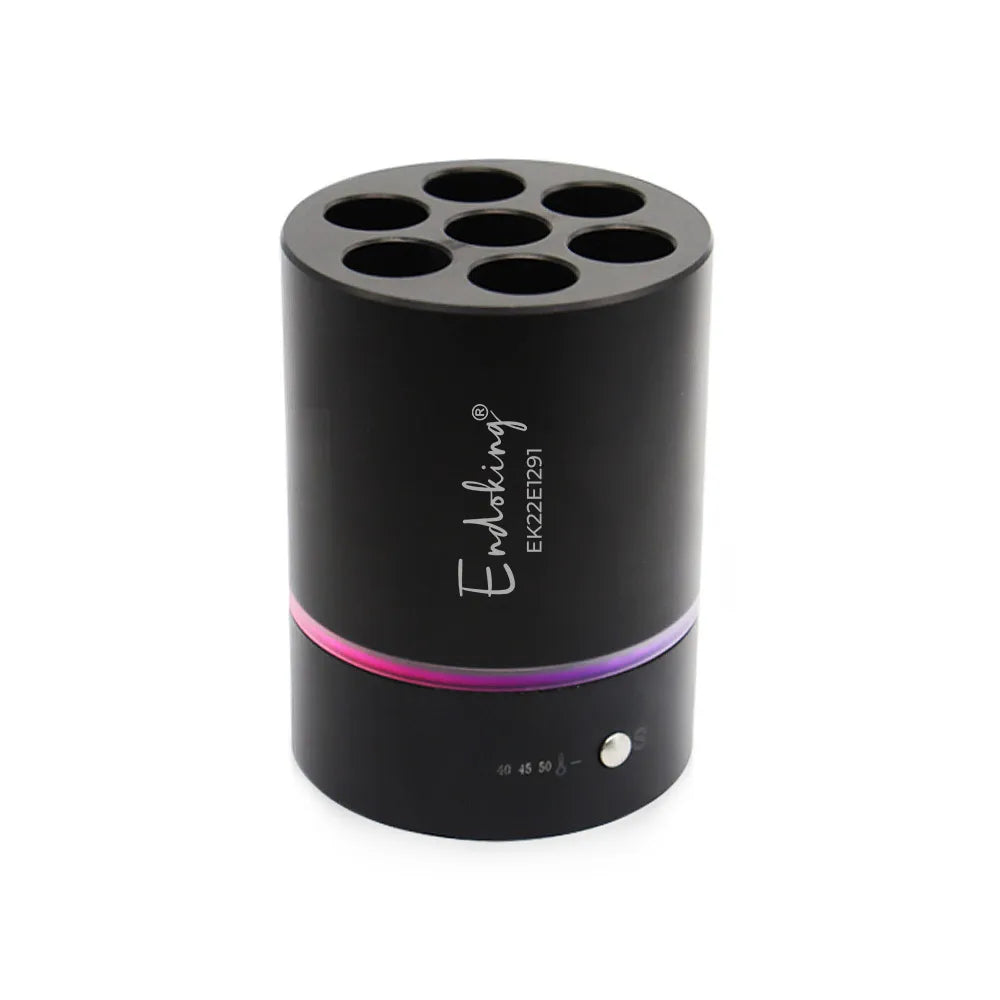

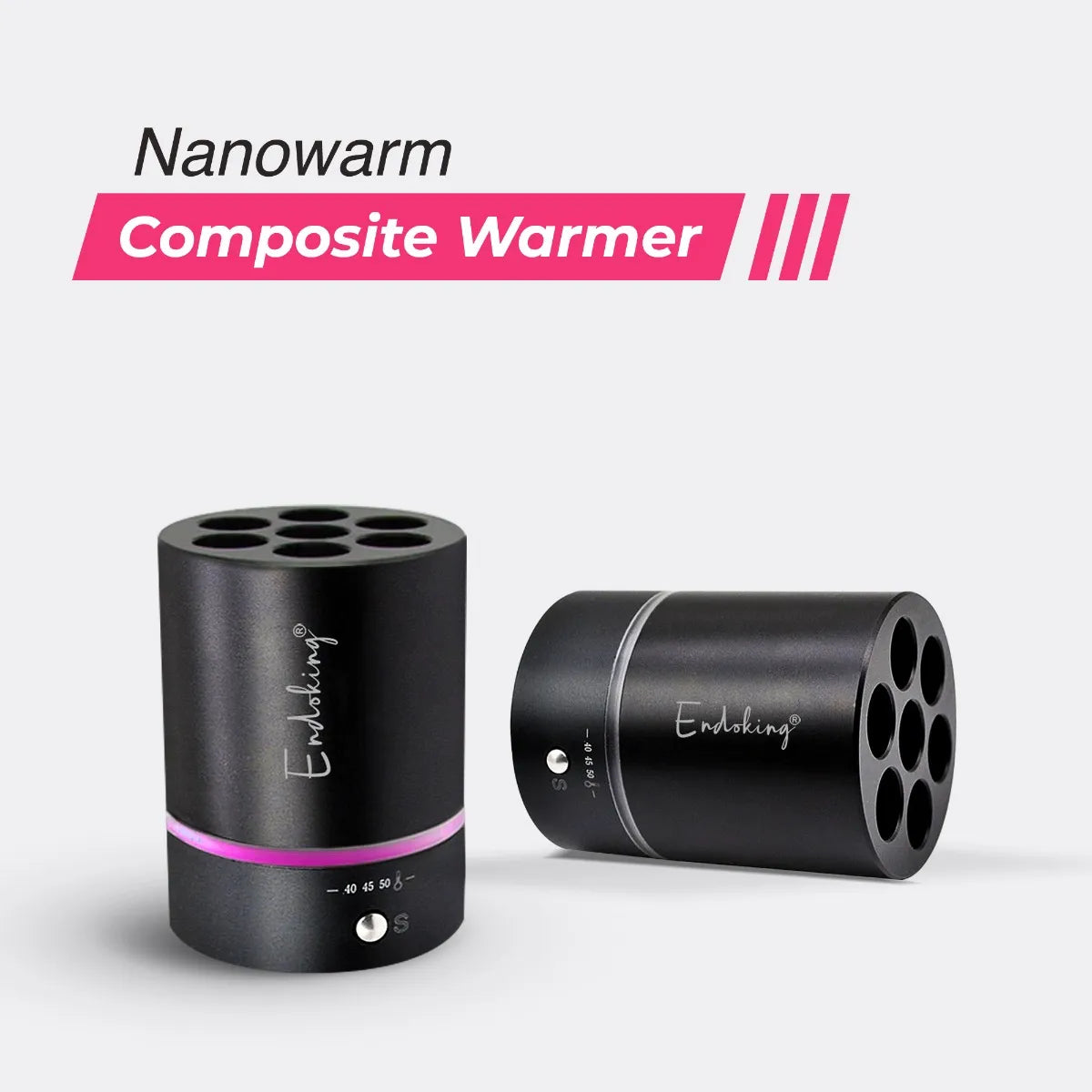

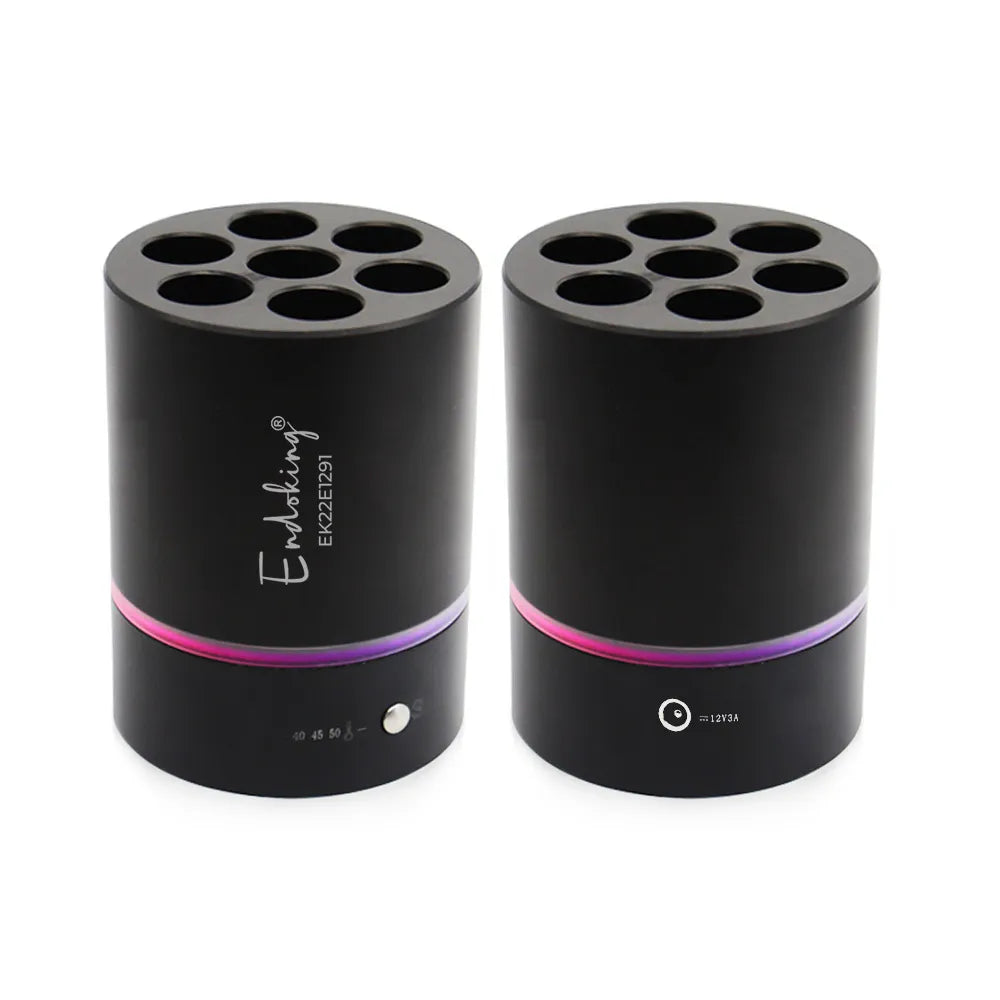

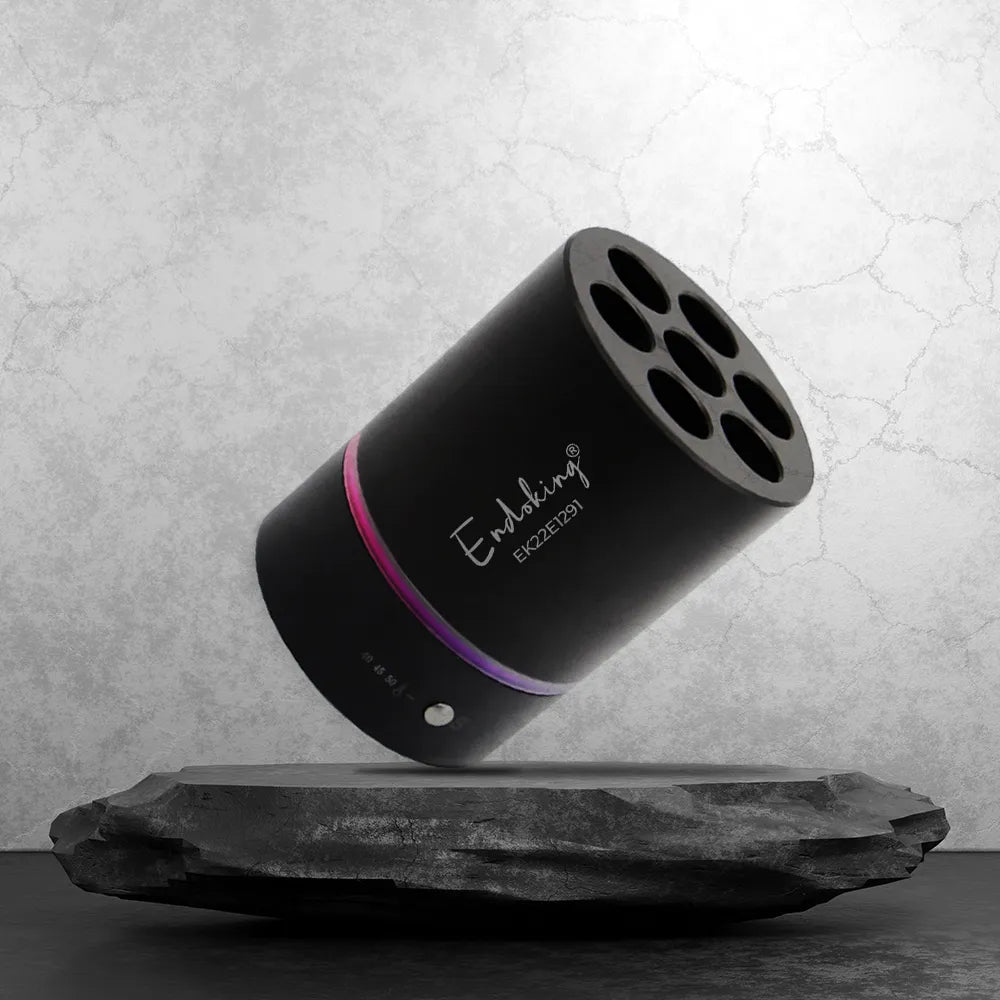

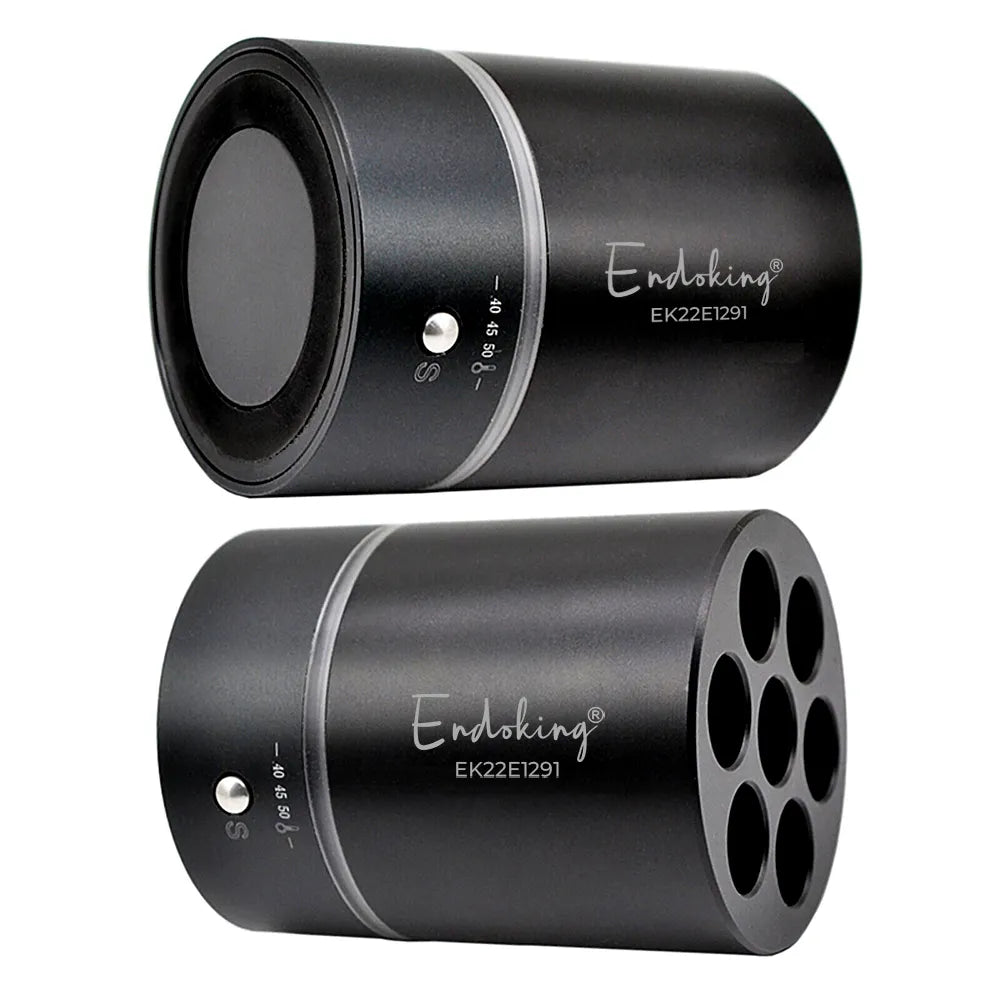

Endoking Nanowarm Composite Warmer

TECHNICAL SPECIFICATIONS:

• Output: 12V DC 3A
• Power: 36W

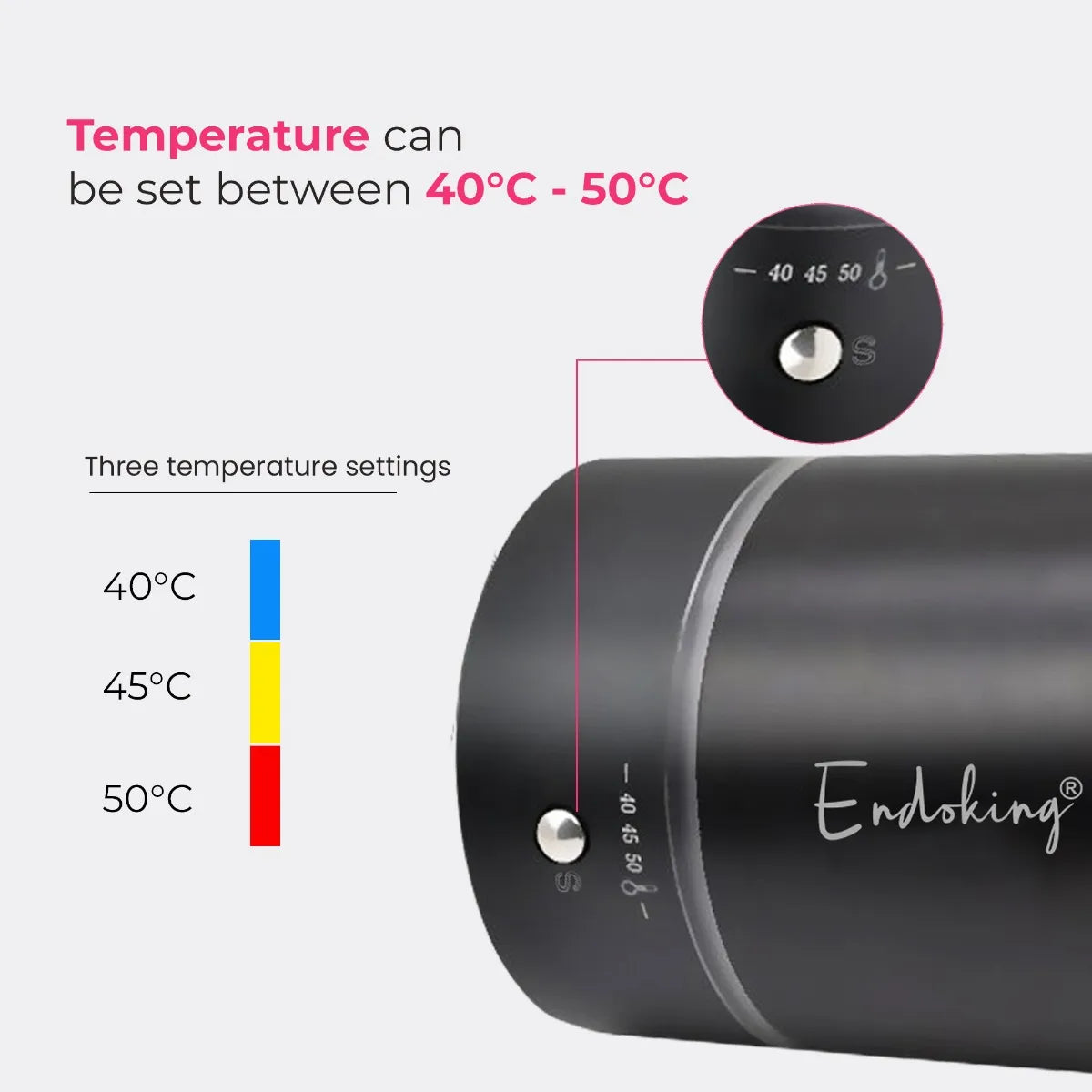

• Temperature setting: 40±0.5℃, 45±0.5℃, 50±0.5℃

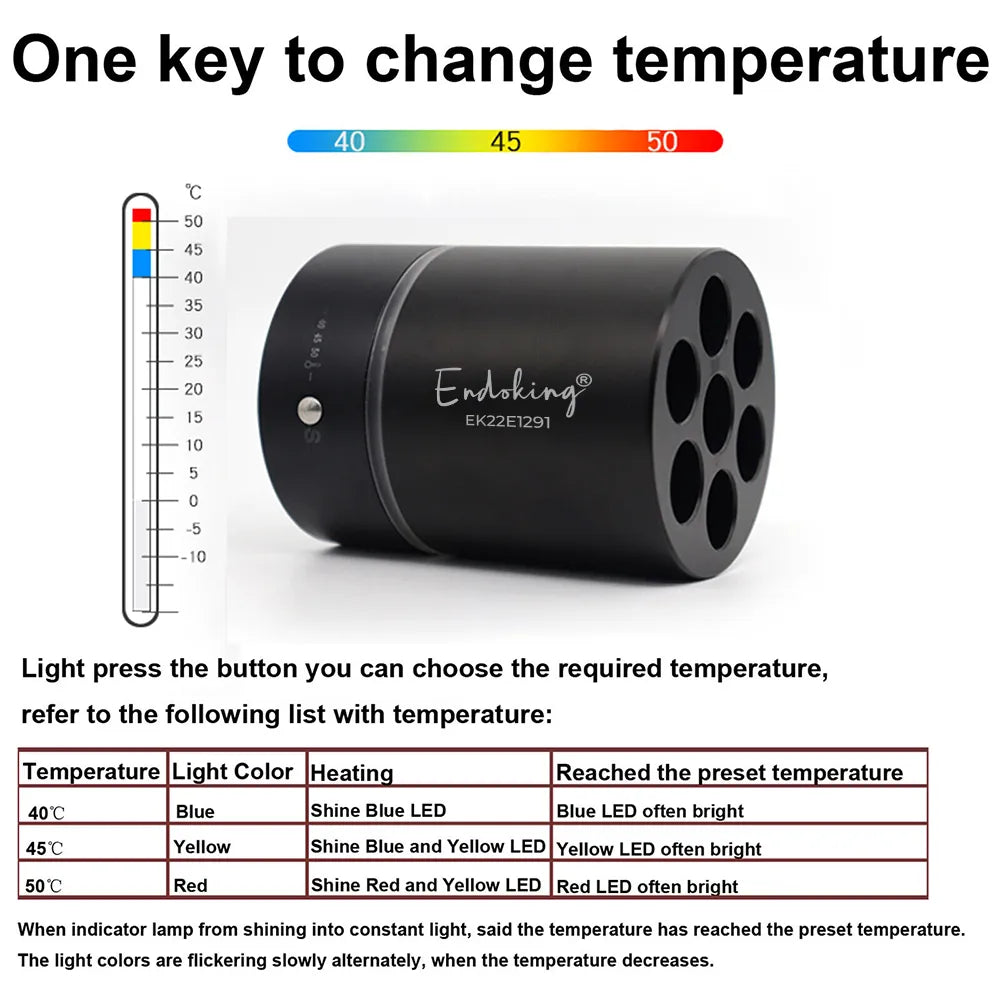

TEMPERATURE

LIGHT COLOR

HEATING

Reach the undefined temperature

40°C

Blue

Blue LED glisten

Blue LED normally on

45°C

Yellow

Yellow LED glisten

Yellow LED normally on

50°C

Red

Red LED glisten

Red LED normally on

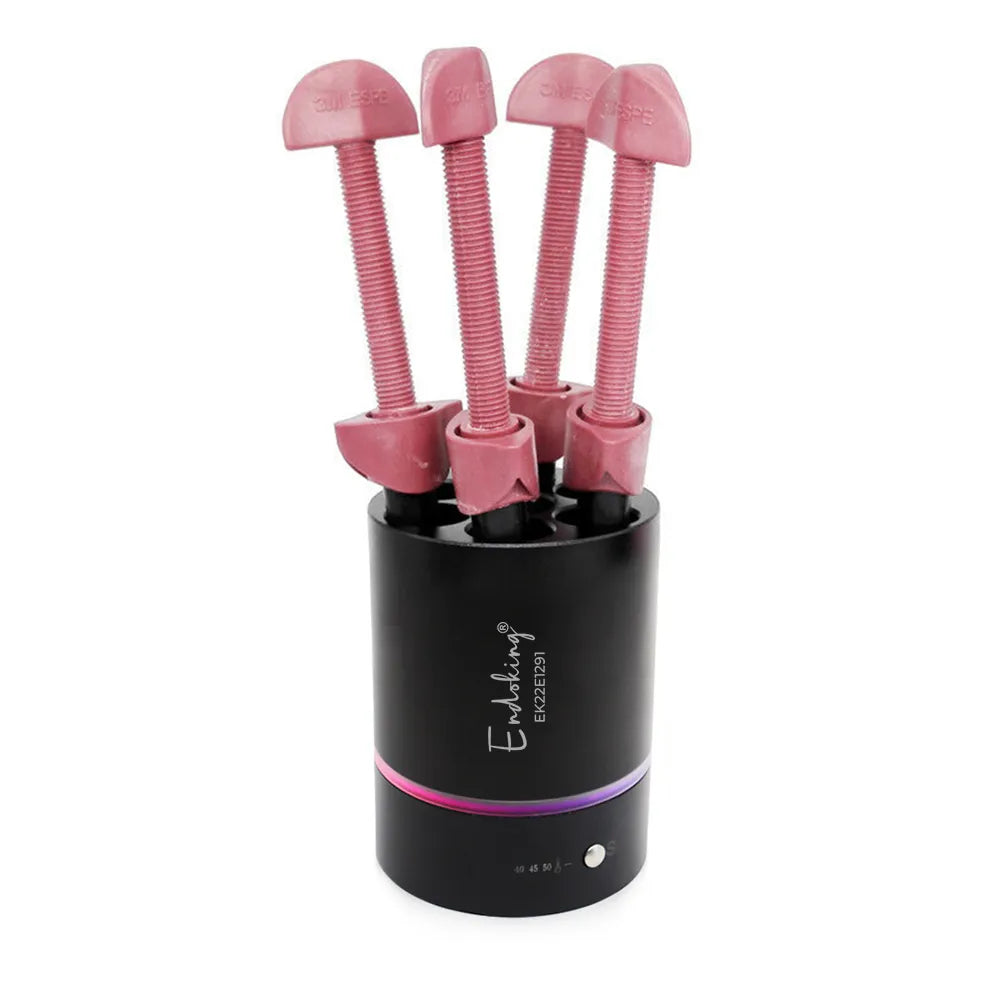

PRECAUTION: The resin composite material must tighten the lid of the syringe, preventing leakage material within the heating body.

CLEAN and DISINFECT: All the parts can be cleaned with disinfectant using dish cloth. Don't put any parts immersed in any liquid cleaning and disinfection, don't disinfect under high temperature and high pressure

Fault warning: 3 sets of indicator light glisten together: Temperature sensor failure.

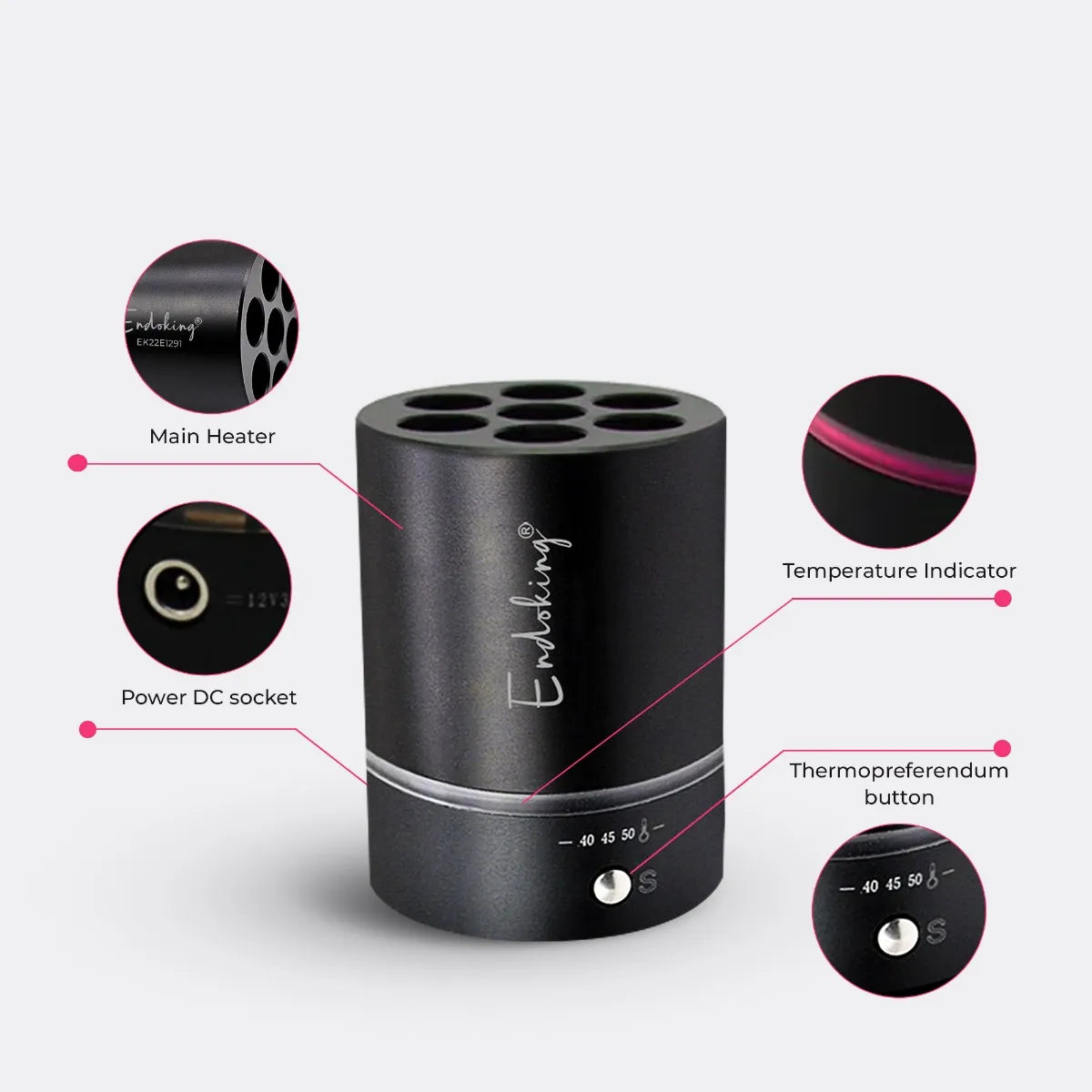

STEP 1: After connecting to 12V Direct Current, three indicator lights (red, green and blue) will be on. At that time, a composite heater can be used.

STEP 2: When users are using the heater, only the blue light indicator lighter will be flashing, means the heater is working at 40°C. If you need to turn it off, push ON/OFF button again, (at that time, three indicator lights will be on) and the heater will stop heating.

STEP 3: Three working modes ( 40°C/ 45°C/ 50°C) can be chosen by users, according to their requirements.

STEP 4: After choosing one working mode, (taking 40°C for example) the indicator light will keep flashing when the temperature is below 40°C. Otherwise, the light will keep lighting. At the same time, you can choose another heating mode. If without any action on it, the heater will be on standby after 30minutes.

STEP 5: If you need to use it again, just push ON/OFF button again and start heating.

STEP 6: The heater should be placed on smooth places.

• The temperature can be set according to choice of material and personal preference, ensuring optimal composite handling.
• Easy to use as both an automatic and manual device, offering flexibility in heating composite materials.
• Built to last, providing reliable and consistent performance over time.
• Helps achieve perfect bond strength and long-lasting composite restorations with the help of controlled heating.
• Warms local anesthetics for improved patient comfort and efficiency during dental procedures.
• Activates and enhances the efficacy of root canal irrigants, aiding in thorough and efficient root canal treatments.
