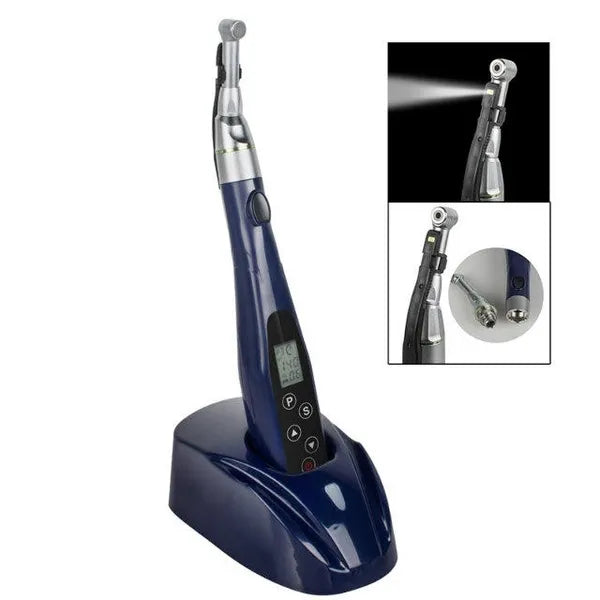

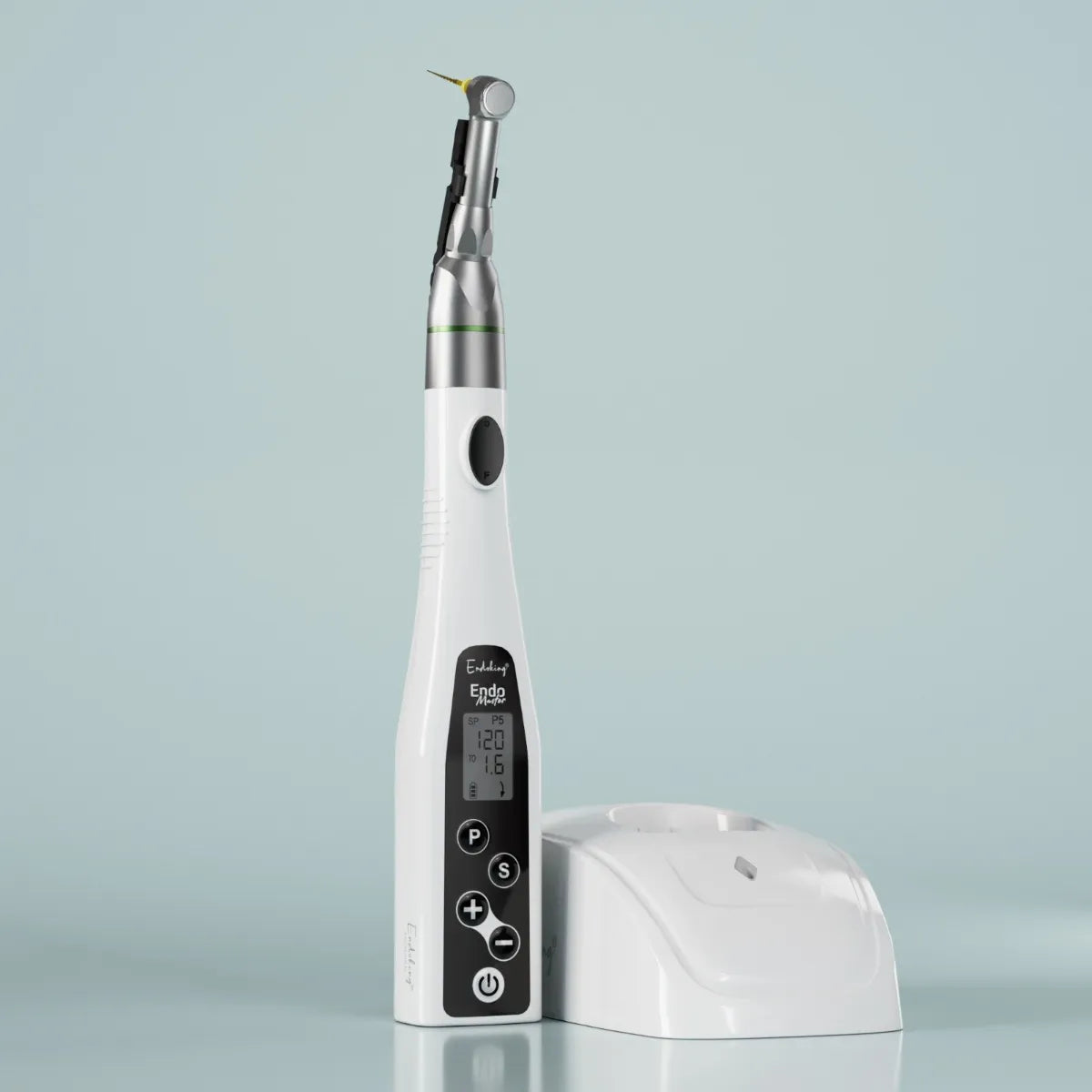

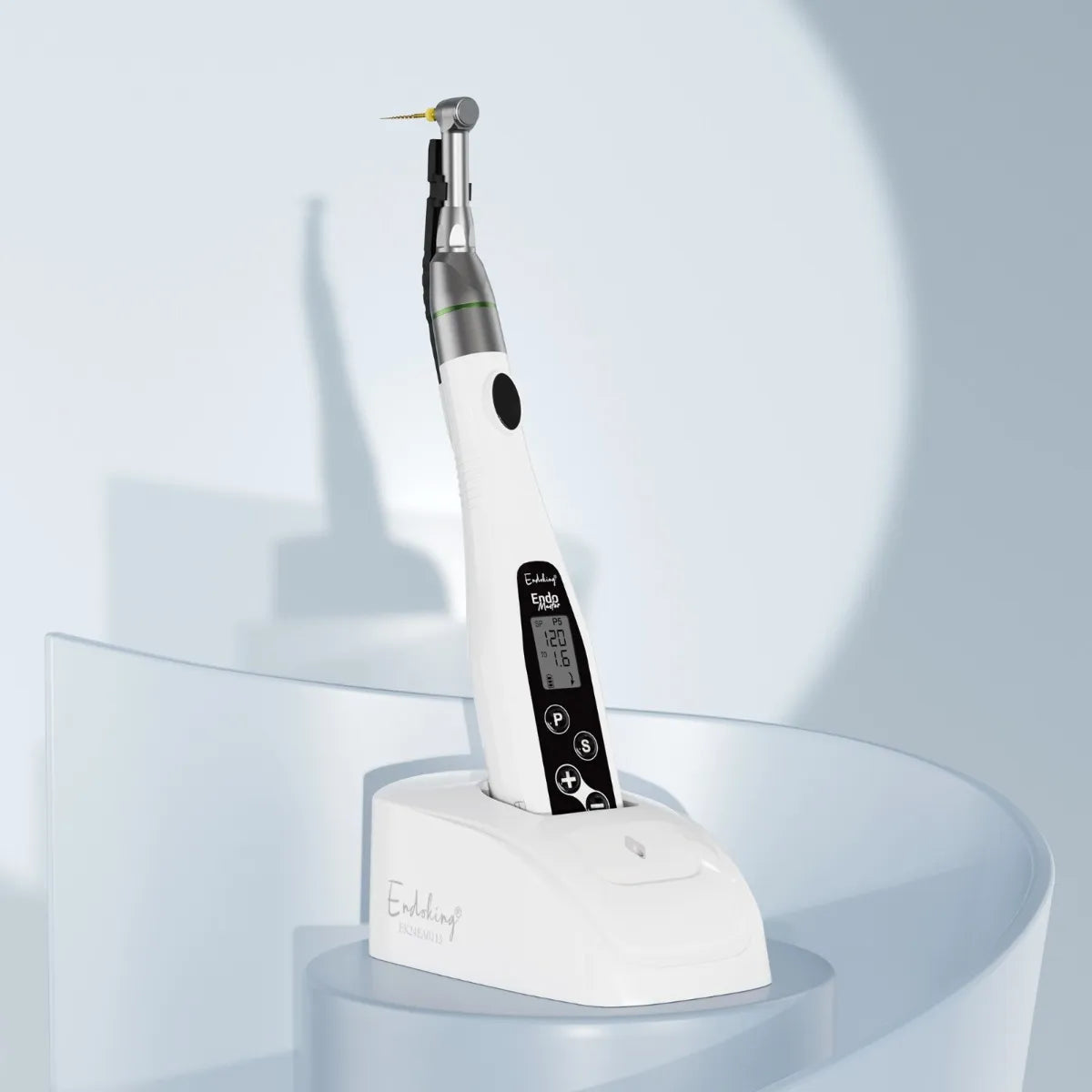

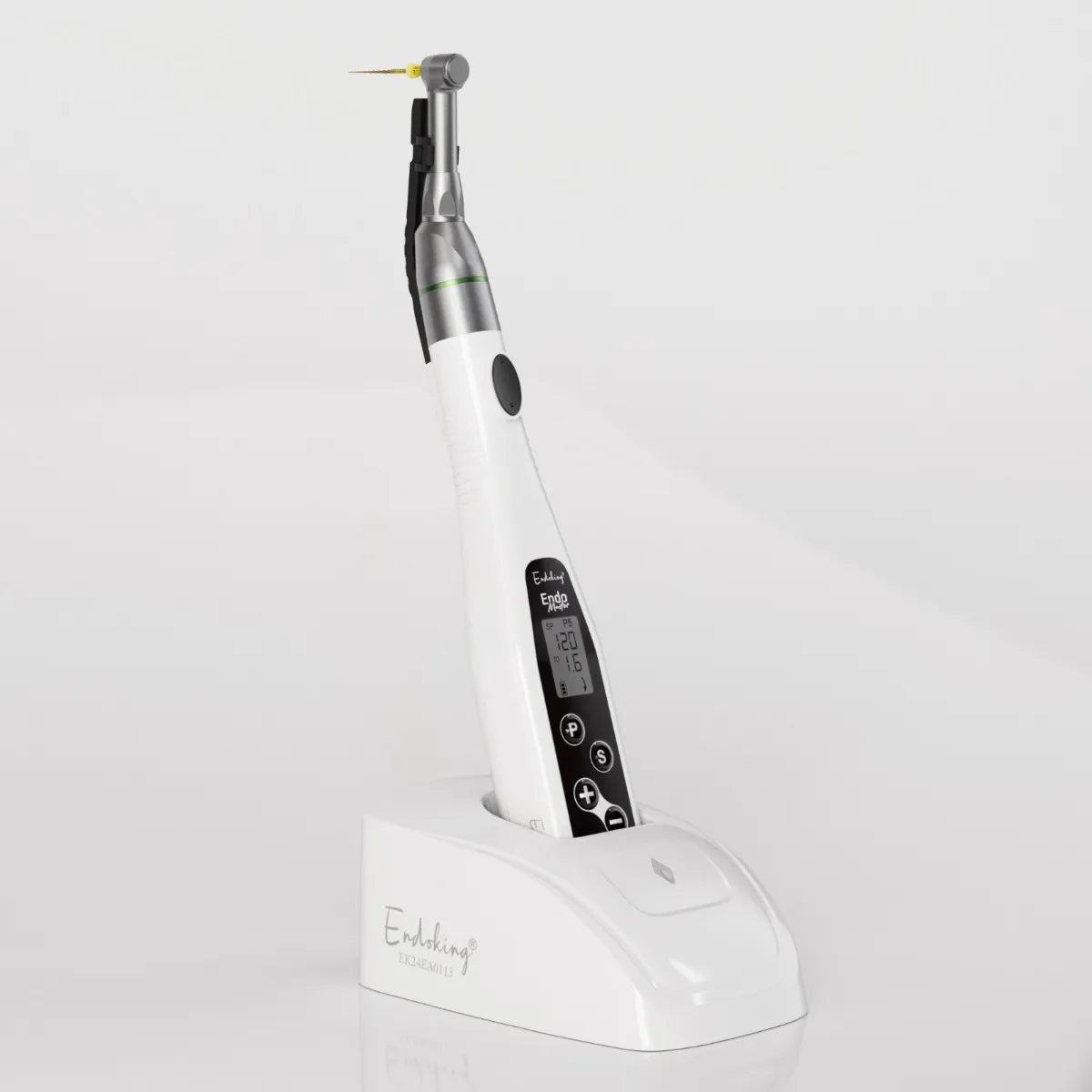

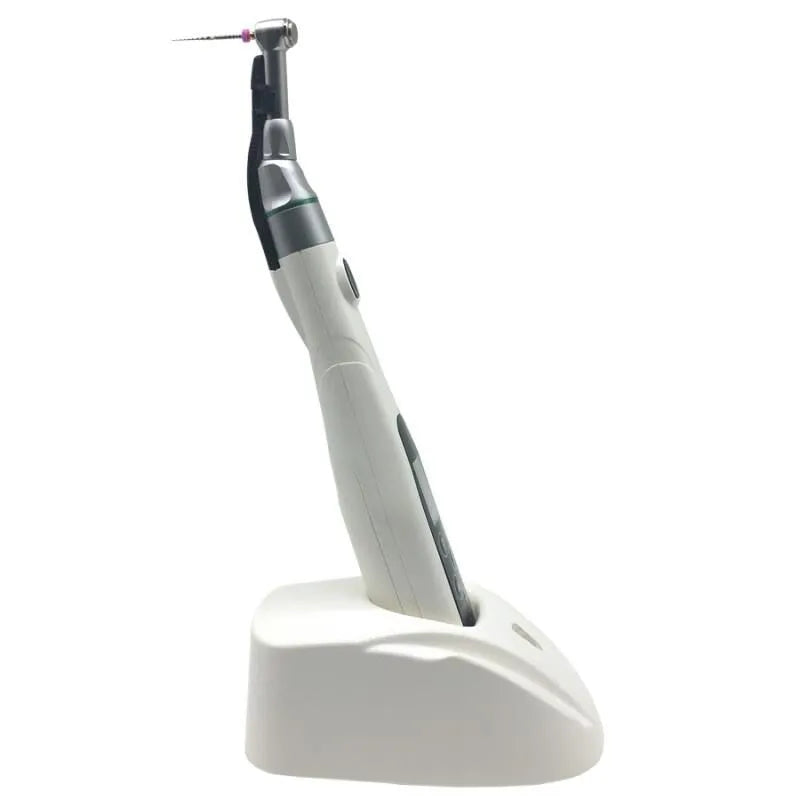

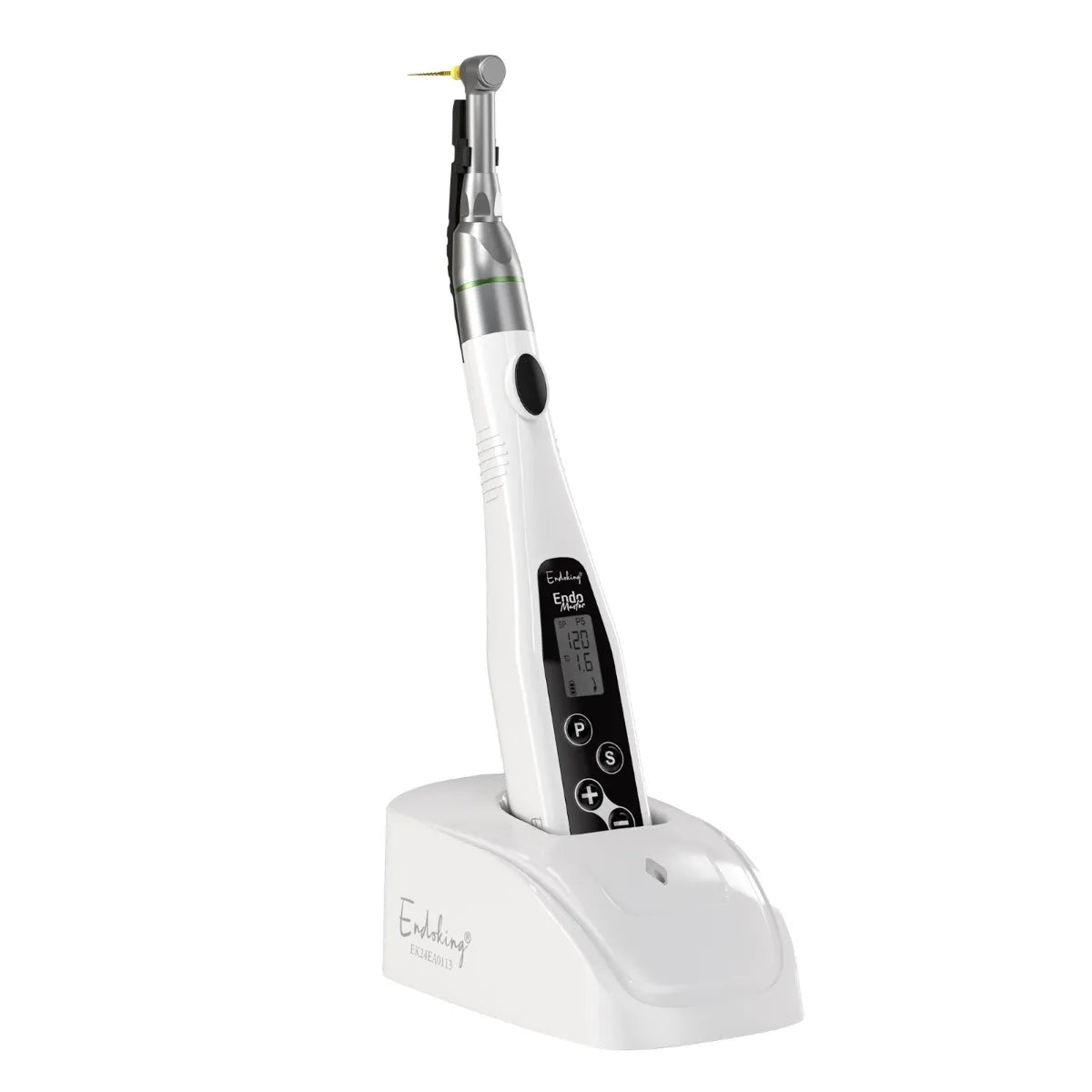

EndoKing Cordless Endomotor LED

Rs. 6,995.00

Shipping calculated at checkout.

People are currently viewing this

Selling quickly! people have this item in their carts

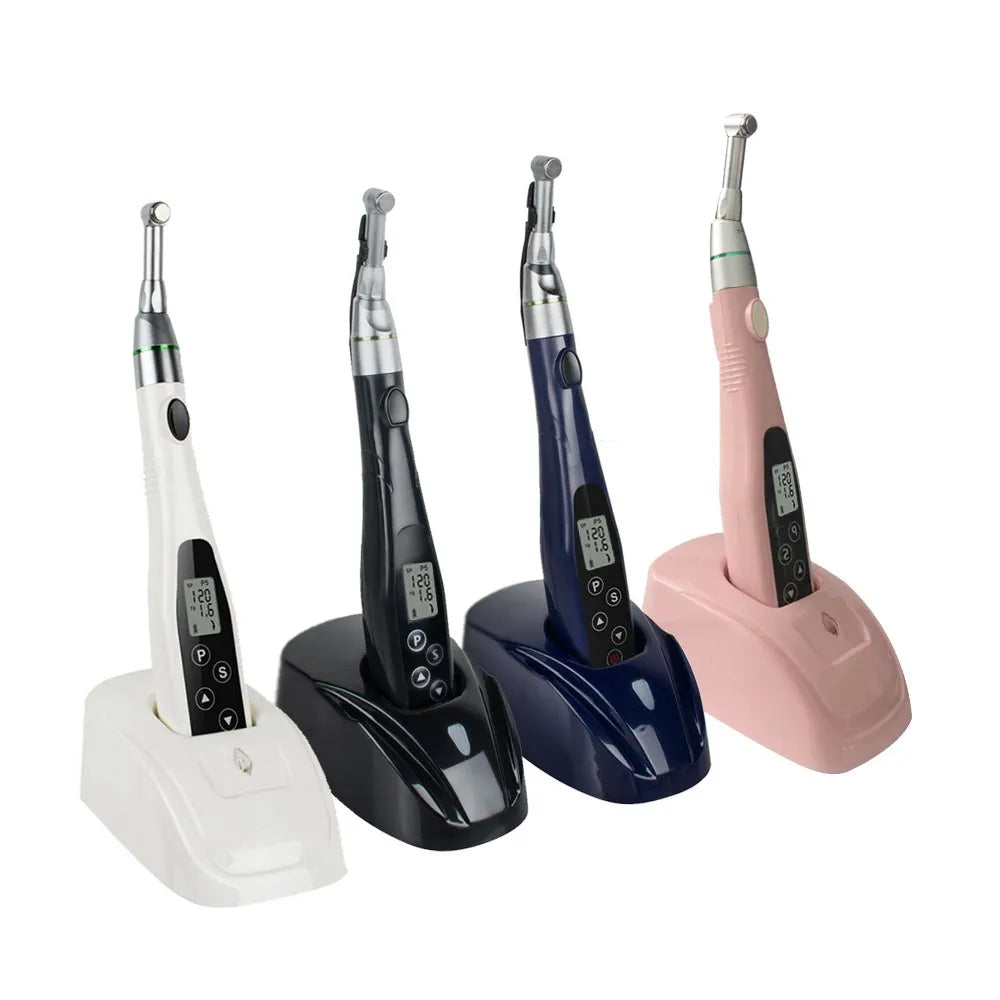

Color: Black

Description

EndoKing Cordless LED Endomotor is designed for optimum freedom making conventional endodontics better & efficient. This endomotor amazes as a cordless endomotor built with brilliant & smart optimization for Advanced Endodontics. Optimum head size enables better view for the endodontists thus, enhancing their efficiency.

Clicking the Program Shift Key (P), you can switch to 7 different kinds of programs for different Endodontic files. There are programming functions to memorize the exact speed and torque settings for up to 7 NiTi file systems from all major manufacturers. Having a total of 7 memory programs it allows the clinician to change parameters such as speed, torque, the direction of rotation and others.

7 Modes Display :

Display current mode, in the reciprocating function, the torque is not adjustable -:

A⤸ : Auto-reverse & Stop - Start with clockwise 360° rotation, on exceeding preset torque value, it will rotate anticlockwise then stops.

⤹A : Auto-forward & Stop - Start with anticlockwise 360° rotation, on exceeding preset torque value, it will rotate clockwise then stops.

↺⤸ : Reverse reciprocating - reverse 150° forward 30°( approximation)

⤹↻ : Forward reciprocating - forward 150° reverse 30°(approximation)

↻ : Forward 360° - Start with clockwise 360° rotation, when encounter torque, stop to reduce the chances of file separation.

↺ : Reverse 360° - Start with anticlockwise 360° rotation, when encounter torque, stop to reduce the chances of file separation.

⤹A⤸ : Auto-reverse & Continous - Start with clockwise 360° rotation, on exceeding preset torque value, it will rotate anticlockwise, once the load is removed again clockwise rotation starts.

ADVANTAGES :

The product has an ergonomic design; its body is lightweight and is easy to carry.
There are 7 kinds of procedures (Memory Set) for selection. It can input the optimum data in advance, and also can modify it accordingly to the working conditions in use.
Dental Contra-angle handpiece and the lamp holder can withstand 135ºC high temperature and high-pressure sterilization
In-built high capacity lithium battery, so it can reduce battery change times and reduce costs of the machine.
According to the set load point it can automatically reverse and stop working and is able to remember different actions of each program.

Specifications

Care Instruction

Features

TECHNICAL SPECIFICATIONS:

Speed Range: 130-600 rpm
Gear Ratio: 16:1
Torque Range: 0.6-4.0 Ncm

HOST MACHINE:

Battery Voltage: 3.7v DC
Battery Capacity: 800mAh
Net Weight: About 210g

POWER ADAPTER:

Rated Input Voltage: AC100-240V60/60Hz
Output Voltage: 5v DC
Input Voltage: 1A

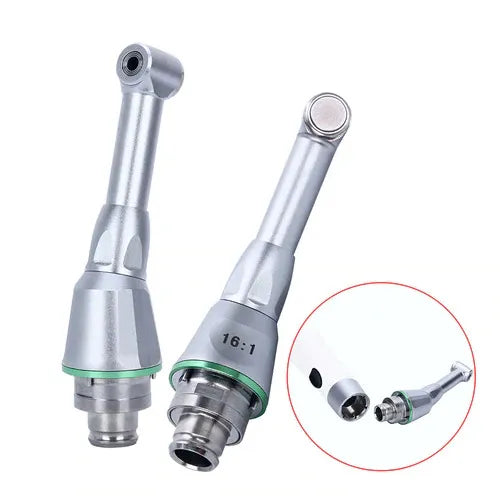

Contra-angle Specifications:

Head: ∅8mm, H 11mm
Total Length: 6.5cm

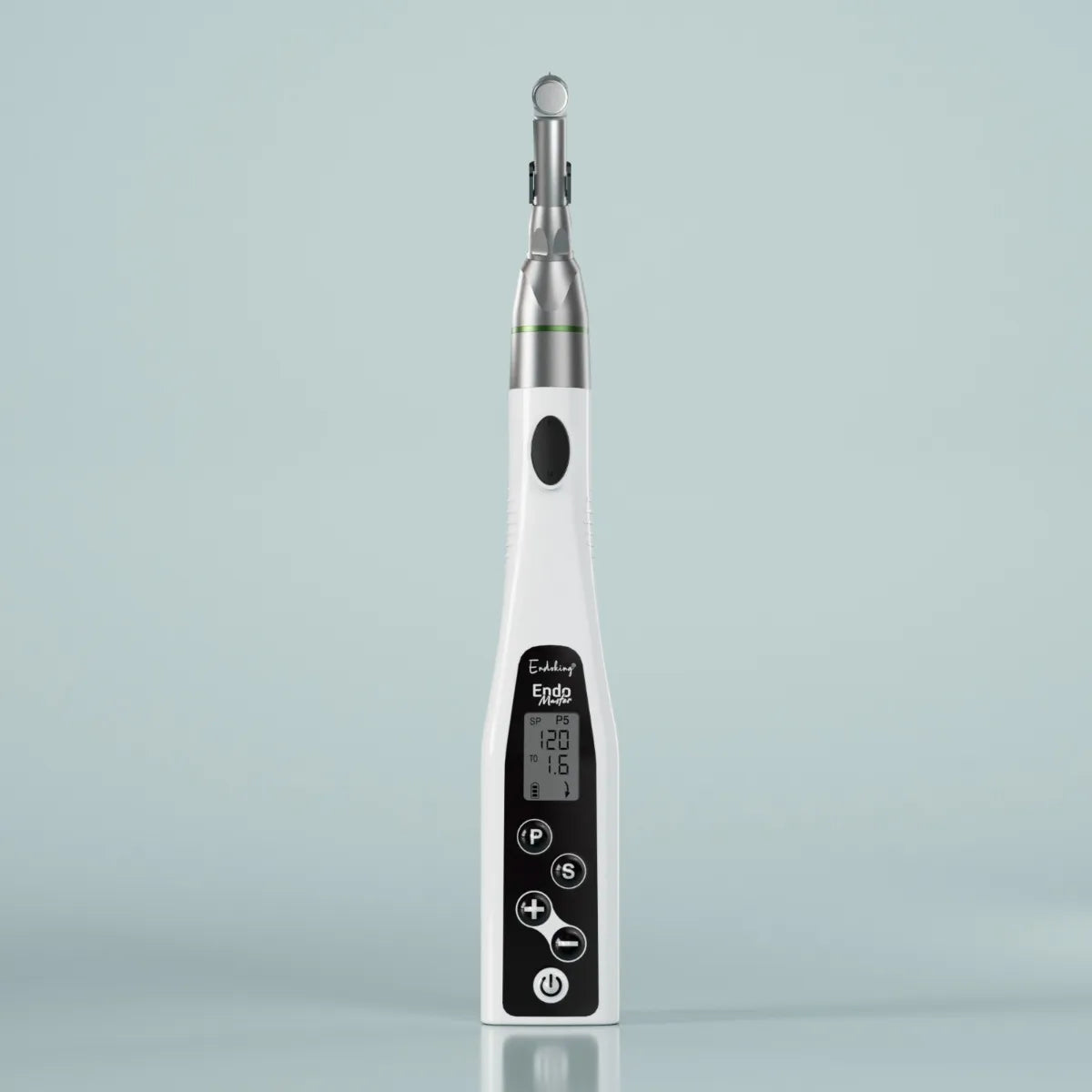

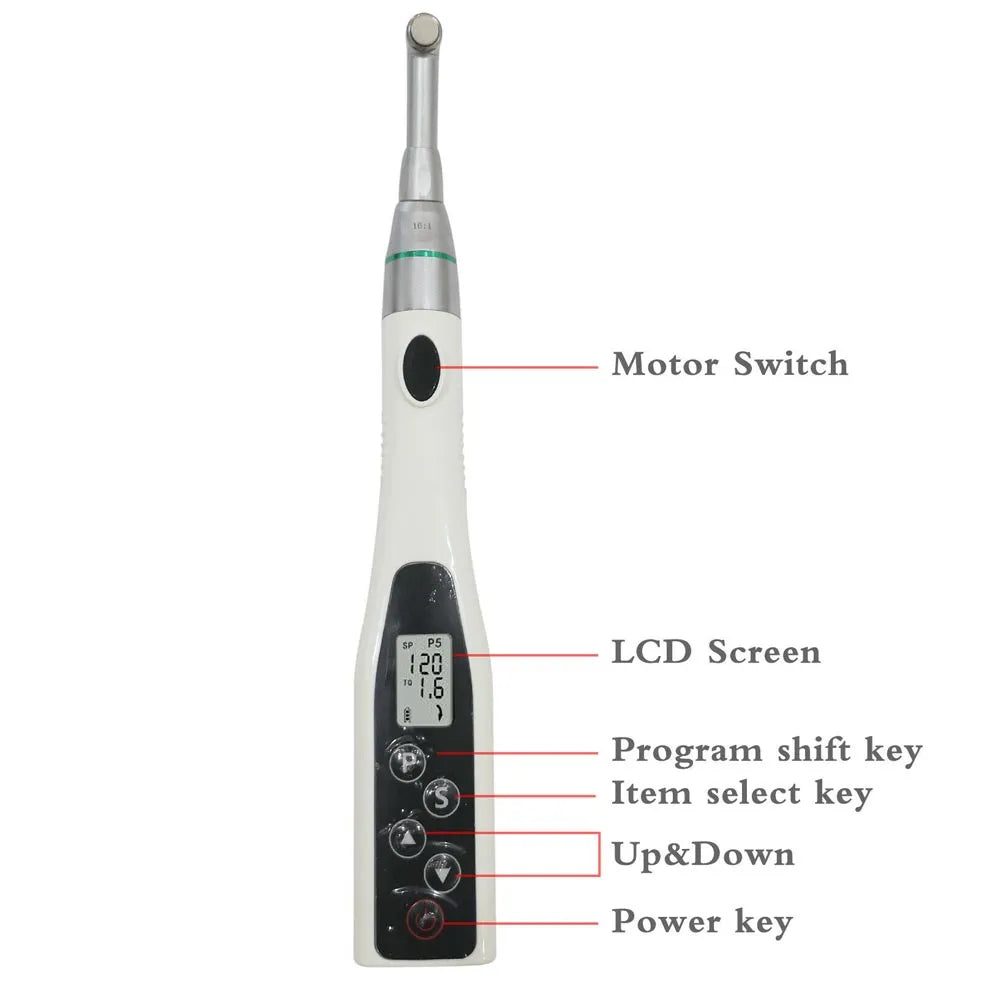

Power Button :
Holding down the Power key for more than one second turns on the power and the LCD panel lights.
Holding down the Power key for more than one second while the power is on turns off the power and the LCD display turns off.

Motor Switch Button :
By pressing motor ON/OFF key, the files in contra-angle will start to rotate and pressing the key again will stop rotation of files.

Item Select Button S :
Pressing the Item Select key S, you can switch speed, torque and modes.
The speed and torque settings can be changed during the running of the machine.

Program Shift Button P :
Clicking the Program Shift Key P, you can switch 7 kinds of working procedures.

Upward & Downward Button :
Press this key to increase or decrease the parameters of each item. When the current item is flashing, press “+/-” key to change the parameter of the current item. While the file in contra-angle is rotating, pressing “+/-” key can also change speed (SP) up and down.

Reset Setting :
While on standby(positive/negative movement), install Contra-angle Handpiece and do not give extra load to it, then long-press Item Select key S when "CRL “ appears on the screen, press the motor switch again to prompt"bee". At this time, the instrument will start to reset and then enter the lock screen interfaces.

Ergonomic Design: It has ergonomic design which makes it fit for the dentist's use.

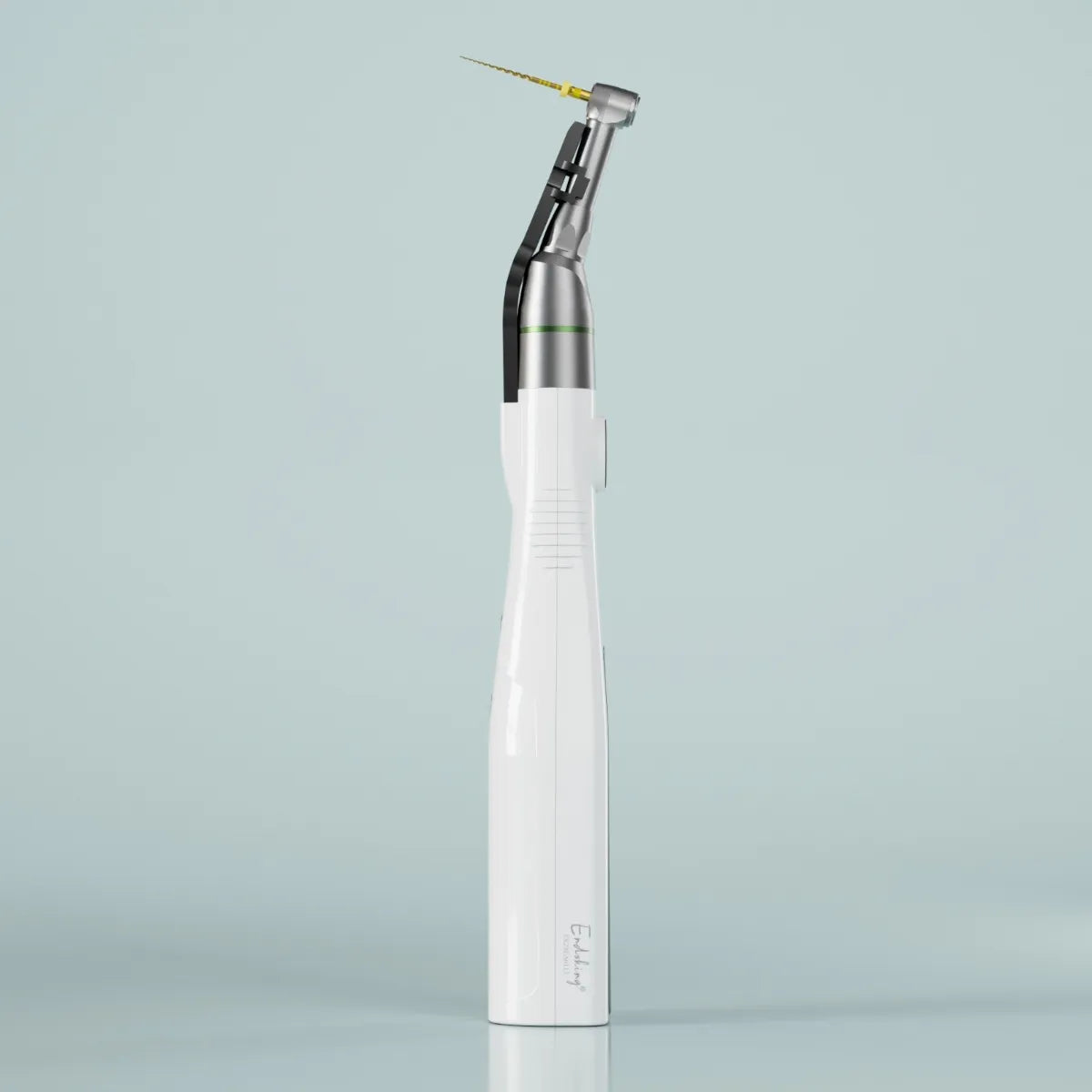

Slim body & Lightweight: The slim, lightweight body and extremely small head allow optimal visibility during procedures.
Hygiene and maintenance: The contra-angle head is sterilizable and thermo disinfectable. Handpiece drive and charging station can be disinfected through wiping down, and can be cleaned with a soft cloth with ethanol.
Simple interface design

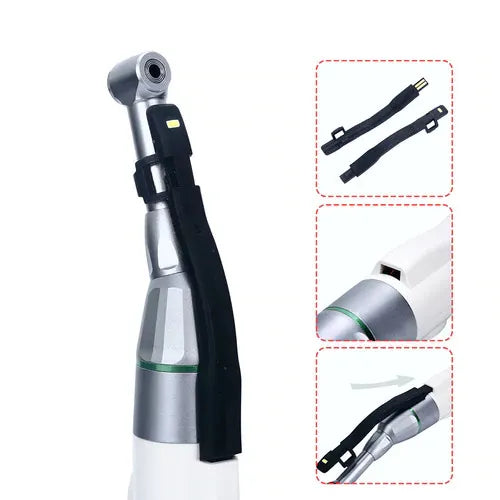

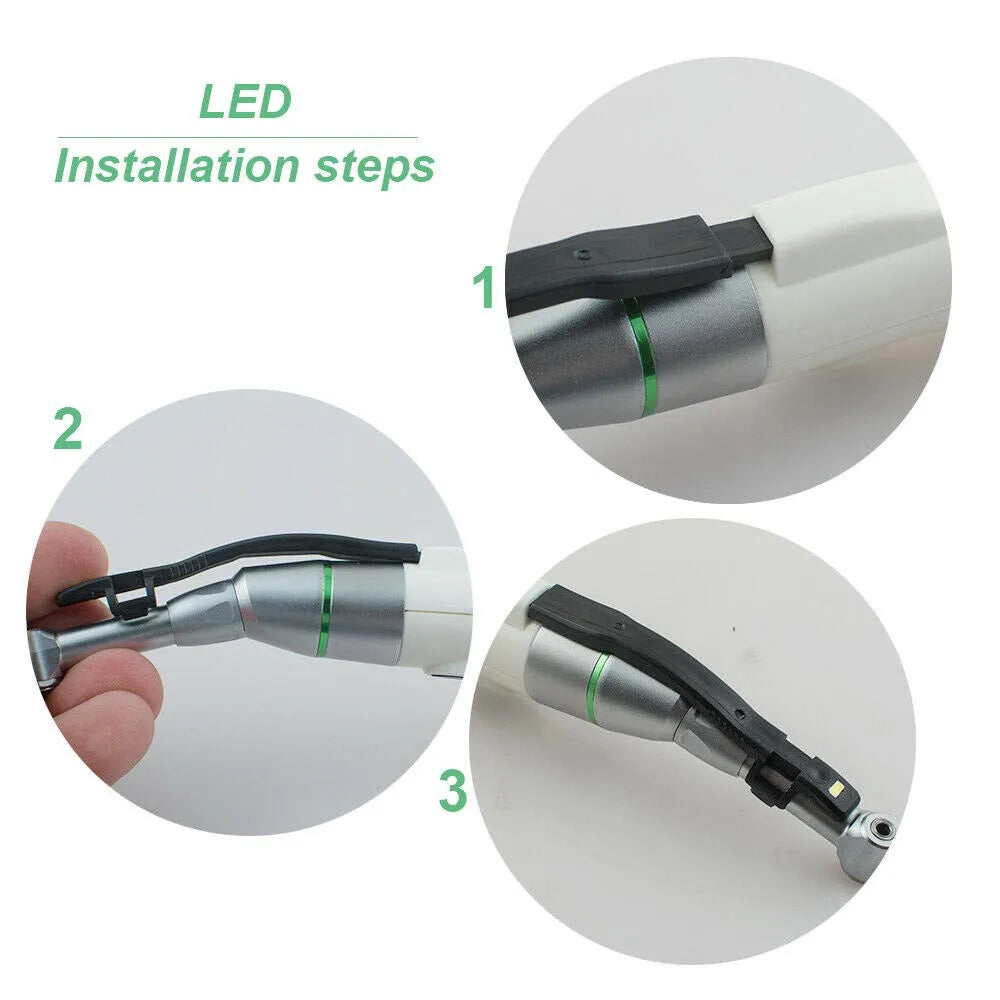

High brightness LED to provide better illumination during RCT
Stable and prolonged usage.
Reliability with long-life Li-ion battery.
Wide torque & speed range make it adapt to various file systems such as FKG, XP-endo, and Shaper in the market.
The autoreverse and autoforward modes with automatic safety stop minimize the risk of file breakage.
