Dentsply AutoMatrix Refills

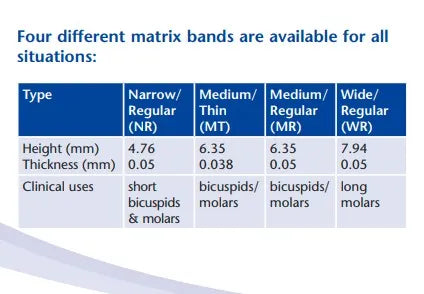

Types : Height & Gauge : Typical Clinical Uses

Medium Thin - 1/4” x .0015 - Bicuspids/molars

Narrow Regular - 3/16” x .002 - Short Bicuspids and molars

Medium Regular - 1/4” x .002 - Bicuspids/molars

Wide Regular -  5/16” x .002 - Long molars

Composition :

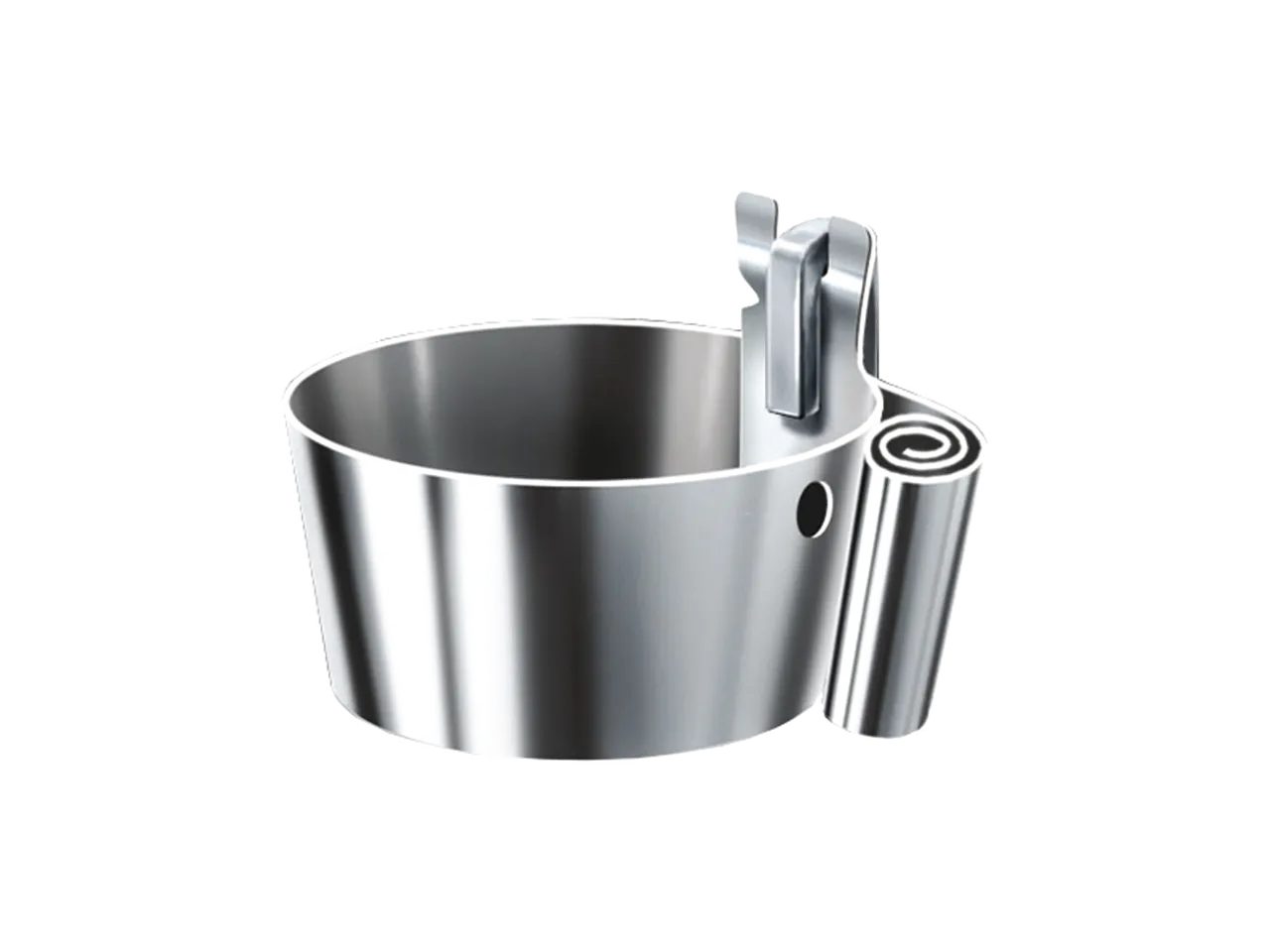

• Matrix Bands: Polished stainless steel
• Automate III tightening device: Stainless steel
• AutoMatrix Snippers+: Stainless Steel, with plastic catch-tray

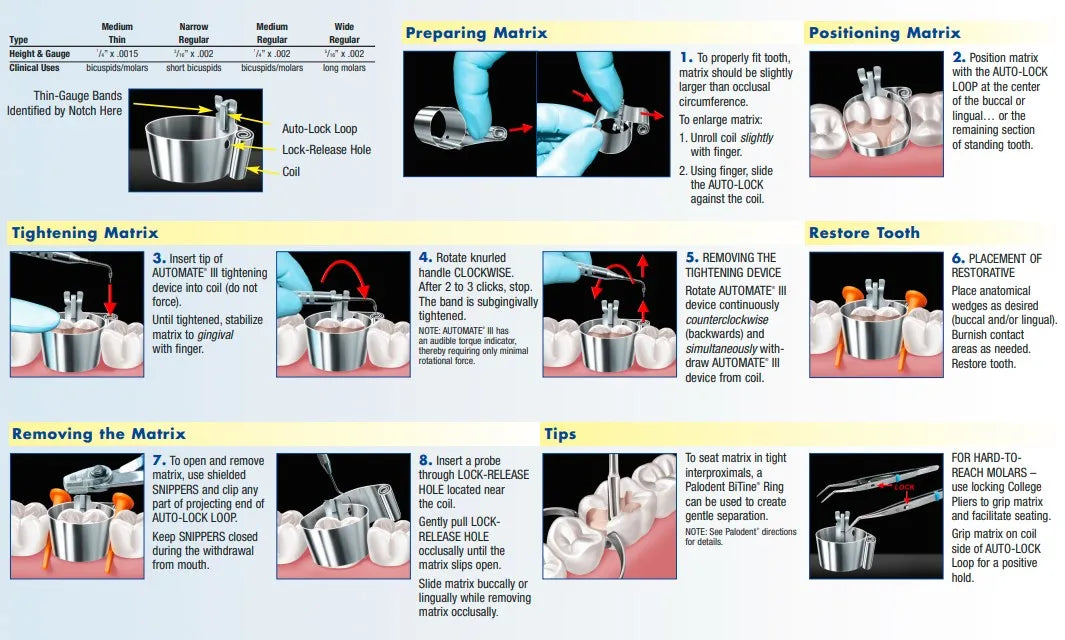

Preparing Matrix - To properly fit tooth, matrix should be slightly larger than occlusal circumference. To enlarge matrix : Unroll coil slightly with finger. Using finger, slide the AUTO-LOCK against the coil.

Positioning Matrix - Position matrix with the AUTO-LOCK LOOP at the center of the buccal or lingual or the remaining section of standing tooth.

Tightening Matrix

• Insert tip of AUTOMATE III tightening device into coil (do not force). Until tightened, stabilize matrix to gingival with finger.
• Rotate knurled handle CLOCKWISE. After 2 to 3 clicks, stop. The band is subgingivally tightened.

REMOVING THE TIGHTENING DEVICE - Rotate AUTOMATE III device continuously counterclockwise (backwards) and simultaneously withdraw AUTOMATE III device from coil.

Restore Tooth - Place anatomical wedges as desired (buccal and/or lingual). Burnish contact areas as needed. Restore tooth.

Removing the Matrix

• To open and remove matrix, use shielded SNIPPERS and clip any part of projecting end of AUTO-LOCK LOOP. Keep SNIPPERS closed during the withdrawal from mouth.
• Insert a probe through LOCK-RELEASE HOLE located near the coil. Gently pull LOCKRELEASE HOLE occlusally until the matrix slips open. Slide matrix buccally or lingually while removing matrix occlusally.

Retainerless System - Clear field of vision, access for quadrant work, better patient comfort

Conical formation - Better anatomical adaptation helping to avoid restorative overhang

Torque control of AutoMate III tightening device - Limits over-tensioning, less adjustment needed

Pre-loaded bands - Save time, less steps
