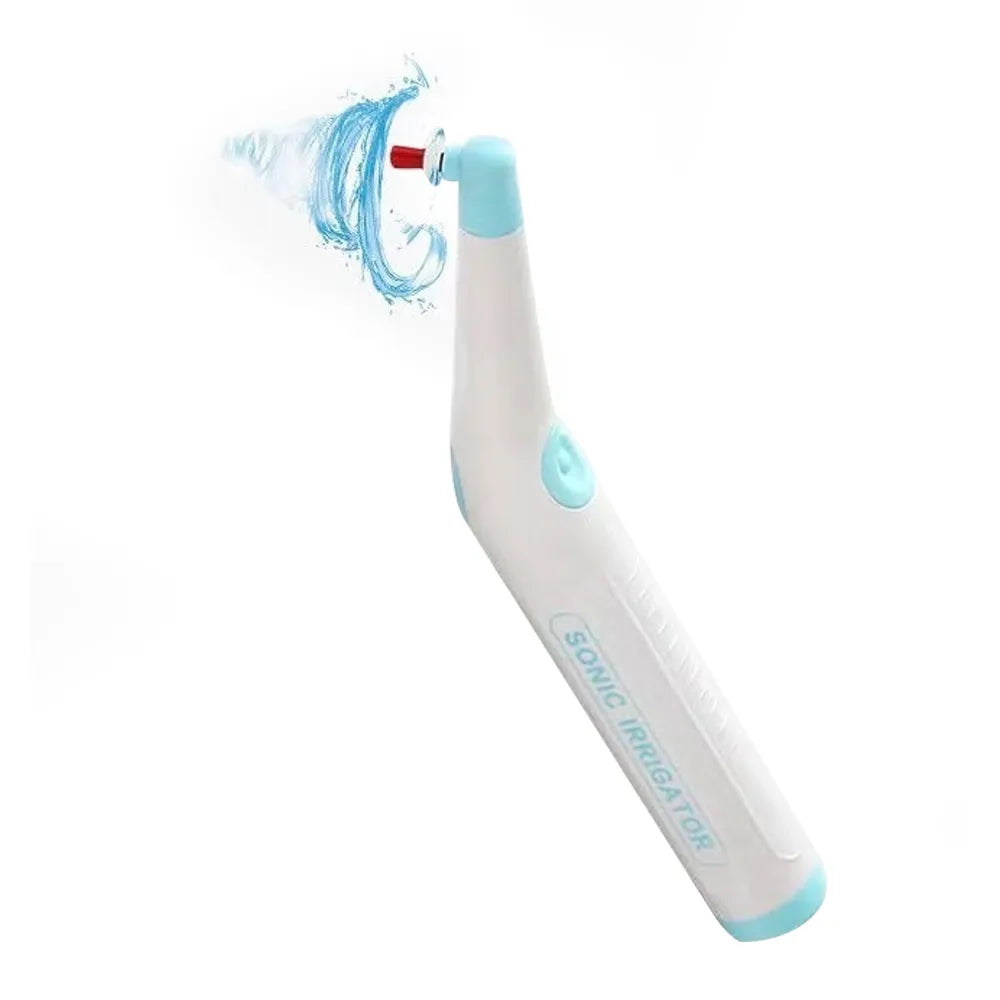

API Sonic Endo Irrigator (60 Tips Free)

Rs. 8,995.00
Add to Wishlist
Specifications
Care Instruction
Features

5 ADVANTAGES OF SONIC IRRIGATION

1) improve the flushing effect in a narrow and complicated canal.

2)enhance the irrigate material and remove debris in the canal wall.

3)Reduce the risk of leakage of bacteria and debris over the root canal and relieve the pain caused by it.

4) help the irrigate material get rid of bacteria in canal

5) highly improved success rate in endodontic treatment.



Prepare canal to produce a fully tapered shape
• Fill pulp chamber with NaOCI, EDTA, or other final rinse solution
• Select the Irrigator tip that manually fits loosely within 2 mm of working length
• Place the barrier sleeve over the complete length of the handpiece
• Attach the Irrigator tip over the barrier-protected handpiece. The Irrigator should snap
on firmly, promoting a secure connection with the handpiece
• Place the attached Irrigator tip into the prepared root canal • Depress the ON/OFF switch to activate. Note: Switch defaults to high speed upon
activation. Depress the 3-speed switch to select medium speed or low speed
• Use a pumping action to move the handpiece/Irrigator in short 2-3mm vertical strokes
• Hydrodynamically agitate the intracanal solution for 30-30 seconds
• Irrigate, then use intracanal suction to eliminate loose debris
• Repeat the above steps for each intracanal irrigant used



Prepare canal to produce a fully tapered shape

  • Place the barrier sleeve over the Driver to protect the entire handpiece
  • Attach the Irrigator over the barrier-protected Driver
  • Place the attached Irrigator tip into the prepared root canal
  • Irrigate, then use intracanal suction to eliminate loose debris
  • Repeat the above steps for each intracanal irrigant used

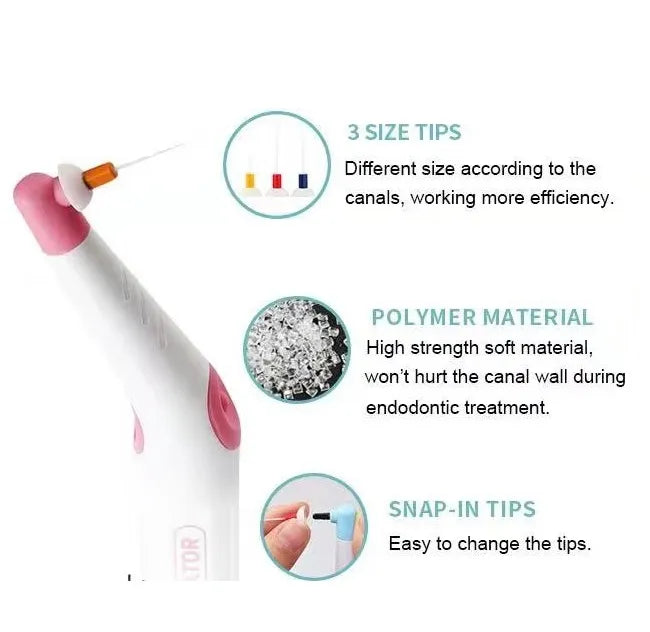

Irrigator Tips

  • Easy snap-on/snap-off design
  • Color-coded by size
  • Ergonomic, cordless, and battery-operated handpiece
  • Strong, flexible, medical-grade polymer composition

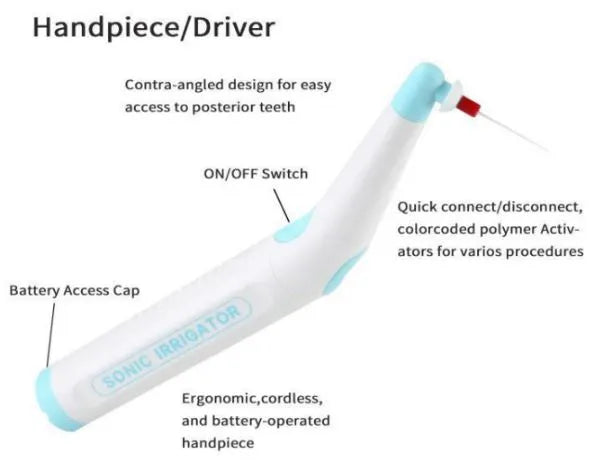

Handpiece/Driver

  • Contra-angled design for easy access to posterior teeth
  • 3-speed sonic motor provides options of 4.000, 6.000 and 10.000 cpm

Irrigator Tips

  • Easy snap-on/snap-off design
  • Color-coded by size
  • Ergonomic, cordless, and battery-operated handpiece
  • Strong, flexible, medical-grade polymer composition

Handpiece/Driver

  • Contra-angled design for easy access to posterior teeth
  • 3-speed sonic motor provides options of 4.000, 6.000 and 10.000 cpm
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Api Instruments consumables
Tags: Product

Share On

Description

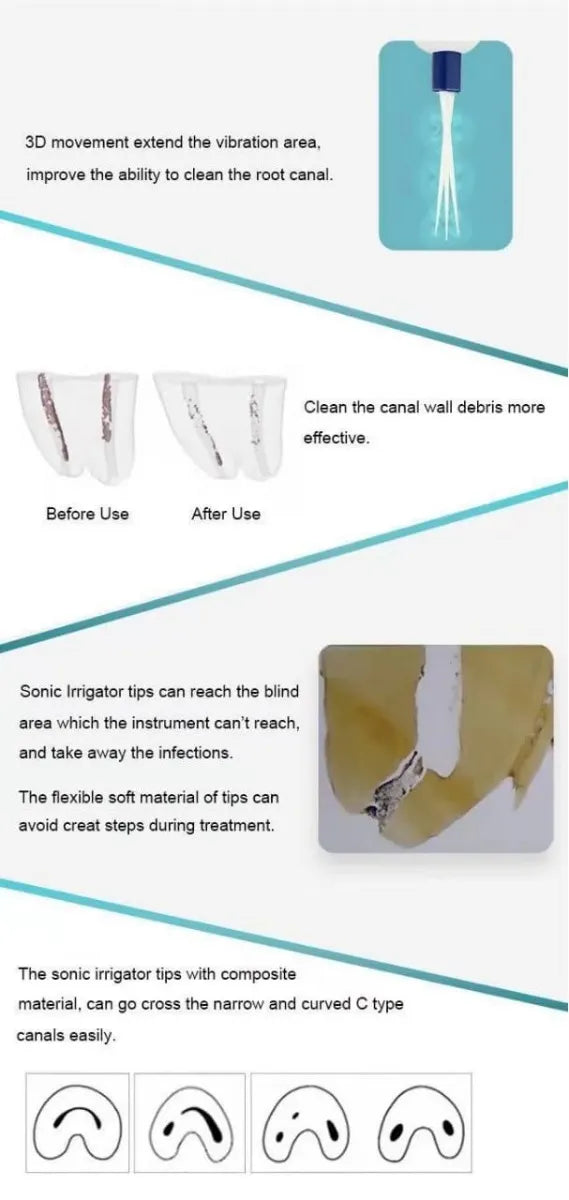

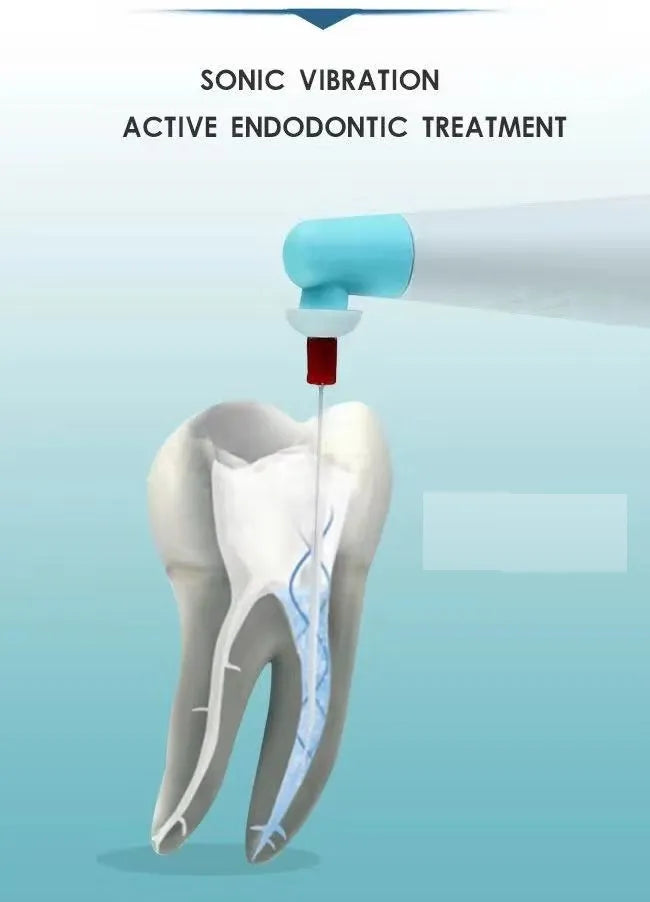

The Sonic Irrigator System is used in endodontic treatment by application of sonic energy. The

Irrigator tips are used in conjunction with the Handpiece/Driver to provide the energy for tip

oscillation and vibration. Evidence-based endodontics has shown that cavitation and acoustic

streaming improves debridement and the disruption of the smear layer and biofilm. Activated fluids

promote deep cleaning and disinfection into lateral canals,fins,webs,and anastomoses.

 A cleaned root canal system facilitates 3-D obturation and long-term success.

  • Do not submerge unit in water
  • Do not autoclave unit
  • The Sonic Irrigator System is only to be used by dental professionals

The Sonic Irrigator System is comprised of the handpiece and Irrigator tips of various sizes

The system functions as intended when the original component parts are used together. With the use of non-original components, serious consequences may result. The original components include the Sonic Irrigator handpiece, the Irrigator tip and protective barrier. the reference numbers of the Irrigator tips include: 15/02 (Small), 25/04 (Medium), 35/04 (Large)

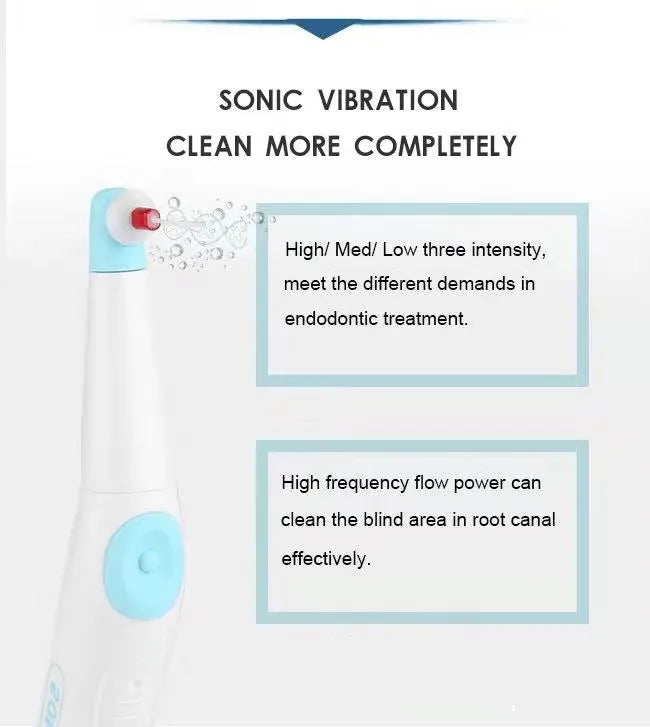

The handpiece provides 3-speed sonic motor options (High,Medium,Low)

The power settings used are ultimately determined by the procedure to be performed, the clinician's experience, and the power needed to efficiently complete the clinical task

The Sonic Irrigator handpiece does not require calibration for normal use.
