3m Espe Elipar Deepcure S Led Curing Light

Rs. 89,000.00
Add to Wishlist
Specifications
Care Instruction
Features
  • Wavelength: 430–480 nm
  • Number of Curing Modes: 6
  • Voltage: 110 V - 240 V, 120 V
  • Maximum Light Wavelength: 480 nm
  • Minimum Light Wavelength: 430 nm
  • Light intensity: 1,470 mW/cm2 (-10%/+20%)
  • Power supply: Lithium-ion battery Approx. 120 min. battery runtime (~720 10-sec. cures) with constant light output regardless of battery charge
  • Operation: Intuitive two-button and single-mode operation Pre-set cure times: 5, 10, 15, and 20 sec. continuous mode (120 sec.) and tack cure mode
  • Curing time: Refer to material instructions; 10 sec. for many composites
  • Light guide: 10 mm, black coated, autoclavable, optimal intraoral reach due to the user- and patient-friendly geometry.
  • Charge the Curing Light: Place the curing light handpiece in the charging base to ensure it is fully charged before use.
  • Attach the Light Guide: Securely attach the 10mm diameter light guide to the front of the curing light handpiece.
  • Select the Curing Mode: The Elipar DeepCure-S has a single curing mode suitable for all light-curable dental materials.
  • Position the Light Guide: Carefully position the light guide as close as possible to the restoration or material to be cured, while ensuring patient comfort.
  • Activate the Curing Light: Press the single button on the handpiece to activate the curing light. The light will automatically turn off after the pre-set curing time.
  • Observe the Curing Process: Monitor the curing process and ensure the light guide remains in the correct position throughout the exposure.
  • Disinfect the Light Guide: After use, remove and disinfect the light guide according to the manufacturer's instructions.
  • Charge the Curing Light: Place the handpiece back in the charging base to recharge the battery for the next use.
  • High Light Intensity: Delivers 1200 mW/cm² intensity for efficient polymerization of dental restorative materials.
  • Increased Optical Power: Provides up to 50% more optical power compared to previous models.
  • Larger Curing Surface: Features a light guide with an 10 mm diameter, offering up to 80% more curing surface area and reducing the number of exposures needed.
  • Deeper Curing: Optimized optics ensure a deep, uniform cure from the surface to the cavity bottom, even at clinically relevant distances.
  • Improved Depth of Cure: Significantly better depth of cure, even when light positioning is difficult.
  • Uniform Light Distribution: Provides better light uniformity and intensity distribution at clinically relevant distances.
  • Easy Access: Updated light guide geometry allows easy access to all tooth surfaces.

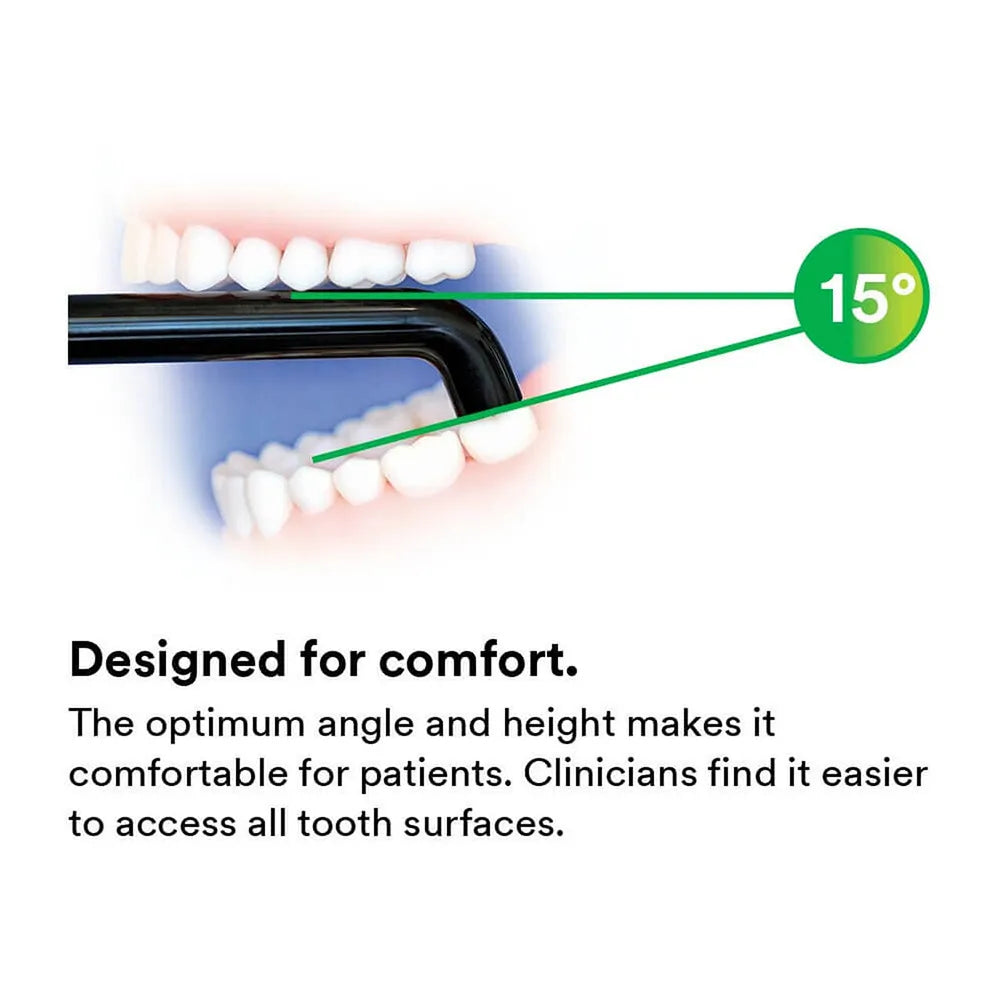

  • Patient Comfort: The angle of the light guide is designed for patient comfort, even with limited mouth-opening abilities.

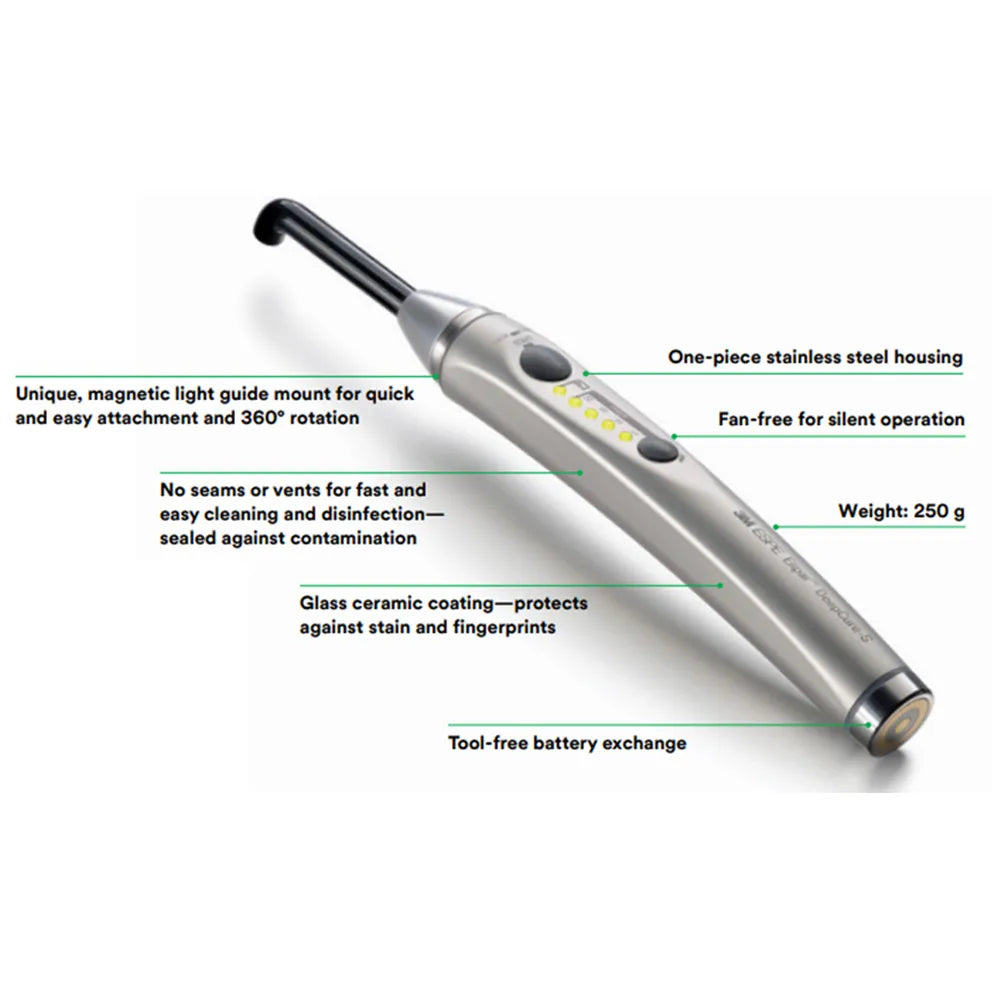

  • Robust and Easy to Disinfect: One-piece, high-quality stainless steel casing is virtually unbreakable and sealed against contamination, making it robust and easy to disinfect.
  • Simple Operation: Features two-button operation with one cure mode for all indications.
  • Charging Base: Includes a charging base with a built-in light intensity meter and battery charge indicator.
  • High Light Intensity: Delivers 1200 mW/cm² intensity for efficient polymerization of dental restorative materials.
  • Increased Optical Power: Provides up to 50% more optical power compared to previous models.
  • Larger Curing Surface: Features a light guide with an 10 mm diameter, offering up to 80% more curing surface area and reducing the number of exposures needed.
  • Deeper Curing: Optimized optics ensure a deep, uniform cure from the surface to the cavity bottom, even at clinically relevant distances.
  • Improved Depth of Cure: Significantly better depth of cure, even when light positioning is difficult.
  • Uniform Light Distribution: Provides better light uniformity and intensity distribution at clinically relevant distances.
  • Easy Access: Updated light guide geometry allows easy access to all tooth surfaces.
  • Patient Comfort: The angle of the light guide is designed for patient comfort, even with limited mouth-opening abilities.
  • Robust and Easy to Disinfect: One-piece, high-quality stainless steel casing is virtually unbreakable and sealed against contamination, making it robust and easy to disinfect.
  • Simple Operation: Features two-button operation with one cure mode for all indications.
  • Charging Base: Includes a charging base with a built-in light intensity meter and battery charge indicator.
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: 3M ESPE consumables
Tags: Product

Share On

Description
3m Espe Elipar Deepcure S Led Curing Light

The 3M ESPE Elipar DeepCure-S LED Curing Light is a high-performance light-curing unit designed for efficient polymerization of dental restorative materials. It features a powerful LED light source that delivers consistent and uniform light intensity, ensuring reliable curing results.The Elipar DeepCure-S offers a wide light-curing spectrum, making it suitable for a variety of light-curable materials, including composites, cements, and sealants. Its compact and ergonomic design allows for easy handling and access to posterior teeth.The curing light has a large light guide with a 10 mm diameter, providing a broad curing area and reducing the number of exposures needed. It also features a built-in radiometer to monitor the light intensity, ensuring optimal performance.With its advanced features and user-friendly design, the 3M ESPE Elipar DeepCure-S LED Curing Light helps dental professionals achieve efficient and reliable curing results, contributing to the success of their restorative procedures.
