TECHNICAL SPECIFICATION:
Model Wal-Pex5 Dimension 205x185x50mm Weight 585gm Power Supply 3.7V,800mAh Charger Power Supply AC100-240V Frequency 50/60Hz Charger Nominal Power Input 5VA Electrical Safety Class Class II Ambient temperature 10°c/40°c
MAINTENANCE :
OPERATION
PARTS
PROCESSING
CLEANING
ALL
REMOVE DEBRIS UNDER RUNNING WATER ( EXCEPT ELECTRONIC PARTS ), AND THEN WIPE OFF ALL COMPONENTS.
DISINFECTION
MAIN UNIT MEASURING WIRE ADAPTER
WIPE THE COMPONENTS WITH A PIECE OF GAUZE IMPREGNATED WITH ETHANOL( ETHANOL 70 TO 80 % vol). MAKE SURE THE COMPONENTS ARE DRY BEFORE NEXT STEP. IF USE OF WASHER – DISINFECTORS, USE ONLY APPROVED DEVICES ACCORDING TO EN ISO15883 AND REFER TO THEIR MANUFACTURER’S INSTRUCTIONS FOR USE.
PACKING
LIP HOOK
FILE CLIP
PROBE
PACK COMPONENTS IN STERILIZATION POUCHES.
USE POUCHES WHICH RESIST TO A TEMPERATURE UP TO 141 °C AND COMPLY WITH EN ISO11607.
STERILIZATION
LIP HOOK
FILE CLIP
PROBE
STEAM STERILIZATION AT 134 °C AT LEAST 4 MINUTES, OR AT 121 °C AT LEAST 35 MINUTES. MINIMUM DRYING TIME AFTER STERILIZATION : 10 MINUTES.
STORAGE
ALL
KEEP THE COMPONENTS IN STERILIZATION PACKAGING IN A DRY AND CLEAN ENVIRONMENT.
BEFORE USING :
CHARGING :
- Turn the device on by pressing the button, connect the USB cable to the unit power connector, and plug the other end into a power outlet.
- While charging, the battery symbols on the screen.
- Fully charged will take about 4 hours, depending on residual battery power and battery state.

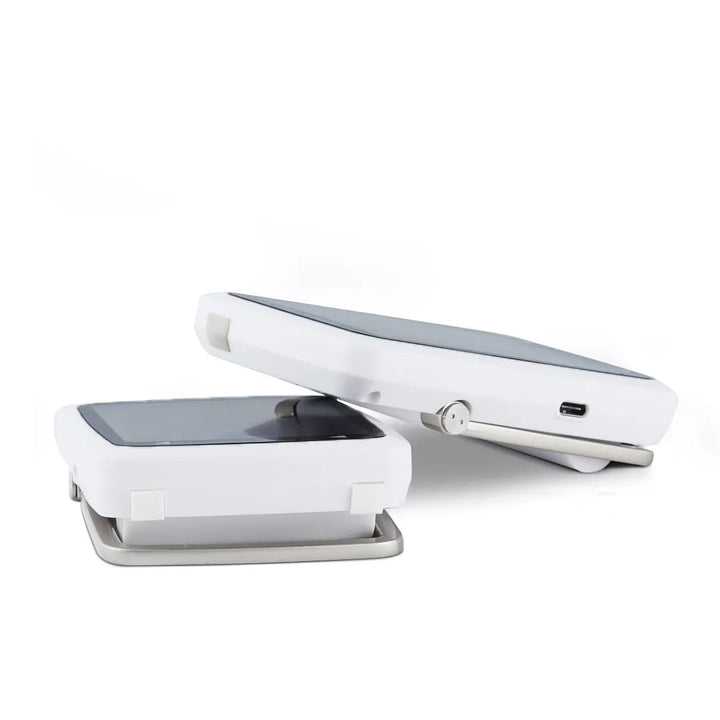

INSTALLATION AND POWER ON - OFF :
- Power button.
- Volume Key.
- Reference Key.
- Insert the measuring wire into the main unit and gently insert it. Make sure to connect properly.
- Insert the lip lock, the file clip or the probe into the two sockets at the other end of the measuring wire.
- Inserting the measuring wire is the same on either side.
OPERATION :
Volume setting :
- Touch the volume button in the panel to select different volume settings, and the modified volume setting will be saved automatically.
SETTING THE REFERENCE POINT :
- Touch⮜ on the device can set the reference point, between 0~1 mm, and the number ''0.0'' - ''0.6''.
- The reference point will be saved automatically.
ACCURACY TEST :
- In the standby state, connect the tester to the device and observe the number displayed on the host.
- If it is 0.2, 0.3 or 0.4, that means the device is working properly.
MAKING A MEASUREMENT :
- Clip the file clip to the metal shaft of the file.
- Press in direction of arrow and clip file, then release to finish the installation.
- Connect the lip hook to the patient's lip.
- Then, connect the file clip to the file which is inserted into the treated root canal.

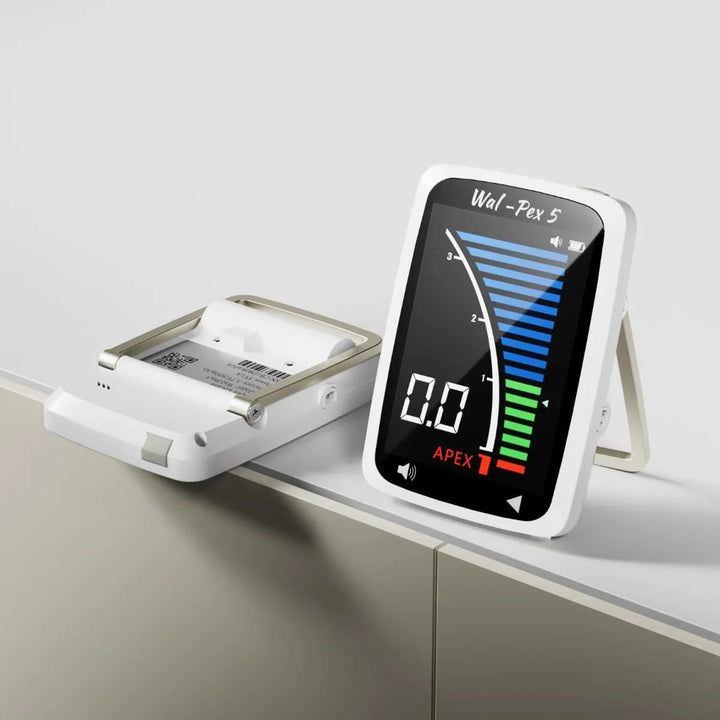

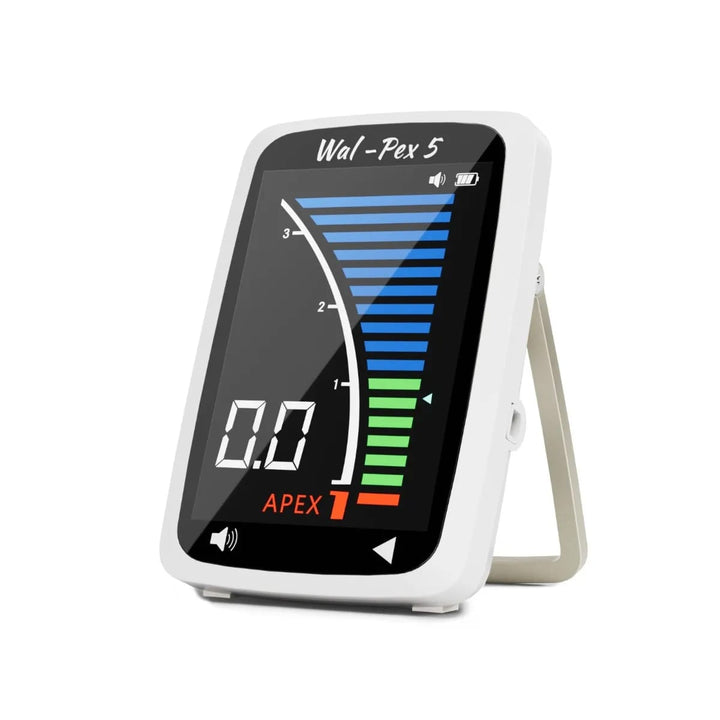

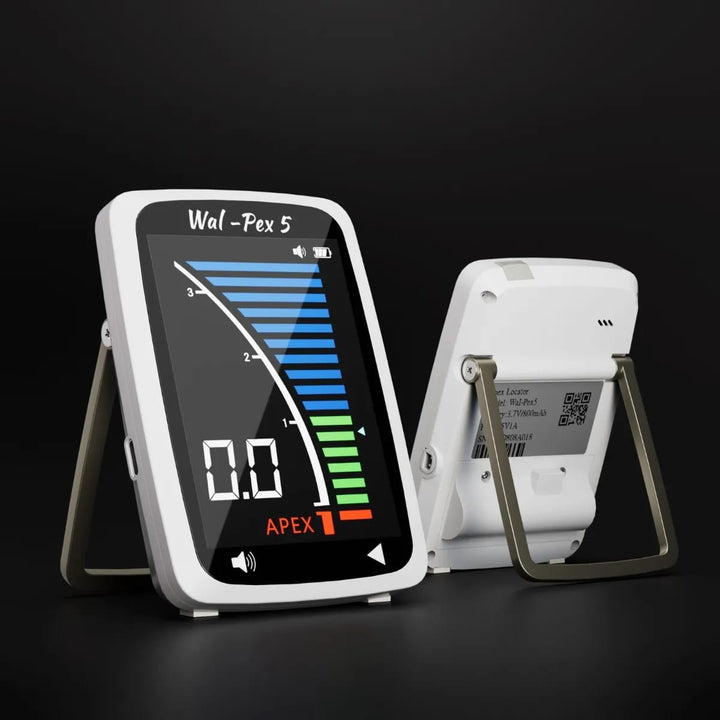

- The progression of the file into the canal in reference to the apex will be indicated on the display.
- Observing the stripes and numbers indicated on the display while moving the file into the root canal slowly.
- When the file enters into the front region of the apical foramen, stripes are blue.
- The numbers indicate the remaining number of strips before reaching the major apical foramen.
- Stripes become green into the apical zone. The minor and major apical foramina are separated by 7 strips from is reached and the beep will sound continuously.
- When the file tip over the apex, stripes become red and the label ''APEX'' blinks wth a rapid beep.
